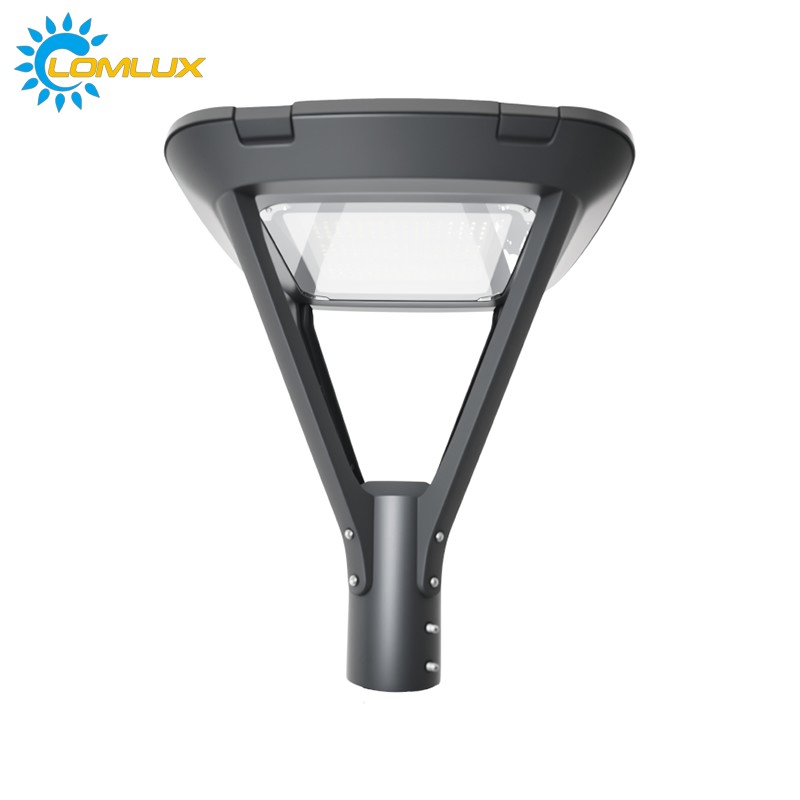

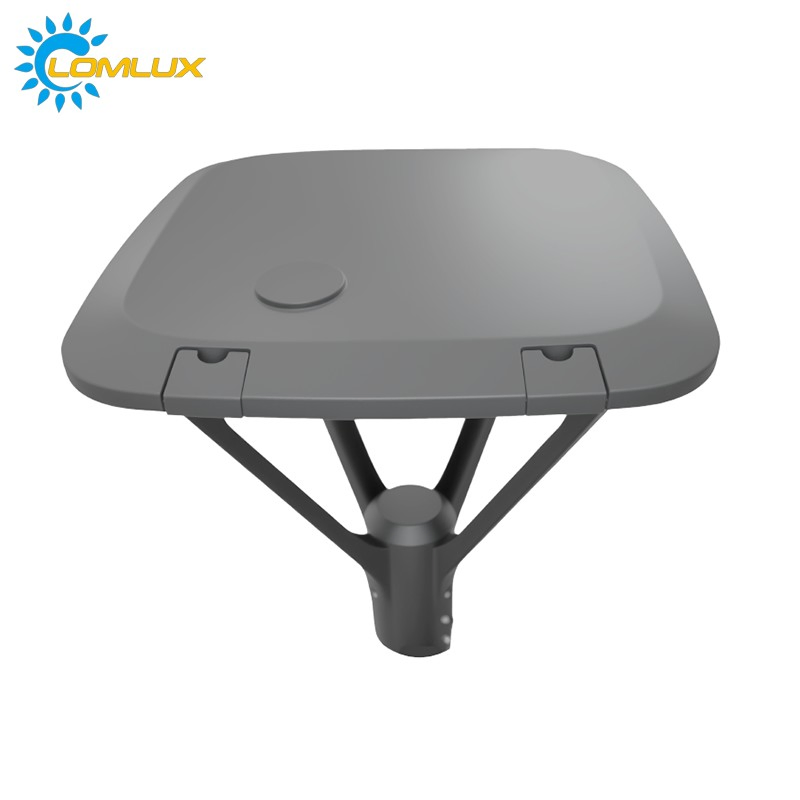

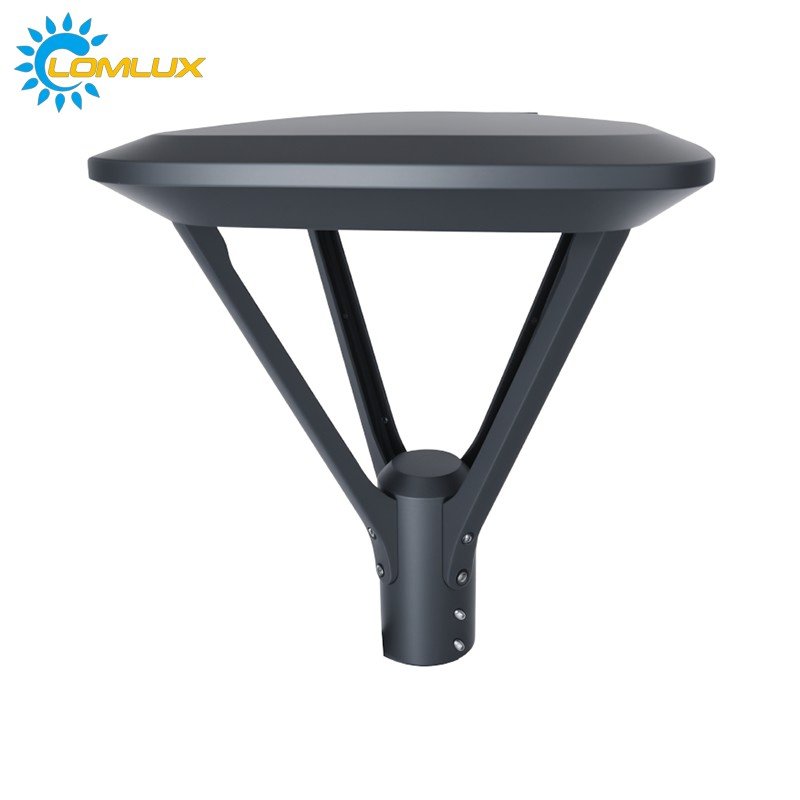

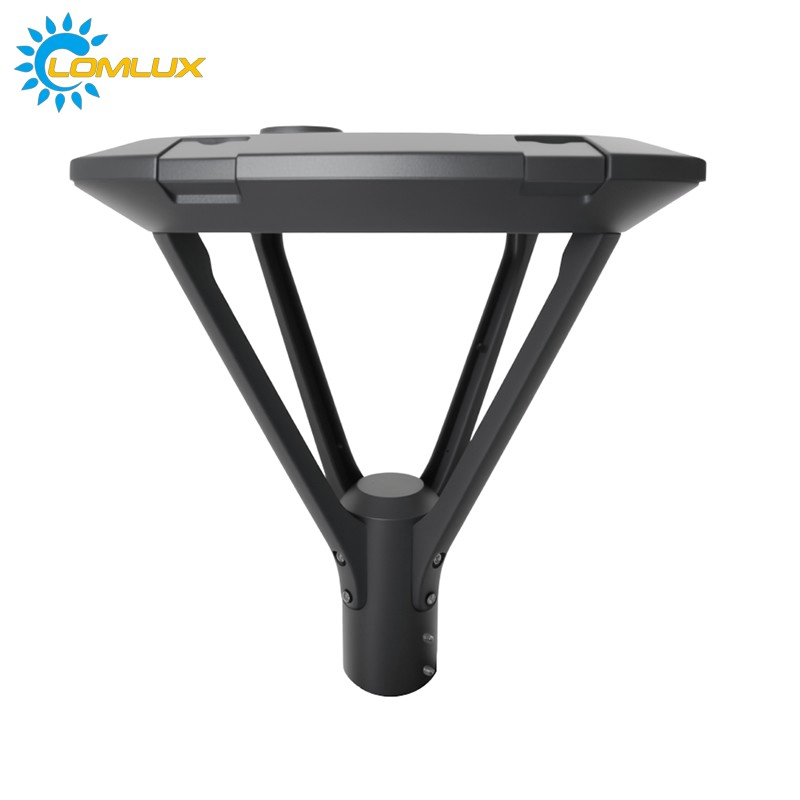

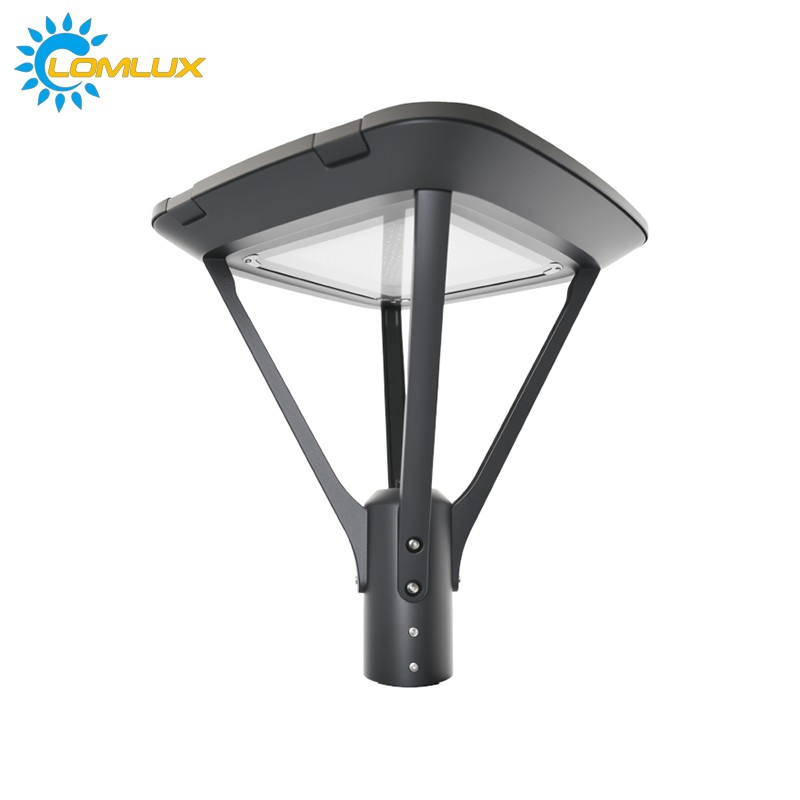

SQUARE LED GARDEN LIGHT LM-GSL01 20-120W
✓ Long Useful Life: High durability and low running costs with resistance to mechanical damage.
✓ Die-cast Aluminum: Ensures effective heat dissipation and high durability.
✓ Power-coated Body: Self-cleaning coating (Standard RAL9007) for corrosion protection.
✓ High Efficiency: 150lm/W efficacy reduces electricity costs by over 50%.
✓ Smart Lighting: 3/5/7Pin NEMA support for Photocell, 1-10V / PWM / DALI Dimming.
✓ Certified Quality: ENEC+, CB, SAA, CE, EMC, RoHS, IP66, IK09, LM79, TM21.

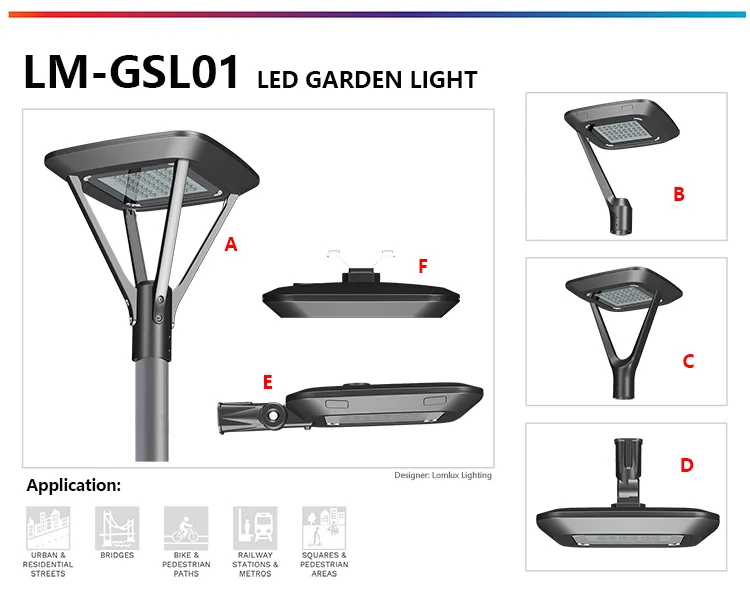

| Model | LM-GSL01A | LM-GSL01B | LM-GSL01C | LM-GSL01D | LM-GSL01E | LM-GSL01F | LM-GSL01S (Solar) |
|---|---|---|---|---|---|---|---|
| Size | D480*H538mm | D480*H567mm | D480*H567mm | D480*H275mm | 647*480*99mm | D480*H147mm | D588*H524mm |
| Power | 20-120W | ||||||
| Luminous Flux | 135-155lm/W | ||||||
| Material | Aluminum, LED Chip, Lens, Toughened Glass, Screw | ||||||
| LED Chip | 3030SMD, 5050SMD, CREE | ||||||
| Driver | Meanwell, Sosen, Inventronics or specified brand | ||||||

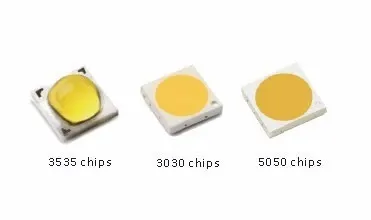

High Efficacy LED Source
Luminous source providing excellent lumen output and stability. The efficiency of 5050 chips is more than 175 lm/w.

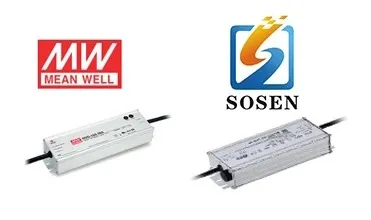

High-End LED Driver
Programmable LED driver with 4KV / 6KV surge protection. Optimal stability and excellent lifespan.

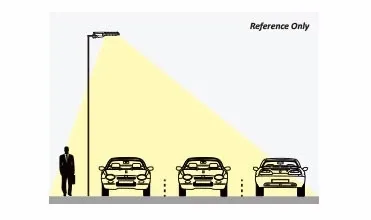

Variety Light Distribution
Different lens options (Type I, II, III) to achieve the best lighting effect for different road applications according to IESNA standards.

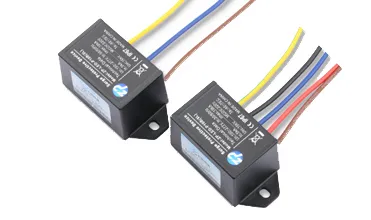

Surge Protection Device
TUV approved 10KV 20KV surge protection device is standard configuration for safety.
