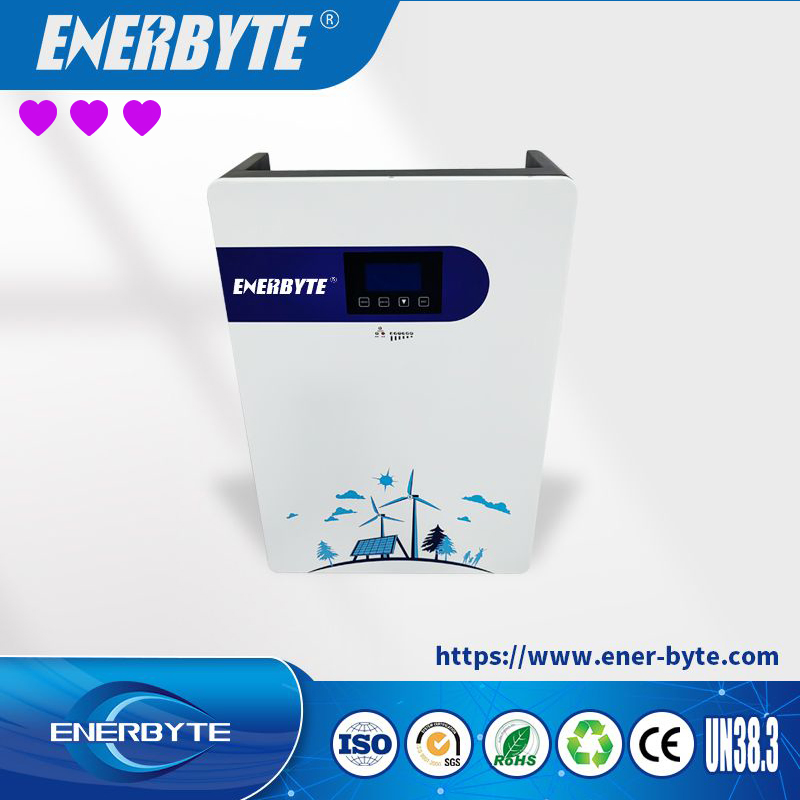

4.8kwh Installation Customized Complete Approved on/off Grid Renewable Solar Rechargeable Storage Panel PV Power Energy Home Modules System with ISO SGS

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
RechargeableChargeable
Discharge RateMedium Discharge Rate
SizeMedium, 240*161*181
Accessories TypeBattery
Rated Capacity>1000MAH
Standard Voltage1.5V~4.8V
UsageHome Energy Storage, RV, Boat, etc.
ElectrolyteLi-ion
Nominal Voltage22.2V / 51.2V
CertificationRoHS, TUV, CB, CE, UN38.3, MSDS
Product Description

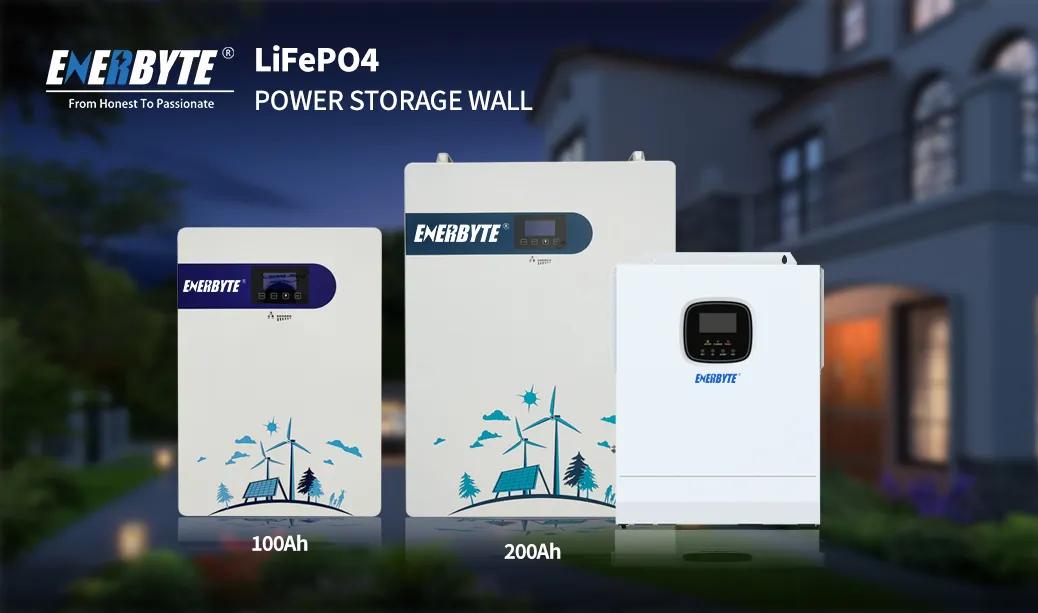

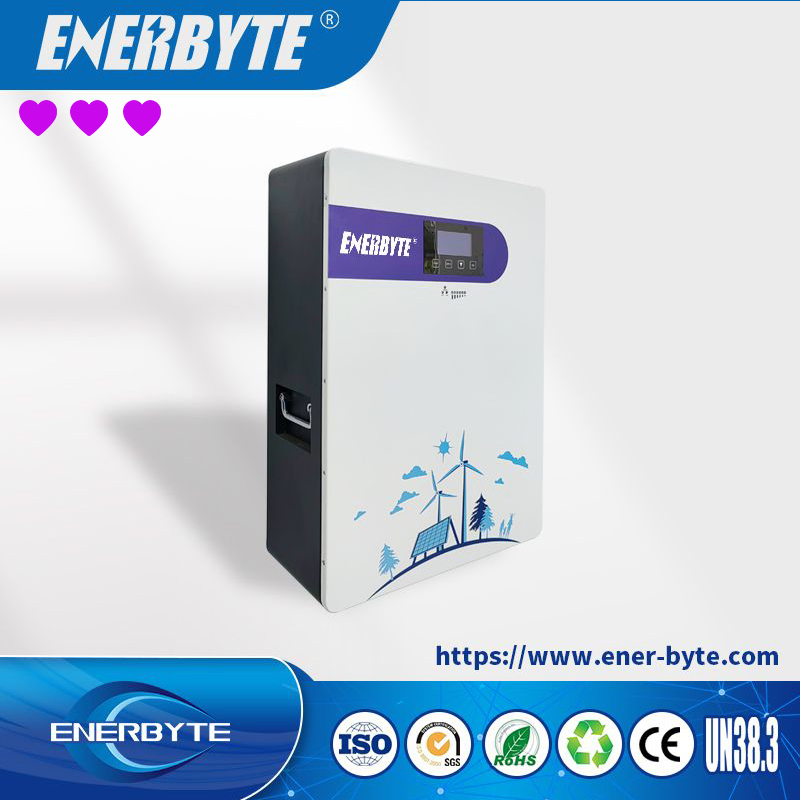

Power Storage Wall

LiFePO4 POWER STORAGE WALL

1
Long life and safety Vertical industry integration ensures more than 5000 cycles with 80% DoD. Safe Lithium iron phosphate battery cell.
2
Intelligent Each battery with independent BMS system manages power output smartly and effectively.
3
Modularization Modular design gives customers choice of capacity. Deliver up to 40.96KW with single max module (2.56kWh) at 16pcs parallel connection.
4
Easy to install and use Just plug and play to minimize the installation time and cost. Compact and fashionable design fits home environments.
5
Compatibility Compatible with most of the available Hybrid inverters.
Product Parameters
Items Specification Remark
Nominal Voltage51.2V
Capacity100AH (5.12KWh)
Charge limit voltage58.4VMax
Working Voltage44.8-58.4V
Standard charging/discharging current20A0.2C
Maximum charging/discharging current100ABased on BMS
Cell modelLFP 3.2V 50Ah
Dimensions640*430*185±3mmMain body
Battery weight55kg±2kg
Working temperatureCharge: 0~45ºC / Discharge: -20~60ºC10%-90%RH
Detailed Photos & Interface

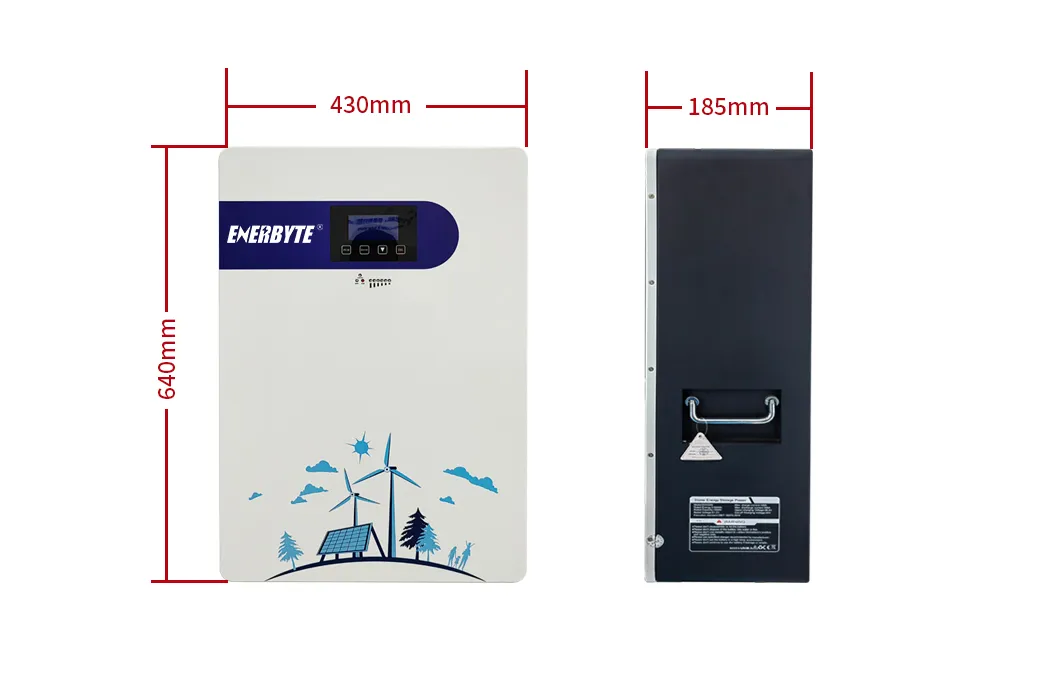

Product Body

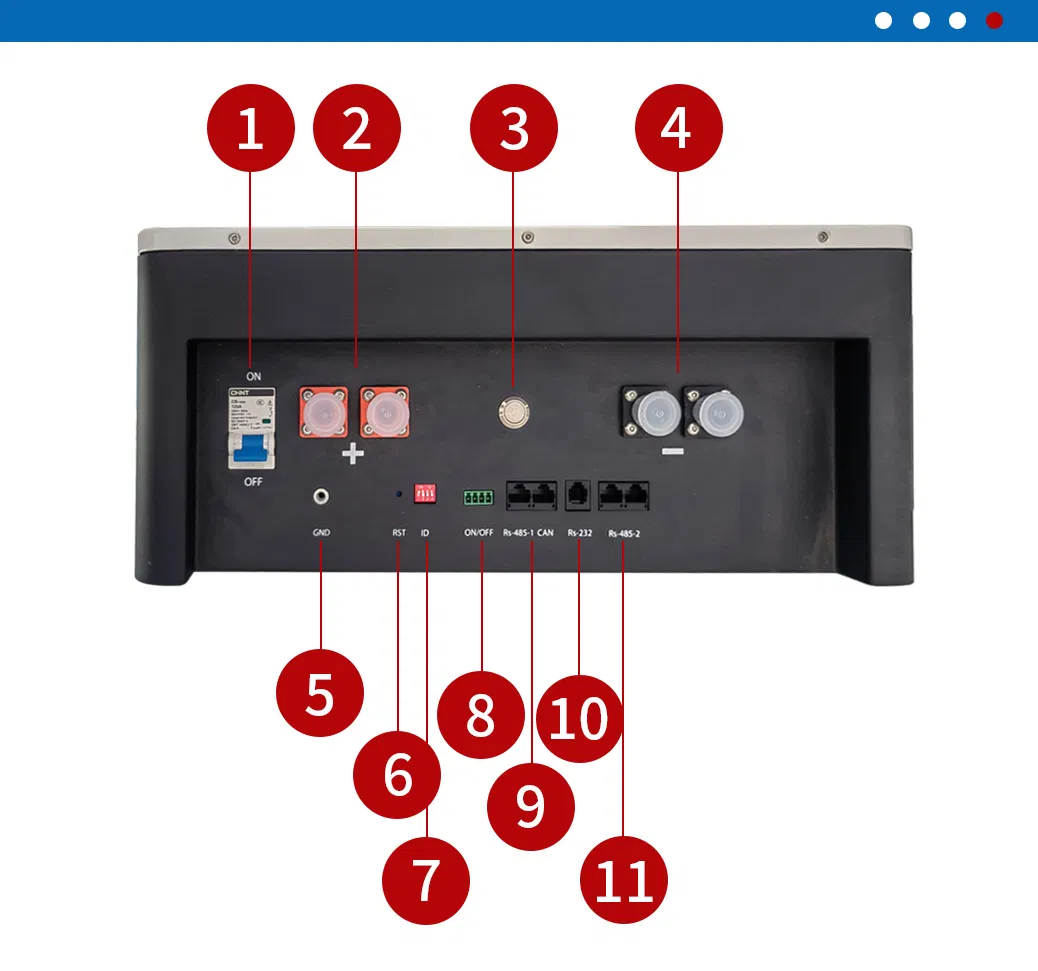

Interface Details
1. BreakerInput and output power switch2. P+ / P-Positive/Negative interface
3. Weak current switchBMS Turn On/OFF5. GNDGround connection
7. DIP switchParallel address configuration9. RS485/CANInverter communication
Product Features

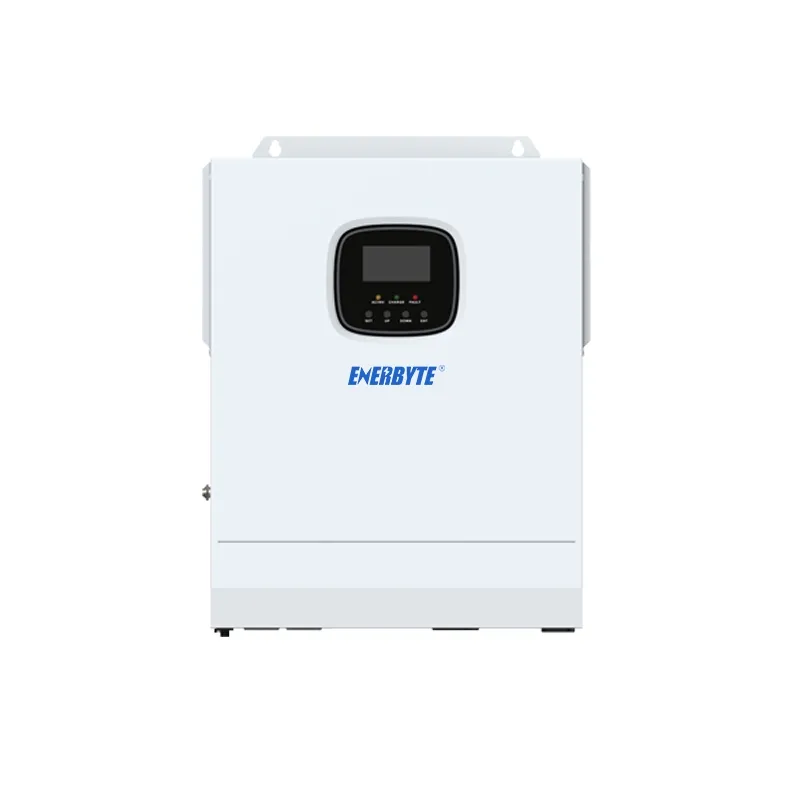

Feature 1
  • • Max. charging current up to 120A
  • • Support remote monitoring
  • • Up to 99.9% MPPT tracking efficiency
  • • Comprehensive protection
  • • Support Li-ion battery BMS communication
Inverter Output Parameters
Rated Output Power1,000W1,500W
Peak Power2,000VA3,000VA
Output Voltage230Vac, Single-Phase
WaveformPure sine wave
Applications & Customization

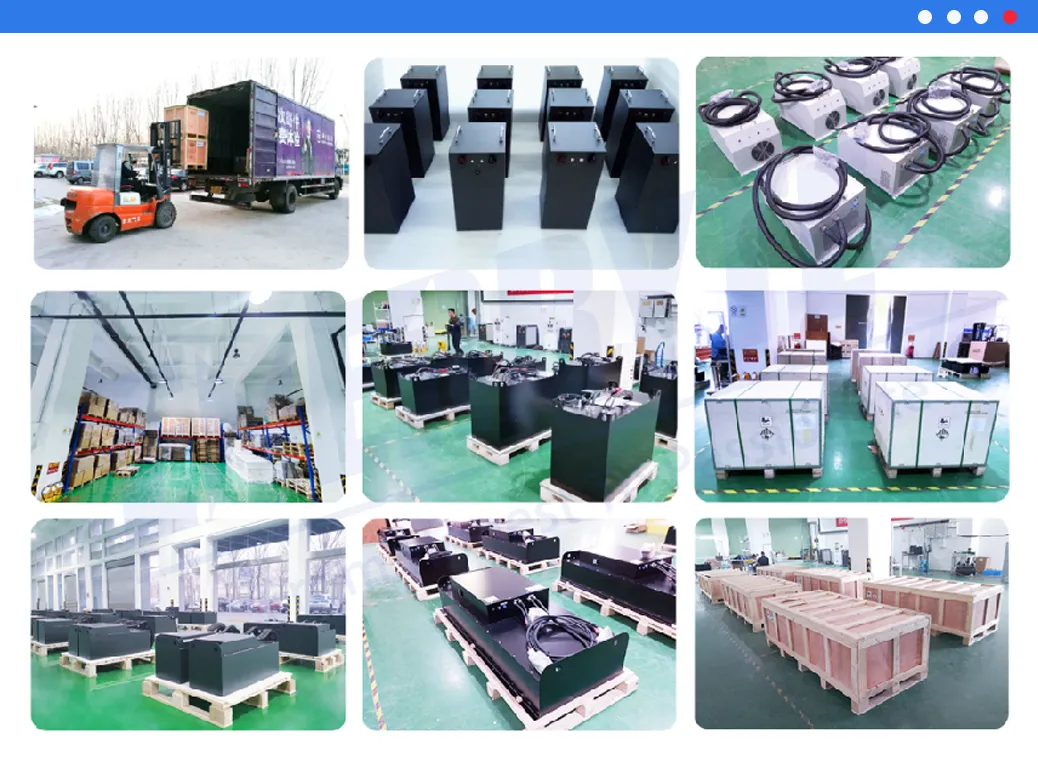

Customization 1
Customization 2

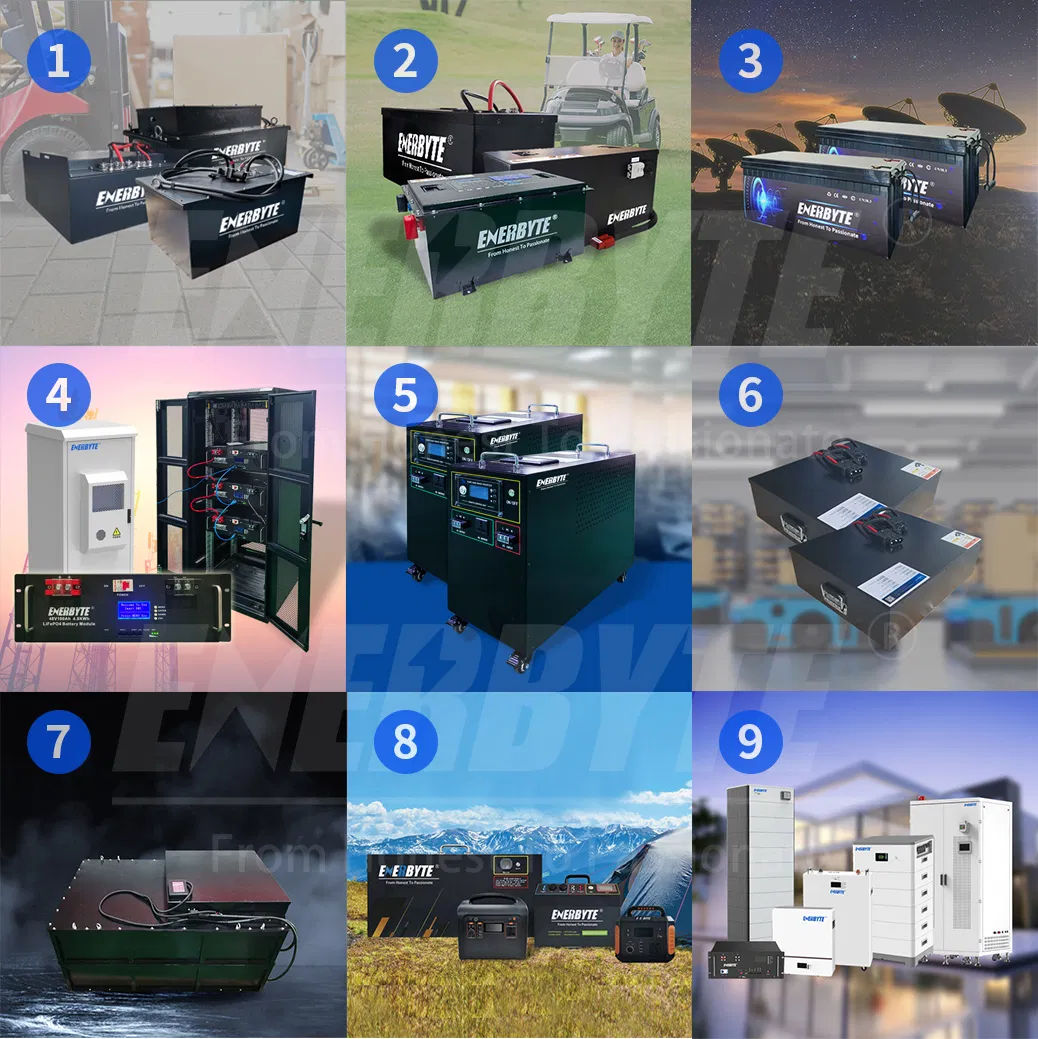

Our battery products cover multiple fields and support customization:
1. Forklift Battery
2. Golf Cart Battery
3. LiFePO4 Battery Packs
4. Telecom Lithium Battery
5. UPS Lithium Battery
6. AGV Battery
7. Customized Battery
8. Power Bank
9. Home Energy Storage
Fields
Precautions
  • Use special chargers designed for lithium batteries only.
  • Charger voltage and current must match battery pack parameters.
  • Do not store in humid or high-temperature environments.
  • Do not short-circuit terminals or reverse charge.
  • Do not disassemble, squeeze, or hit the battery.
  • Avoid charging in direct sunlight.
  • Fully charge every 3 months when not in use and store in a dry, cool place.
Frequently Asked Questions
What payment terms do you accept?
We accept T/T, L/C, and Western Union.
What is the warranty policy?
We offer a 5-year warranty. Our LiFePO4 batteries feature high safety performance and a service life exceeding 10 years.
How do I choose the right battery?
Please provide your specific requirements (capacity, voltage, usage), and our team will recommend the most suitable model.
What is your MOQ?
There is no minimum order quantity; a 1-unit sample order is acceptable, though bulk orders offer better cost performance.
Can you accept OEM and ODM services?
Yes, we provide comprehensive OEM and ODM services tailored to client requirements.
How long is the delivery time?
Standard delivery is usually within 4 weeks, depending on the order quantity and specific requirements.
