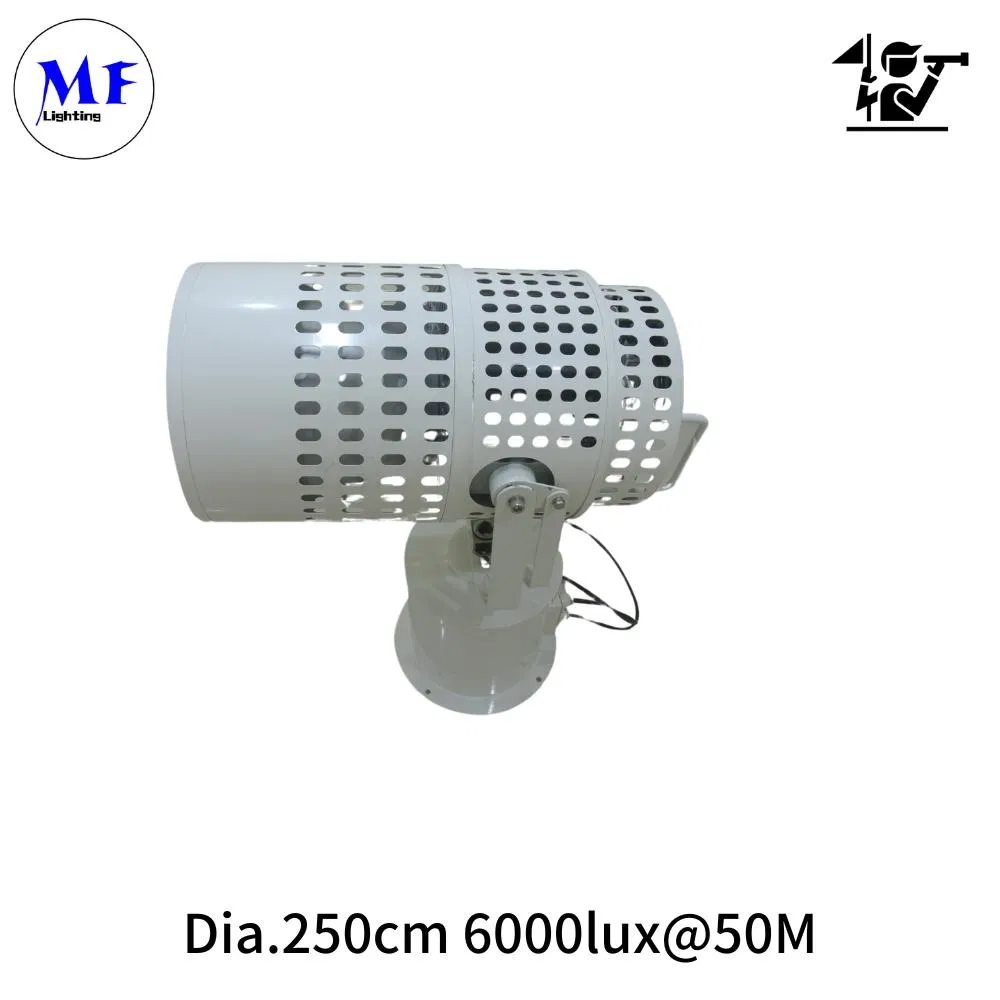

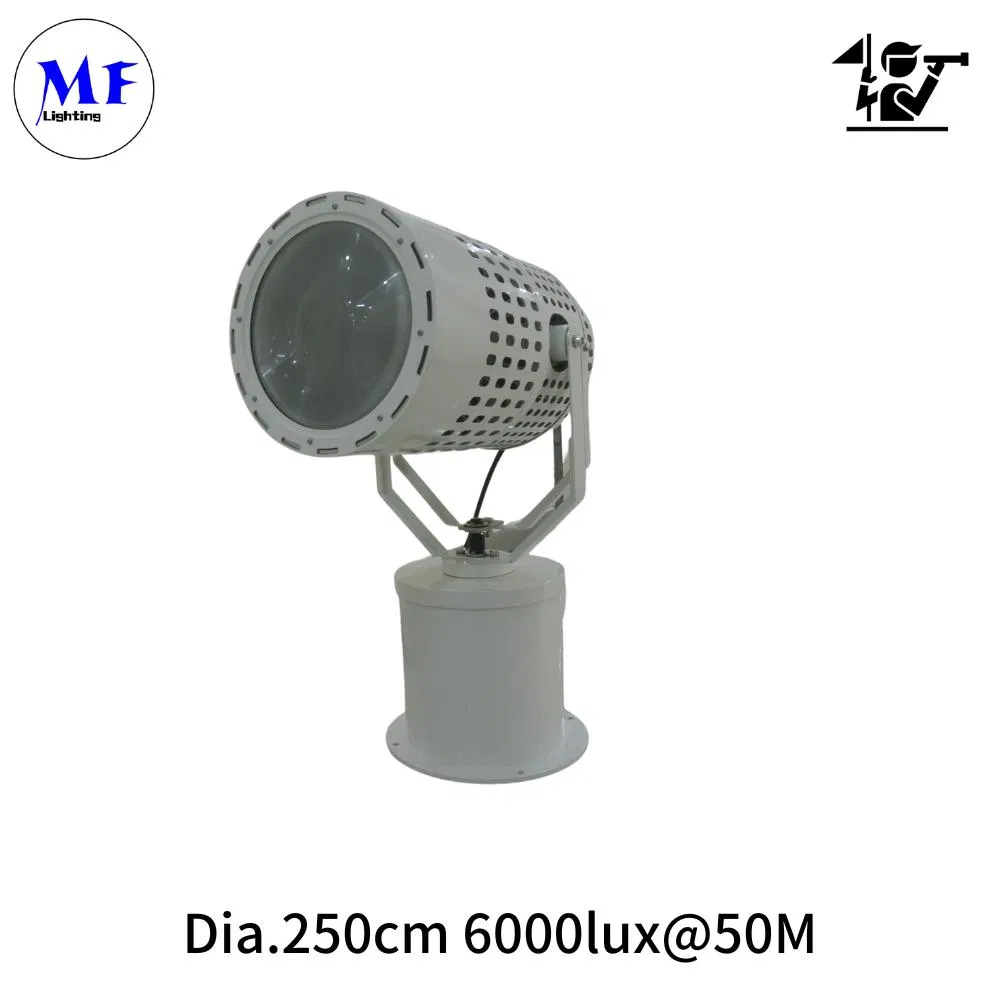

2.5deg 500W 3km Stainless Steel Marine Grade LED Search Light Fishing Security Rescue Searchlight Lighting Flashing Alart Light IP66 LED Maritime Work Lamp

Still deciding? Get samples of $ !
Request Sample

Product Description

ℹ️

Basic Information

Model NO.MF-C5A
Color TemperatureWhite (4000-4500K)
IP RatingIP66
Light Intensity> 5,000 Lumens
Light SourceLED
Power Options80W, 200W, 300W, 500W
Voltage100~277V AC
Projection Distance≥3000 M
Lens Beam Angle2.5°
Material316L Stainless Steel
Lifespan50,000 hrs
Warranty5 Years

2.5deg 500W 3KM Stainless Steel Marine Grade LED Search Light

Fishing Security Rescue Searchlight Lighting Flashing Alert Light IP66 LED Maritime Work Lamp.

Marine Grade LED Search Light

Quick Details

  • Source: LED
  • Voltage: AC100-277V 50/60Hz
  • Power: 300W/400W/500W/600W
  • Lumen: 50,000 lm
  • CRI: ≥70
  • Beam Angle: 2.5°
  • Protection: IP66
  • Range: ≥3000 m
  • Material: 316L Stainless steel
  • Rotation: Horizontal 350°, Vertical ±25°

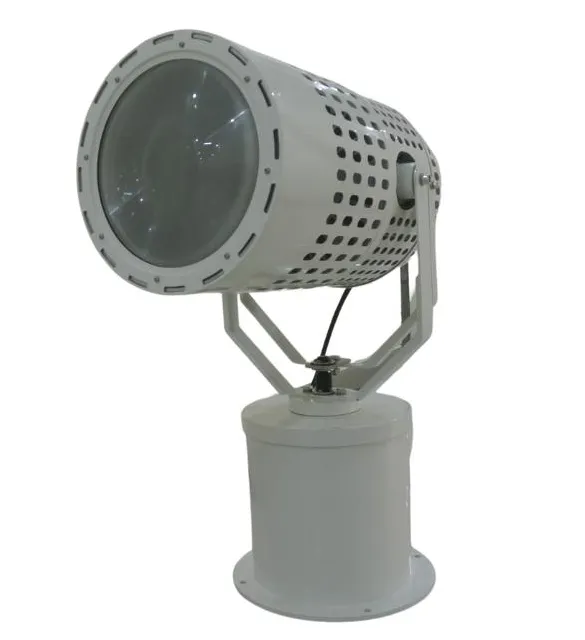

LED Searchlight Detail
📋

Technical Specifications

Ideal for National defense, safety, Maritime, water conservation (reservoir, hydrological station), Expedition, oil fields, wharfs, Vessels, and search-and-rescue. Replaces Xenon and Metal Halide searchlights.

Item FeatureSpecifications
Operating Voltage100~277V AC
Beam Angle2.5°
Color Temp4000-4500K
Housing Material316L Stainless Steel
Beam Distance3000m
Lens TypeFresnel lens + Reflector
Intelligent ControlYes (Optional)
Tilting StandYes
🖼️

Detailed Photos

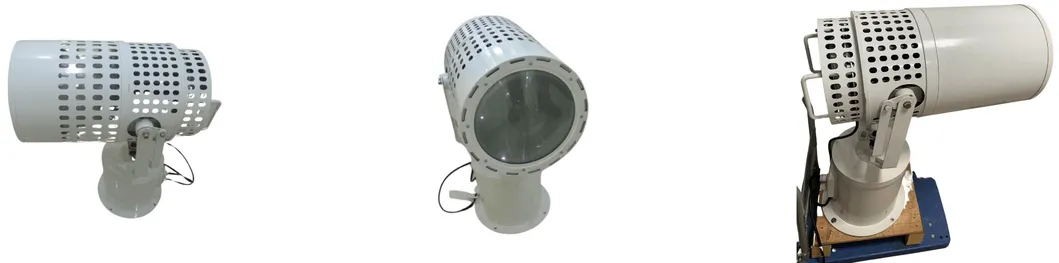

Product view

Project Distance: 3KM at 500W with 2.5° Beam

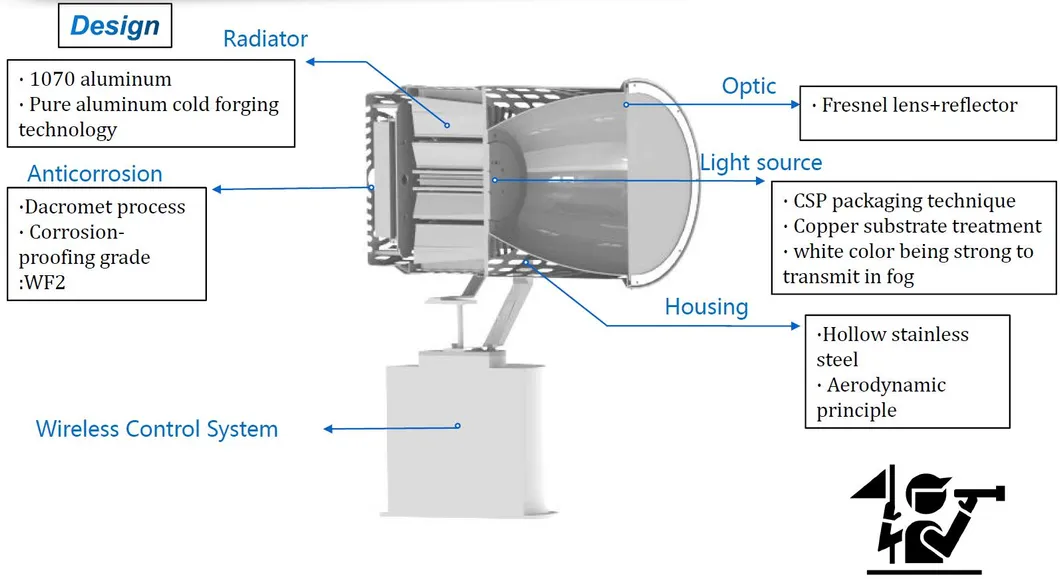

Projection test

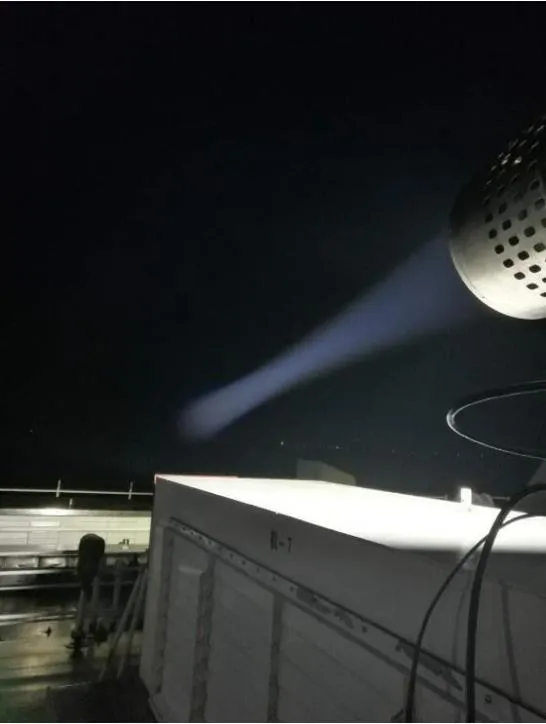

Angle 1

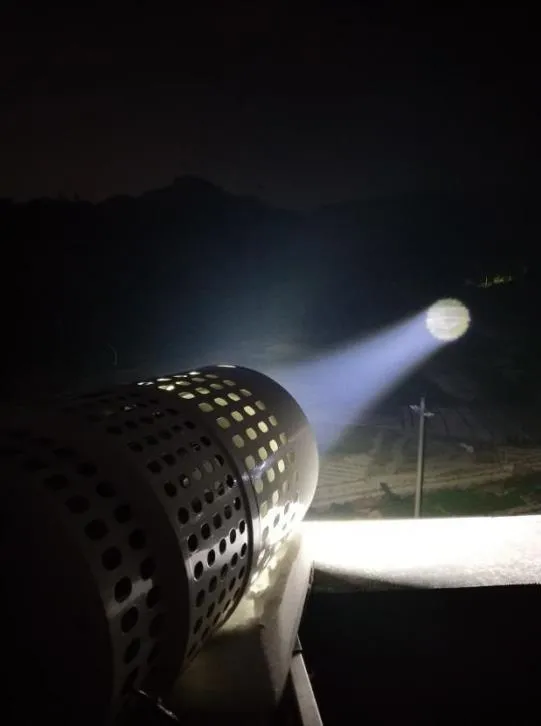

Angle 2

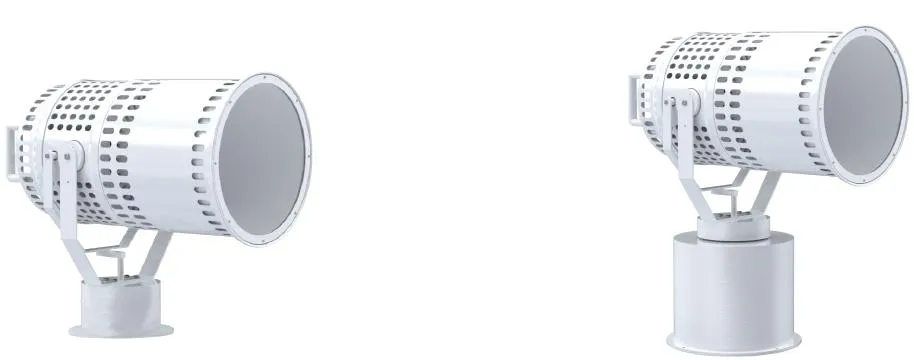

Measurement
🌟

Key Features

This sea sweeping lamp overcomes the major challenges of light distribution and heat dissipation for LED technology. With a maximum power of 500W for a single light source and a narrow 2.5-degree angle, it provides long-range projection and exceptional penetration.

  • High energy efficiency (over 60% energy saving compared to traditional sources).
  • Long service life (over 50,000 hours, 20 times longer than traditional lamps).
  • Marine grade 316L stainless steel for extreme anti-corrosion.
  • Stable performance for islands, reefs, large ships, and coastal defense.

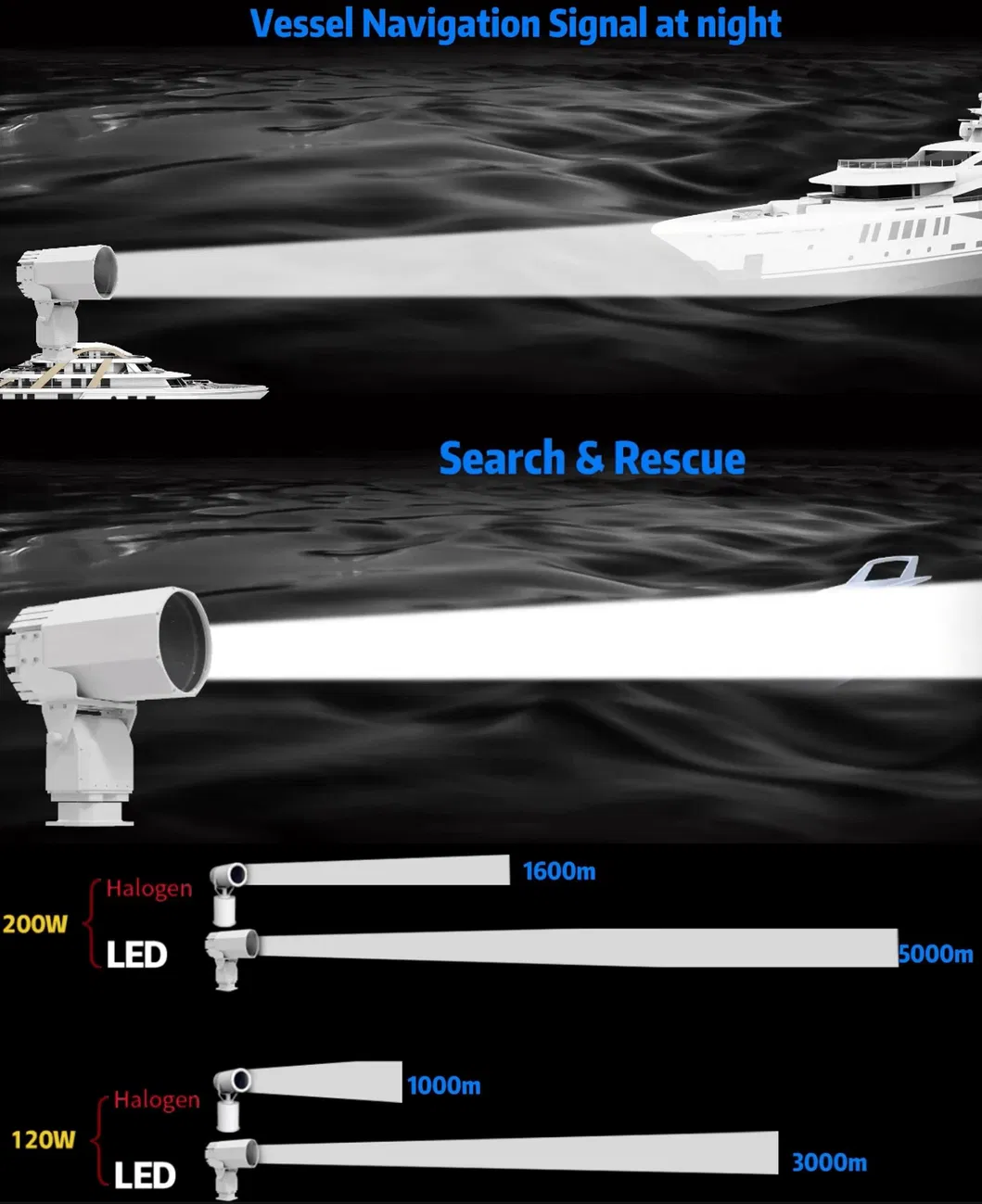

Internal components
🕹️

Photometry & Controllers

Photometric chart 1
Photometric chart 2

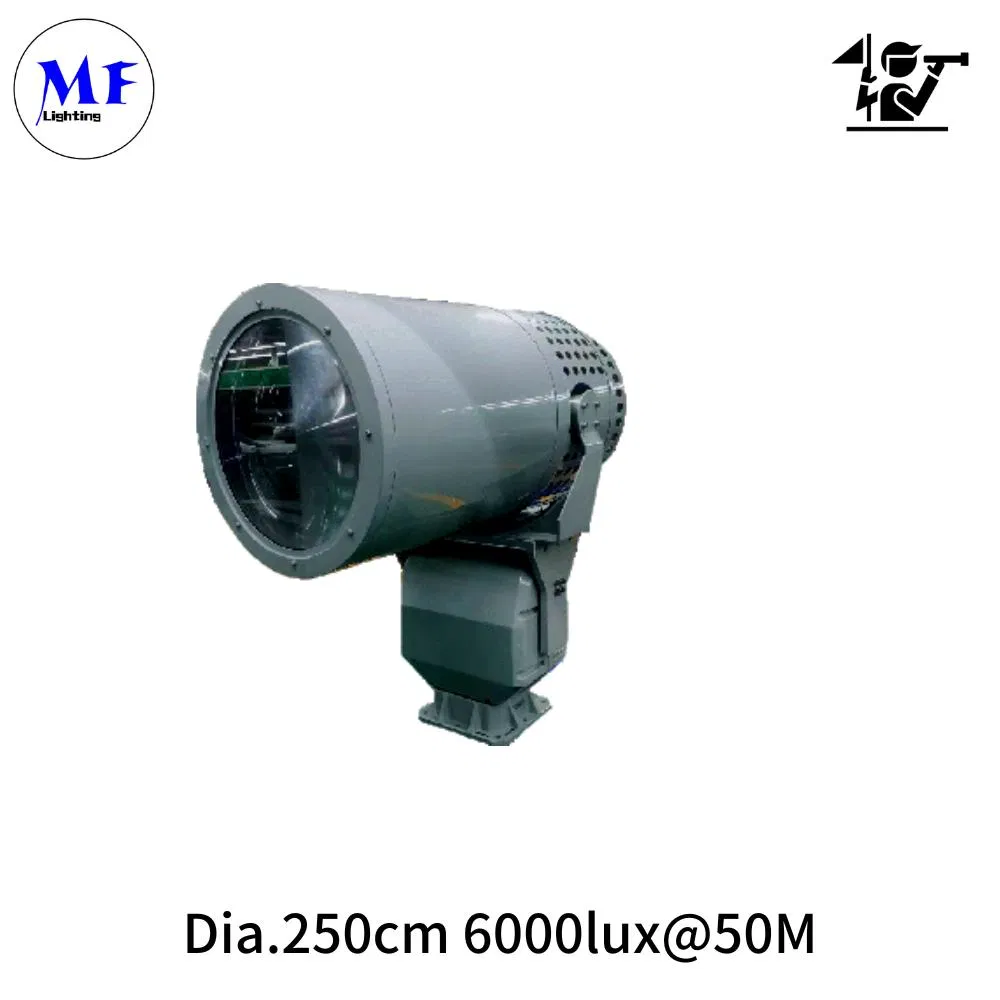

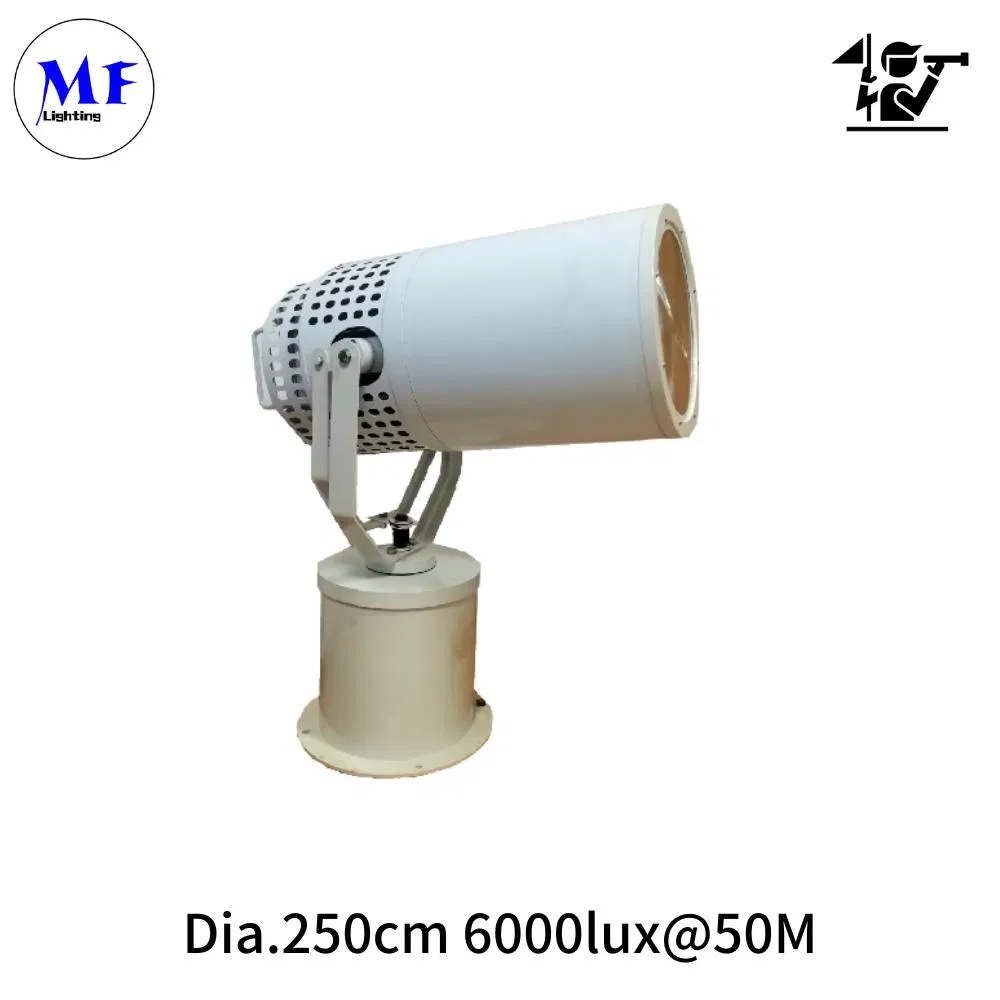

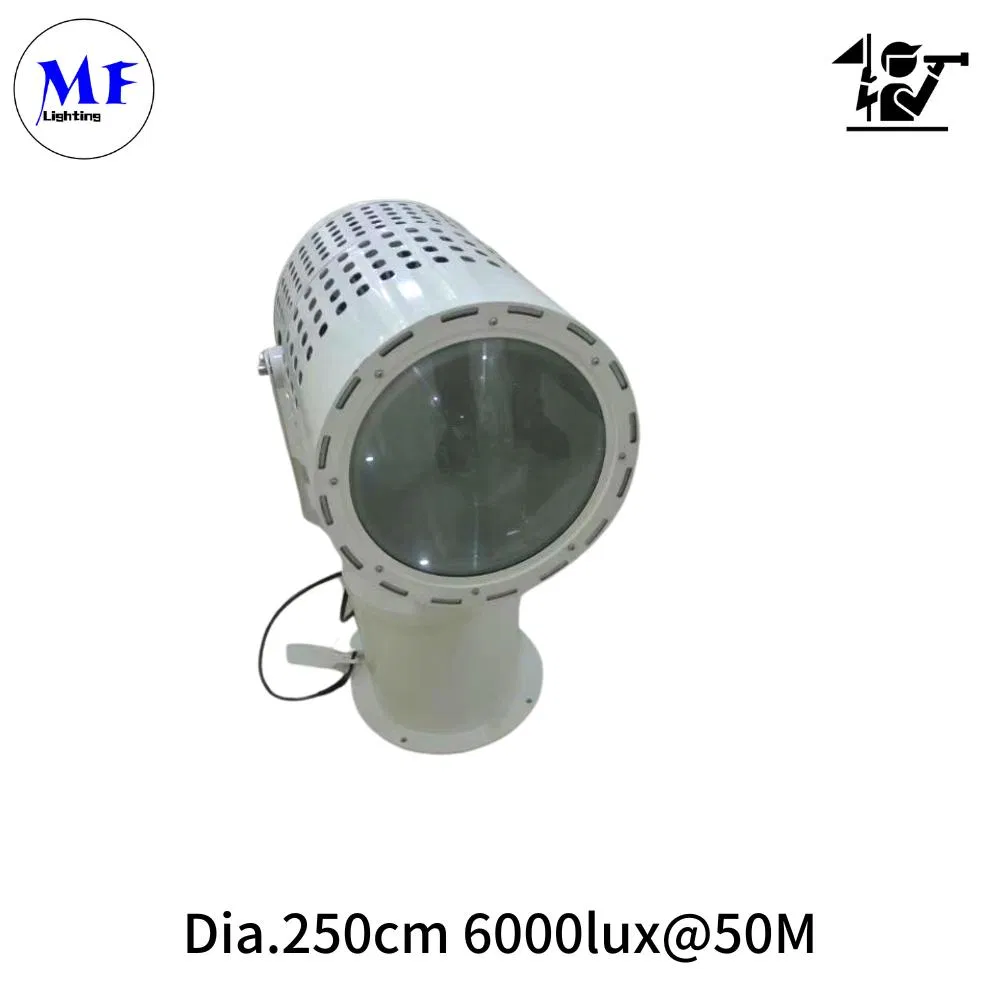

Dia.250cm 6000lux @ 50M

Multiple Control Modes (Optional):

  • Wireless/Wired 485 Smart Keyboard (controls up to 64 units).
  • Wireless Remote Control (with preset points).
  • Control distance up to 500m.
  • Variable cruising speeds (Fast, Medium, Slow).
Control System
🚀

Applications

  • Search and Rescue: Essential for illuminating large areas to locate individuals in distress.
  • Maritime Operations: Navigation, signaling, and coastal security.
  • Emergency Response: Reliable illumination during natural disasters or accidents.
  • Industrial & Construction: Nighttime visibility for worker safety.
  • Wilderness Exploration: Navigation in low-light emergency conditions.

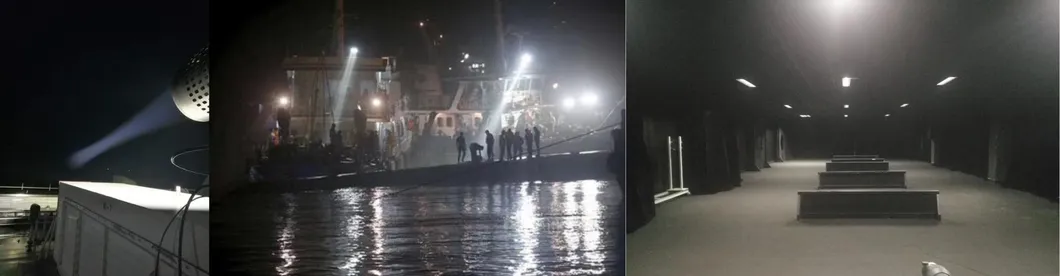

Application 1

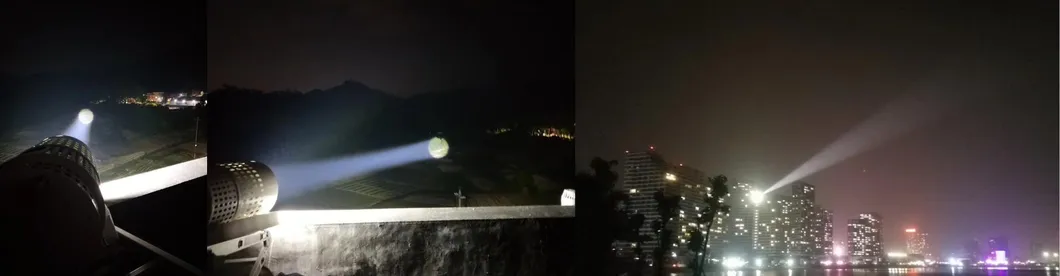

Application 2
Application 3

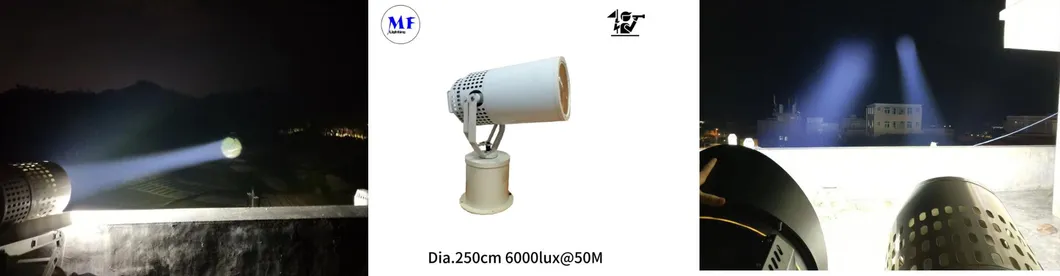

Application 4
Production Line Final Product
Frequently Asked Questions
Q1: What is the maximum projection distance of this LED searchlight?
The searchlight can project a beam up to 3000 meters or more, specifically designed for long-range marine and security operations.
Q2: Is the housing resistant to sea water corrosion?
Yes, the housing is constructed from high-grade 316L Stainless Steel, which offers superior resistance to corrosion in maritime environments.
Q3: What are the available power options for this model?
The searchlight is available in various power ratings, including 80W, 200W, 300W, and 500W to suit different operational requirements.
Q4: Does it support remote control functionality?
Yes, it supports multiple control modes including wireless smart keyboards, 485 wired keyboards, and wireless remote controls with a range of up to 500 meters.
Q5: What is the IP rating and lifespan of the light?
The unit is IP66 rated for waterproof protection and has a long lifespan of over 50,000 hours, significantly higher than traditional light sources.
Q6: What is the beam angle of this searchlight?
The light features an ultra-narrow 2.5-degree beam angle, utilizing a Fresnel lens and reflector composite system for high penetration.
