Aluminum Die-Cast Heat Sink, Inverter/Servo Motor Heat Sink

1 / 5

Aluminum Die-Cast Heat Sink, Inverter/Servo Motor Heat Sink

Customization:	Available
Die Casting Machine Type:	Cold Chamber Die Casting Machine
Die Casting Method:	Soluble Die Casting

Send Inquiry

Product Description

Basic Information

Model NO.

OEM

Application

Electronic Accessories

Machining

CNC Machining

Material

Aluminum Alloy

Surface Preparation

Deburring

Structure

Horizontal

Tolerance Grade

Surface Quality

Level 1

Certification

ISO 9001:2008, BV

Texture

ADC12

Industry

Auto Parts

Production Capacity

50000 Per Month

📦

Packaging & Delivery

Package Size

47.00cm * 41.00cm * 37.00cm

Gross Weight

3.500kg

Transport Package

Pallet, Carton, Wooden Cases, etc.

⚙️

Product Description

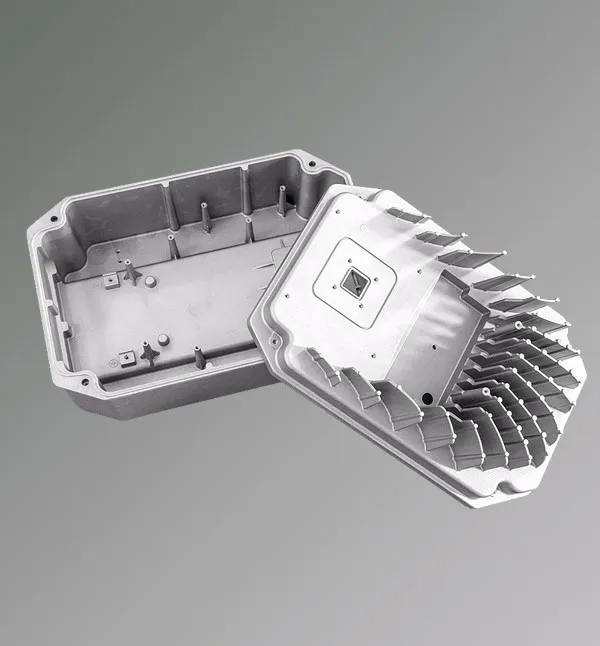

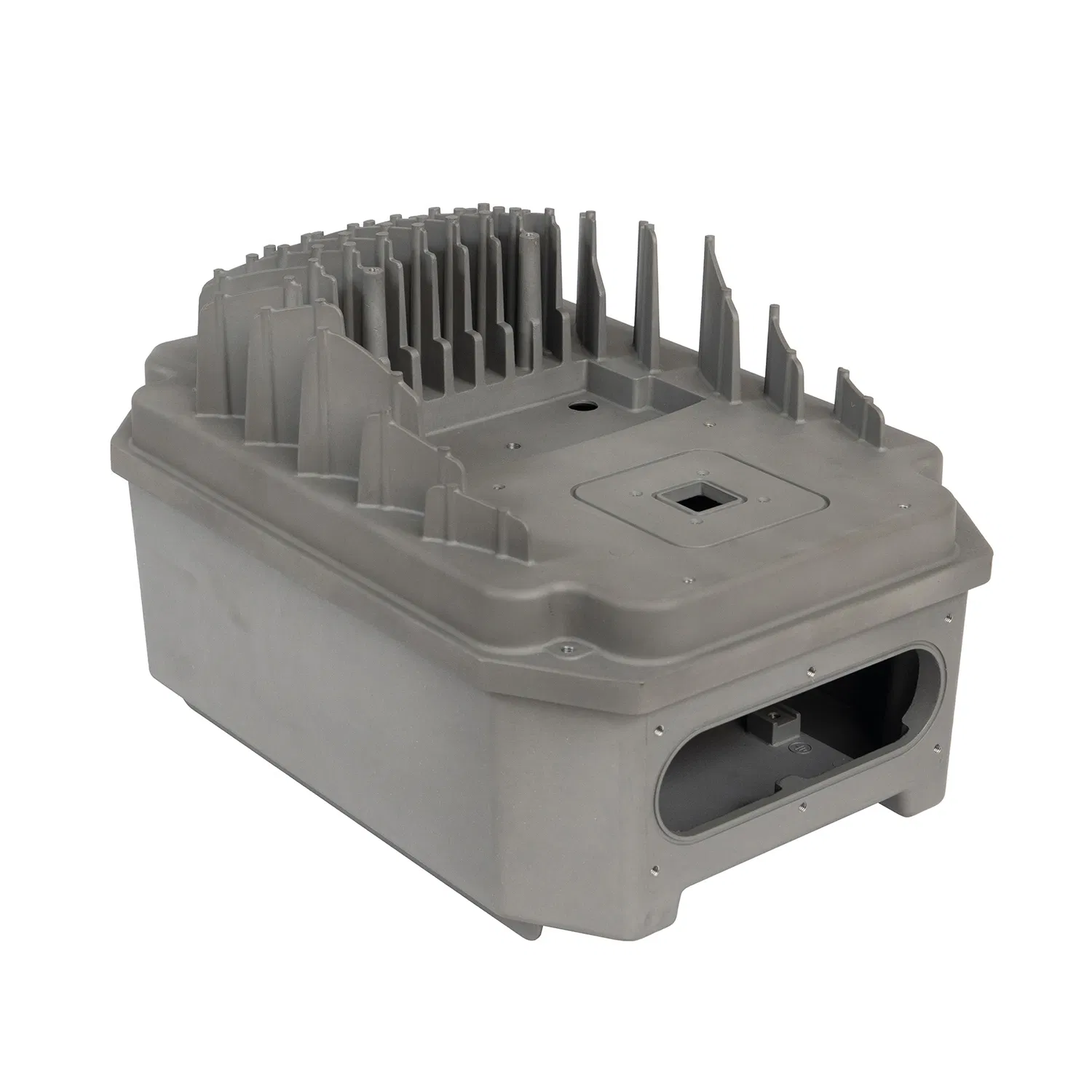

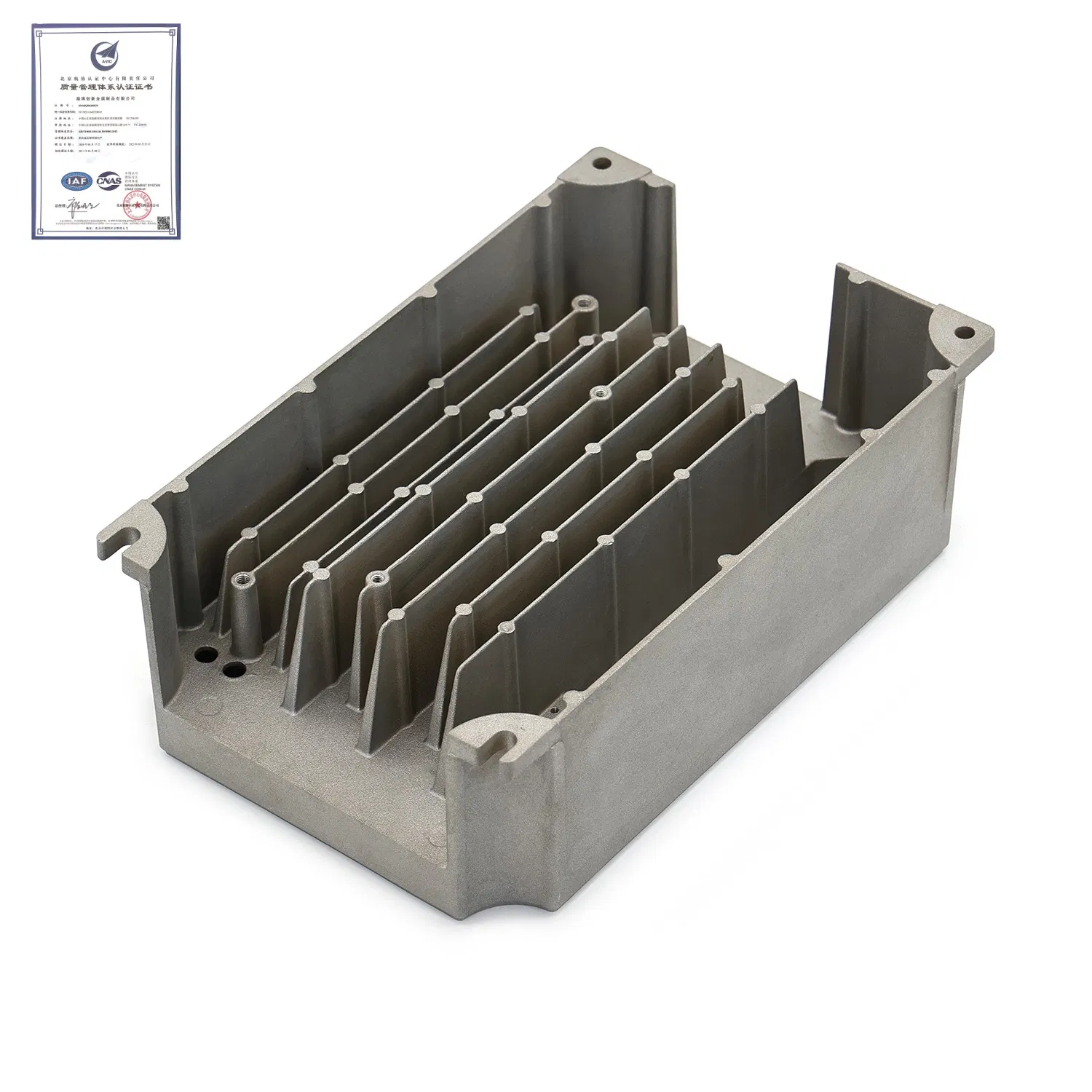

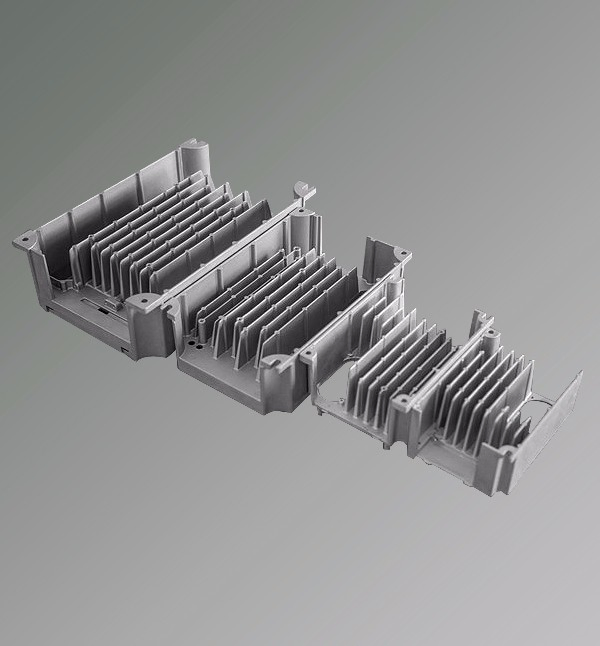

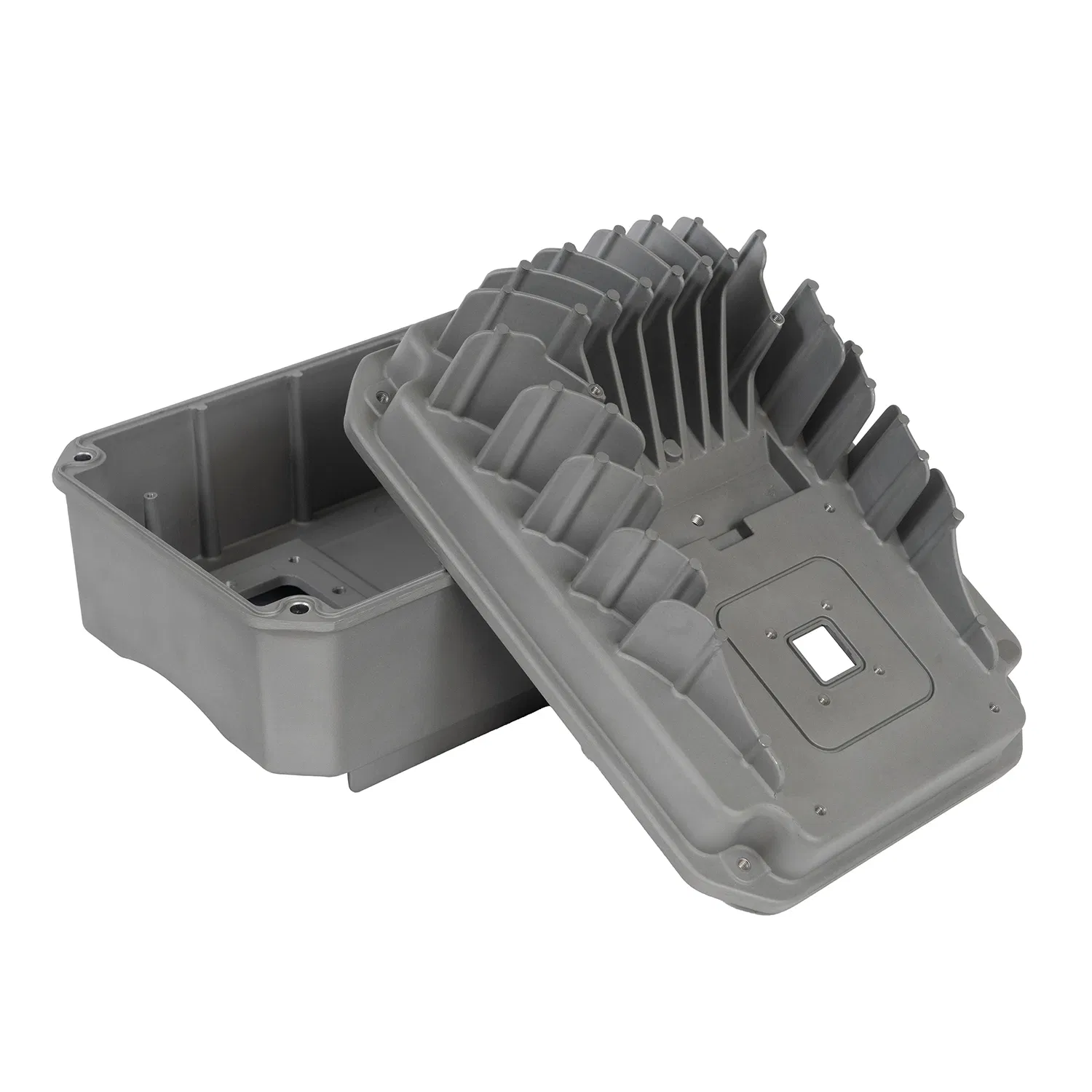

All kinds of radiator used in frequency converter made by die casting aluminum in our factory. With more than 20 years experiences, we provide you the best solutions and high quality products. Aluminum castings have a wide range of application in Engineering machinery equipment. Numerous parts can be cast effectively using aluminum cast like Valve covers, Transmission housings, Engine block, Wheel spacer, Impellers and Fan clutch, Alternator housing etc.

Material	ADC-12 AlSi11Cu3
Weight	1.468kg
Size	250mm160mm80mm
Process Technology	High Pressure Die Casting
Finish	Deburring, Machining
Surface Treatment	Shot blasting, Anodic oxidation, Sand blasting, Painting, Powder coating etc.
Application	Frequency Converter
Drawing File Format	PDF, IGS, STP, CAD, SOLIDWORKS
Services	OEM/ODM
Certification	ISO9001:2008 and BV

🏗️

Capabilities & Specs

Alloy Cast	ADC-12, ADC-10, A356, A380, A360, AlSi11Cu3, AlSi12, AlSi9Mg, AlSi7Mg
Cast Capabilities	Aluminum die casting; Aluminum gravity casting; Zinc Die Casting
By Weight	0.05kg to 20kg
Moulds	Single cavity molds; Multi-cavity molds; Family cavity molds
Secondary Process	Shot blasting, deburring, sand blasting, powder coating, painting and anodizing.
Industries Serviced	Automotive, Communications, Green Technologies, Heavy Duty, Industrial, Medical, Power Equipment.

🔍

Quality & Inspection

Each product is carefully inspected from the blank to the finished state. Customer satisfaction is our eternal pursuit.

• Regularly scheduled dimensional production checks using the latest measuring technology.
• Complete customer-owned tooling maintenance program.
• In-house Continual Improvement Team utilizing feedback to increase effectiveness.

Certifications

ISO9001:2008, BV and SGS

Frequently Asked Questions

What materials are primarily used for these heat sinks?

We primarily use high-grade Aluminum Alloys such as ADC12, ADC10, A380, and AlSi11Cu3 to ensure optimal thermal conductivity and durability.

What casting processes do you offer?

Our manufacturing capabilities include High Pressure Die Casting, Aluminum Gravity Casting, and Zinc Die Casting to meet various engineering requirements.

Can you handle custom OEM/ODM projects?

Yes, we are a full-service manufacturer providing OEM and ODM services, including customized tooling, machining, and surface finishing.

What weight range of parts can you produce?

We can produce aluminum and zinc cast parts ranging from 0.05kg up to 20kg.

Which industries do you typically serve?

Our products are widely used in automotive, telecommunications, power generation, medical equipment, and industrial machinery sectors.

What drawing formats do you support for design?

We accept a variety of professional formats including PDF, IGS, STP, CAD, and SOLIDWORKS files.
