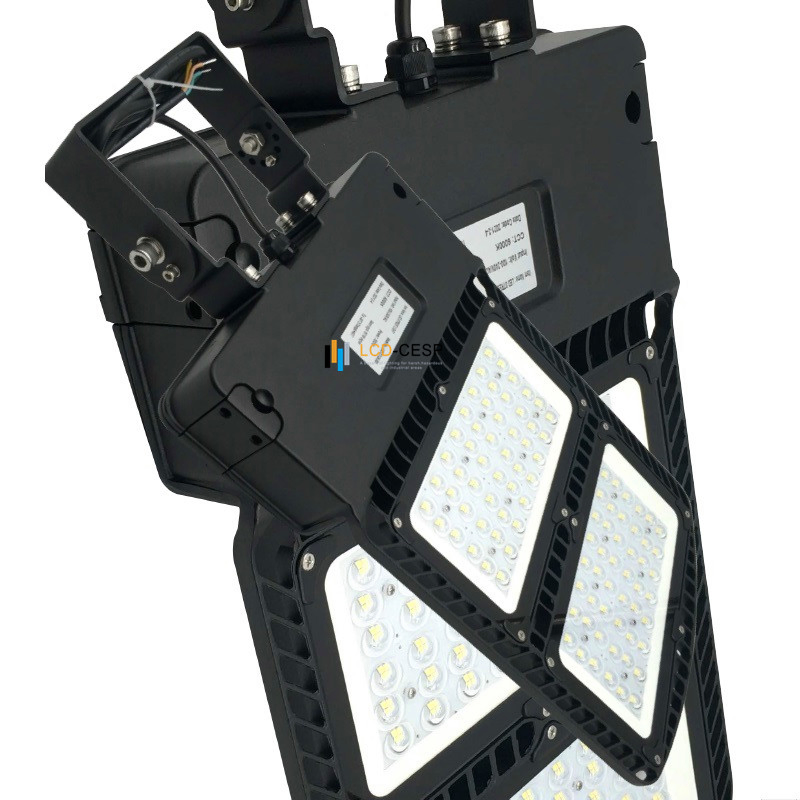

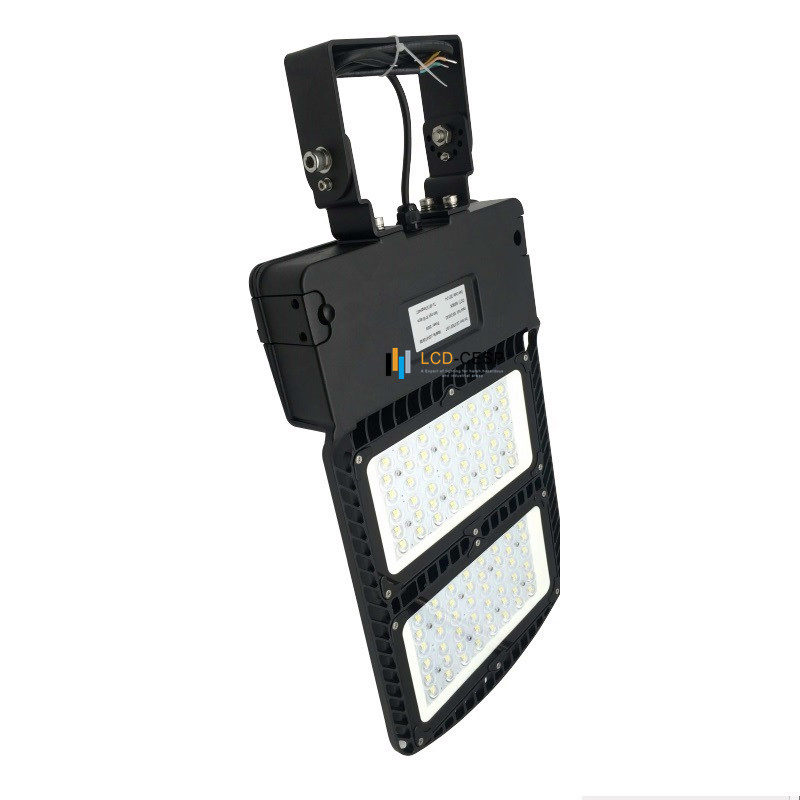

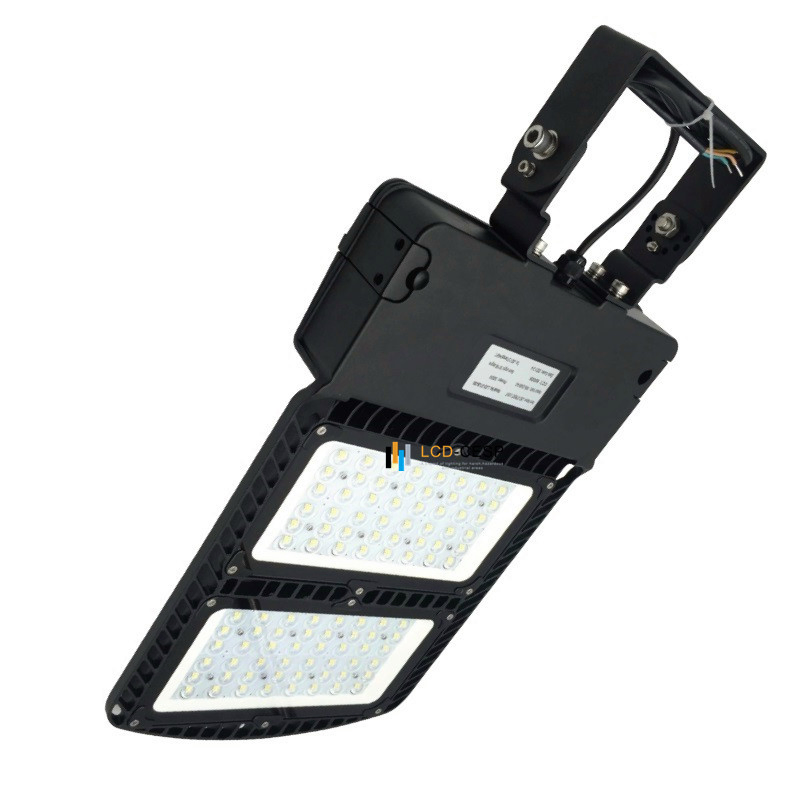

Explosion Proof Light - LED -60W- Atex Marine Grade Lighting -100-277VAC- 6500K -Lamp
Explosion Proof Light - LED -60W- Atex Marine Grade Lighting -100-277VAC- 6500K -Lamp
Explosion Proof Light - LED -60W- Atex Marine Grade Lighting -100-277VAC- 6500K -Lamp
Explosion Proof Light - LED -60W- Atex Marine Grade Lighting -100-277VAC- 6500K -Lamp
Explosion Proof Light - LED -60W- Atex Marine Grade Lighting -100-277VAC- 6500K -Lamp
1 / 5
Explosion Proof Light - LED -60W- Atex Marine Grade Lighting -100-277VAC- 6500K -Lamp
Explosion Proof Light - LED -60W- Atex Marine Grade Lighting -100-277VAC- 6500K -Lamp
Explosion Proof Light - LED -60W- Atex Marine Grade Lighting -100-277VAC- 6500K -Lamp
Explosion Proof Light - LED -60W- Atex Marine Grade Lighting -100-277VAC- 6500K -Lamp
Explosion Proof Light - LED -60W- Atex Marine Grade Lighting -100-277VAC- 6500K -Lamp

Explosion Proof Light - LED -60W- Atex Marine Grade Lighting -100-277VAC- 6500K -Lamp

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
LCD-CES-EX-J200
Base Type
CREE LEDs Chip
Irradiated Area
≥30m²
Input Voltage
380v
Power
20W-185W
Color Temp
3000K / 4000K / 6500K
LED Chips Brand
Osram
Lumen Output
120-140lm/W
Ex Mark
Ex D Iic T6 GB / Ex Td A21 IP66 T80
Beam Angle
20° / 30° / 40° / 60° / 90°
IP Rate
IP67
HS Code
9405421000
💡

Features + Benefits

Hazardous Location Flood & High bay lights

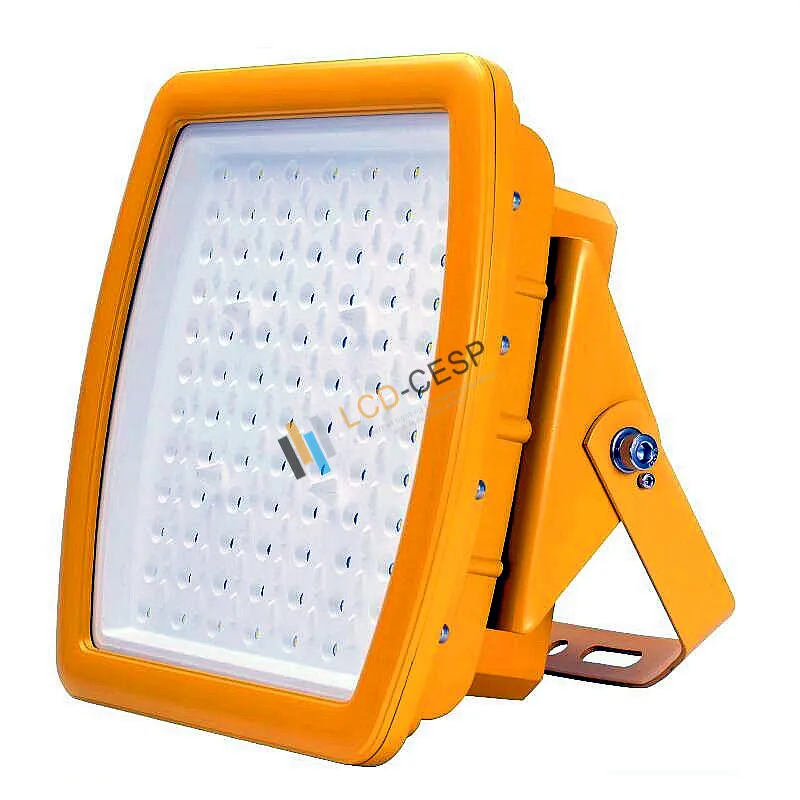

Explosion Proof Light

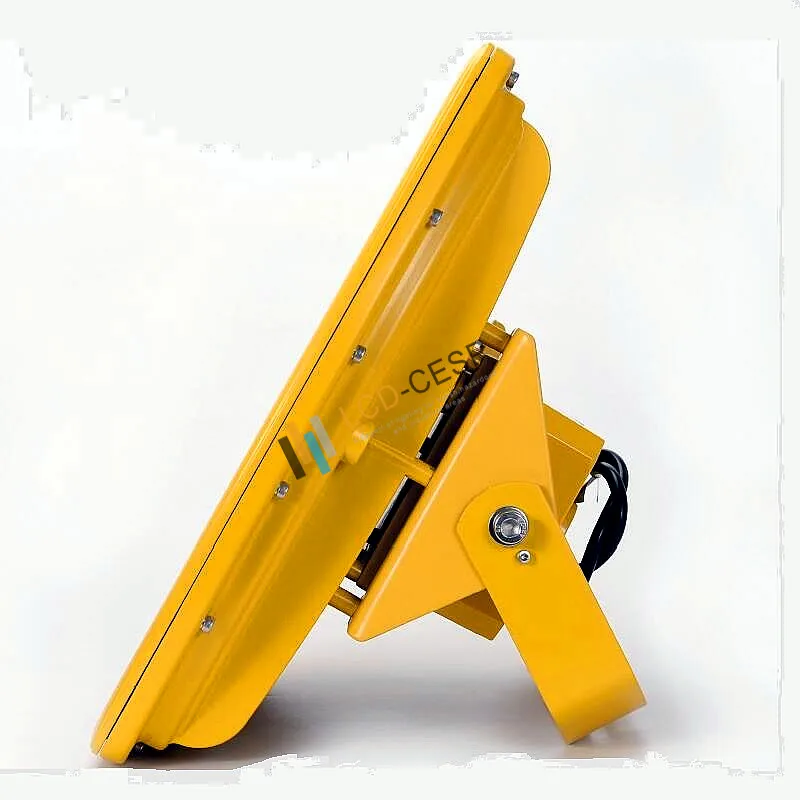

Marine Grade Lighting

Standard(s) for Safety:

  • UL 844, Luminaires for Use in Hazardous Locations
  • CSA C22.2 No.137-M1981
  • UL 1598A for Marine Environments
  • ATEX- DEMKO18 ATEX1765 Rev. 0
  • IECEX UL 18.0046
  • LM79 Data Available Upon Request
🛡️

Hazardous Location Suitability

CLASS I DIVISION 2, GROUPS A, B, C and D; GROUP II; Zone 1&21 and Zone 2 & 22

Category Details
CERTIFICATIONS Hazardous location LED lighting fixture for Class I Division 2, Groups A,B,C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22.
HOUSING Aluminum alloy ADC12.
LENS 4mm thick front tempered glasses, +95% light transmission. Shock and vibrations resistant.
PERFORMANCE 3600 to 22,200 lumens; Up to 120 lm/w. Range: 30W to 185W. Rated > 60,000 hours (L70).
IP67 RATED Dust tight and protected against immersion. Ideal for heavy industry, mining, refineries, and coastal facilities.
MOUNTING Surface, wall mount standard. Pendant & pole kit available on request.

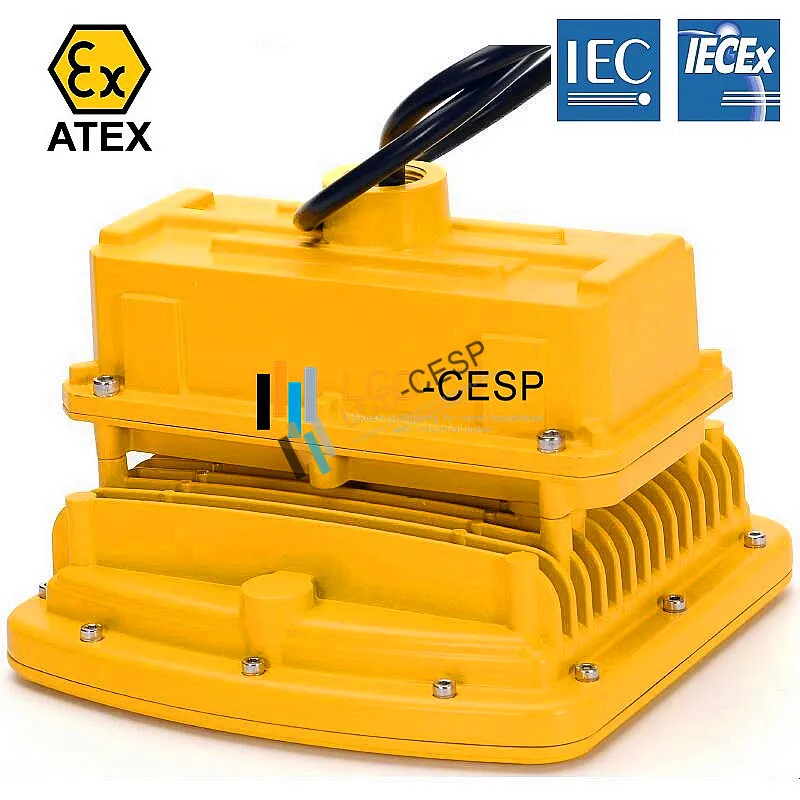

Performance Parameter
📊

Performance Parameters

Model No J40 J100 J200
LED SourceBridgelux SMD3030Bridgelux SMD3030Bridgelux SMD3030
CCT3000K-6500K3000K-6500K3000K-6500K
Luminous Efficiency115-120lm/w115-120lm/w115-120lm/w
Beam Angle30º/60º/90º/120º30º/60º/90º/120º30º/60º/90º/120º
Input Voltage100-277V, 50/60Hz100-277V, 50/60Hz100-277V, 50/60Hz
Watt Options30W, 40W, 50W60W, 80W, 100W120W, 150W, 185W
Dimensions200x200x270mm300x300x185mm400x400x185mm
Net Weight4.5KG8.5KG11KG
📐

Technical Information & Installation

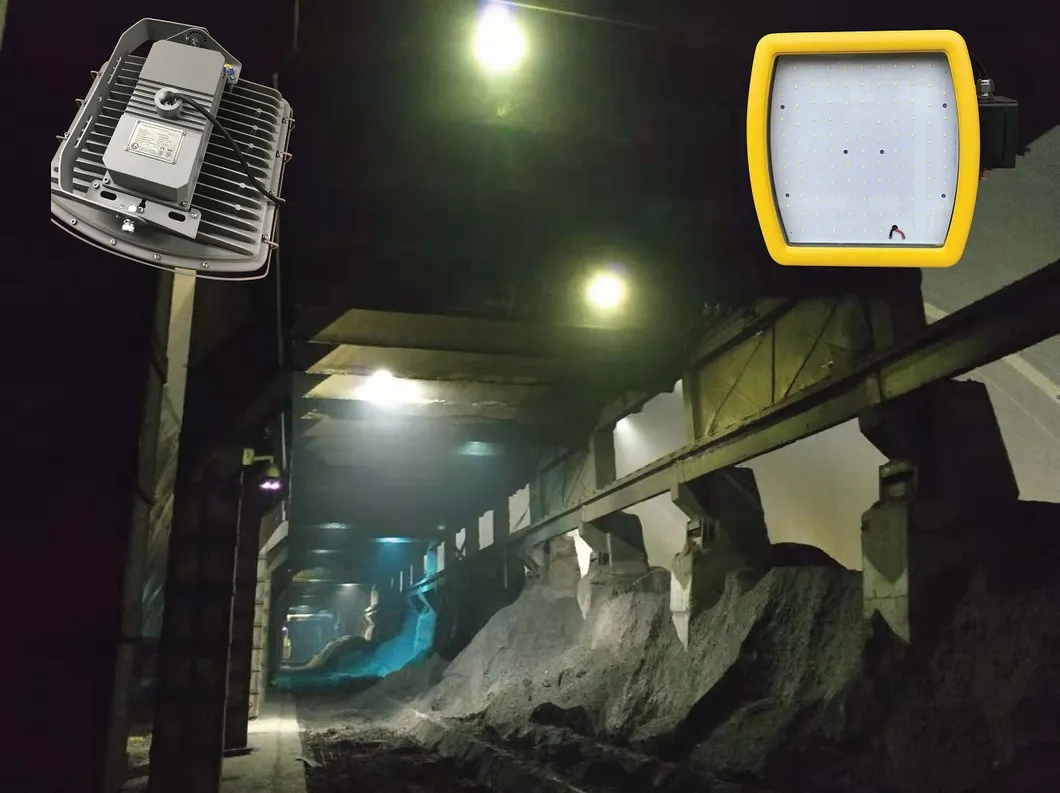

Technical Info 1

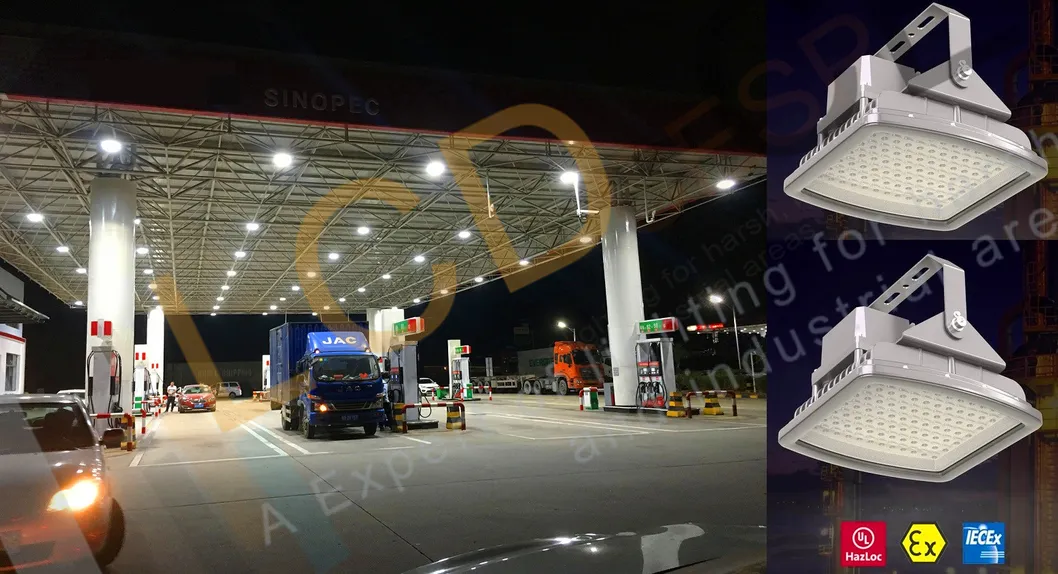

Technical Info 2

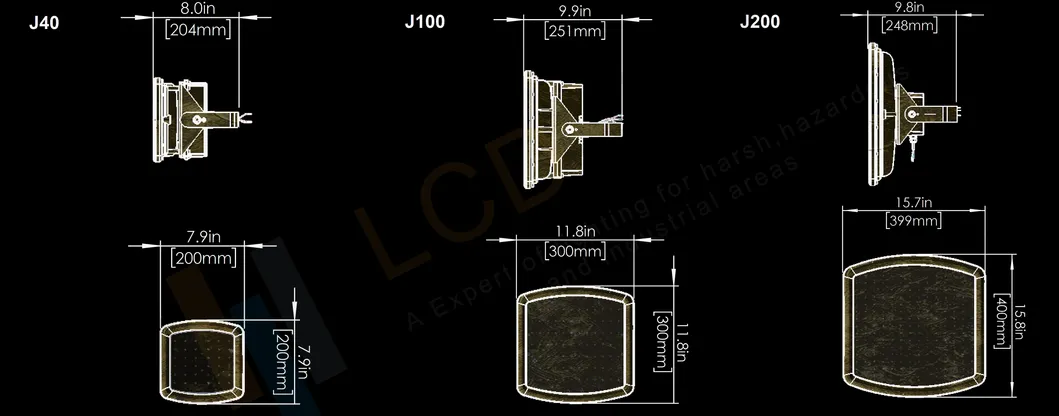

PRODUCTS DRAWING

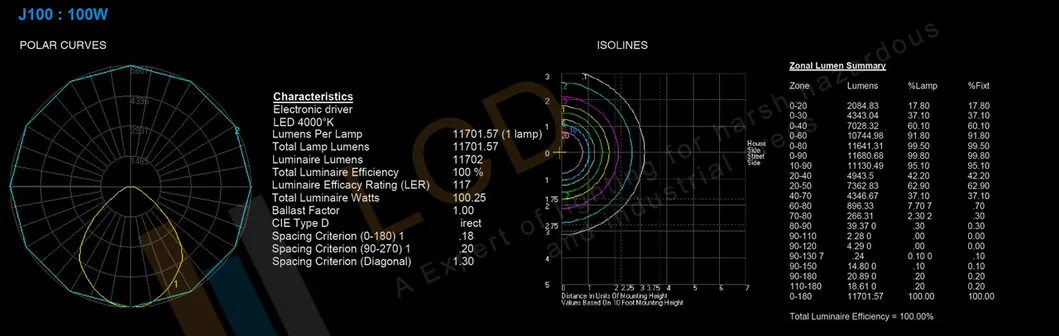

Dimensions
Product Drawing

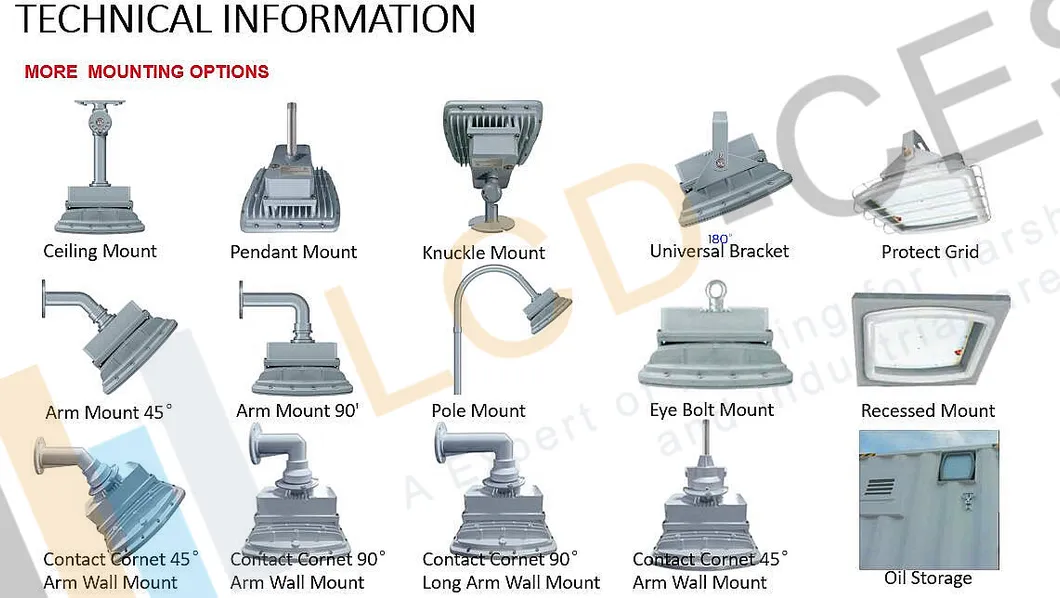

INSTALLATION METHOD

Installation Guide
❓

Frequently Asked Questions

What hazardous locations is this light suitable for?
This fixture is certified for Class I Division 2 (Groups A, B, C, D) and Zones 1, 2, 21, and 22, making it ideal for refineries, chemical plants, and mines.
What is the IP rating of the LCD-CES-J series?
The series is IP67 rated, ensuring complete protection against dust and the effects of immersion in water up to 1 meter deep.
What are the available mounting options?
The standard package includes an adjustable surface/wall mount bracket. Pendant and pole mounting kits are also available upon request.
How long do the LED chips last?
The luminaires use high-quality Osram/Bridgelux chips with an L70 rating of over 60,000 operating hours.
Does the light support dimming?
Yes, the fixture supports 1-10V dimming as standard, and DALI dimming options are also available.
What is the operating temperature range?
The light operates effectively in extreme environments ranging from -30°F to 122°F (-30°C to 50°C).
