Residential GSM/WiFi/Remote Control Home Solar Power Gate Opener System

1 / 5

Residential GSM/WiFi/Remote Control Home Solar Power Gate Opener System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

SDM-20G32

Material

Aluminum Alloy

Type

Sliding

Open Style

Sliding

Opening Type

With Remote Control

Color

Grey

Certification

ISO9001, RoHS, CE

Working Voltage

DC24V Output

Max Gate Weight

2000kg

Remote Distance

> 30m

Output Torque

21n.M

Working Temp

-25℃ to +75℃

Noise

< 50dB

Frequency

433MHz

Encryption Sliding Gate Motor Introduction

In order to make the installation and configuration easier, we have developed this intelligent one-button learning sliding door control board. The control board adopts an advanced microcomputer chip, digital control, and offers more practical functions, higher safety performance, and easier installation. It is fully compatible with smartphone app networks (WiFi/3G/4G/5G), Bluetooth control, and many other advanced features.

Key Features

Anti-rush Design: Motor runs in slow motion to the limit point during the first operation after power-on to avoid rushing.

Master-Slave Mode: Two motors can work synchronously; infrared and automatic door close functions are synchronized.

Runtime Protection: Automatically learns motor running time with a 10s safety margin.

Auto-close Function: Adjustable delay from 1s to 250s.

Soft Start & Slow Stop: Features adjustable distance and speed for smooth operation.

Obstacle Rebound: Switchable between stop and rebound against resistance during closing travel.

Smart Control: Integrated socket for Bluetooth modules and one-button configuration for internet control.

Technical Parameters

Working Voltage	DC24V output
Max Output Current	10A
Fuse	AC220 20A
Remote Distance	30m
Remote Control	2pcs anti-copy rolling code remotes
Working Temp	-25ºC to +75ºC
Max Gate Weight	1000kg
Output Torque	21N.m
Rotation Speed	12m/min
Noise Level	Less than 50dB
Mobile APP Support	WIFI or Bluetooth

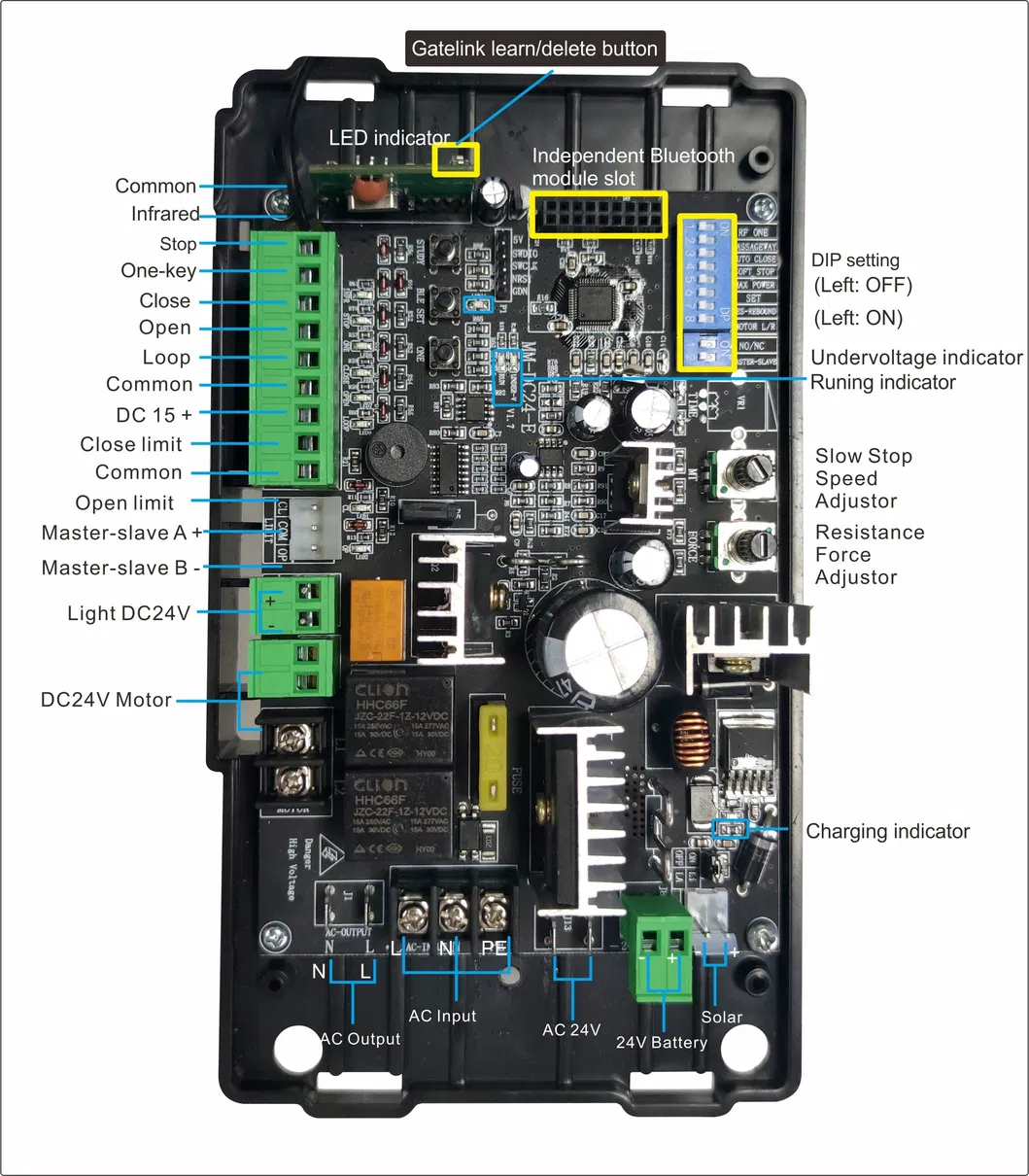

System Diagrams

Configuration & Settings

The system utilizes specialized Dip Switches for various function adjustments:

Passageway Mode: Enables specific lock button functions for pedestrian or temporary access.

Travel Distance Learning: Automated procedure to calibrate the gate's open and close limits.

Startup Strength: Choice between soft start (2s slow speed) or immediate maximum speed.

Resistance Adjustment: Fine-tune the force threshold for safety rebound using the FORCE adjustor.

LED Indicator Logic

The control board features multiple LED indicators (RUN, UNDER-V, BLE, Charge, Photocell, Stop, etc.) to provide real-time status feedback for troubleshooting and normal operation monitoring.

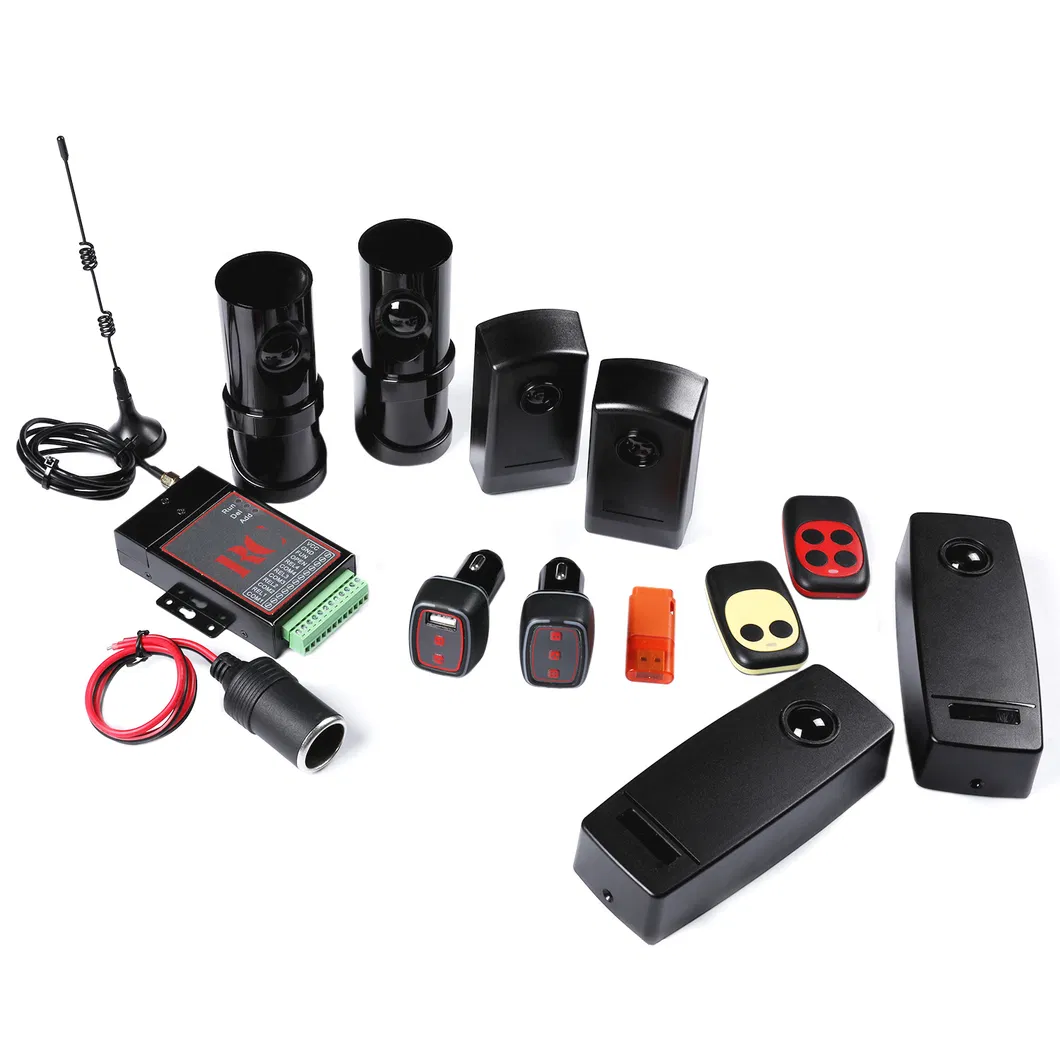

Compatible Automation Accessories

Our automation systems integrate seamlessly with a variety of security and access control products:

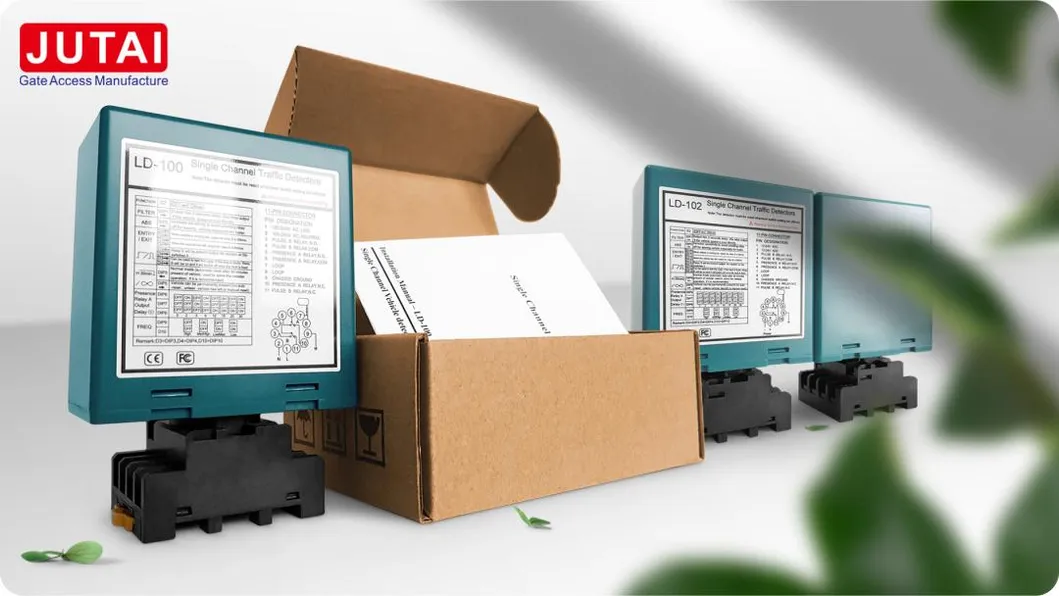

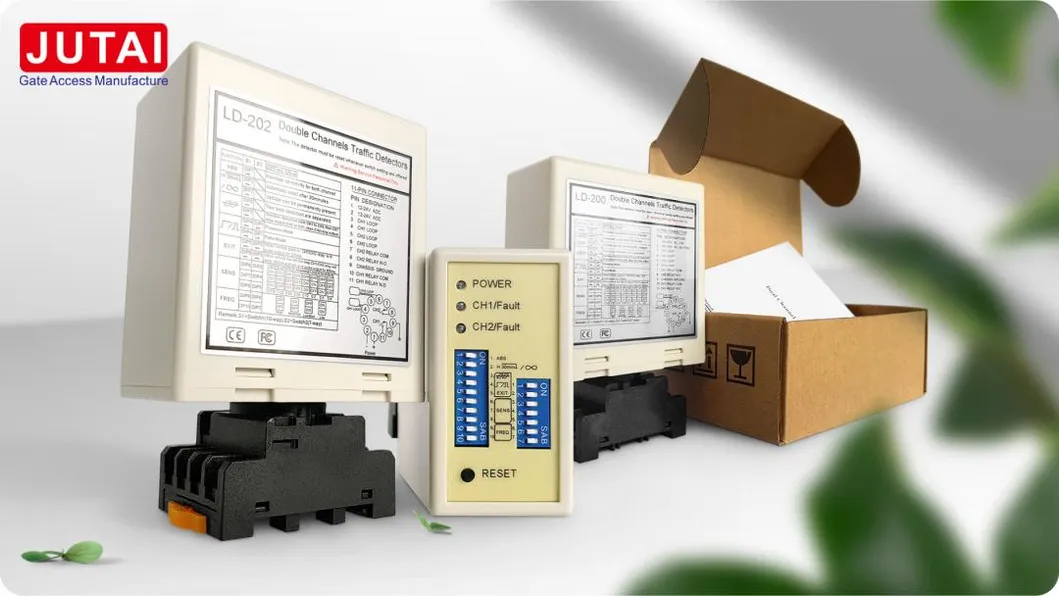

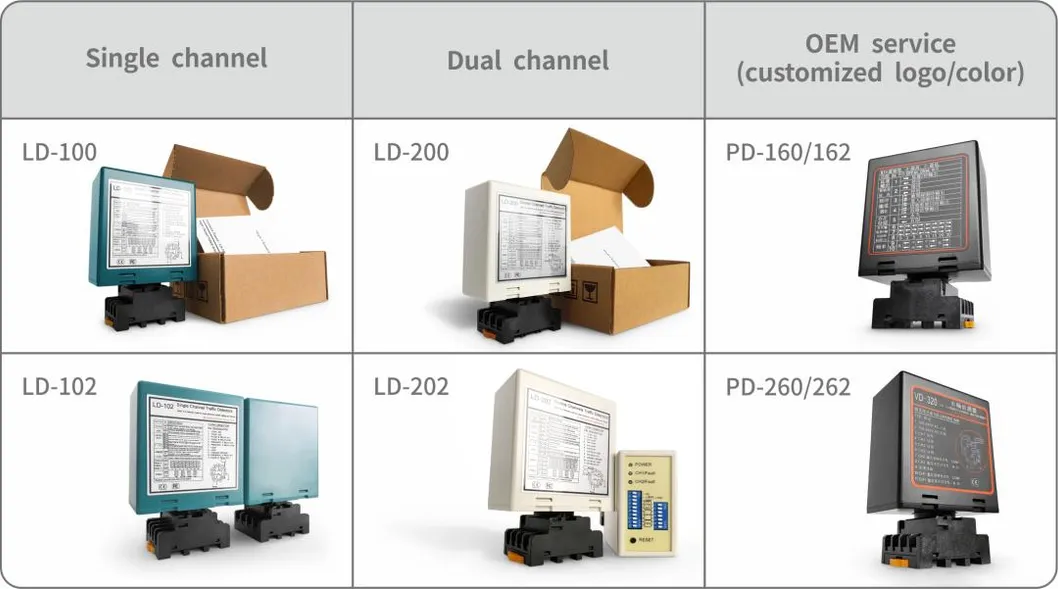

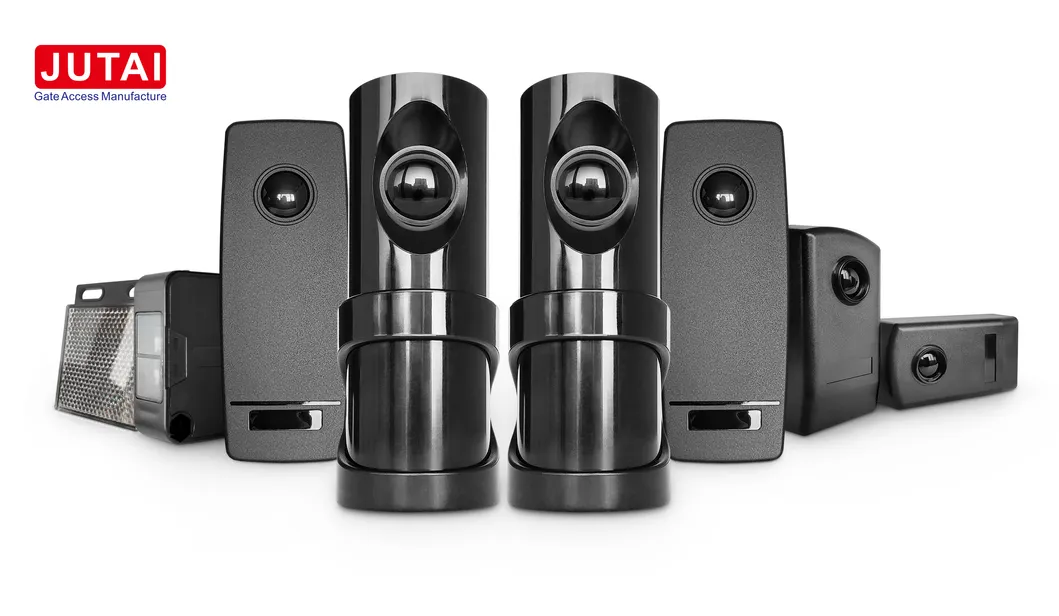

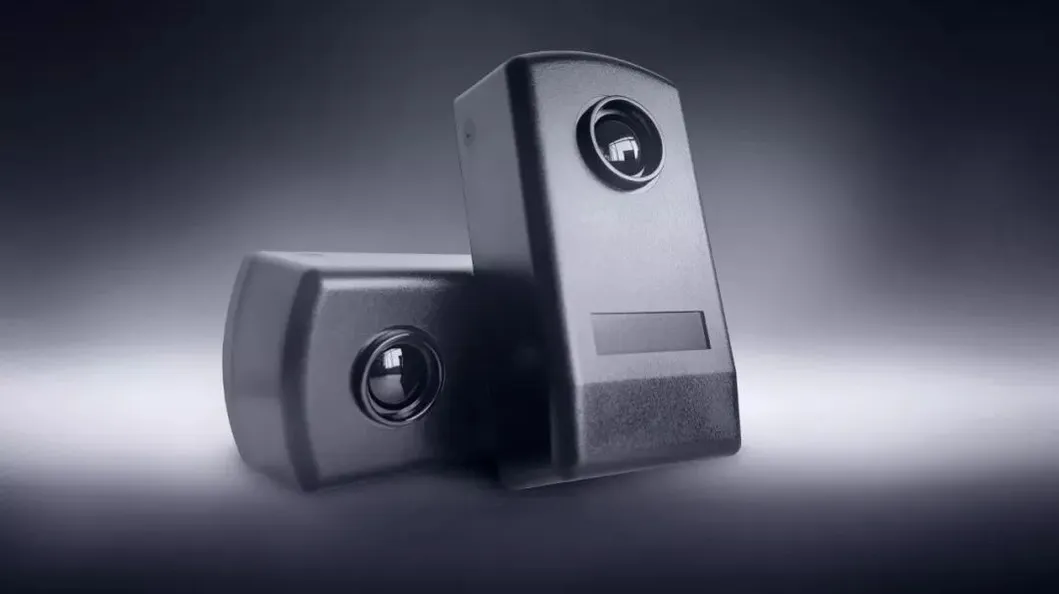

Loop Detectors and Photocell Beams

Safety Light Curtains

RFID Card Readers & Access Control Systems

Traffic Lights and Barrier Gates

Frequently Asked Questions

Q: What is the maximum gate weight this motor can handle? A: The SDM-20G32 model is designed to handle heavy-duty sliding gates weighing up to 2000kg.

Q: Does the system support smartphone or remote control? A: Yes, it is fully compatible with smartphone apps via WiFi/Bluetooth and includes 2 encryption anti-copy rolling code remotes with a range of over 30 meters.

Q: Can two motors be used for a double sliding gate? A: Yes, the system features a Master-Slave mode that allows two motors to work synchronously for double gate applications.

Q: What safety features are included to prevent accidents? A: The motor includes an obstacle rebound function, soft start/slow stop features, and supports external photocell beams for maximum safety.

Q: Can the auto-close timing be adjusted? A: Yes, the auto-close function can be enabled via a dip switch, and the timer is adjustable from 1 second up to 250 seconds.

Q: What is the operating temperature range? A: The system is built to withstand harsh environments with a working temperature range of -25ºC to +75ºC.
