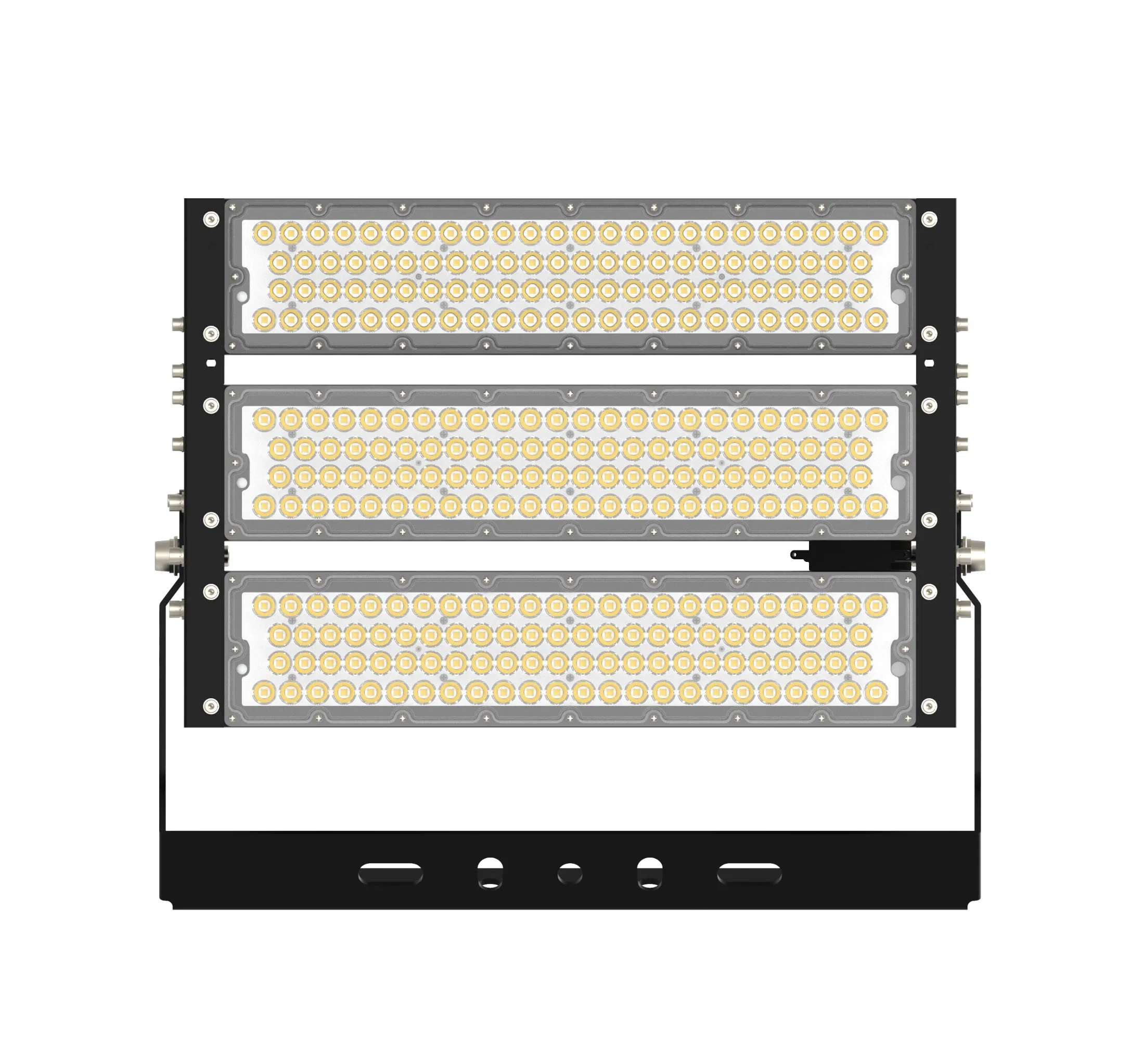

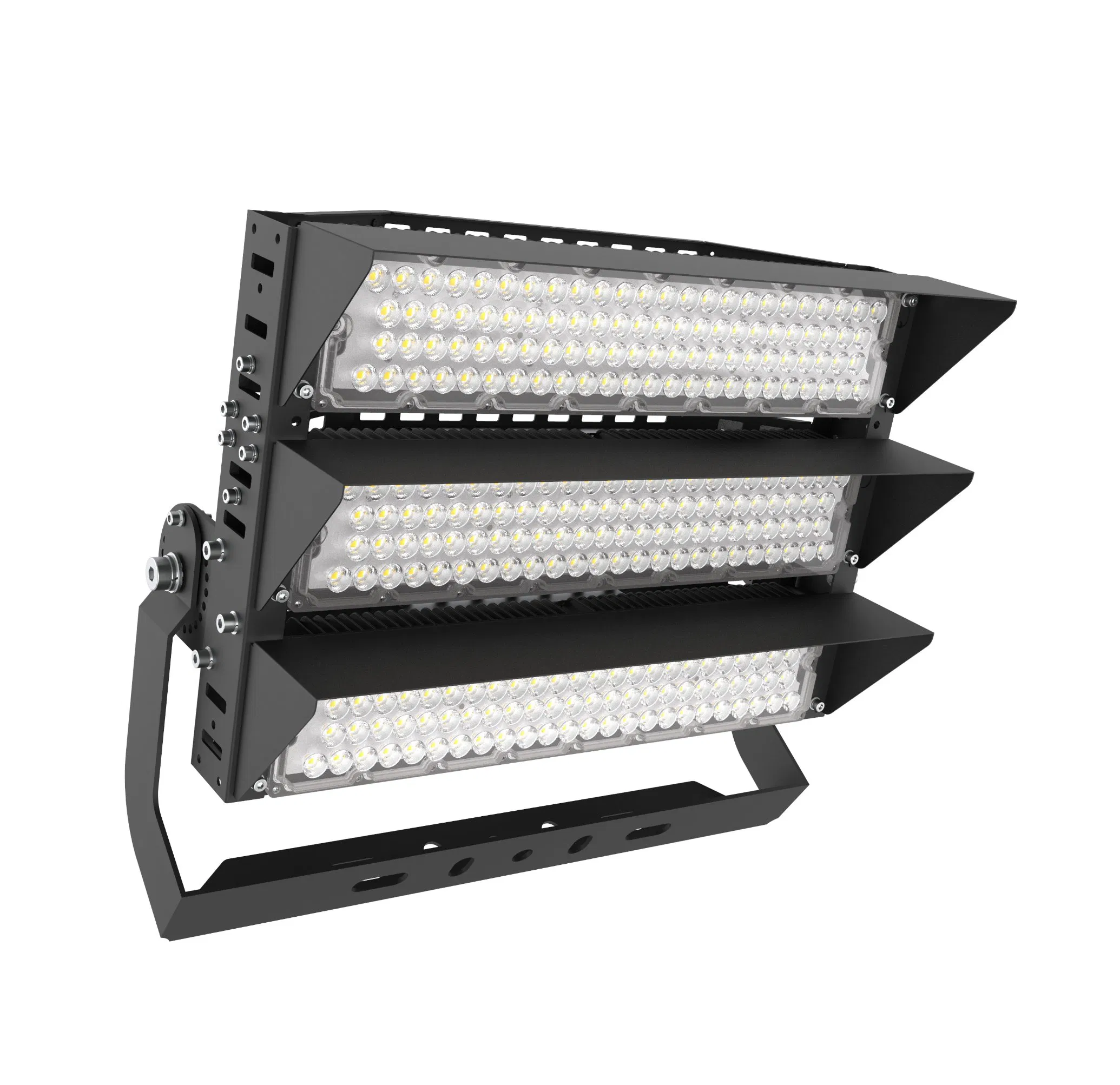

IP65 Waterproof 400-1500W 5-Years Warranty LED Modular Flood Light Outdoor Stadium Light
IP65 Waterproof 400-1500W 5-Years Warranty LED Modular Flood Light Outdoor Stadium Light
IP65 Waterproof 400-1500W 5-Years Warranty LED Modular Flood Light Outdoor Stadium Light
IP65 Waterproof 400-1500W 5-Years Warranty LED Modular Flood Light Outdoor Stadium Light
1 / 4
IP65 Waterproof 400-1500W 5-Years Warranty LED Modular Flood Light Outdoor Stadium Light
IP65 Waterproof 400-1500W 5-Years Warranty LED Modular Flood Light Outdoor Stadium Light
IP65 Waterproof 400-1500W 5-Years Warranty LED Modular Flood Light Outdoor Stadium Light
IP65 Waterproof 400-1500W 5-Years Warranty LED Modular Flood Light Outdoor Stadium Light

IP65 Waterproof 400-1500W 5-Years Warranty LED Modular Flood Light Outdoor Stadium Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.:PL-SD-054-600-750W
Power:600-750W
Projection Distance:>35m
Application:Park, Square, Factory, Garden, Warehouse
IP Rating:IP65
Certification:CE, CQC, EMC, FCC, RoHS, CB, SAA
Operating Voltage:220V
Input Voltage:AC100-277V
LED Chips:Lumileds 5050/3535SMD
Specification:618*535*177mm
Origin:China
Production:50000 Pieces Per Month
★

Product Description

IP65 Waterproof 400-1500W LED Modular Flood Light Outdoor Stadium Light (5-Years Warranty)

LED Flood Light
Stadium Light

Technical Datasheet

Model PL-SD-054
Power 400-500W 600-750W 800-1000W 1250W 1500W
Dimension (mm) 618X395X177 618X535X177 618X675X177 618X815X177 618X955X177
Luminous Flux 150-160 lm/w
LED Source 192 PCS 288 PCS 384 PCS 480 PCS 576 PCS
Color Temperature 2700-6500K
IP/IK Rating IP65 / IK08
Beam Angle 8° / P50 (3535smd) / 20° / 40° / 60° (5050smd)
Working Life > 50,000 Hours
LED Module Detail

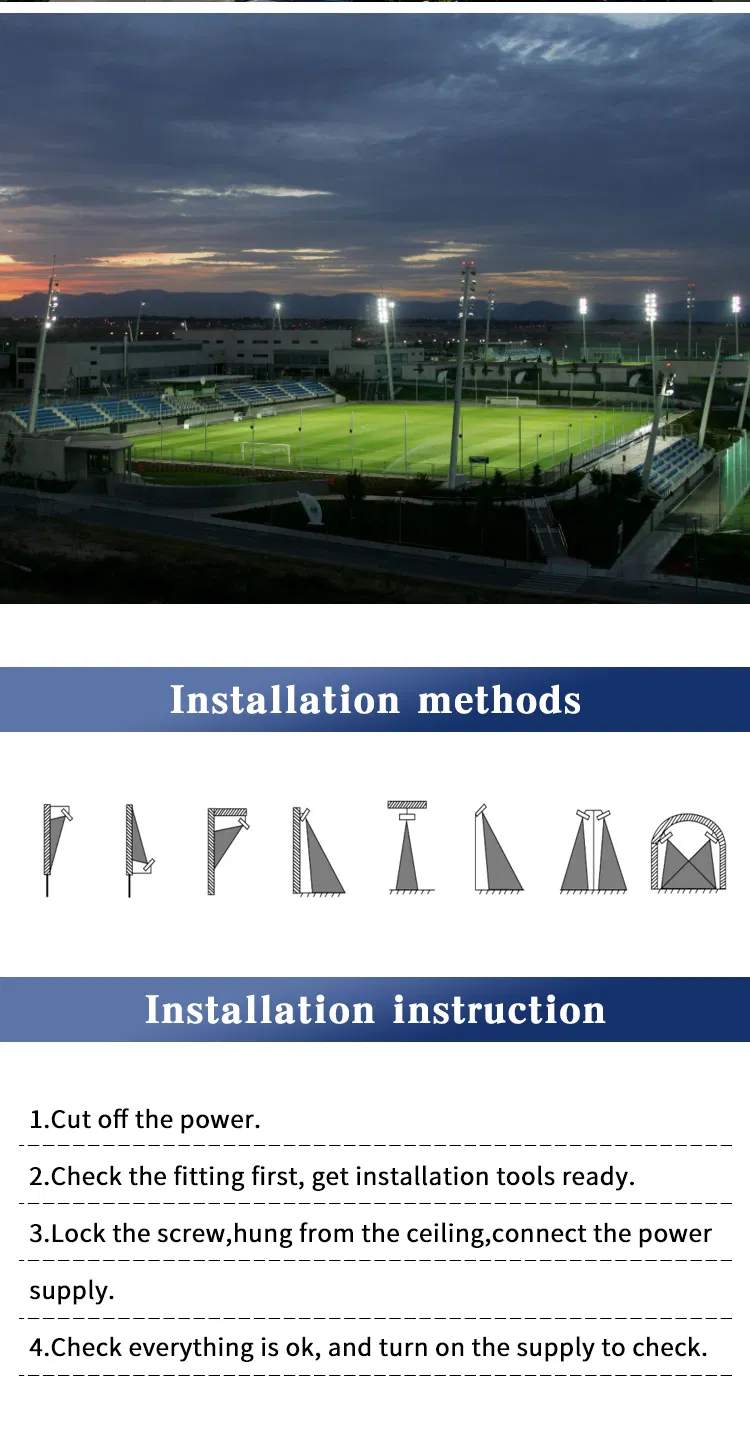

Installation Guide
Beam Pattern
Applications

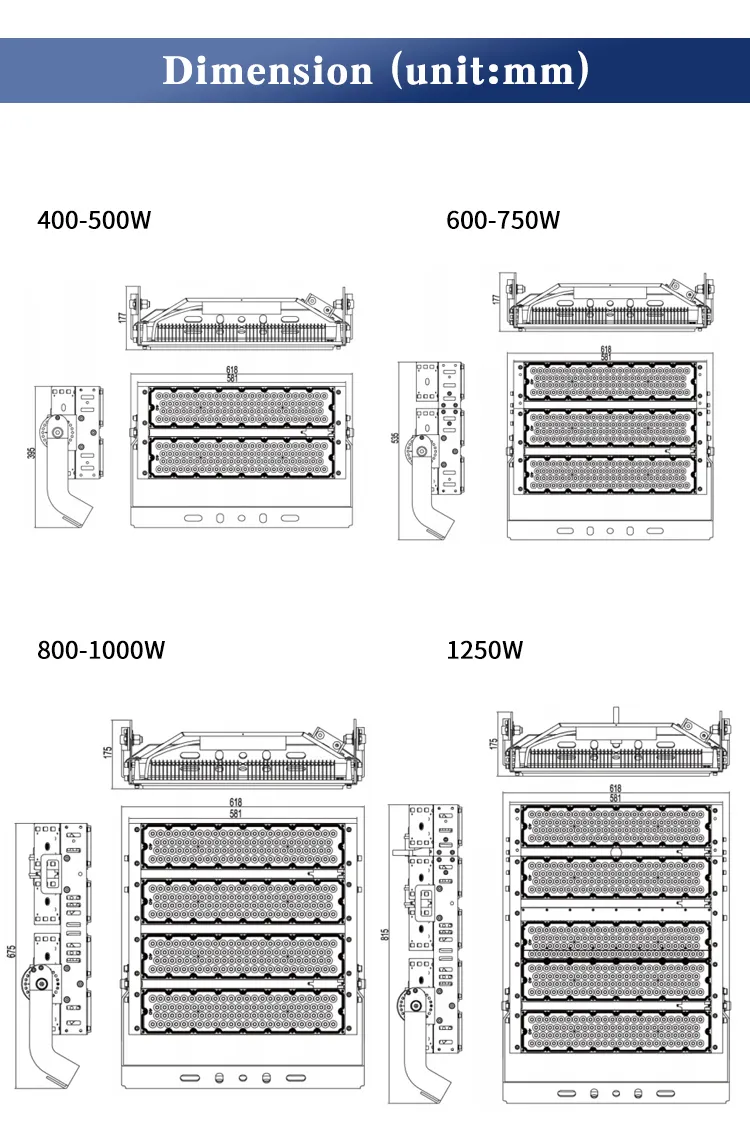

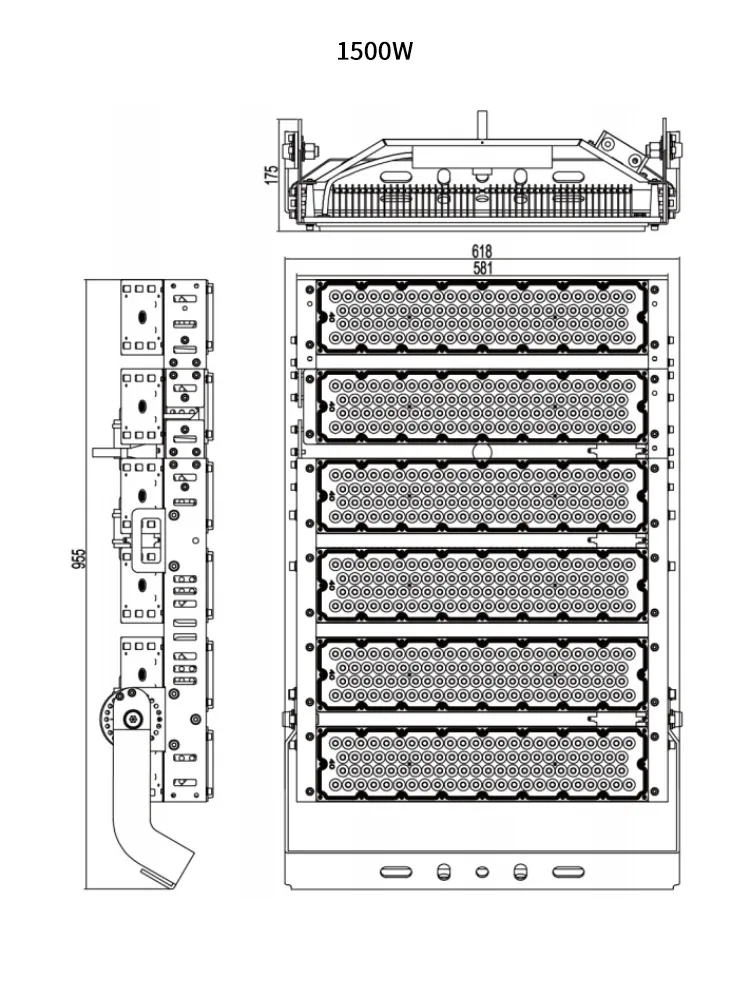

Dimension Drawing
Heat Sink Design
Certification

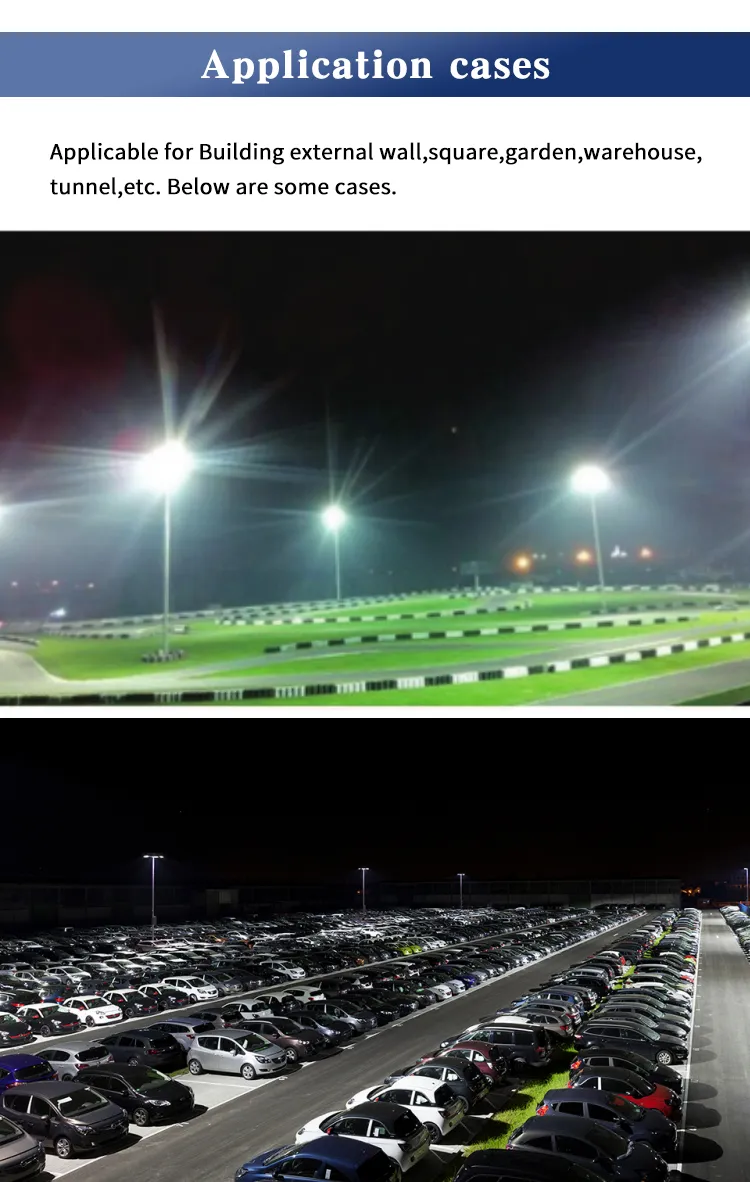

Project Case

Precautions:

01Please read the instructions before installation or use.
02Do not touch the lamp while it is working.
03Do not wipe the lamp with water or a wet cloth when it is on.
04Consult a special installation technician or supplier for requirements.

Maintenance:

✓The power must be cut off before maintaining.
✓Clean the glass regularly to ensure light efficiency.
✓Clean the housing and radiator to ensure heat sinking performance.
✓Use lightning protection and ensure stable input voltage.
🛡

Warranty Policy

5 Years Warranty: All products use constant current power supplies. The warranty is based on correct storage, installation, usage, and maintenance as per instructions.

Note: During the warranty period, we may choose to repair, replace parts, or replace the entire product based on detailed information. Material and labor fees may apply for products outside the warranty period.

?

Frequently Asked Questions

Q: Do LED lights really have a 50,000-hour lifespan?
A: A lifespan of 50,000 hours or longer is a theoretical value from lab tests. Due to varying real-world environments, actual lifespan is typically around 30,000 hours. However, using high-quality materials can help reach the 50,000-hour mark.
Q: Why do different suppliers offer different brightness for the same power?
A: Different brightness levels result from using different LED chips or different brightness versions of the same chip. Also, please distinguish between the brightness of individual LEDs and the total output of the lamp fixture.
Q: What is color temperature?
A: Color temperature is measured in Kelvin (K). Lower temperatures (warmer light) are often used in public areas for relaxation, while higher temperatures (cooler light) enhance concentration in offices and workspaces.
Q: What is CRI?
A: CRI (Color Rendering Index) is a figure that represents how realistically a light source reveals the colors of objects. A higher CRI typically involves higher manufacturing costs.
Q: What are PF and Efficiency?
A: PF (Power Factor) and Efficiency indicate the electrical performance of the driver. Higher PF and efficiency ratings represent better quality and higher cost.
