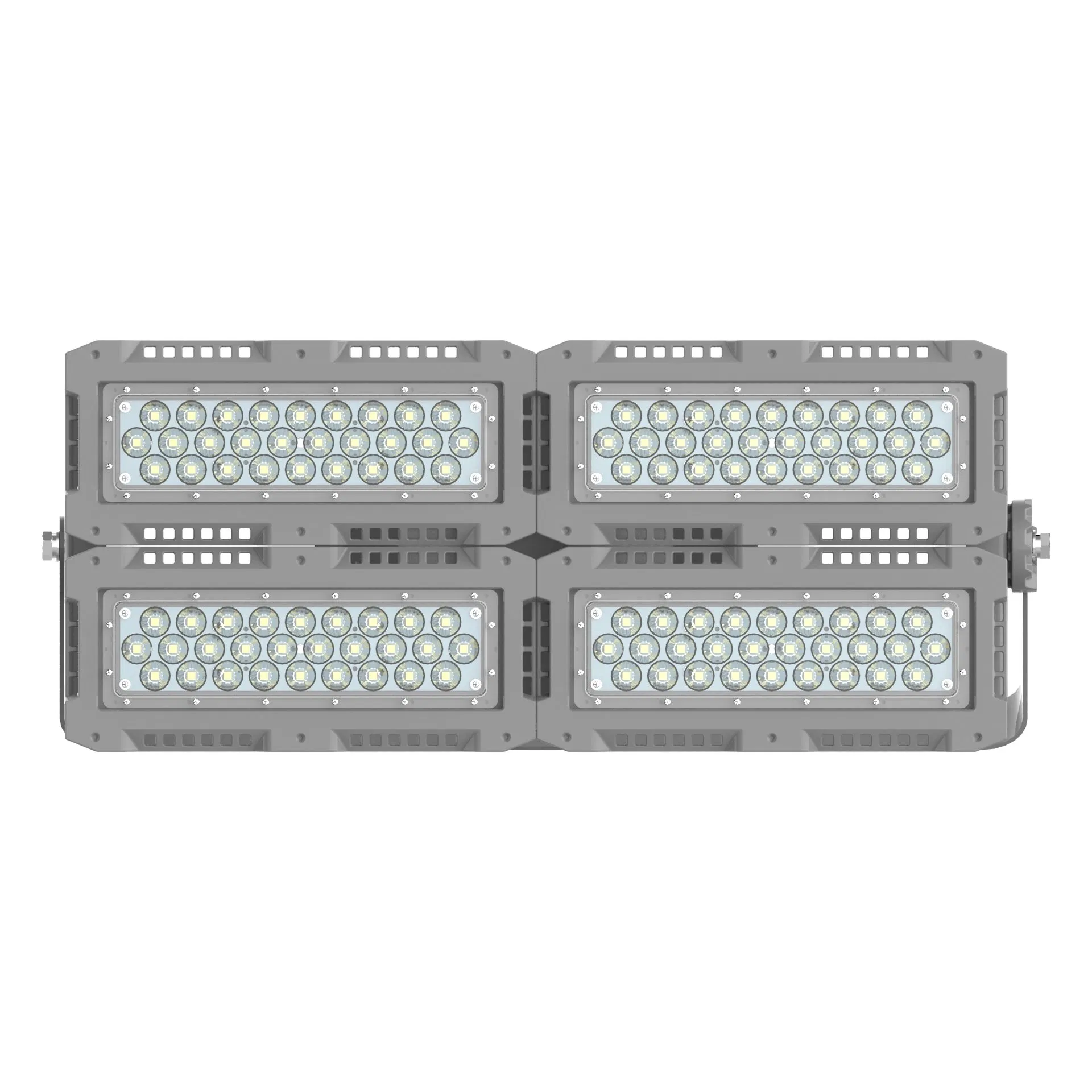

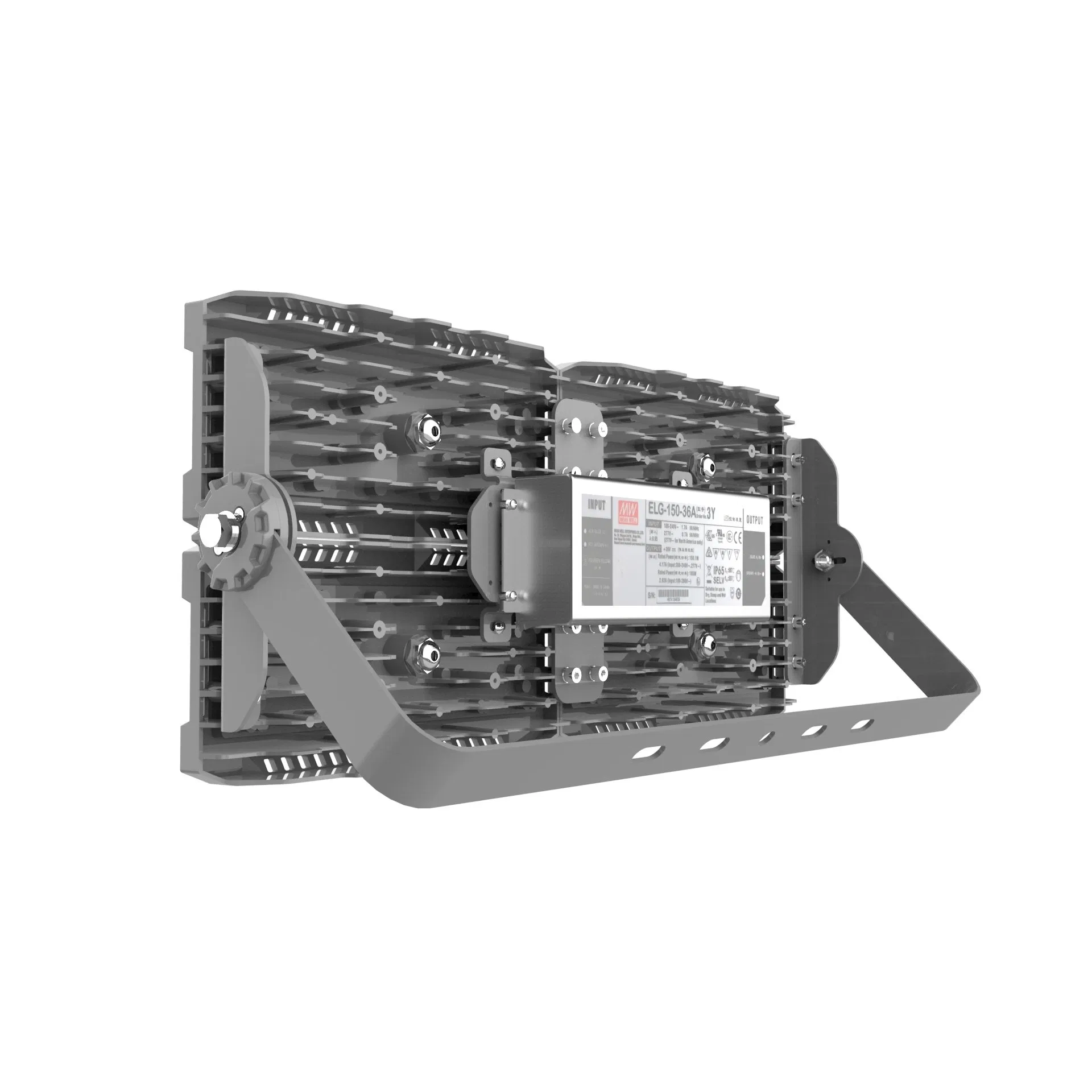

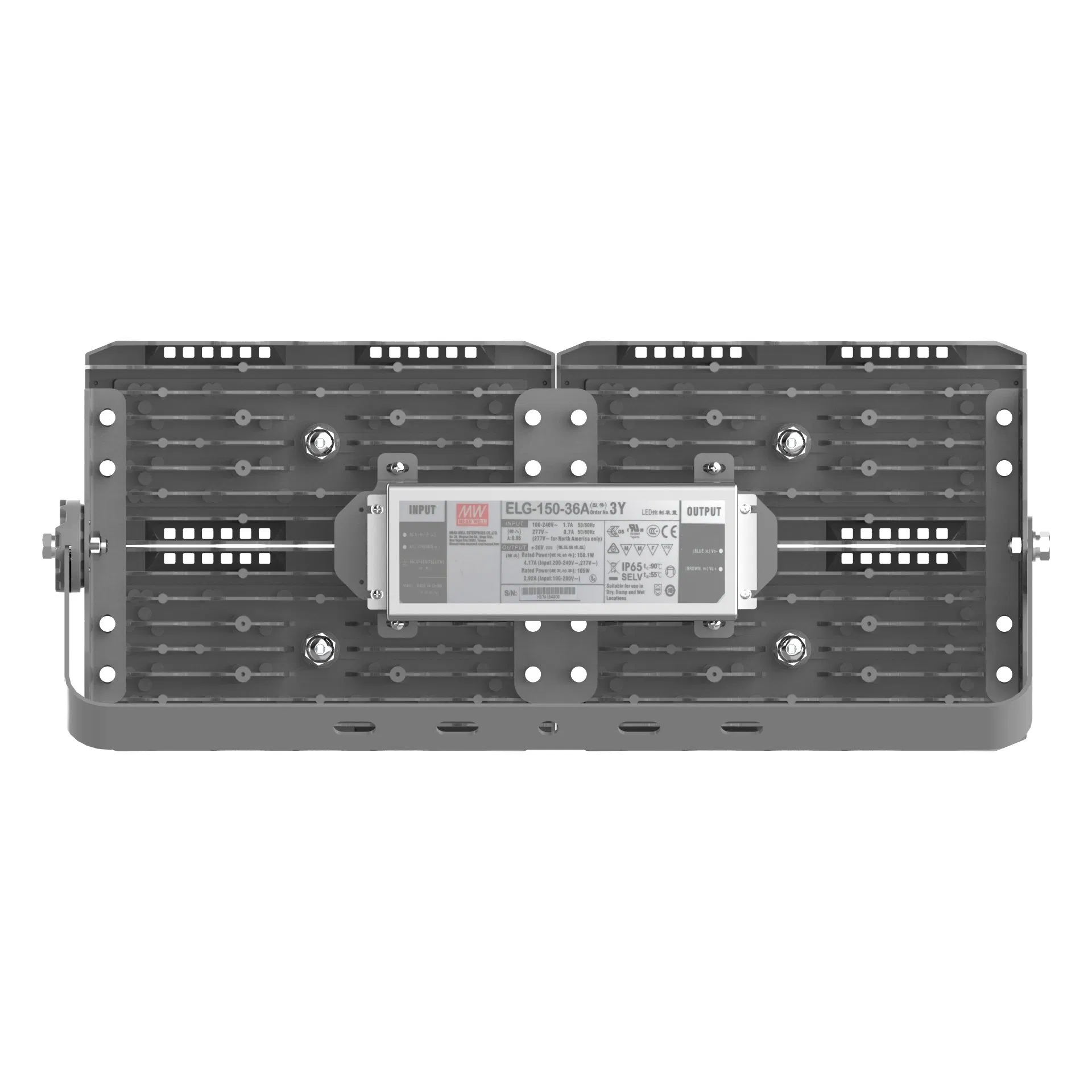

IP66 Modular Design Professional High Mast Stadium Lighting 300W 400W Outdoor LED Flood Light
IP66 Modular Design Professional High Mast Stadium Lighting 300W 400W Outdoor LED Flood Light
IP66 Modular Design Professional High Mast Stadium Lighting 300W 400W Outdoor LED Flood Light
IP66 Modular Design Professional High Mast Stadium Lighting 300W 400W Outdoor LED Flood Light
IP66 Modular Design Professional High Mast Stadium Lighting 300W 400W Outdoor LED Flood Light
1 / 5
IP66 Modular Design Professional High Mast Stadium Lighting 300W 400W Outdoor LED Flood Light
IP66 Modular Design Professional High Mast Stadium Lighting 300W 400W Outdoor LED Flood Light
IP66 Modular Design Professional High Mast Stadium Lighting 300W 400W Outdoor LED Flood Light
IP66 Modular Design Professional High Mast Stadium Lighting 300W 400W Outdoor LED Flood Light
IP66 Modular Design Professional High Mast Stadium Lighting 300W 400W Outdoor LED Flood Light

IP66 Modular Design Professional High Mast Stadium Lighting 300W 400W Outdoor LED Flood Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
IP RatingIP66
Power160-400W
ApplicationCommercial
LED Chips BrandCREE
Voltage220V AC
CertificationCCC, RoHS
Dimensions637*260*102MM
Production Capacity3000PCS/Month
Product Description

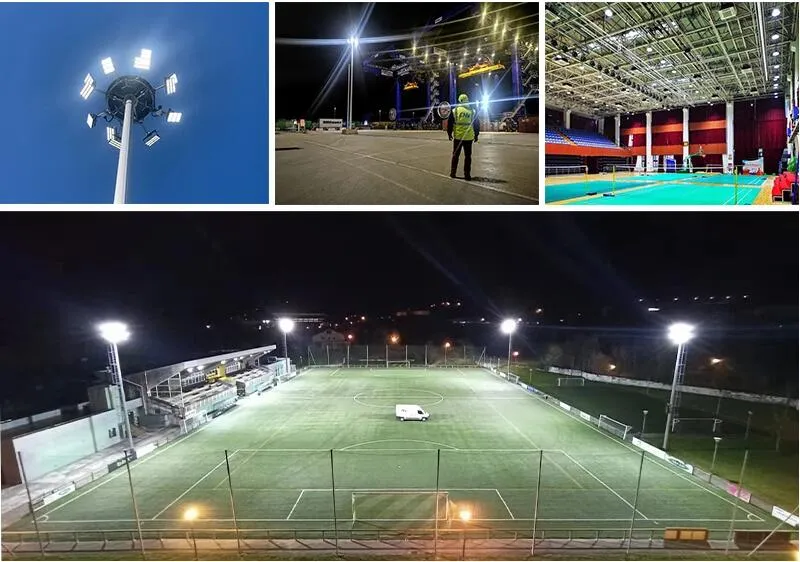

High Mast Stadium Lighting

This professional modular LED flood light is designed for high-efficiency lighting in demanding environments including railways, power plants, metallurgy, stadiums, and various industrial factories. It serves as a robust solution for large-scale outdoor and indoor facilities.

Advanced Heat Dissipation The modular design utilizes hollow convective heat dissipation, significantly improving thermal performance and ensuring long-term stability.
High-Performance Configuration Equipped with imported LED light sources, boasting an average lifespan of 100,000 hours. The power supply features short-circuit and over-voltage protection.
Durable Protection Built with die-cast aluminum and treated with macromolecule nano-spraying. Anti-corrosion grade reaches WF2 with an IP66 protection rating.

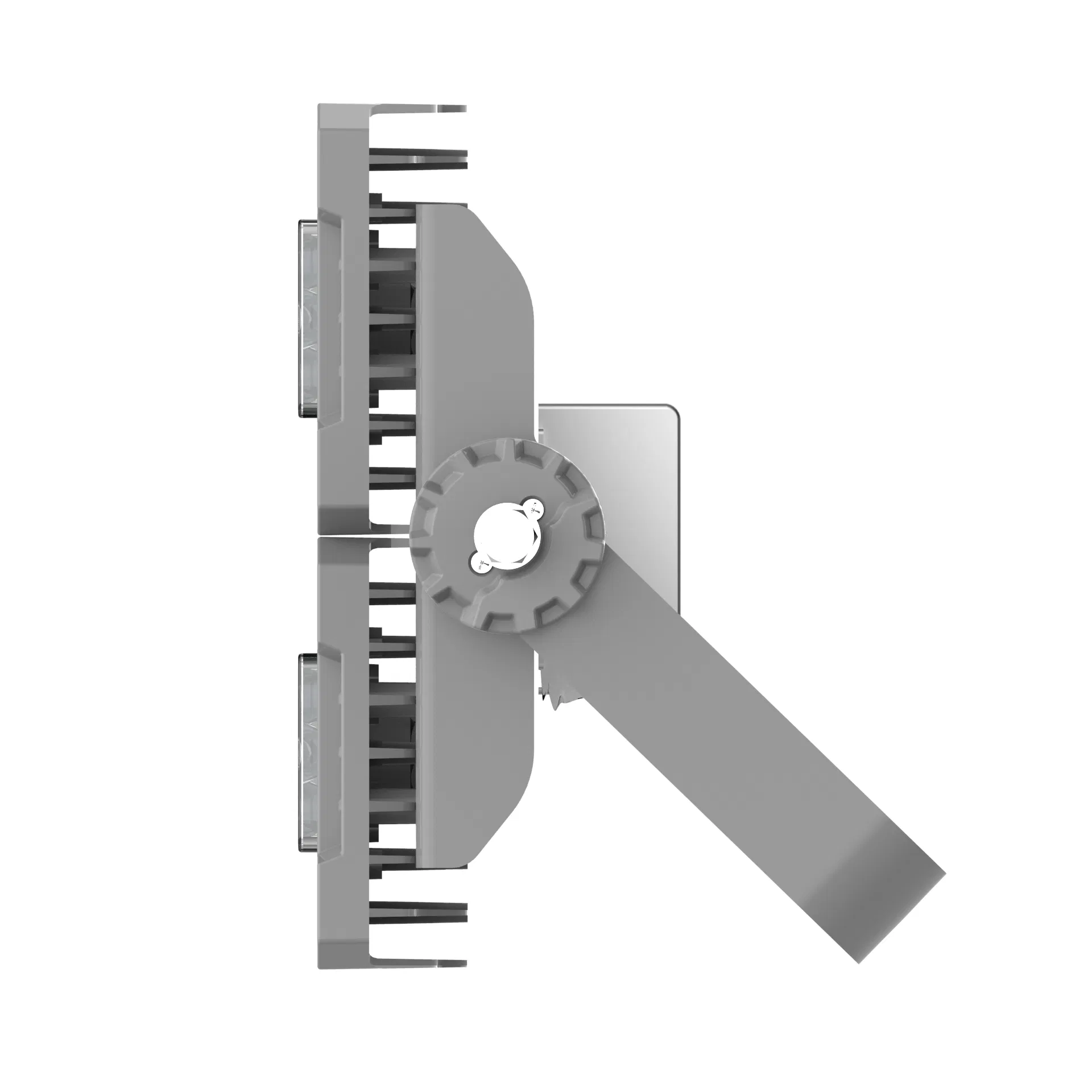

Flexible Installation Features a patented U-frame anti-skid and anti-seismic angle control device for precise adjustment. Supports seat, side wall, and ceiling mounting.
Detailed Visuals
Detail 1
Detail 2
Detail 3
Detail 4
Technical Parameters
ParameterValue
Output Power160-400W
Luminous Efficacy120-200 Lm/w
Input VoltageAC100-240V 50/60Hz
Weight9.8 kgs
Life Expectancy100,000 Hours
Color Rendering (CRI)≥75Ra
Beam Angles40° / 60° / 90° / 120°
Color Temperature3000K - 6500K
Anti-corrosion GradeWF2

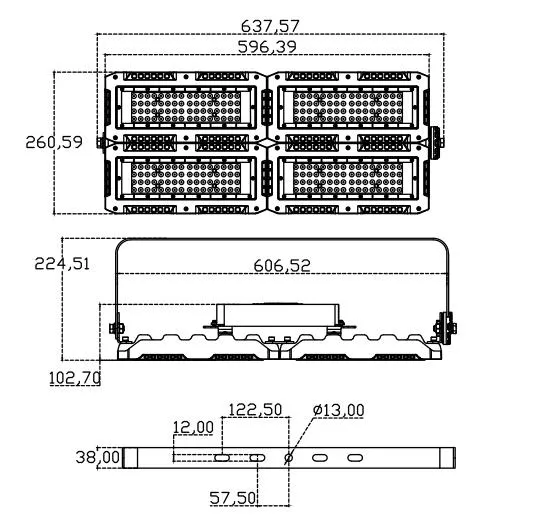

Parameter Chart

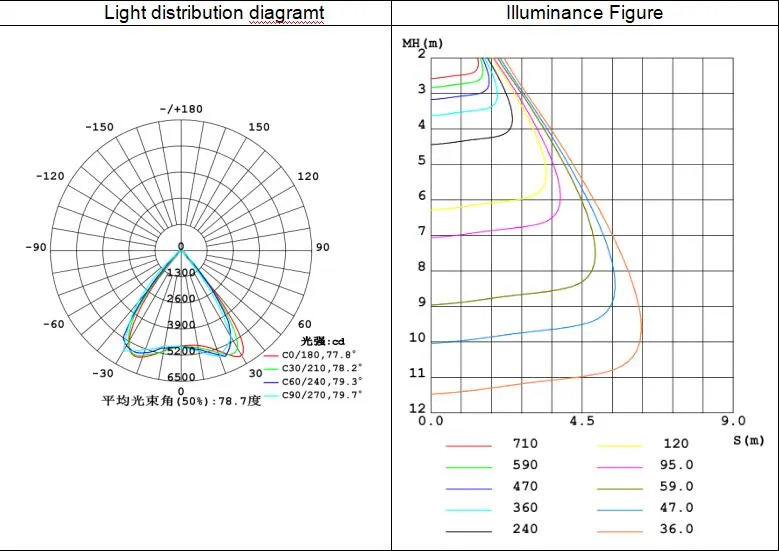

Test Report
Test Report
Our Advantages

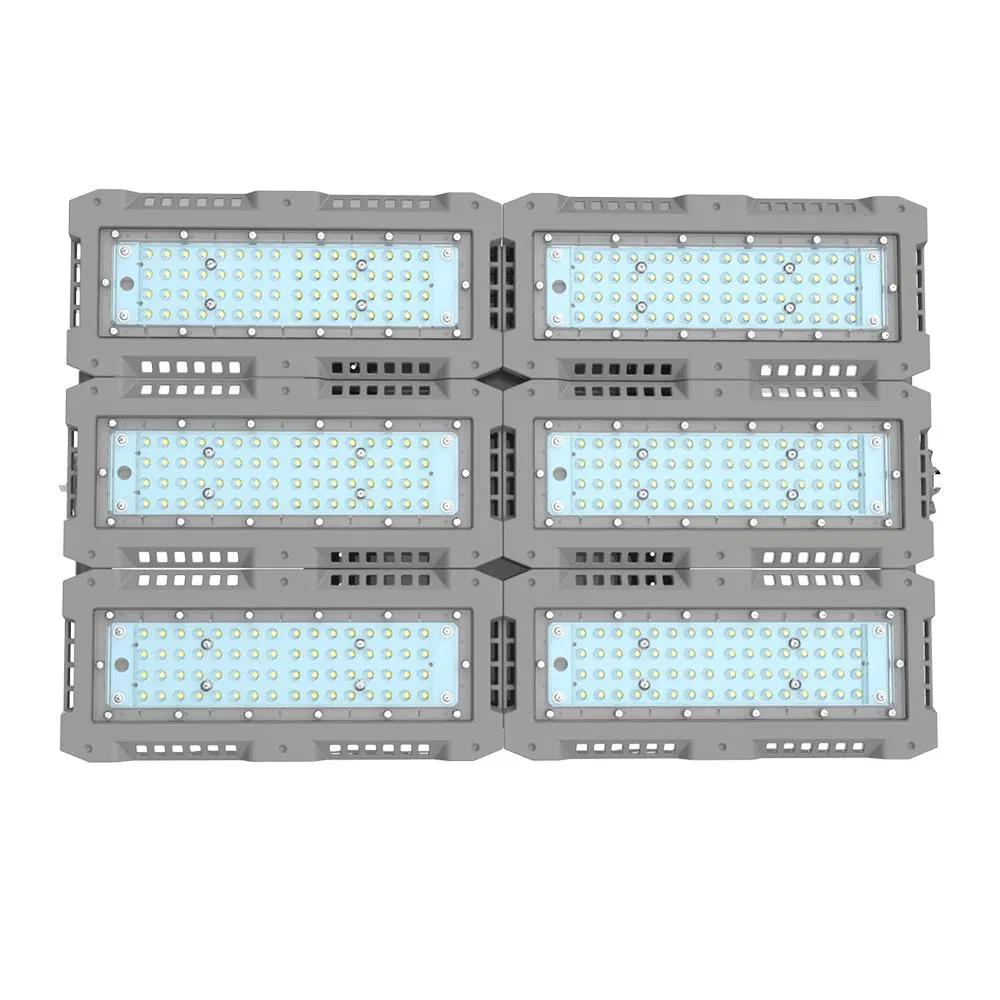

Advantage 1

Energy Saving

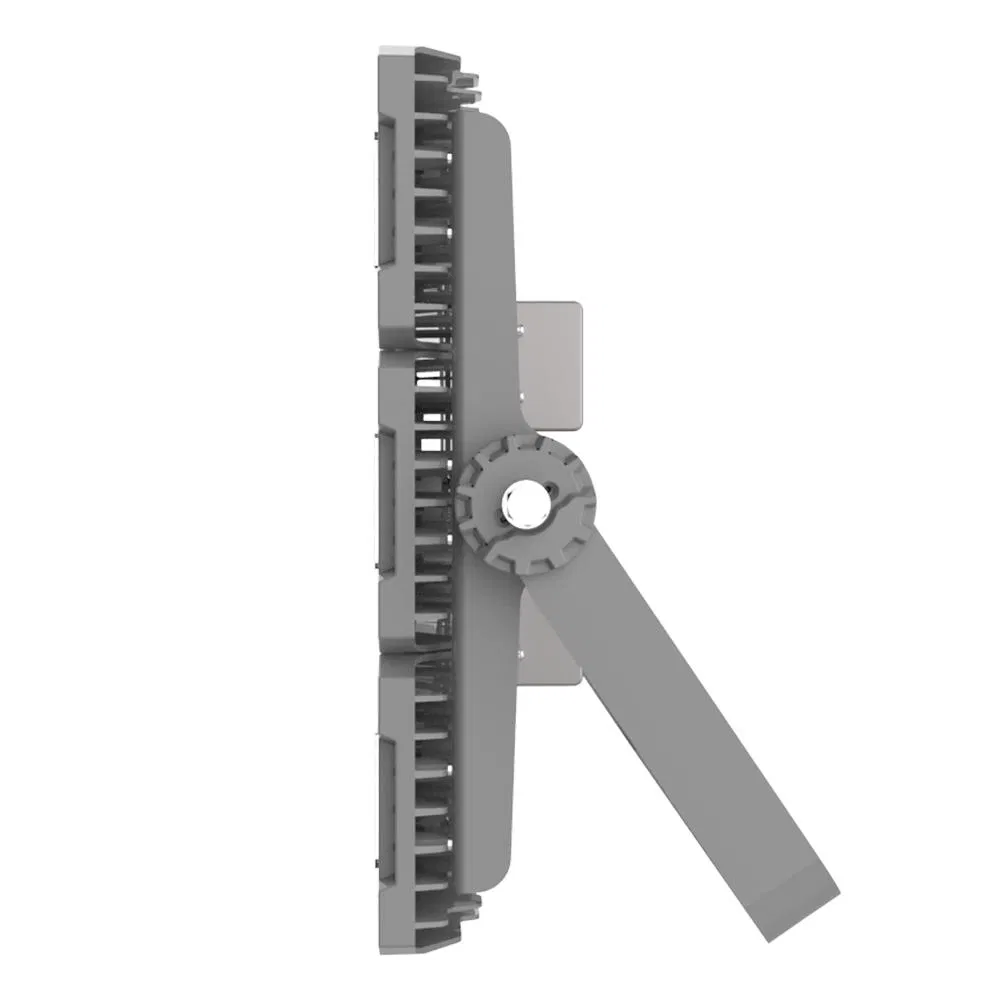

Advantage 2

Modular Structure

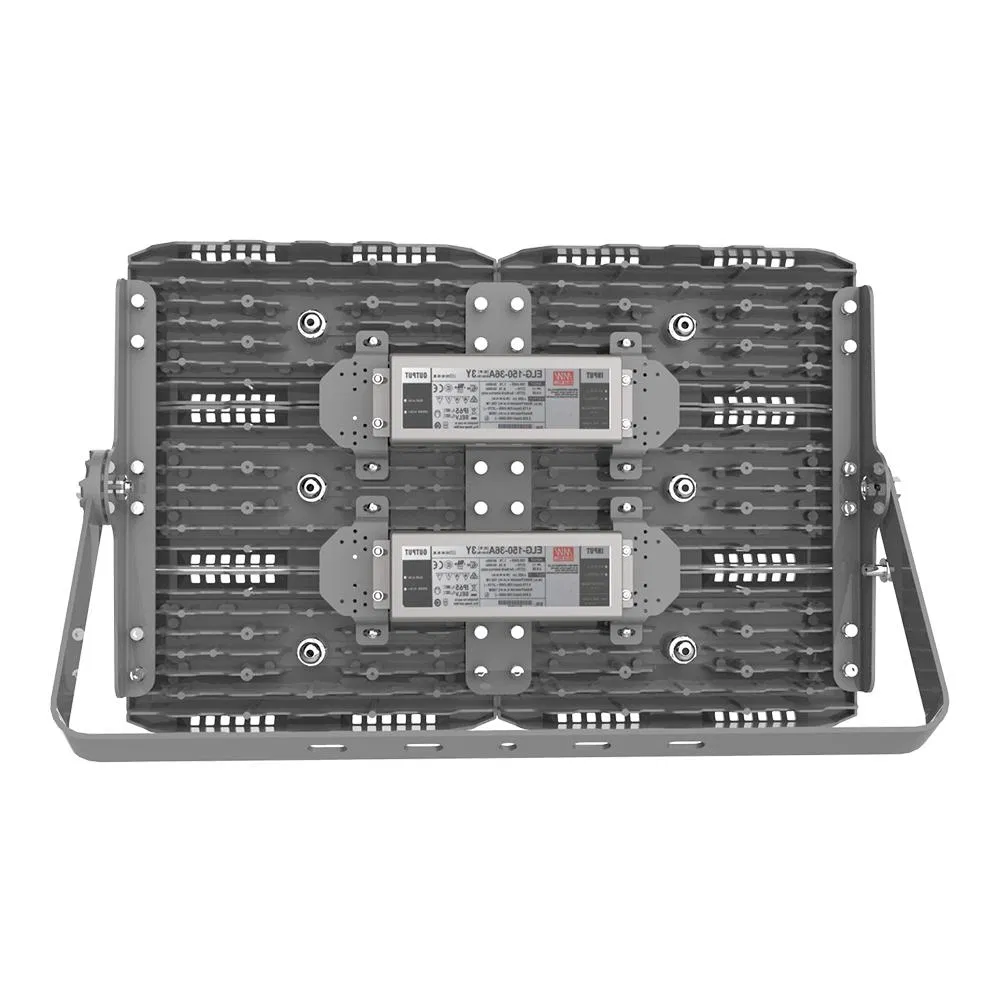

Advantage 3

Professional Optics

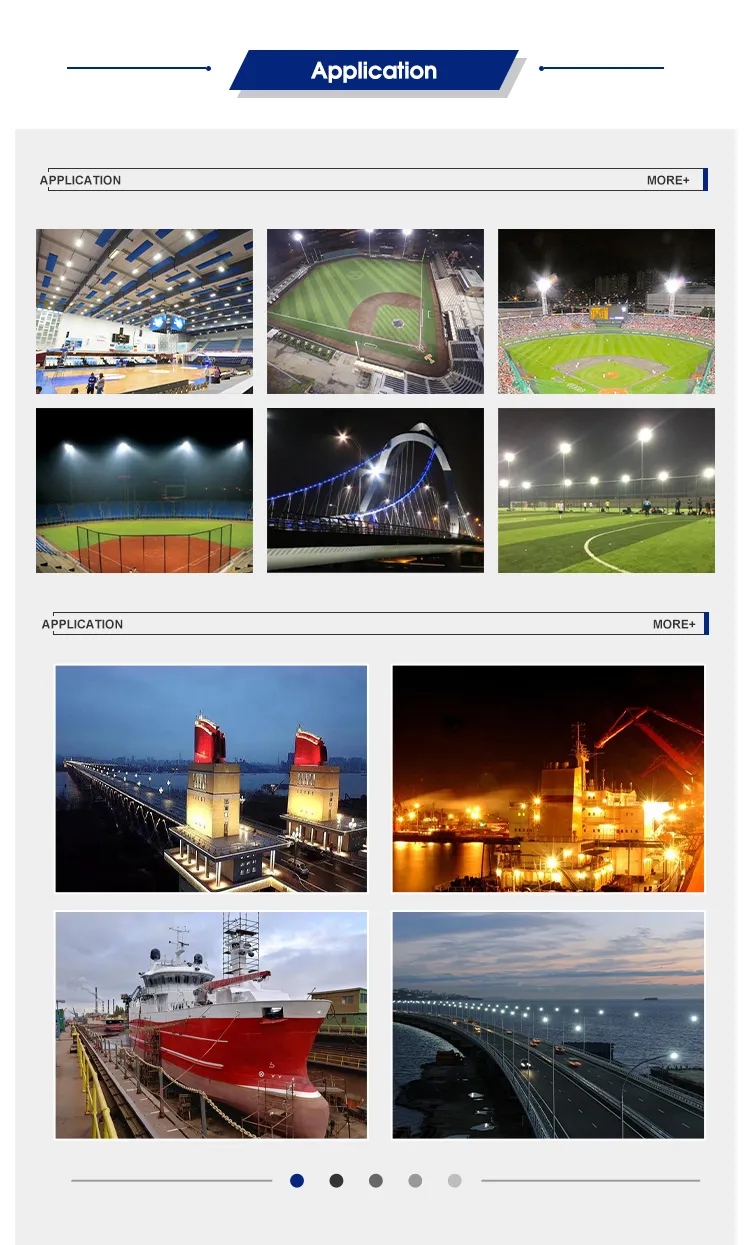

Application Scenarios

Perfect for: Billboards, Parking lots, Cycle tracks, Security zones, Playgrounds, Parks, Industrial Complexes, Shopping Centers, Stadiums, Airports, Sea Ports, Oil Fields, and Concrete Mills.

Application Scenarios
Installation Instructions

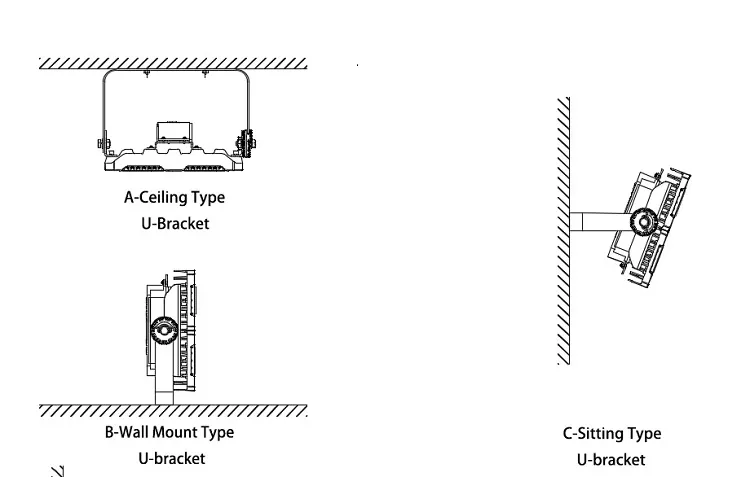

Installation Guide
Critical Safety Notes
1Before installation, check nameplate parameters against site power conditions.
2Connect wiring correctly: Brown (Live), Blue (Neutral), Yellow-Green (Ground).
3Ensure all connections are waterproofed and insulated.
4The luminaire must be reliably grounded to ensure safety.
5Surface temperature rise during use is normal. Avoid touching while active.
Frequently Asked Questions
Q1: What is the protection rating for outdoor use?
The product features an IP66 rating, making it completely protected against dust and powerful water jets, ideal for harsh outdoor environments.
Q2: Can these lights withstand corrosive marine environments?
Yes, the surface is treated with polymer nano-spraying, providing an anti-corrosion grade of WF2, which resists salt spray and rust.
Q3: What is the lifespan of the LED light source?
We use high-quality CREE LED chips, which have an average service life of up to 100,000 hours.
Q4: Are there different beam angle options?
Yes, we offer multiple optical grade raw material lenses with angles of 40°, 60°, 90°, and 120° to suit different lighting requirements.
Q5: Is the installation angle adjustable?
Absolutely. Our patented U-frame includes an anti-skid and anti-seismic angle control device for precise and easy adjustments.
Q6: What voltage does this flood light support?
The driver supports a wide input voltage range of AC 100-240V at 50/60Hz, ensuring stable performance across different regions.
