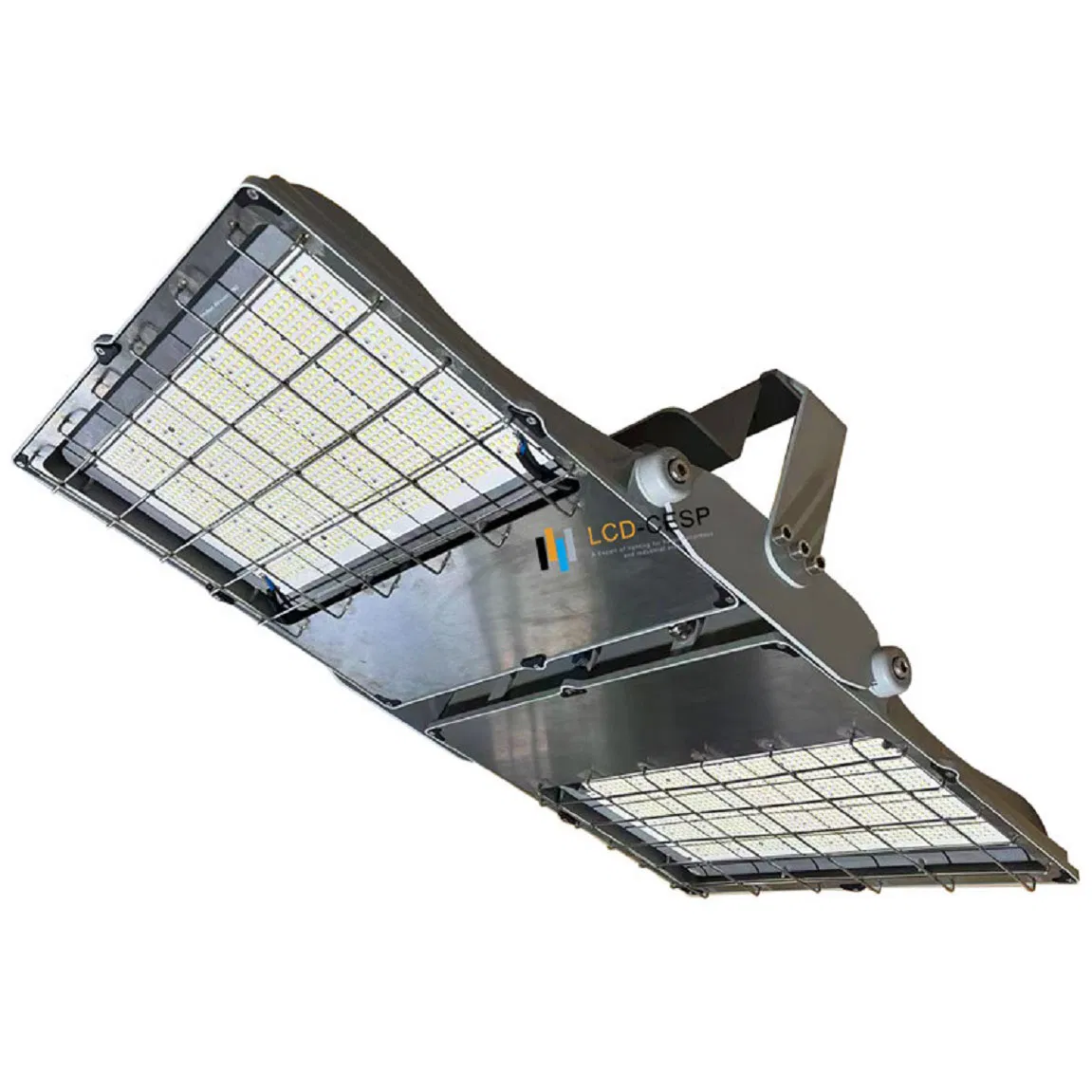

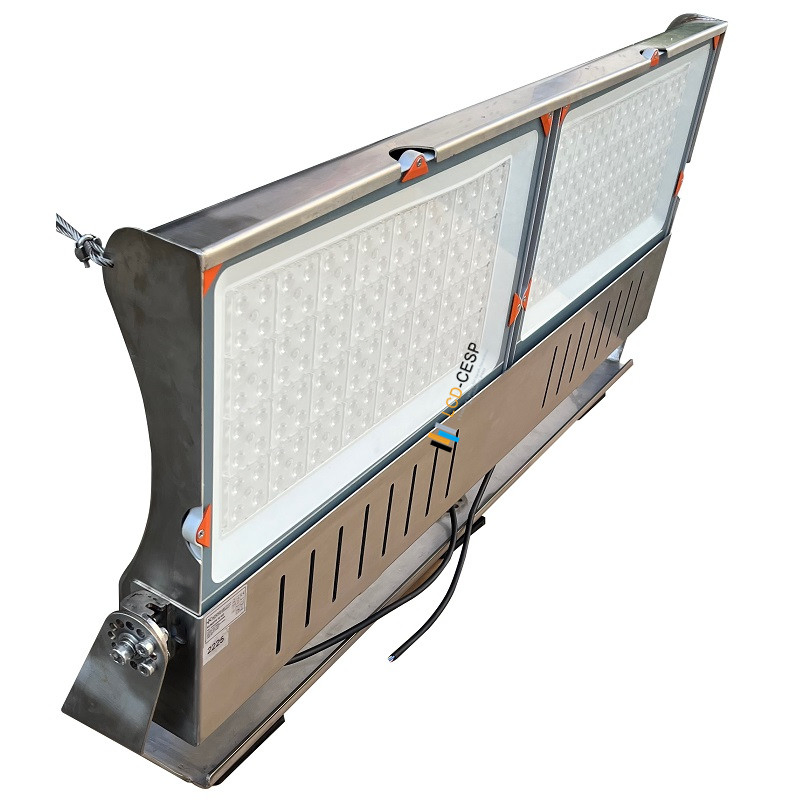

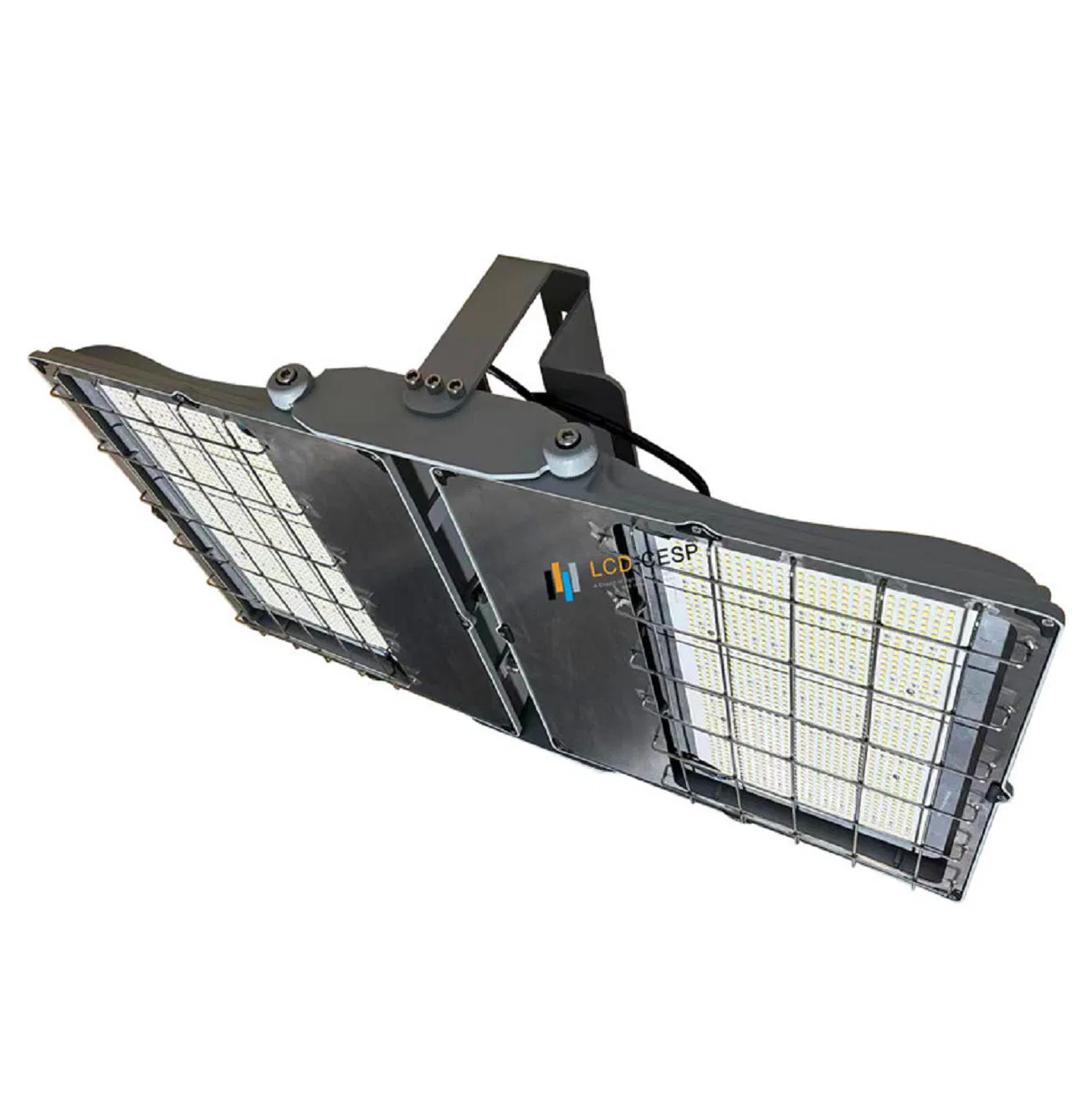

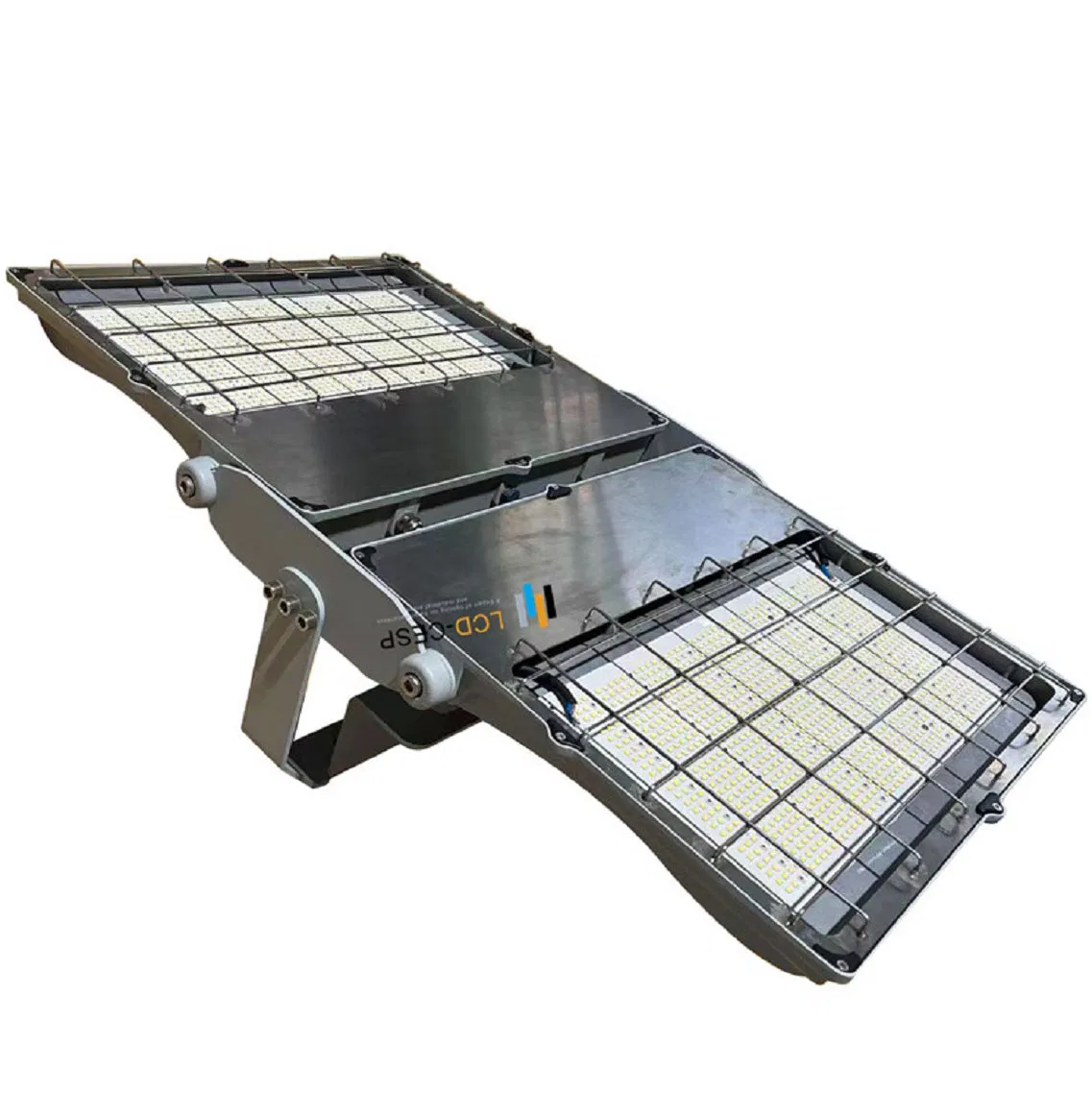

Superior Performance LED Floodlight 300W 400W 500W 600W 800W 1000W IP66/IP67 for High Mast Pole, Sports Field, and General Outdoor/Indoor Area Lighting

1 / 5

Superior Performance LED Floodlight 300W 400W 500W 600W 800W 1000W IP66/IP67 for High Mast Pole, Sports Field, and General Outdoor/Indoor Area Lighting

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

LCD-ZHTG-805

Pole Height

20-25m

Power

200-1000W

Projection Distance

50-1000m

IP Rating

IP66 / IP67

LED Chips Brand

Osram / Bridgelux

Lumen Output

170lm/W

Input Voltage

85-277VAC / 180-528VAC

IK Rating

IK09 / IK10

Certification

CE, RoHS, FCC, ETL, TUV, SAA

High Lumen LED Flood Light

Airport Apron & Sports Field Lighting
Designed for superior performance in outdoor sites, large areas, and high-mast applications. This series provides bright, uniform illumination while significantly reducing energy and maintenance costs compared to traditional HID solutions.

Superior Optical Performance

Application-specific optics ensure light is directed exactly where needed, maximizing efficiency and minimizing operating costs. With the highest lumen output available, these luminaires help achieve optimal light levels with fewer units.

Technical Highlights

⚡ High Efficiency
Up to 170lm/W utilizing advanced Luxeon/Osram SMD5050 chips for maximum energy savings.
🛡️ Robust Design
Copper-free pure Aluminum AL1060 heat sink with high thermal conductivity (210W/m.K).
⚙️ Modular Construction
Ability to tilt each single LED module (± 60°), optimizing light design and distribution.
🌊 Marine Grade
High resistance to corrosion with specialized coatings, ideal for coastal and dock applications.

Technical Data Sheet

Parameter	Specification Details
Lumen Maintenance	100,000 Hours (L80/B10)
CCT (Color Temp)	3000K / 4000K / 5000K / 6500K
CRI	70 / 80 / 90 Standard options
Beam Angles	20°, 40°, 60°, 90°, 120°, 140x100°
Operating Temp	-40°C to +55°C
Surge Protection	Up to 10KV on request

Model No.	Power	Lumens	Dimensions (mm)
LCD-LYEGB-725	720W	108,000 lm	694723268
LCD-LYEGB-965	960W	144,000 lm	694855268
LCD-LYEGB-1205	1200W	180,000 lm	694987268
LCD-LYEGB-1505	1500W	225,000 lm	6941119268

Primary Applications

Stadiums & Sport Arenas
Airport Aprons & Terminals
Logistics & Container Yards
Marine Docks & Coastal Areas
Industrial Halls & Warehouses
Large Scale Parking Lots
Prisons & High Security Sites
Building Façade Lighting

Frequently Asked Questions

What is the lifespan of these high-power LED floodlights?

These units are designed for a maintenance-free 100,000-hour lifetime (L90B10 at Ta 25°C) for both the LEDs and the high-quality drivers.

Are these lights suitable for coastal or marine environments?

Yes, the housing is made of copper-free pure aluminum with a marine-grade coating, providing high resistance to corrosion and an IP66/IP67 waterproof rating.

Can the light beam be adjusted after installation?

Absolutely. The modular construction allows each individual LED module to be tilted by ± 60°, and the main mounting bracket is adjustable between -125° and 125°.

Do these lights support dimming systems?

Yes, they come standard with 0-10V dimming drivers, and optional programmable dimming or motion response sensors are available to further enhance energy savings.

What is the standard warranty period?

We provide a high-quality 7-year warranty for our stadium and industrial series floodlights, ensuring long-term reliability.

Is there a flicker issue for sports broadcasting?

No, these lights feature high-performance drivers with a flicker rate of <2%, making them ideal for high-definition sports broadcasting and arenas.
