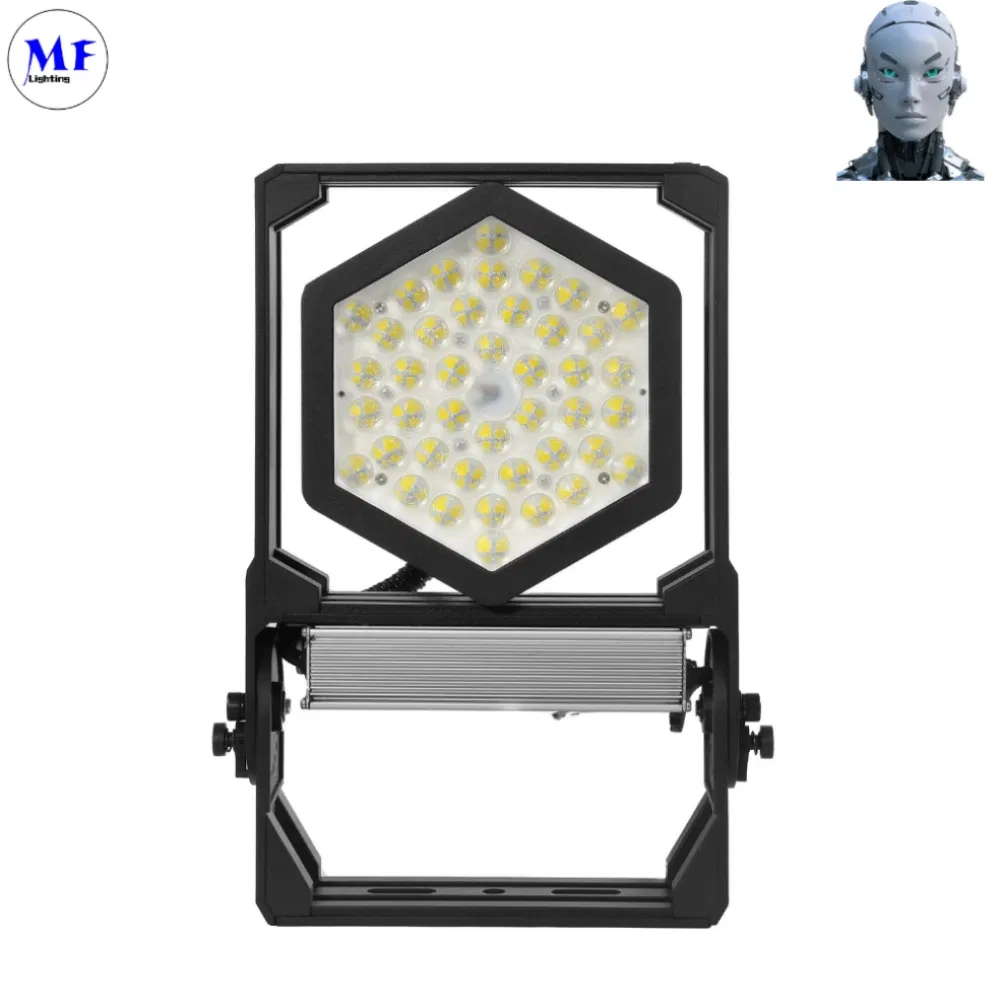

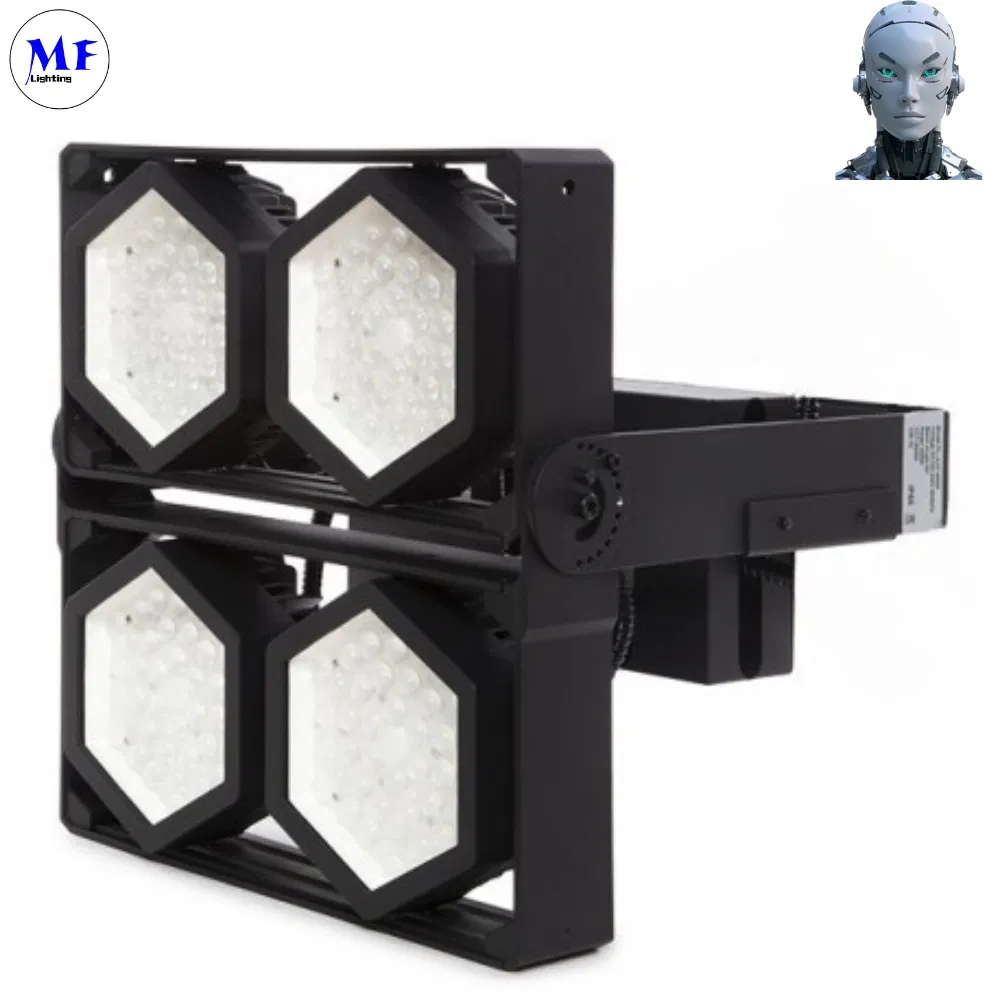

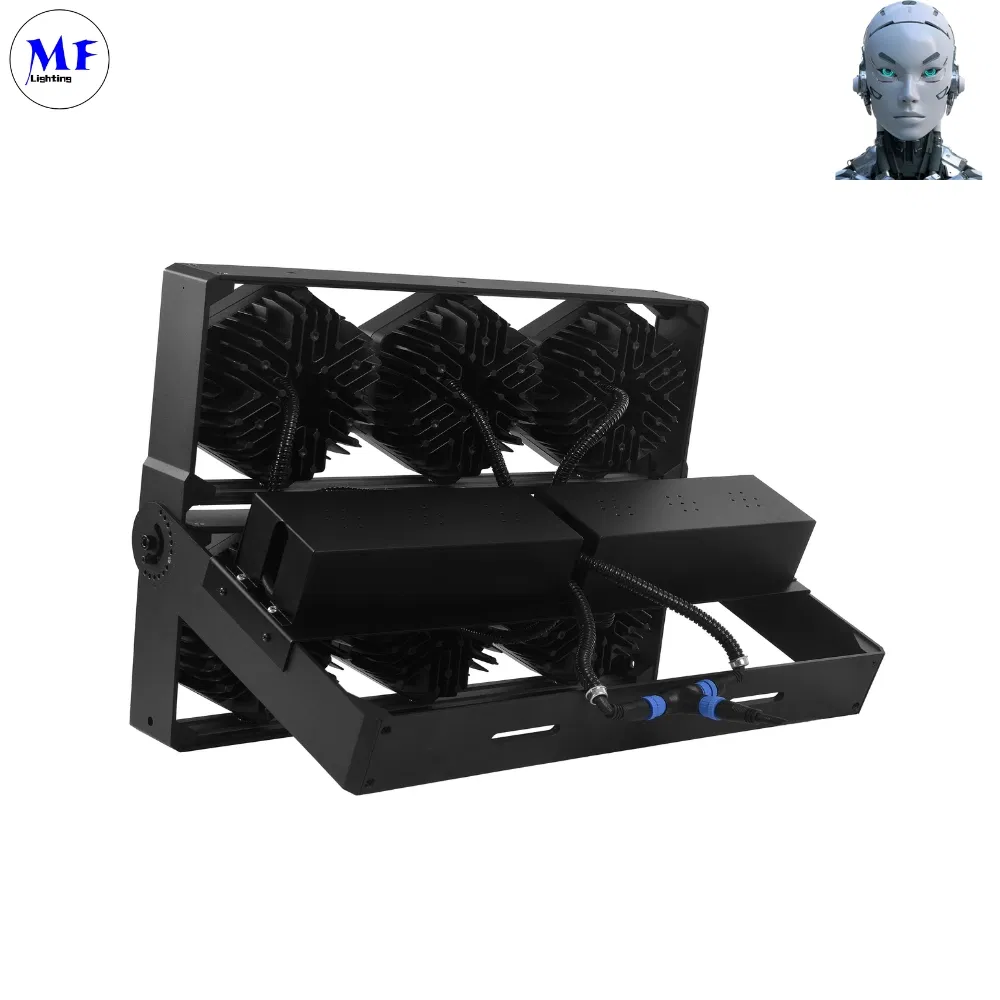

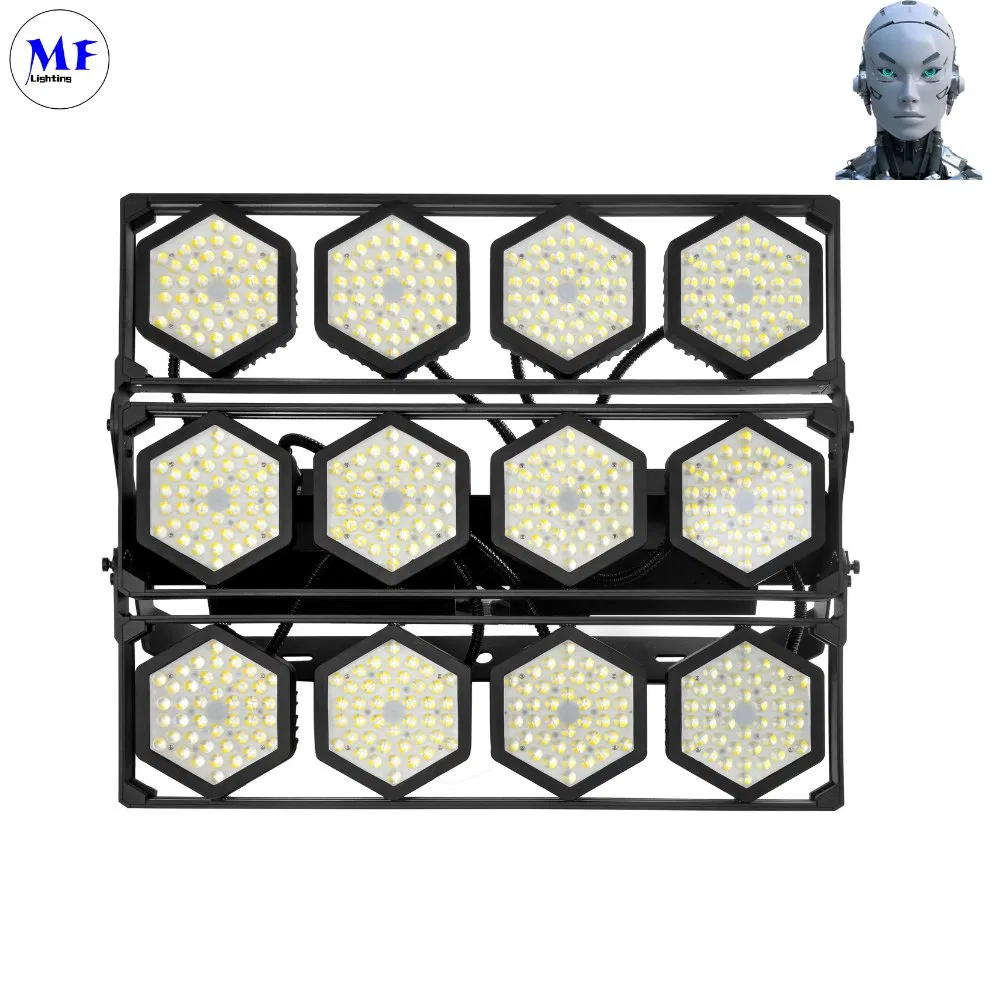

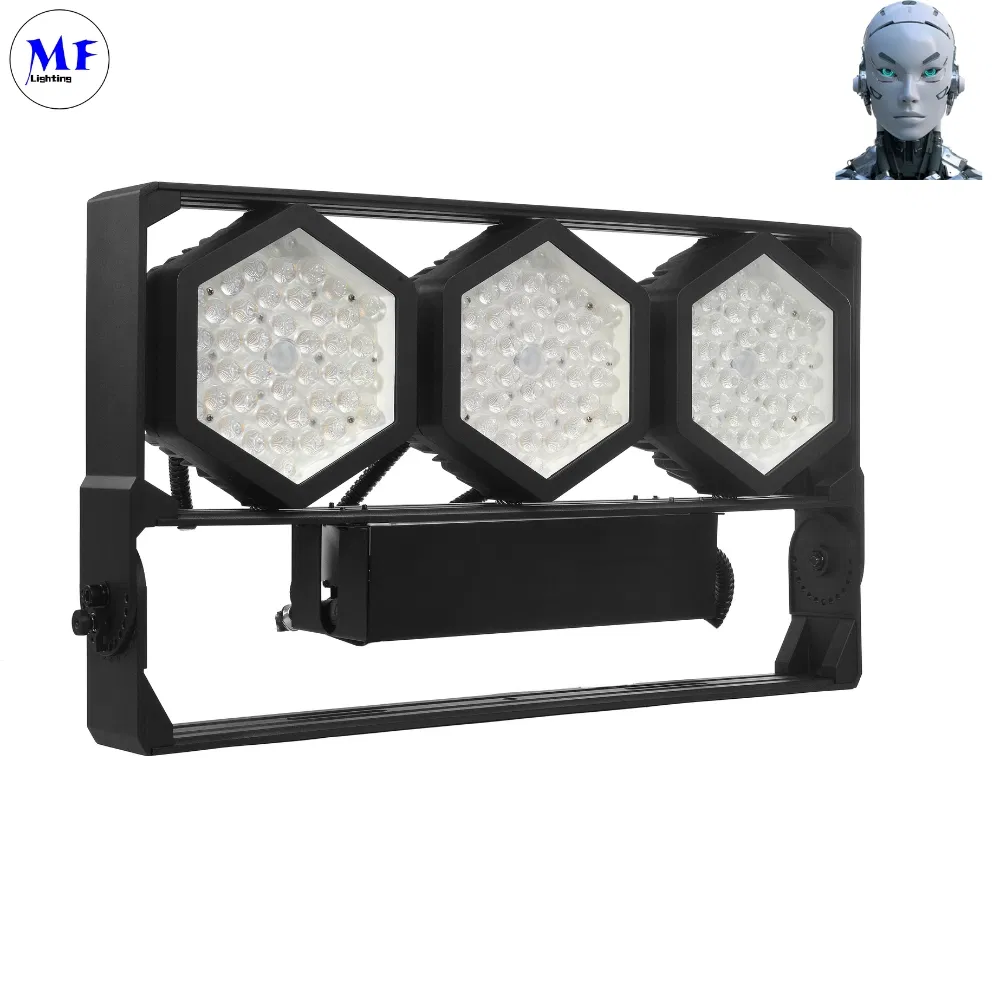

5years Warranty IP67 Waterproof Outdoor 100W-1200W LED High Mast Power Flood Stadium Sport Industrial Modular Light for Football Basketball Field Billboard

1 / 5

5years Warranty IP67 Waterproof Outdoor 100W-1200W LED High Mast Power Flood Stadium Sport Industrial Modular Light for Football Basketball Field Billboard

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Product Overview

⚡ High Power LED High Mast Lighting Solution

5 years Warranty IP67 Waterproof Outdoor 100W-1200W LED High Mast Power Flood Stadium Sport Industrial Modular Light. Ideal for Football Basketball Field, Billboards, and large-scale industrial areas.

Power

100W-1200W

IP Rating

IP67

Input Voltage

100-277 VAC

Luminous Efficiency

140lm/W

LED Chips

Sanan

Driver

Moso

CRI

>80

Warranty

5 Years

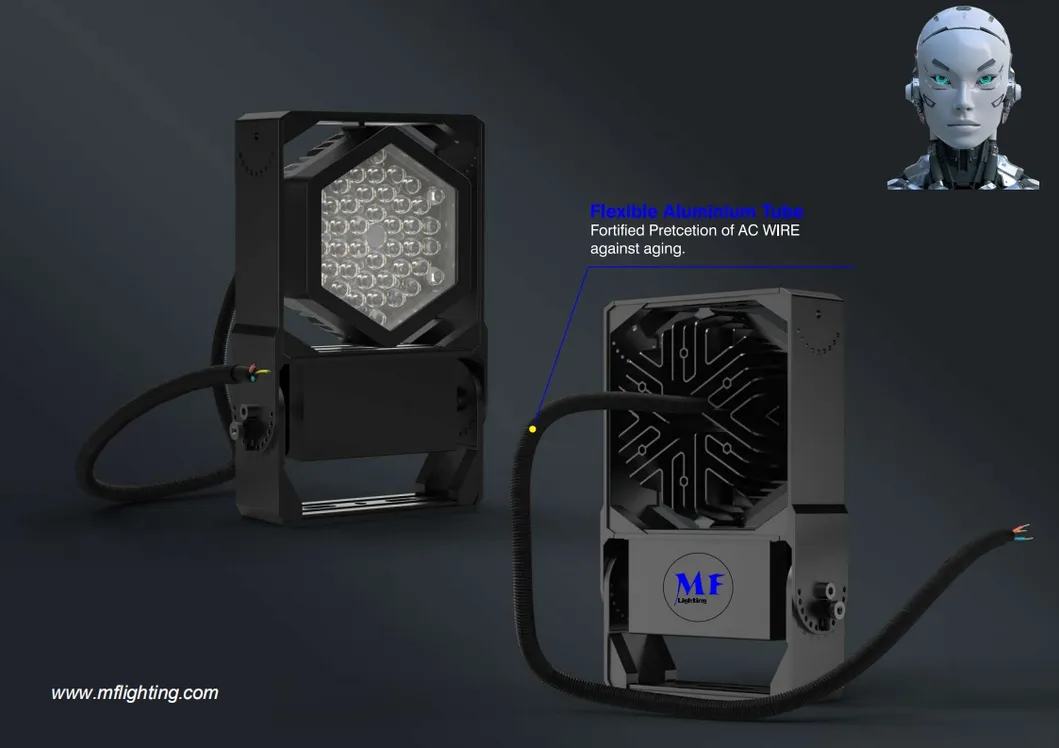

Key Features

💎 Advantage Highlights

📍 Modular Design: Each LED Module offers 2D-Angle adjustable design in both horizontal and vertical directions.
📍 Ultra High Power: Up to 1200W to satisfy intense light output needs for large venues.

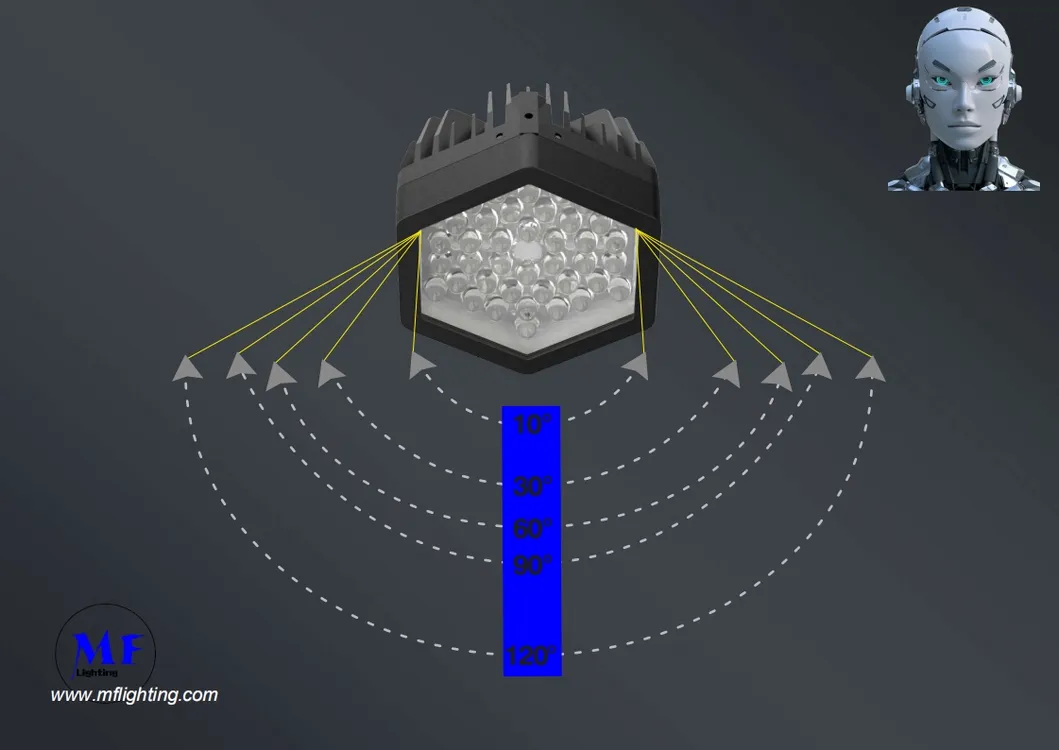

📍 Optical Precision: 10°-120° optical angles option for precise lighting in challenging fields.

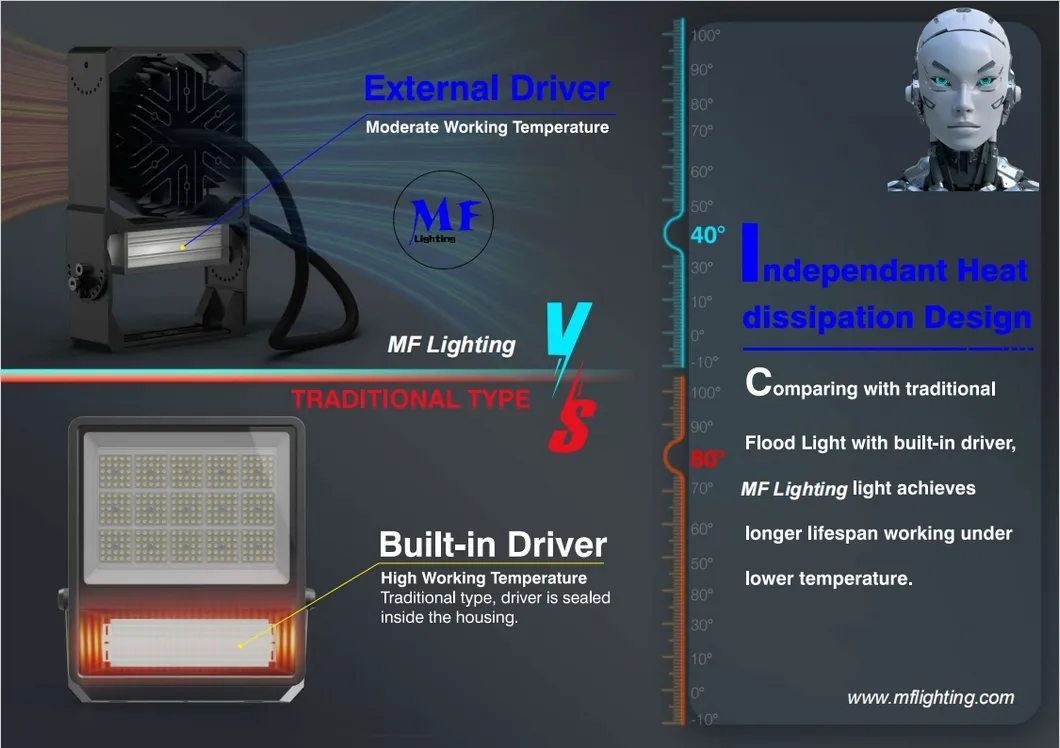

📍 Thermal Management: Unique heat radiating fins design for a superior cooling system.

Technical Specifications

Electrical & Photometrical Data
Power Range	100W / 200W / 300W / 400W / 600W / 900W / 1200W
Driver Brand	MOSO (DALI/0-10V/PWM Optional)
Color Temperature	4000K / 5000K / 5700K
Beam Angle	10° / 30° / 60° / 90° / 120°
Surge Protection (SPD)	4KV Line-Line, 6KV Line-Earth
Operating Temp	-40ºC to +70ºC
Body Material	Die Cast Aluminium Housing
Impact Rating	IK08
Anti-Corrosion	C4 Salt Spray Resistant

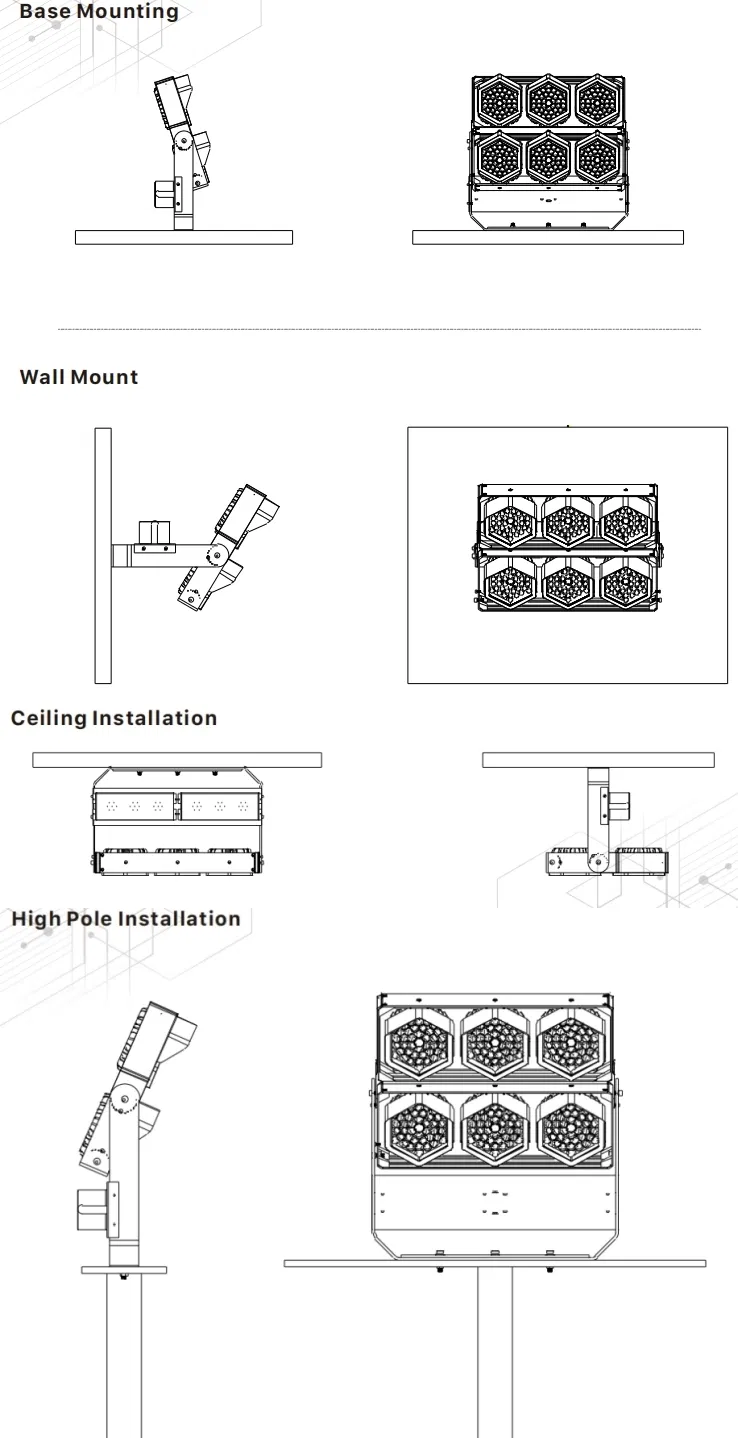

Dimensions & Installation

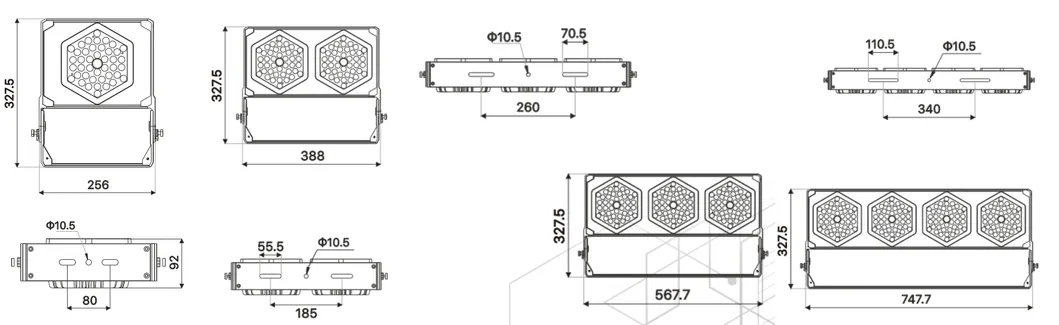

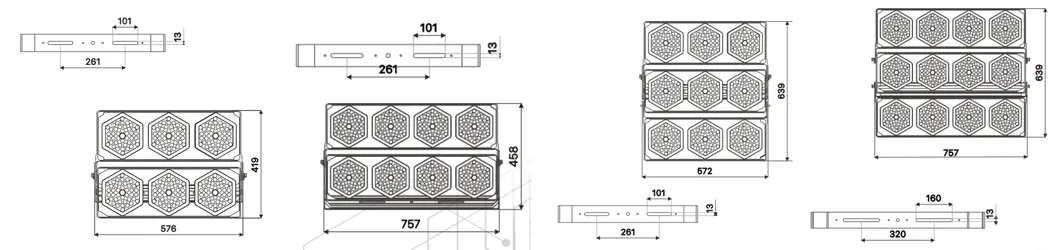

100W-1200W Model Mechanical Dimensions:

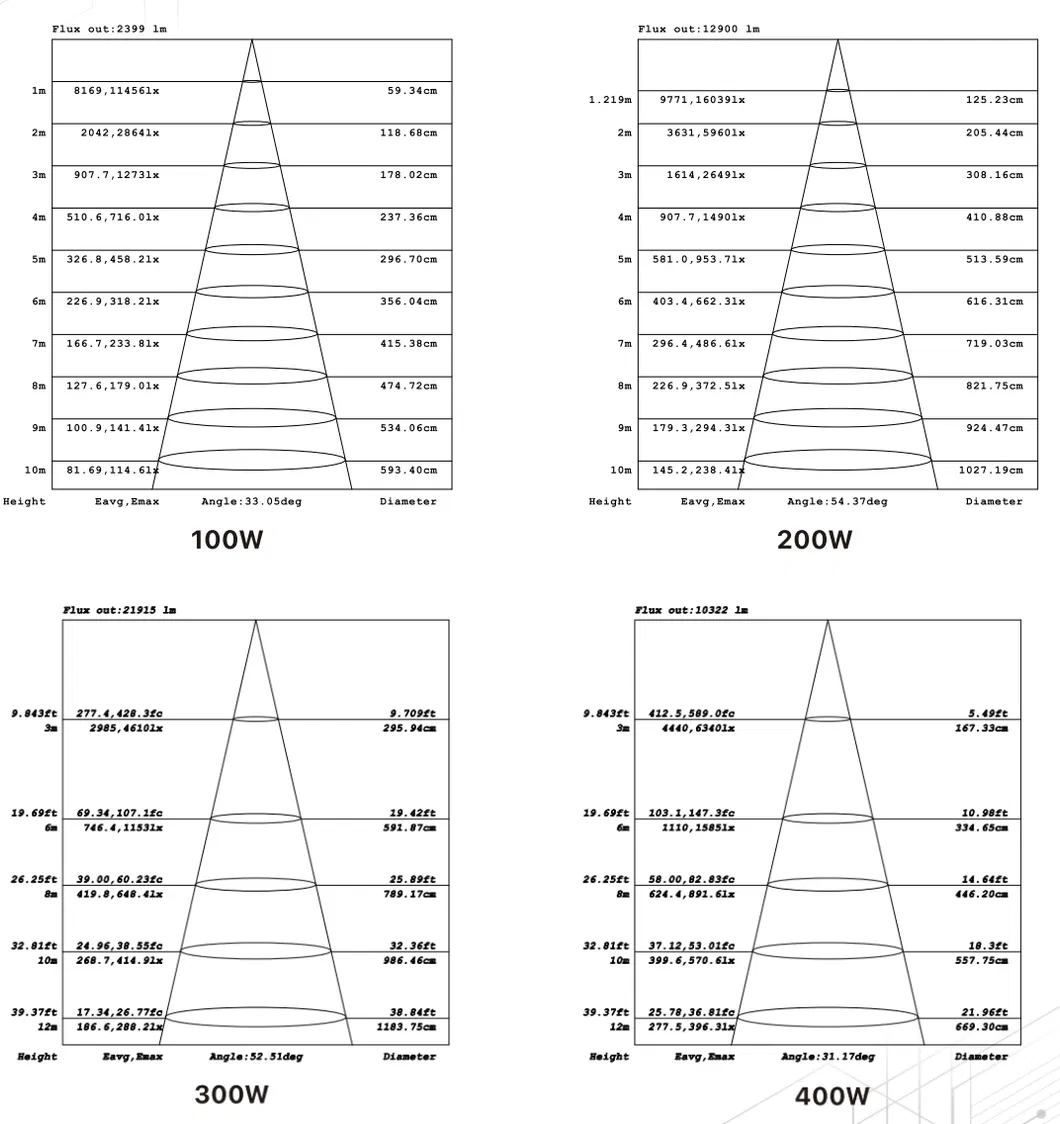

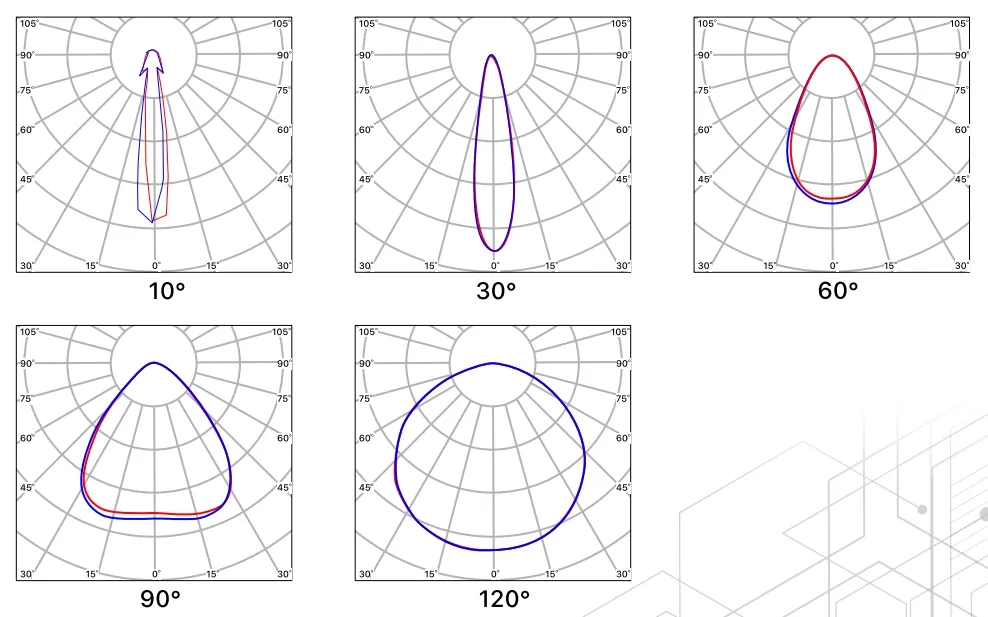

Photometric Data

Professional Applications

🏗️ Versatile Outdoor Lighting

LED High Mast Flood Lights are widely used in various applications that require high-intensity lighting over large outdoor areas:

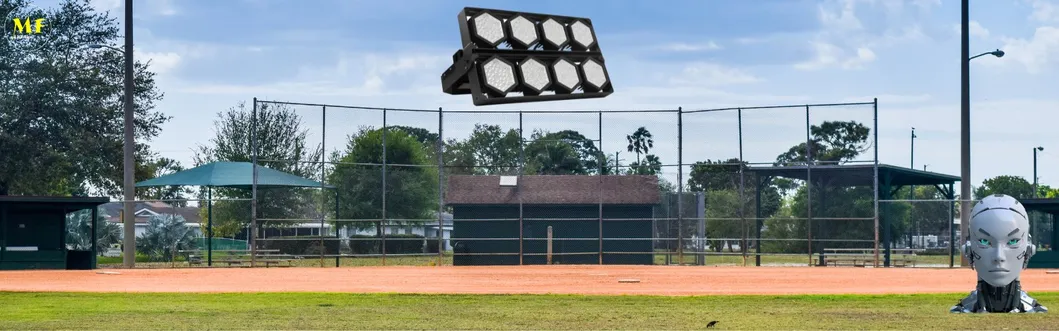

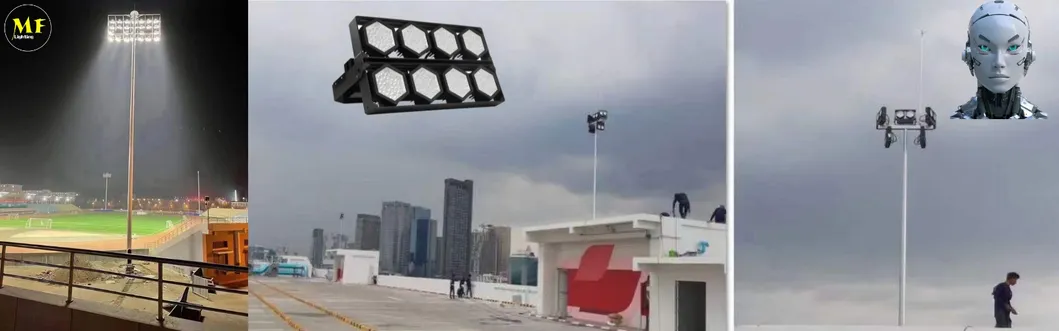

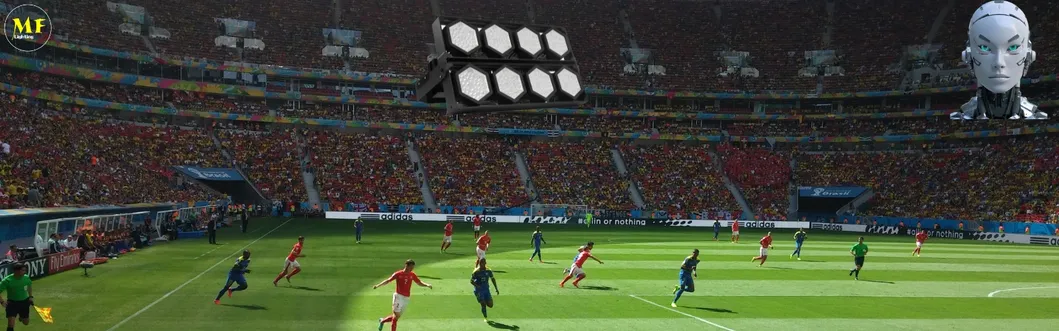

Sports Venues: Football fields, Basketball courts, Tennis courts, Golf courses, and Stadiums.
Transport Hubs: Airports, Seaports, Wharfs, and Docks.
Industrial: Tower Cranes, Construction sites, and Industrial complexes.
Public Spaces: Large outdoor parking lots, Exhibition centers, and Parks.

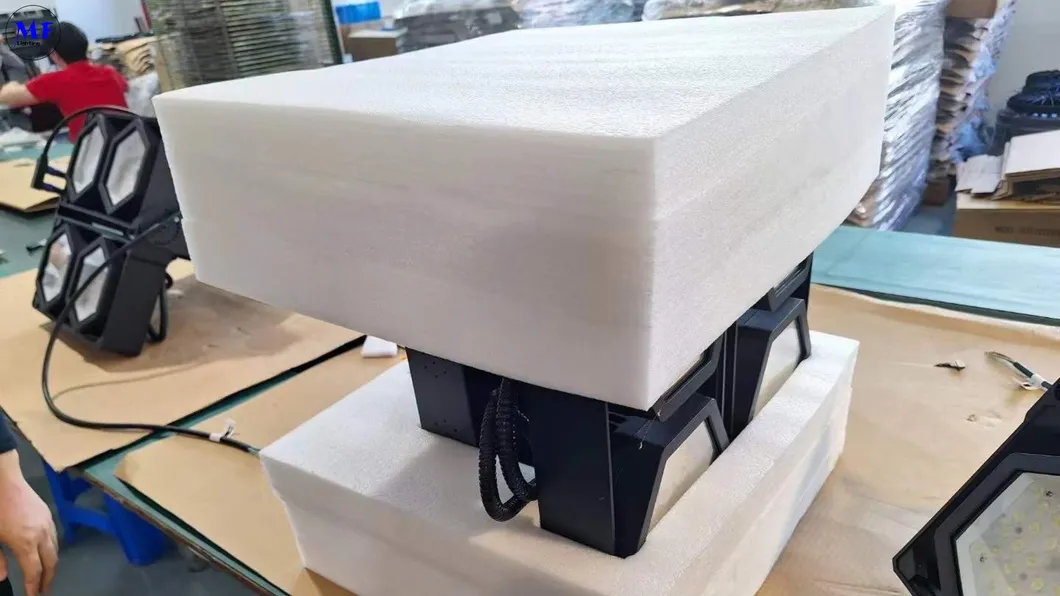

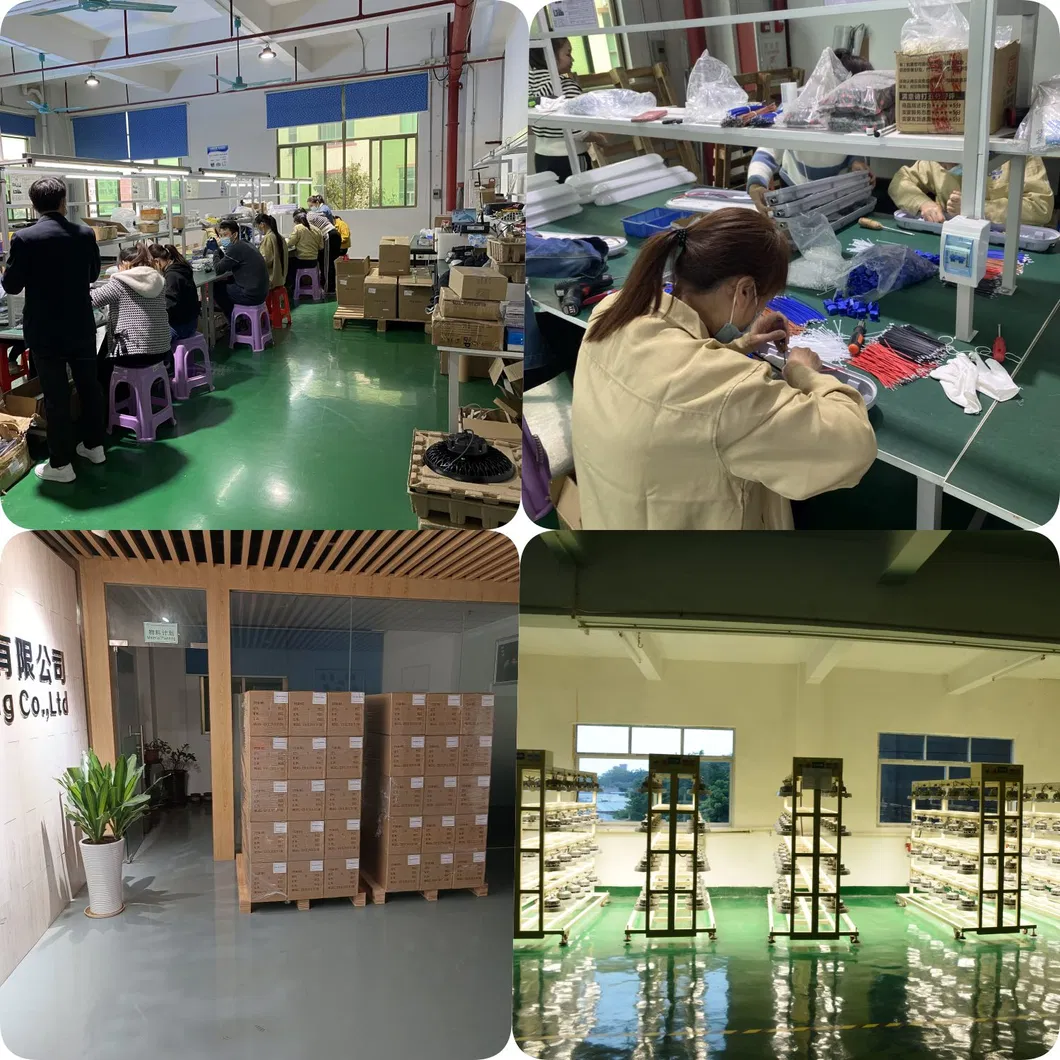

Our Advantages

Frequently Asked Questions

What is the warranty period for these LED high mast lights?

These lights come with a standard 5-year warranty, ensuring long-term reliability and performance for industrial and stadium use.

Are these lights suitable for extreme weather conditions?

Yes, they are IP67 waterproof rated and have an IK08 impact rating. They can operate in temperatures ranging from -40ºC to +70ºC and feature C4 anti-corrosion protection.

Can the light modules be adjusted for specific lighting angles?

Absolutely. Each module features a 2D-Angle adjustable design, allowing for precise horizontal and vertical positioning to meet challenging illumination requirements.

What dimming options are available?

While the standard model is non-dimmable, we offer options for DALI, 0-10V, and PWM dimming, as well as Zigbee wireless intelligent control.

What is the luminous efficiency of these LED lights?

The lights provide high efficiency at 140Lm/W, utilizing high-quality Sanan LED chips and Moso drivers for optimal energy performance.

In what environments are high mast flood lights typically used?

They are ideal for large outdoor areas such as sports stadiums, airport runways, shipping ports, construction sites, and large parking facilities.
