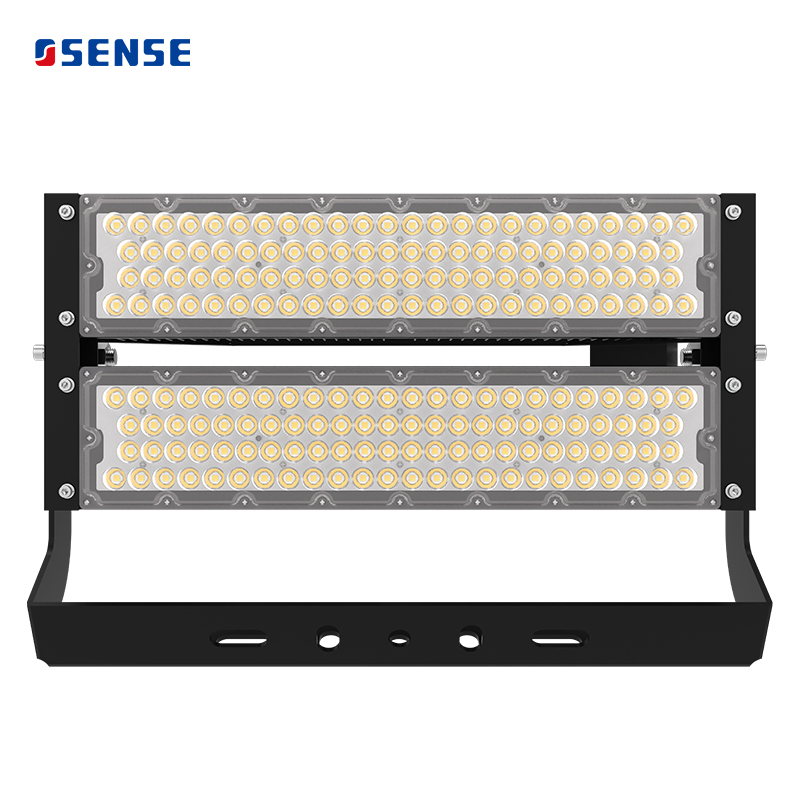

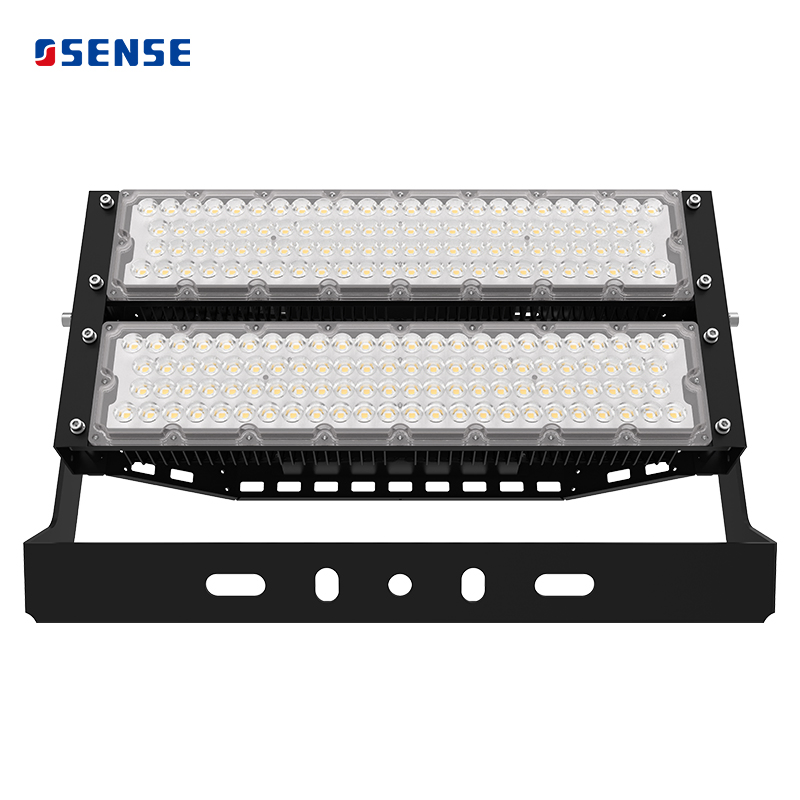

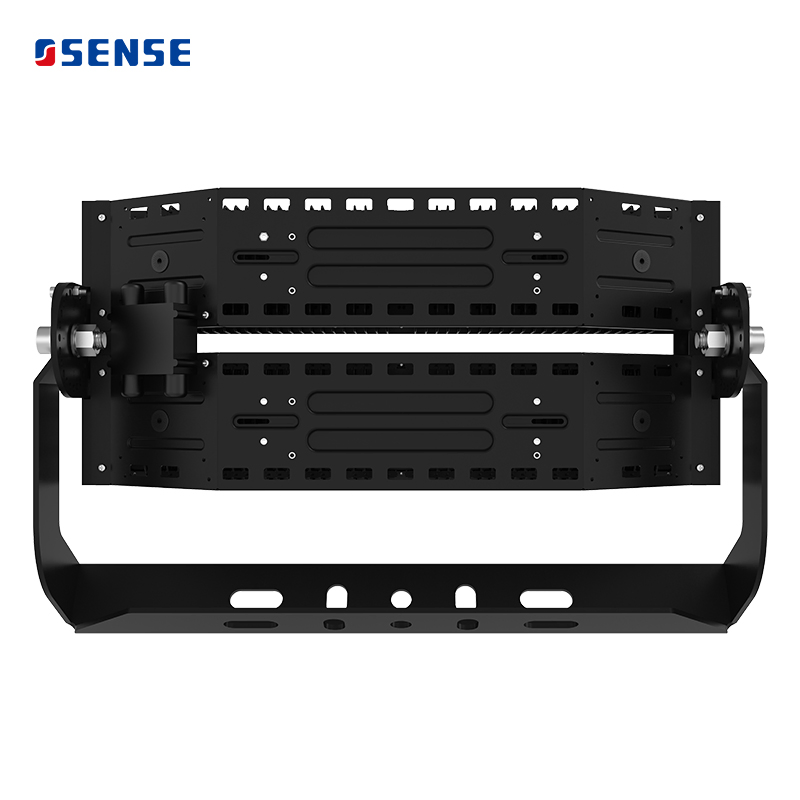

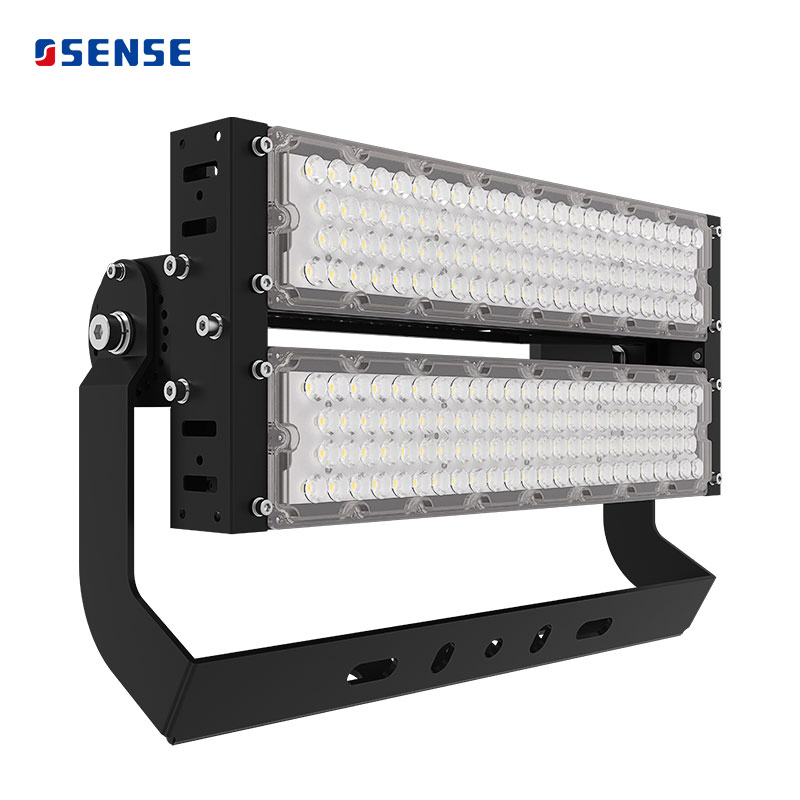

Outdoor High Mast Pole Sports Lighting 250W 500W 750W 800W 1000W 1500W Football Field Tennis Court Basketball Arena Reflector Stadium LED Flood Light

1 / 5

Outdoor High Mast Pole Sports Lighting 250W 500W 750W 800W 1000W 1500W Football Field Tennis Court Basketball Arena Reflector Stadium LED Flood Light

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

⚡ Basic Specification

Model NO.

SWT-MS500W

Power Range

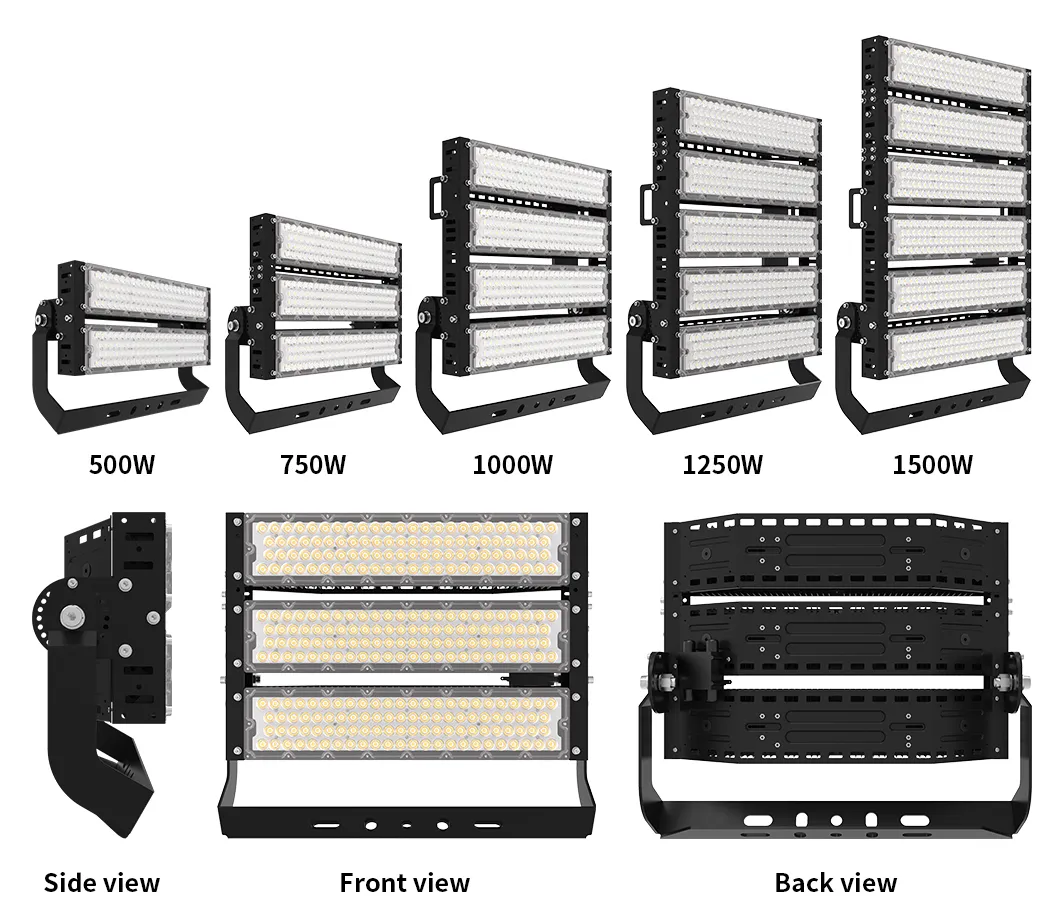

500W/750W/1000W/1250W/1500W

Luminous Efficiency

140lm/W(5050) & 150lm/W(7070)

CRI

>70

Beam Angle

P6/P9/20°/40°/60°/90°

IK Grade

Ik08

Housing Color

Black or OEM

Material Features

Light Weight, Stable and Reliable Heat Dissipation

Production Capacity

20000PCS/Month

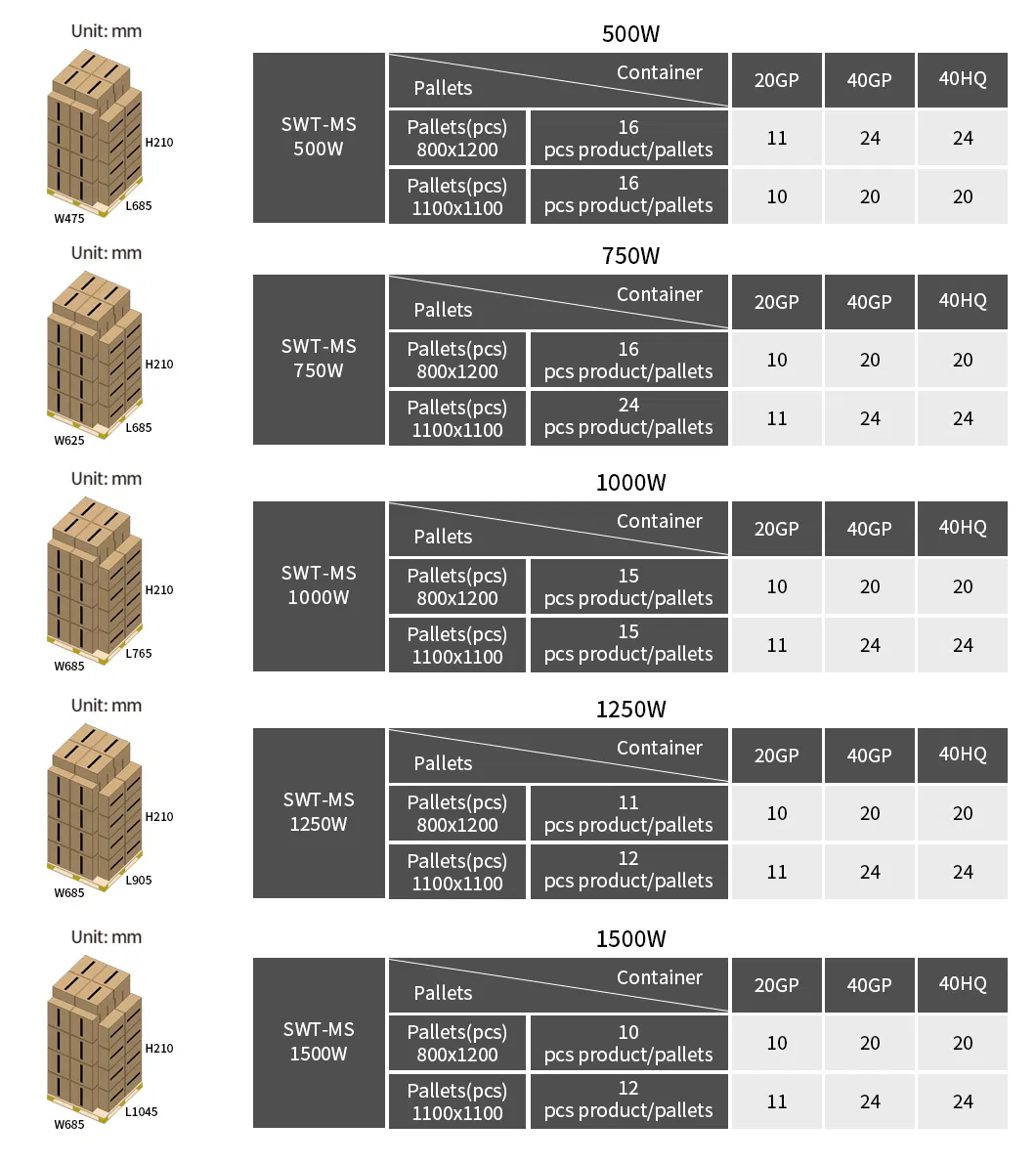

📦 Packaging & Delivery

Package Size

65.50cm * 42.00cm * 23.00cm

Gross Weight

14.700kg

💡 LED Stadium Light Features

Patent private mold, integrated Die-casting
20%-30% lighter than standard die-casting products of the same power
IP65 rated for external illumination
Equipped with High efficiency and power factor-led driver (Meanwell/Sosen/Moso/Inventronics)
Dimming optional: 0-10V / DALI / Time control available
Unique polarized 50°/65° optical design, low UGR
High efficiency up to 150lm/w with 96-in-1 LED5050 solution

GENERAL INFORMATION		ELECTRIC INFORMATION
Mounting Module	Bracket system	Electrical Class	Class I
Operating Temp	-30ºC/+45ºC	Nominal Voltage	100-240VAC/100-277VAC/180-528VAC
Lens Options	8°;20°;40°;60°;90°;P50;P65	Lamp Power	500W - 1500W (Up to 210,000 Lm)
Housing Material	ADC 12 die-casting + AL 1070 pure aluminum	Control system	DALI/1-10v/0-10v/DMX512 dimming
HOUSING AND MATERIALS		OPTICAL INFORMATION
IP/IK Rating	IP65 / IK08 (IK10 optional)	Color Temp	4000K, 5000K, 5700K
Housing Finish	Powder spraying, corrosion resistance	LED Brand	LUMILEDS; CREE; OSRAM; Nichia
Vibration Test	IEC 68-2-6 (0.5G), ANSI C136.31 (3G)	LED Lifetime	Tq =45°, >50000h - L70B50

📷 Product Details

🔧 FAQ

Are you a manufacturer?

Yes, we have our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management since 2003.

What certifications do you have?

We have TUV/CB/CE/EMC/SAA/CCC/RoHS approval, along with IP65/IP66/IP67/IK08/IK09/IK10 and LM79/LM80 reports.

Can I have our LOGO on the products and packages?

Yes, we provide professional OEM services to our customers.

What is the warranty for your products?

We offer a 5-7 year warranty depending on the specific requirements of the customer's request.

What about the lead time?

Samples typically take 3-7 days, while mass production takes 10-20 days based on order quantities.

How do you handle faulty products?

Our defective rate is less than 0.1%. For items under warranty, we send new lights or repair batch products according to the situation.
