Technical Specifications
Pixel Configuration
1R, 1G, 1B
Display Type
LED Video Display
Certification
CE, RoHS, CCC, ETL
P8 Outdoor LED Screen Display Panel

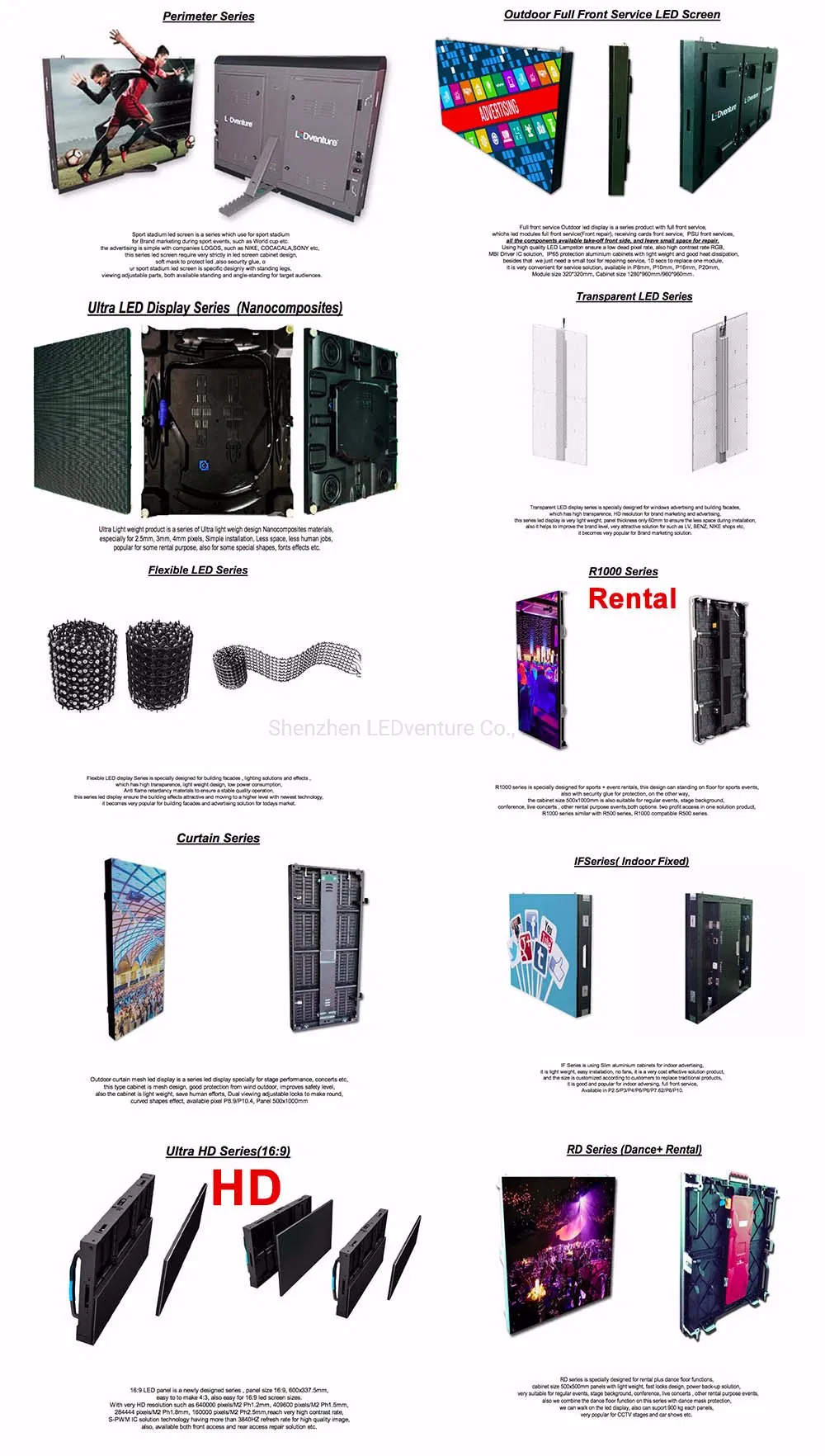

We focus on all kinds of led display screen manufacturing included indoor outdoor led display, rental led display, flexible led display, transparent led display, dance floor led series, HD resolution led display, perimeter led display, stadium sport led display screen, led sign, led display board and led billboard.
Main Features
Outdoor rear service led screen series using high quality LED, stable and low brightness decrease in 3-5 years. It features aluminum led screen cabinets for light weight, saving effort during installation, powered by stable quality drivers and a Nova control system.
| Feature |
Specification |
| Pixel Pitch | 3mm to 20mm |
| Brightness | 5000-20000nits |
| Cabinet Size | 576x768mm / 960x960mm / 1024x1024mm |
| Max. Power Consumption | 450-950W/panel |
| Refresh Rate | >1920HZ |

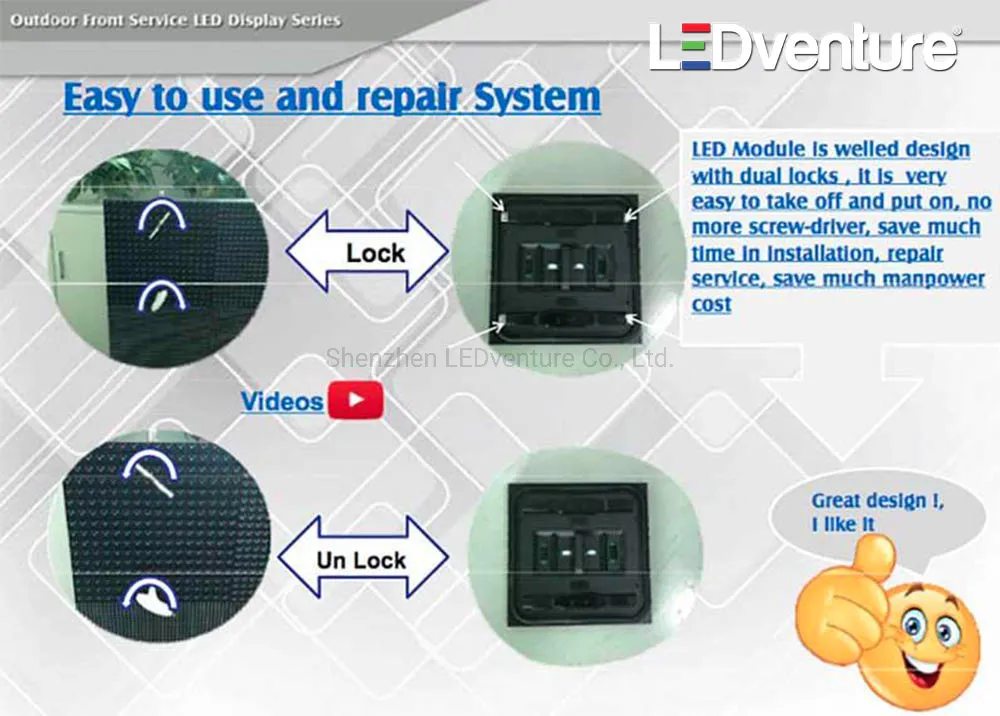

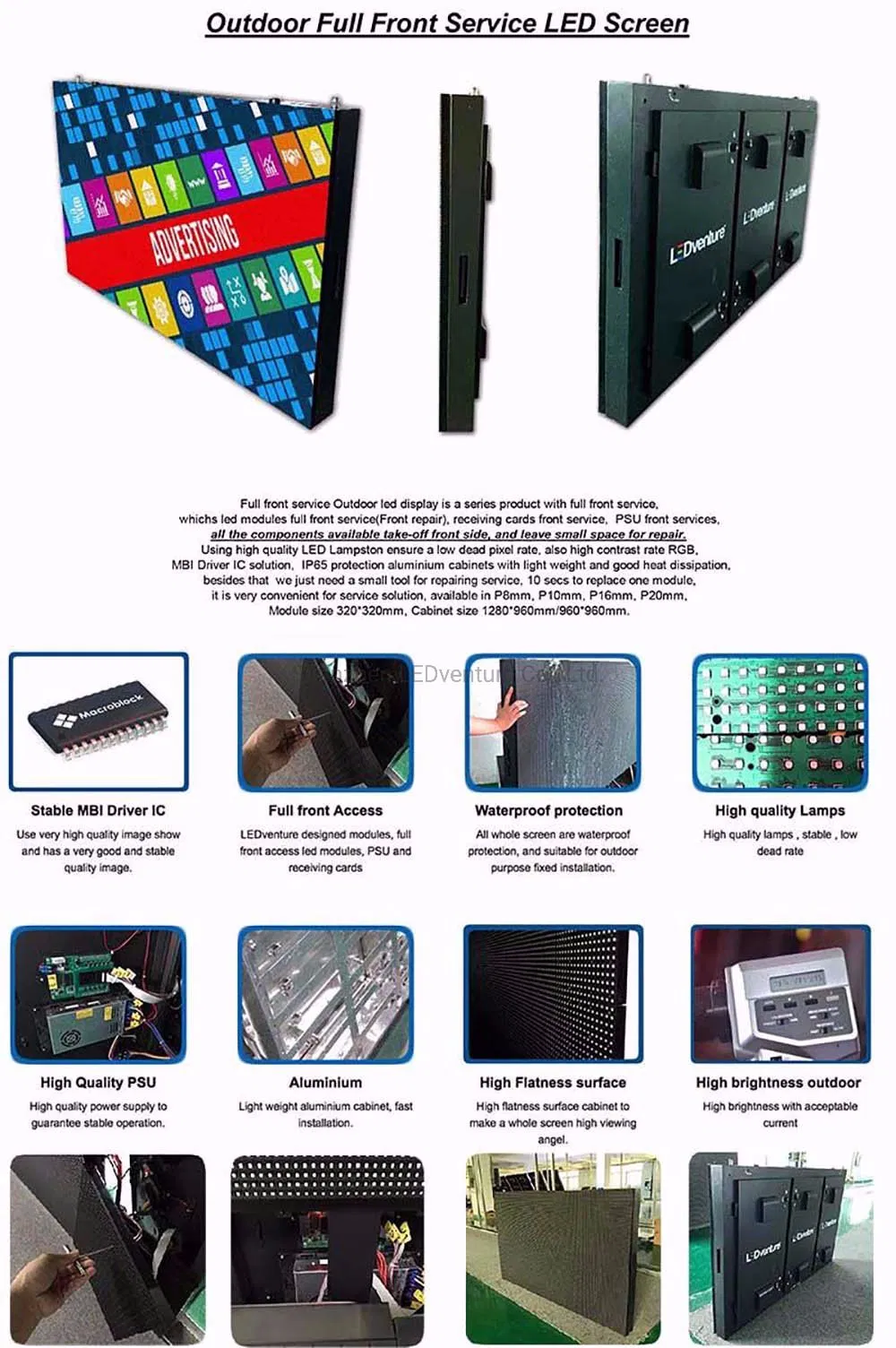

Lock System & Detailed Images

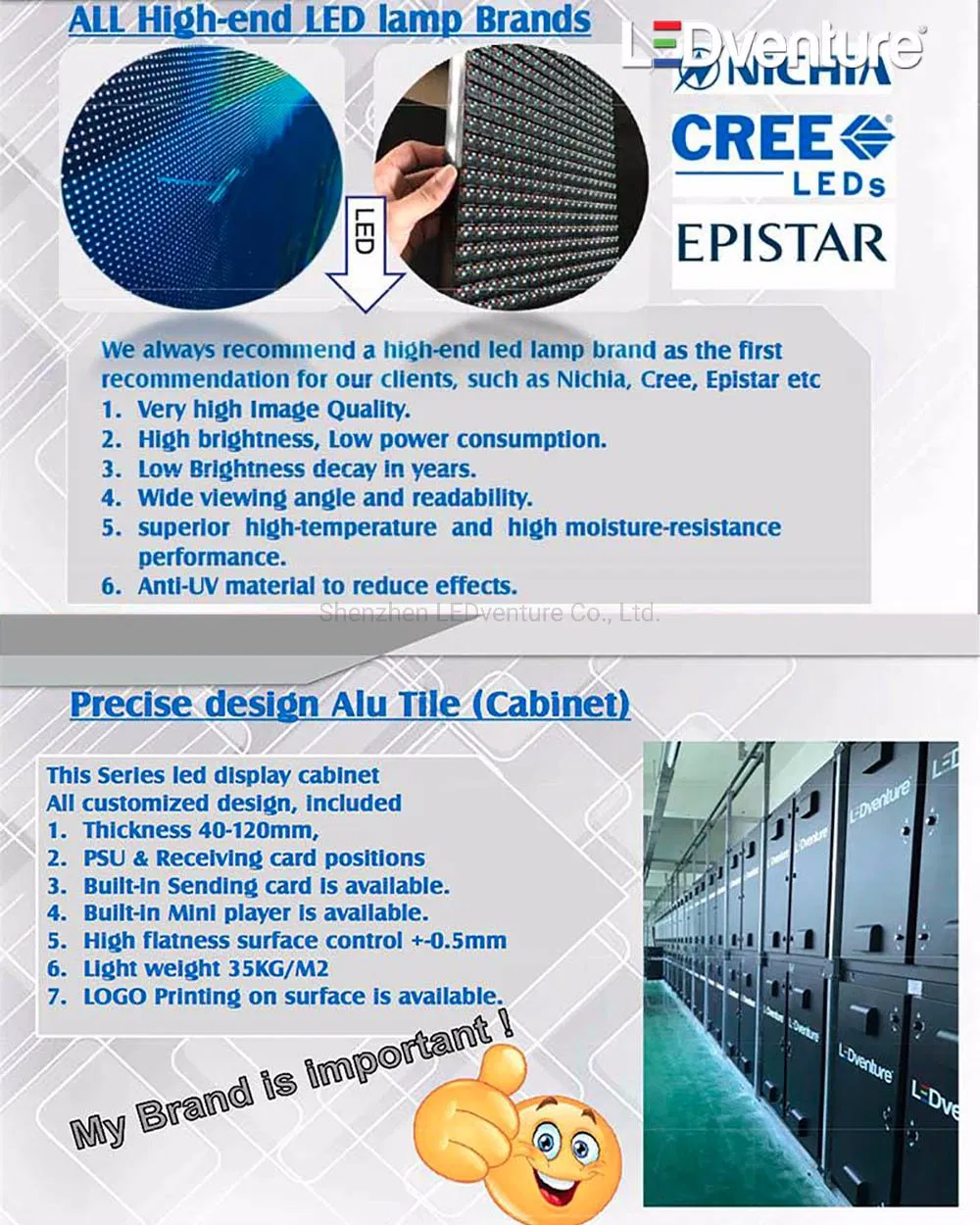

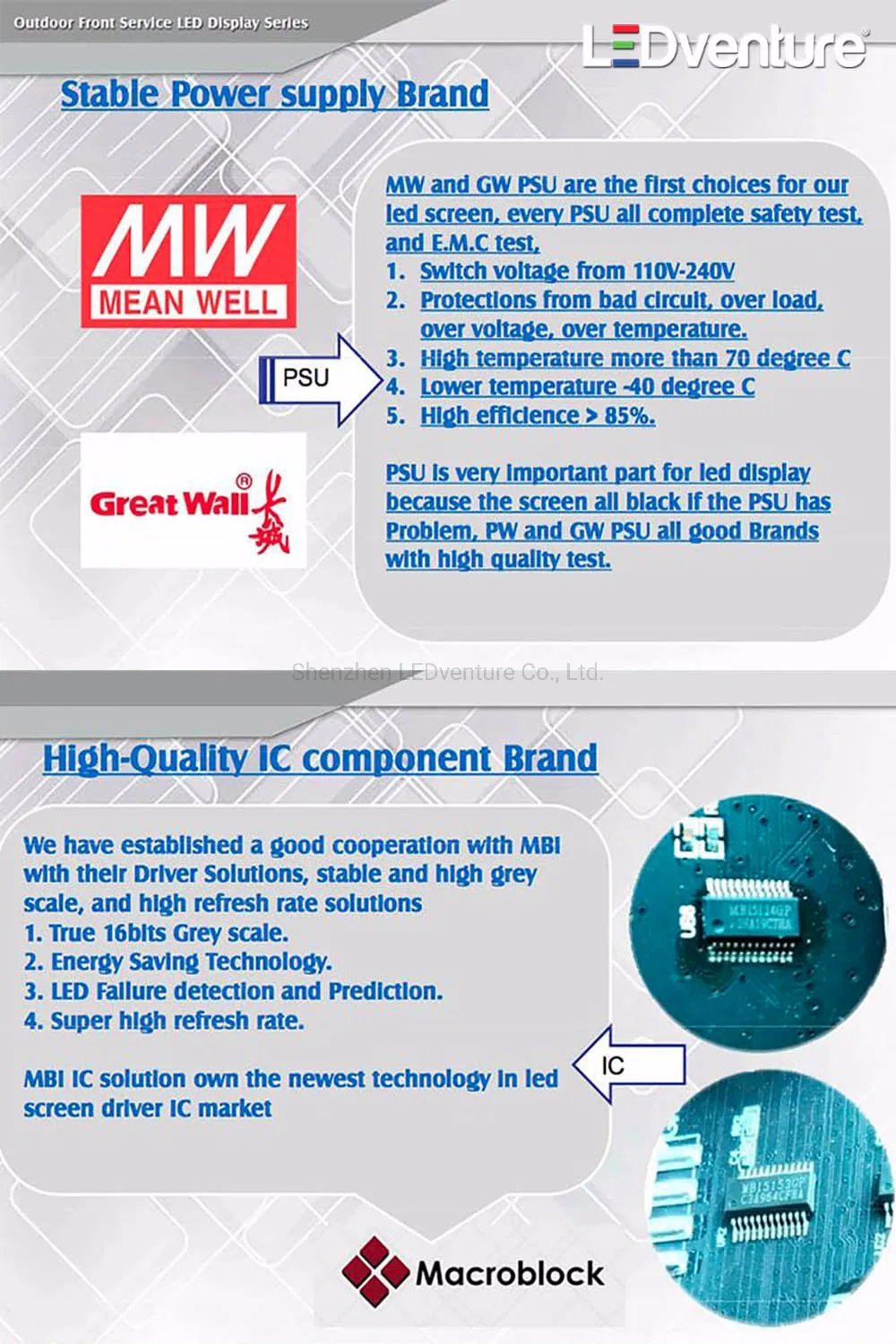

Material Quality Level
All materials are chosen from top quality levels, including SMD, IC components, PCB, and PSU brands to ensure stability and reduce maintenance costs.
Detailed Technical Specification
| Pixel Density | 15625 pixels/m2 |
| Module Size | 320*160 mm |
| Min. Viewing Distance | 8m |
| Viewing Angle | ≤140° |
| Protection Level | IP65 |
| Input Voltage | AC110-240V, 50HZ/60HZ |
| Lifespan | ≥100,000 hours |
| Gray Scale | 16 bits |

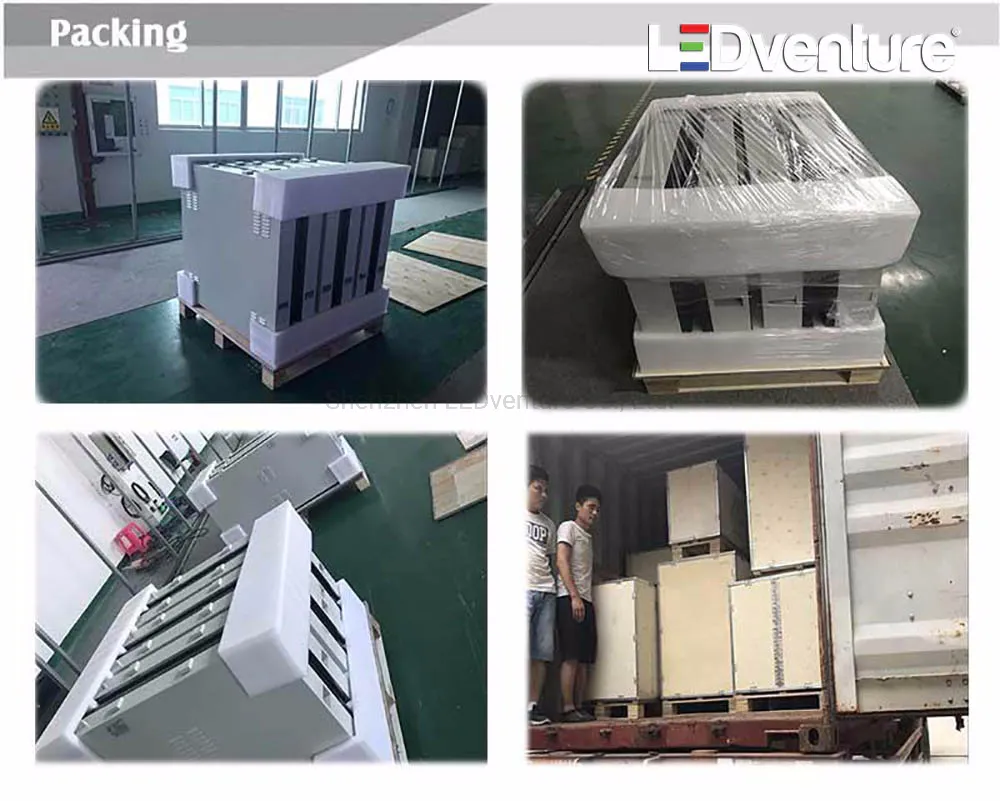

Installation & Packing

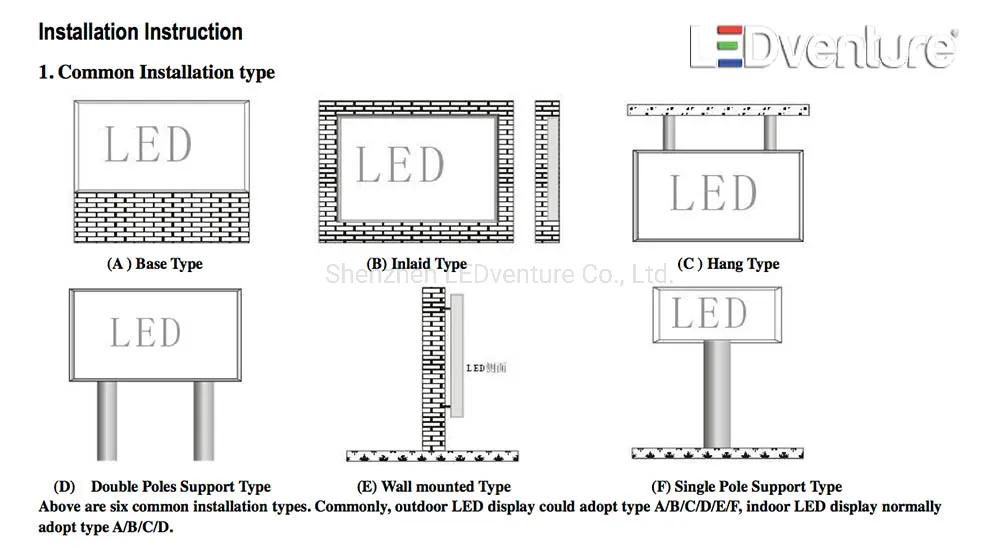

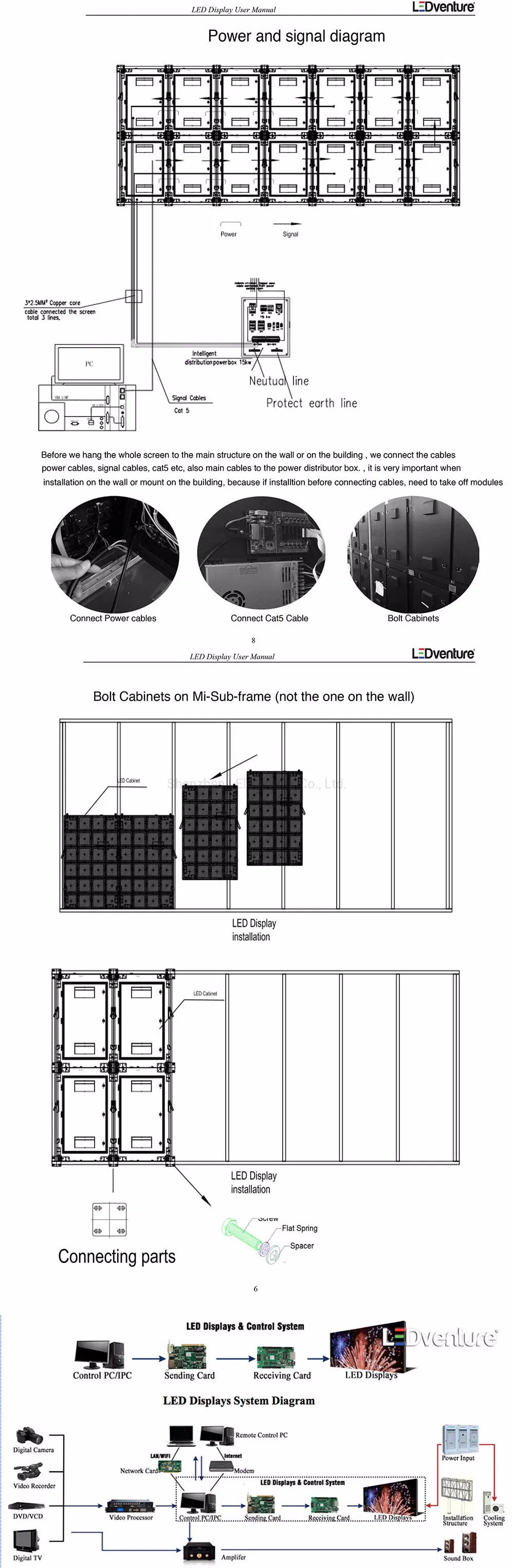

Multiple installation methods available: wall-fixed, pillar-mounted, or standing. Systems include sending cards, processors, and receiving cards.

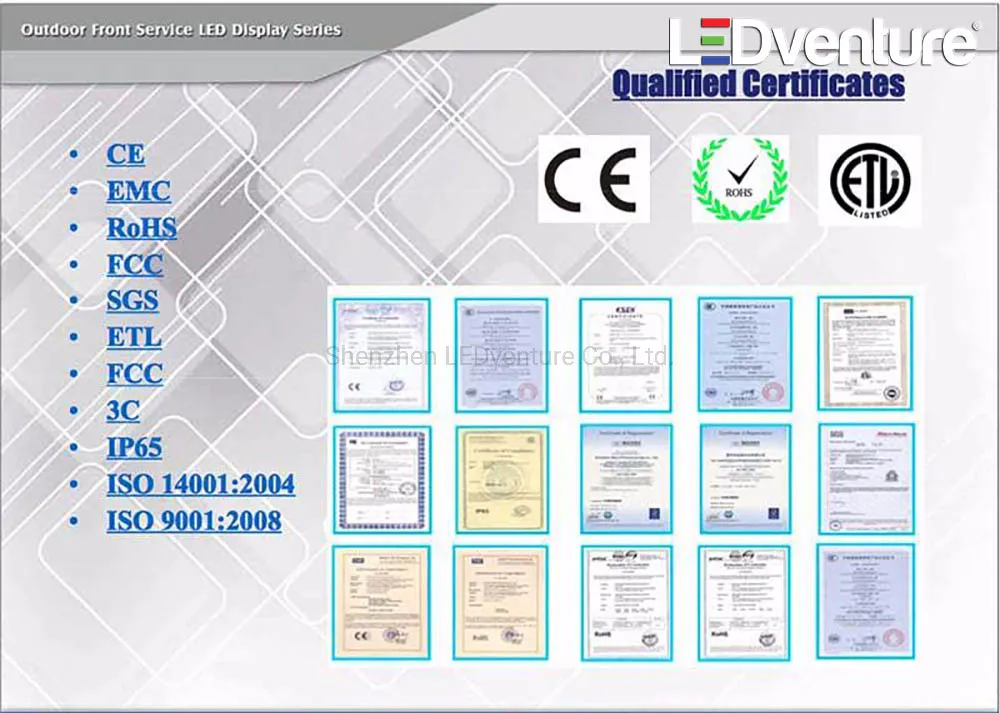

Certificates & Quality Assurance
All products have passed CE, EMC, FCC, UL, and other security tests to meet international market standards.

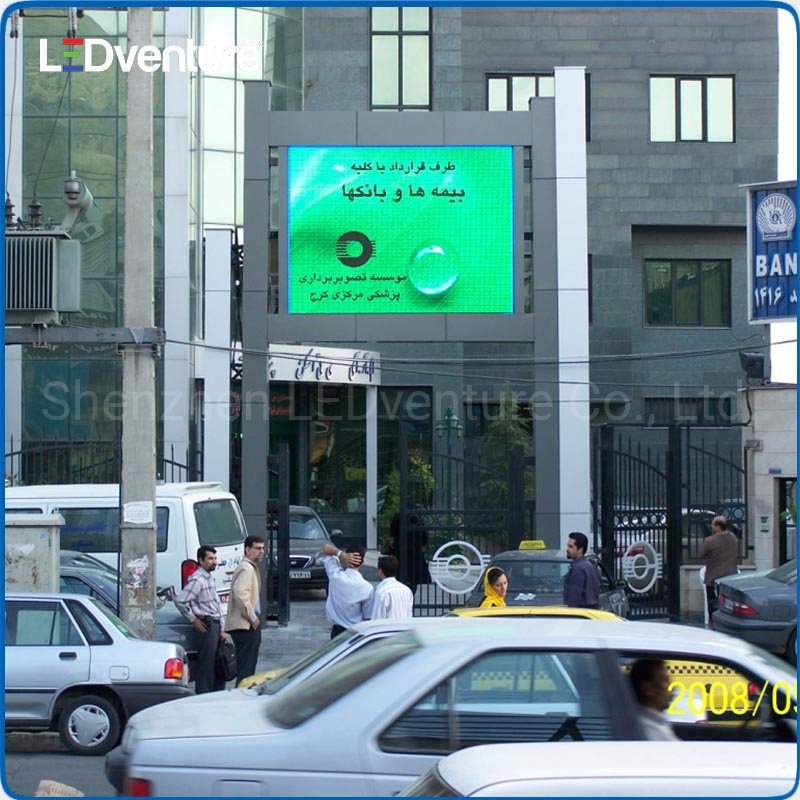

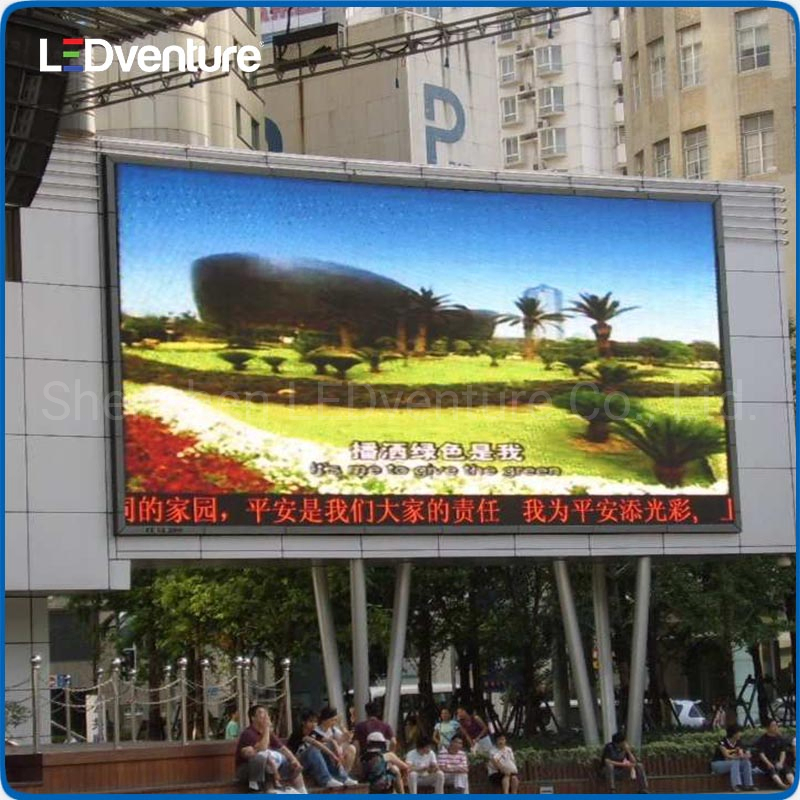

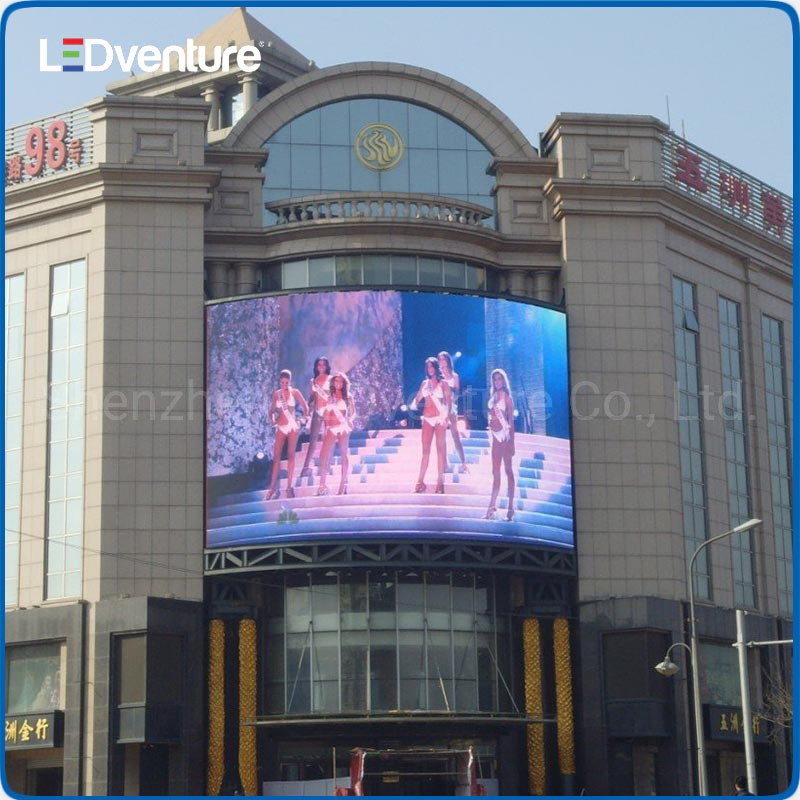

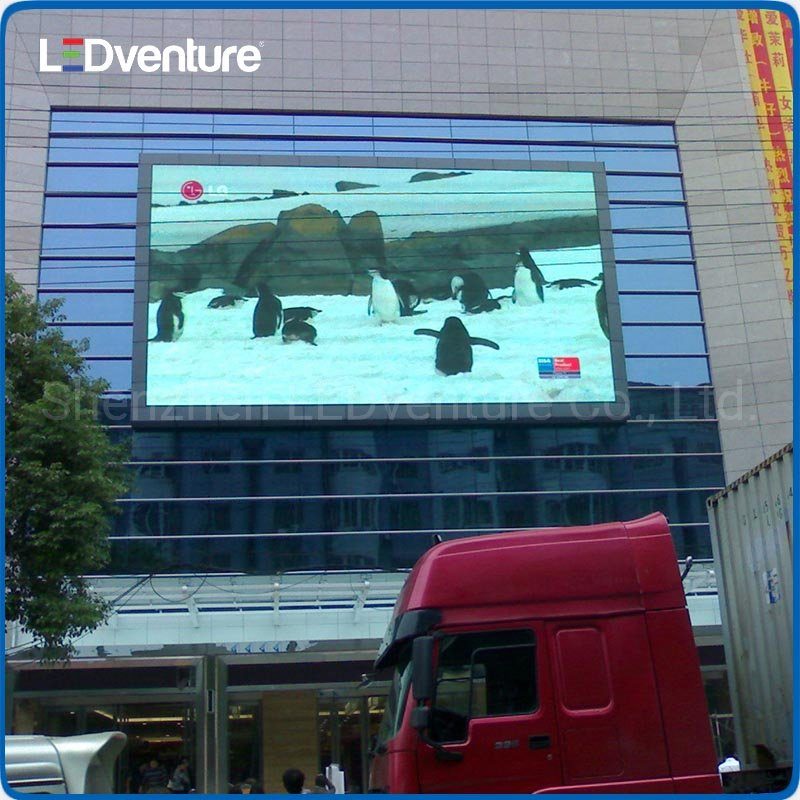

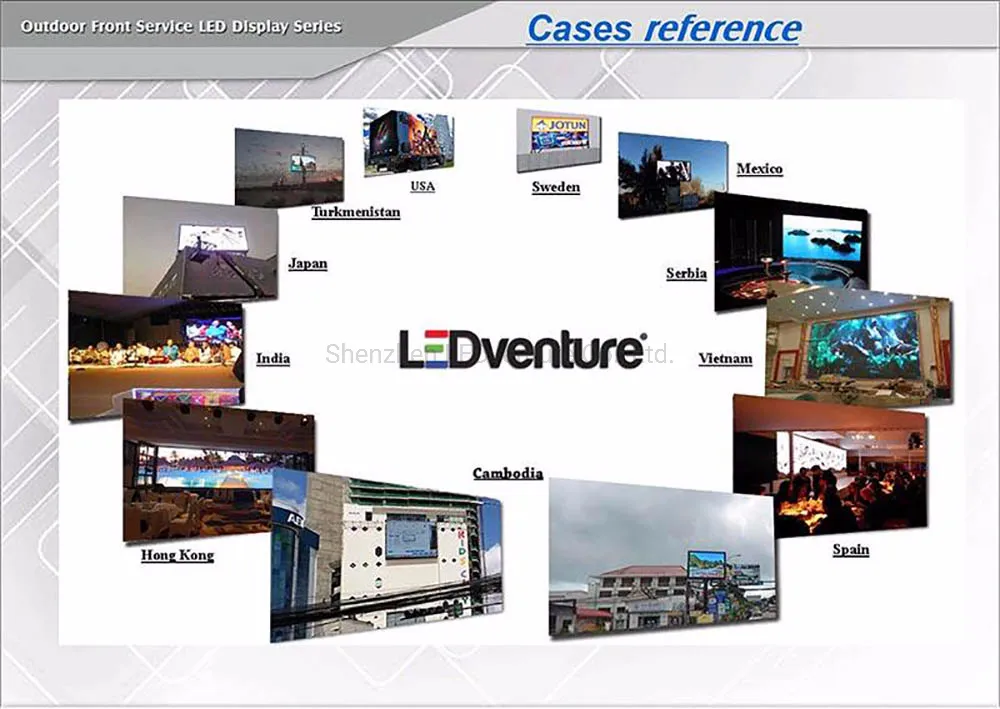

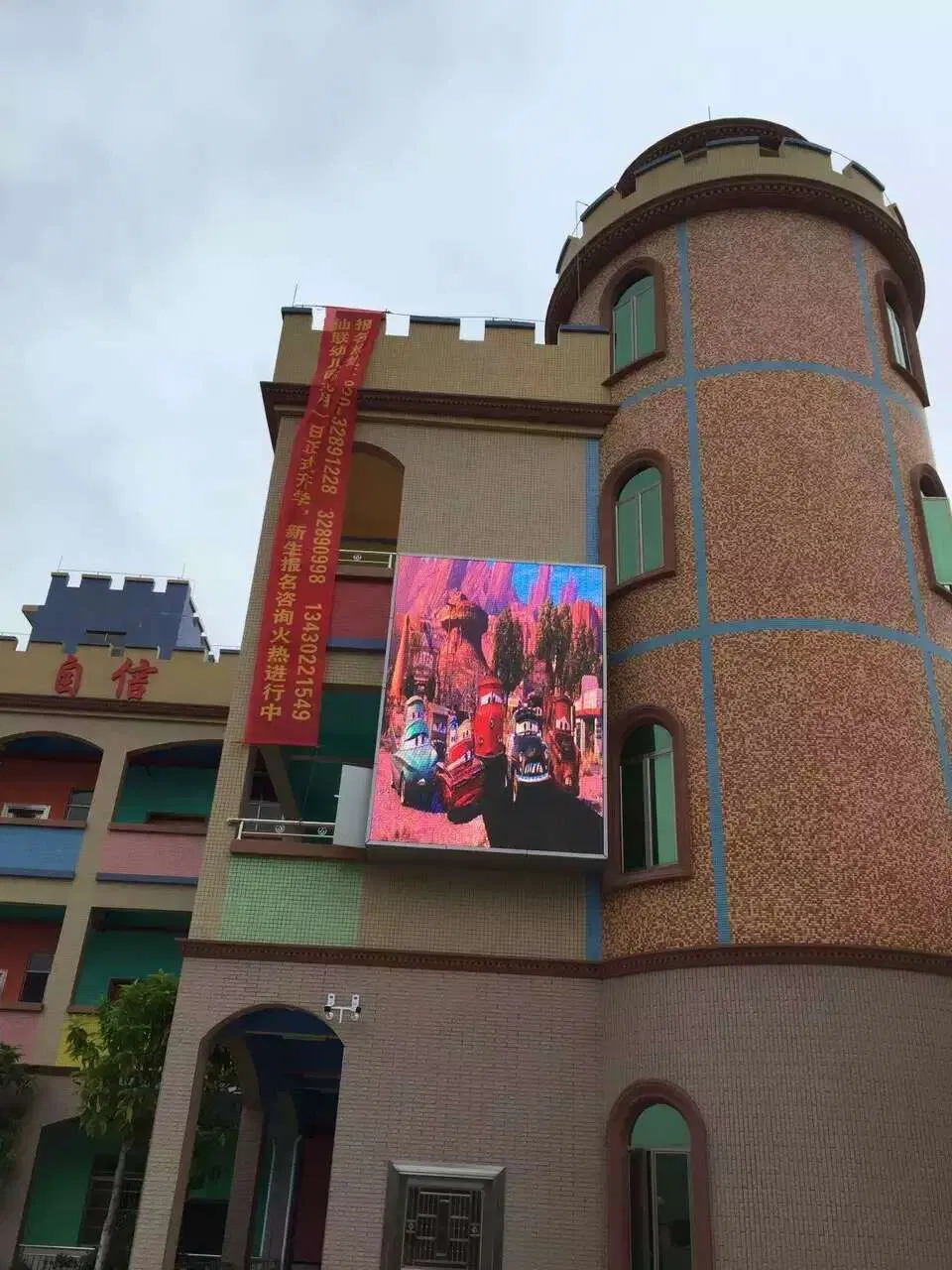

Project Cases
Frequently Asked Questions
What is the protection level of this outdoor LED screen?
The OF-P8S series features an IP65 protection rating, making it completely waterproof and dustproof, suitable for harsh outdoor environments.
What is the recommended viewing distance for the P8 model?
With an 8mm pixel pitch, the minimum effective viewing distance for optimal clarity is approximately 8 meters.
How high is the brightness level for outdoor visibility?
The screen offers a high brightness range of 5000 to 20000 nits, ensuring clear visibility even under direct sunlight.
Does the product come with certifications for international markets?
Yes, our LED displays are fully certified with CE, RoHS, CCC, and ETL to meet the legal requirements of European and American markets.
What control system does the screen use?
This model utilizes the Nova control system, known for its stability and high-quality image processing performance.
What materials are used for the cabinet?
We offer both Aluminum and Steel cabinet options depending on your weight requirements and installation environment.
