Basic Information
| Model NO. | VSU-MK1208 |
| Function | APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer, Voice Control |
| Material | Plastic |
| Certification | CE |
| Bus Voltage | 21-30 VDC, Powered by Knx Bus |
| Bus Current | ≤12 Ma |
| Bus Power | ≤ 360MW |
| Auxiliary Current | ≤ 20 Ma |
| Auxiliary Power | ≤ 480MW |
| Dimensions | 86mm X 86mm X 10.5 mm |
| Installation | 86-Box Installation |
| HS Code | 8517699000 |
💡

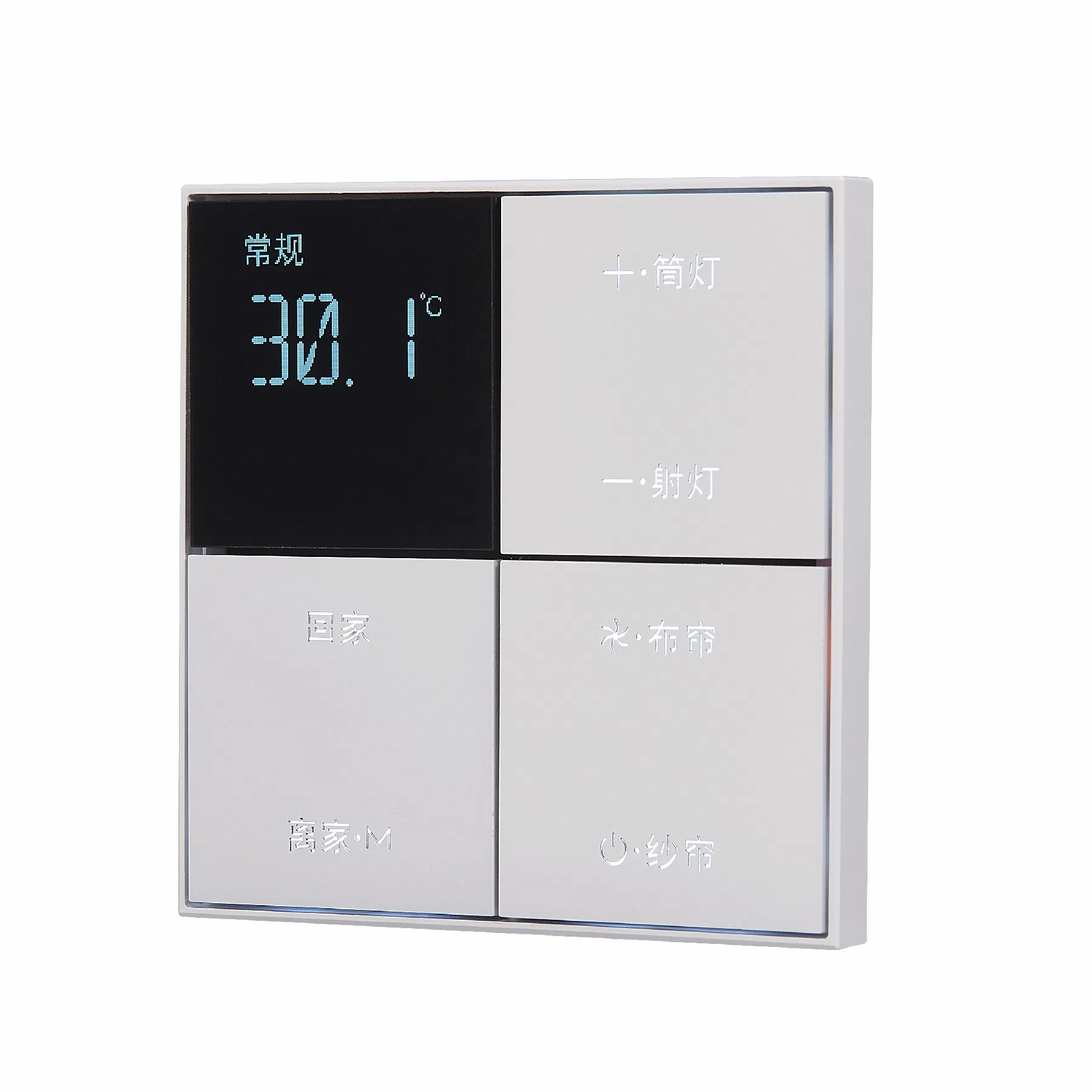

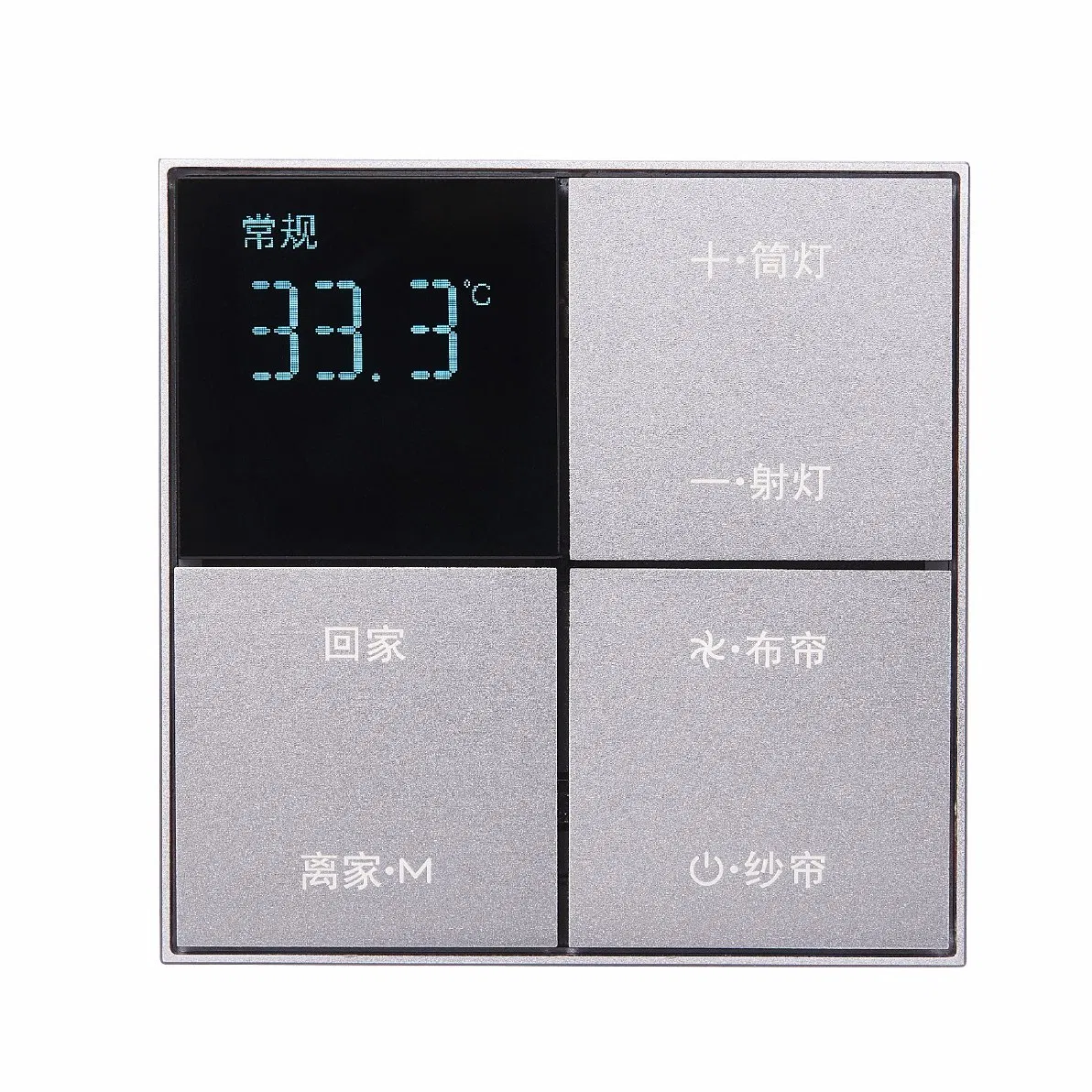

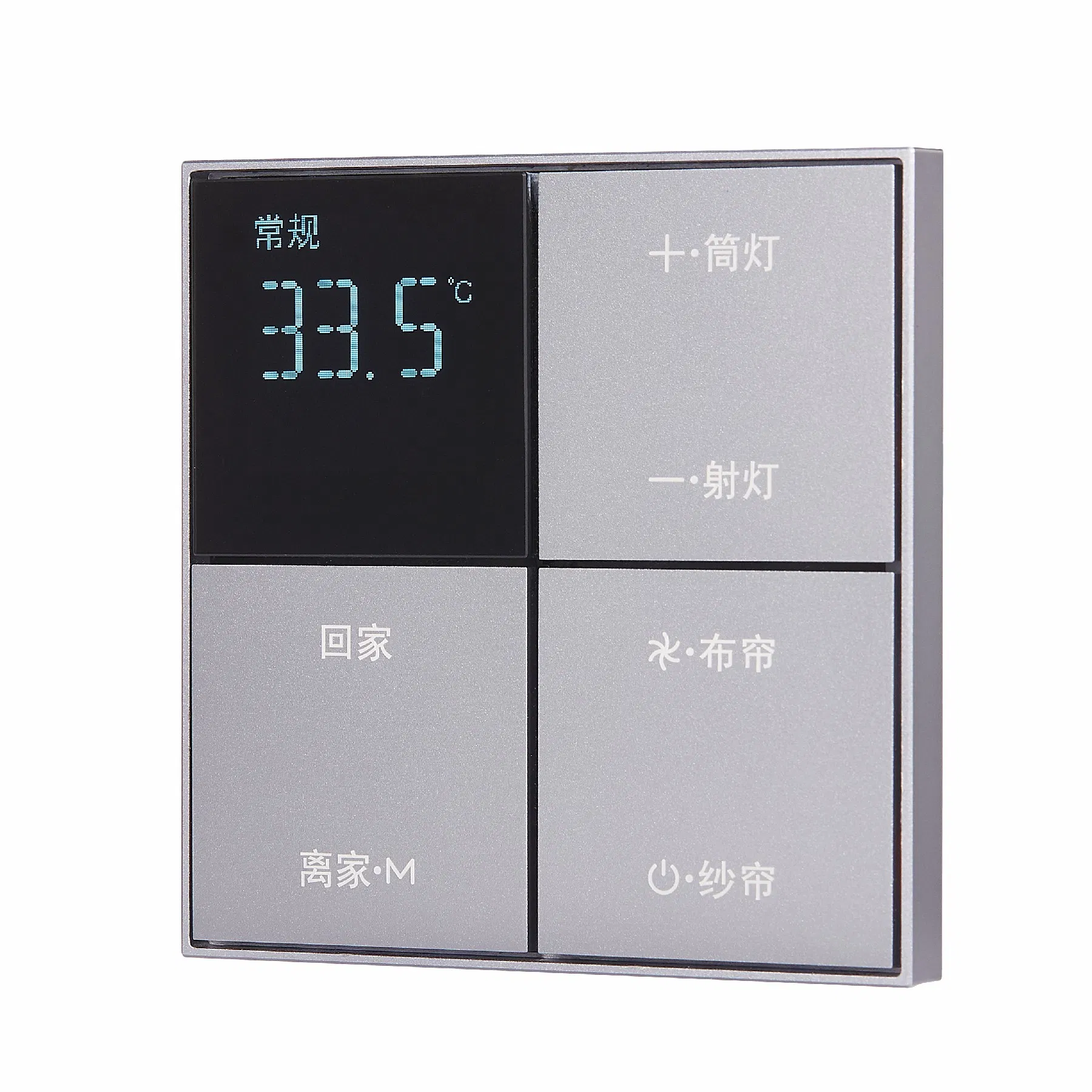

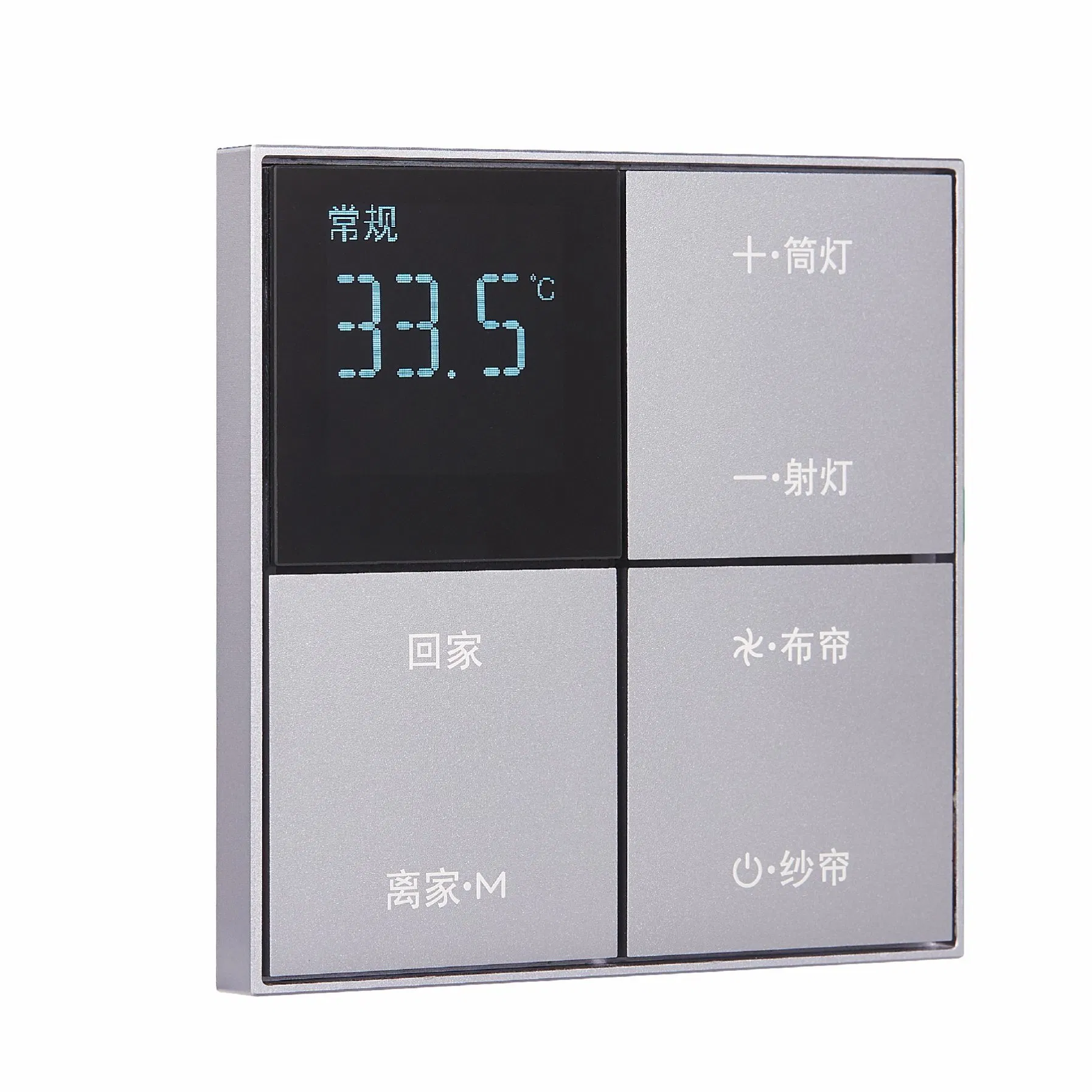

Product and Function Overview
The control panel is mainly used in building control systems, installed together with other devices on the bus to form a system, and its functions are simple and intuitive to operate. Users can plan and systematically execute these functions according to their own needs.
The control panel can be used to control switches, dimming, blinds, etc. Each channel on the panel includes buttons and LED indicator lights.
It is a standard 86 bottom box installation device with 1-4 or 1-8 button outputs. Connect to the EIB/KNX system via the EIB bus and use the engineering design tool software ETS (version ETS4 or above) to allocate physical and group addresses, as well as set parameters.
⚙️
Function Description
Can be used for switching lighting, curtain opening and closing, projection screen lifting, etc., with long press, short press and reverse functions.
Controls dimming devices with relative and absolute dimming output functions.
Performs 8-bit scene control and calls pre-set scene functions.
Equipped with LED indicator functions: normally on, normally off, or flashing.
Features LED interlocking grouping and brightness adjustment.
Status and backlight LEDs include brightness wake-up and delayed extinguishing functions.
📊
Detailed Parameters
| Bus Voltage | 21-30 VDC, KNX bus power supply |
| Bus Current | ≤12mA |
| Bus Power | <360mW |
| Shell Material | Metal+ABS+PC |
| Size (HxWxD) | 86X86X33 mm |
| Operating Temp | -5℃ to +45℃ |
| Storage Temp | -25℃ to +55℃ |
| Auxiliary Voltage | 24VDC |
| Auxiliary Power | ≤660mW |
🖼️

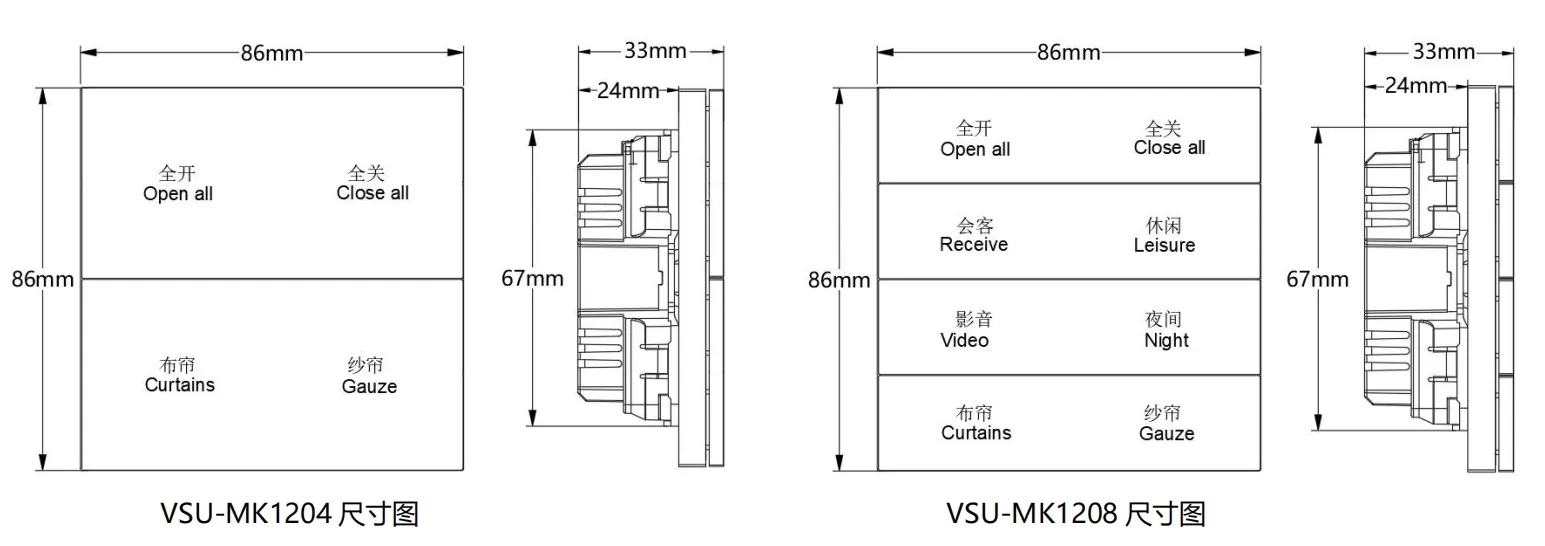

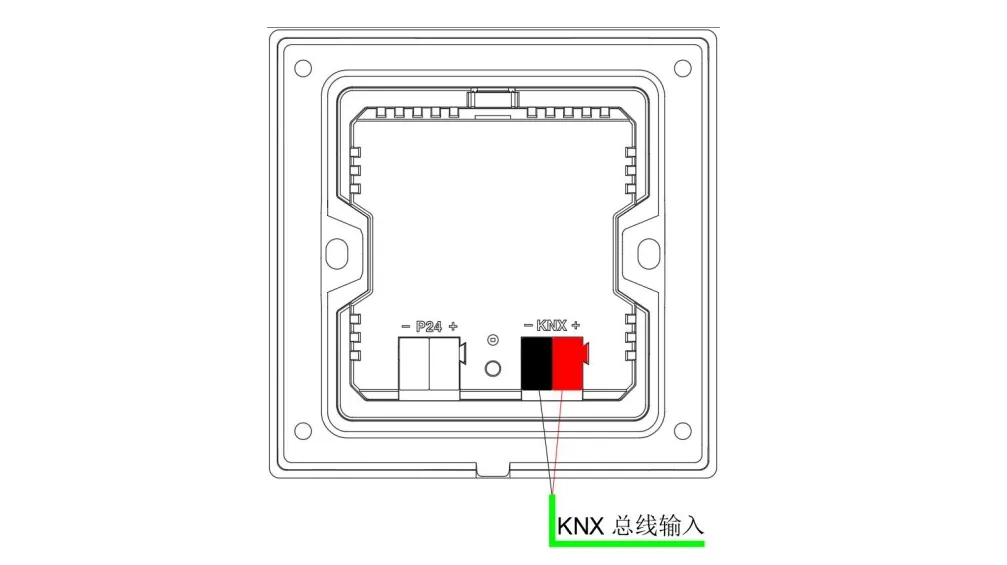

Dimensional and Wiring Diagrams
❓
