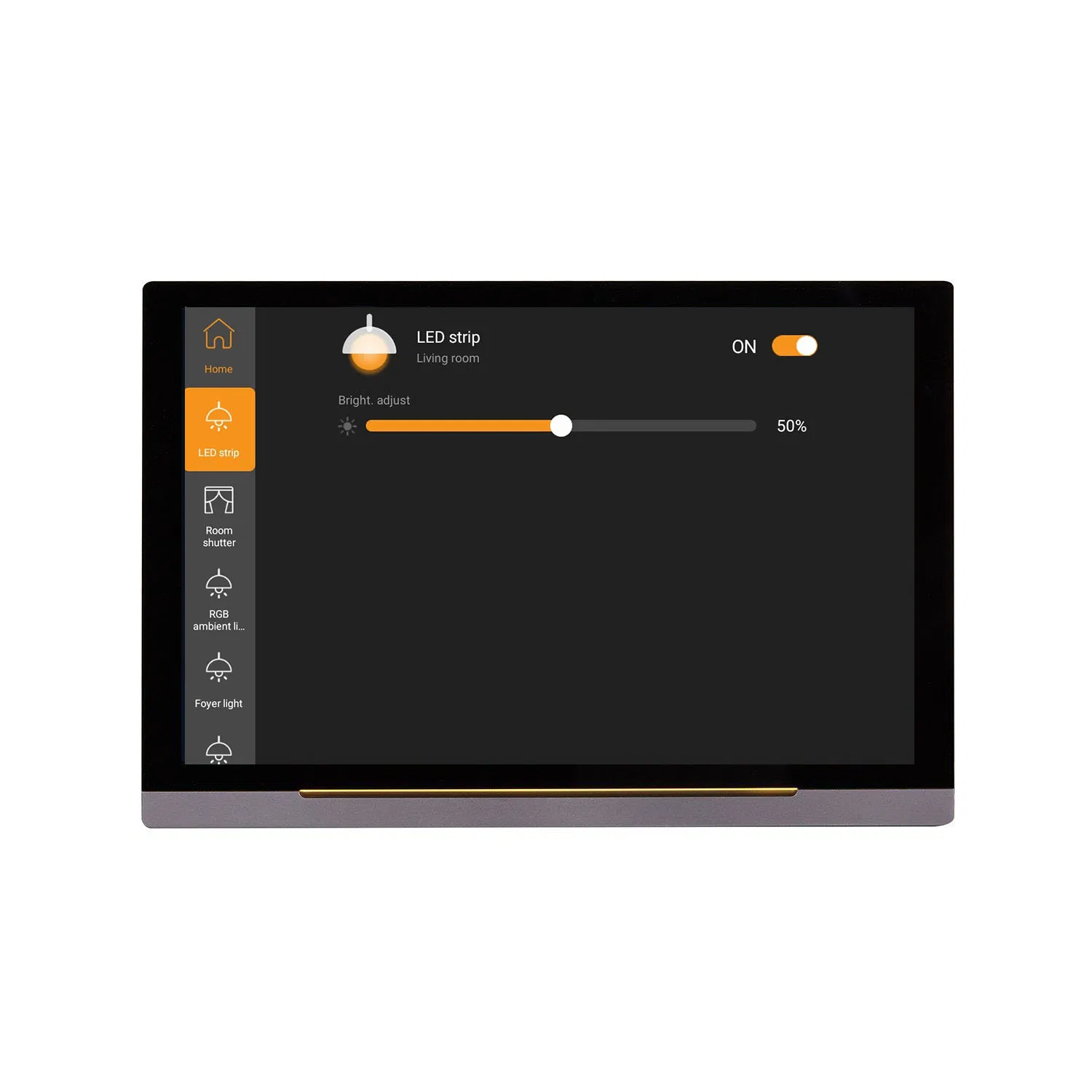

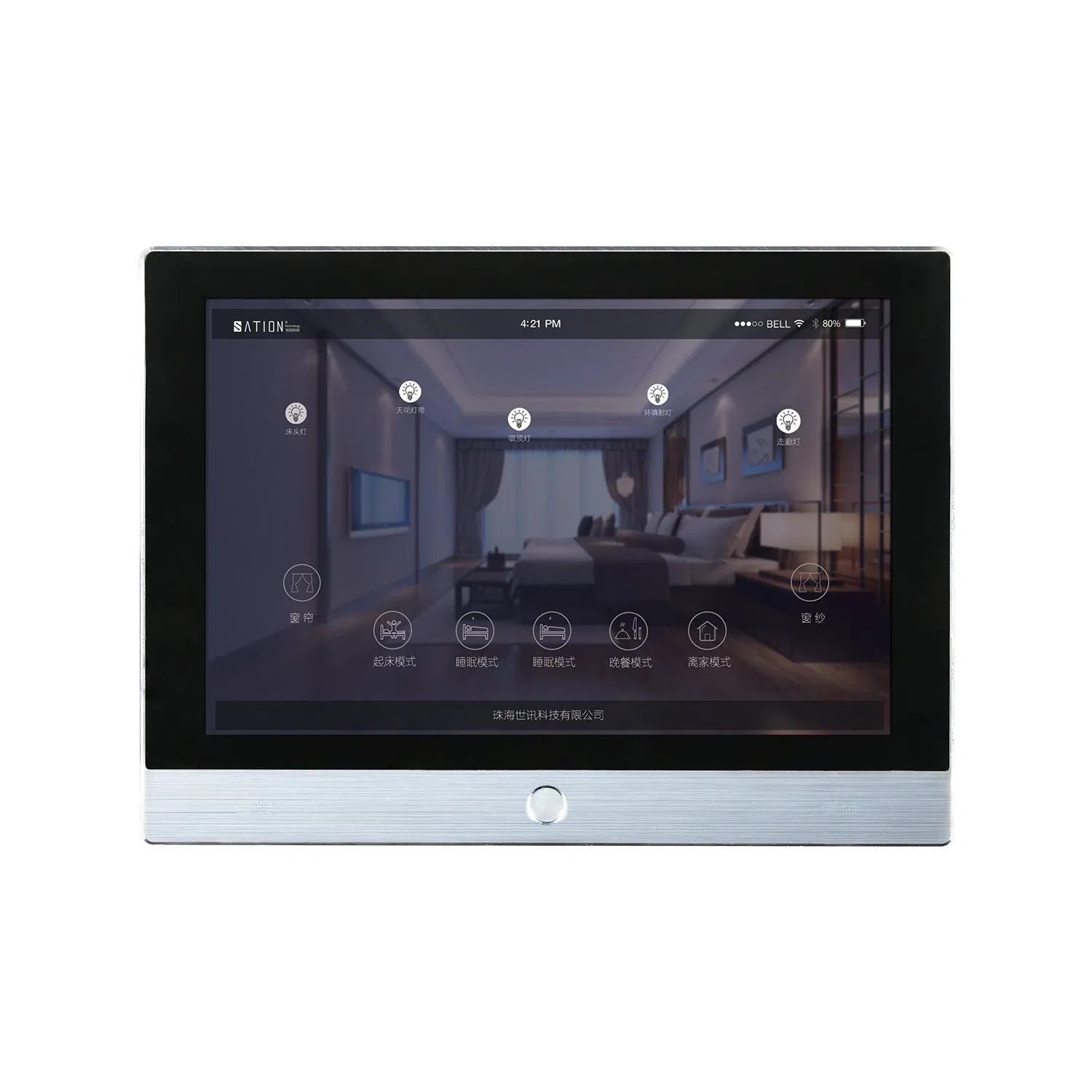

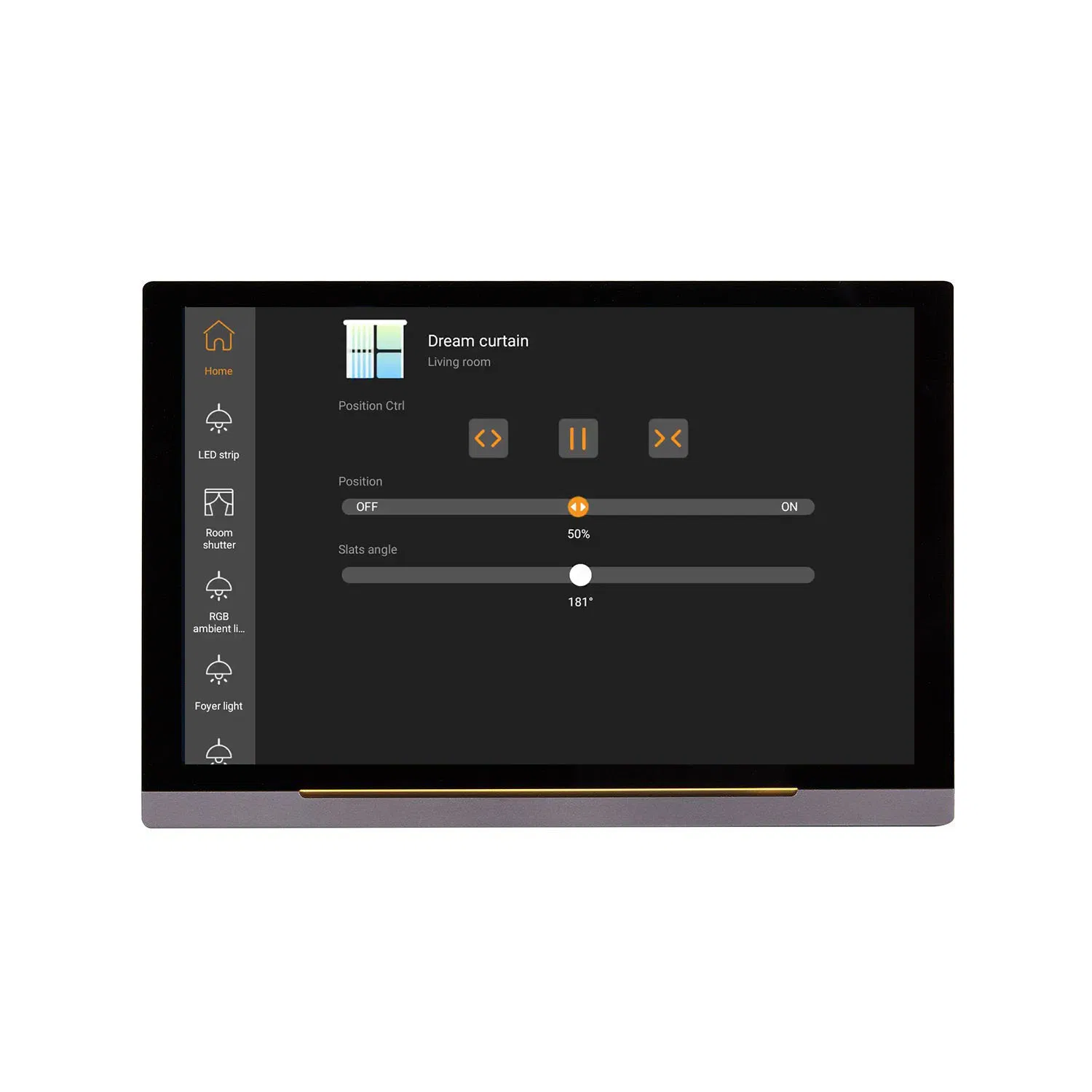

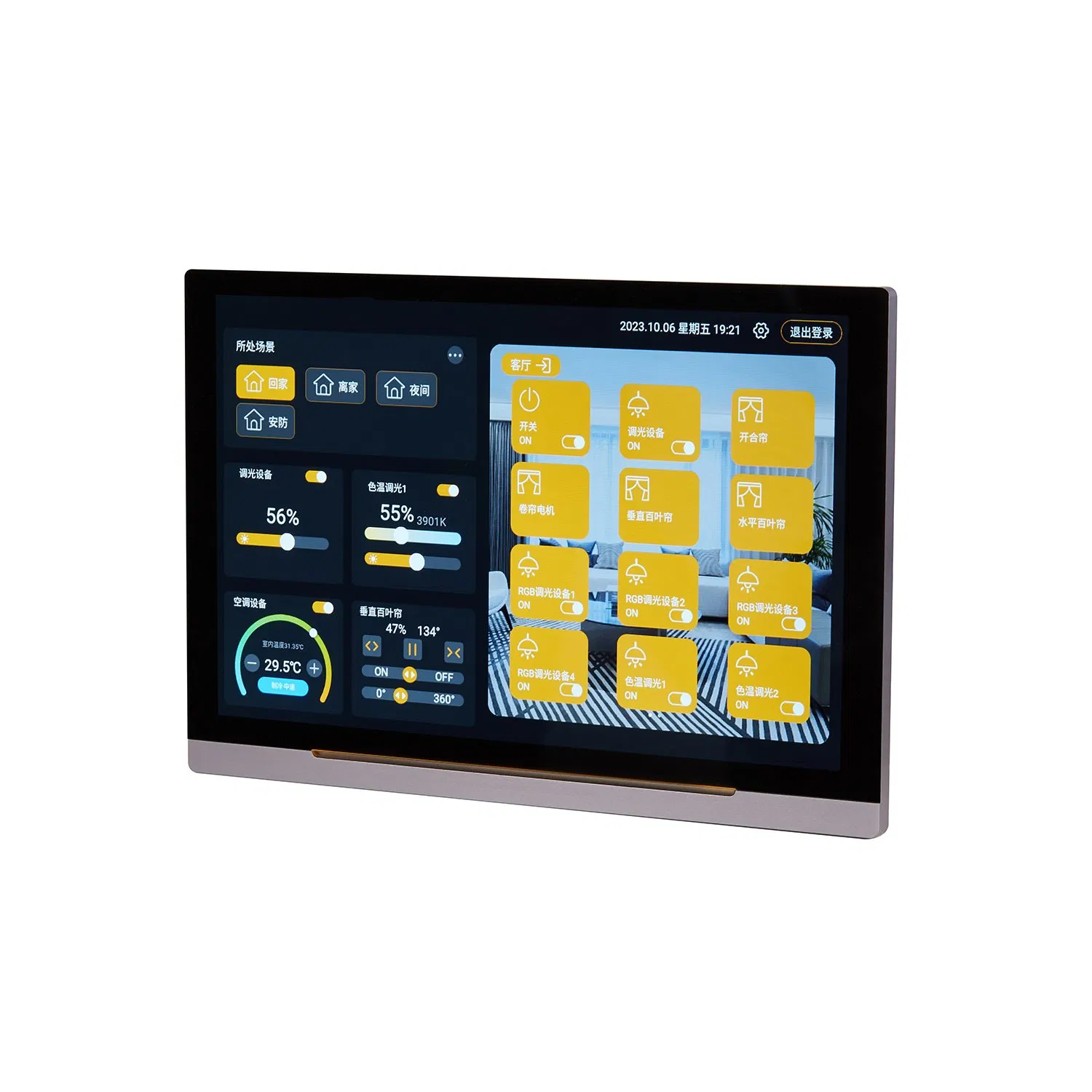

Smart House System Control Screen with 10 Inch Display
Smart House System Control Screen with 10 Inch Display
Smart House System Control Screen with 10 Inch Display
Smart House System Control Screen with 10 Inch Display
Smart House System Control Screen with 10 Inch Display
1 / 5
Smart House System Control Screen with 10 Inch Display
Smart House System Control Screen with 10 Inch Display
Smart House System Control Screen with 10 Inch Display
Smart House System Control Screen with 10 Inch Display
Smart House System Control Screen with 10 Inch Display

Smart House System Control Screen with 10 Inch Display

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
VSU-TS1001
Function
APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer, Voice Control
Material
Plastic
Operation Temperature
-5°~+45℃
Relative Humidity
Max 90%
Specification
10-INCH
HS Code
8536500000
Production Capacity
50,000 Pieces/Year
Packaging & Delivery
Package Size
25.00cm * 20.00cm * 18.00cm
Package Gross Weight
3.000kg
Lead Time
3 days (1 - 100 Pieces); Negotiable (> 100 Pieces)
Product and Function Overview
1
Support smart home functions such as curtains, air conditioning, underfloor heating, background music, lighting, etc.
2
Built-in temperature and humidity sensor, indoor temperature and humidity are clear at a glance.
3
Optional voice recognition function, remote voice control of various home devices.
4
Optional analog intercom, built-in analog intercom module, paired with analog door front unit.
5
Optional digital intercom for visual intercom and remote unlocking function within the community.
6
Optional call and security alarm functions for enhanced safety.
7
Automatic photography function during calls with automatic reporting to management centers.
8
Real person voice prompts for intuitive interaction.
9
Terminal remote upgrade function to keep features updated.
10
Supports standard 86 box packaging, easy to install.
Detailed Parameters
ProcessorARMcortexA8SOC
Working Frequency800MHz ~ 1.2GHz
LCD Size10" IPS TFT LCD
Resolving Power1024x600
Video EncodingH.264
Audio EncodingPCM
Built-in Card ReaderMicro SD card slot
Security Interface2 security interfaces, 12V DC output
Network InterfaceRJ45 10M/100M adaptive Ethernet port
Communication InterfaceMatching base, KNX
Working Voltage12-24VDC
Power Consumption≤6W
Working Temperature-10℃ ~ 55℃
Dimensions300mm × 154mm × 13.2mm
MaterialAluminum alloy
Installation86 cassette
Protection LevelIP20
Dimensional and Wiring Diagrams

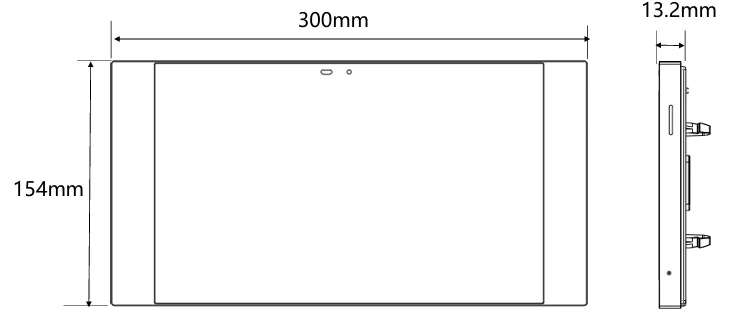

Dimensional Diagram

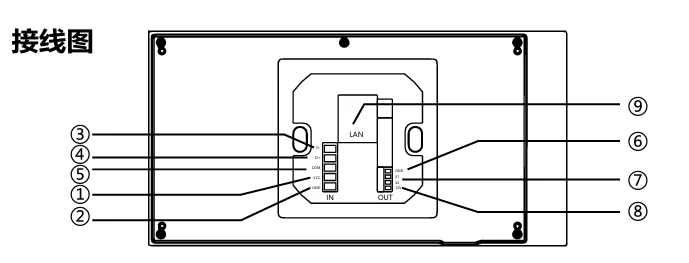

Wiring Overview
Wiring Explanation:
• VCC: Positive pole of power supply (12V-24V)
• GND: Negative pole of power supply / Ground terminal
• D- / D+: Connect to KNX terminal
• COM: Grounding terminal
• S1-S2: Two defense zone interfaces
• DC12V: Power output, 0.5A Maximum
• Ethernet Port: 10M-100M adaptive
Production and Quality Showcase

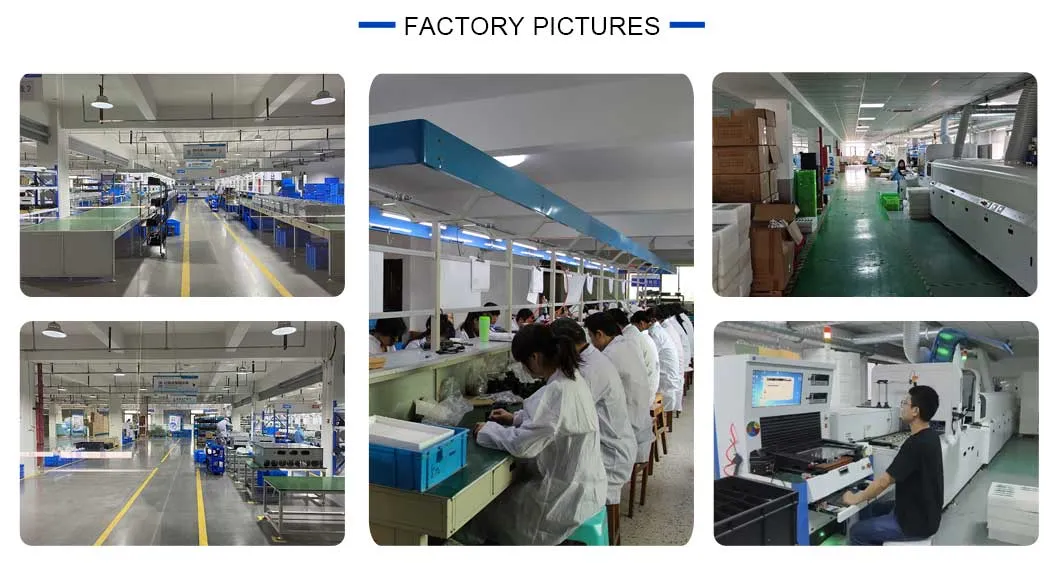

Product View 1 Product View 2 Product View 3
Certificate 1 Certificate 2 Certificate 3

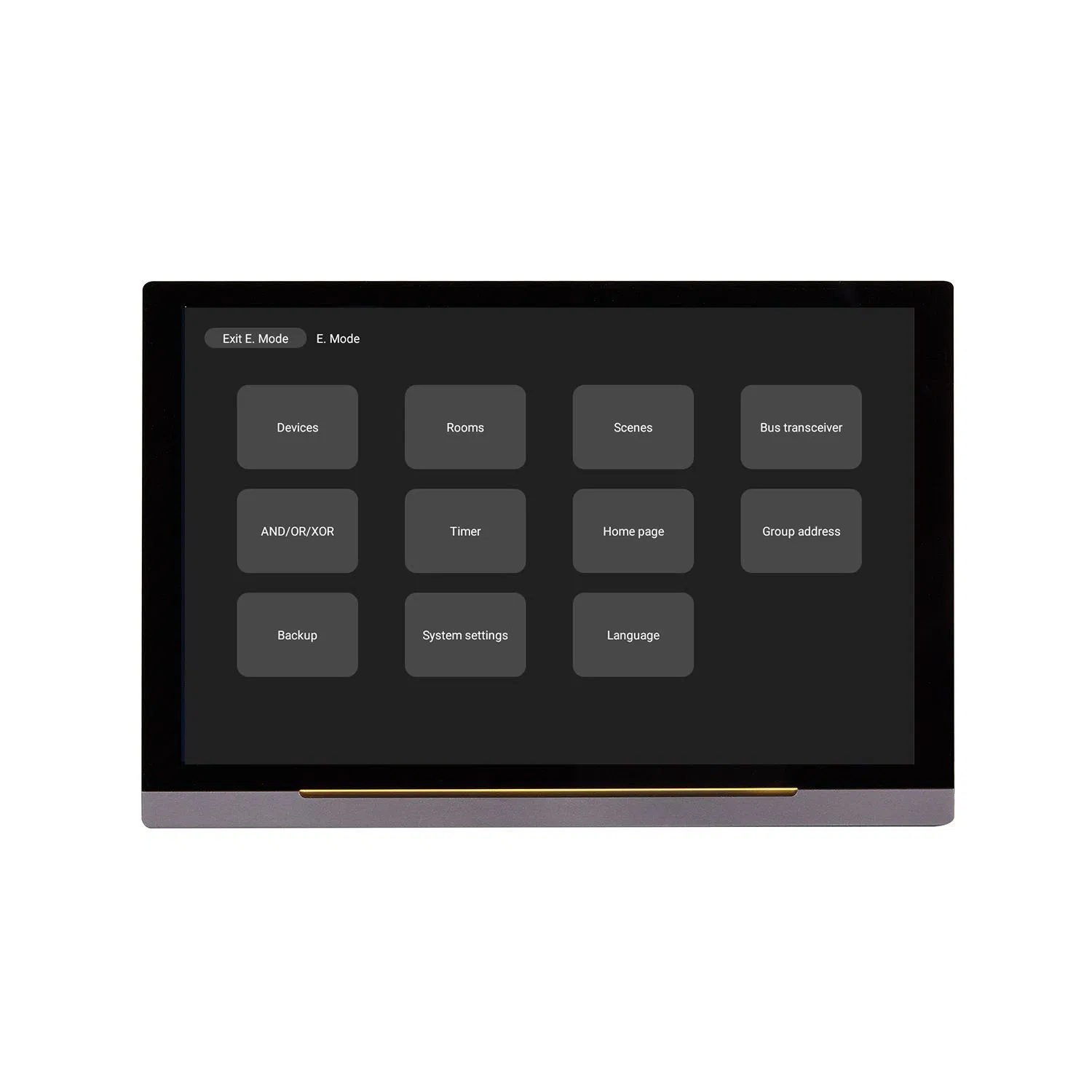

System Interface
Frequently Asked Questions
What can you buy from us?
We provide energy conservation, monitoring, and power quality solutions. Main products include smart electrical systems, energy meters, smart circuit breakers, lighting controllers, and smart gateways.
Are your products original?
Yes, all products are original and produced by original manufacturers. Our parts undergo rigorous testing to ensure quality.
What is the warranty period?
We provide a warranty within 90 days after the package has been received.
What is your typical lead time?
There is no lead time for products in stock. Most products can be shipped within 7 days after payment.
What is the MOQ for your products?
We accept small orders from our customers to ensure flexibility for various project sizes.
Do you provide OEM/ODM services?
Yes, we provide OEM/ODM services where your custom logo and design can be applied to the merchandise.
