Intelligent Smart Light System Hub for Modern Home Automation

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

VSU-MG0201

Function

APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer

Material

Plastic / PA66

Bus Current

≤12mA

Operating Temp

-5°~+45°C

Installation

35mm Rail-Mounted

Package Size

145.00cm * 90.00cm * 64.00cm

Gross Weight

5.000kg

💡

Product & Function Overview

⚡

Equipped with coupler function for coupling different KNX branches; supports independent communication for same group IDs.

🌐

Dual LAN network interfaces with built-in 8 TCP/IP or UDP ports; acts as server or client with switch functionality.

🔌

Multi-interface support: 4-channel RS485 standard interface, 4-channel dry contact I/O, and 3-channel infrared IR emission.

⏰

Advanced clock timing management: Free definition of KNX branch scene clocks and schedule-based light control for up to 128 events.

🏢

Wide application scope: Projectors, HVAC systems, background music, landscape lighting, security access, and medical management systems.

⚙️

Detailed Parameters

Bus Voltage	21-30V DC
Bus Current	≤12mA
Auxiliary Voltage	24VDC
Auxiliary Current	<75mA
Functional Interface	4-ch RS485, 3-ch IR, 2 LAN ports, 4-ch I/O input, 1 KNX/EIB
Size (LxWxH)	145mm X 90mm X 64mm
Weight	Approx. 0.3KG
Storage Temperature	-25℃...+55℃
Relative Humidity	Max 90%

📐

Dimensional & Wiring Diagrams

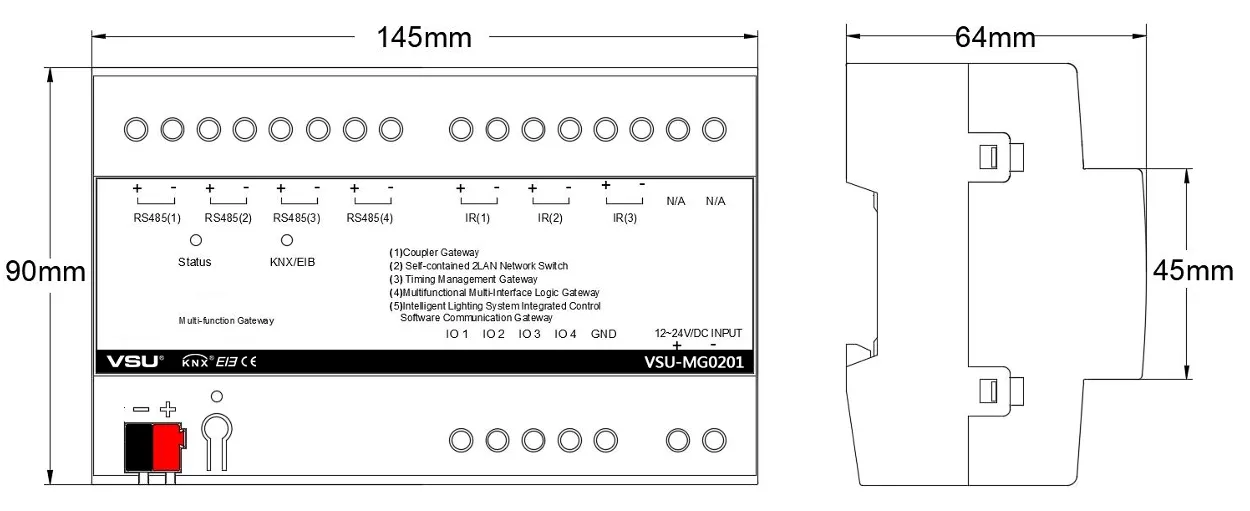

Dimension Overview

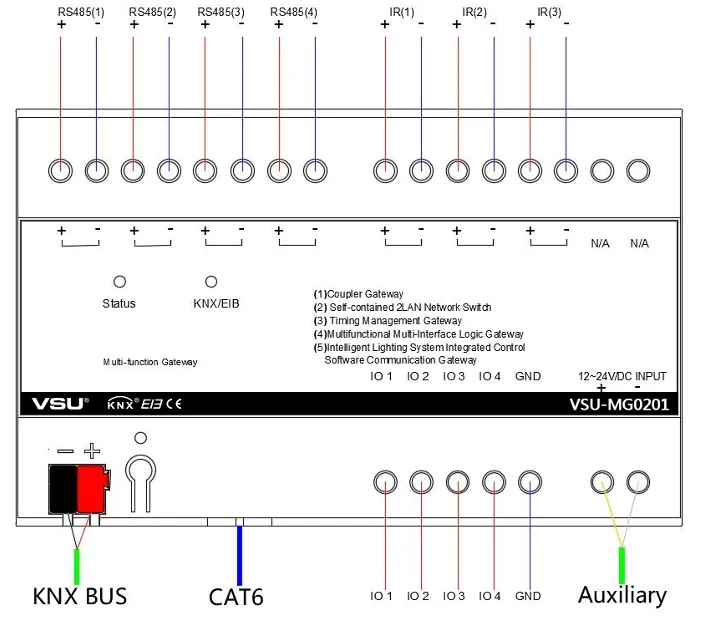

System Wiring Diagram

📸

Product Application Display

❓

Frequently Asked Questions

What are the main products available?

We specialize in energy conservation, monitoring, and power quality solutions. Main products include smart electrical systems, smart energy meters, power meters, smart circuit breakers, smart lighting controllers, and smart gateways.

Are the products original and certified?

Yes, all products are original and produced by original manufacturers. They pass rigorous quality testing and international certifications such as CE.

What is the standard warranty period?

We provide a 90-day warranty starting from the date the package is received. We take full responsibility for any quality-related issues within this period.

What is the typical lead time for orders?

Products in stock have no lead time. Most other products can be shipped within 7 days after payment confirmation.

Do you offer OEM or ODM services?

Yes, we provide professional OEM/ODM services. Your specific logo and design can be integrated into the merchandise based on your requirements.

How are parcels typically shipped?

We normally use international express services such as DHL, FedEx, TNT, and EMS. Other shipping methods can be arranged upon request.
