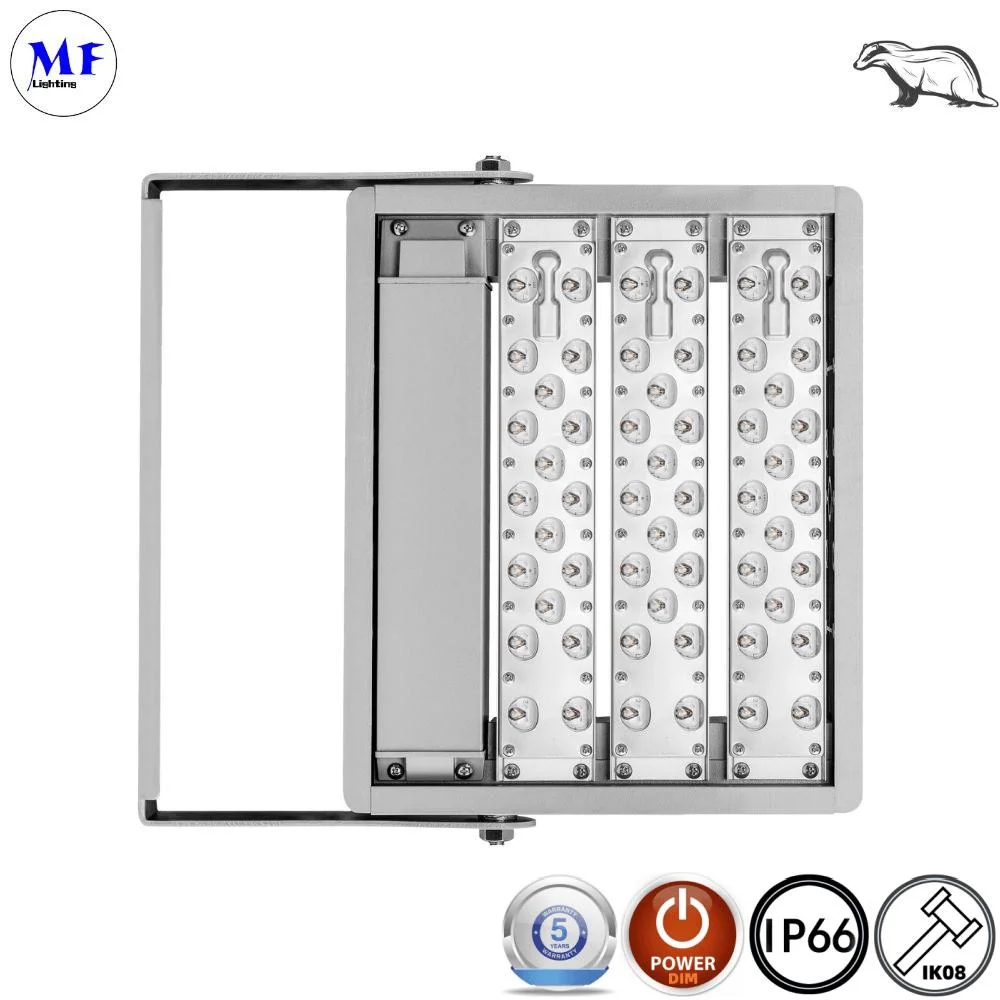

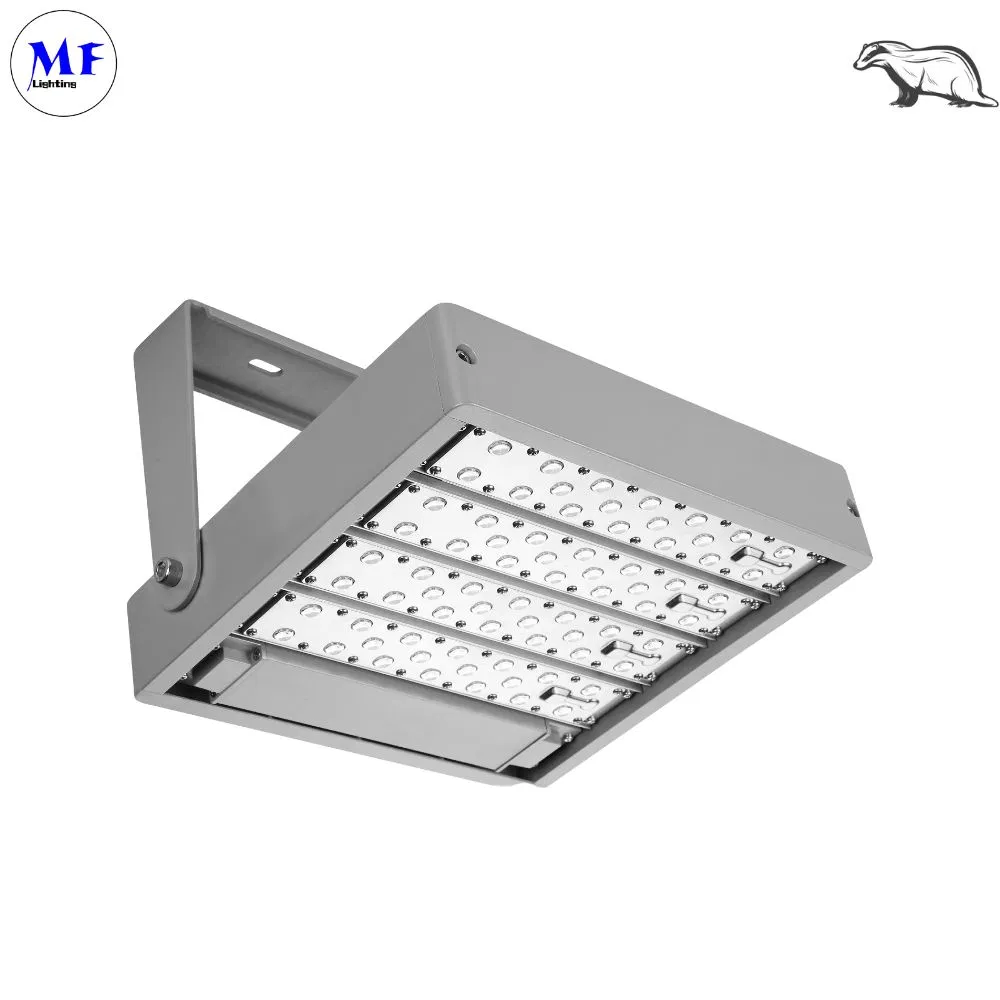

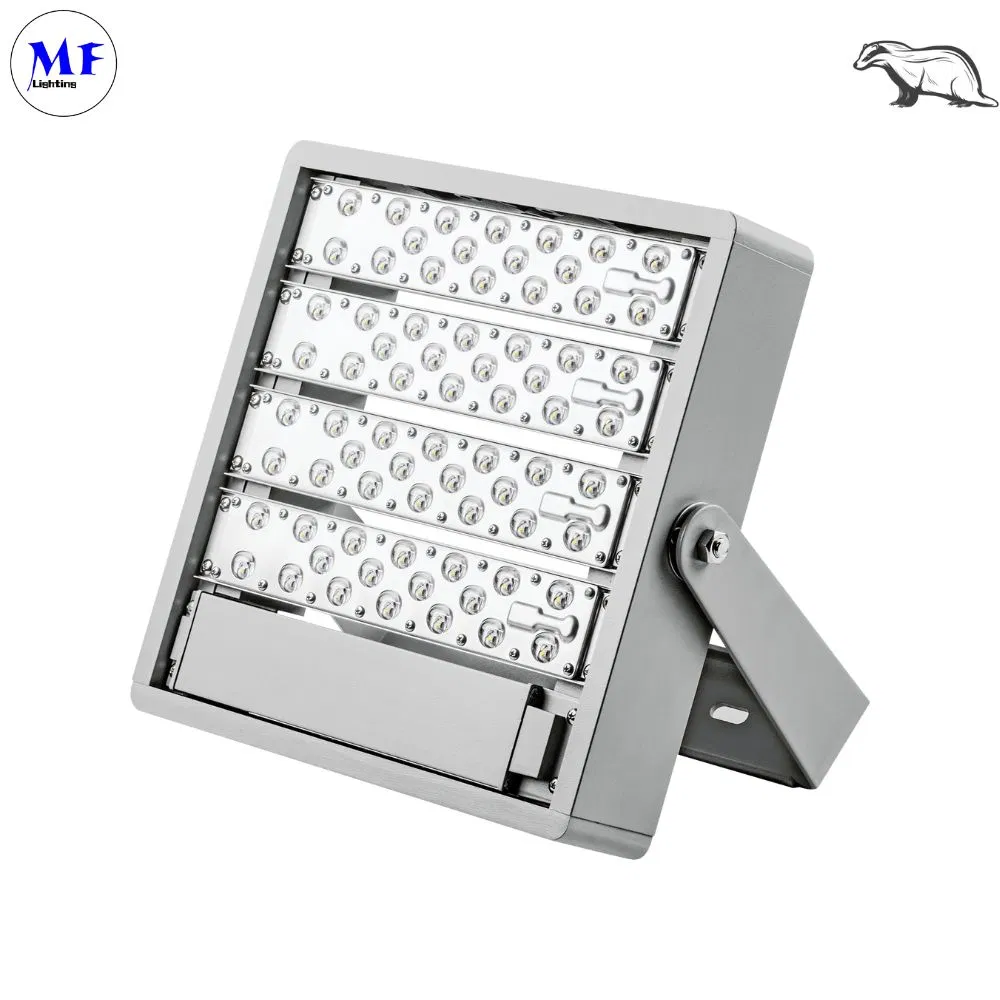

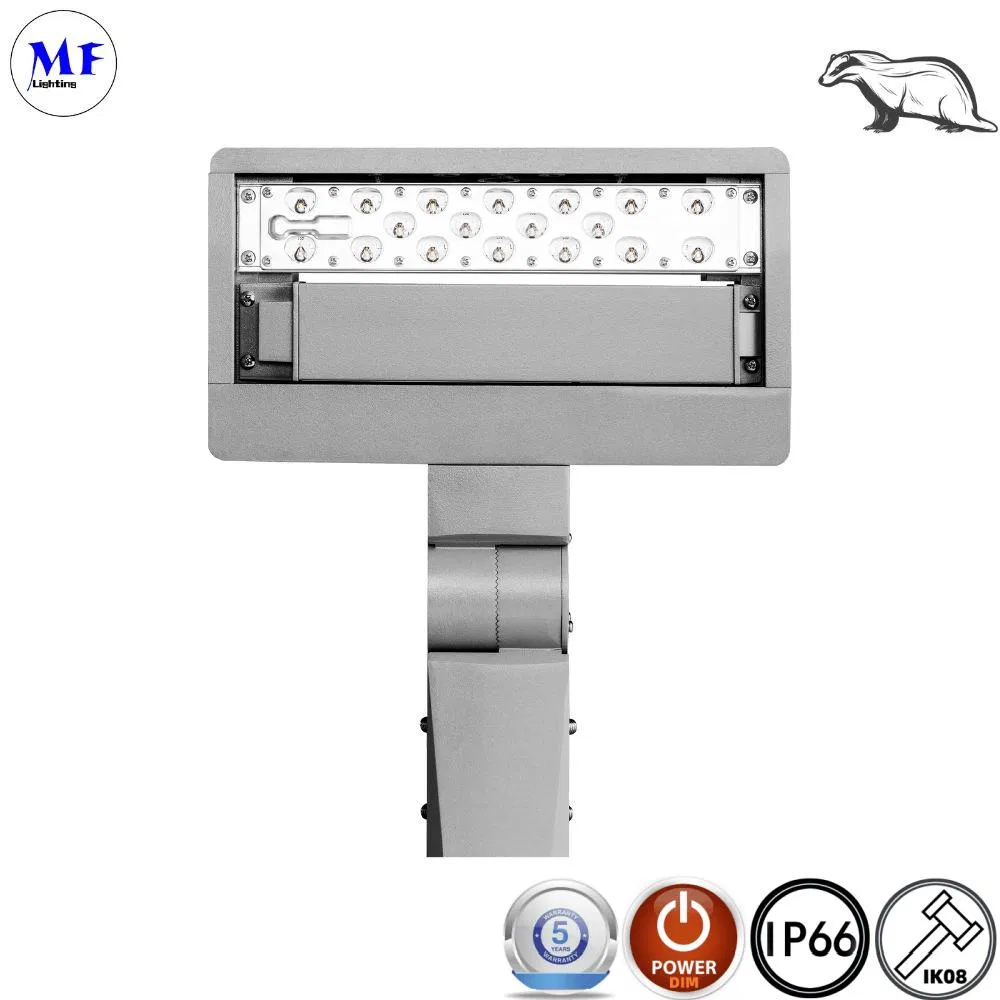

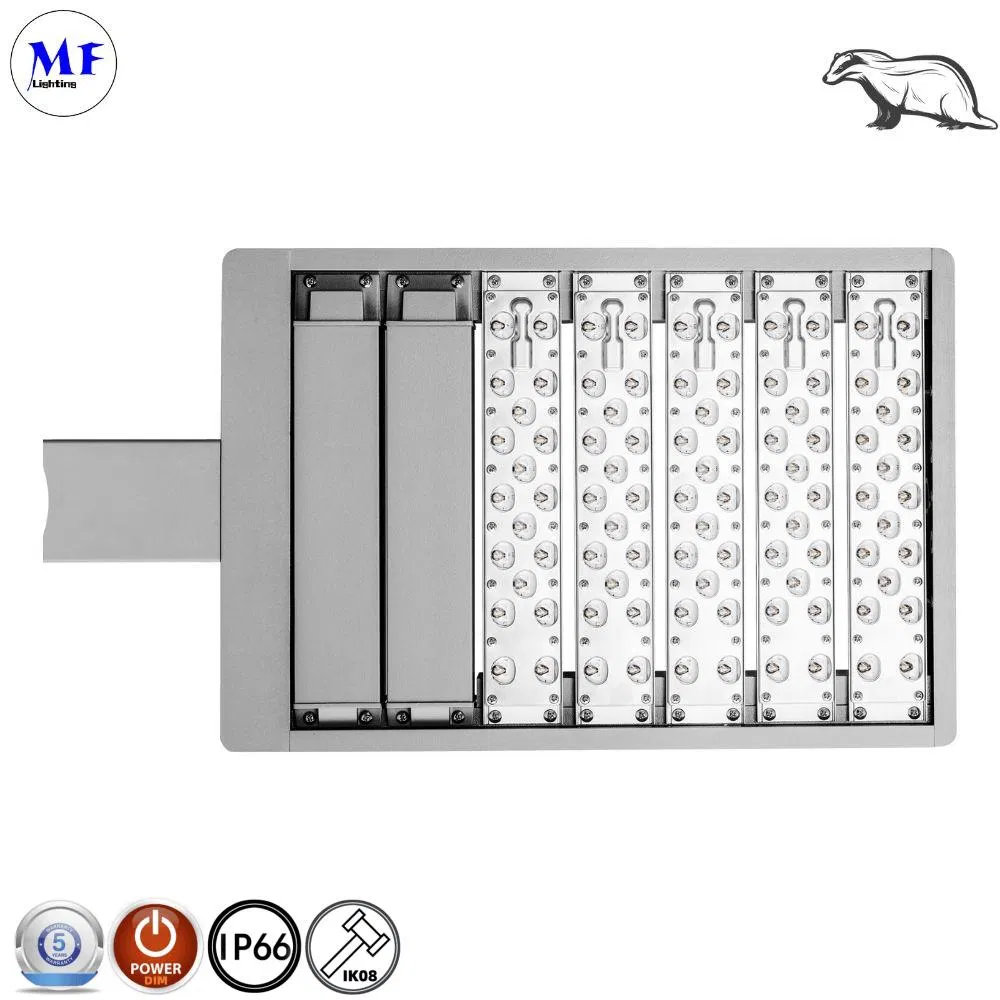

Smart Modular Lighting IP67 LED Outdoor Lighting 180W 240W 300W LED Flood Light LED Street Light for Parking Lot Street

Basic Information

Model NO.

MFA120-C

Power

60/120/180/240/300W

IP Rating

IP67

Certification

CCC, CE, EMC, ETL, LVD, RoHS, SAA, VDE

Input Voltage

85V-277V

LED Chips

Phi-Lip Luxeon 5050

Luminous Flux

120-160lm/W

Warranty

5 Years

Lifespan

>50,000 hours

Beam Angle

25/45/60/90/80*150/90*120 degree

Material

Aluminum+PC+Metal+Stainless Steel

Driver

Inventronics

Product Overview

Smart Modular Lighting IP67 LED Outdoor Lighting 180W 240W 300W LED Flood Light LED Street Light

Key Features

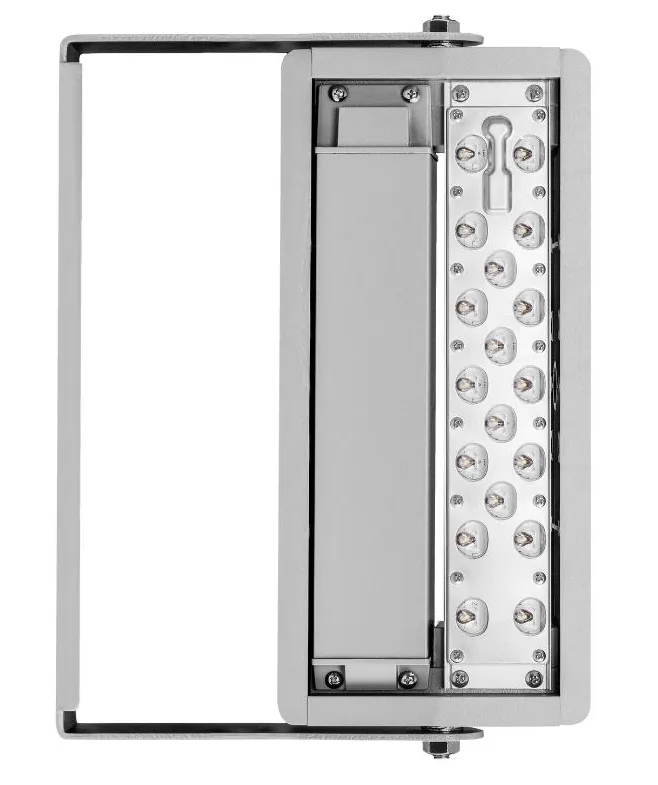

HOUSING & FINISH

1. Die cast aluminum housing with modular design for easy installation and maintenance.

2. Exceptional thermal management through chimney effect design.

3. IK10 rated and meets 3G vibration standards (ANSI C136.31-2010).

4. Corrosion-resistant polyester powder painting (100μm thickness) with 1000-hour salt spray certification.

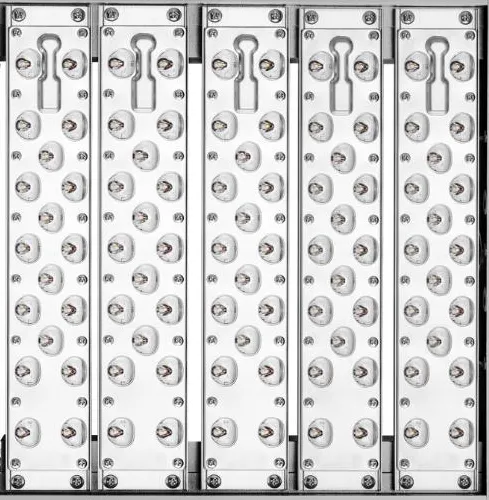

LED & OPTICAL ASSEMBLY

1. TVS protected PCBs to guard against lightning and voltage transients.

2. Durable optical polycarbonate lens, impact and UV resistant.

3. IP67 rated LED modules, 100% tested prior to assembly.

4. Over 15 optical lens options available for versatile applications.

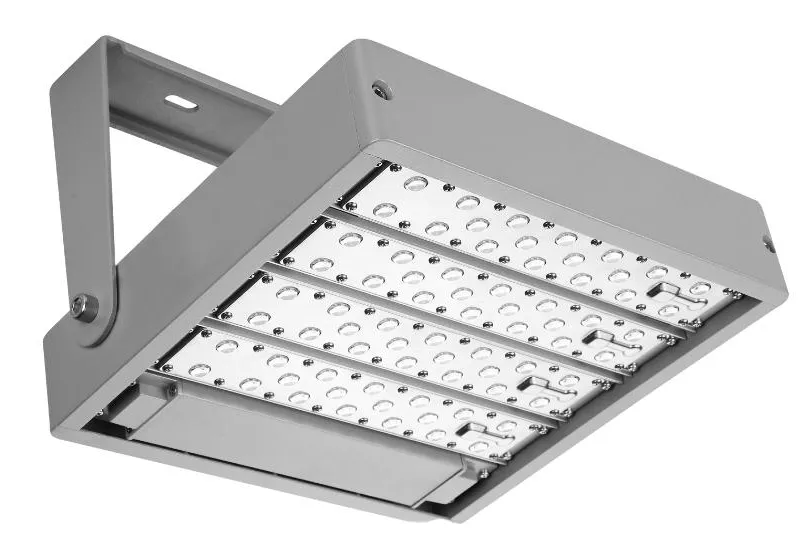

MOUNTING & CONTROLS

1. 360-degree rotation for extreme installation flexibility.

2. Surge protection up to 20kV/10kA available.

3. High-quality components (MOLEX, WAGO connectors).

4. Smart control options: Photocell, Motion Sensor, DALI, DMX, 1-10V dimming.

Technical Specifications

Parameter	Detail	Parameter	Detail
Power	60/120/180/240/300W	IP Rating	IP67
Input	220-240V / 120-277V AC	SPD	Optional
PF / THD	>0.95 / <20%	IK Rating	IK10
L70 Lifespan	>200,000 Hours	Operating Temp	-40°C~+50°C
Typical Efficacy	120-160lm/W	ANSI CCT	3000K to 5700K
Min CRI	70 / 80 / 90	Optic Types	Type I to Type V

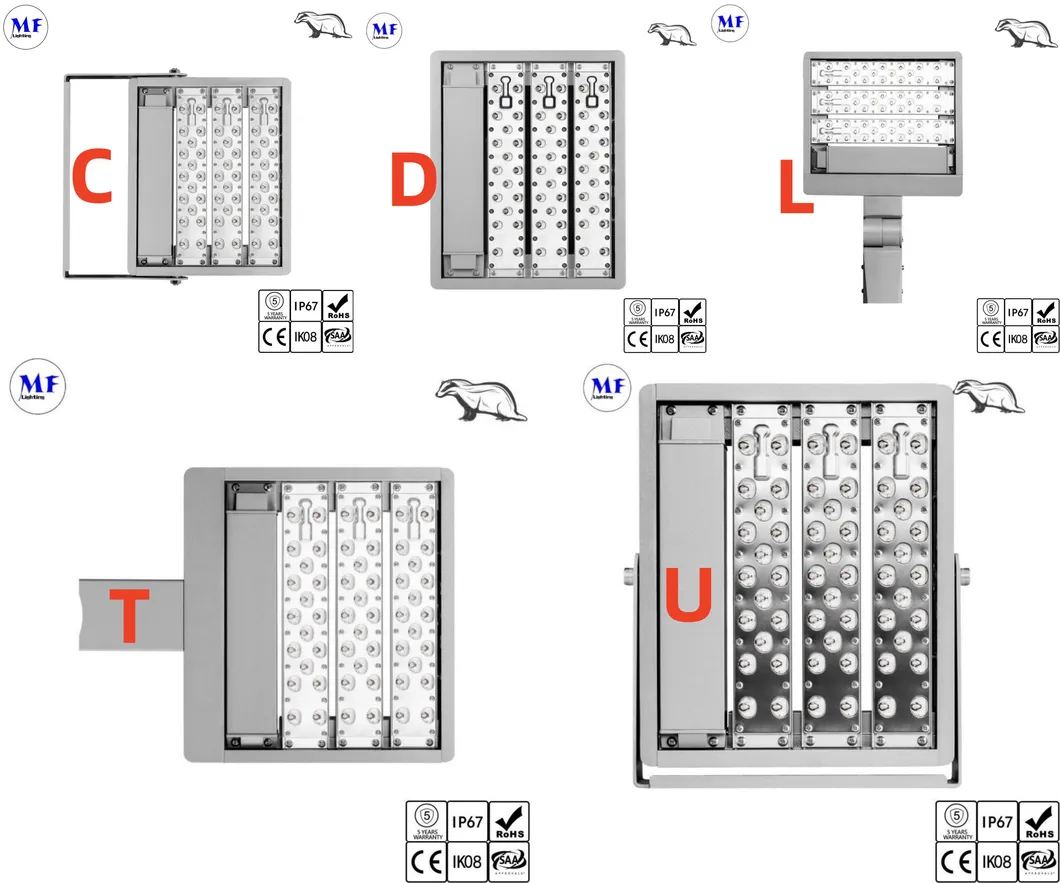

Competitive Advantage

Die Casting Heat Sink: Excellent Thermal Management
Modular Flexibility: Up to 5 modules combined (300W)
High Strength Polycarbonate Lens (IK08/IK10)
Embedded Cable Raceway: Optimized Layout
Racked Angle: Precise installation up to 270°
4mm L-Shape Bracket: Wind resistant rate 17

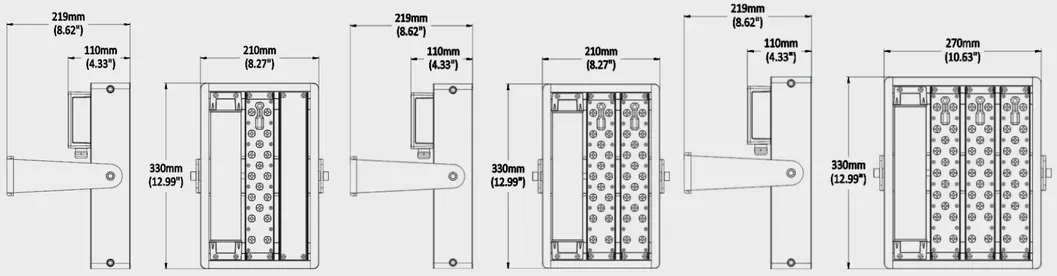

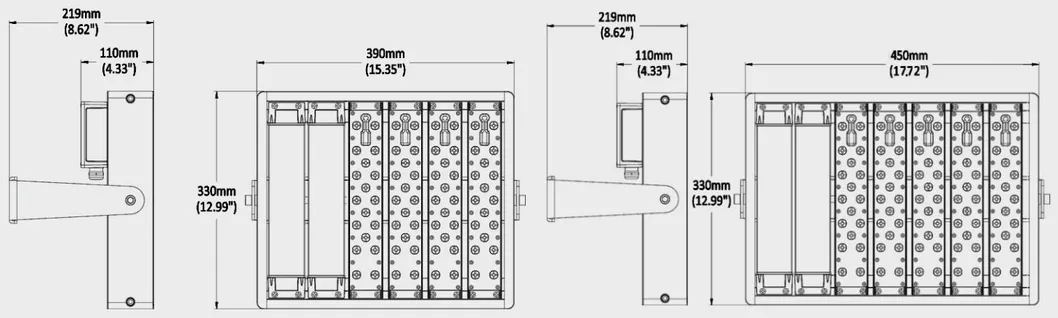

Dimensions

60W / 120W / 180W Models:

240W / 300W Models:

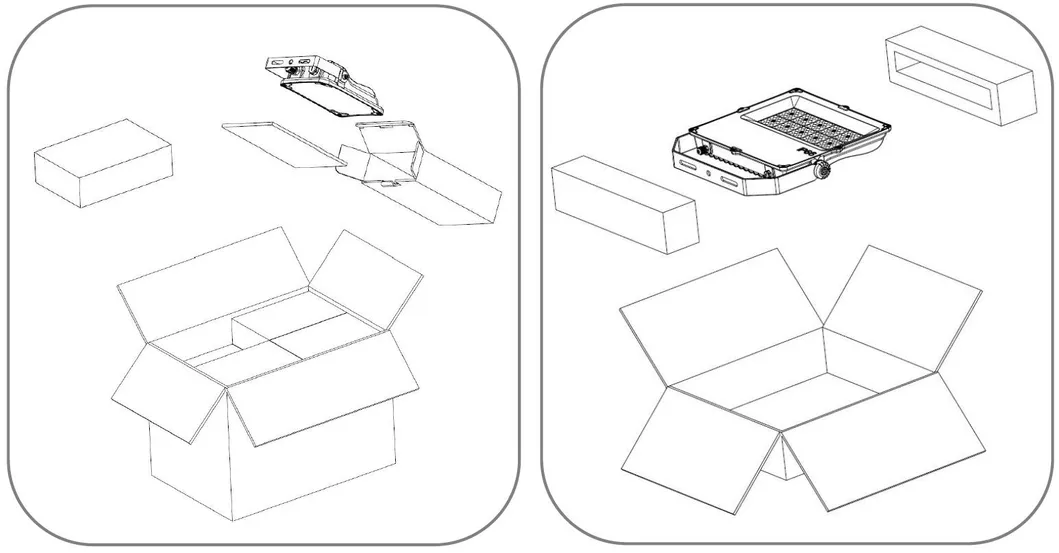

Packaging & Shipping

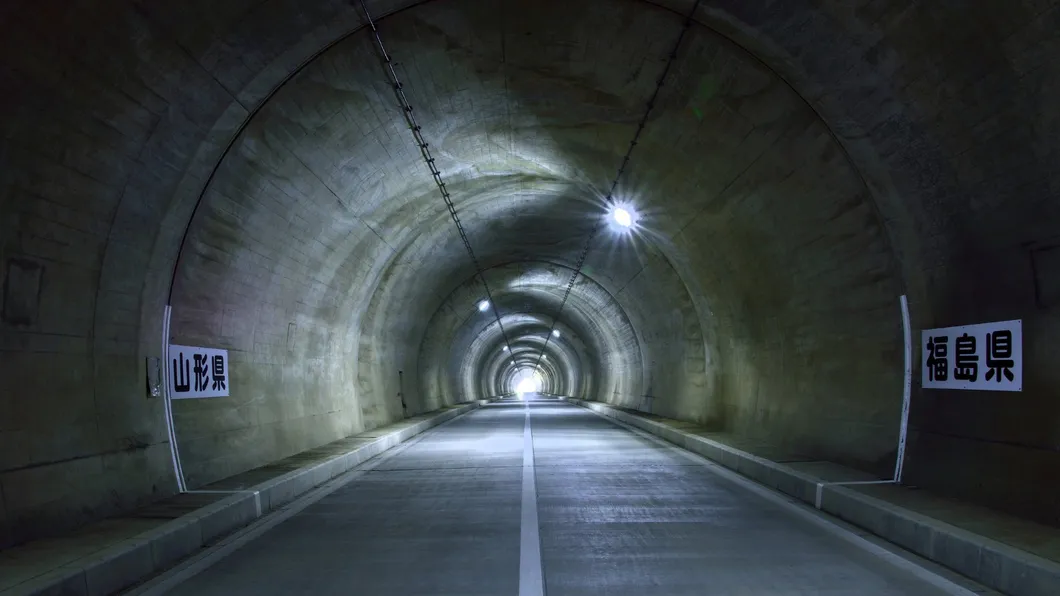

Applications

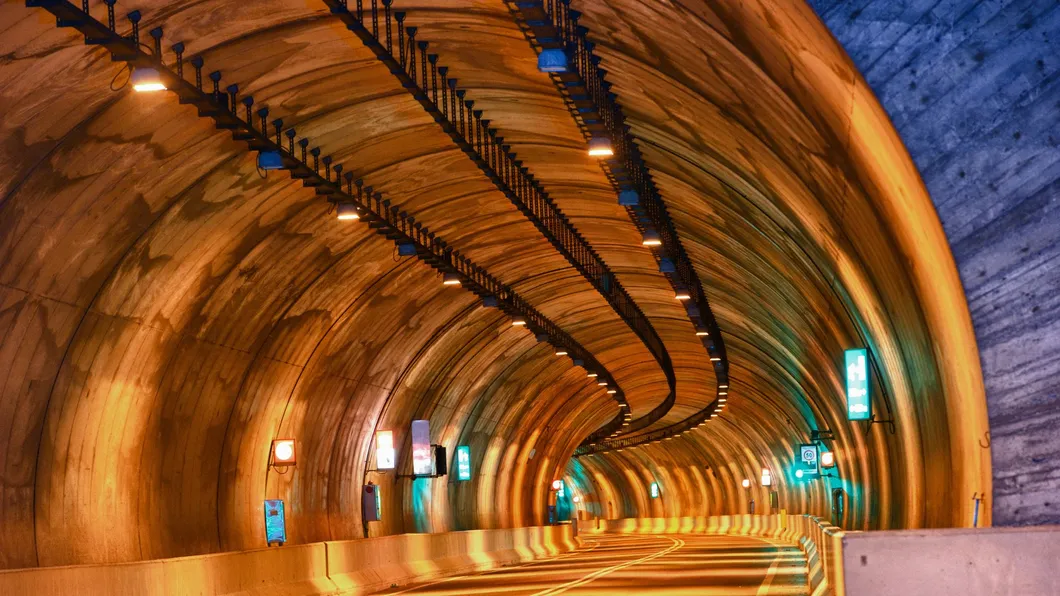

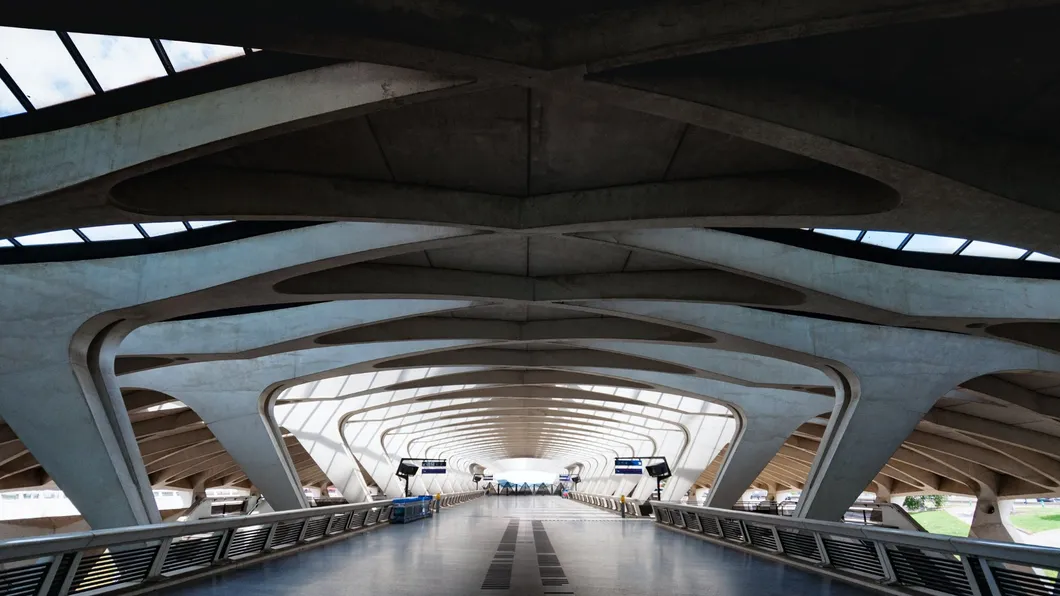

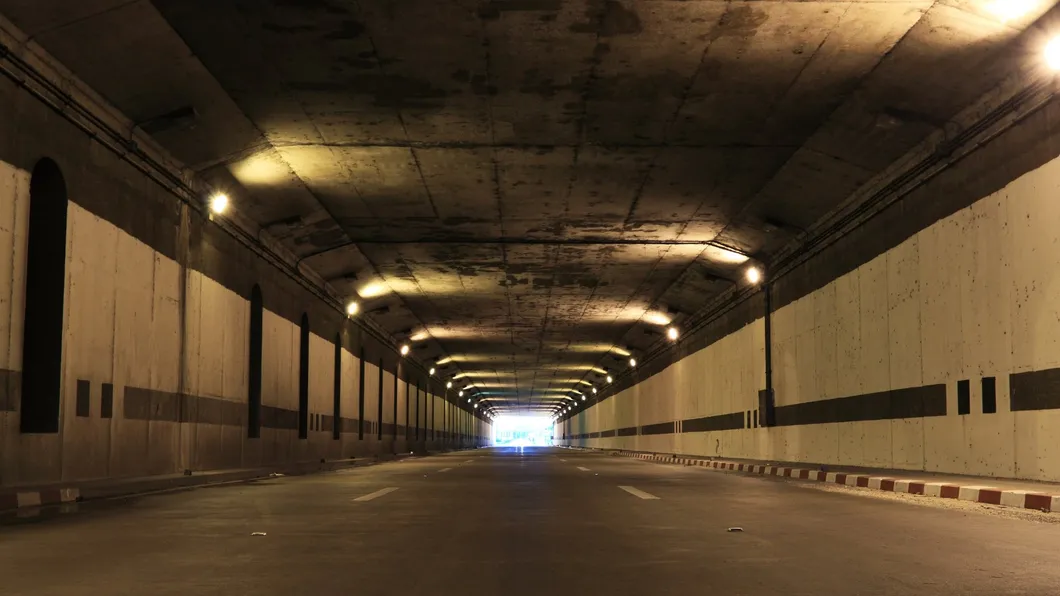

Suitable for a wide range of commercial, public, and industrial lighting applications including tunnels, supermarkets, schools, billboards, airports, train stations, manufacturing facilities, warehouses, parking lots, and sports stadiums.

Frequently Asked Questions

What is an LED floodlight?

An LED floodlight is a type of lighting fixture that uses Light Emitting Diodes (LEDs) to provide high-intensity, broad-beamed lighting for outdoor spaces.

How long do LED floodlights last?

LED floodlights have a long lifespan, typically lasting up to 50,000 hours or more, significantly longer than traditional lighting solutions.

Are LED floodlights energy-efficient?

Yes, LED floodlights are highly energy-efficient, consuming significantly less power, which results in reduced energy costs and a lower carbon footprint.

Can LED floodlights be dimmed?

Yes, LED floodlights can be dimmed using compatible dimming controls like DALI, DMX, or 1-10V systems.

Are LED floodlights suitable for outdoor use?

Yes, these are IP67 rated and designed to withstand harsh weather conditions, including resistance to water and dust.

What applications are best for these lights?

They are ideal for stadiums, parking lots, warehouses, billboards, and general architectural or area lighting.
