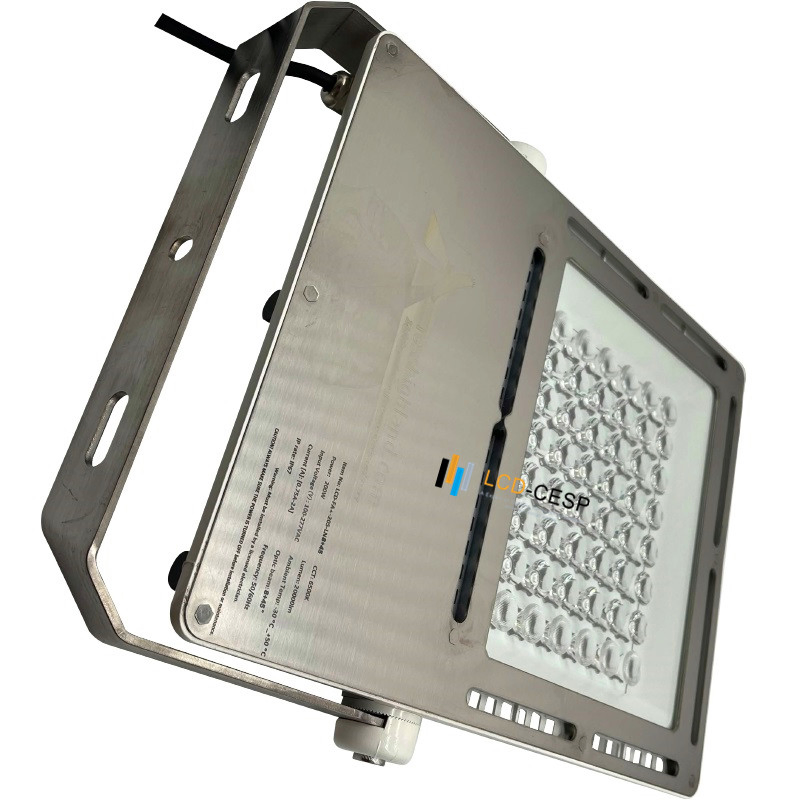

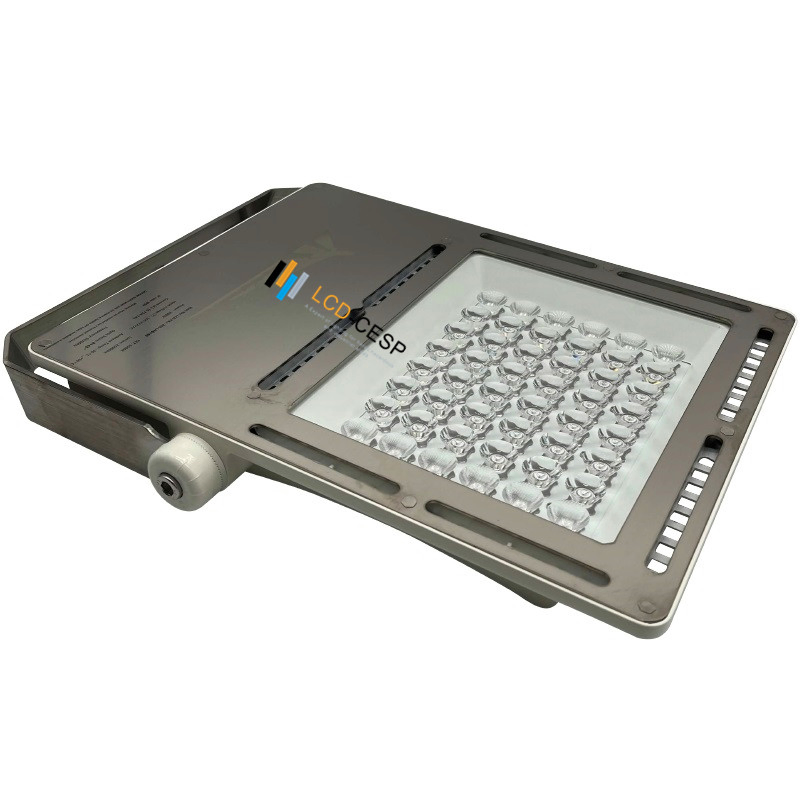

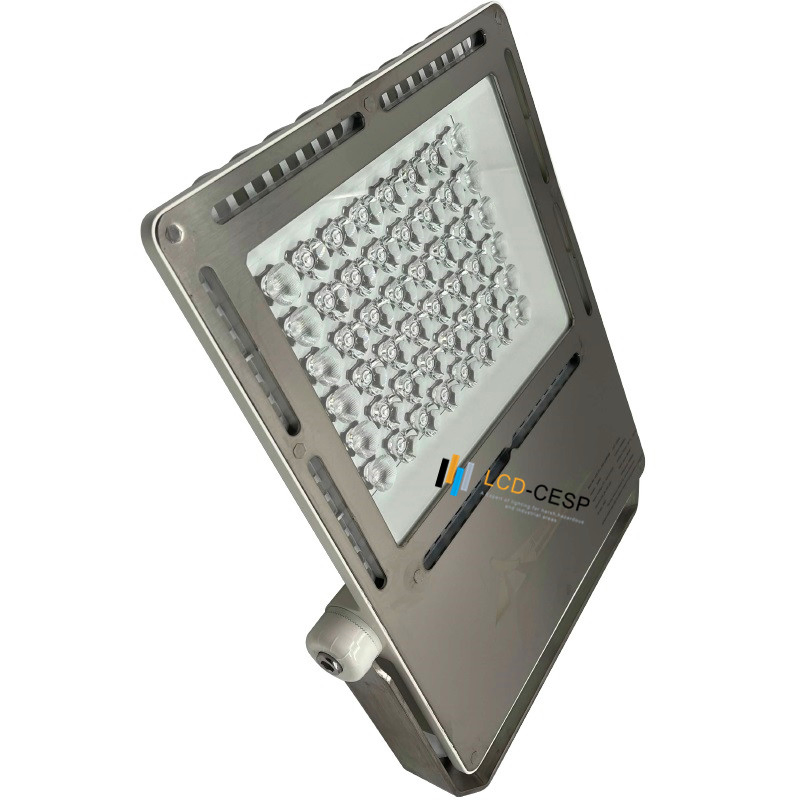

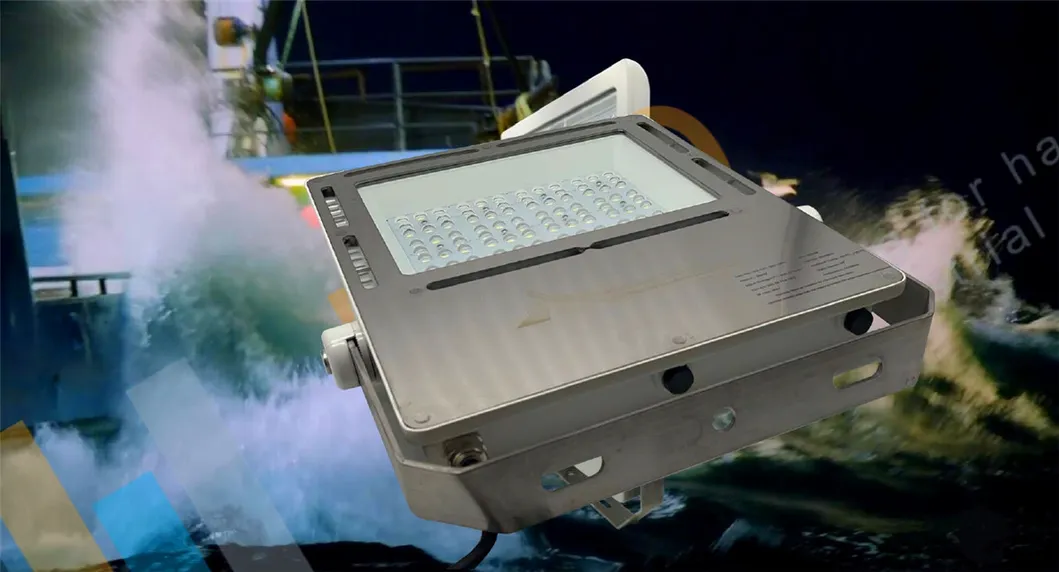

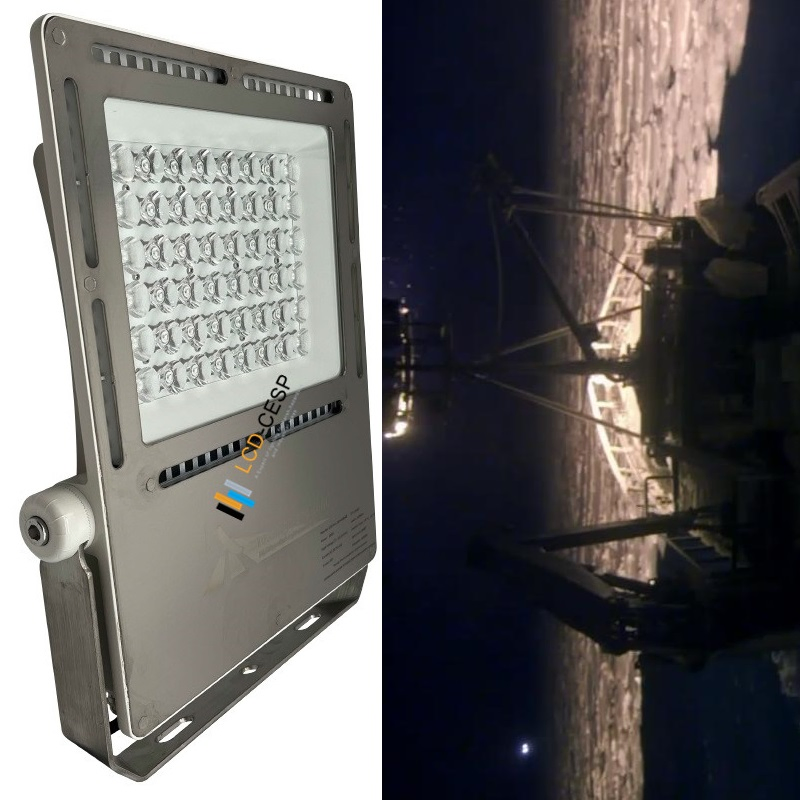

Stainless Steel Marine Grade LED Flood Lights 400W 500W Fish Boat Lighting

Basic Specifications

Model NO.

LCD-FA-505-LNXXXX

Power

80W - 1500W

Lumen Output

130-170lm/W

IP Rating

IP67 / IP68

LED Chips

Osram / Cree / Luxeon / Bridgelux

Marine Grade

Anti-Salt Water Coating 10 Years Warranty

Input Voltage

220V / 90-305V / 12-32VDC

Beam Angle

2° to 120° Optional

Certifications

CE, RoHS, TUV, ATEX, IECEx, FCC, ETL

Application

Marine, Fishing Boat, Stadium, Airport, Industrial

Professional Lensed LED Floodlight

FA Series: 200W - 1500W High-Performance Solutions

Key Features

High Efficacy: Utilizes Cree, Luxeon, or Bridgelux SMD3030/5050 chips for up to 170lm/W.
Extreme Durability: Designed for the harshest hazardous locations and marine environments.
Ultra-Slim Design: Rugged construction with a maximum depth of only 60mm.

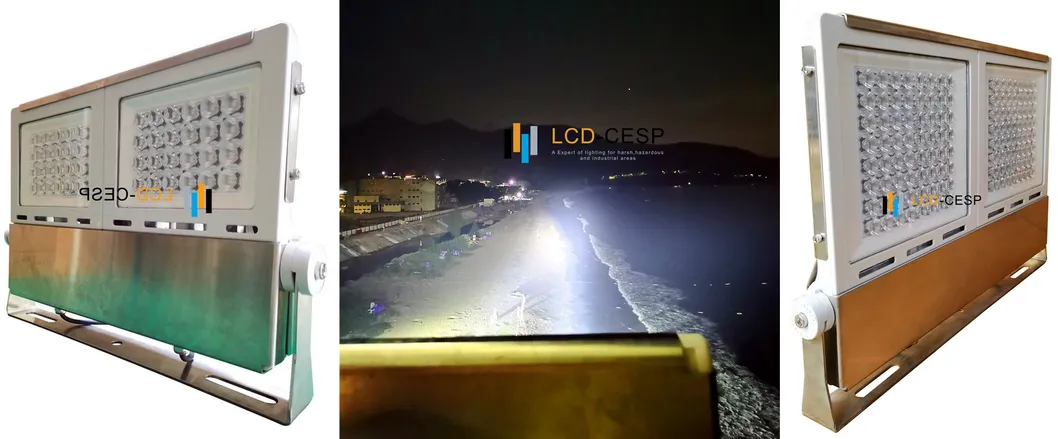

Advanced Thermal Management: Custom-designed case and AL1060 pure aluminum heat sink.

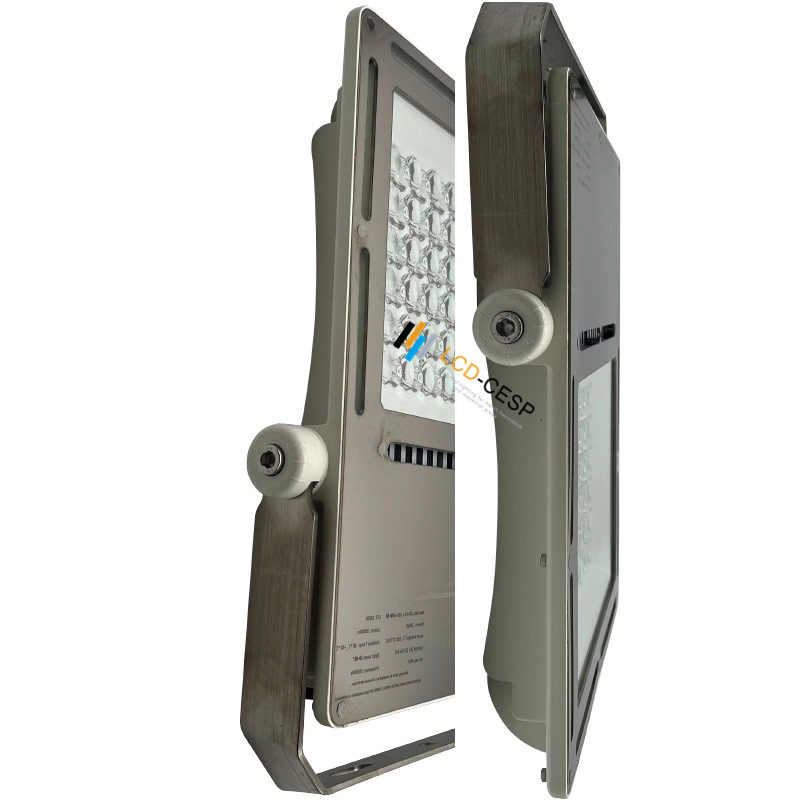

Precise Optics: Bracket designed with +/-160° angle and 5° interval locking system.

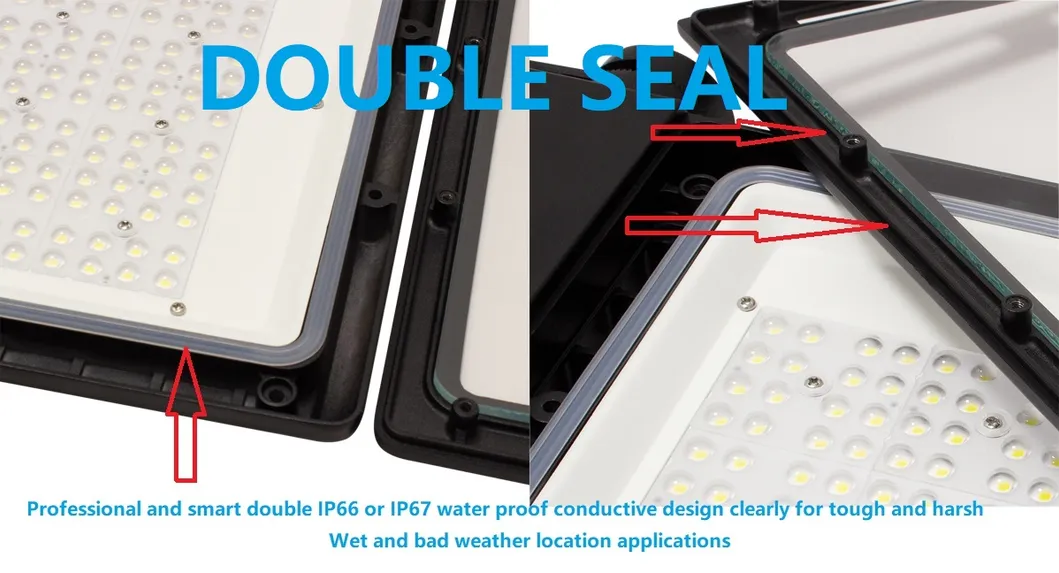

Weatherproof: IP67/IP68 rating to eliminate water ingress in offshore rigs and coastal areas.
Long Warranty: 5 to 7 years comprehensive warranty coverage.

Technical Data (FA Series)

Model Parameter	80W-100W	150W	200W-250W	400W-600W
Lumens	12000-15000lm	22500lm	30000-37500lm	60000-90000lm
Fitting Color	RAL 9010 White	RAL 9010 White	RAL 9010 White	RAL 9010 White
Weight	4KG	5.4KG	6.5-10.4KG	13-20.8KG
Protection	IP67 / IK09	IP67 / IK09	IP67 / IK09	IP67 / IK09

Optical Performance

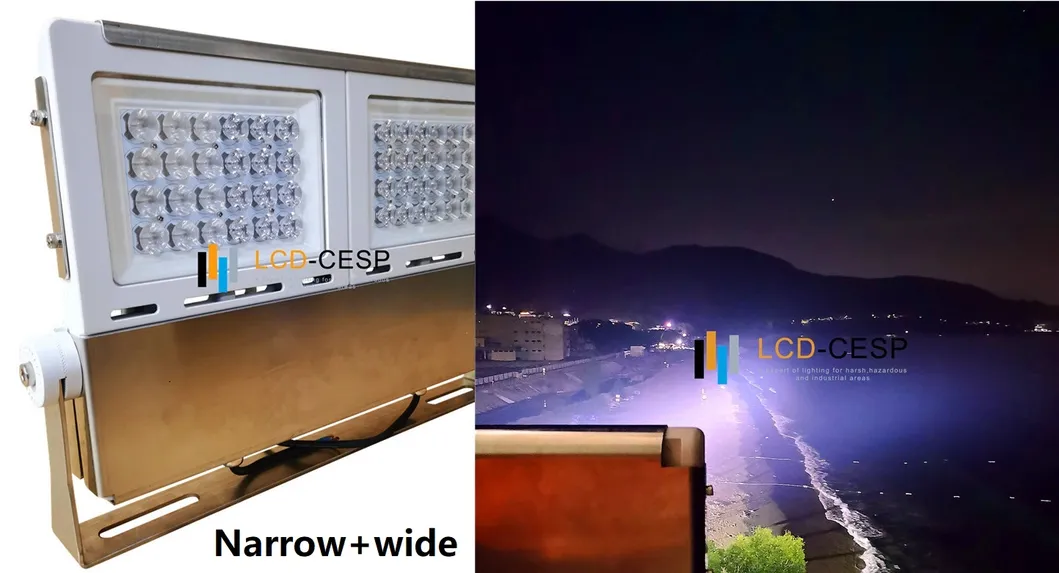

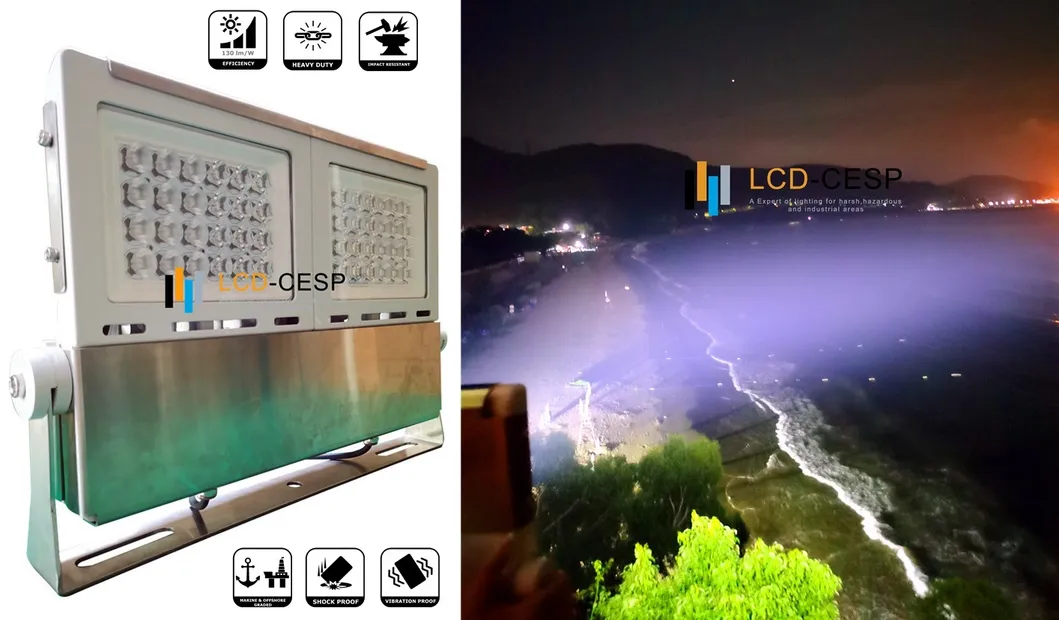

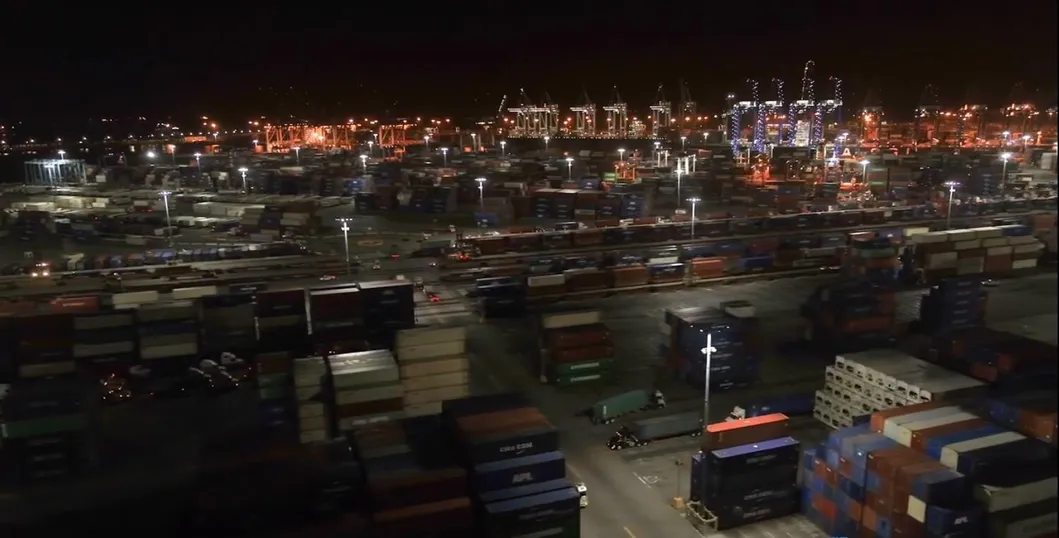

High Power Stadium & Port Solutions

Providing bright, uniform illumination while slashing energy and maintenance costs. Ideal for football stadiums, airport aprons, and sea ports.

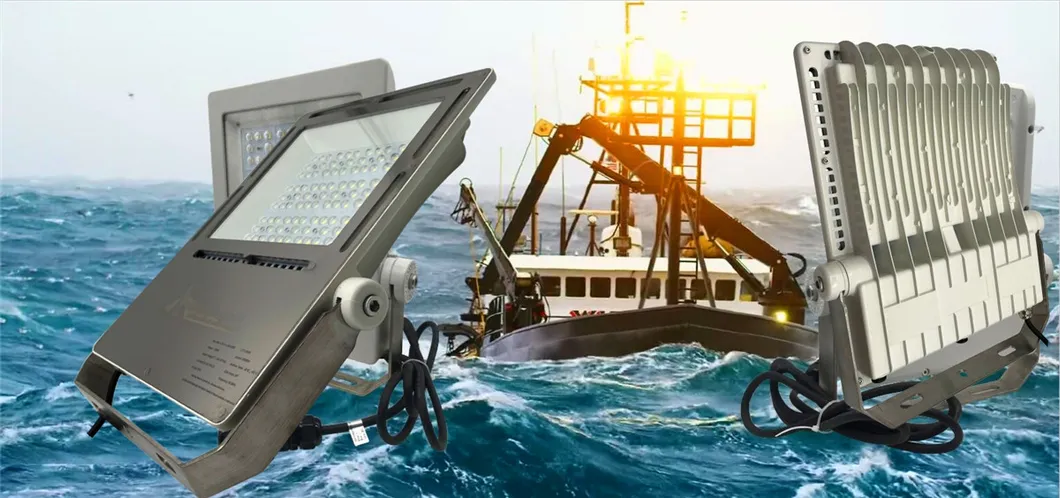

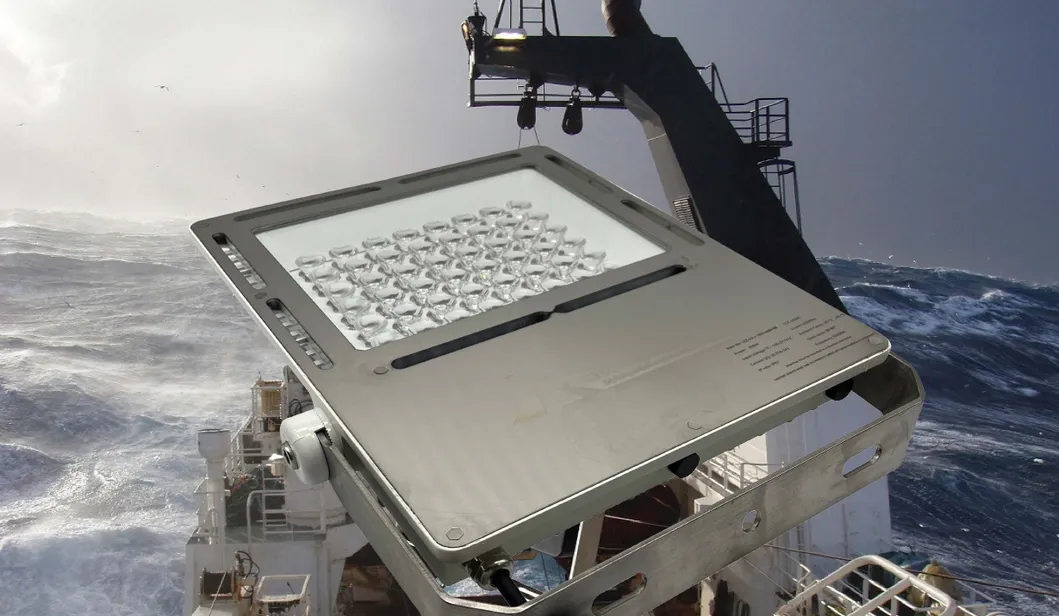

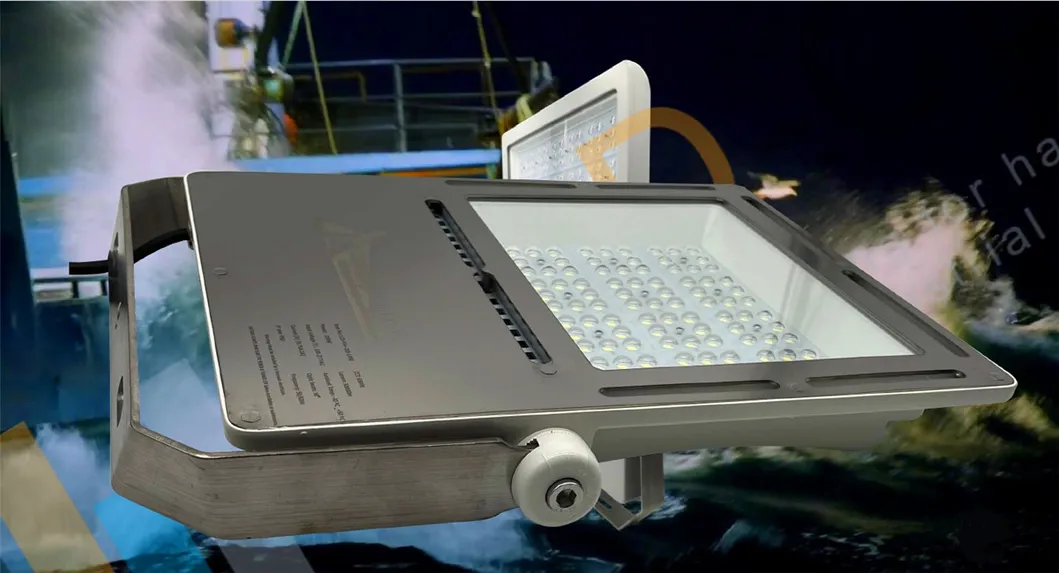

Marine & Offshore Specialty

Pure Aluminum alloy forming LED spotlight 80W - 300W for outdoor marine security lighting. Narrow beam 7-8 degree searchlight options available.

Applications

Maritime & Fishing: Fish processing, crabbing boats, seiners, and trawler deck lighting.

Industrial & Hazardous: Chemical plants, oil & gas rigs, mining facilities, and factories.

Large Area: Stadiums, arenas, airports, sea ports, plazas, and parking lots.

Frequently Asked Questions

Are these lights suitable for salt-water environments?

Yes, our Marine Grade LED floodlights feature an anti-salt water coating and are specifically designed for coastal areas, fishing boats, and offshore rigs with a 10-year warranty on the housing.

What is the standard delivery time for orders?

Samples typically take 3-5 days, while bulk orders are delivered within 7-15 days depending on the volume and specifications.

Do the products carry international safety certifications?

Absolutely. Our lighting solutions are certified by CE, TUV, ATEX, IECEx, RoHS, and UL/ETL standards to ensure safety in hazardous and industrial environments.

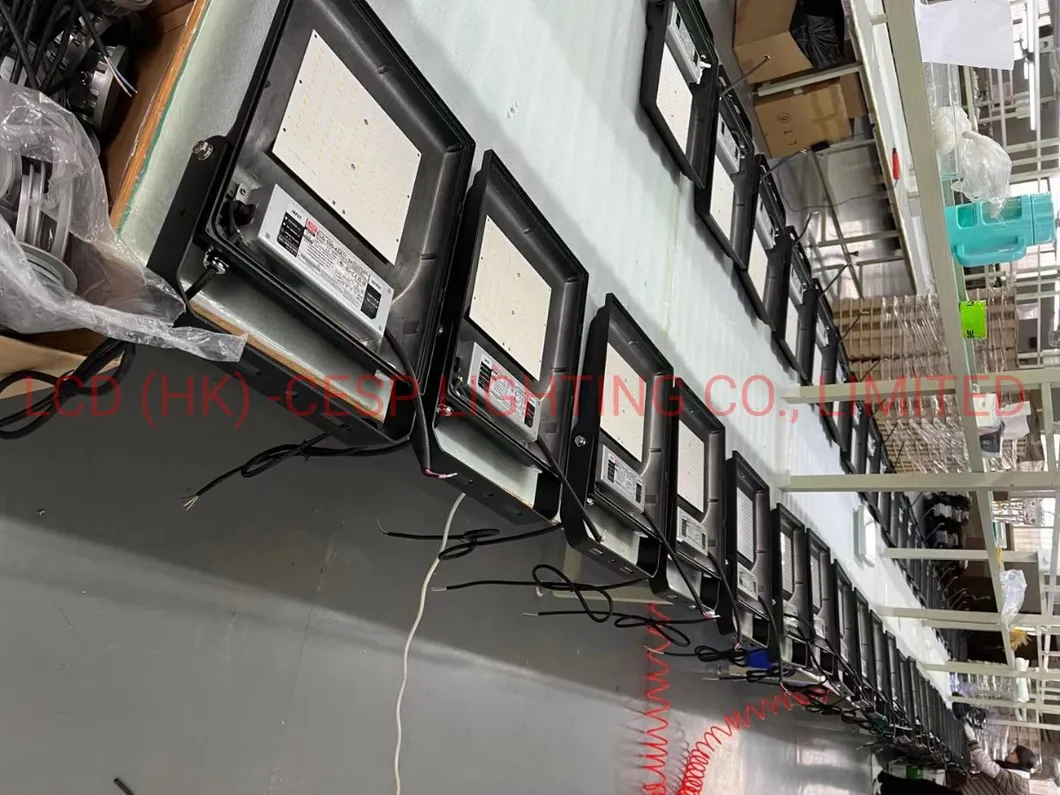

How do you ensure the quality of the LED lights?

We conduct strict quality control including raw material inspection, waterproof testing, functional testing, and a rigorous burn-in test before shipping.

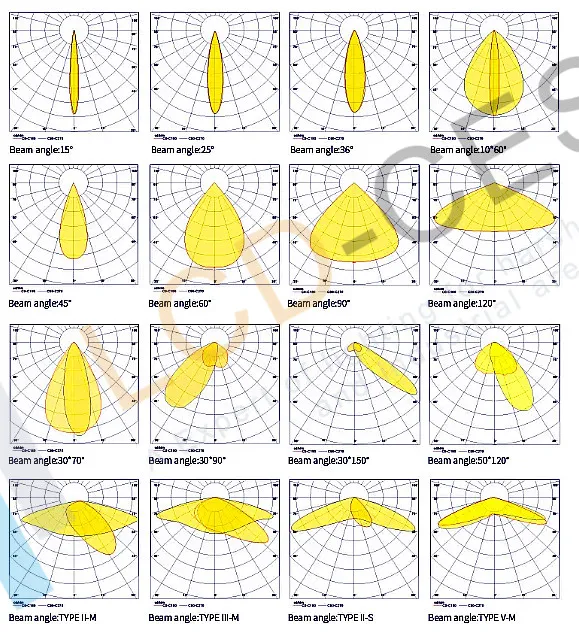

Can the beam angle be customized for specific projects?

Yes, we offer multiple optical distributions including narrow spots (2°, 8°, 15°) and wide floods (60°, 90°, 120°) to meet professional project requirements.

Is dimming control available for these models?

We offer various dimming options including 0-10V, DALI, PLC, and Triac dimmer controls upon request.
