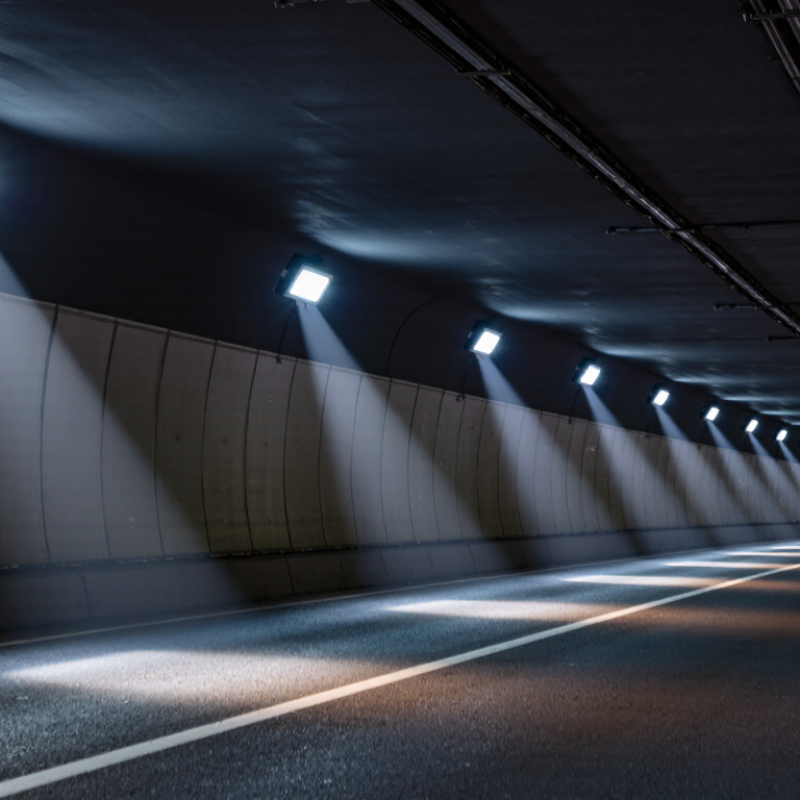

Tunnel lighting is not simply a matter of choosing the brightest LED fixture. Beam angle controls how light spreads across the road, walls, ceiling, and vehicle path. A narrow beam may create bright spots and dark gaps. A wide beam may waste light on surfaces that drivers do not need. The correct choice depends on tunnel width, mounting height, fixture spacing, traffic direction, and required luminance.
How to determine the beam angle for tunnel lighting? Start with verified photometric data, not only the product name. Review the IES or LDT file, beam distribution curve, optical efficiency, and glare performance. Experienced lighting engineers usually compare several layouts through professional simulation software. They also check the entrance zone, transition zone, interior zone, and exit zone separately. These areas rarely need identical optical designs. Measure twice.
In practical projects, a simple angle estimate can be useful. If the fixture is mounted high, the beam must reach the road surface without creating severe brightness near the fixture. For example, a 10-meter mounting height and wide lane coverage may require a broader distribution than a low-mounted side fixture. Field testing remains important because dust, wet pavement, wall reflectance, and installation tolerances can change the result. Light changes. A reliable China tunnel lighting manufacturer should provide test reports, simulation support, and clear installation guidance. Still, no catalog recommendation replaces a site-specific assessment. That is where many otherwise promising designs become less convincing.
Beam angle describes how widely a tunnel luminaire distributes light across the roadway and walls. It strongly affects spacing, uniformity, glare, and visual comfort. A wider beam can cover more area, but it may create unnecessary spill on walls or reduce road luminance. A narrow beam may improve reach, yet produce bright spots between fixtures. It is not automatically better.
In practice, beam angle should match mounting height, fixture spacing, tunnel width, and aiming direction. Review the photometric file, such as an IES or LDT file, rather than trusting the stated angle alone. Many manufacturers define beam angle at 50% of peak intensity. That figure does not show the complete distribution. For a fixture mounted six meters above the road, a 60-degree beam creates an approximate six-meter footprint before aiming adjustments. Use this estimate carefully.
Road curvature changes the answer. A straight section may accept a tighter distribution, while a bend often needs broader lateral coverage. Measure luminance and uniformity at road level. Check the walls, ceiling, entrances, and pedestrian edges. Wet pavement can reflect intense beams directly toward drivers. That detail is easy to miss.
The first layout may look efficient on paper, but field testing can reveal dark bands, excessive glare, or poor contrast. Adjusting tilt by a few degrees may improve results, although it can also shift light away from critical areas. Tunnel lighting demands repeated checking, not a single calculation.
Measure tunnel width, ceiling height, mounting offset, lane layout, wall reflectance, and luminaire spacing. Geometry comes first.
Higher mounting positions usually create wider coverage. For a 60-degree beam at five meters, coverage is about 5.8 meters on a flat surface.
No. The distribution pattern must also match lanes, walls, driving direction, and pedestrian areas. A catalogue label can mislead.
Narrow beams may produce bright streaks and dark gaps. These problems become worse when fixtures are spaced too far apart.
Wider beams can improve lane and wall uniformity. However, they may waste light on walls, ceilings, or opposing traffic.
Begin with spacing below the calculated beam coverage width. Then verify overlap and uniformity through photometric simulation.
Access, threshold, transition, interior, and exit zones have different visual adaptation needs. Entrance lighting requires especially careful control.
Inspect the first completed section at night. View pavement, walls, and sightlines from several positions. Recheck it.
Dust, wet pavement, curved walls, ventilation equipment, emergency signs, and aging light sources can alter brightness and uniformity.
Record luminance, uniformity, glare, power demand, mounting details, and aiming direction. The neatest drawing can still fail in practice.
Determining the correct beam angle is essential for creating safe, uniform, and energy-efficient tunnel lighting. How to determine the beam angle for tunnel lighting? Start by examining the tunnel’s width, height, length, curvature, lane arrangement, wall surfaces, and traffic conditions. These structural factors, together with required brightness and uniformity, help define whether a narrow, medium, or wide beam is most suitable. The selected angle should match the intended lighting distribution pattern, minimizing dark zones, excessive glare, and unnecessary light on walls or unoccupied areas.
Designers should also calculate fixture spacing, mounting height, installation direction, and coverage overlap to ensure continuous illumination. Photometric simulations can reveal weak points and help refine the beam angle before installation. Finally, on-site testing should verify brightness, uniformity, glare control, and visibility under real operating conditions. Combining structural assessment, lighting calculations, simulation, and field evaluation provides a practical method for selecting a beam angle that supports reliable tunnel performance.
