Basic Info
Model NO.
GL-HB-515-200W H
Power
200W 150W 100W 80W 50W
Usage
Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory, Tunnel
Certification
CE, EMC, LVD, RoHS
Beam Angle
120d 90d 60d 45D
💡
Product Advantage: High performance 200W LED high bay lighting with multiple beam angle options (45°/60°/90°/120°) and premium Meanwell/Sosen drivers.
Product Description
| Technical Specifications |
| Item No. | GL-HB-515 series (50W - 200W) |
| LED Type | SMD3030 |
| Luminous Efficiency | 100-110 Lm/W |
| CCT(K) | 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI | > Ra80 |
| Input Voltage | 100-277VAC / 347V / 480V 50/60Hz |
| Dimming function | 1-10V, PWM, Resistance, Dali dimmable |
| Protection Grade | IP54 waterproof (IP65 available) |
| Materials | Module Fin Aluminum housing + optical lens |
| Warranty | 5 Years Warranty |

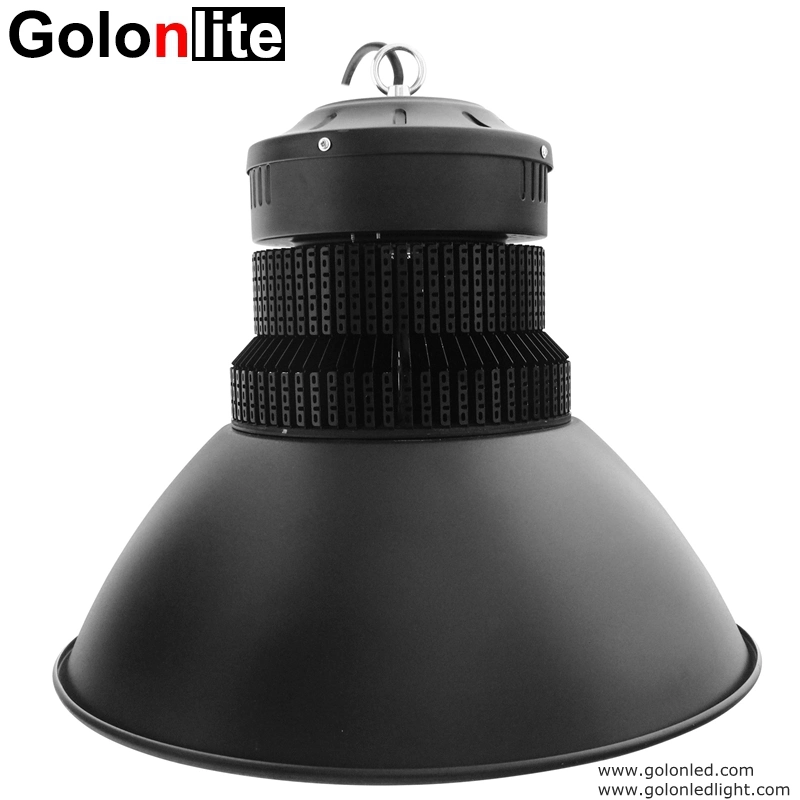

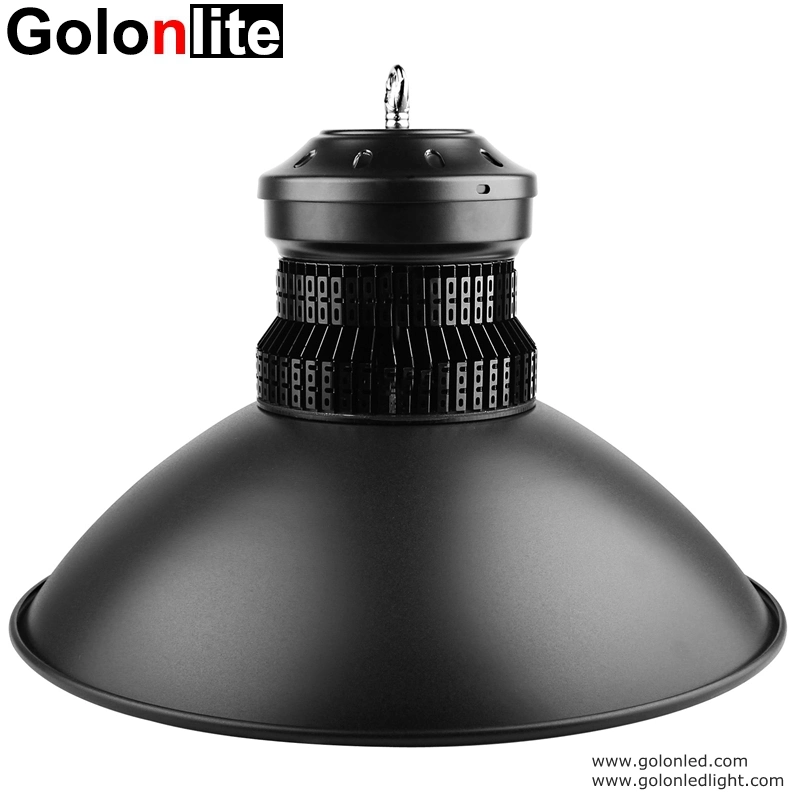

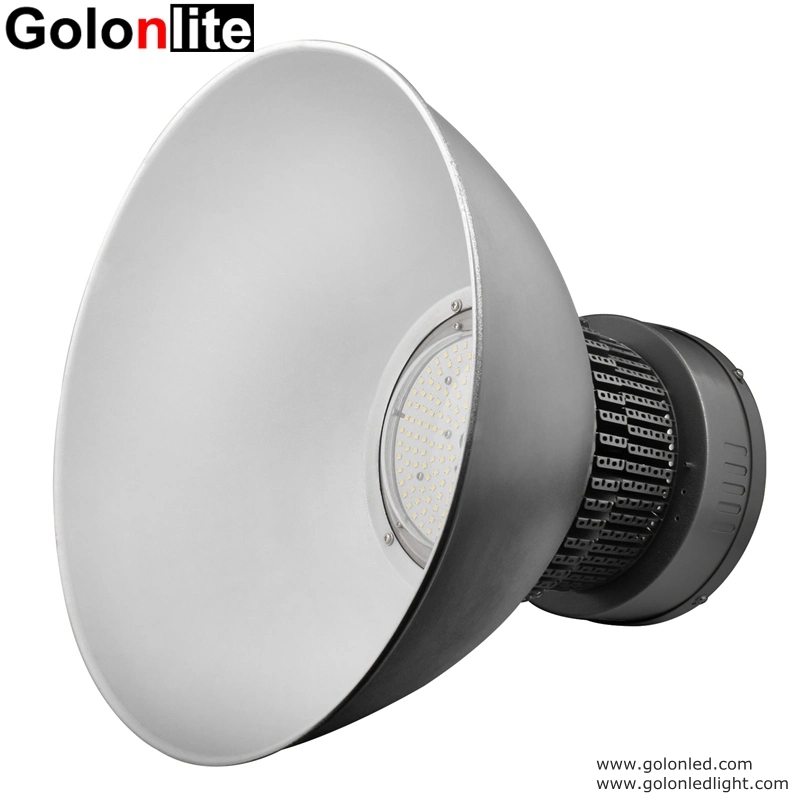

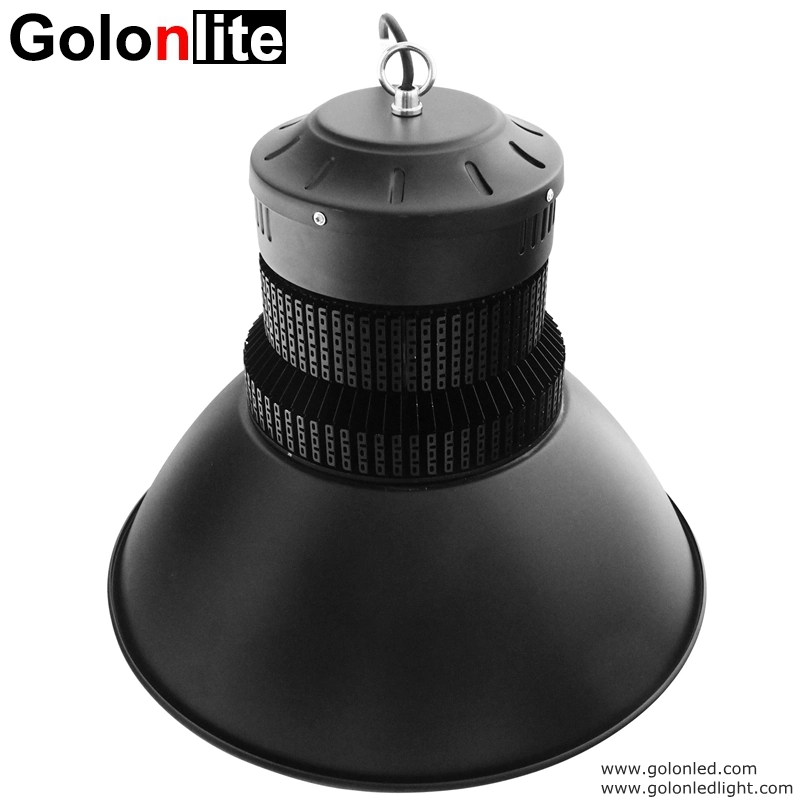

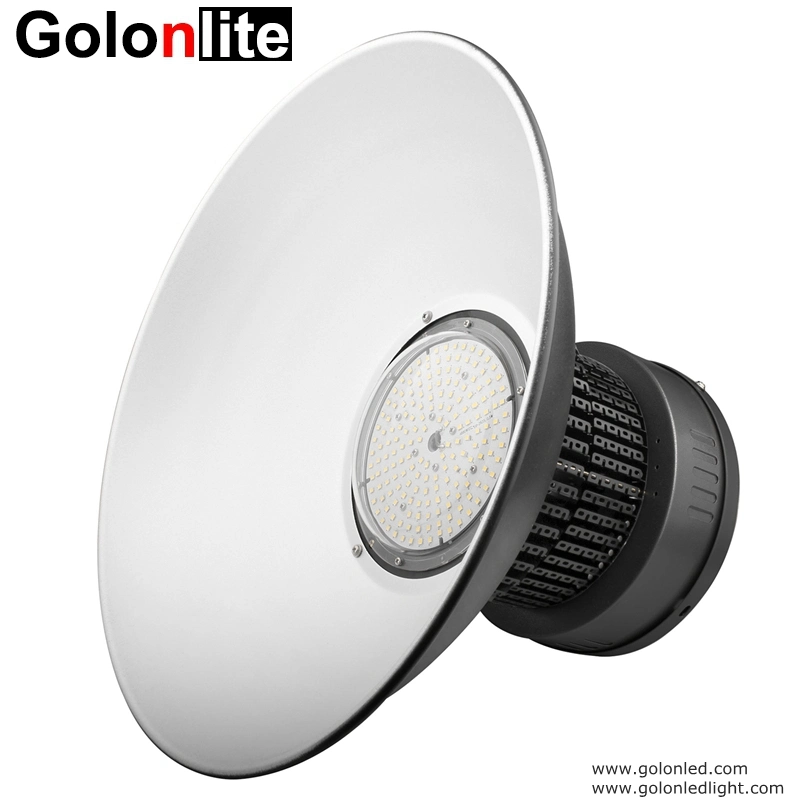

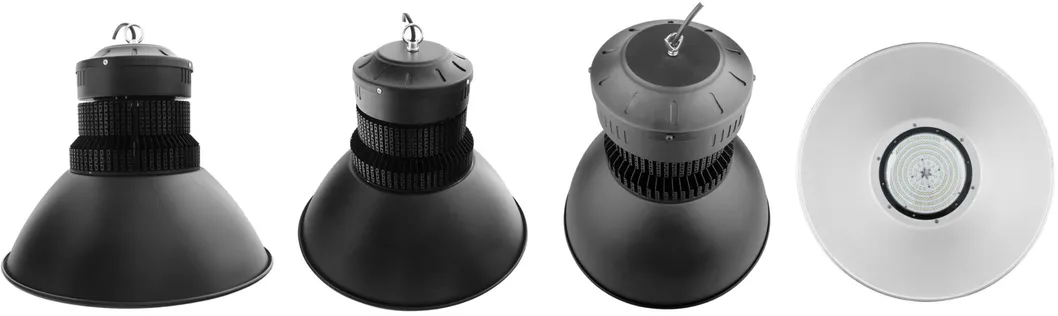

Product Visuals

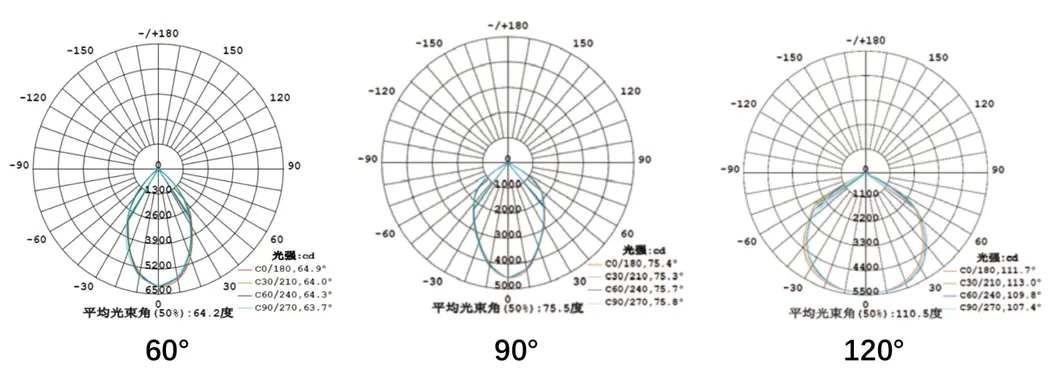

Photometric & Series Details
| Model |
Power |
Lumens |
Replacement (HID/MH) |
Driver |
| GL-HB-515-200W | 200W | 22000Lm | 1000W | Meanwell / Sosen |
| GL-HB-515-150W | 150W | 16500Lm | 500-800W | Meanwell / Sosen |
| GL-HB-515-100W | 100W | 11000Lm | 400-500W | Meanwell / Sosen |
| GL-HB-515-80W | 80W | 8800Lm | 250-400W | Meanwell / Sosen |
| GL-HB-515-50W | 50W | 5500Lm | 250-300W | Meanwell / Sosen |

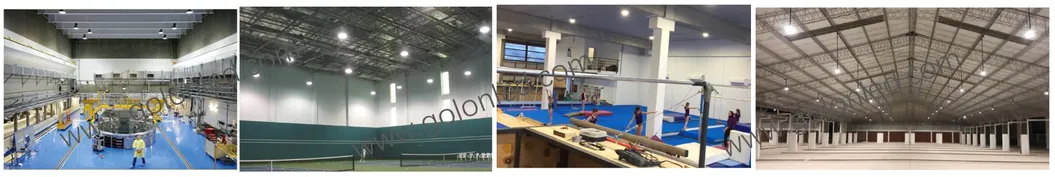

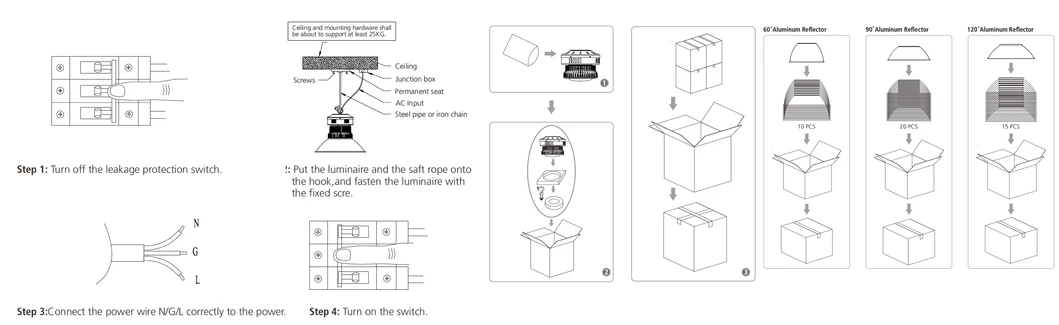

Applications & Installation
Core Services
🛠️
- Any inquiries replied within 24 hours.
- OEM & ODM welcomed for unique designs.
- 5 Years Warranty on all industrial lighting products.
- Free lighting design services including IES files and Dialux studies.
- After-sale technical support handled within 24 hours.
Frequently Asked Questions
1. What is the typical lifespan of these LED High Bay lights?
The products are designed with high-quality SMD3030 chips and robust thermal management, ensuring a long lifespan of over 50,000 hours.
2. Which dimming options are available for the 200W model?
Our lights support multiple dimming protocols including 1-10V, PWM, Resistance, and DALI dimming to suit various control systems.
3. Can these LED lights replace traditional metal halide lamps?
Yes, for example, our 200W LED High Bay is designed to replace traditional 1000W metal halide or HID lamps, providing significant energy savings.

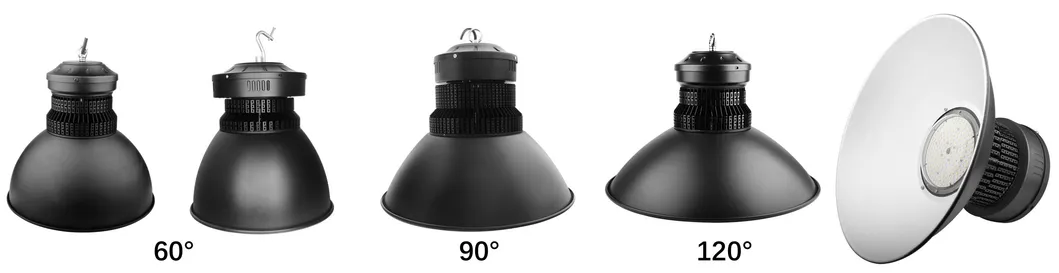

4. What beam angles can I choose from?
We offer various optical lens options including 45°, 60°, 90°, and 120° beam angles to match different ceiling heights and lighting requirements.
5. Are the drivers used in these lights reliable?
We utilize industry-leading Meanwell or Sosen drivers, which are known for their stability and long-term performance in industrial environments.
6. What is the standard warranty for these industrial lights?
We provide a comprehensive 5-year warranty on our LED high bay lighting fittings, covering both the LED source and the driver.
