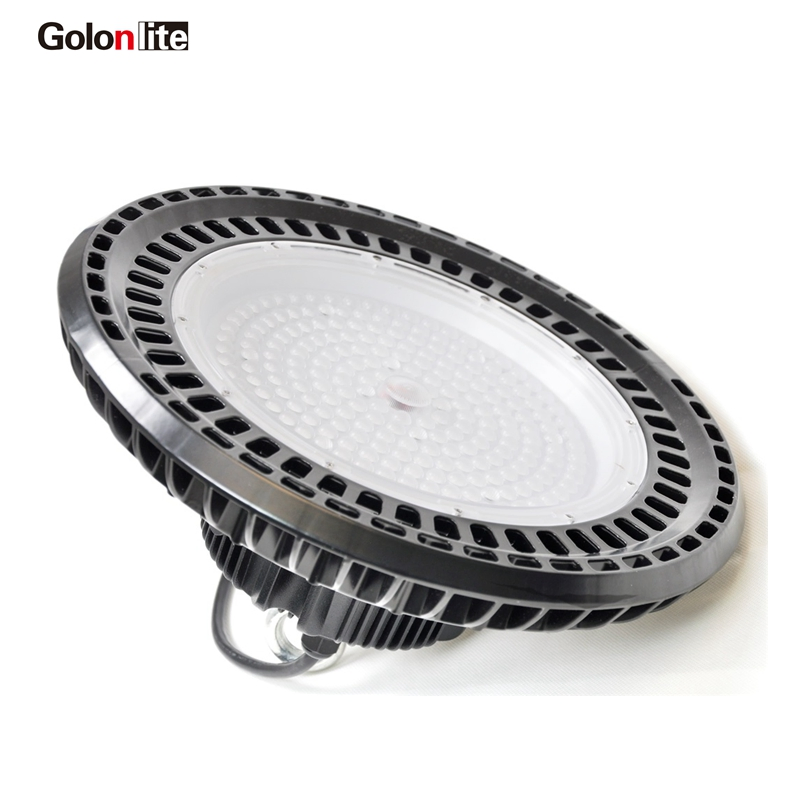

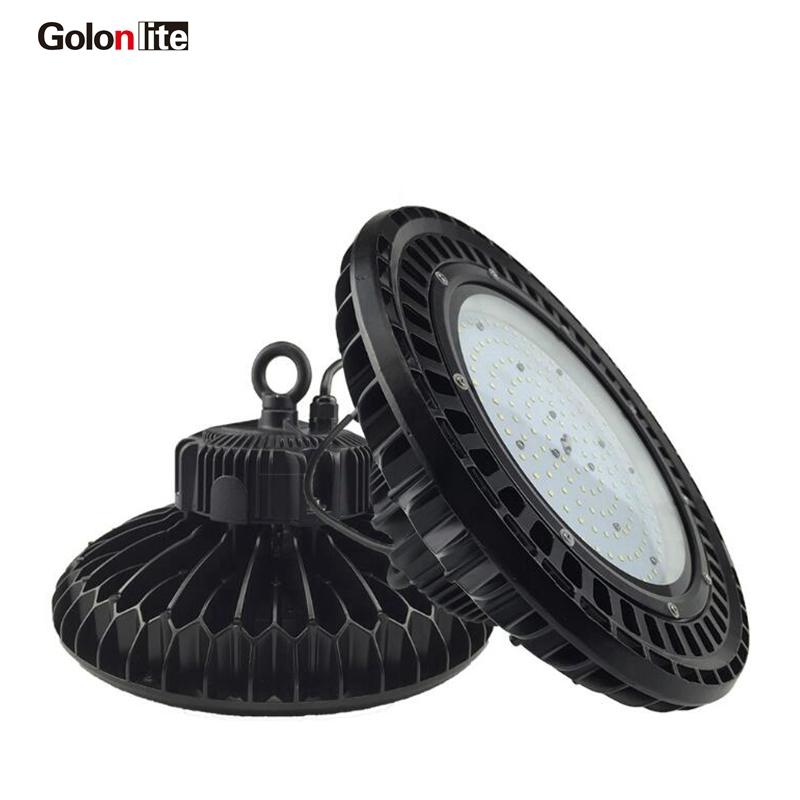

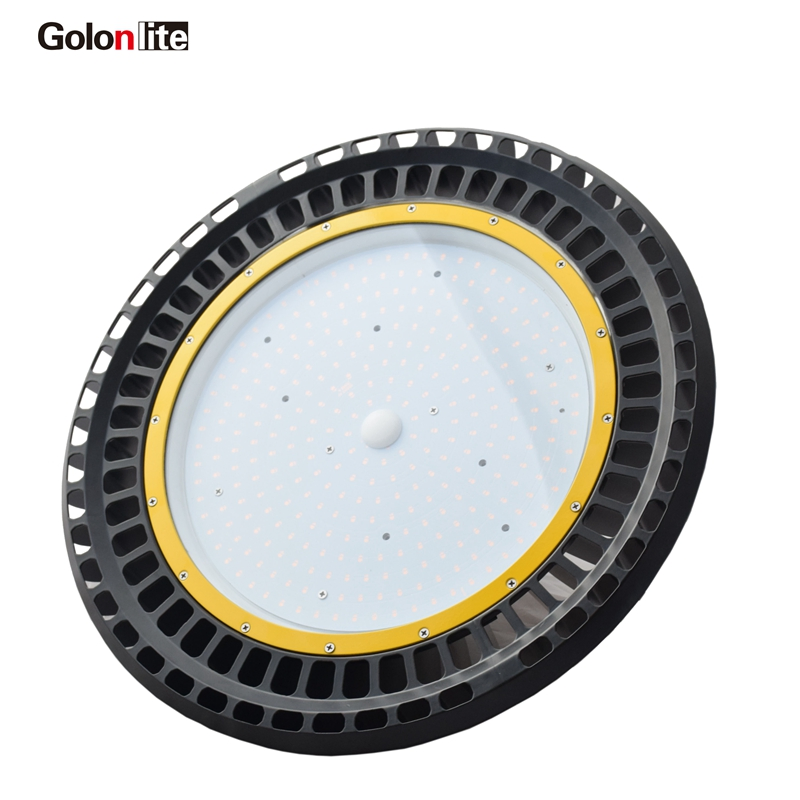

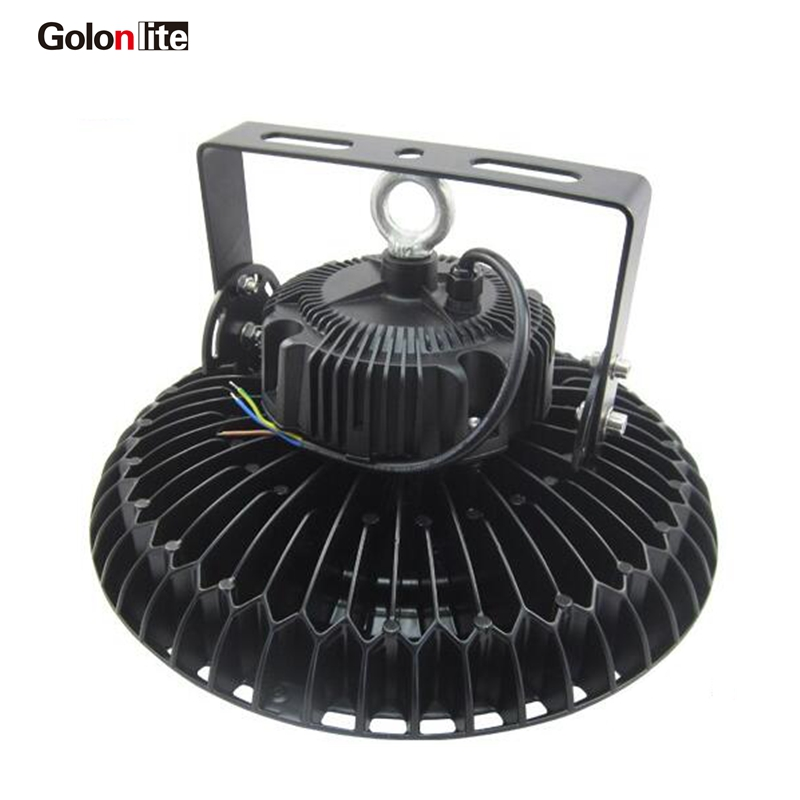

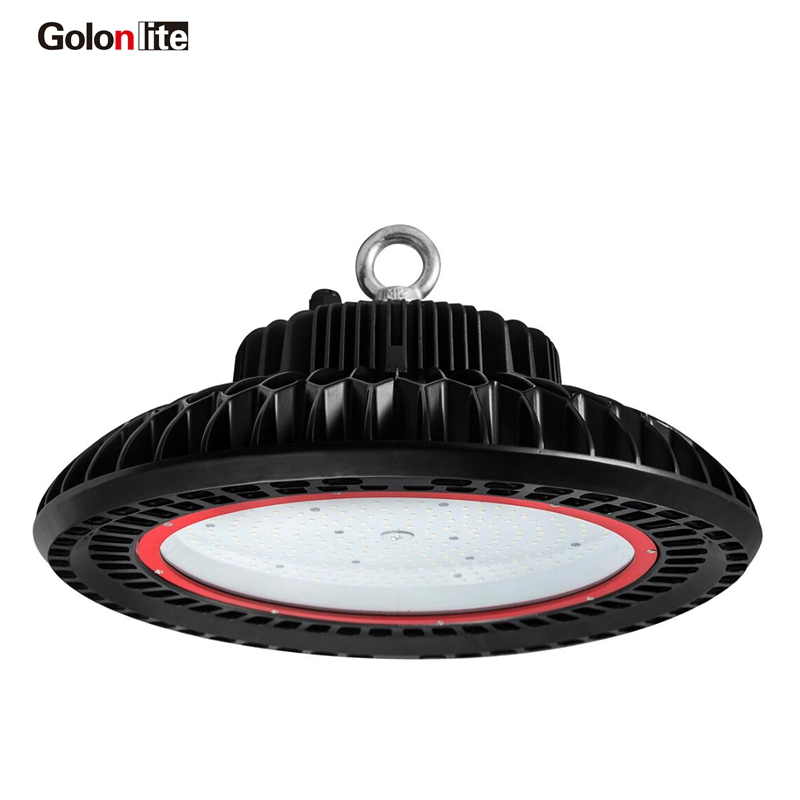

White 4000k 5000k 6500k Dimmable Sensor Ceiling Wall Mounted 150W 200W Warehouse LED Industrial Lighting

Basic Specifications

Model NO.

GL-UHB-03D

Power

240W 200W 160W 100W

Usage

Factory, Garden, Square, Field

Lifespan

≥50000H

IP Rating

IP65

Certification

CE, EMC, LVD, RoHS

Beam Angle

40° / 60° / 90° / 120°

Warranty

5 Years

PF

0.95

CRI

>Ra80

Product Description

Dimmable Sensor Ceiling/Wall Mounted LED Industrial Lighting (100W-240W)

130Lm/W Efficiency
Three-in-one Dimming
Microwave & Photocell Sensor
Meanwell Driver
Die Casting Aluminum
IP65 Waterproof

Specification	Details
LED Type	Lumileds SMD3030
Luminous Efficiency	130Lm/W
CCT(K)	3000K / 4000K / 5000K / 5700K / 6500K
Input Voltage	100-277VAC 50/60Hz
Protection Grade	IP65 waterproof
Materials	Aluminum housing + PC lens

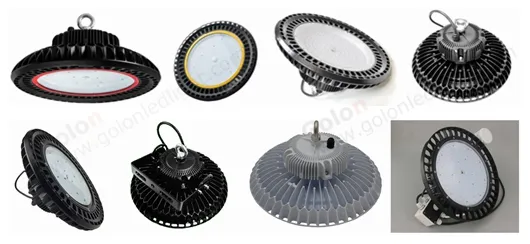

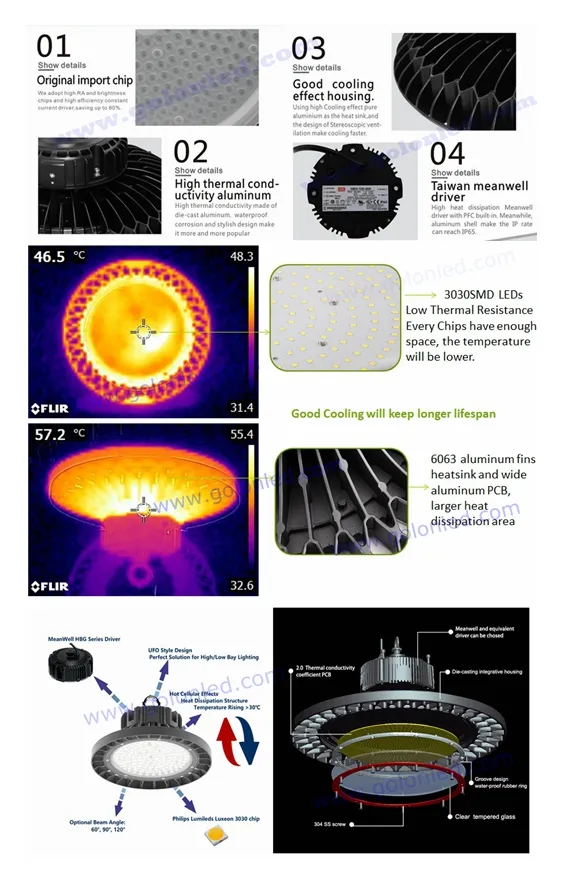

Product Details & Display

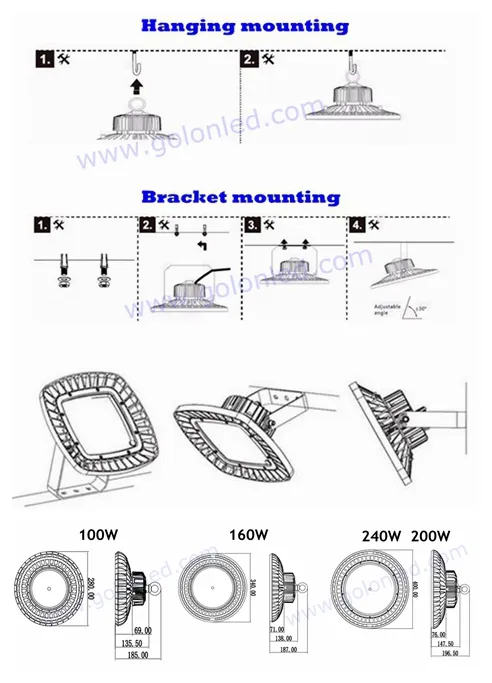

Packaging & Dimensions

Model	Power	Lumens	Replacement	Lamp Size (mm)	G.W/CTN (Kg)
GL-UHB-01D	240W	31200	800-1000W MH	Φ400*196	8.1
GL-UHB-02D	200W	26000	600-800W MH	Φ400*196	8.1
GL-UHB-03D	160W	20800	500-600W MH	Φ340*187	5.93
GL-UHB-04D	100W	13000	400-500W MH	Φ280*185	4.33

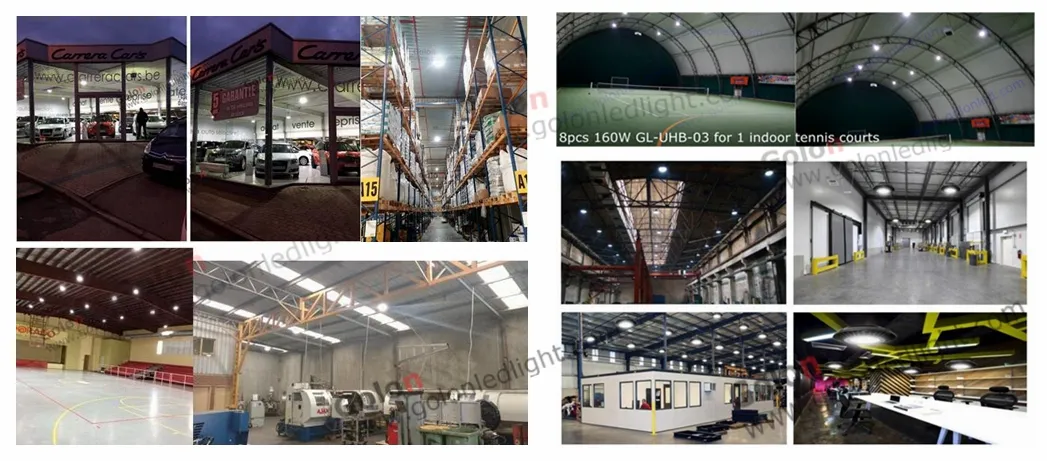

Wide Application

Widely used in shopping malls, exhibition halls, parking lots, playgrounds, gymnasiums, parks, building facades, and public corridors. Suitable for both indoor and outdoor lighting environments.

Frequently Asked Questions

What is the lifespan of these LED high bay lights?

The lights are designed for a long lifespan of ≥50,000 hours, ensuring years of maintenance-free operation.

Are these lights suitable for outdoor use?

Yes, they feature an IP65 waterproof rating, making them ideal for both indoor and outdoor industrial applications.

What kind of dimming options are available?

This series supports a 3-in-1 dimming function, compatible with 1-10Vdc, PWM signals, or resistance.

Can I use motion sensors with this lighting?

Yes, we offer microwave motion sensor and photocell (daylight) sensor options for enhanced energy saving.

What is the warranty period for this product?

We provide a comprehensive 5-year warranty on the entire unit, including the Meanwell driver.

Do you provide lighting design support?

Yes, we offer free lighting design services, including IES files and Dialux simulations to help you plan your project.
