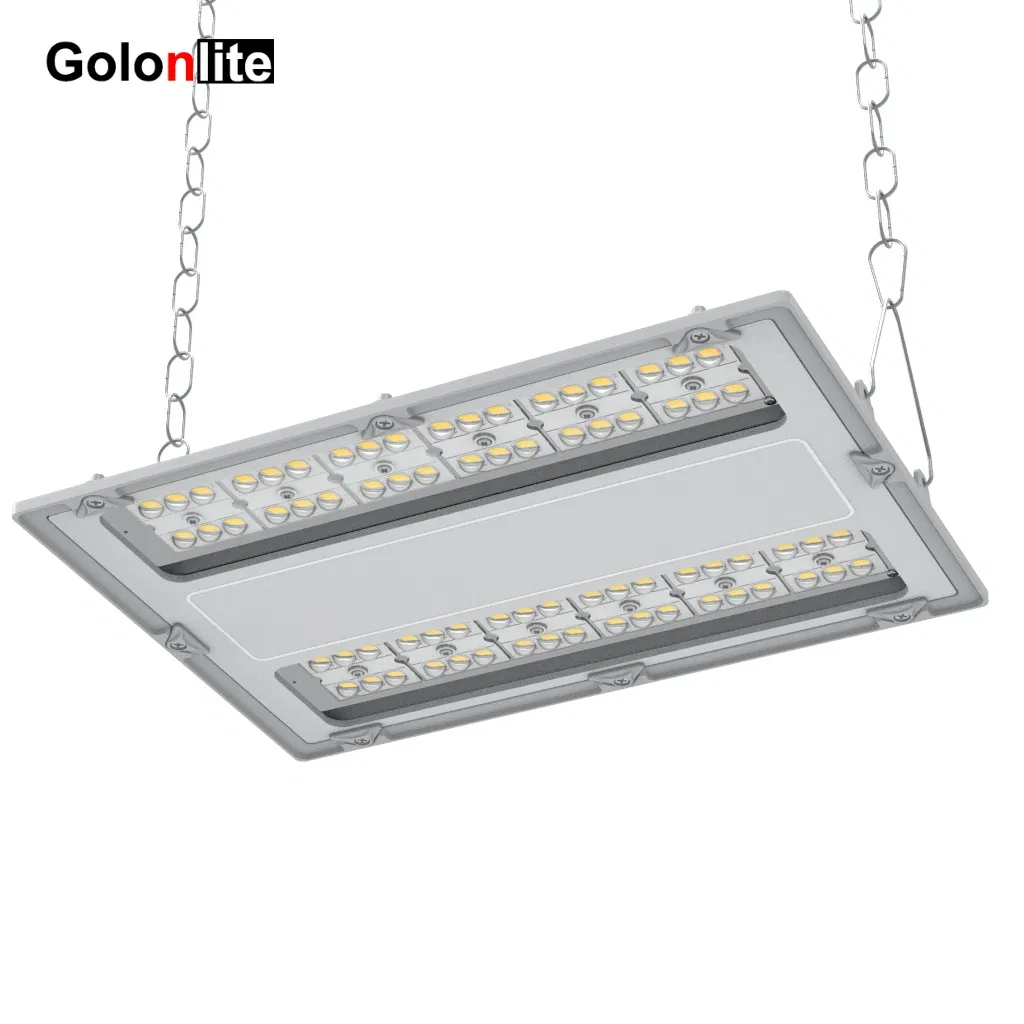

200W 250W High Brightness Classroom Light Industrial High Bay LED Linear Lighting for Warehouse Factory
200W 250W High Brightness Classroom Light Industrial High Bay LED Linear Lighting for Warehouse Factory
200W 250W High Brightness Classroom Light Industrial High Bay LED Linear Lighting for Warehouse Factory
200W 250W High Brightness Classroom Light Industrial High Bay LED Linear Lighting for Warehouse Factory
200W 250W High Brightness Classroom Light Industrial High Bay LED Linear Lighting for Warehouse Factory
1 / 5
200W 250W High Brightness Classroom Light Industrial High Bay LED Linear Lighting for Warehouse Factory
200W 250W High Brightness Classroom Light Industrial High Bay LED Linear Lighting for Warehouse Factory
200W 250W High Brightness Classroom Light Industrial High Bay LED Linear Lighting for Warehouse Factory
200W 250W High Brightness Classroom Light Industrial High Bay LED Linear Lighting for Warehouse Factory
200W 250W High Brightness Classroom Light Industrial High Bay LED Linear Lighting for Warehouse Factory

200W 250W High Brightness Classroom Light Industrial High Bay LED Linear Lighting for Warehouse Factory

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Overview
Power
600W 500W 400W 300W
Lifespan
≥50000H
IP Rating
IP65 / IP54
Certification
CE, EMC, LVD, RoHS
Beam Angle
30°/60°/90°/120°
Material
Die Casting Aluminum + PC
Efficiency
140lm/W - 180lm/W
Capacity
5000PCS/Month

High Brightness Industrial High Bay LED Linear Lighting

Efficient lighting solution specifically designed for warehouses, factories, and large indoor industrial spaces requiring high-performance illumination.

Detailed Specifications
Available Power100W / 150W / 200W / 240W / 300W
LED TypeSMD3030 / SMD5050
Luminous Efficiency140 Lm/W or 180 Lm/W options
Color Temp (CCT)3000K / 4000K / 5000K / 5700K / 6500K
CRIRa80 / Ra70
Input Voltage100-277VAC / 347-480VAC 50/60Hz
Dimming Options1-10V, DALI2, Zigbee
SensorsMicrowave / Daylight sensor available
MountingHanging Chain
Working Temp-25°C to +45°C (Special High Temp version up to 60°C)

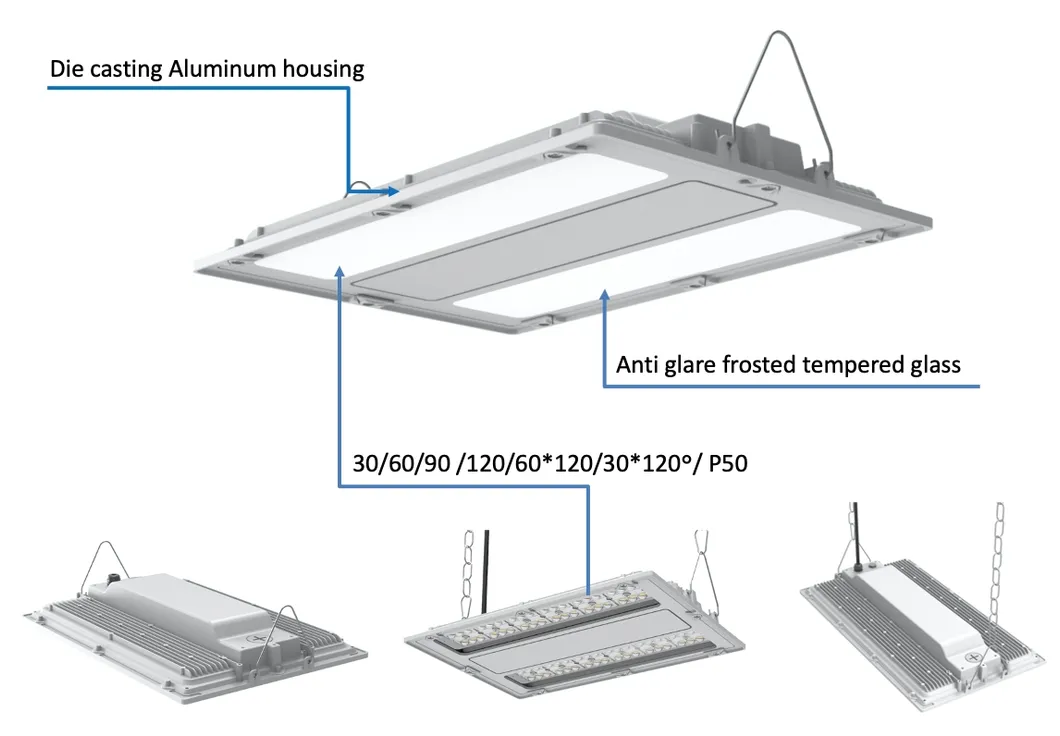

Industrial LED Linear Lighting

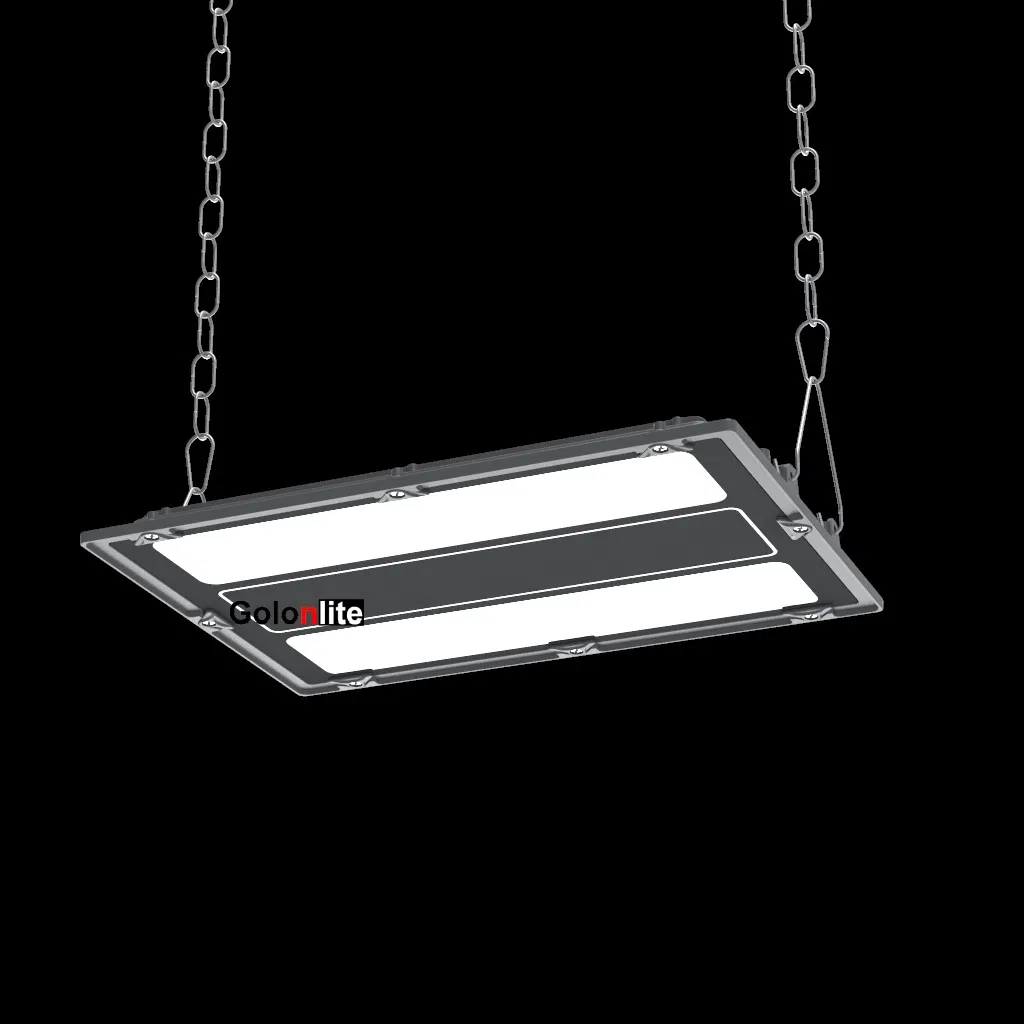

LED High Bay View 1

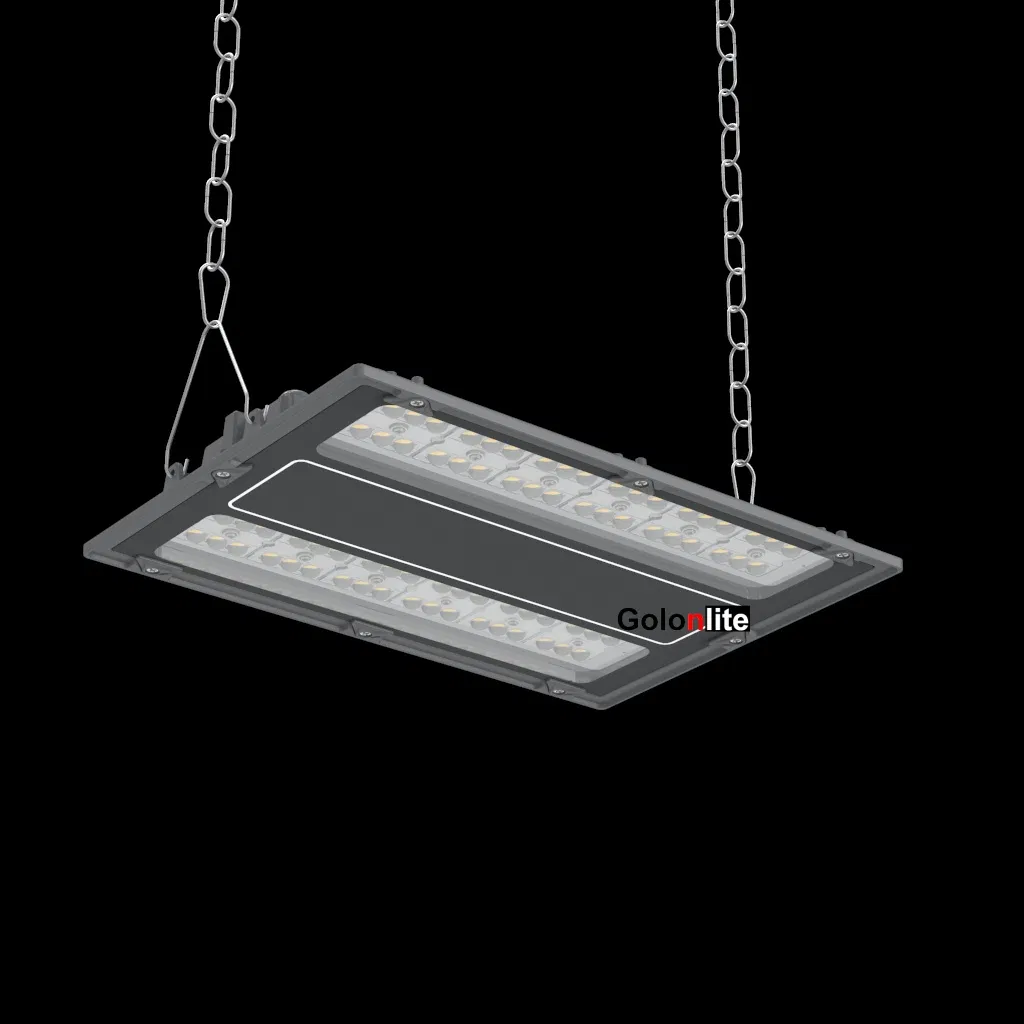

LED High Bay View 2

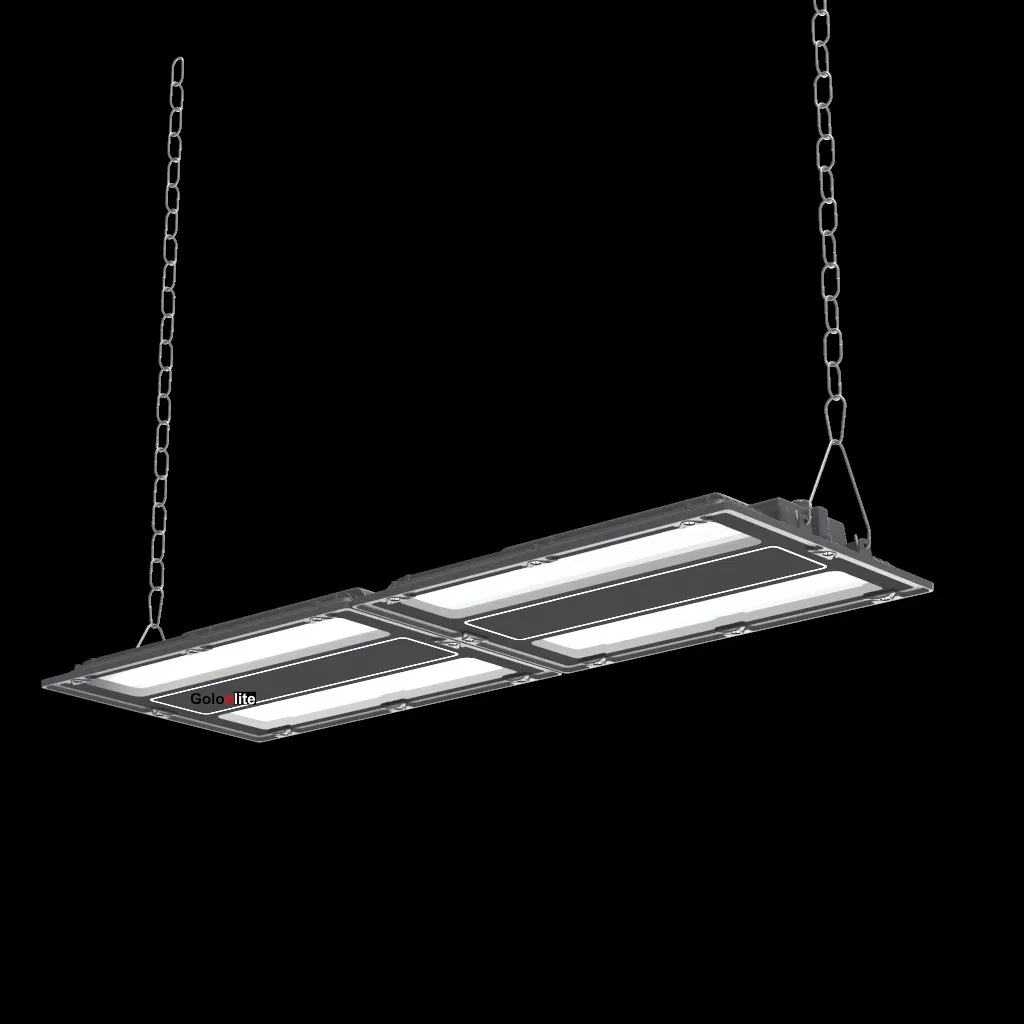

LED High Bay View 3
Application View

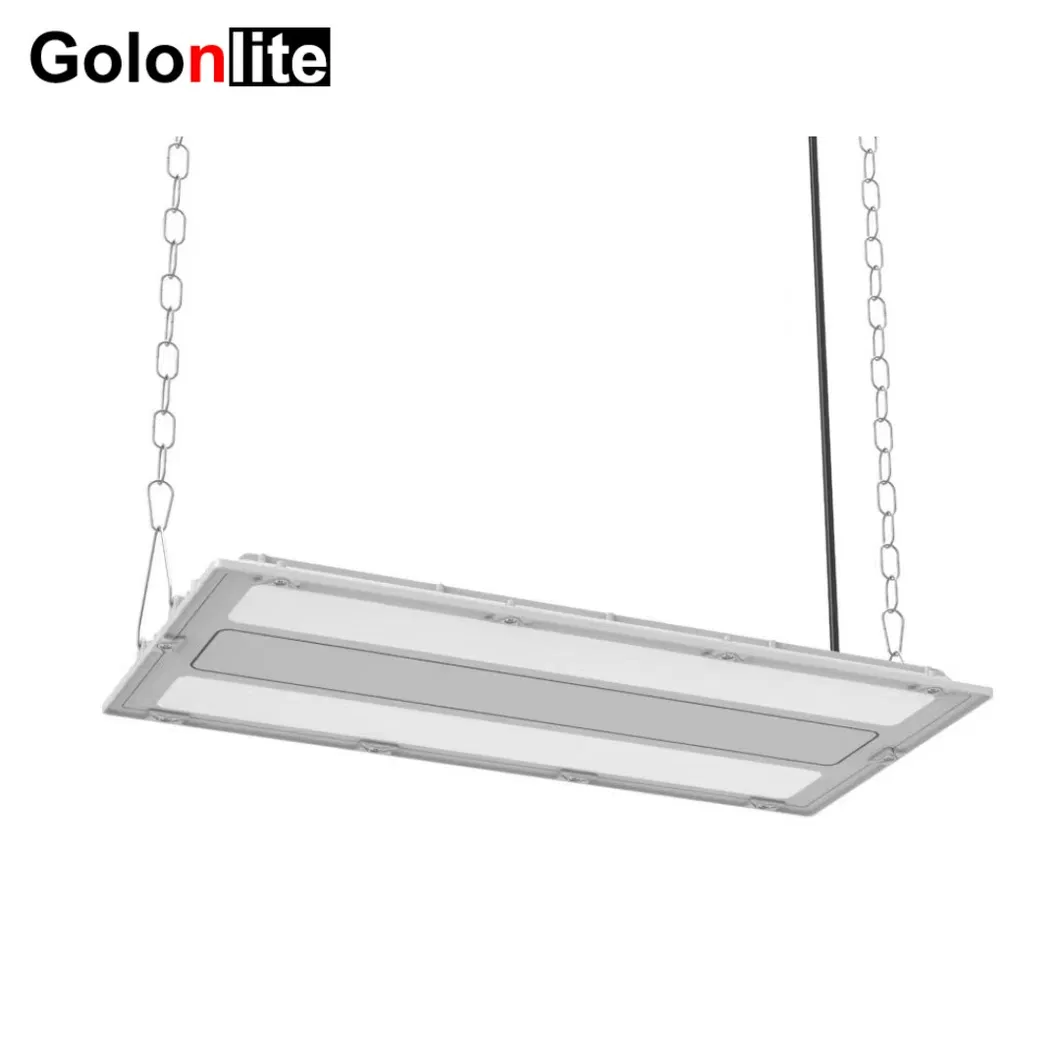

Internal Structure
Beam Angles & Installation

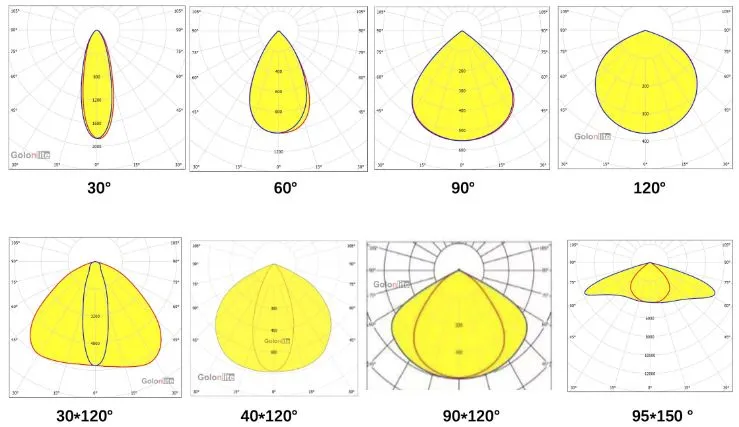

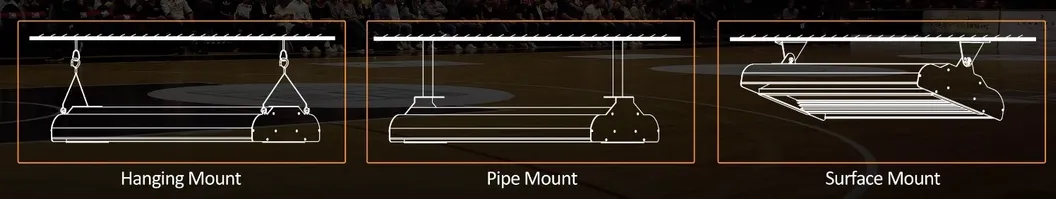

Beam Angle Options Installation Methods
Dimensions & Packaging

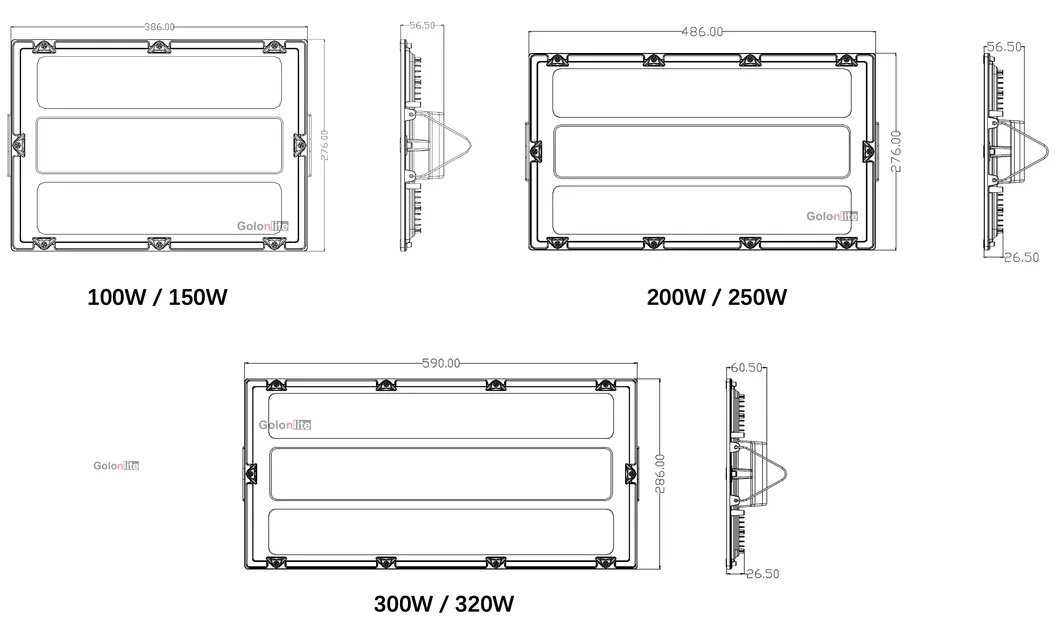

Product Dimensions

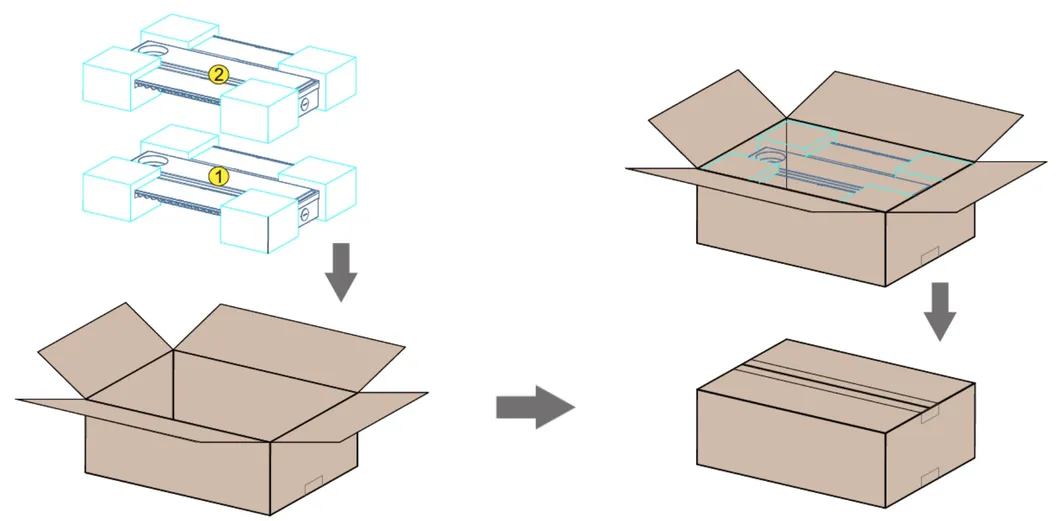

Packaging Details
Service Highlights
⏱
Fast Response: All inquiries replied to within 24 hours.
🛡
Warranty: Comprehensive 5-year warranty provided.
💡
Lighting Design: Free IES files and Dialux simulation services.
🛠
Customization: OEM and ODM services welcomed.
Applications

Widely used in shopping malls, exhibition halls, parking lots, gymnasiums, building facades, and public corridors. Suitable for both indoor and high-ambient temperature environments (up to 60°C).

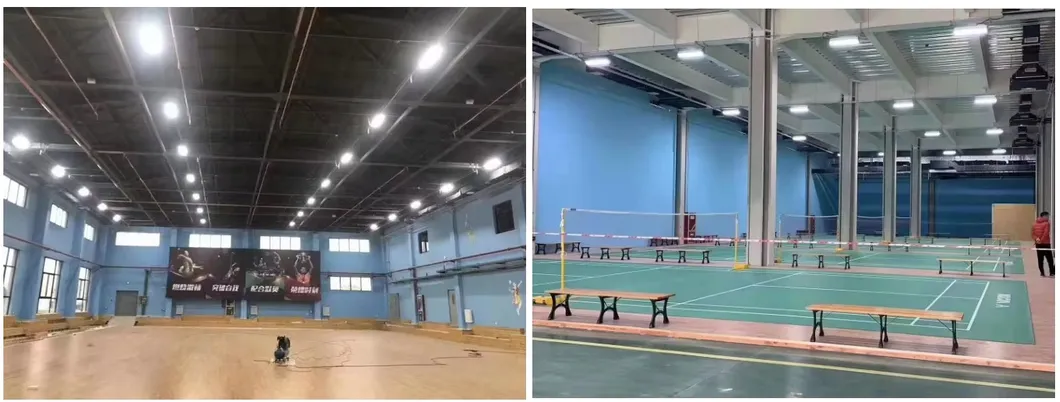

Application 1

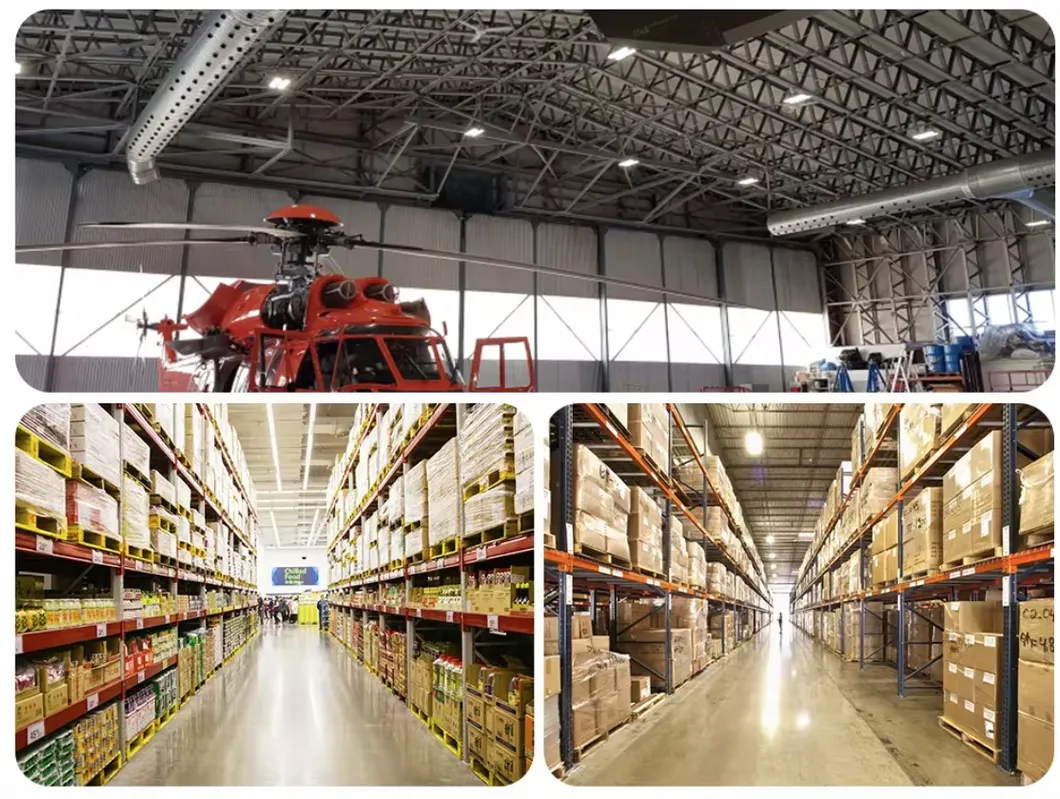

Application 2
Frequently Asked Questions
1. What is the typical lifespan of these linear LED lights?
The LED lights are designed for long-term industrial use with a lifespan of ≥50,000 hours (L80B10).
2. Can these lights be used in high-temperature factories?
Yes, we offer specialized designs capable of operating in high ambient temperature environments up to 60°C.
3. What dimming protocols are supported?
Our fixtures support 1-10V, DALI2, and Zigbee dimming for advanced lighting control and energy savings.
4. Are there different beam angle options for different ceiling heights?
Absolutely. We offer 30°, 60°, 90°, and 120° angles, as well as specialized asymmetric distributions like 30*120° to suit various warehouse aisle configurations.
5. What is the standard warranty period?
We provide a standard 5-year warranty on our linear LED high bay lights, backed by high-quality drivers like Meanwell or Sosen.
6. Do you provide help with lighting placement?
Yes, we provide free Dialux lighting simulations to help you determine the optimal quantity and placement of fixtures for your project.
