📋 Basic Specifications
Model NO.LCD-FZHTG-805
Pole Height20-25m
Power Range120-1500W
Projection Distance1000m - 5000m
IP RatingIP66
IK RateIK09
Input Voltage220V / AC90-305V
Lumens Output130-170lm/W
LED ChipsOsram / Bridgelux / Cree
Beam Angle15° to 90°
💡 Product Description

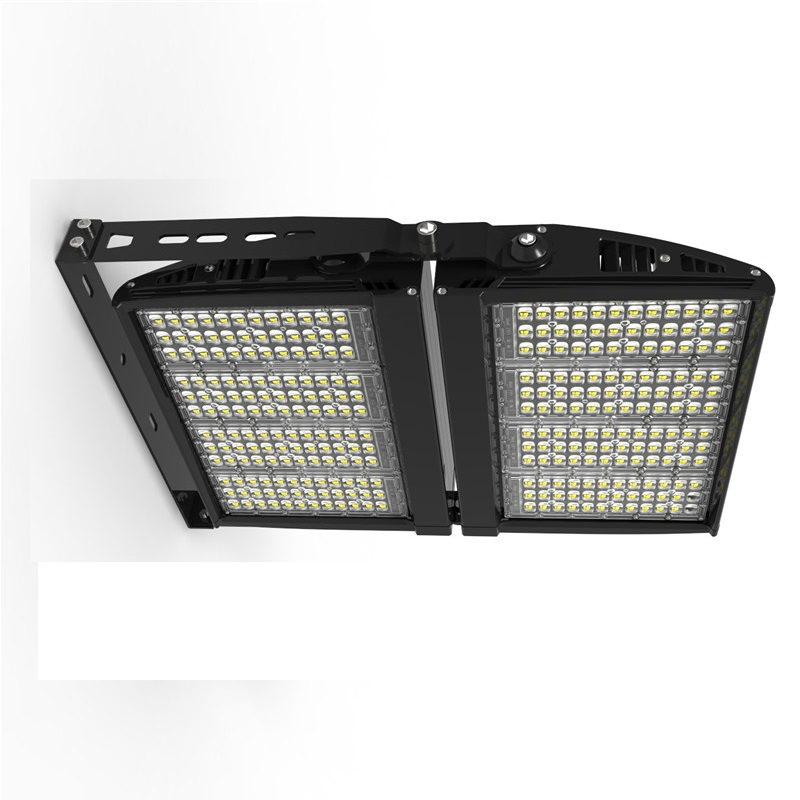

High Efficiency Marine-Grade LED Flood Lights: Delivering up to 150 lumens per watt using high-end Bridgelux, LUXEON, or Cree chips paired with reliable drivers. Designed for heavy-duty industrial and maritime use.
| Item No. |
Input Voltage |
LED Power(W) |
Lumens |
Weight |
| LCD-FZHTG-1005 | AC220V | 1000W | 150000lm | 28kg |
| LCD-FZHTG-805 | AC220V | 800W | 120000lm | 23.8kg |
| LCD-FZHTG-605 | AC220V | 600W | 90000lm | 19.3kg |
| LCD-FZHTG-505 | AC220V | 500W | 75000lm | 14.5kg |
| LCD-FZHTG-405 | AC220V | 400W | 60000lm | 11.8kg |
| LCD-FZHTG-305 | AC220V | 300W | 45000lm | 9.5kg |
🛠️ Key Features & Advantages
- Premium LED Source: SMD3030 or SMD5050 LEDs, CRI 70-85, junction temperature < 80°C.
- Stable Driving: High-performance drivers with wide voltage range AC90V~305V, PF > 0.95.
- Long Lifespan: Design lifespan > 60,000 hours with ultra-low luminous decay (< 5% in 5-7 years).

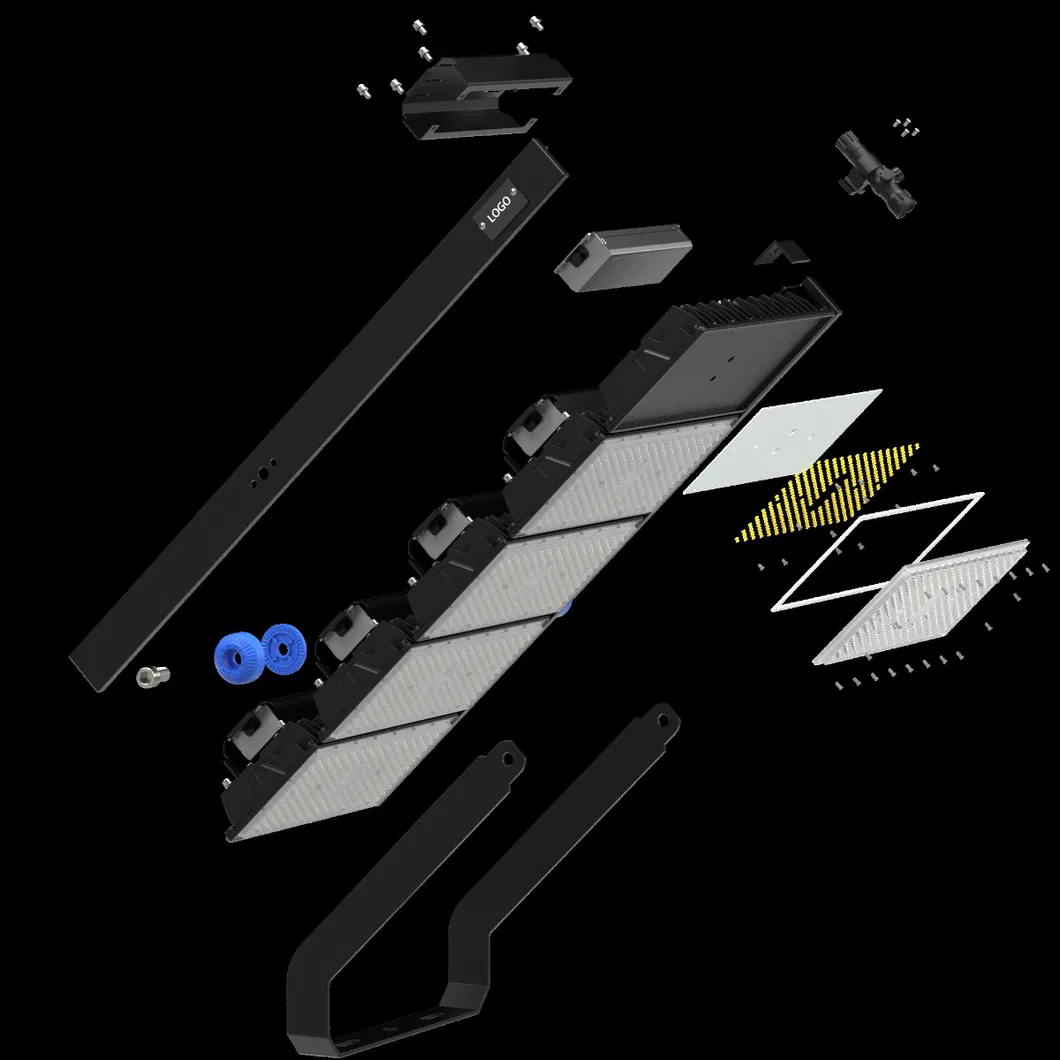

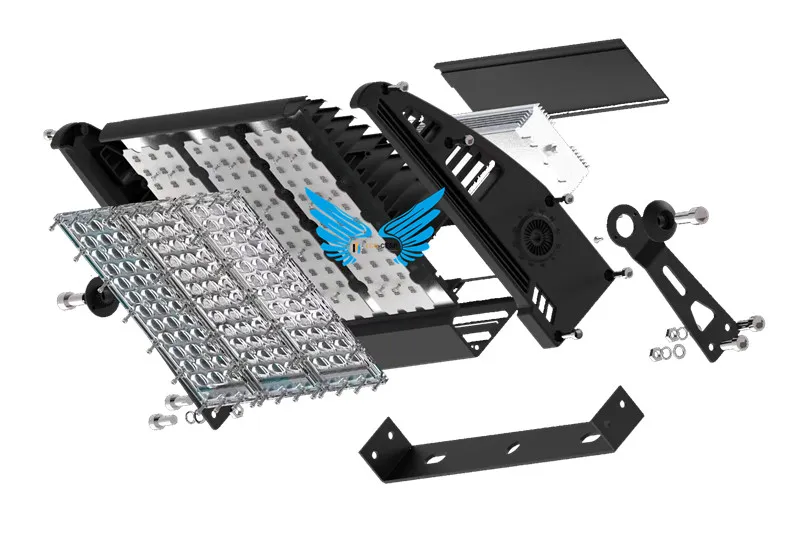

- Thermal Management: Private patent unitized module design with active heat dissipation technology.
- Corrosion Resistant: High strength structure coated with corrosion-resistant polyester powder.
- Smart Control: 0-10V, DALI dimming, and Zigbee wireless control available.
🏟️ Common Applications

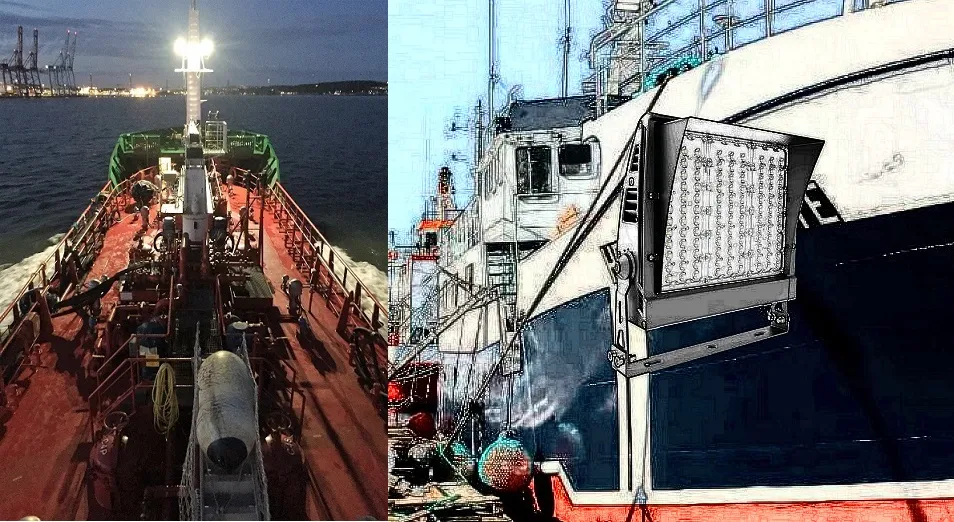

- Maritime & Ports: Container loading, shipping yards, marine search lighting, and vessel bow lighting.

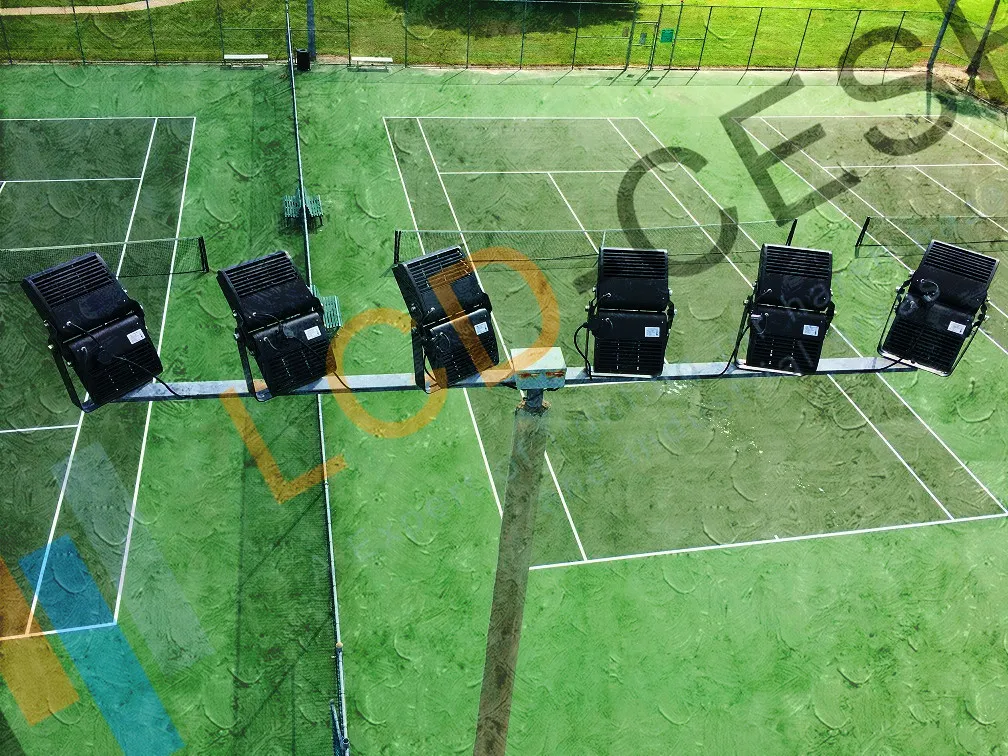

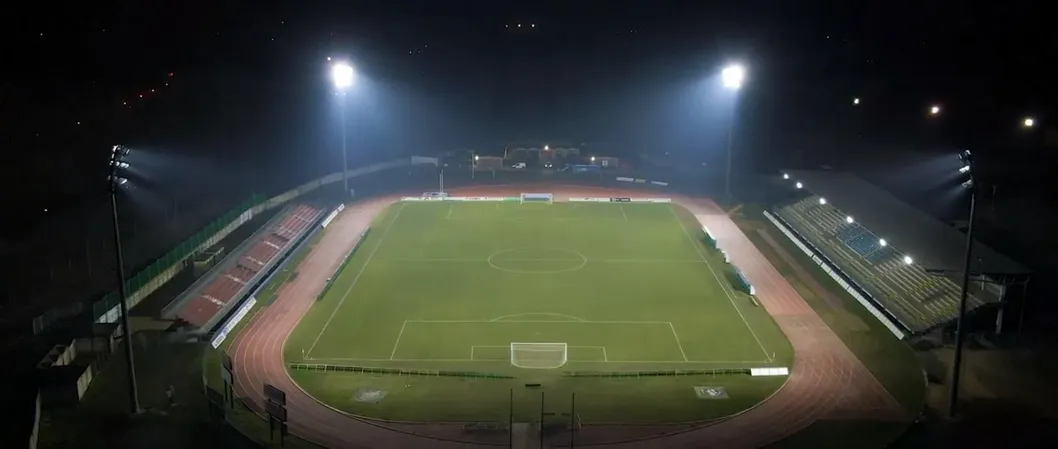

- Sports Arenas: Stadium lighting for football, tennis, baseball, and university track fields.
- Industrial Areas: Mining areas, construction sites, factory yards, and logistics centers.
- Public Infrastructure: Car parks, shopping centers, pedestrian crossings, and high mast municipal lighting.

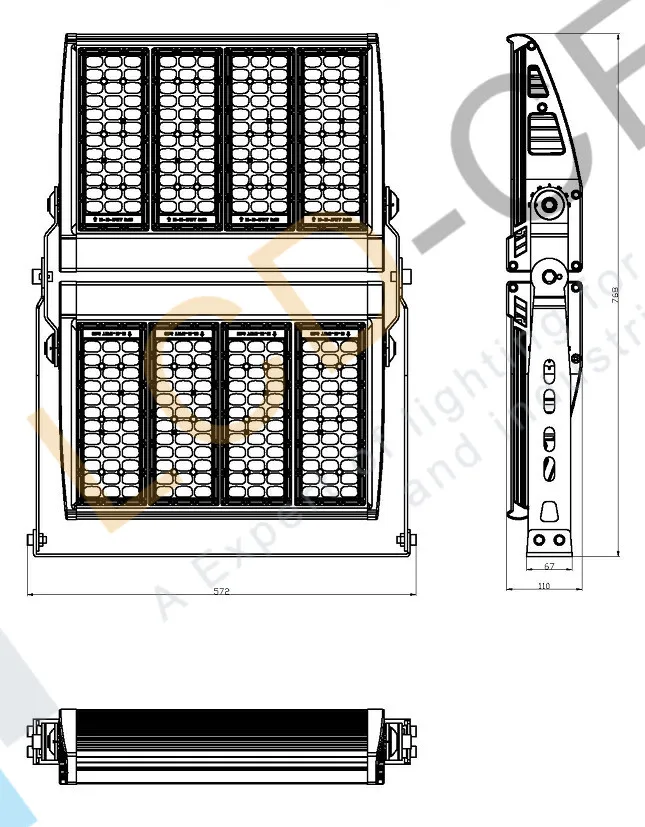

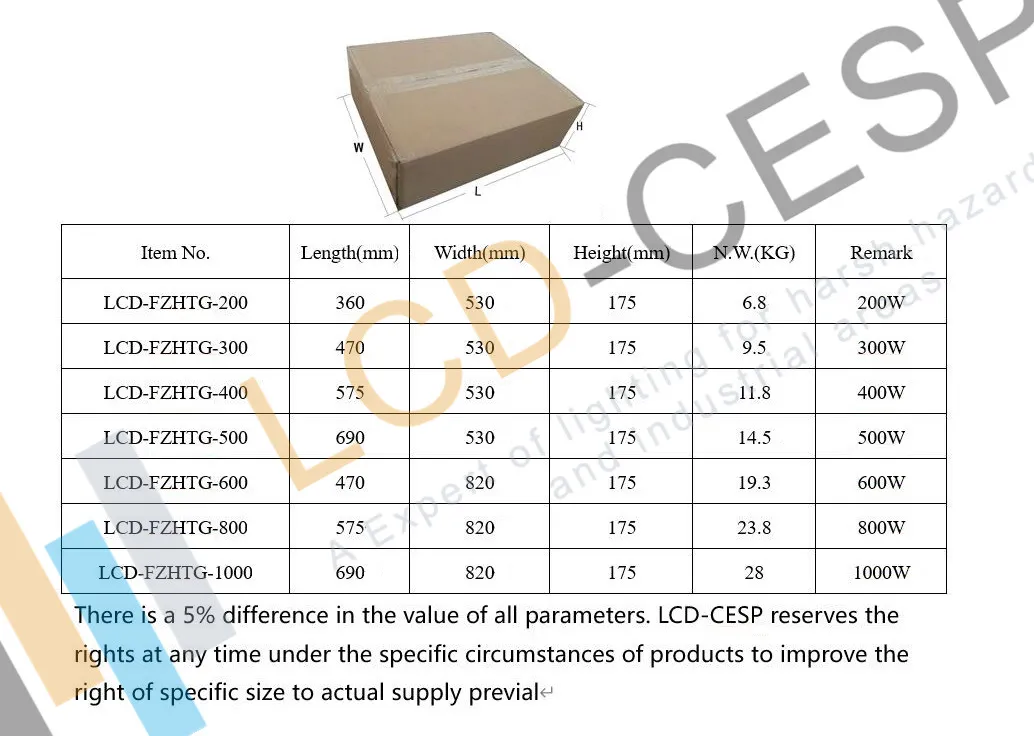

📐 Dimensions & Packaging
⚙️ Detailed Data Sheet
| Initial Luminous Flux | 75,500lm +/- 10% (at 500W) |
| LED Luminaire Efficacy | 145-155lm/W |
| Color Temperature | 3000K / 4000K / 5000K / 5700K / 6500K |
| Housing Material | Die-cast Aluminum Alloy (ADC12#) |
| Impact Protection | IK09 Vandal-protected |
| Operating Temp | -40°C to +50°C |
| Surge Protection | 10KV / 20KV on request |
❓ Frequently Asked Questions
1. What is the maximum lumen efficiency of these floodlights?
Our high-power LED floodlights offer a luminaire system efficacy ranging from 130lm/W up to 170lm/W depending on the specific configuration.
2. Are these lights suitable for harsh marine environments?
Yes. These fixtures are IP66 rated and constructed from die-cast aluminum with a corrosion-resistant polyester powder coating, making them ideal for ports and vessels.
3. What is the recommended mounting height for the 800W-1000W models?
The recommended mounting height for high-power models (200W to 1000W) is between 8 meters and 35 meters.
4. Do these LED lights support intelligent dimming?
Yes, we provide several dimming options including 1-10V dimming, DALI dimming, and ZigBee wireless control systems.
5. What kind of warranty and lifespan can I expect?
The lighting system is designed for a lifespan exceeding 60,000 hours and comes with a standard 5 to 7-year warranty.
6. What beam angles are available for sports lighting?
We offer multiple professional optical beam angles including 15°, 30°, 45°, and 60° to meet various stadium and field requirements.
