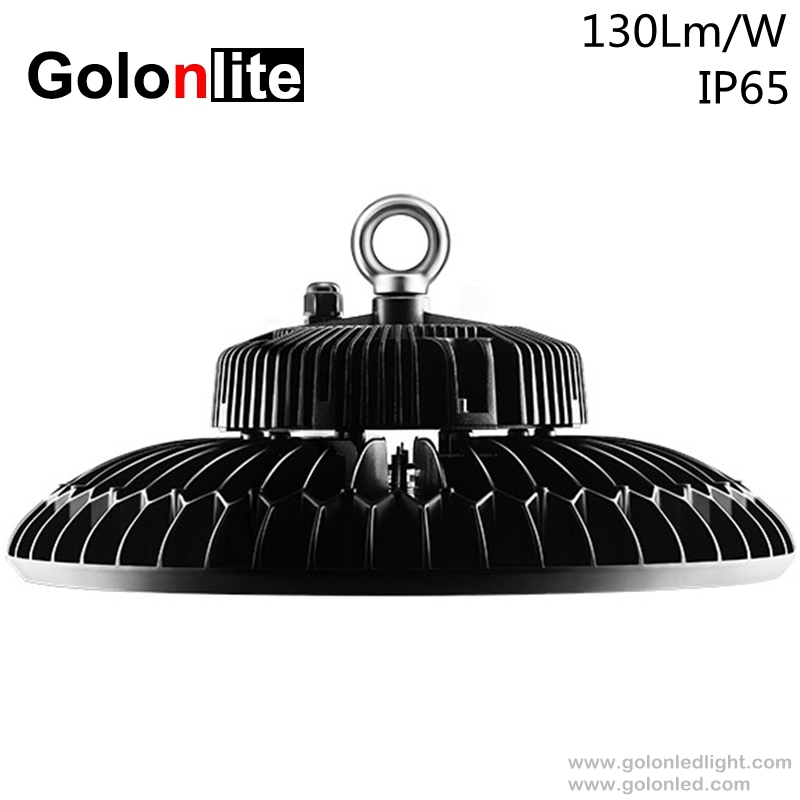

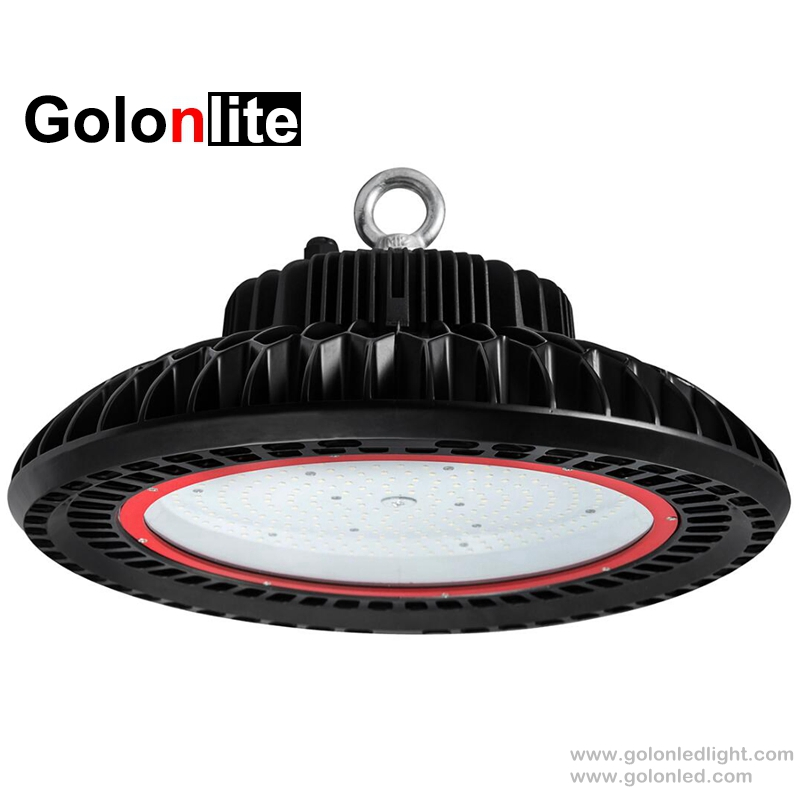

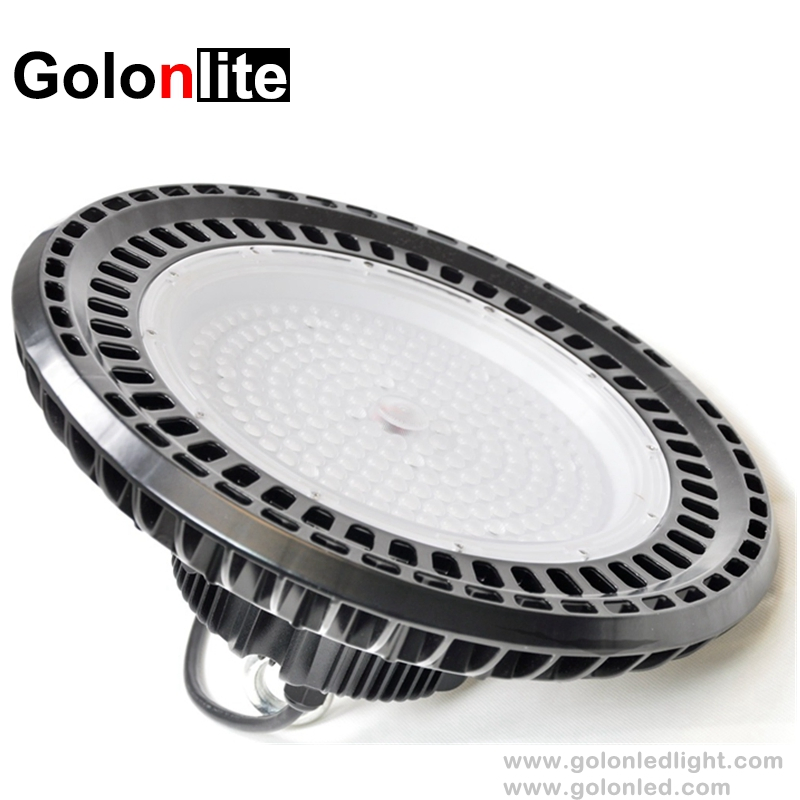

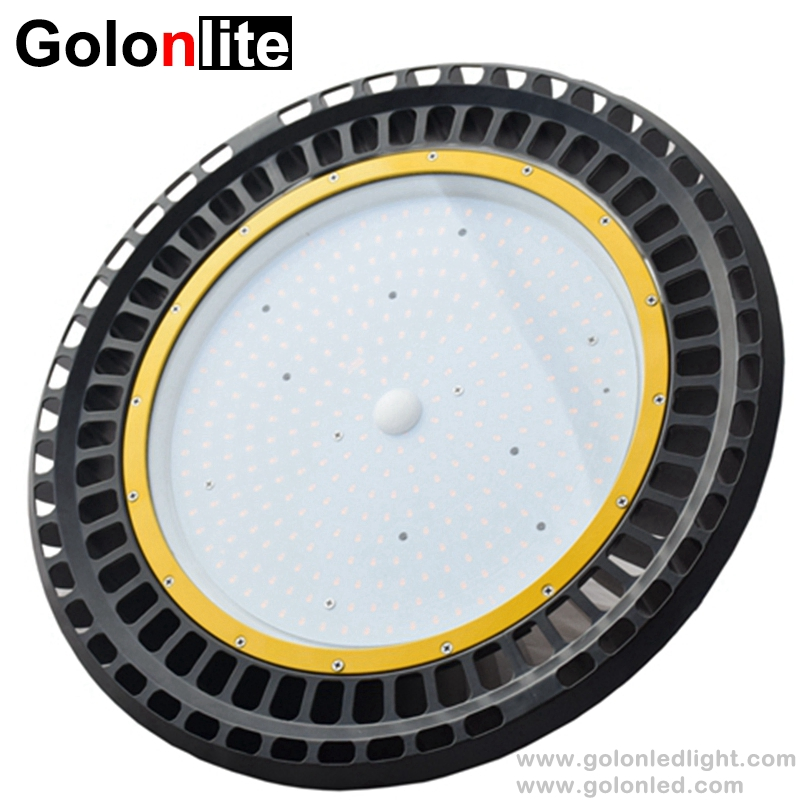

IP65 Waterproof 100-277V 230V 240V 150W Industrial UFO High Bay LED Lighting
IP65 Waterproof 100-277V 230V 240V 150W Industrial UFO High Bay LED Lighting
IP65 Waterproof 100-277V 230V 240V 150W Industrial UFO High Bay LED Lighting
IP65 Waterproof 100-277V 230V 240V 150W Industrial UFO High Bay LED Lighting
IP65 Waterproof 100-277V 230V 240V 150W Industrial UFO High Bay LED Lighting
1 / 5
IP65 Waterproof 100-277V 230V 240V 150W Industrial UFO High Bay LED Lighting
IP65 Waterproof 100-277V 230V 240V 150W Industrial UFO High Bay LED Lighting
IP65 Waterproof 100-277V 230V 240V 150W Industrial UFO High Bay LED Lighting
IP65 Waterproof 100-277V 230V 240V 150W Industrial UFO High Bay LED Lighting
IP65 Waterproof 100-277V 230V 240V 150W Industrial UFO High Bay LED Lighting

IP65 Waterproof 100-277V 230V 240V 150W Industrial UFO High Bay LED Lighting

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
GL-UHB-03D
Power
240W 200W 160W 100W
Usage
Mine, Gymnasium, Shipyard, Warehouse, Shopping Mall, Factory, Tunnel, Football Field
Lifespan
≥50000H
IP Rating
IP65
Certification
CE, EMC, LVD, RoHS
Beam Angle
60° / 90° / 120°
Warranty
5 Years Warranty
Material
Die Casting Aluminum Body (Black/White)
Driver
Meanwell Driver
Dimming
3-in-1 Dimmable (1-10V, PWM, Resistance)
Sensor Control
Motion & Photocell Daylight Sensor Option
💡

Product Description

IP65 waterproof 100-277V Industrial UFO high bay LED lighting. High-efficiency thermal management and superior brightness for industrial applications.

UFO LED High Bay Technical Data
Light Source LED Type SMD3030
Luminous Efficiency 130Lm/W
CCT(K) 3000K / 4000K / 5000K / 5700K / 6500K
CRI > Ra80
Electricity Input Voltage 100-277VAC 50/60Hz
Dimming 1-10V, PWM, Resistance
Sensor Control Motion / Photocell sensor
Beam Angle 60° / 90°(anti-glare) / 120°

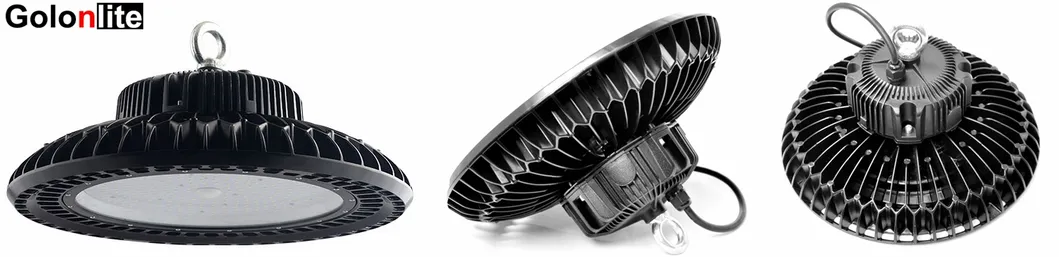

High Bay LED Lighting Overview

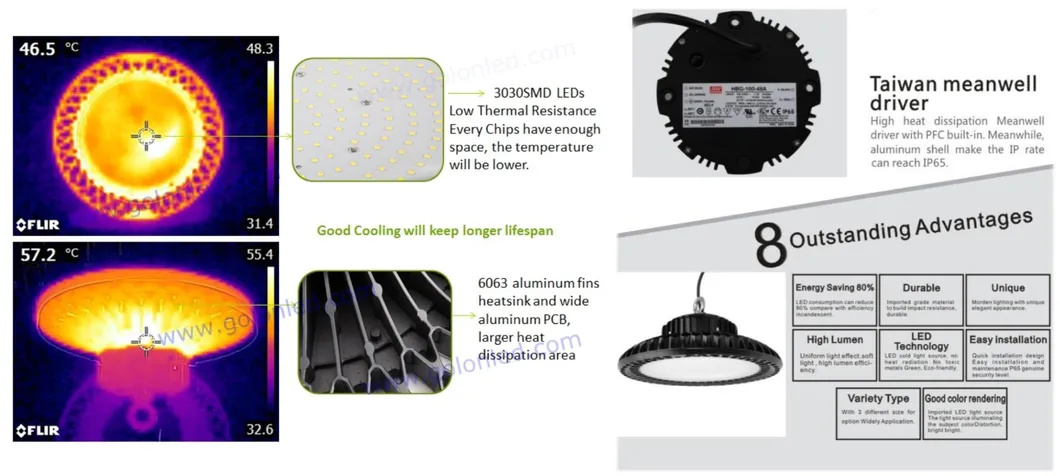

UFO LED High Bay Features
✨

Key Features

  • Three-in-one dimming: Supports 1~10Vdc, PWM signal, or resistance dimming.
  • Advanced Sensors: Microwave sensor and daylight/photocell sensor options available.
  • High Efficiency: Super bright 130Lm/W efficiency for maximum energy savings.
  • Premium Build: Black Fin aluminum housing for compact heat dissipation and lighter weight.
  • Durable Components: External Meanwell driver with SMD 3030 LEDs (>Ra80).

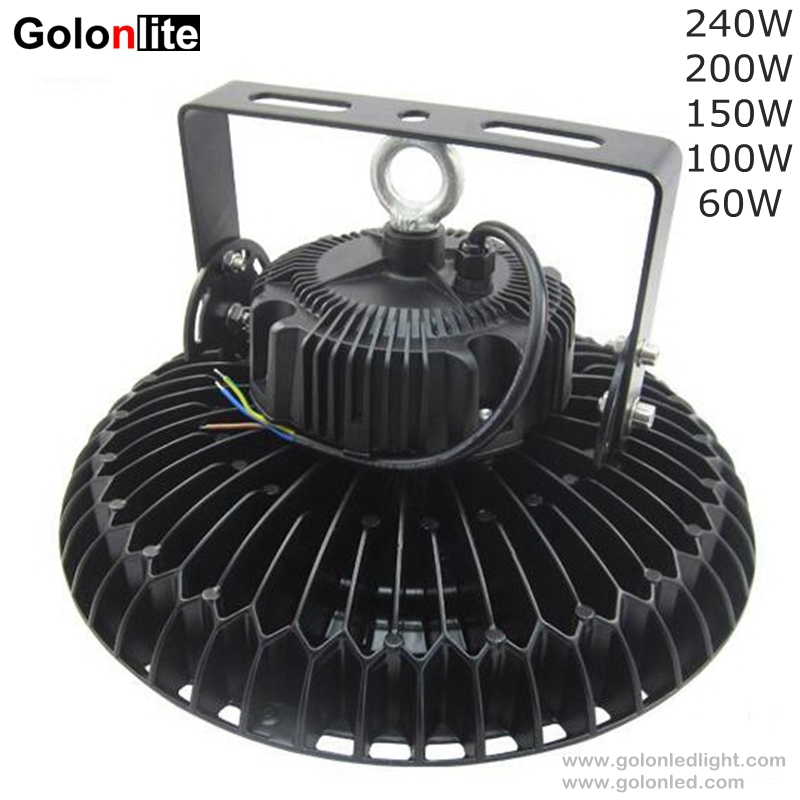

  • Versatile Mounting: Supports Ring/Hook hanging or adjustable bracket mounting.
  • All-Weather Performance: IP65 waterproof rating for both indoor and outdoor applications.

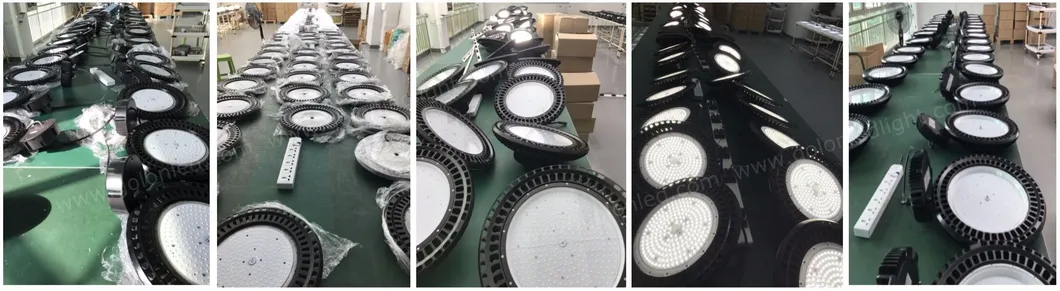

LED Production Line

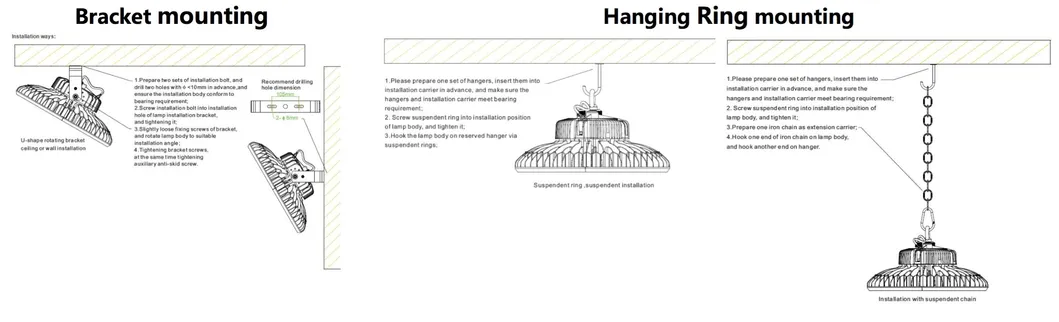

Installation Methods

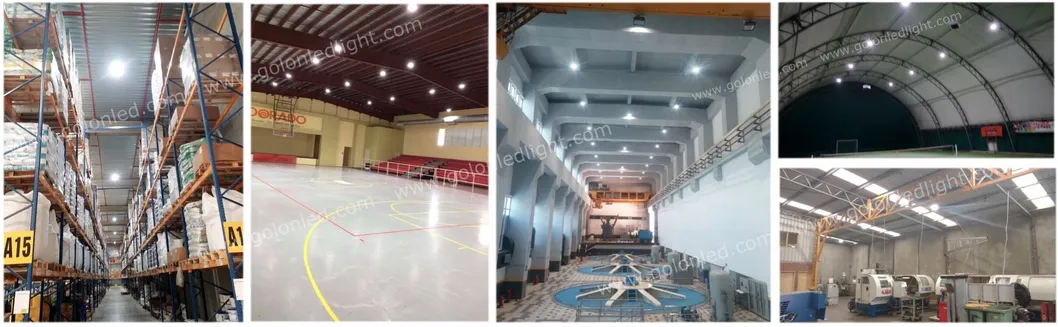

Lighting Applications
📦

Series Model Comparison

Model Power Lumens Replacement Dimensions
GL-UHB-01D240W31200 Lm800-1000W HIDΦ400*196mm
GL-UHB-02D200W26000 Lm600-800W HIDΦ400*196mm
GL-UHB-03D160W20800 Lm500-600W HIDΦ340*187mm
GL-UHB-04D100W13000 Lm400-500W HIDΦ280*185mm
GL-UHB-05D60W7800 Lm250-300W HIDΦ280*185mm
🛠

Services Offered

  • 24-hour inquiry response and experienced technical support.
  • Comprehensive after-sales problem resolution within 24 hours.
  • OEM and ODM customization welcomed.
  • 5-year standard warranty on all units.
  • Free Lighting Design: Provision of IES files and Dialux lighting solutions.
Lighting Solutions
❓

Frequently Asked Questions

What is the energy efficiency of these UFO high bay lights?
These lights offer a high luminous efficiency of 130Lm/W, providing significant energy savings compared to traditional Metal Halide or HID lamps.
Are these lights suitable for outdoor environments?
Yes, with an IP65 waterproof rating and a durable die-casting aluminum body, these lights are designed for both indoor and outdoor industrial applications.
What dimming options are available?
Our lights support a 3-in-1 dimming function, which includes 1-10V, PWM signal, and resistance dimming for flexible light control.
How long is the warranty and expected lifespan?
The product comes with a 5-year warranty and has a rated lifespan of over 50,000 hours, ensuring long-term reliability.
Can I get help with a lighting layout for my warehouse?
Yes, we provide free lighting design services, including Dialux simulations and IES files to ensure the optimal lighting solution for your space.
What are the available mounting options?
The UFO high bay lights can be installed using a ring/hook for ceiling hanging or an adjustable bracket for versatile positioning.
