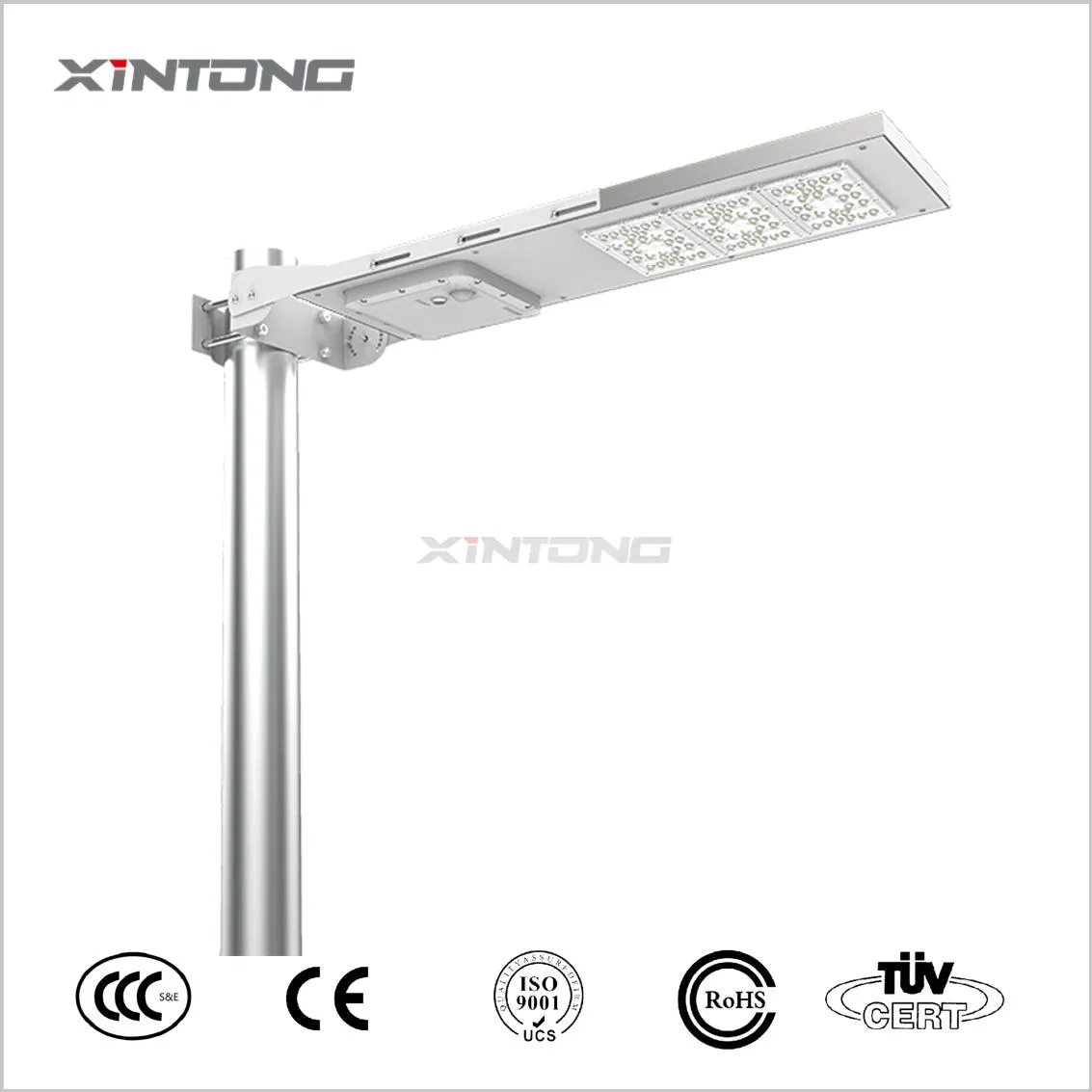

All in One Outdoor LED Solar Street Garden Home Road Lighting with Motion Sensor

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Lamp Body MaterialAluminum
Power60-100W
ApplicationSquare, Highway, Garden, Parking Lot
IP RatingIP66
CertificationCE, GS, REACH, RoHS
Input Voltage24v
With Light SourceWith Light Source
LED Chips BrandEpistar
KeywordLED Lamp
Protection LevelIP55
Light Source LifeExceed 50000 Hours
ReliabilityMTB Exceed 10000 Hours
Relative HumidityBelow 95%
Transport PackageOne Piece/Carton
Specification65*30*28cm
HS Code9405409000
Production Capacity21900/Year

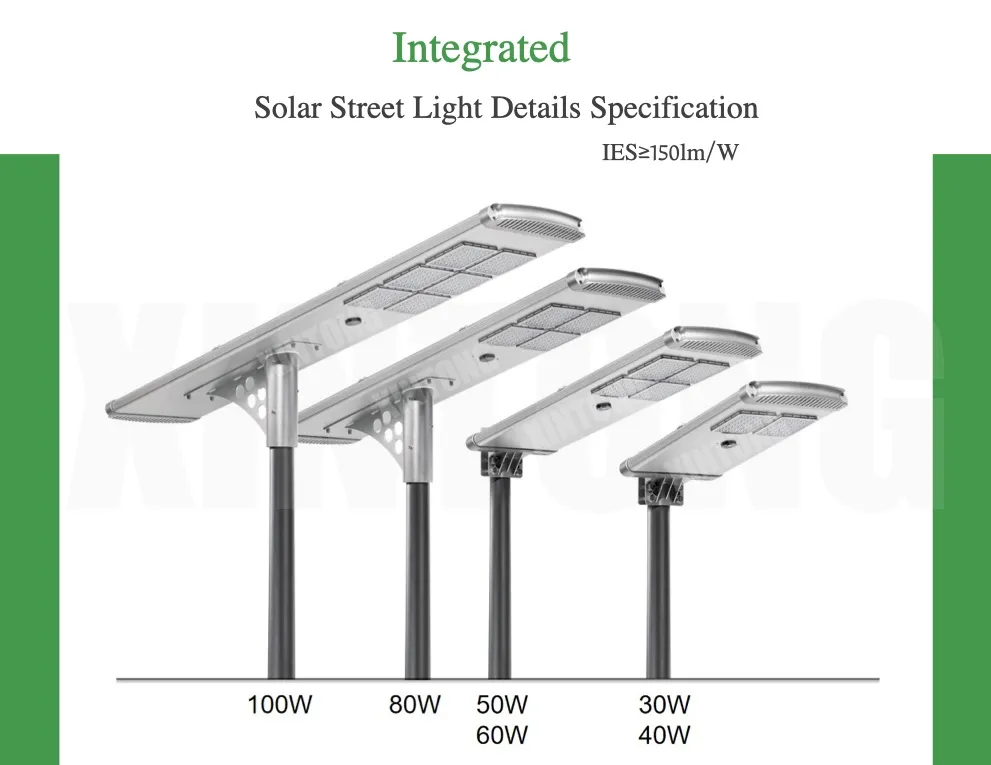

ALL IN ONE INTEGRATED SOLAR STREET LIGHT
30W 40W 50W 60W 80W 100W
Solar Street Light Details
Product Description

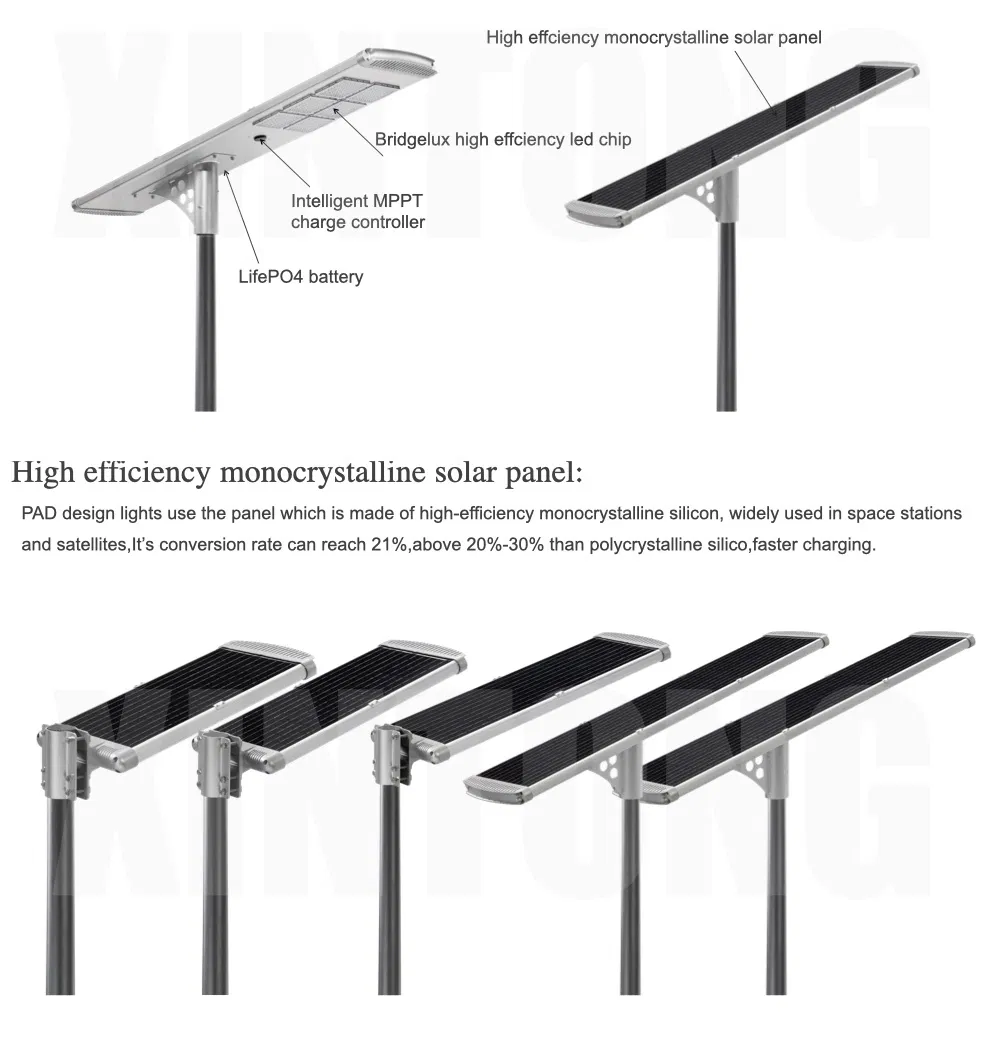

PAD series put high efficiency mono solar panel, intelligent MPPT charge controller, deep cycle long life LifePO4 battery, high lumen led bridgelux 3030 led chip all in one box, easy to install and transportation.

Key Features

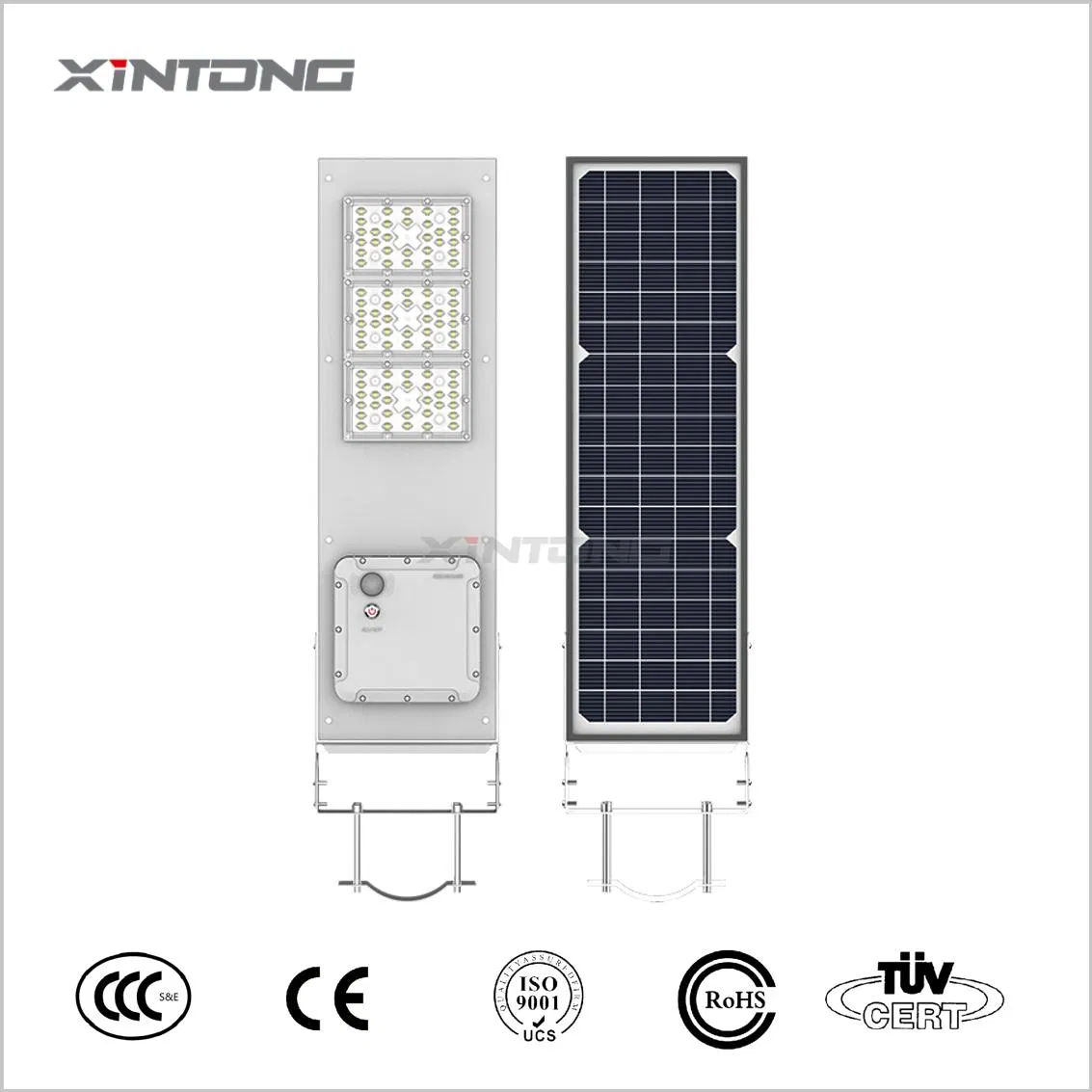

Integrated design with solar panel, chip, controller, and battery in one industrial-grade box.
High-end die-cast aluminum forming with anodic oxidation treatment for excellent corrosion and heat resistance.
Intelligent power regulation and automatic weather judgment for optimized discharge planning.

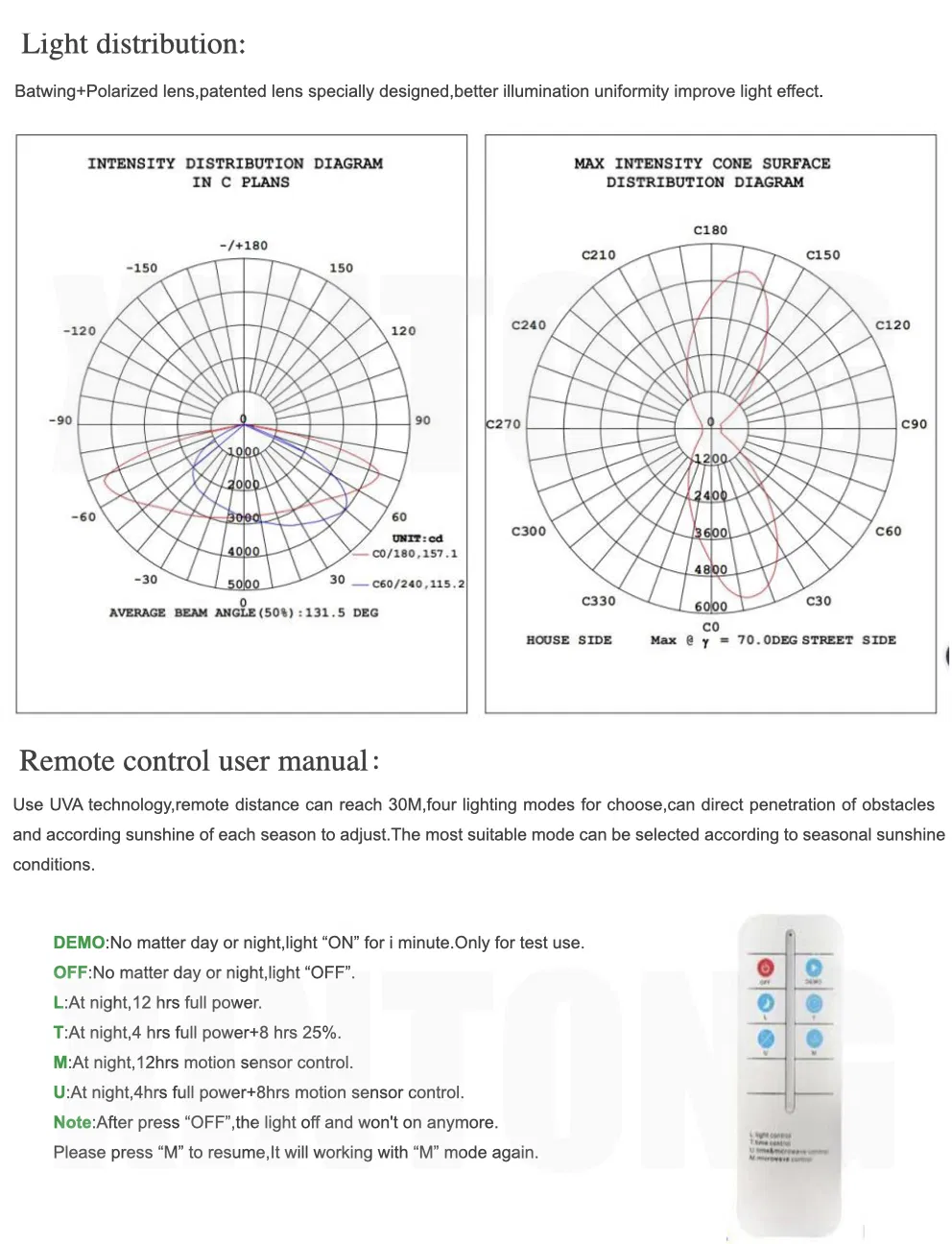

Remote control with UVA technology, wearable obstacle penetration, and 4 adjustable lighting modes.

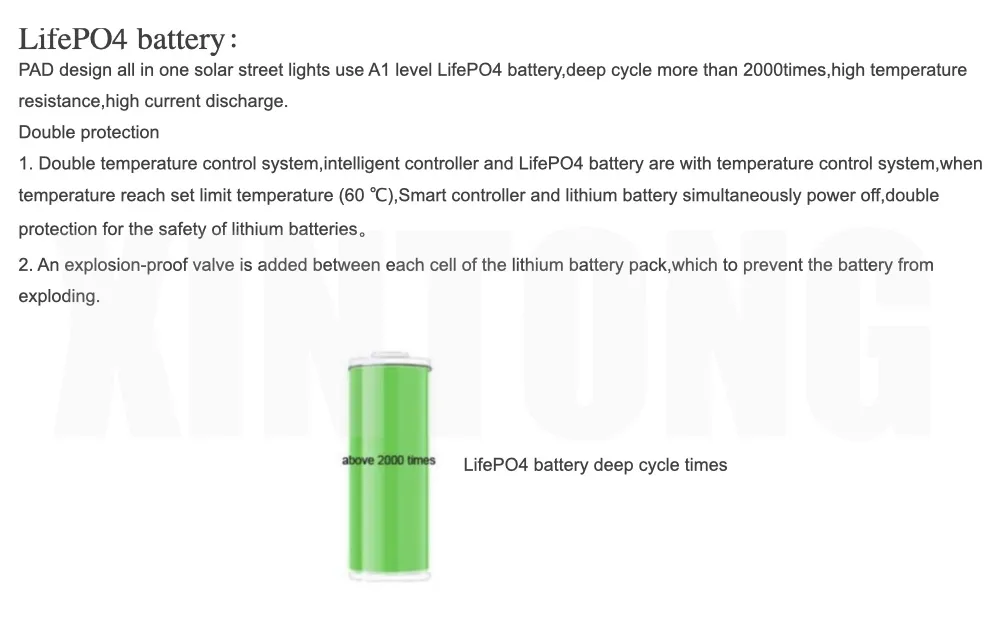

Deep cycle LiFePO4 battery with over 2000 cycles and intelligent equalization technology.
High efficiency reaching 170LM/W with a 140-degree wide lighting angle.

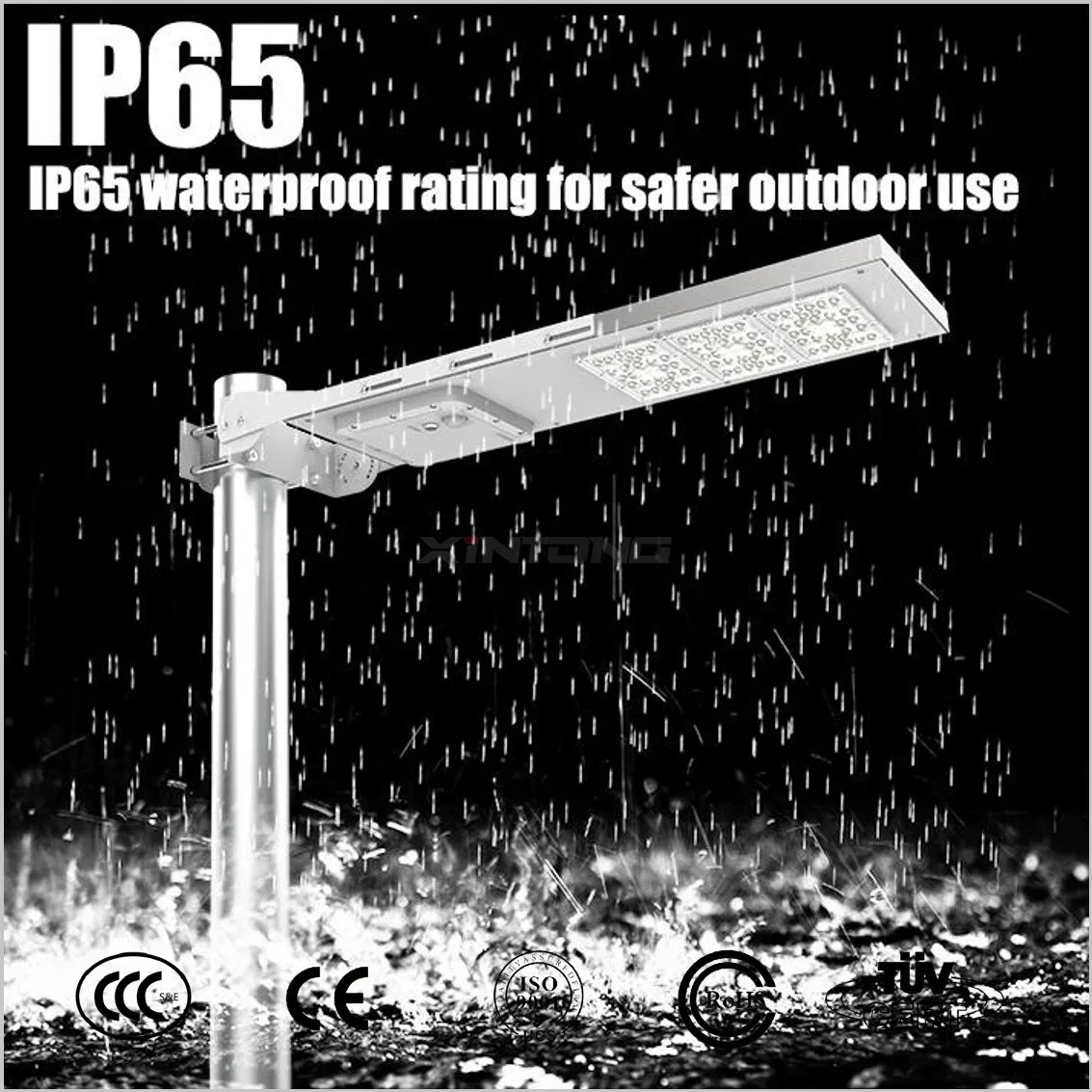

IP65 waterproof rating, suitable for extreme outdoor conditions.

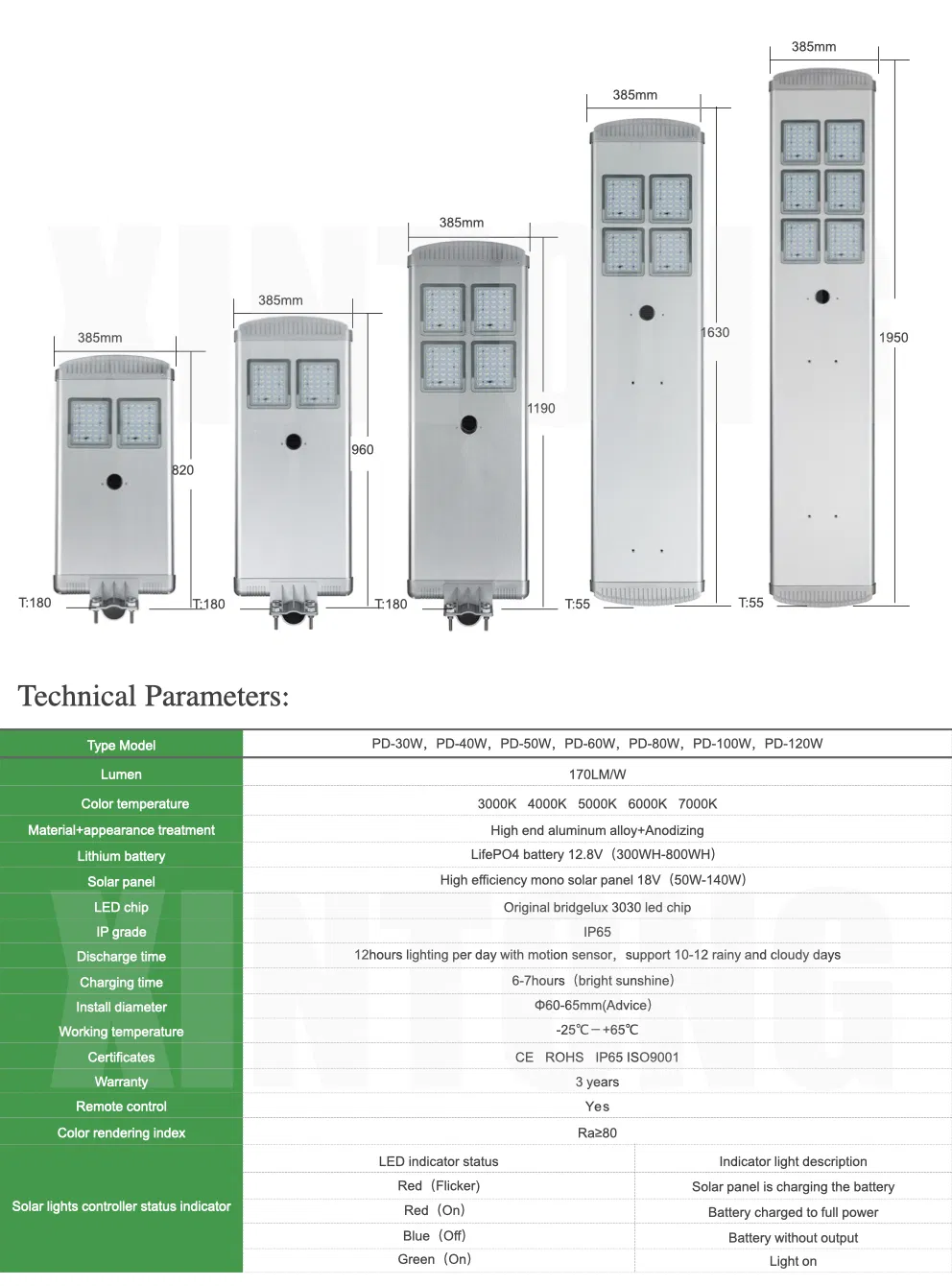

Product Performance
Working Characters

The solar panel converts sunlight into electricity and stored in lithium battery via controller, the LED light will work at night automatically by light sensor control, and provide lighting for the darkness area, the intelligence induction system can save the energy when the high-brightness lighting is not necessary.

User-friendly Design & Easy Assembly

PAD series features an integrated design without glue. Compared to non-removable products, each part of this solar light is easy to maintain and replace, reducing long-term costs. All connectors are labeled and use waterproof male/female plugs to prevent incorrect connection.

Design Detail 1
Design Detail 2

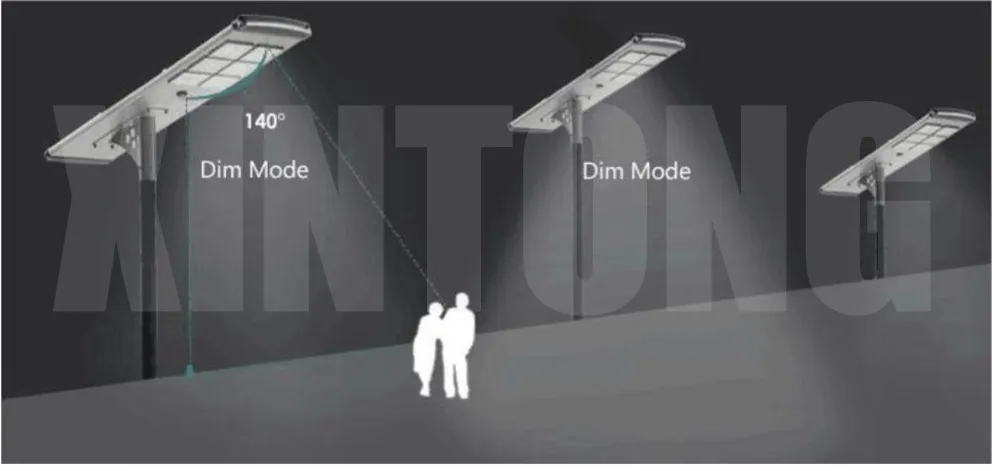

Intelligent Microwave Induction

PAD design all in one solar street lights use intelligent microwave induction with a sensor distance exceeding 12M. This is 2-3 times more effective than traditional PIR motion sensors and resolves common interference issues, ensuring energy-saving environmental lighting.

Induction System
Application View 1
Application View 2
Product Layout 1
Product Layout 2
Product Layout 3
Technical Drawing 1
Technical Drawing 2
Frequently Asked Questions
Q1: How long does the battery last on a full charge? The high-capacity LiFePO4 battery combined with intelligent power management ensures the light can operate for multiple nights even during cloudy or rainy weather.
Q2: What is the benefit of Microwave Induction over PIR sensors? Microwave induction offers a wider detection range (over 12 meters) and higher sensitivity, allowing it to penetrate obstacles and react faster to movement compared to traditional PIR sensors.
Q3: Is the installation process complicated? No, the "All-in-One" design integrates all components into a single unit. With waterproof plug-and-play connectors and labeled cables, it is designed for rapid, error-free assembly.
Q4: Can the light withstand harsh seaside environments? Yes, the die-cast aluminum body undergoes anodic oxidation treatment, providing excellent corrosion resistance against salt spray and high humidity.
Q5: What is the lifespan of the LED light source? The Epistar LED chips used in this unit have a lifespan exceeding 50,000 hours, providing reliable lighting for many years without the need for replacement.
Q6: What is the IP66 rating? IP66 indicates that the unit is completely dust-tight and protected against powerful jets of water, ensuring stable performance in heavy rain and storms.
