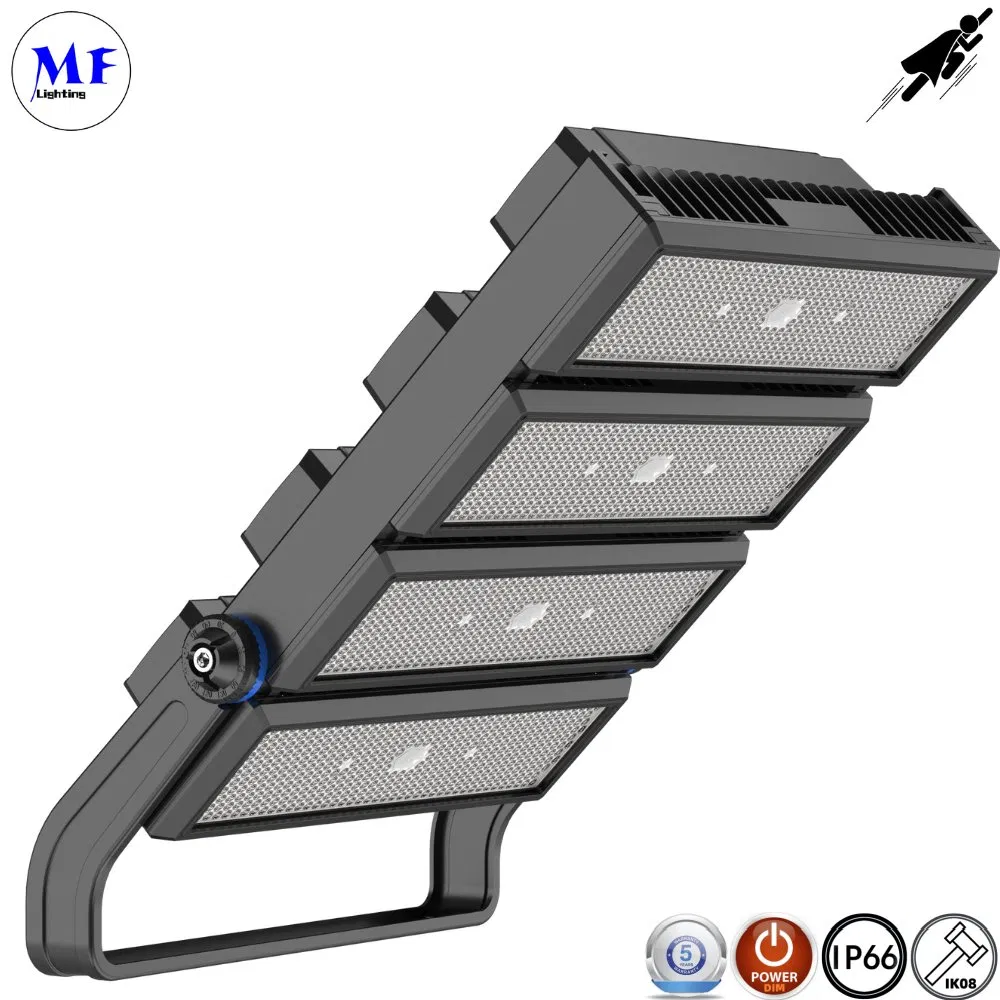

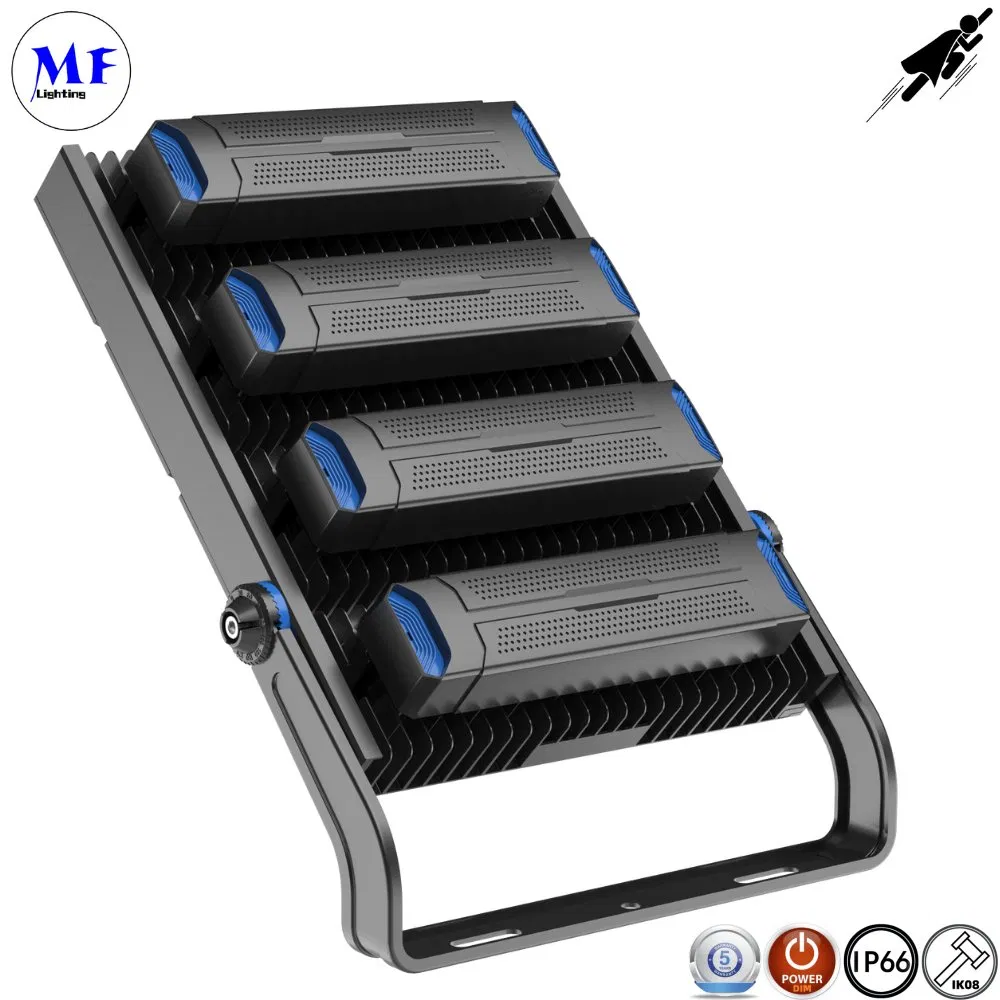

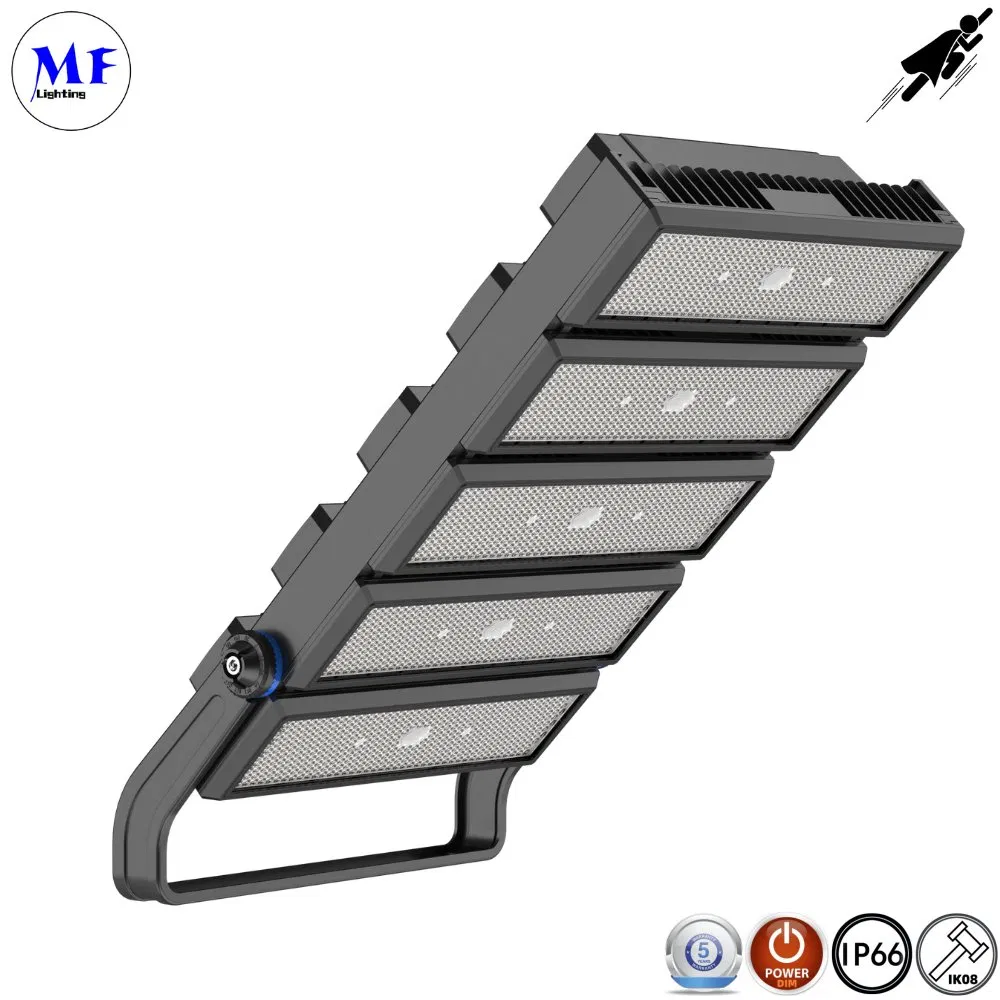

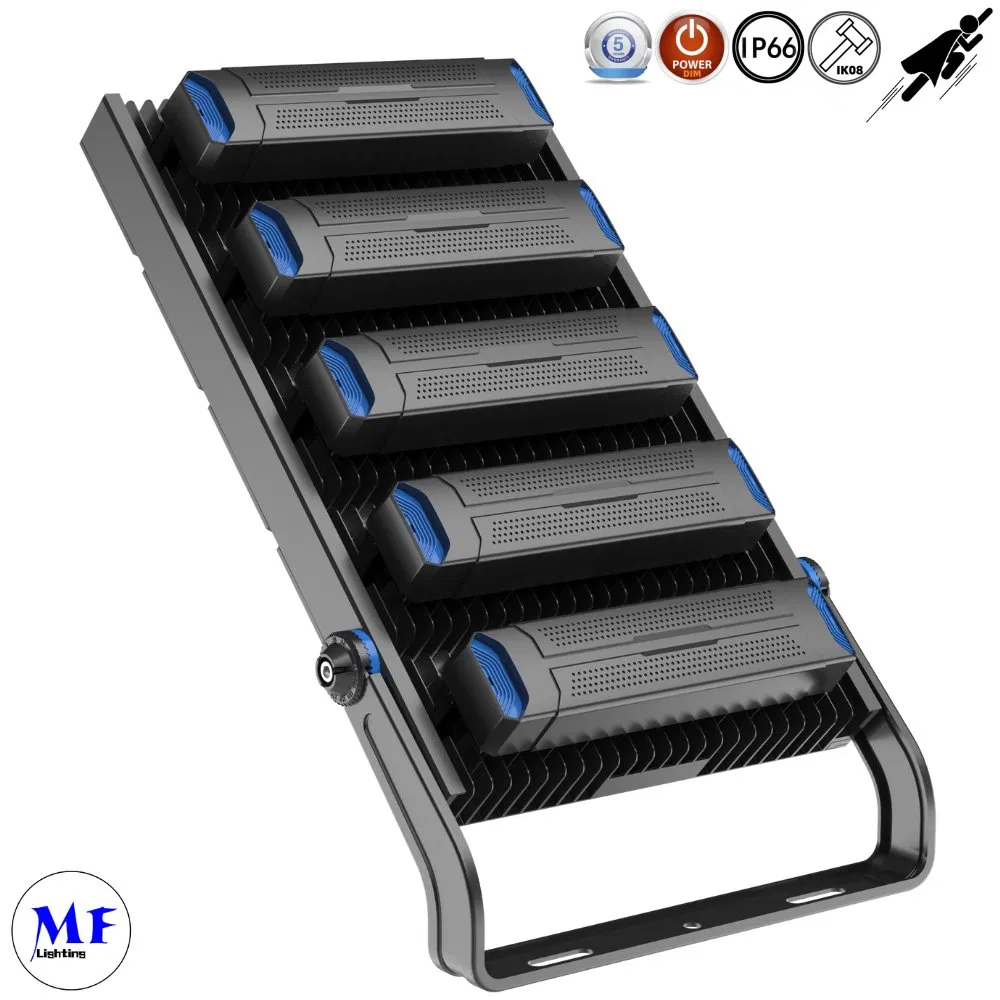

1500W High Power Modular IP67 Ik10 Outdoor Area LED Spotlight Waterproof Projector LED Flood Light LED Stadium Light

Still deciding? Get samples of $ !
Request Sample

Product Description

📊 Basic Information
Model NO.
MF-QCD-H1500W
Power
250W - 1500W Options
IP Rating
IP66
IK Rating
IK08 / IK10
Voltage
100-305VAC
Luminous Flux
150lm/W - 170lm/W
LED Chips
SMD2835 / SMD3030
Lifespan
50,000 hrs
Warranty
5 Years
Certification
CE, RoHS, ETL, SAA, VDE
🌟 Product Overview

1500W High Power Modular IP67 IK10 Outdoor Area LED Spotlight

High Power LED Stadium Light
💡 Key Advantages
  • All-in-one design: Optimized for high-performance stadium lighting.
  • Flicker-free: Perfect for slow-motion replay and HD broadcasting.
  • Modular Concept: Easy maintenance and customizable power configurations.
  • Low Wind Resistance: Aerodynamic design with high protection.
  • Thermal Management: Cutting-edge system for long-term reliability.
  • Glare-free: Specialized optics to prevent spill light and visual discomfort.
  • Corrosion Resistant: Built for harsh outdoor environments.

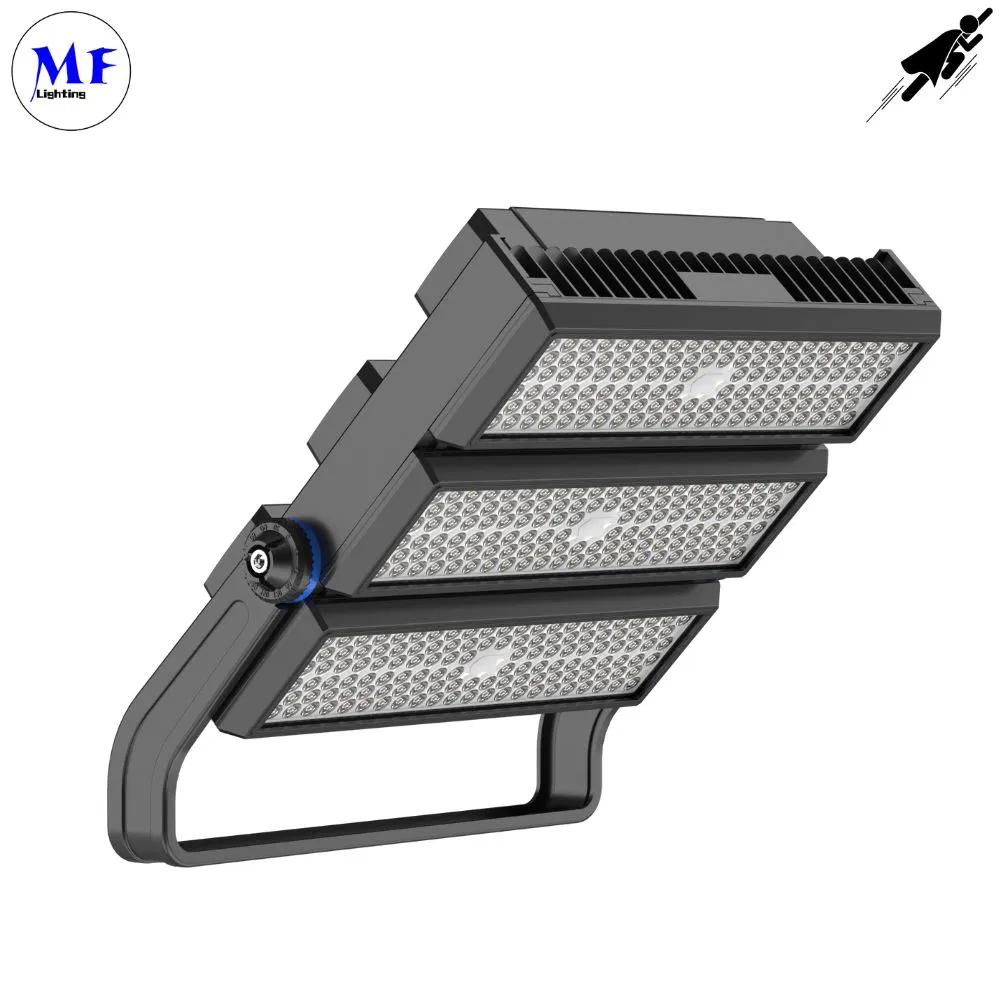

Modular Design Advantage
Product Feature 1

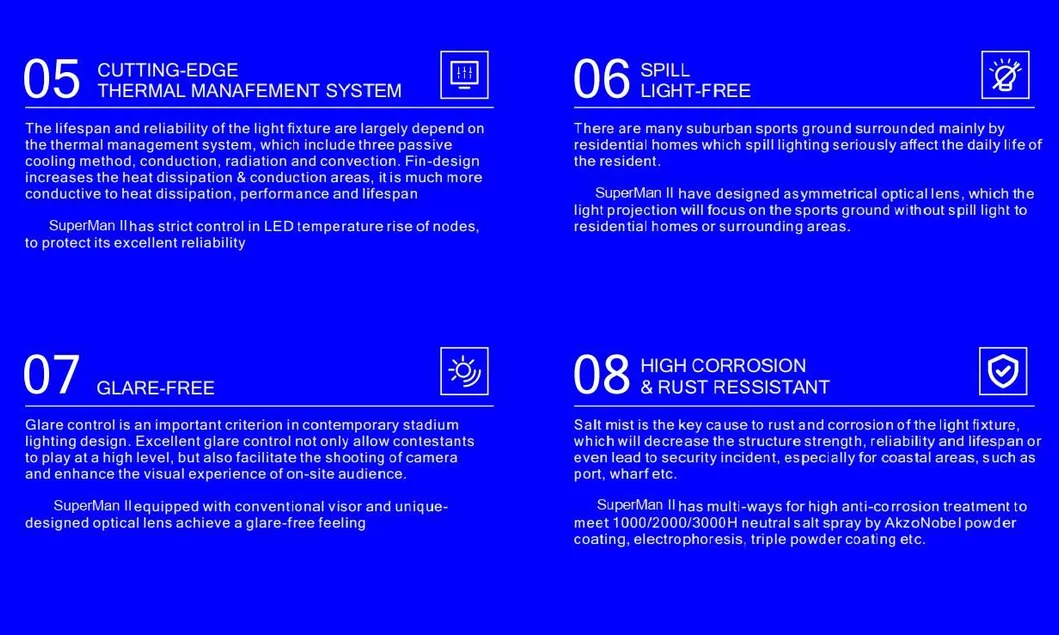

Product Feature 2
🏟 Professional Lighting Simulation

Strategic Lighting Infrastructure: Modern stadium lighting is more than just energy saving; it’s a strategic resource. Intelligent controls allow stadiums to become multi-functional venues for concerts and large-scale events.

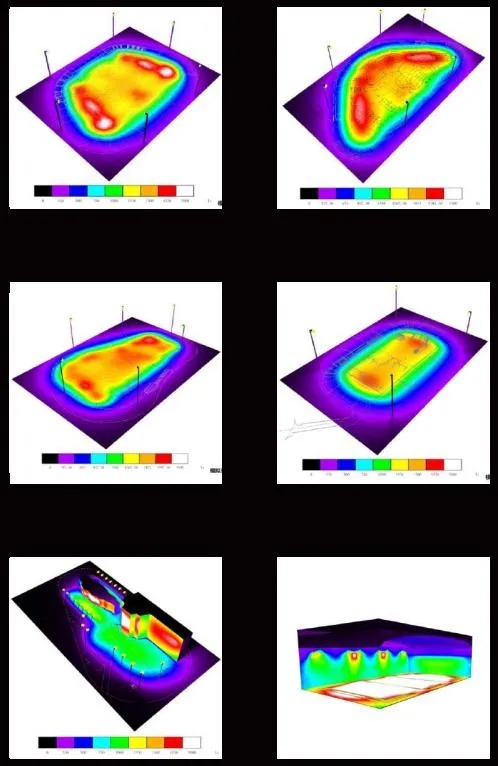

Lighting Simulation Service

Adopted LEDs with TLCI > 90 meet HD camera broadcasting requirements. DC dimming ensures flicker-free performance for elite sports competitions.

📸 Detailed Photos

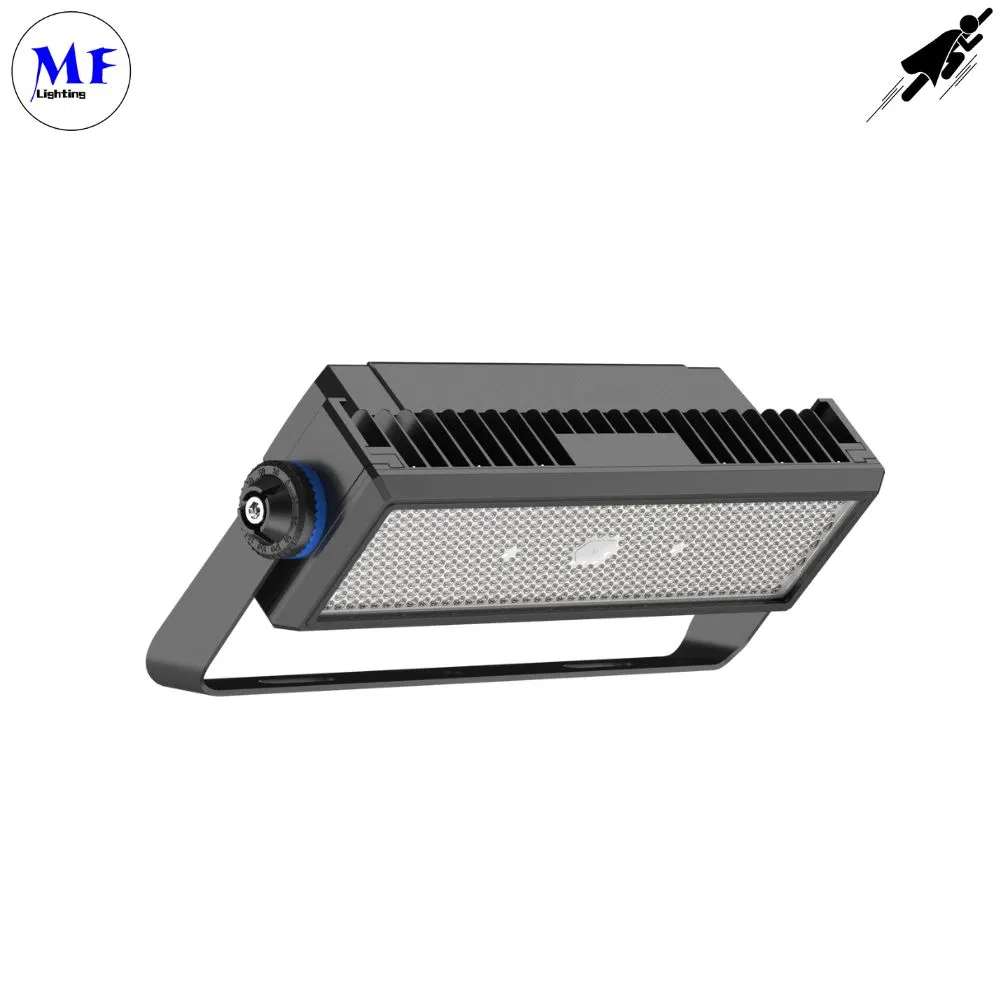

Detail 1

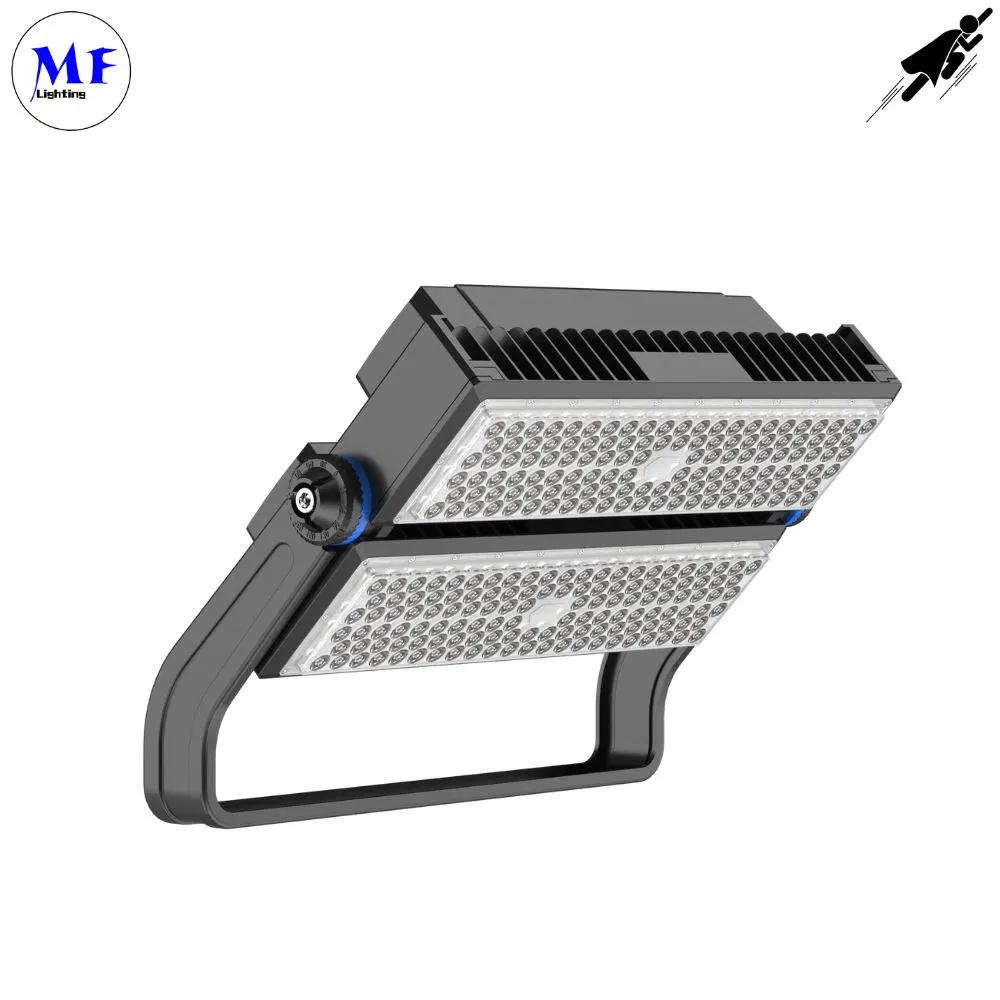

Detail 2
Detail 3

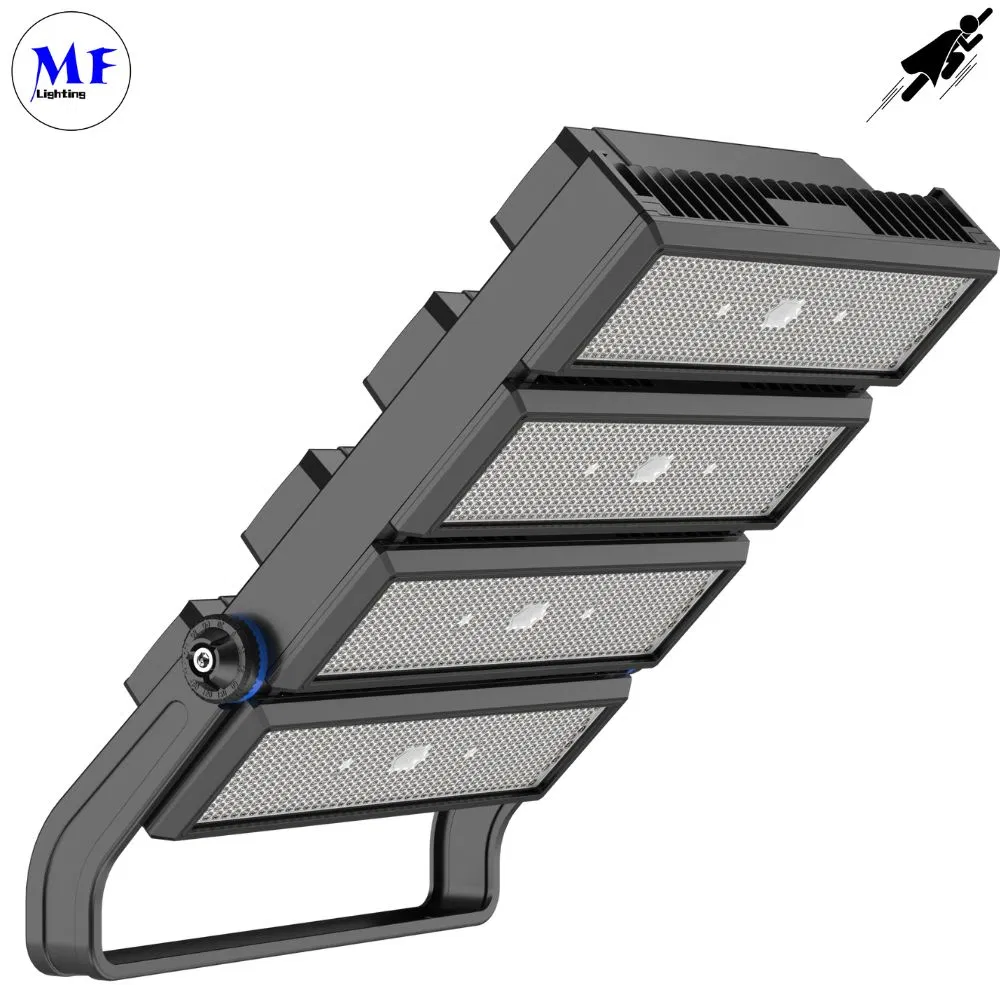

Detail 4

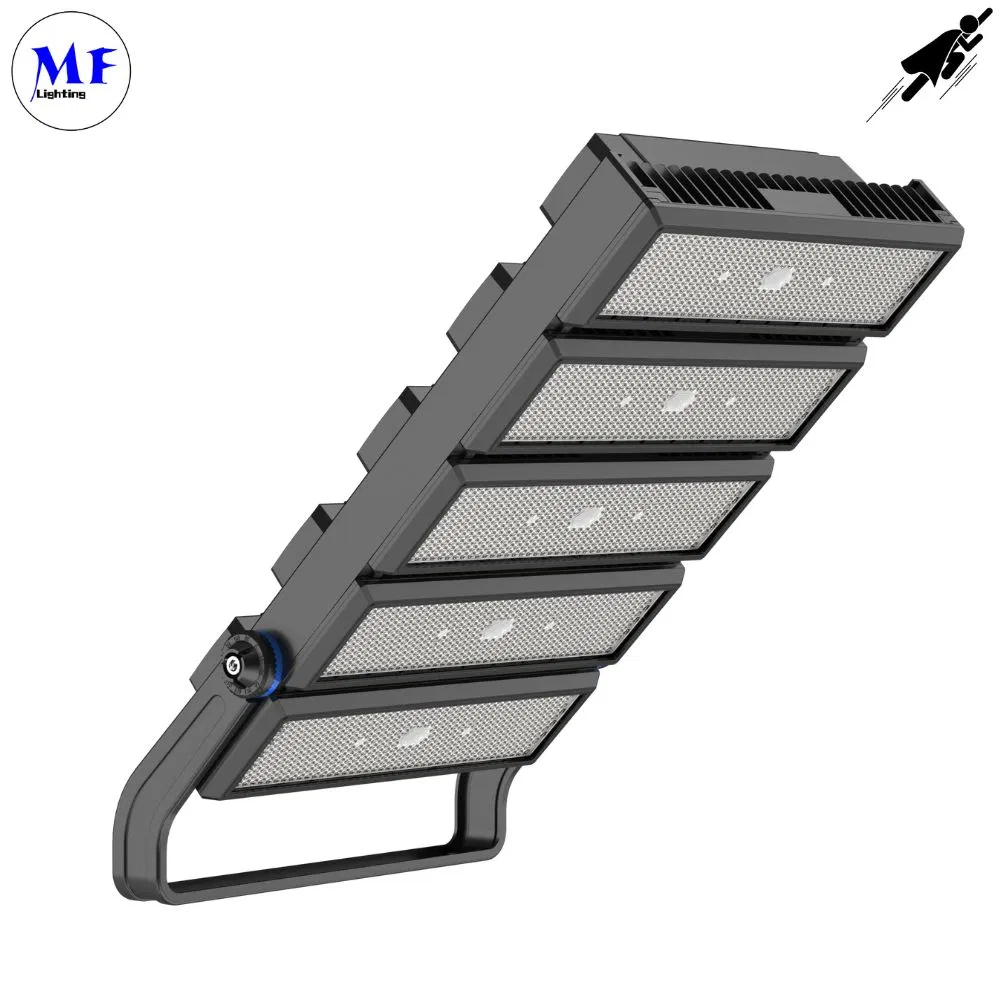

Detail 5
📐 Technical Specifications
Plan A: 150lm/W High Efficiency
Model No. MF-QCD-H250W MF-QCD-H500W MF-QCD-H750W MF-QCD-H1000W MF-QCD-H1250W
Rated Power240W480W720W960W1200W
Luminous Flux36000lm72000lm108000lm144000lm180000lm
Net Weight7kg14kg20kg26kg32kg
Plan C: 150lm/W Extreme Power
Model No. MF-QCD-H300W MF-QCD-H600W MF-QCD-H900W MF-QCD-H1200W MF-QCD-H1500W
Rated Power300W600W900W1200W1500W
Luminous Flux45000lm90000lm135000lm180000lm225000lm
Beam Angle10°/ 25°/ 45°/ 60°/ 90°/ 65*25°
🔥 Advanced Thermal Management

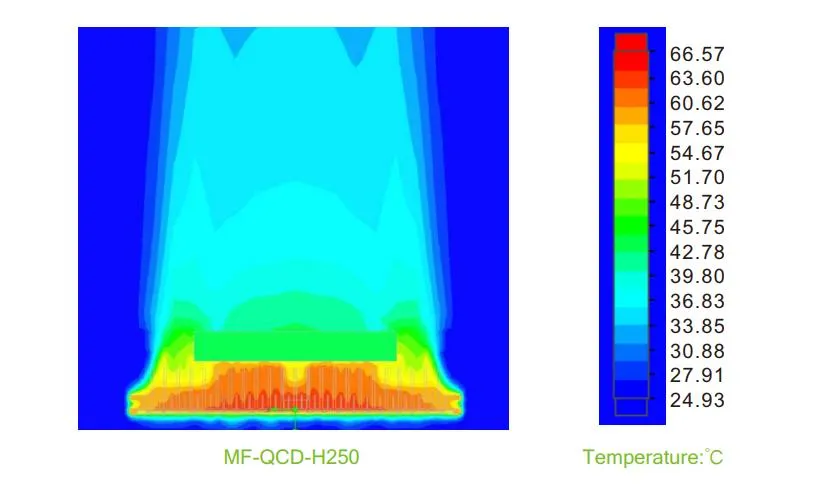

Heat Dissipation Technology

Conduction: Direct heat transfer to heat sinks through thermally conductive silicone.

Radiation: Optimized surface area for high-efficiency energy radiation.

Convection: Extended fin design facilitates airflow to continuously remove heat.

🌍 Applications & Packaging

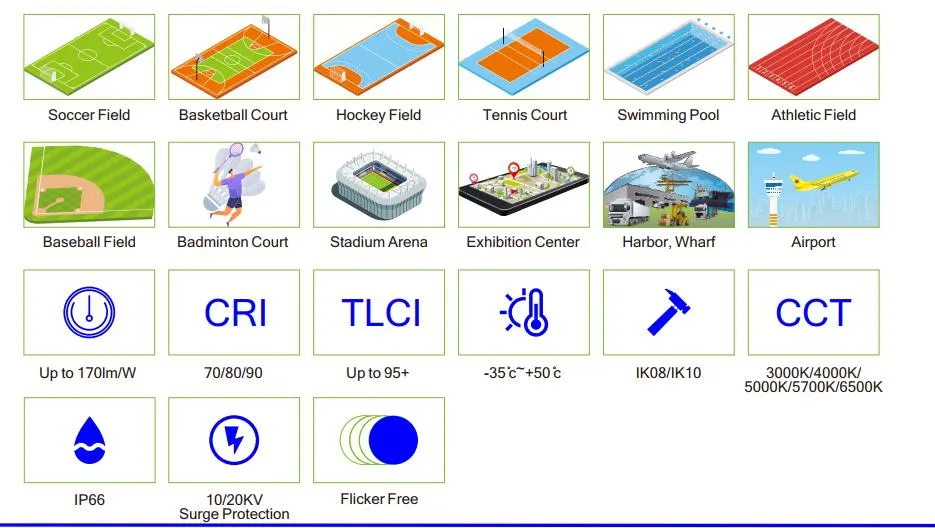

Application Fields
Packaging
❓ Frequently Asked Questions
1. What is the maximum power available for this series?
The modular series supports a wide range of power options, from 250W up to 1500W for large-scale stadium requirements.
2. Is this light suitable for high-definition sports broadcasting?
Yes, it features a flicker-free design and high color rendering (TLCI > 90), making it ideal for HD camera recording and slow-motion replay.
3. How does the cooling system work?
It utilizes a triple-action thermal management system involving conduction through silicone, radiation via optimized surface areas, and convection using extended fins.
4. What is the waterproof and impact protection level?
The fixtures are rated IP66 for superior waterproofing and IK10/IK08 for high impact resistance, ensuring durability in harsh outdoor environments.
5. What beam angles are available?
We offer multiple beam angles including 10°, 25°, 45°, 60°, 90°, and a specialized 65*25° option for precise area coverage.
6. What is the standard warranty period?
The product comes with a 5-year warranty, backed by high-quality components like MeanWell or Sosen drivers and high-efficiency LED chips.
