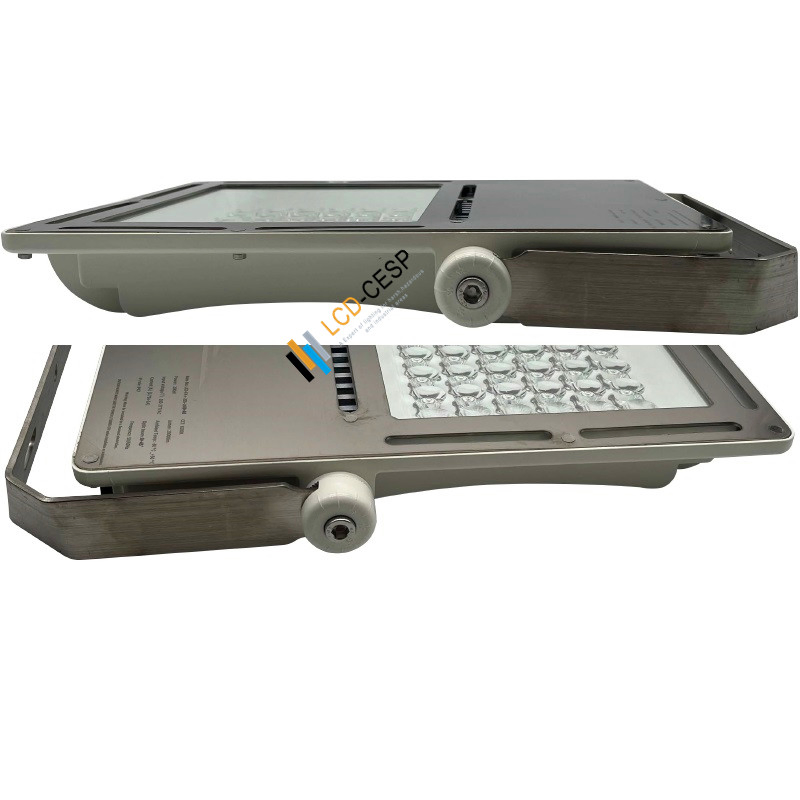

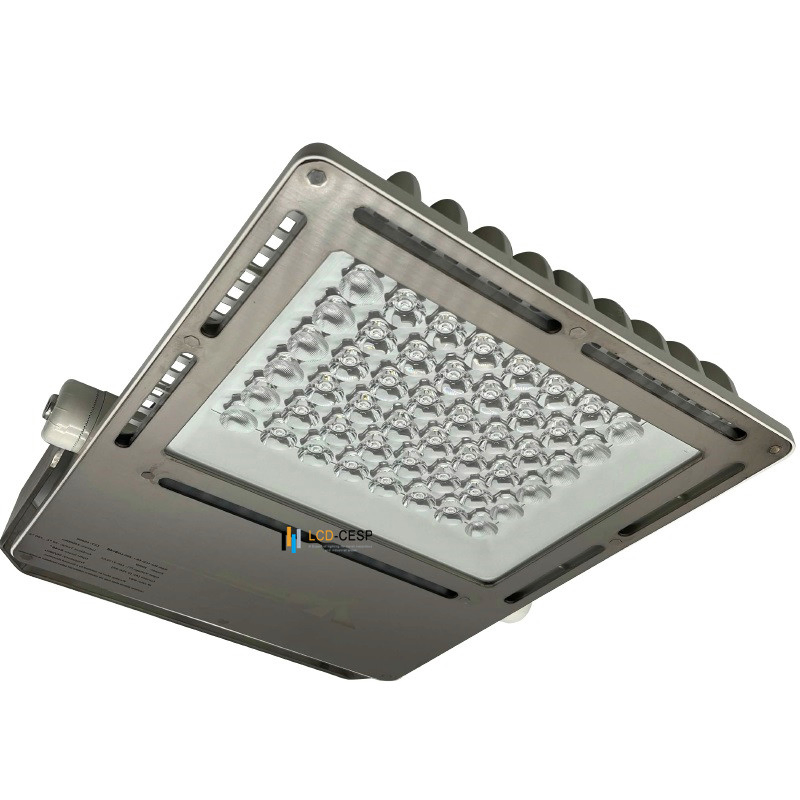

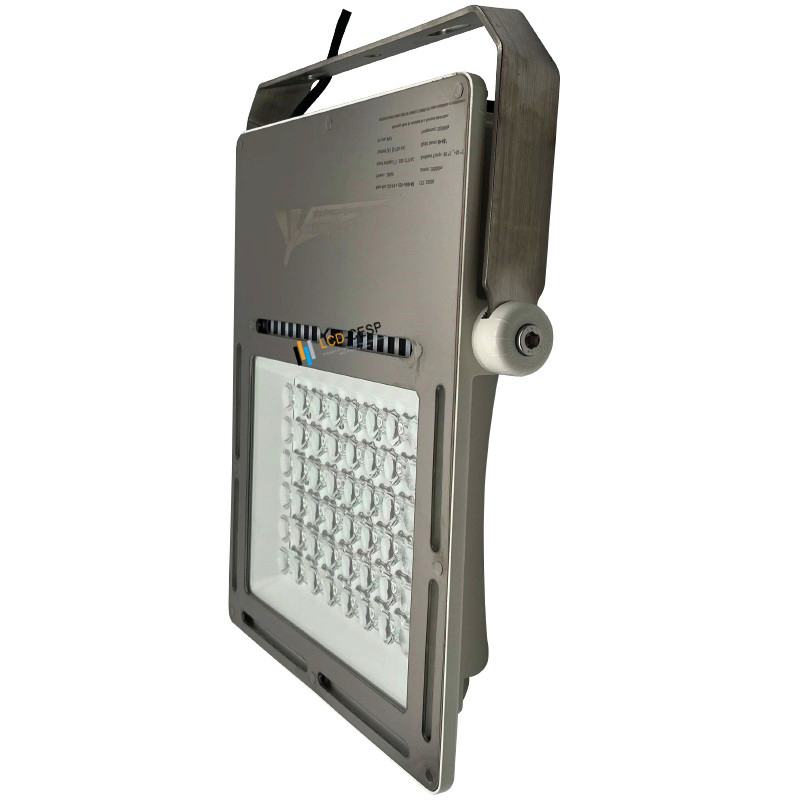

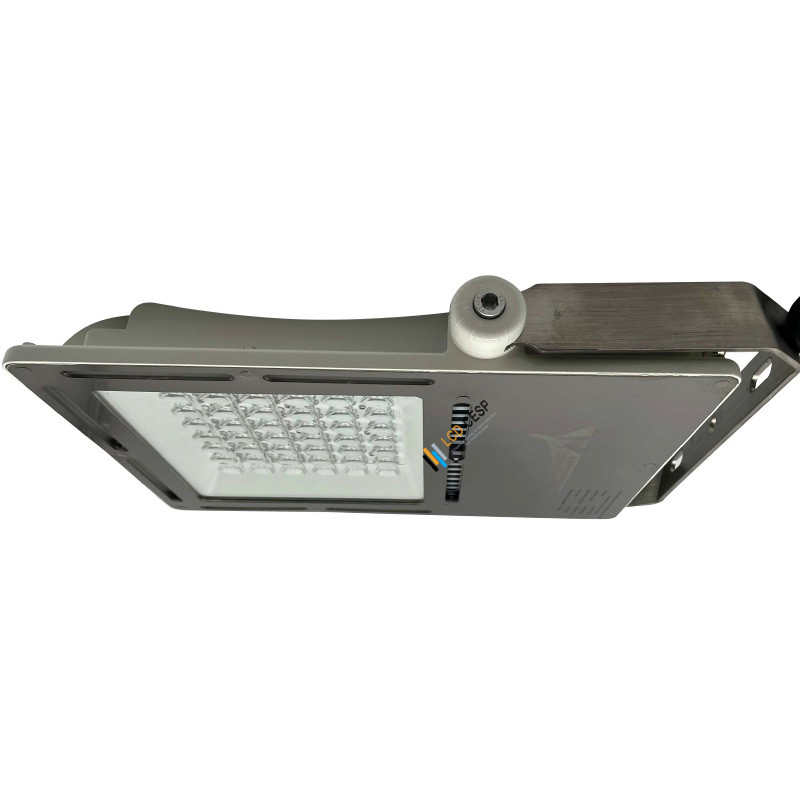

LED Floodlight, 300W, 120-277VAC, 5000K, 90 Deg, Marine Grade Fishing Lighting Searchlight

Basic Specifications

Model NO.

LCD-FA-300W

Power Range

80W - 1500W

Projection Distance

1000m - 5000m

IP Rating

IP66 / IP67 / IP68

LED Chips

Osram / Cree / Bridgelux

Lumen Output

130-170lm/W

Marine Grade

Anti-Salt Water Coating

Operating Voltage

85-265V / 12-32VDC

Beam Angle

2° to 120° Optional

IK Rate

IK09 / IK10

Product Description

The FA Series is a professional, powerful, and energy-saving replacement for high-intensity discharge or Halogen lamps. Utilizing advanced LED technology, it offers high brightness and a superior lumen maintenance factor with Meanwell drivers and built-in 3-4kV surge protection.

Key Features:

✔ High efficacy Cree/Bridgelux SMD chips
✔ Super slim rugged design (max 60mm depth)
✔ Impact-resistant tempered glass
✔ +/-160° angle bracket with interval locking
✔ 5-7 years warranty
✔ Optional Dusk to Dawn sensor

Technical Performance

Parameter	Specification	Parameter	Specification
Lumen Output	Up to 170LM/W	Lifespan	100,000 Hours L80/B10
CCT	3000K / 4000K / 6500K	CRI	70 / 80 / 90
Impact Protection	IK09 / IK08	Surge Protection	Up to 10KV (Optional)
Working Temp.	-30° to +55°	Flicker Rate	< 2%

Dimensions & Weights

Model Range	Dimensions (AxBxC mm)	Weight (KG)
FA-085/105/153	389.2 x 296.7 x 57	3.4
FA-205	436.6 x 345.7 x 57	4.8
FA-255	436.6 x 345.7 x 57	7.2
FA-305/353	582 x 385 x 60	7.5

Ideal Applications

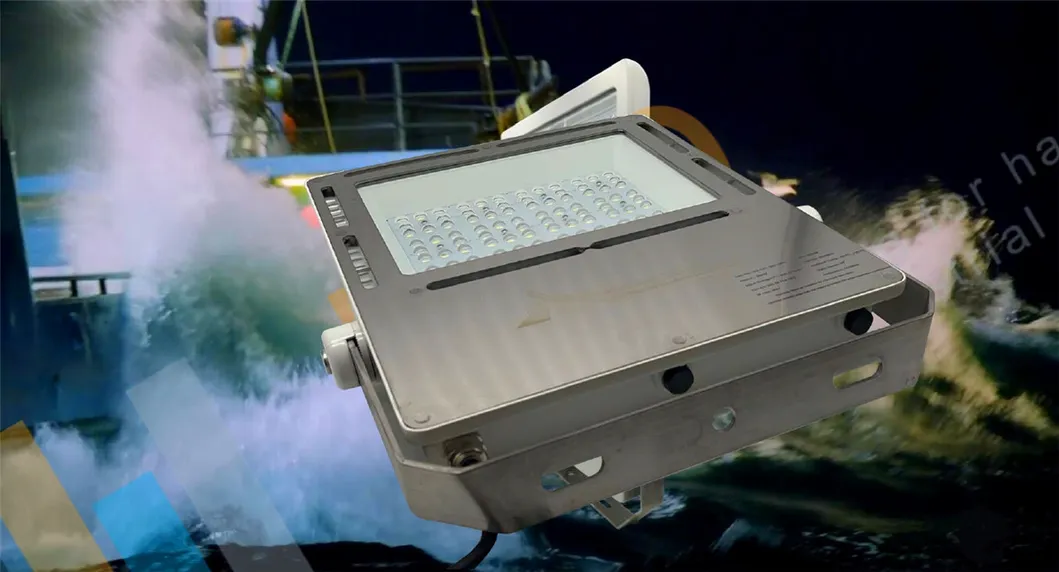

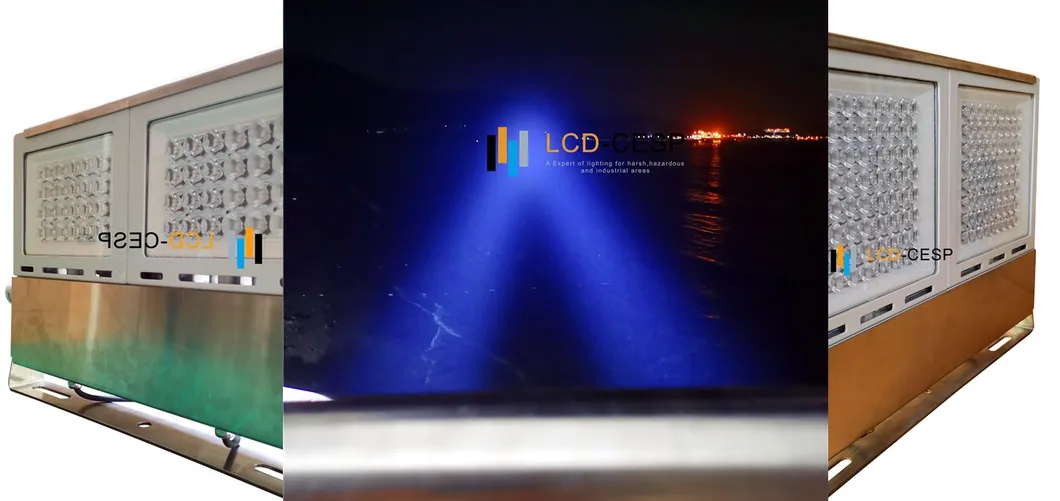

● Maritime & Fishing Boat Lighting
● Stadiums & Sports Arenas
● Airports & Seaports
● Industrial Halls & Warehouses
● Chemical & Mining Plants
● Security & Architectural Lighting

Frequently Asked Questions

Q1: What is the warranty period for the LED Flood Lights?

We provide a standard warranty of 5 to 7 years on our LED modules and drivers, and a 10-year warranty on the housing for marine-grade versions.

Q2: Are these lights suitable for coastal or marine environments?

Yes, our fixtures feature an anti-salt water coating and are constructed with pure Aluminum AL1060 or high-grade Die-cast Aluminum, making them ideal for coastal areas and fishing vessels.

Q3: What dimming options are available?

We offer multiple dimming solutions including 0-10V, DALI, PLC, and Triac dimming to suit various control system requirements.

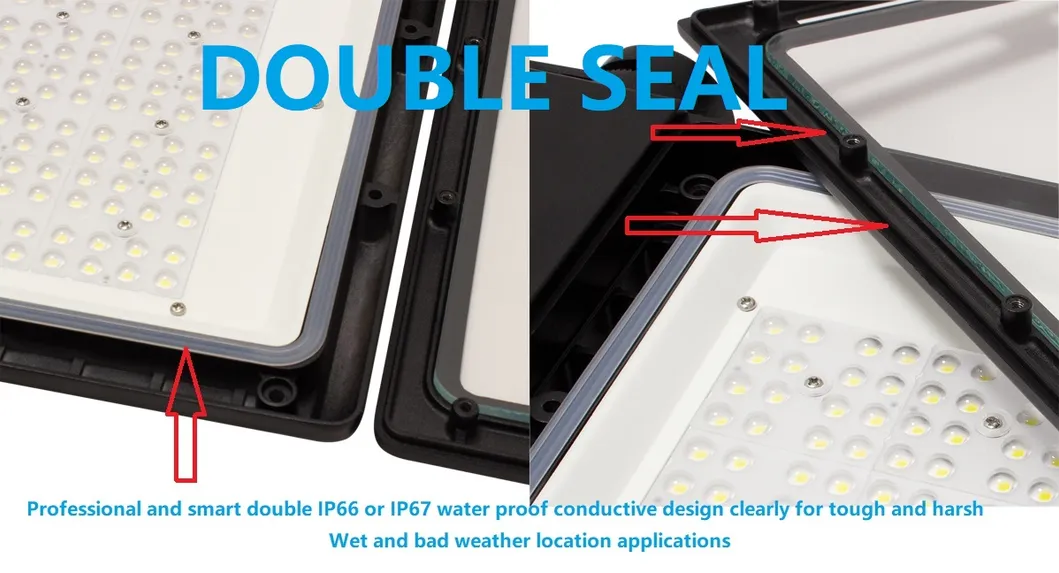

Q4: How do you ensure the waterproof integrity of the fixtures?

All units undergo a 100% inspection process, including a rigorous waterproof test, functional test, and burn-in test before shipping. They are rated IP66, IP67, or IP68.

Q5: Can the beam angle be customized?

Absolutely. We offer approximately 30 different optic beam angles ranging from narrow 2° spots to wide 120° floods to ensure the best results for your specific project.

Q6: What is the lead time for orders?

Sample orders are typically ready in 3-5 days, while bulk orders generally take 7-15 days depending on the quantity and specifications.
