Basic Information
| Model NO. | MF-C5A |
| Color Temperature | White (4000-4500K) |
| IP Rating | IP66 |
| Light Intensity | > 5,000 Lumens |
| Light Source | LED |
| Power Options | 80W, 200W, 300W, 500W |
| Voltage | 100~277V AC |
| Projection Distance | ≥3000 M |
| Lens Beam Angle | 2.5° |
| Material | 316L Stainless Steel |
| Lifespan | 50,000 hrs |
| Warranty | 5 Years |
2.5deg 500W 3KM Stainless Steel Marine Grade LED Search Light
Fishing Security Rescue Searchlight Lighting Flashing Alert Light IP66 LED Maritime Work Lamp.
⚡
Quick Details
- Source: LED
- Voltage: AC100-277V 50/60Hz
- Power: 300W/400W/500W/600W
- Lumen: 50,000 lm
- CRI: ≥70
- Beam Angle: 2.5°
- Protection: IP66
- Range: ≥3000 m
- Material: 316L Stainless steel
- Rotation: Horizontal 350°, Vertical ±25°
📋
Technical Specifications
Ideal for National defense, safety, Maritime, water conservation (reservoir, hydrological station), Expedition, oil fields, wharfs, Vessels, and search-and-rescue. Replaces Xenon and Metal Halide searchlights.
| Item Feature | Specifications |
| Operating Voltage | 100~277V AC |
| Beam Angle | 2.5° |
| Color Temp | 4000-4500K |
| Housing Material | 316L Stainless Steel |
| Beam Distance | 3000m |
| Lens Type | Fresnel lens + Reflector |
| Intelligent Control | Yes (Optional) |
| Tilting Stand | Yes |
🖼️

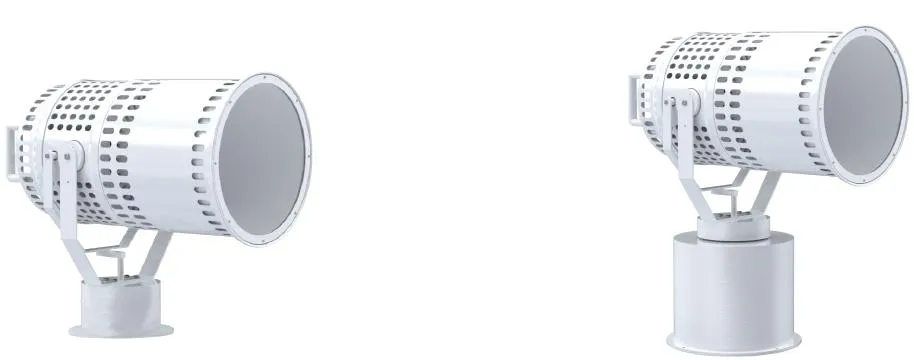

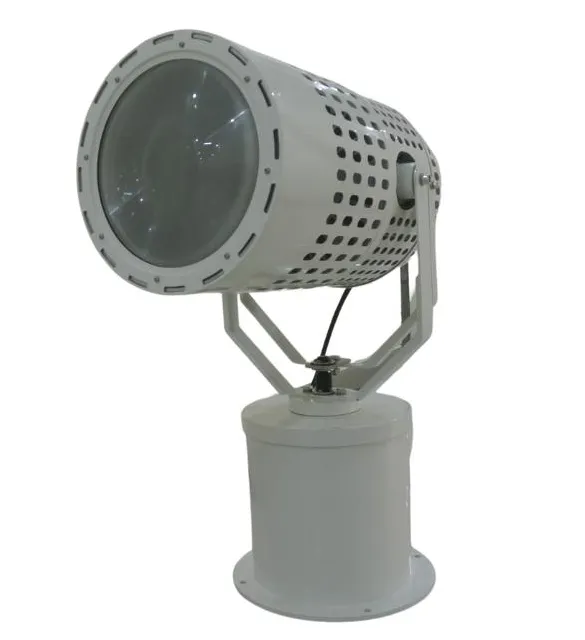

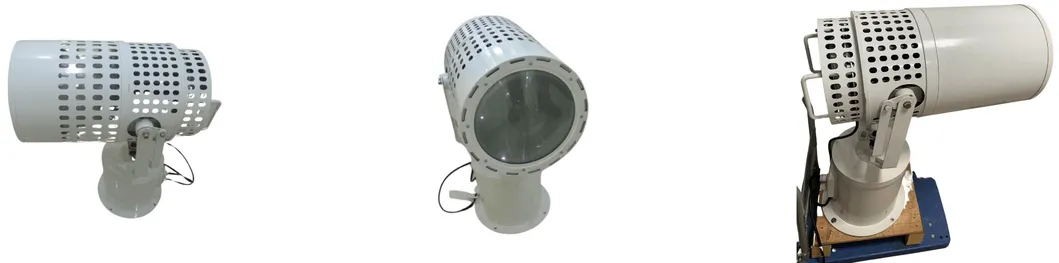

Detailed Photos

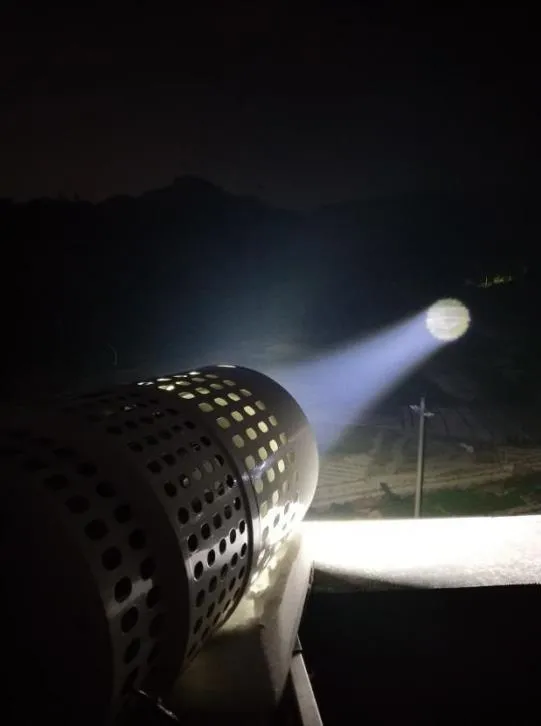

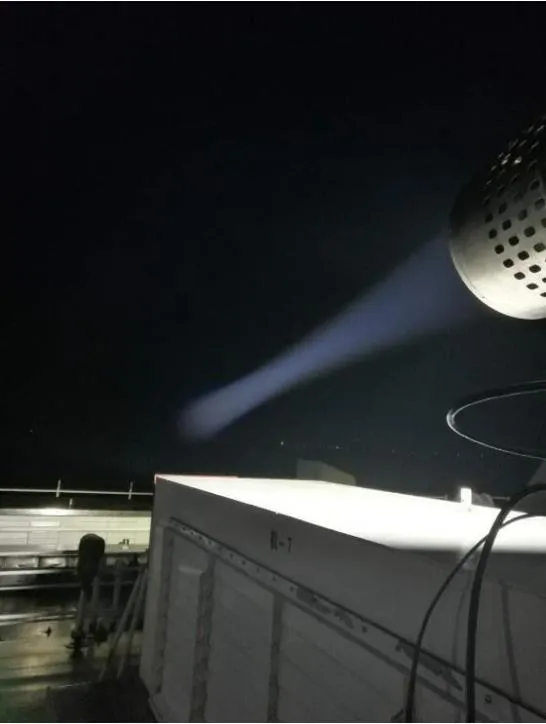

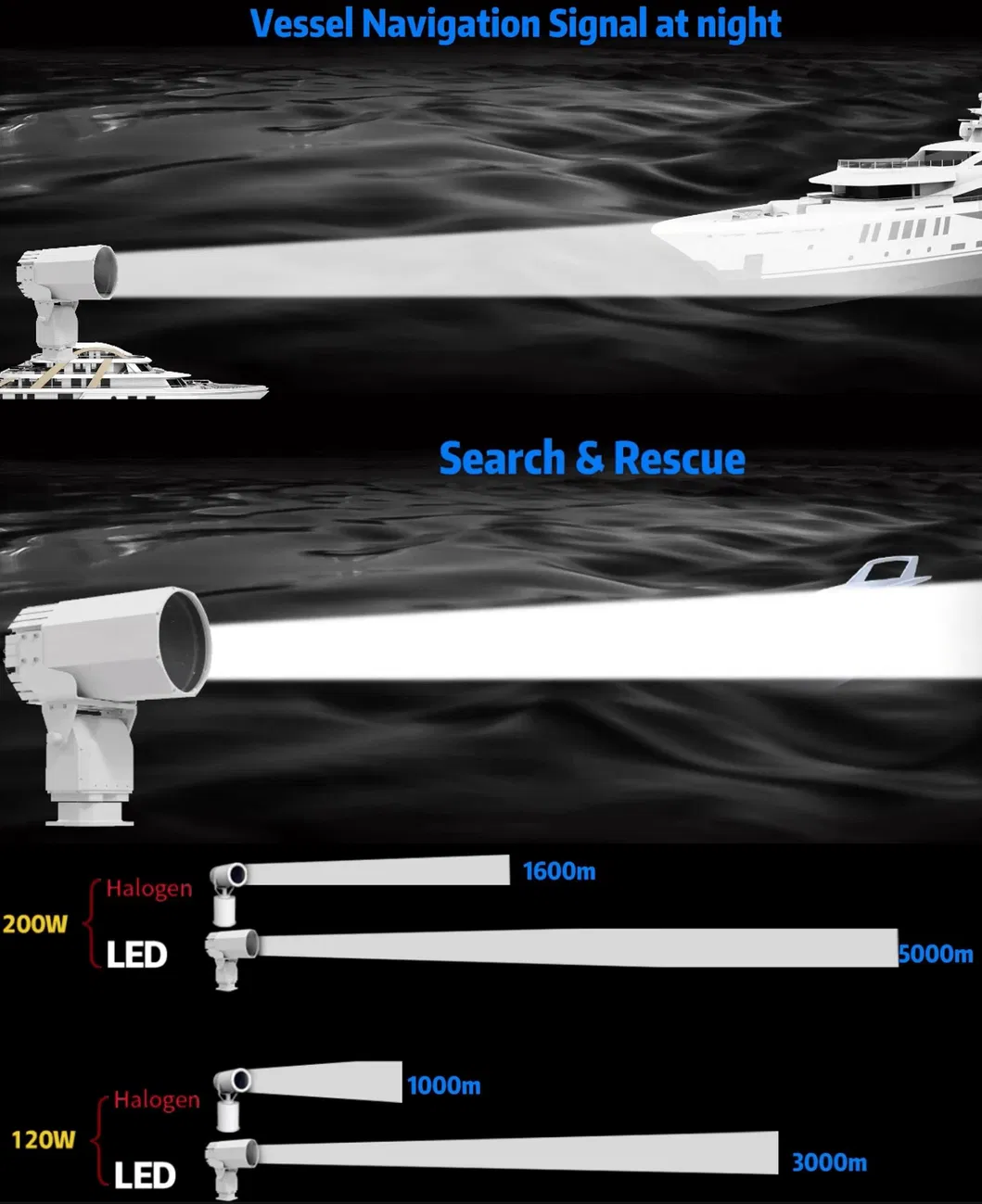

Project Distance: 3KM at 500W with 2.5° Beam
🌟
Key Features

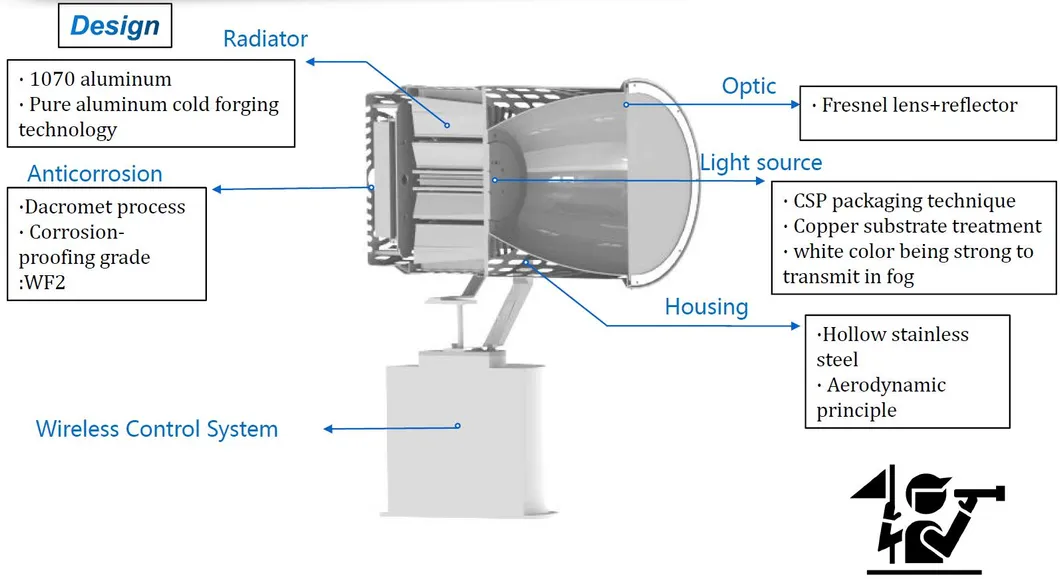

This sea sweeping lamp overcomes the major challenges of light distribution and heat dissipation for LED technology. With a maximum power of 500W for a single light source and a narrow 2.5-degree angle, it provides long-range projection and exceptional penetration.
- High energy efficiency (over 60% energy saving compared to traditional sources).
- Long service life (over 50,000 hours, 20 times longer than traditional lamps).
- Marine grade 316L stainless steel for extreme anti-corrosion.
- Stable performance for islands, reefs, large ships, and coastal defense.
🕹️
Photometry & Controllers

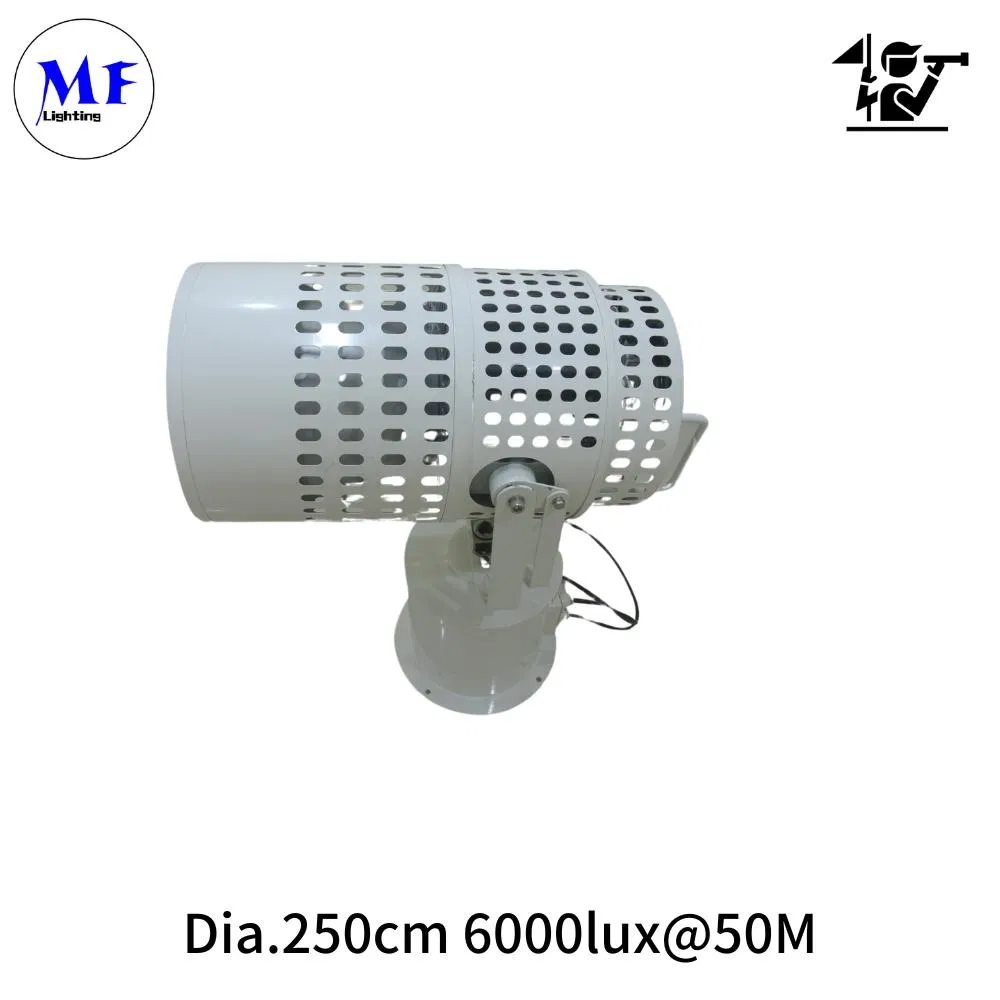

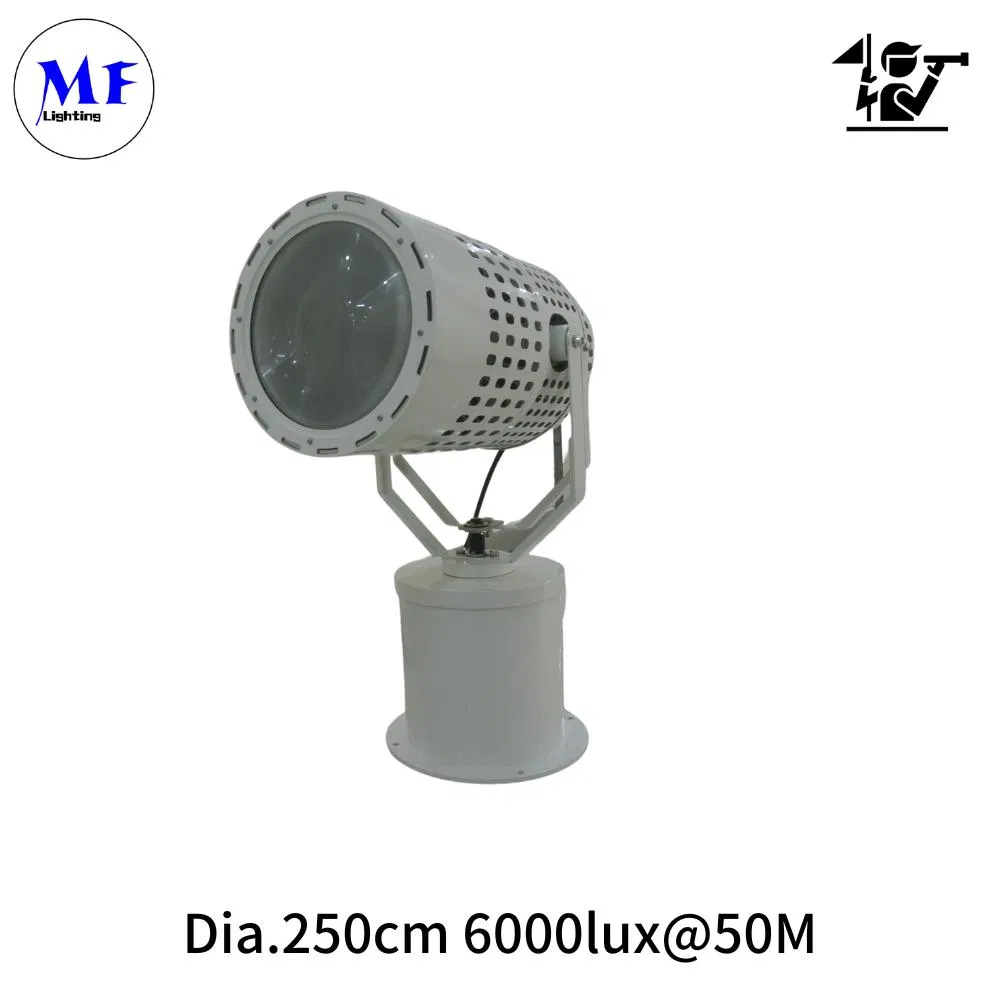

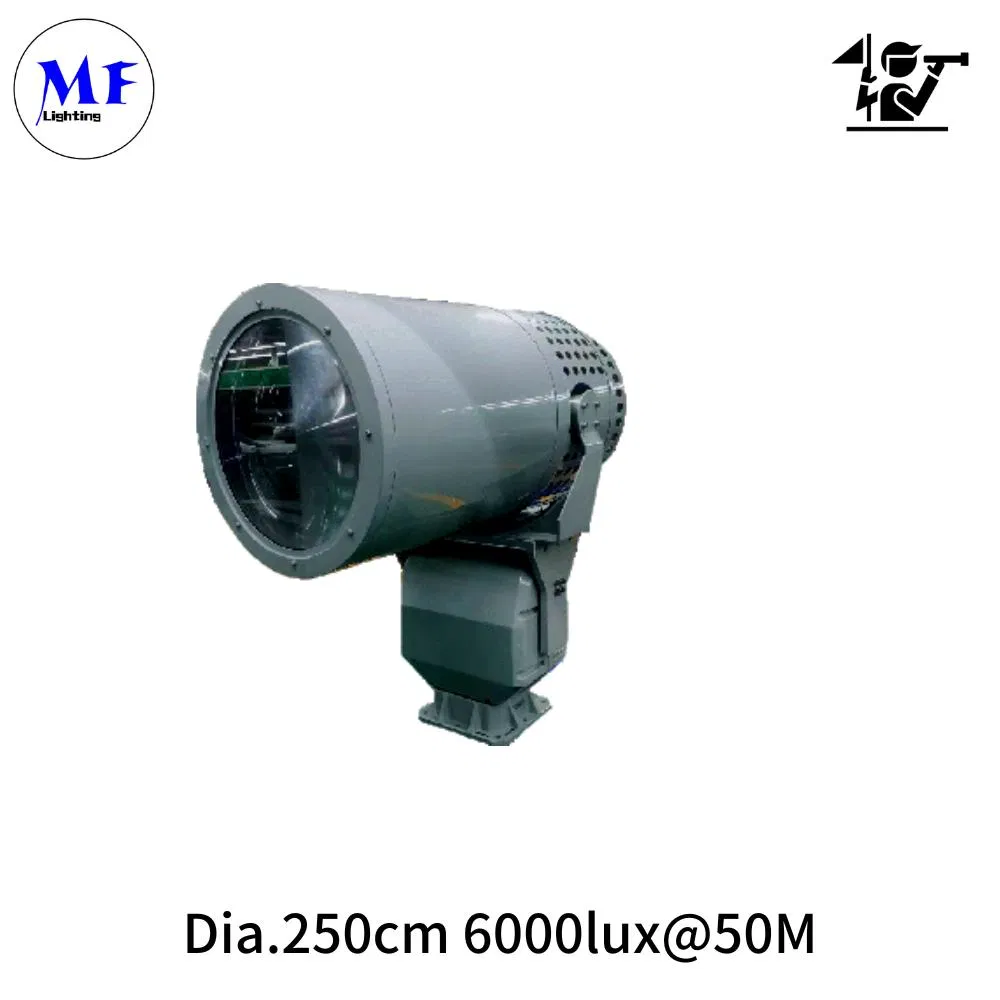

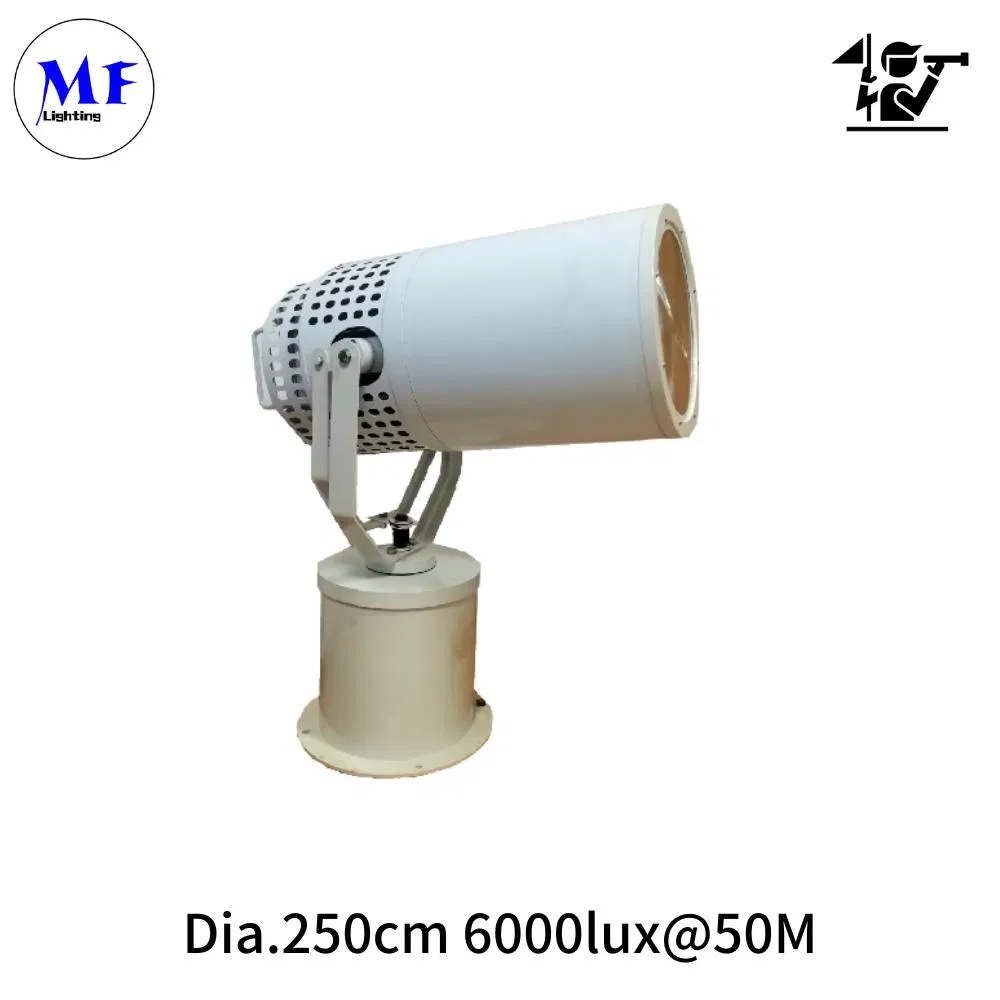

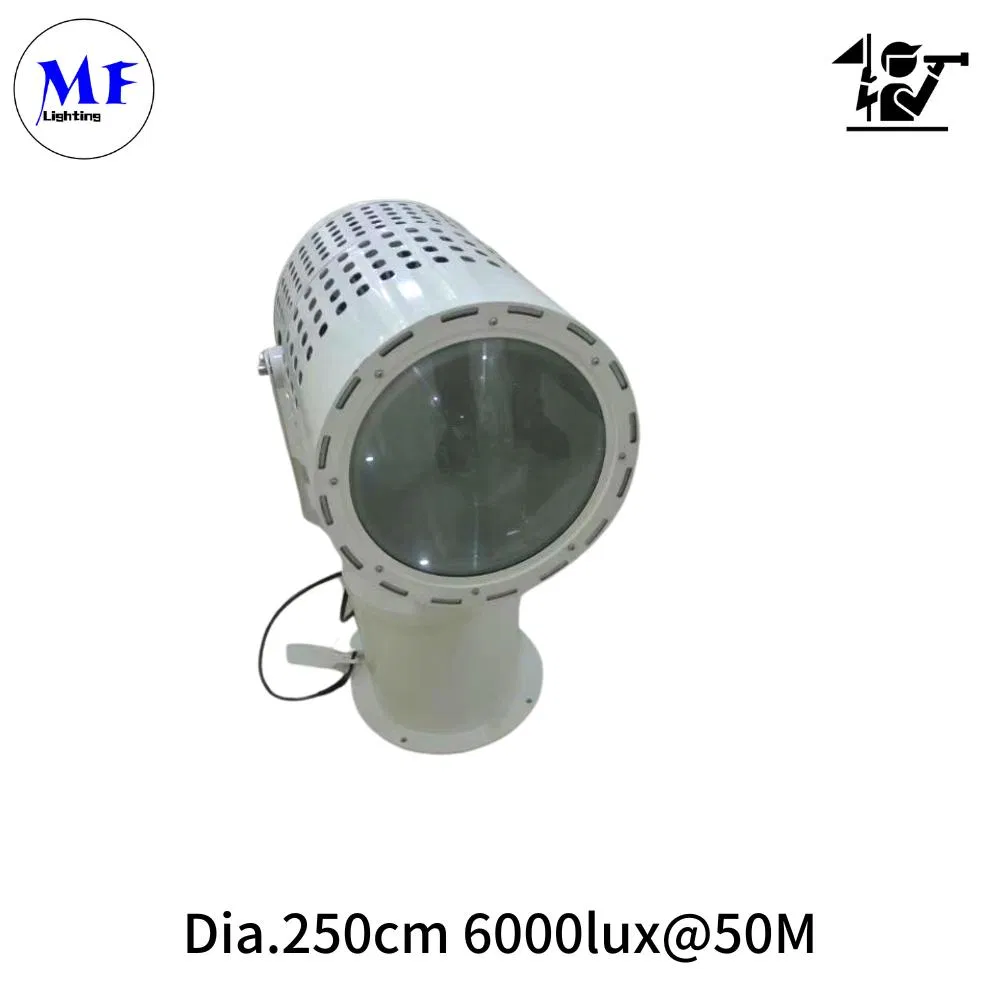

Dia.250cm 6000lux @ 50M
Multiple Control Modes (Optional):
- Wireless/Wired 485 Smart Keyboard (controls up to 64 units).
- Wireless Remote Control (with preset points).
- Control distance up to 500m.
- Variable cruising speeds (Fast, Medium, Slow).
🚀

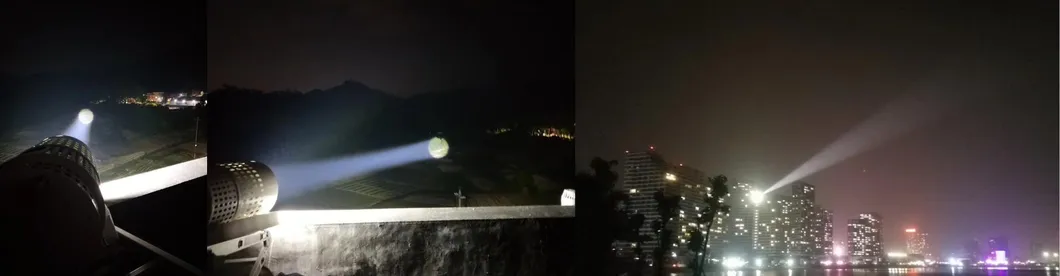

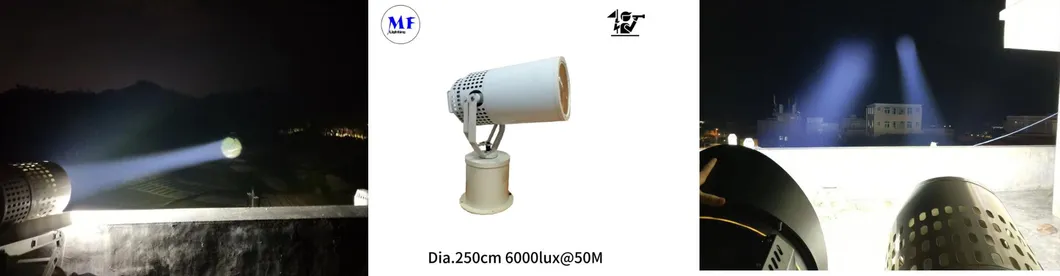

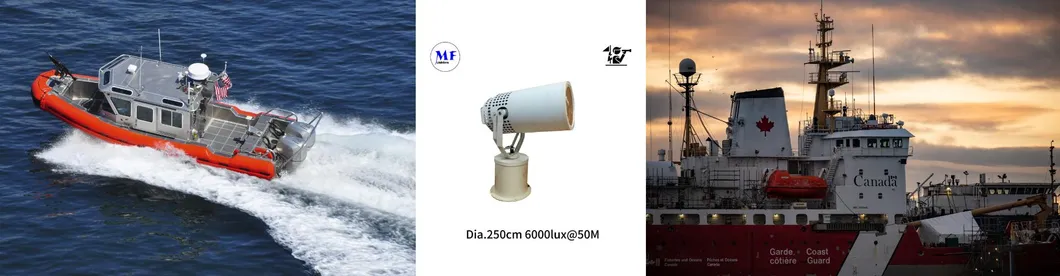

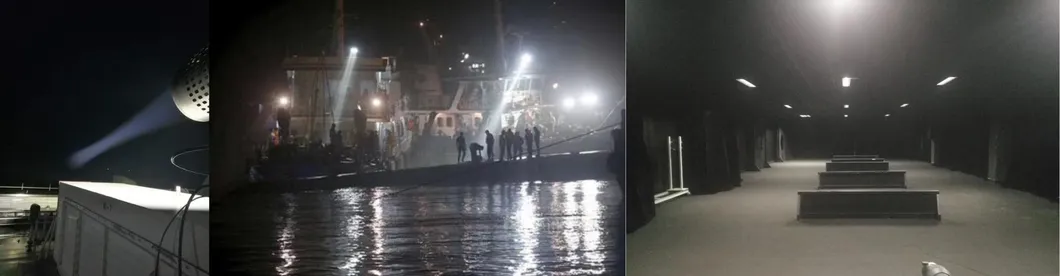

Applications
- Search and Rescue: Essential for illuminating large areas to locate individuals in distress.
- Maritime Operations: Navigation, signaling, and coastal security.
- Emergency Response: Reliable illumination during natural disasters or accidents.
- Industrial & Construction: Nighttime visibility for worker safety.
- Wilderness Exploration: Navigation in low-light emergency conditions.
Frequently Asked Questions
Q1: What is the maximum projection distance of this LED searchlight?
The searchlight can project a beam up to 3000 meters or more, specifically designed for long-range marine and security operations.
Q2: Is the housing resistant to sea water corrosion?
Yes, the housing is constructed from high-grade 316L Stainless Steel, which offers superior resistance to corrosion in maritime environments.
Q3: What are the available power options for this model?
The searchlight is available in various power ratings, including 80W, 200W, 300W, and 500W to suit different operational requirements.
Q4: Does it support remote control functionality?
Yes, it supports multiple control modes including wireless smart keyboards, 485 wired keyboards, and wireless remote controls with a range of up to 500 meters.
Q5: What is the IP rating and lifespan of the light?
The unit is IP66 rated for waterproof protection and has a long lifespan of over 50,000 hours, significantly higher than traditional light sources.
Q6: What is the beam angle of this searchlight?
The light features an ultra-narrow 2.5-degree beam angle, utilizing a Fresnel lens and reflector composite system for high penetration.
