Model NO.
Searching spot light
Color Temperature
Daylight
Light Intensity
> 5,000 Lumens
Distance Range
800m - 3000m
Material
316 Stainless Steel / Aluminum Alloy
Application
Marine Sea / Ship Vessel
Feature
Corrosion Resistance / Nautical Grade

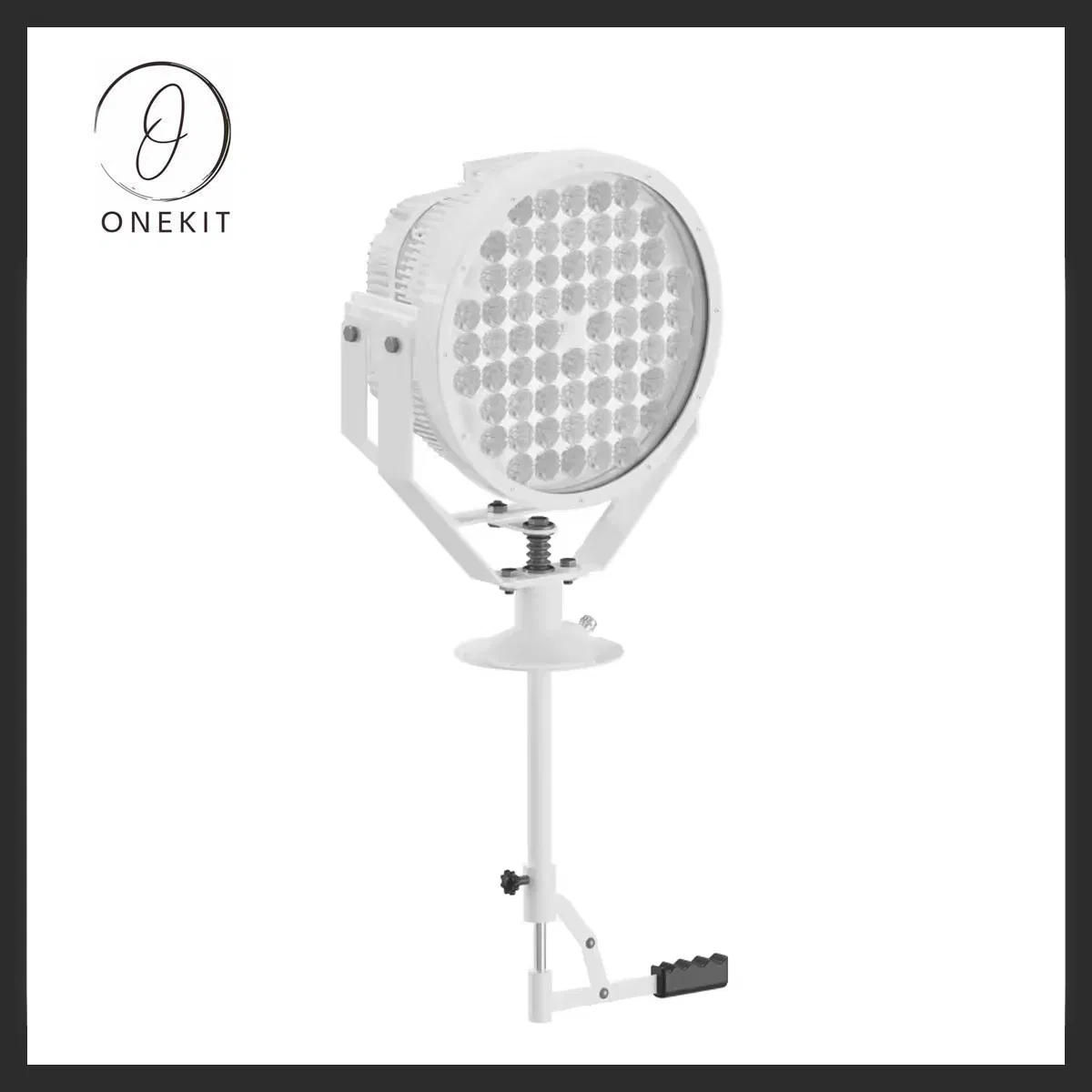

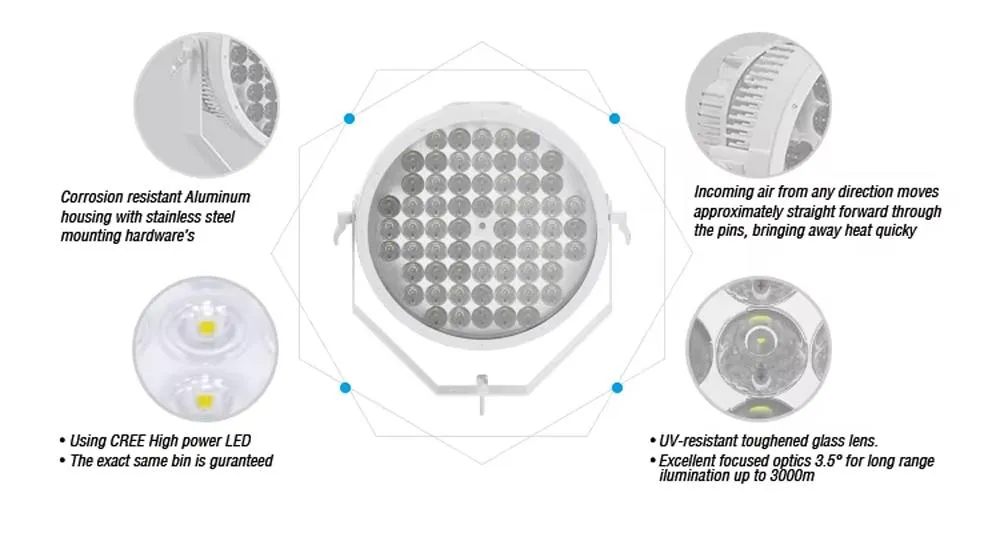

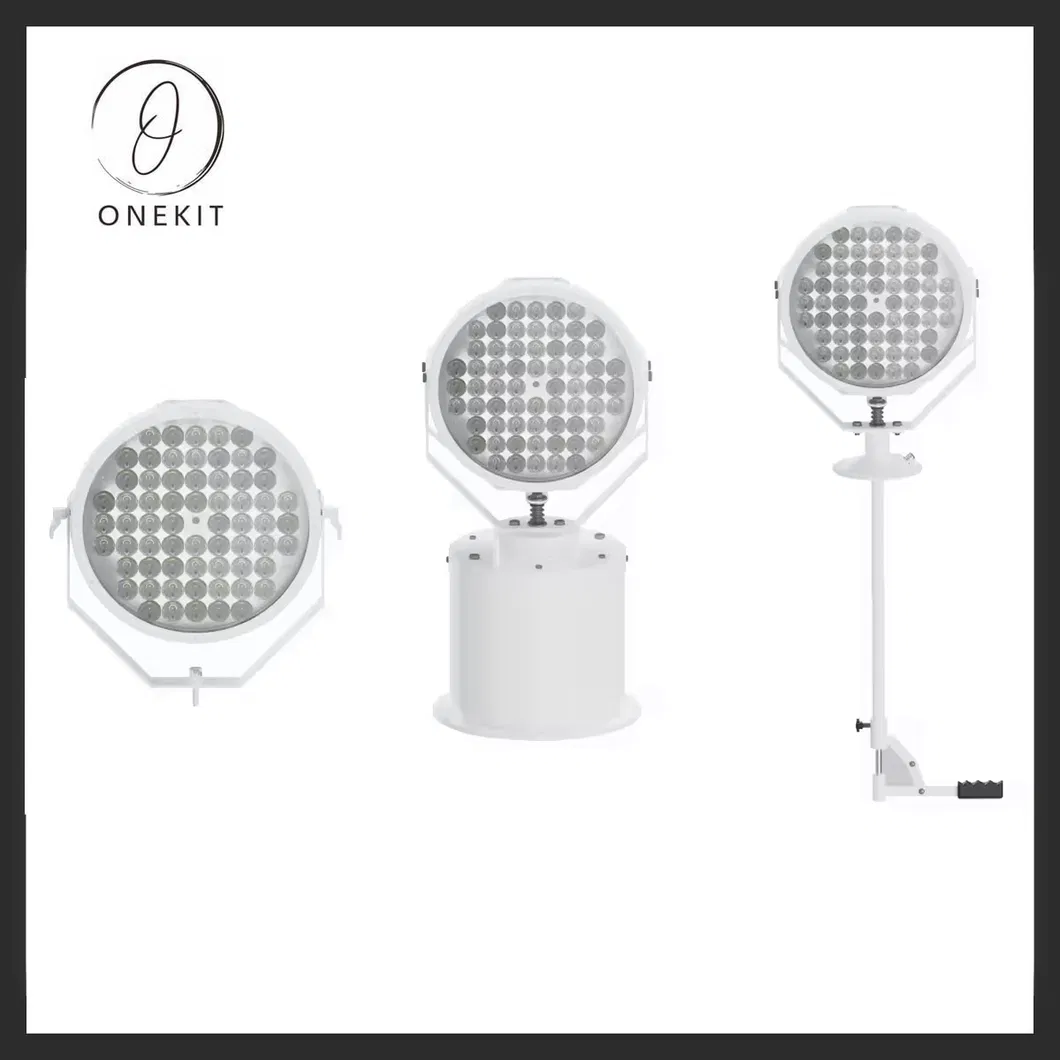

360 Degree LED Ship Sweep Vessel Projection Searching Projector Spot Light
High Energy EfficiencyHelps to save power and reduce operational costs significantly compared to traditional marine lights.
Extreme DurabilityWithstands salt spray, moisture, and vibration; functional even in rough sea conditions.
Long LifespanTypical LED marine lights last for tens of thousands of hours, minimizing maintenance and downtime.
Superior VisibilityBright and uniform light output ensures safe navigation and operations at sea.
Low Heat GenerationReduces the risk of fire and heat-related damage to the vessel.
Nautical GradeWaterproof and corrosion-resistant construction using 316 SS.

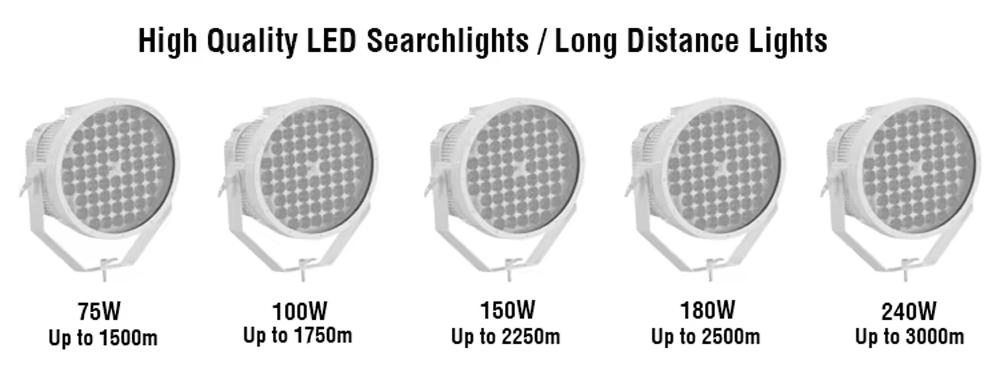

| Model |
Voltage |
Power |
Luminous flux(Lm) |
Distance(m) |
Protection class |
Light Source |
| OKT-ML-75 |

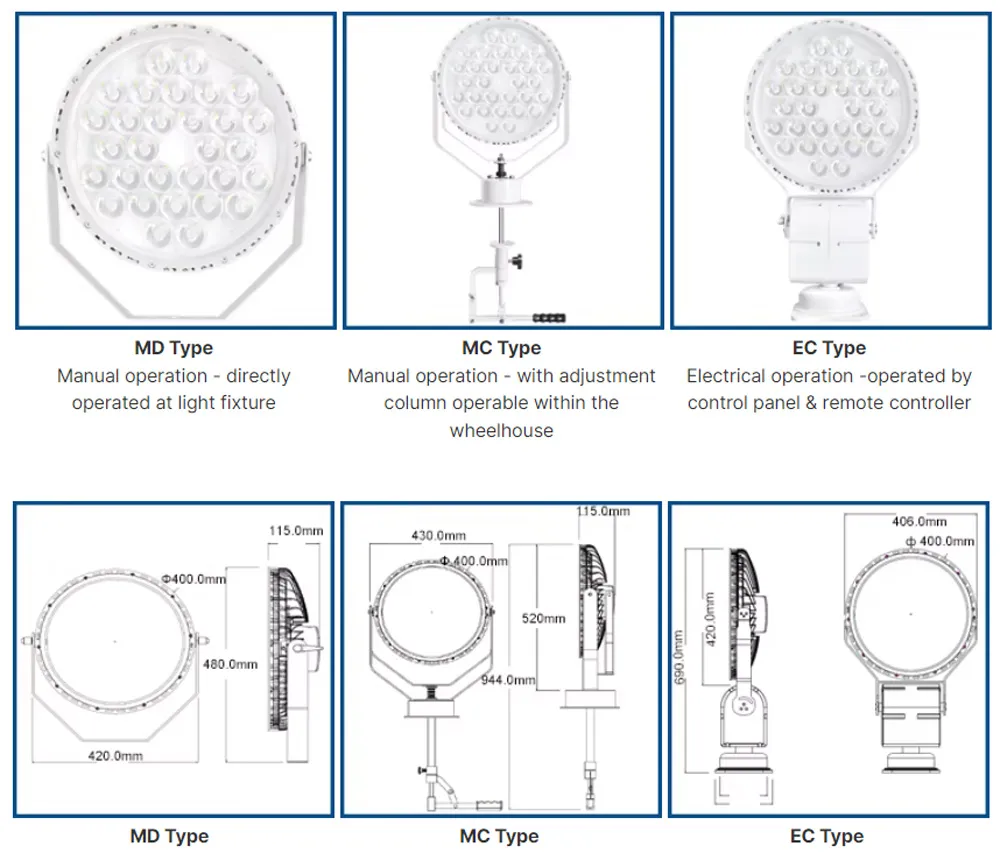

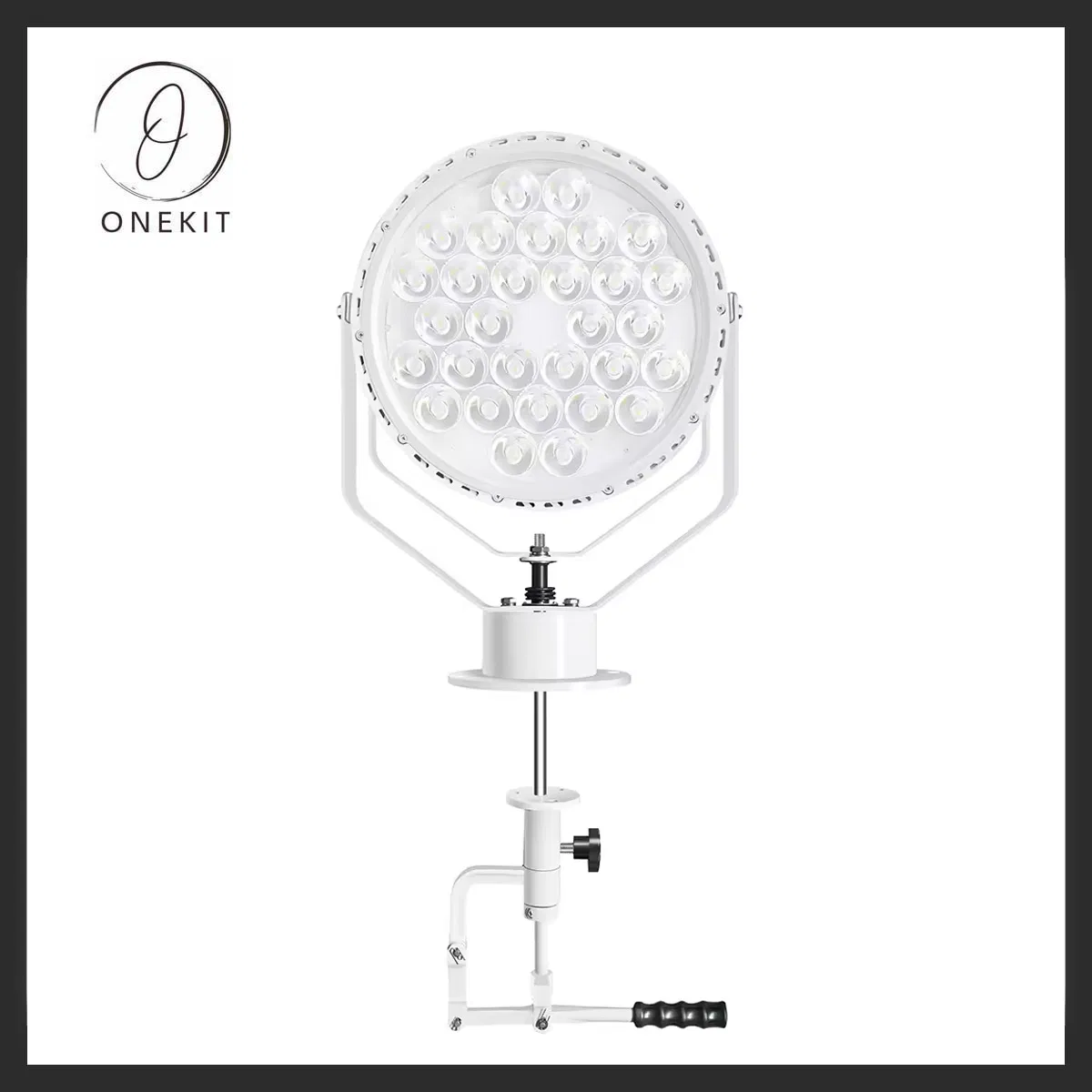

AC100-277V for MD & MC

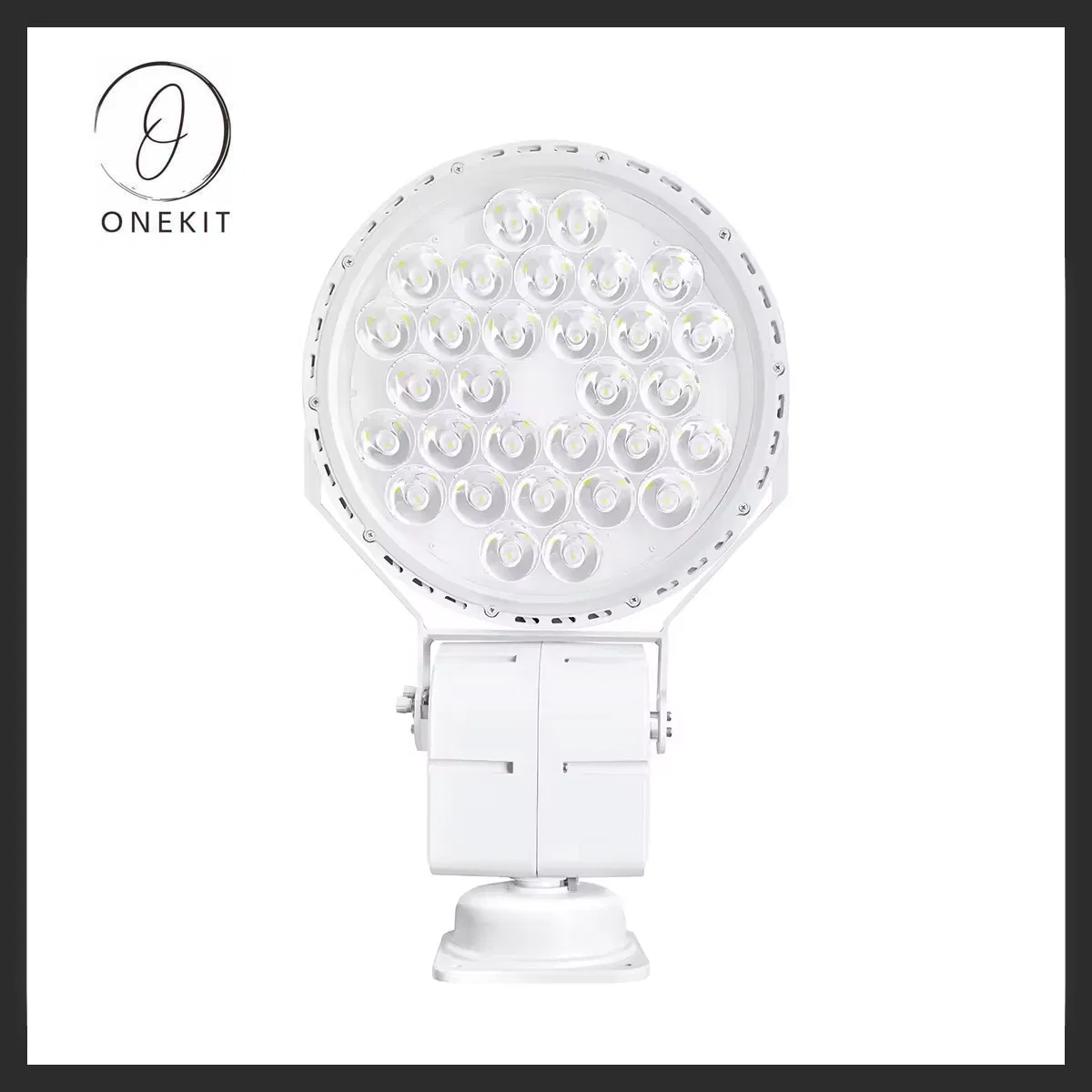

AC110V/220V for EC |
75W |
5,020 |
up to 1,500 |
IP65
IP66
IP68 |
LED |
| OKT-ML-100 |
100W |
6,700 |
up to 1,750 |
| OKT-ML-150 |
150W |
10,040 |
up to 2,250 |
| OKT-ML-180 |
180W |
12,080 |
up to 2,500 |
| OKT-ML-240 |
240W |
16,080 |
up to 3,000 |
Applications
Packaging & Shipping
Supplier's Commitments
Quality Assurance
1. All raw material is 100% brand new.
2. 24-hour test period before delivery.
3. Strict QC procedures for every lamp.
Safety Packaging
1. PE bag individual packing.
2. Strong foaming protection in every box.
Fast Delivery
1. Samples ready in 2-4 days via UPS/DHL/FedEx.
2. Standard production within 15 working days.
Post Sales Support
1. Free replacement for manufacturing defects.
2. Active response for after-sales concerns.
Frequently Asked Questions
What is the waterproof rating of this marine searchlight?

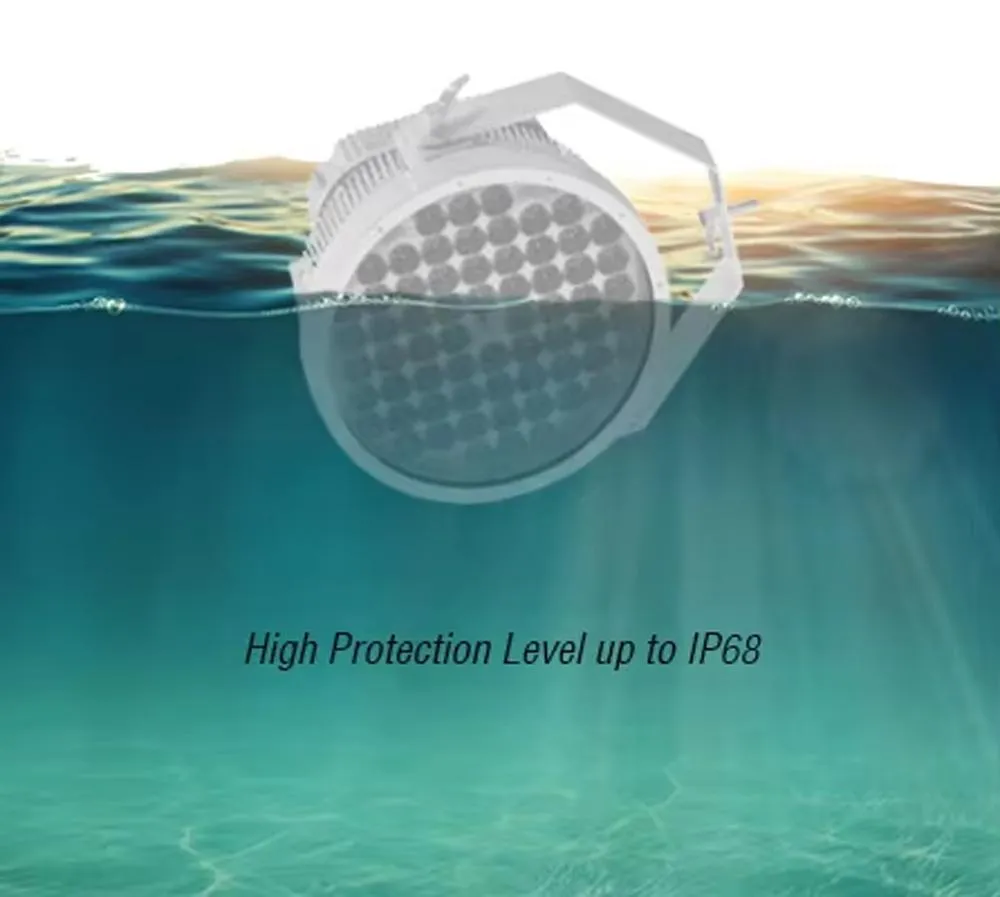

The searchlights are designed for harsh marine environments with IP65, IP66, and IP68 ratings, ensuring they are fully waterproof and corrosion-resistant.
How far can the light beam project?
Depending on the power model selected (75W to 240W), the effective projection distance ranges from 800 meters up to 3,000 meters.
What materials are used to prevent rust in sea conditions?
We use nautical-grade 316 Stainless Steel and high-quality Aluminum Alloy, providing excellent resistance to salt spray and moisture.
What are the available voltage options?
Standard types support AC100-277V, while specific EC types are available for AC110V or AC220V power sources.
What is the typical lifespan of the LED source?
The high-efficiency LED source is designed to last for tens of thousands of hours, significantly reducing maintenance needs and replacement costs.
Can these lights be used on lifeboats?
Yes, these spotlights are ideal for various marine applications, including surveillance patrol, lifeboat alerts, and general ship navigation.
