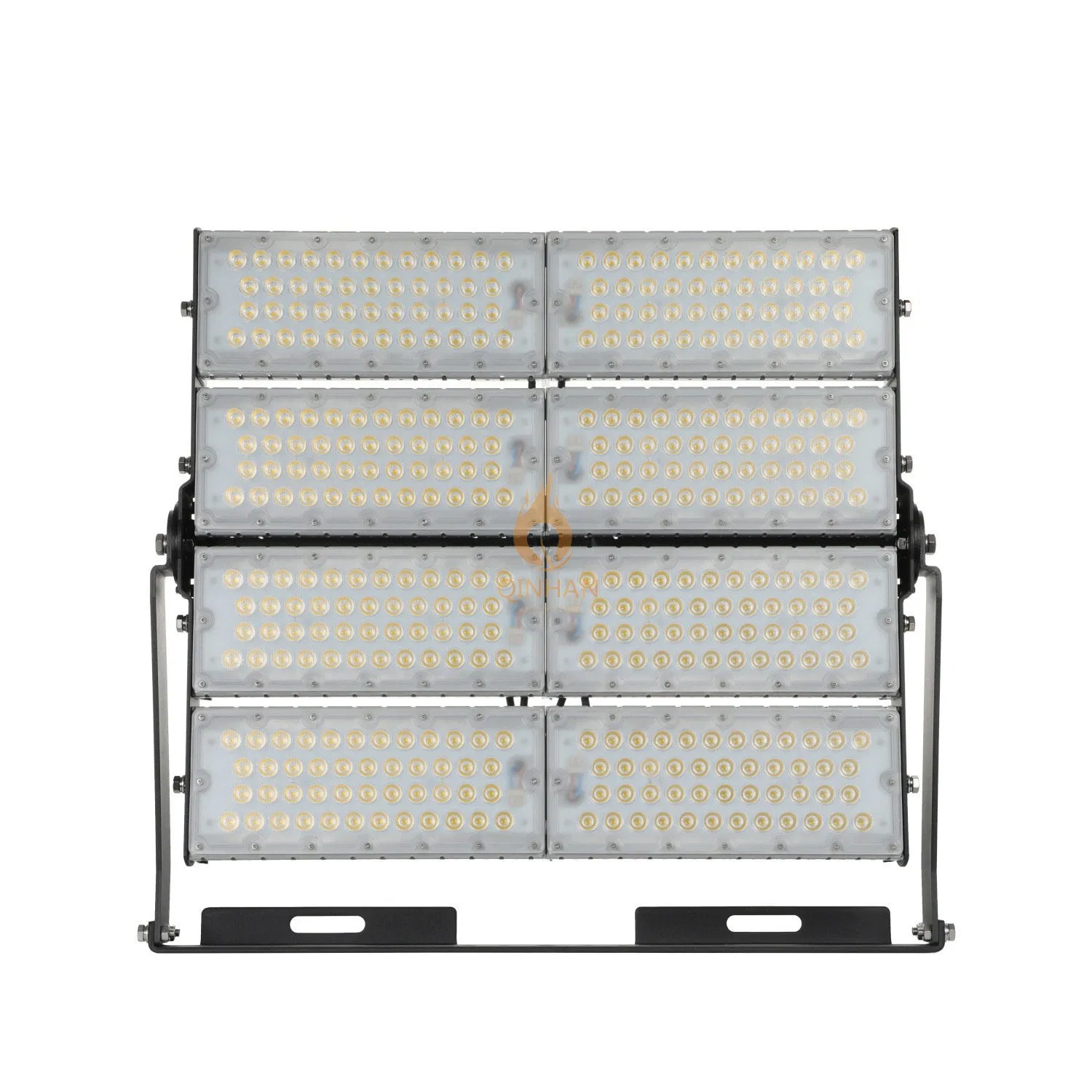

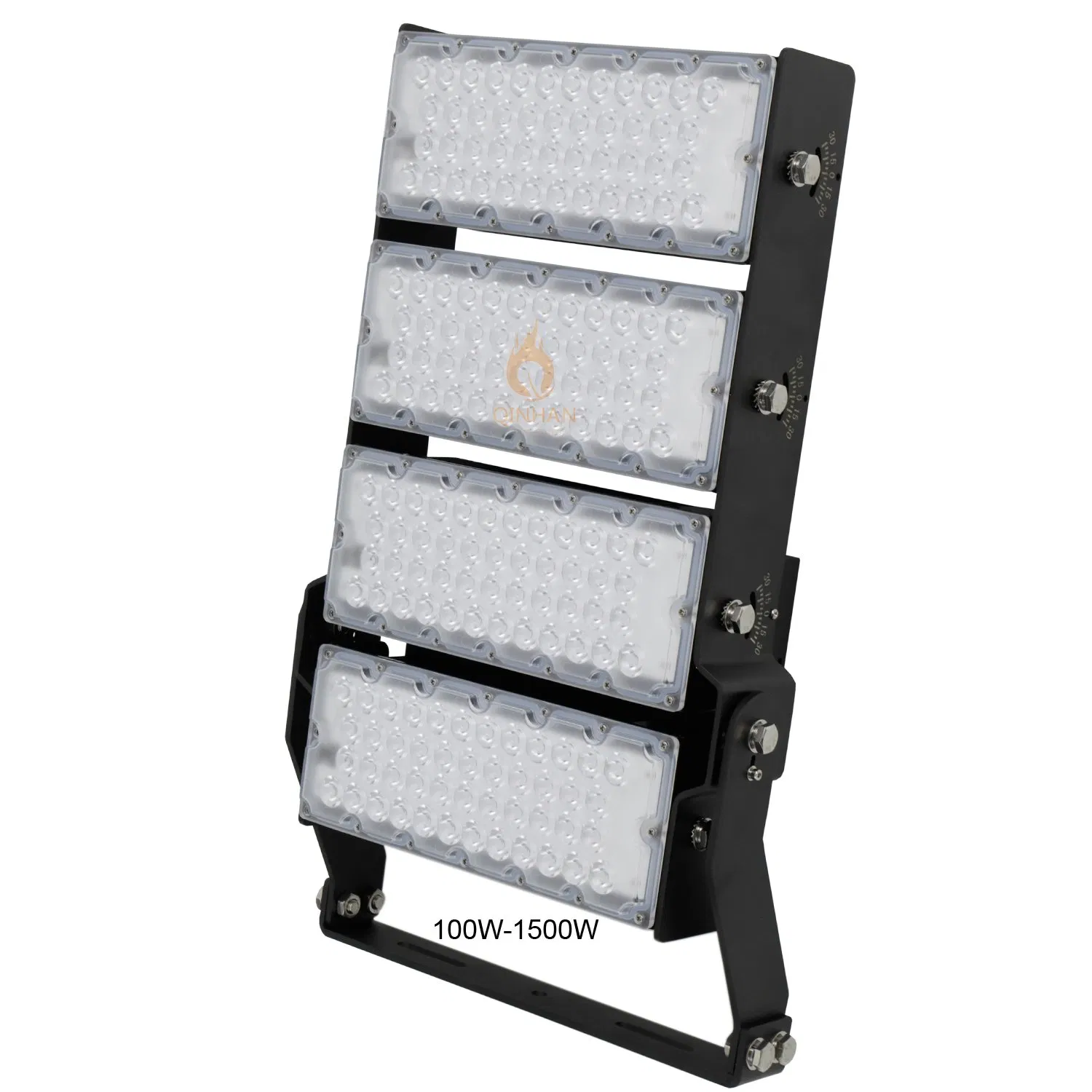

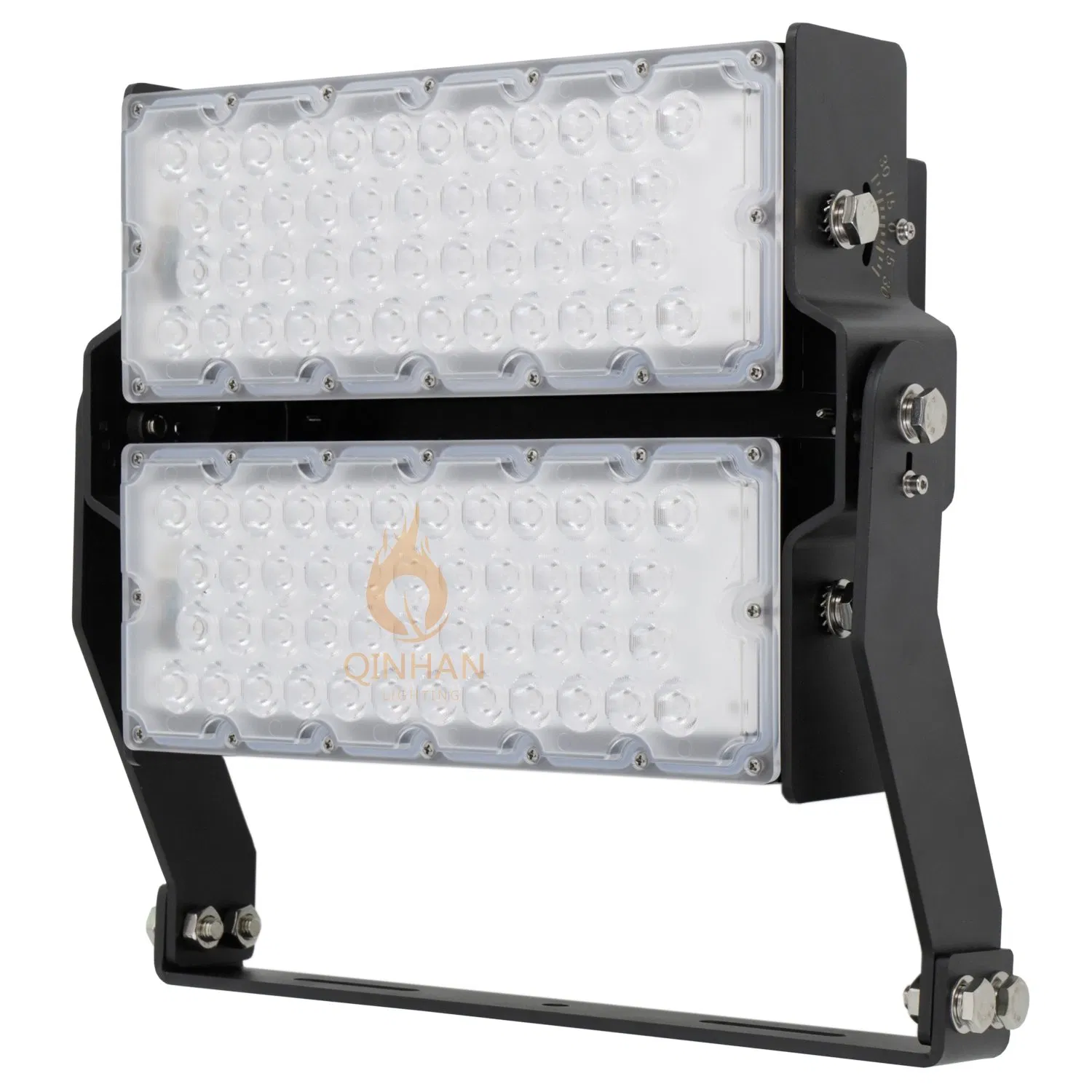

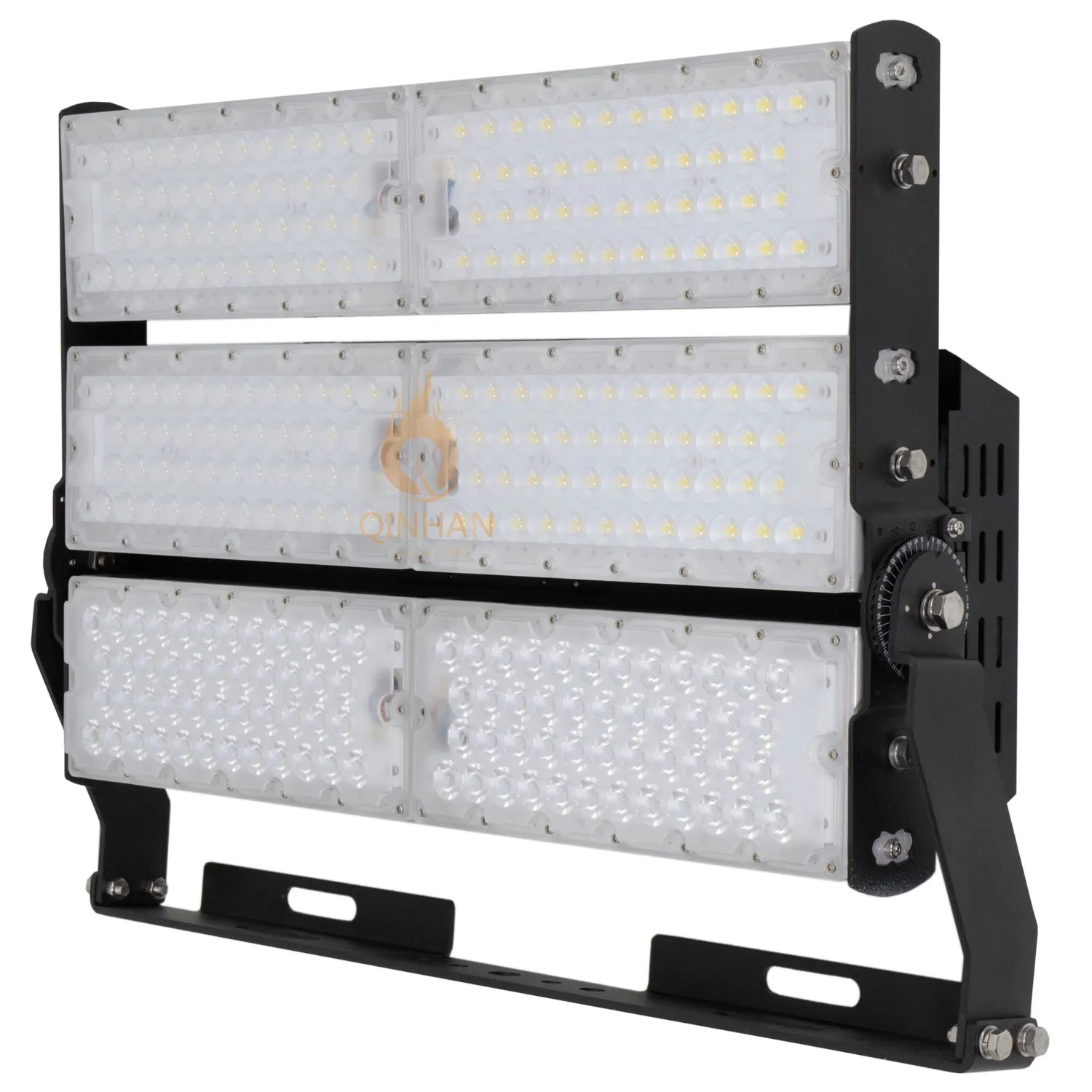

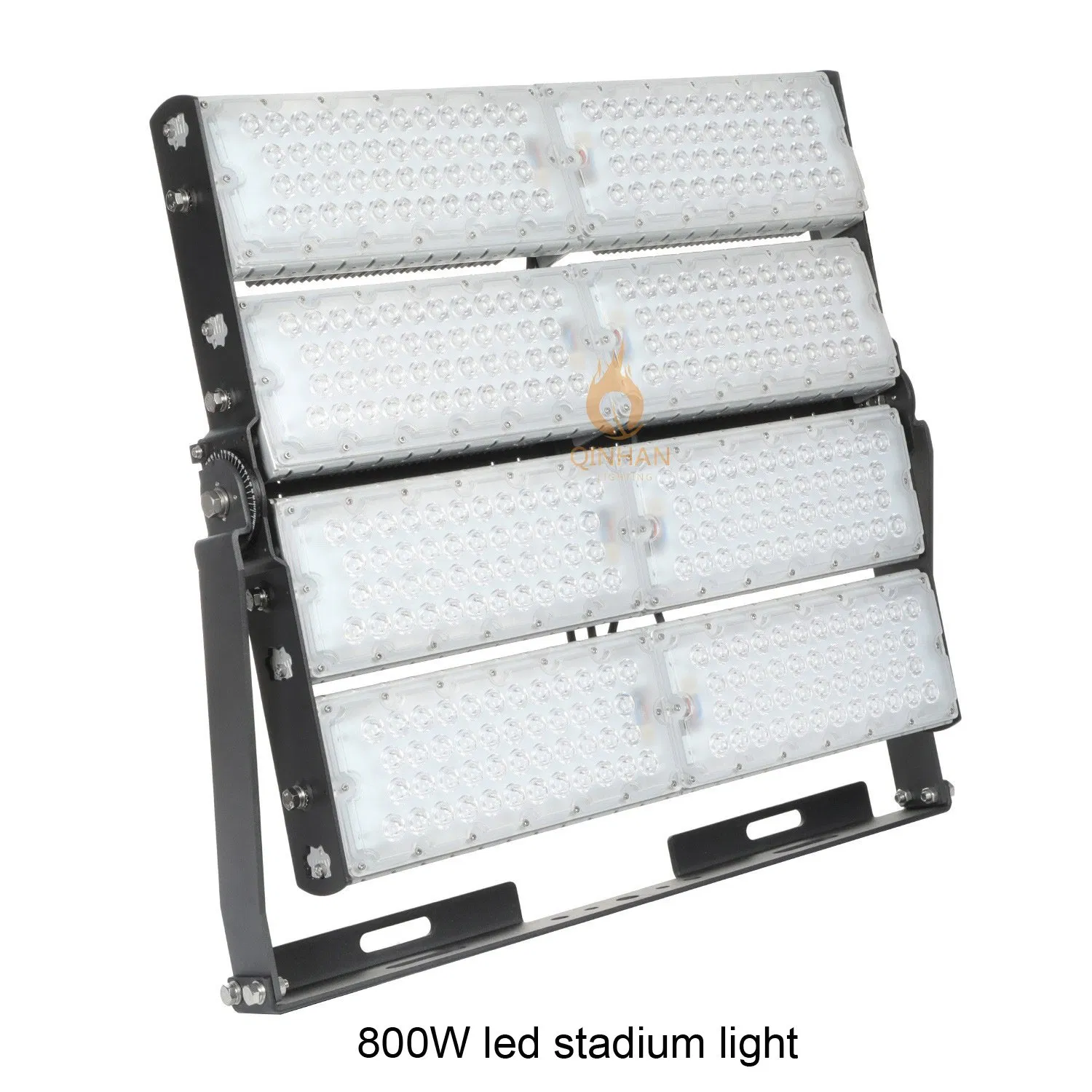

160lm/W High Power 800W SMD LED High Mast Pole Projector Flood Reflector Light for Outdoor Football Field Stadium Sport Lighting
160lm/W High Power 800W SMD LED High Mast Pole Projector Flood Reflector Light for Outdoor Football Field Stadium Sport Lighting
160lm/W High Power 800W SMD LED High Mast Pole Projector Flood Reflector Light for Outdoor Football Field Stadium Sport Lighting
160lm/W High Power 800W SMD LED High Mast Pole Projector Flood Reflector Light for Outdoor Football Field Stadium Sport Lighting
160lm/W High Power 800W SMD LED High Mast Pole Projector Flood Reflector Light for Outdoor Football Field Stadium Sport Lighting
1 / 5
160lm/W High Power 800W SMD LED High Mast Pole Projector Flood Reflector Light for Outdoor Football Field Stadium Sport Lighting
160lm/W High Power 800W SMD LED High Mast Pole Projector Flood Reflector Light for Outdoor Football Field Stadium Sport Lighting
160lm/W High Power 800W SMD LED High Mast Pole Projector Flood Reflector Light for Outdoor Football Field Stadium Sport Lighting
160lm/W High Power 800W SMD LED High Mast Pole Projector Flood Reflector Light for Outdoor Football Field Stadium Sport Lighting
160lm/W High Power 800W SMD LED High Mast Pole Projector Flood Reflector Light for Outdoor Football Field Stadium Sport Lighting

160lm/W High Power 800W SMD LED High Mast Pole Projector Flood Reflector Light for Outdoor Football Field Stadium Sport Lighting

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

★

Basic Specifications

Model NO.
QH-FLHM-800W
Pole Height
20-25m
Power
160LMW 100W -1500W
IP Rating
IP66
LED Chips
CREE
Luminous Flux
128,000lm (800W)
Efficiency
160lm/W
Warranty
5 Years
Input Voltage
90-305V AC / 347V Optional
Body Material
Aviation Aluminum
ℹ

Product Overview

Introducing our top-of-the-line 160lm/W Waterproof High Power Adjustable 5050 SMD LED High Mast Pole Flood Light. Designed specifically for outdoor airport, stadium, and sport lighting, this solution offers exceptional brightness and efficiency across a range of wattages from 200W to 1500W.

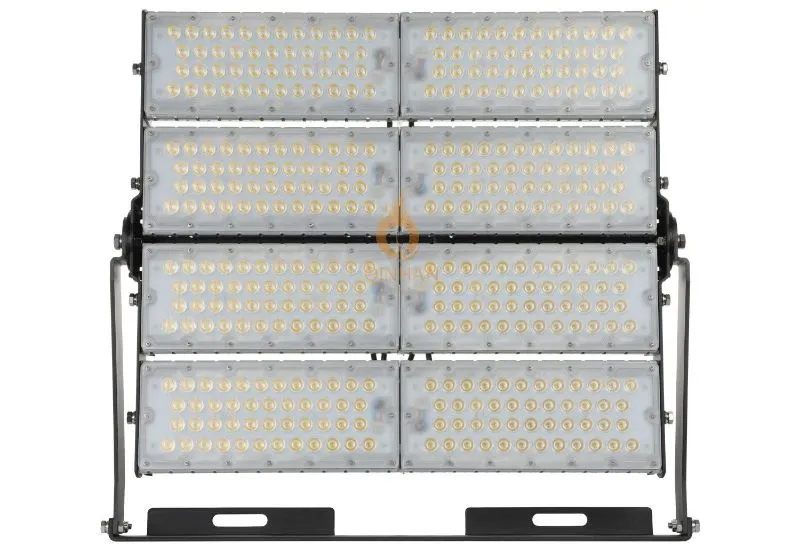

LED High Mast Light
High Power LED Stadium Light
✔

Key Features

01IP66 rated waterproof protection for harsh environments.
02Rotatable modules offering maximum lighting customization.
03Multiple optics available: 20° / 40° / 60° / 90° / 140x100° / 120°.
04Equivalent to 250W-5000W metal halide fixtures.
05Instant-on, flicker-free operation with 160Lm/W efficiency.
0650,000-hour operating life for maintenance-free use.
07Unique heat extraction design extending component life.
08Protractor scale for easier aiming and precise installation.
📊

Technical Datasheet

Model 100W 200W 300W 400W
Luminous Flux150-160LM/Watt
LED Source5050 SMD
LED Qty184pcs368pcs552pcs736pcs
DriverMeanwell or Sosen
Input Voltage90-305V AC 50/60Hz
CRICRI > 80
Weight3.1Kg6.5Kg7.5Kg9.5Kg
Model 600W 800W 1000W 1200W
Luminous Flux150-160LM/Watt
LED Source5050 SMD
LED Qty1104pcs1472pcs1840pcs2208pcs
Weight15.5Kg21.5Kg24Kg31.5Kg
Packing Size91*42*18cm71*65*18cm78*71*18cm90*71*18cm
🖼

Applications & Dimensions

Ideal for: Squares, parks, ports, airports, shipyards, container wharfs, golf courses, and football fields.

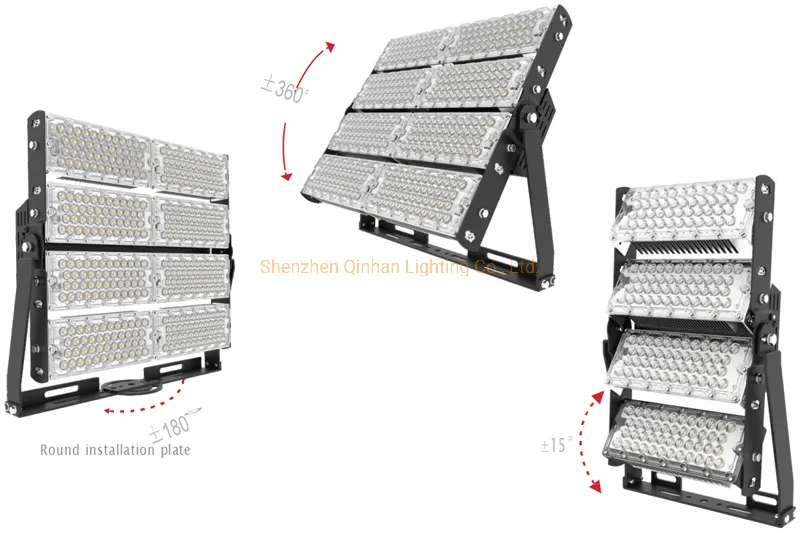

Stadium Lighting Application

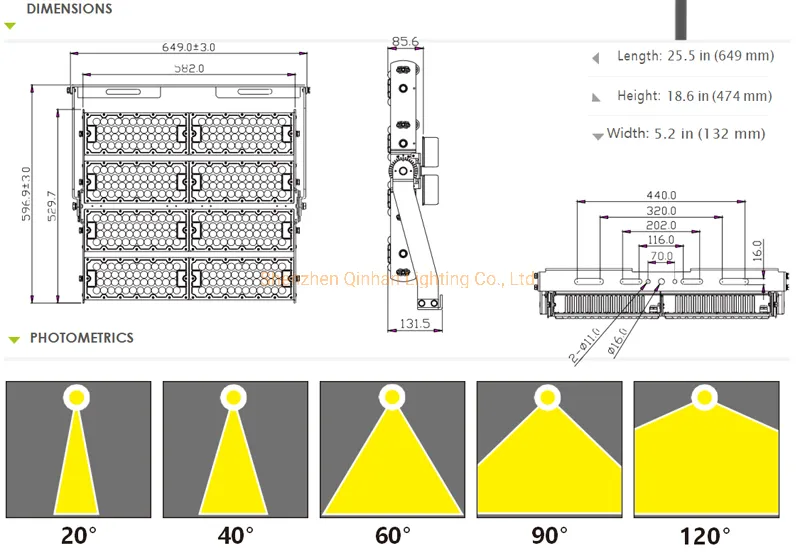

Size Diagram

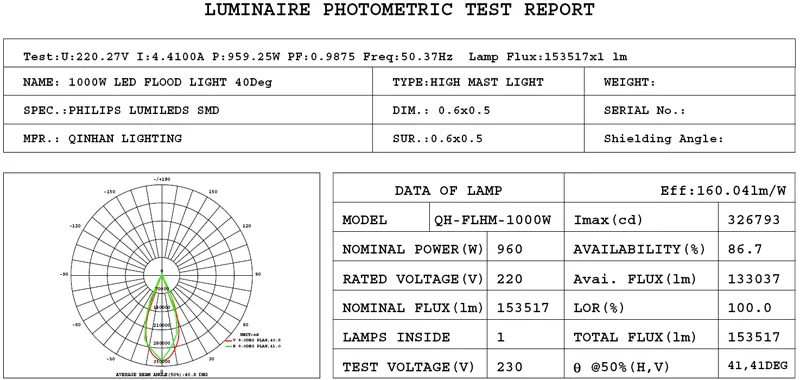

Optical Lens Design

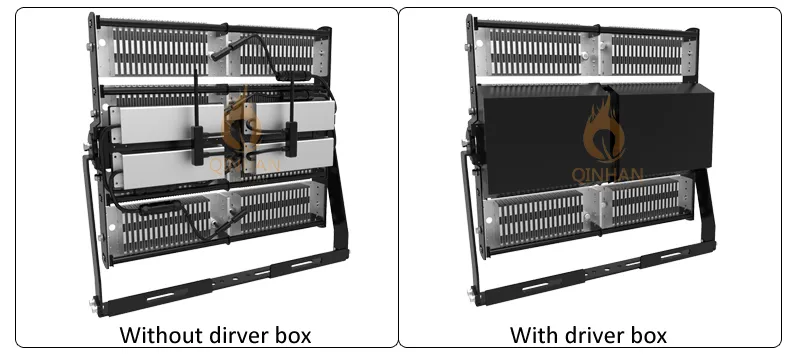

Module Details

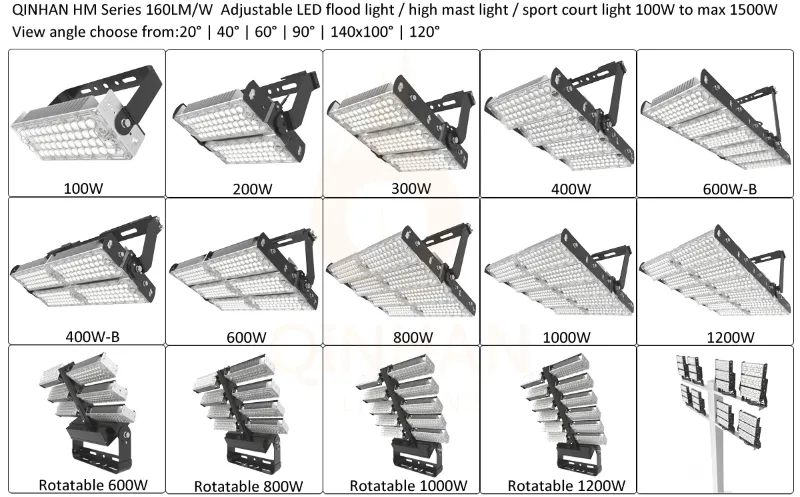

Product Range
Mounting Bracket
?

Frequently Asked Questions

Q1: Can we customize the brand and logo on the fixtures?
Yes, we support brand customization, including logo printing, embossing on the housing, and custom branded packaging boxes.
Q2: What is the warranty period for these high mast lights?
We provide a standard 5-year warranty on our professional high mast LED lighting products.
Q3: How do you ensure the quality of the flood lights?
Quality is our priority. We use only top-tier components like CREE chips and Meanwell drivers. Our products have gained CE, RoHS, FCC, and ISO9001 certifications.
Q4: What happens if a light fails upon arrival?
If any units are non-functional upon receipt, we will provide the same quantity of working lights as compensation in your next order.
Q5: Are these lights suitable for extreme weather conditions?
Yes, with an IP66 rating and a working temperature range of -40ºC to +70ºC, they are designed for durable outdoor performance.
Q6: What payment terms do you accept?
We accept T/T, L/C at sight, and Western Union.
