📋 Basic Information
| Model NO. |
MXEL-8260 |
Base Type |
LED |
| Irradiated Area |
≥30m² |
Input Voltage |
220v |
| Power |
70-120W |
Color Temperature |
Cool White |
| LED Chips Brand |
CREE |
Certification |
CE, ATEX |
| Light Effect |
120-200lm/W |
Size |
315X690X95mm |
| Weight |
13.5kg |
Production Capacity |
500 PCS/Day |
💡 Product Description
| ITEM |
WATT |
LUMEN |
VOLTAGE |
CCT |
| MXEL 8260 |
30W |
3600lm |
AC220V 50/60Hz |
3000K
4000K
5000K
6500K |
| 40W | 4800lm |
| 60W | 7200lm |
| 80W | 9600lm |
| 100W | 12000lm |
| 120W | 14400lm |
| 150W | 18000lm |
| 200W | 24000lm |
| 240W | 28800lm |
| 300W | 36000lm |
| CUSTOM |
Support for custom wattage, driver, LED chip, optics, beam angle, RGB, sensor, etc. |
🔍 Product Details

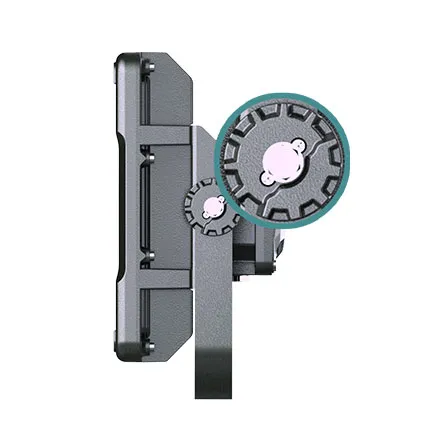

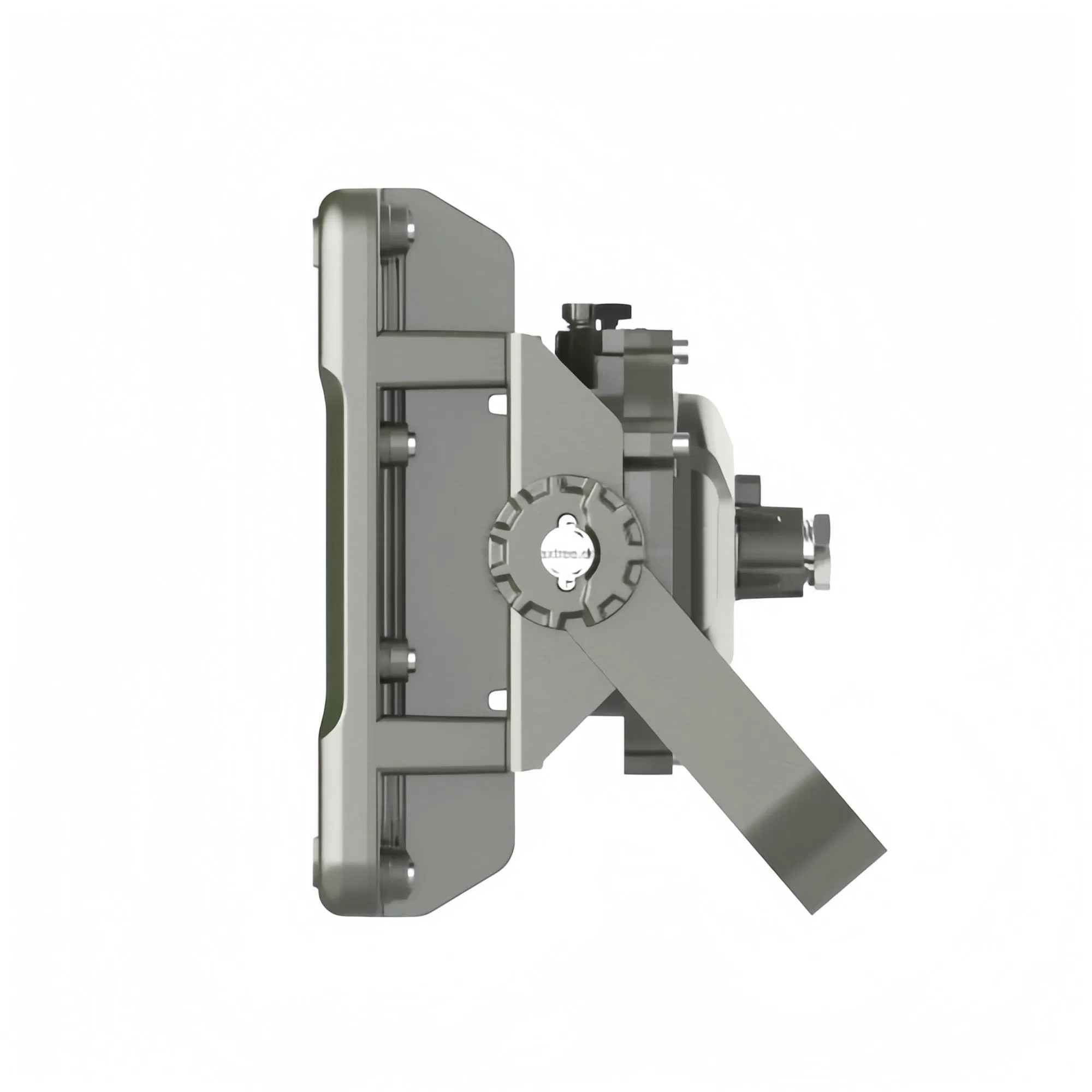

Tailor the lighting direction to specific points with the flexibility of an adjustable angle, ensuring precise illumination where needed.
Incorporating an extensive and efficient heat dissipation structure across a broad area, our design promotes stable operation by effectively managing thermal conditions.

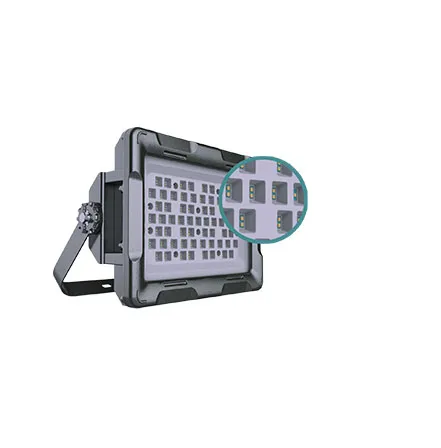

Implementing an individualized lens for each LED chips unit, our design minimizes light waste, ensuring efficient and targeted illumination.

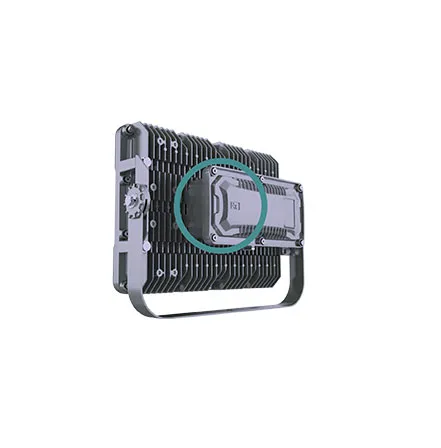

Featuring an isolated high-intensity flame-proof aluminum housing specifically designed for the LED driver, our system prioritizes safety and reliability in challenging environments.

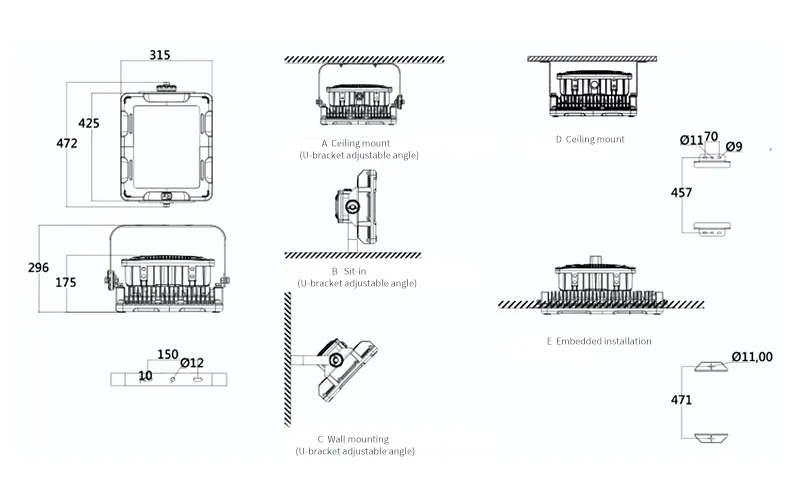

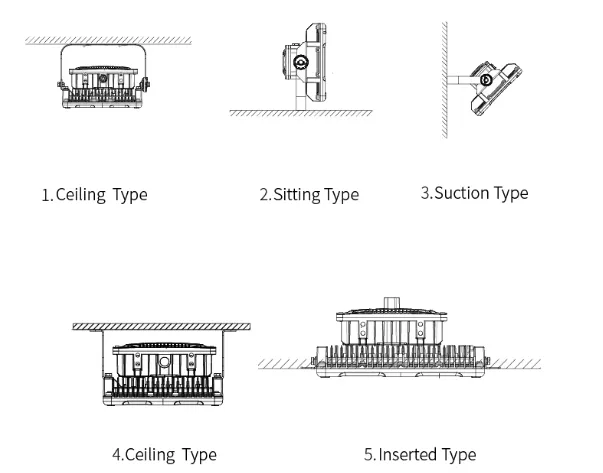

🛠️ Installation Instructions

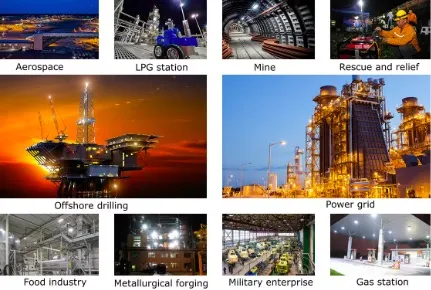

🏭 Application Areas
- Oil and Gas Facilities
- Chemical Processing Plants
- Mining Operations
- Hazardous Material Zones
- Marine Environments
- Wastewater Treatment
- Railway and Highway Tunnels
- High-Risk Industrial Zones

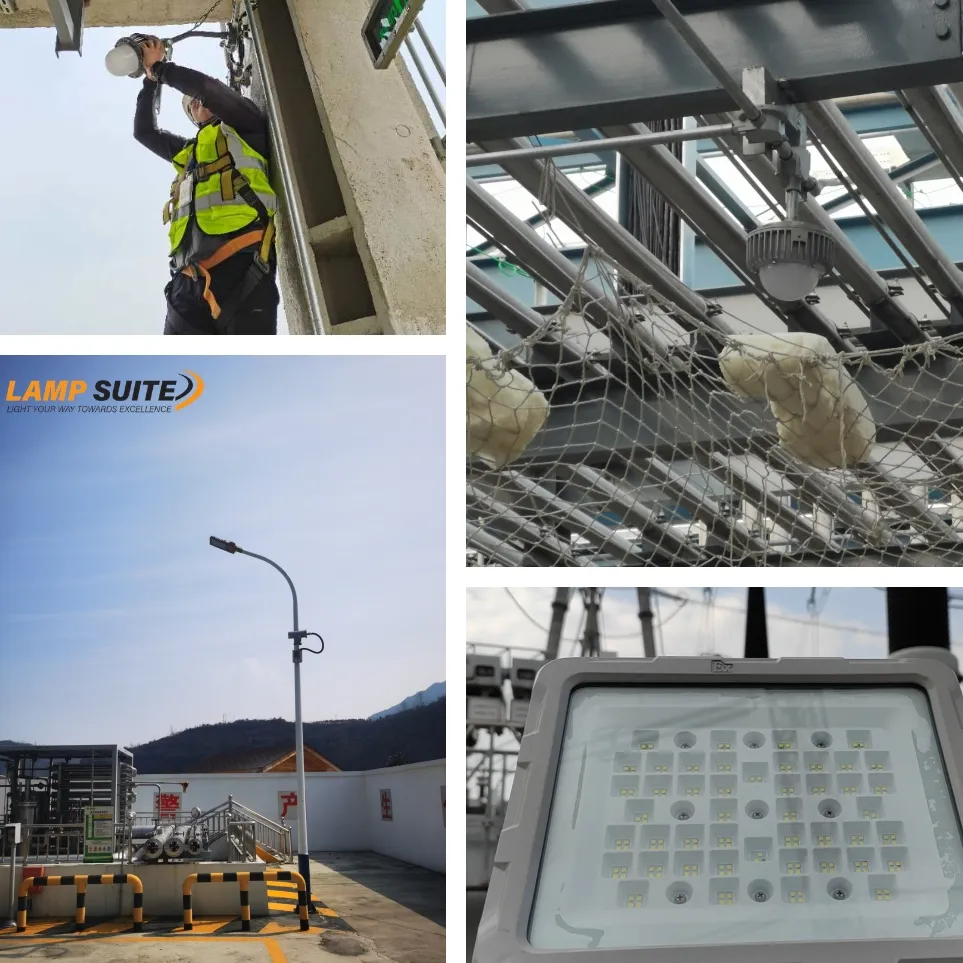

📸 Actual Installation Diagram
❓ FAQ
How do you guarantee the quality of your lighting products?
We maintain strict quality control by always providing a pre-production sample before mass production and conducting a comprehensive final inspection before every shipment.
What are your accepted delivery and payment terms?
We accept various delivery terms including FOB, CFR, CIF, and EXW. Payments are accepted via T/T and L/C in USD, GBP, or CNY.
Do you offer customization for specific industrial needs?
Yes, we support extensive customization for wattage, drivers, LED chips, optics, beam angles, CCT, dimming options, and shell colors to meet diverse industrial requirements.
What certifications do your explosion-proof lights hold?
Our products are fully compliant with ATEX and CE standards, featuring IP66/IP67 waterproof ratings and IK10 impact resistance for hazardous environments.
What is the typical lifespan and warranty for these fixtures?
Our LED floodlights are designed with a lifespan of 50,000 hours and come with a standard 5-year warranty to ensure long-term reliability.
Are these lights suitable for extreme temperature conditions?
Yes, they are engineered to operate stably in ambient temperatures ranging from -40ºC to +55ºC (-40°F to +131°F).
