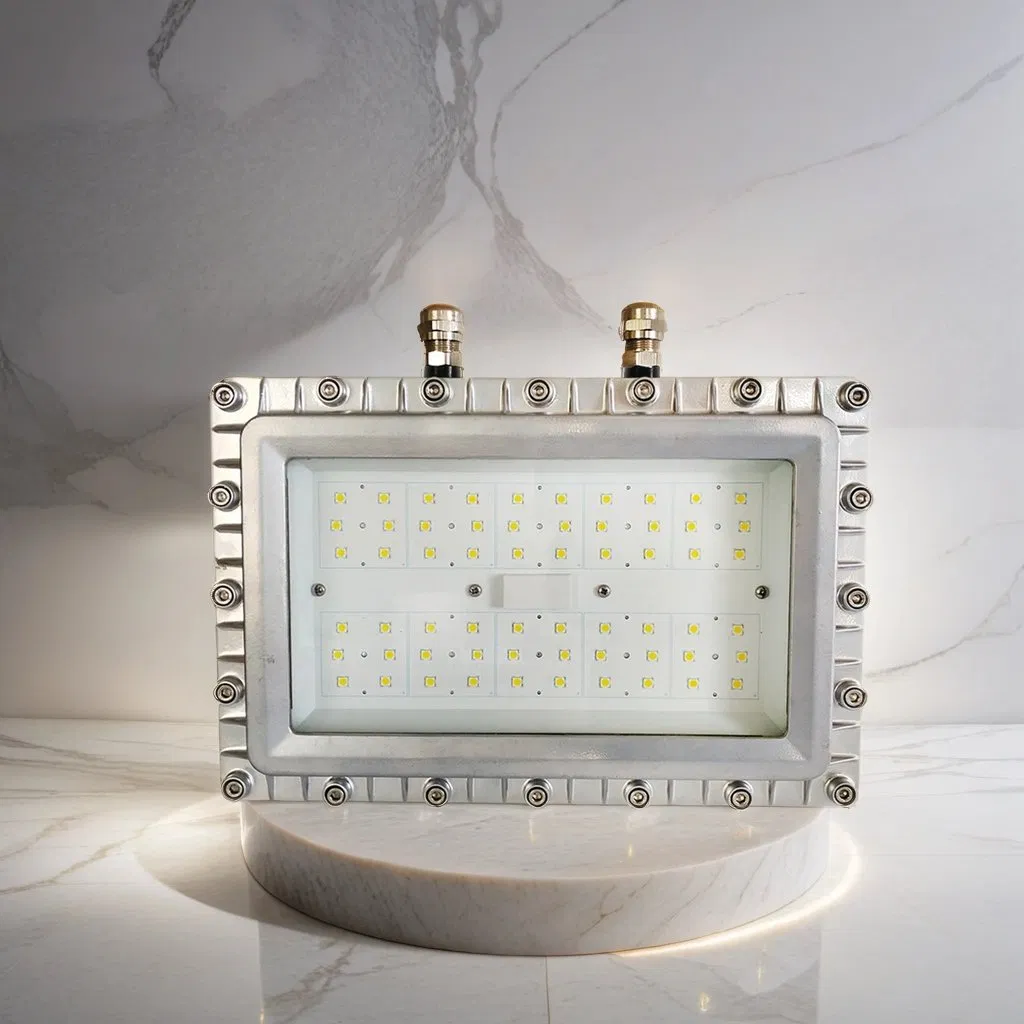

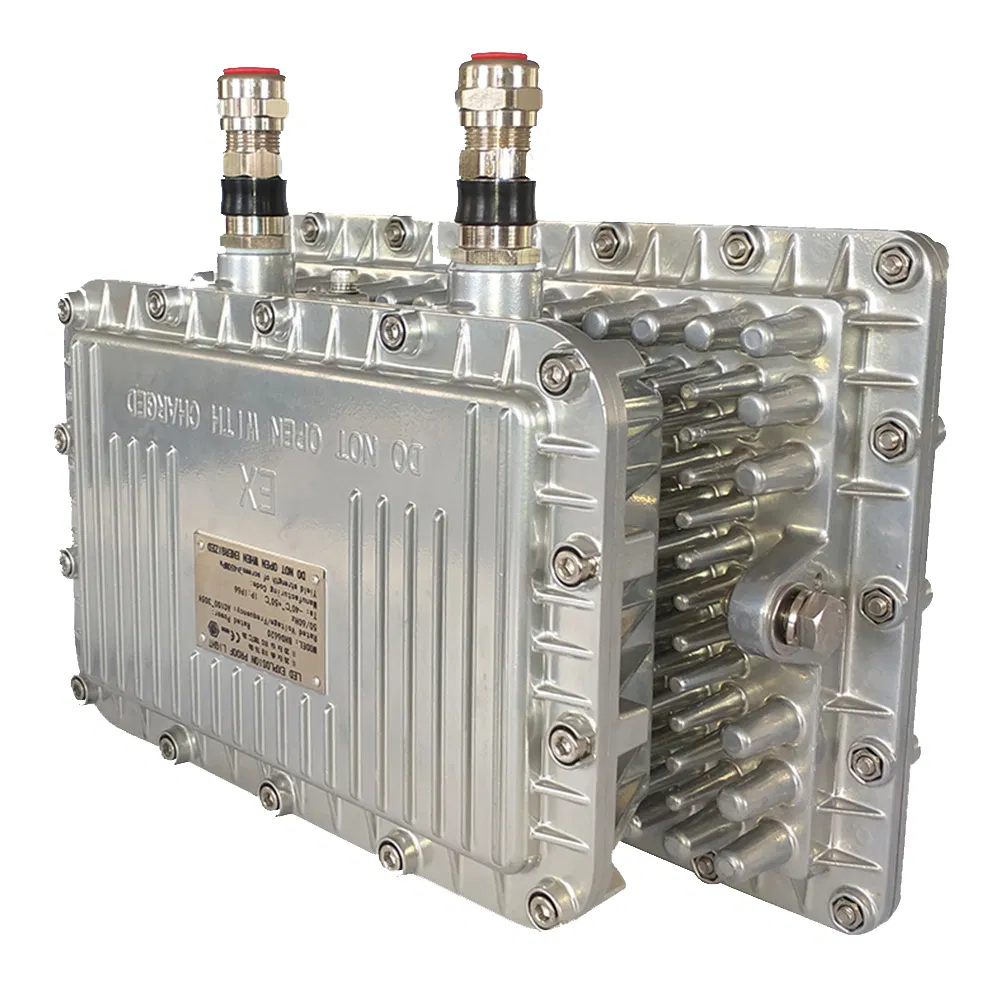

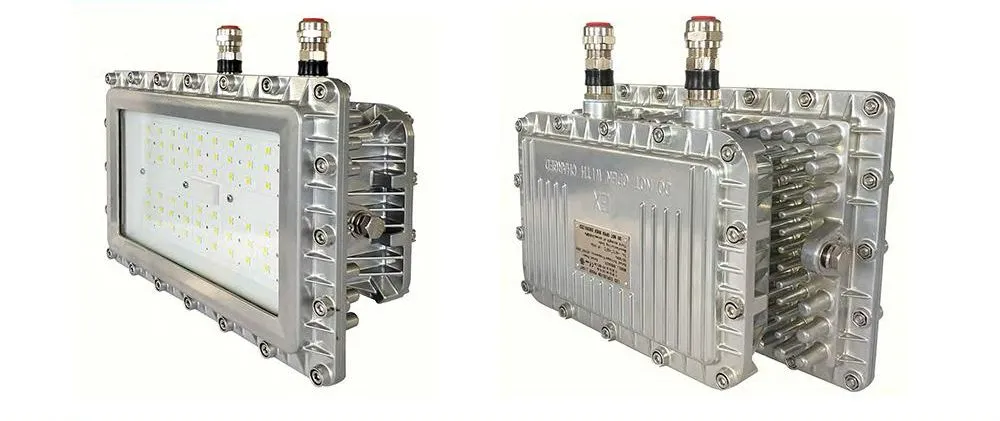

Atex Anti Explosion Proof Flood Light IP66 Zone 1/2/21/22 Explosion-proof Led Lights

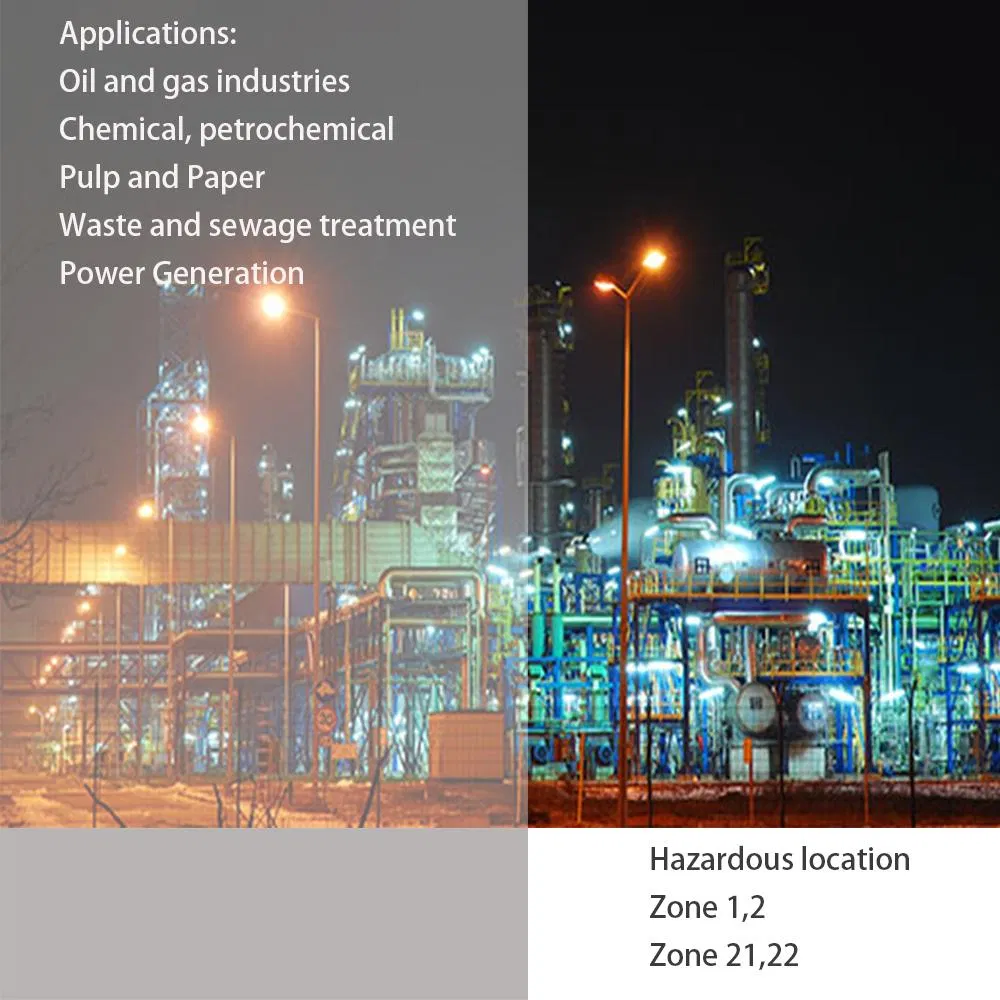

| APPLICATIONS | Hazardous location LED explosion proof fixture; Class I Division 2, Groups A,B,C,D; Zone 1 & 2; Zone 21 & 22. |
| CERTIFICATIONS | ATEX, IECEx certificate issued by TUV, CE, ROHs. |

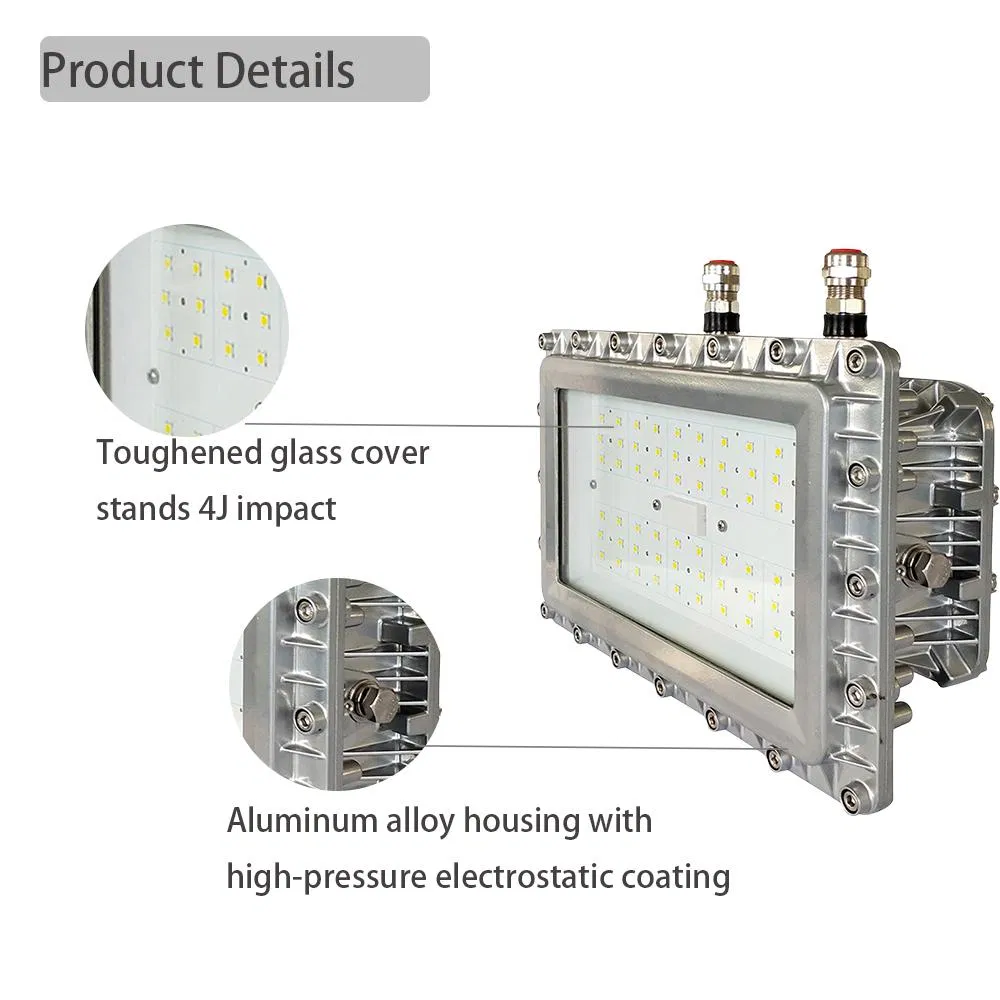

| HOUSING BODY | Aluminum alloy ADC12, WF2 grade. |
| LENS | 4mm thick tempered glass & PC reflector; 30º/60º/90º/120º beam angles; +95% light transmission. |

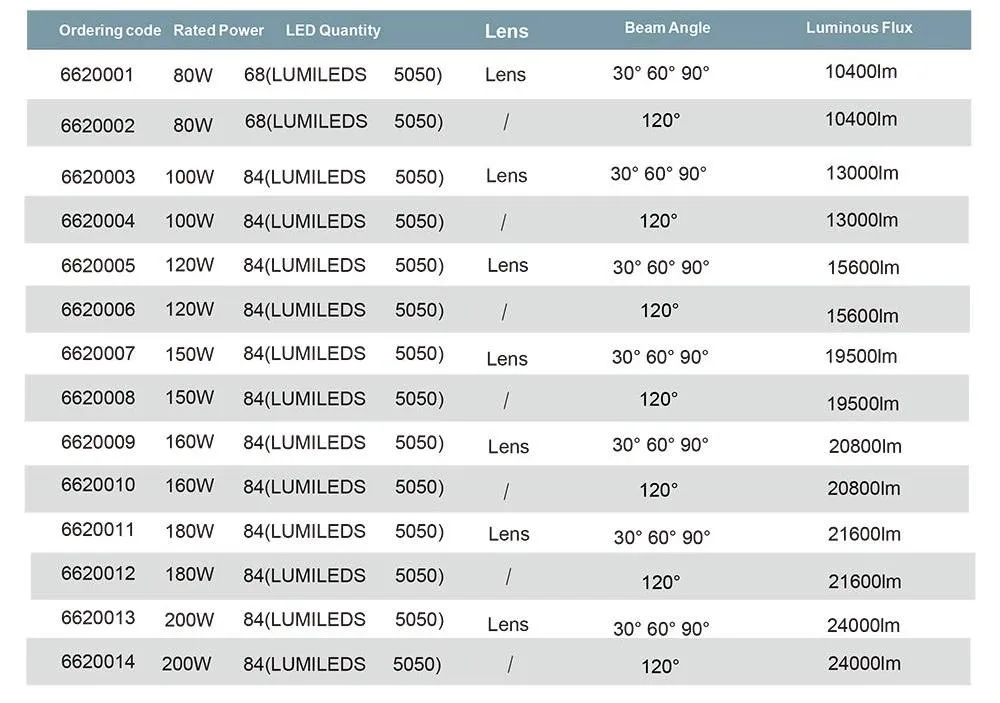

| PERFORMANCE | 12,000 to 24,050+ lumens; Up to 140 lm/w; 80W up to 200W. |
| IP RATING | IP66 & IP67 Rated; Dust tight and waterproof. |

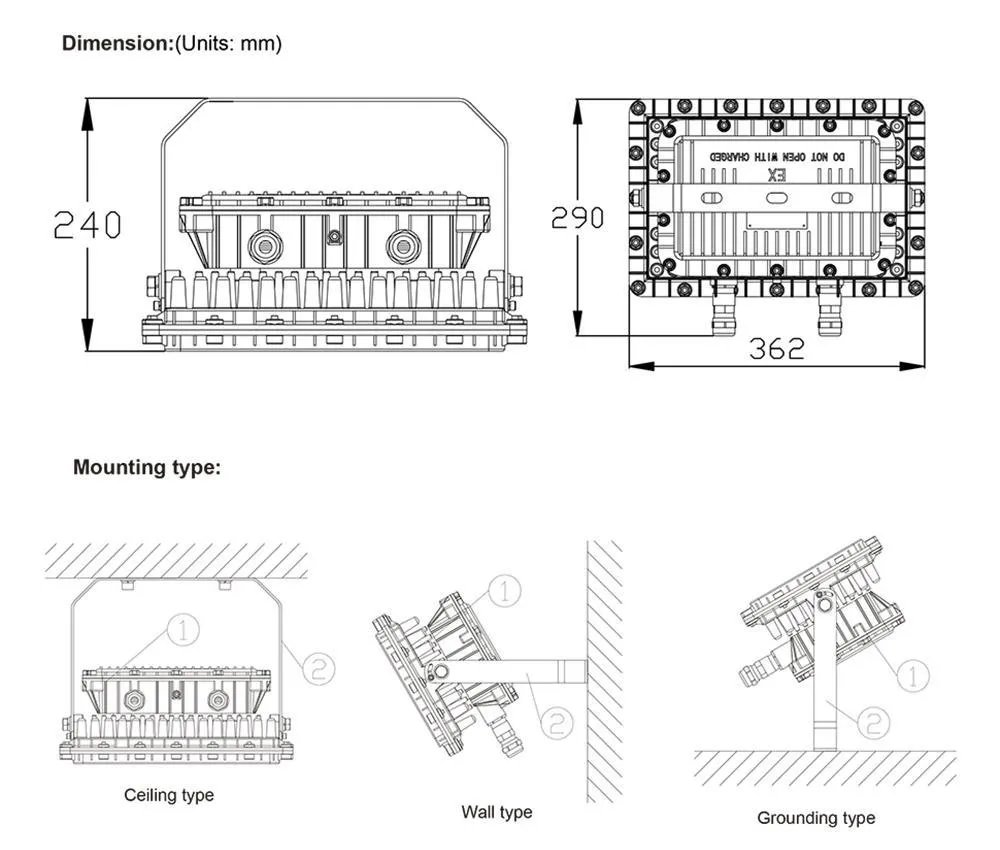

| MOUNTING | Surface/wall mount (adjustable bracket included); Pendant kit optional. |
| TEMPERATURE | Operating Range: -40°C to 50°C. |
| DIMMING | 1-10V dimming standard, DALI, Triac. |
1. It is strictly forbidden to disassemble with electricity in flammable and explosive places.
2. Do not damage the explosion-proof surface during installation. Fastening screws should be tightened evenly.
3. Regularly check whether the performance of the alarm is intact. Repairs must be handled by professionals.
Note: Users are responsible for consequences resulting from violating safety regulations.
