Jamaica Light
1 / 5

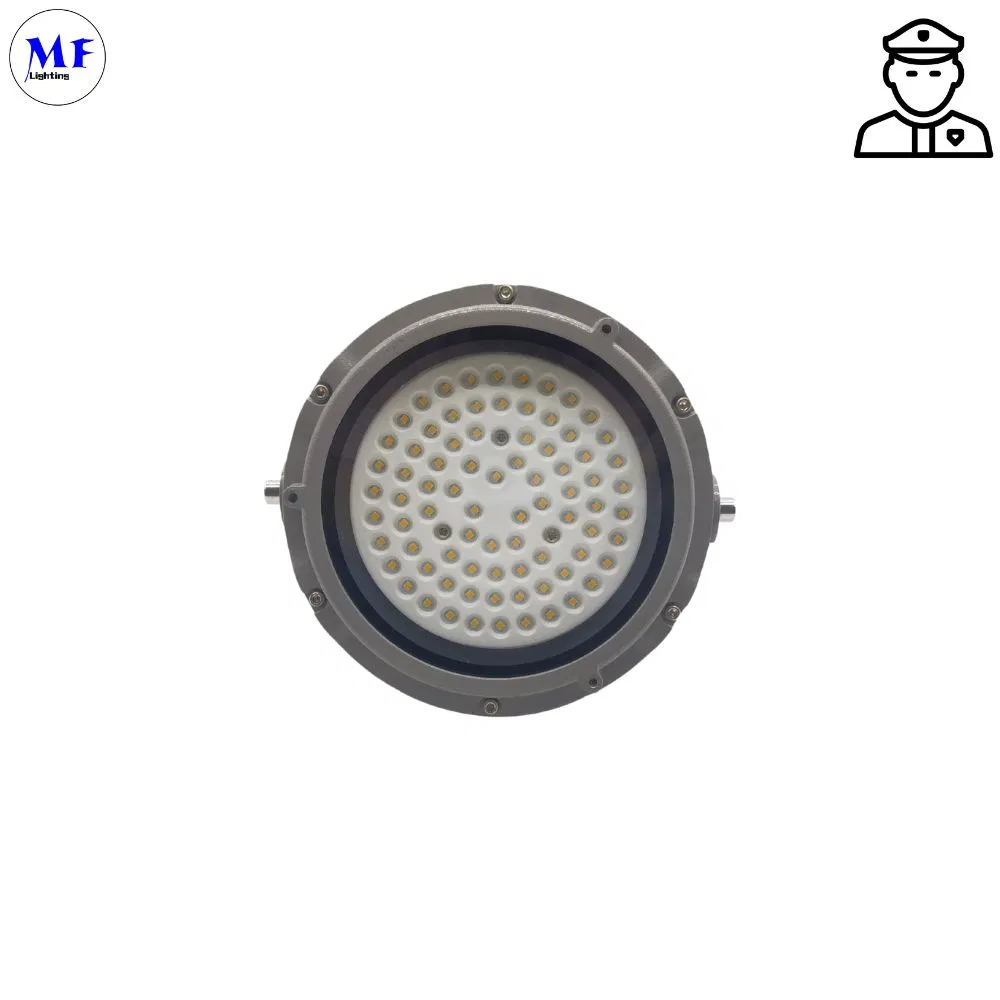

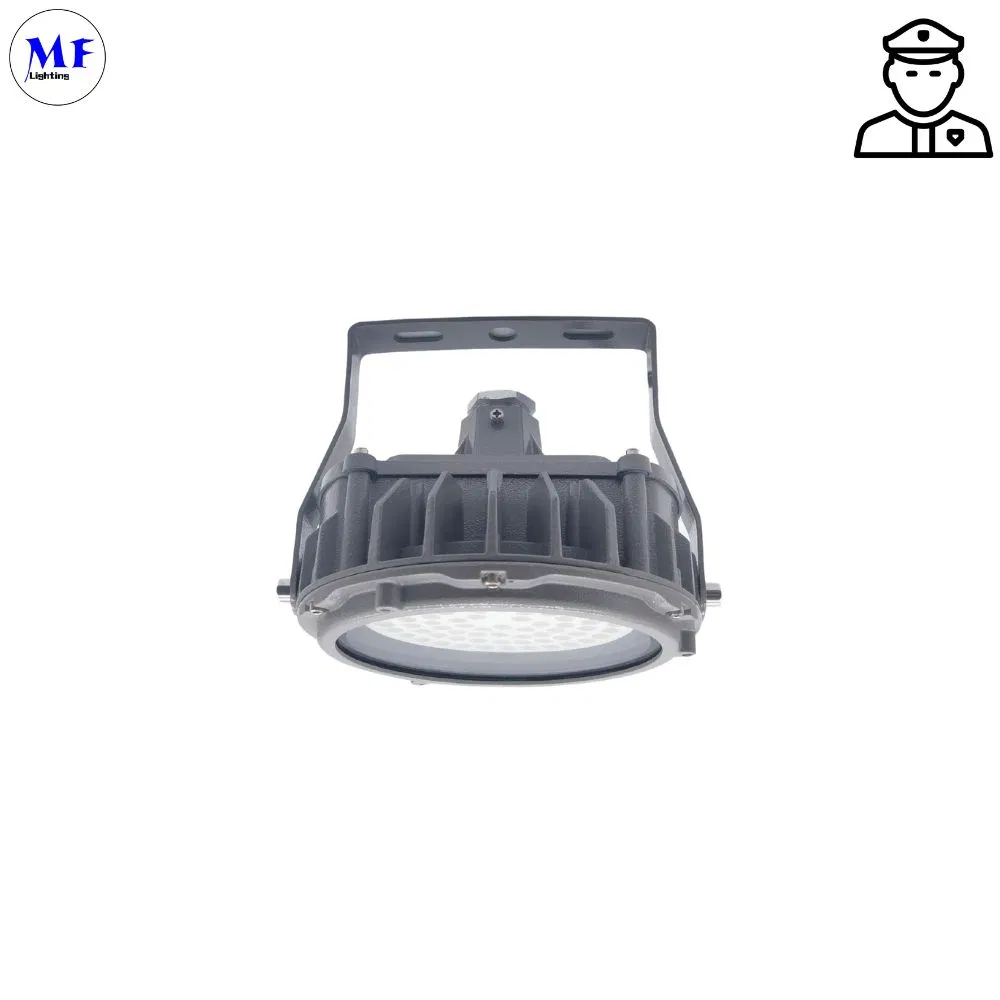

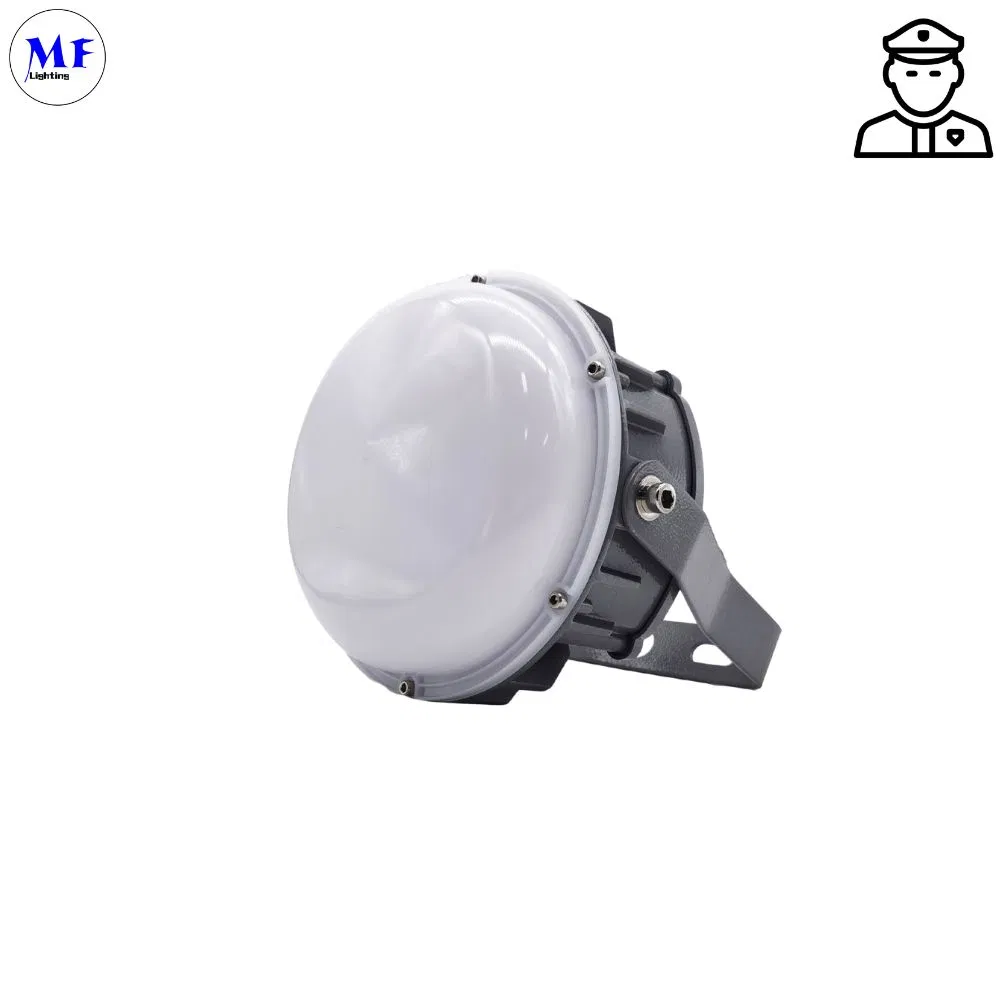

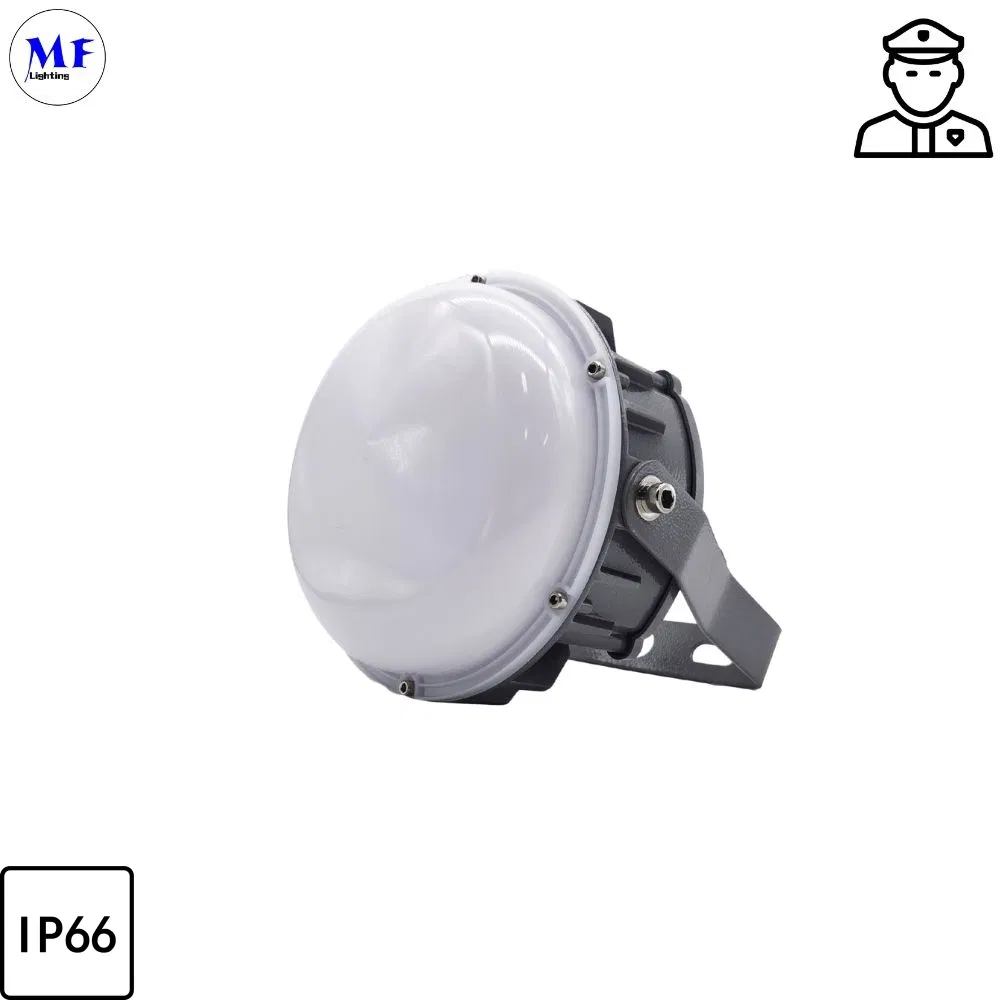

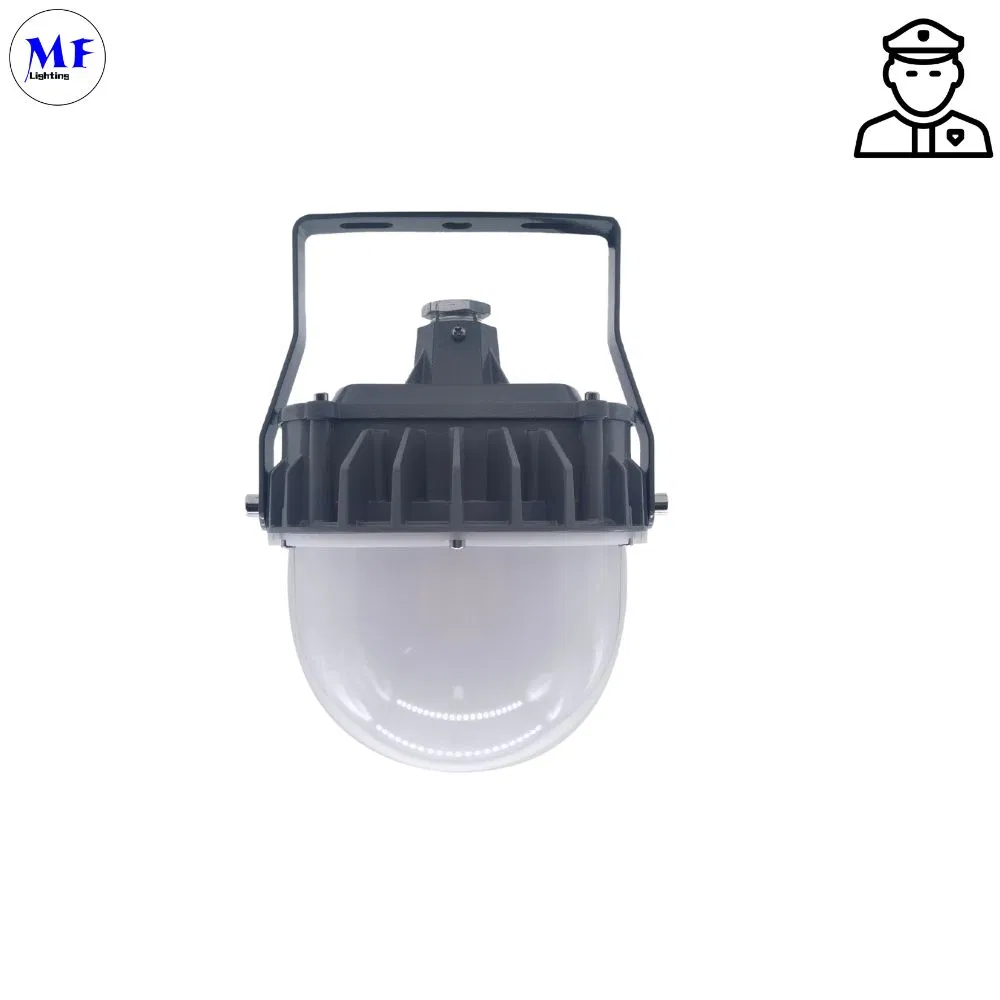

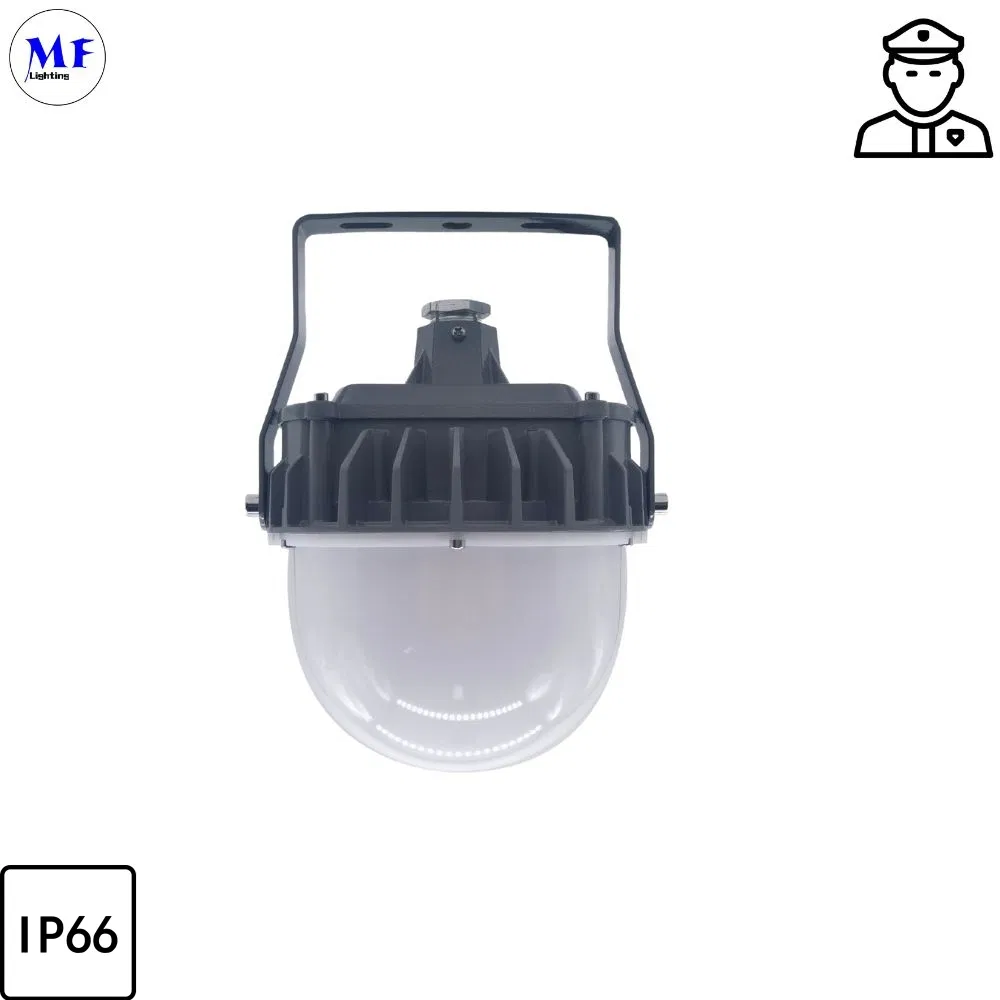

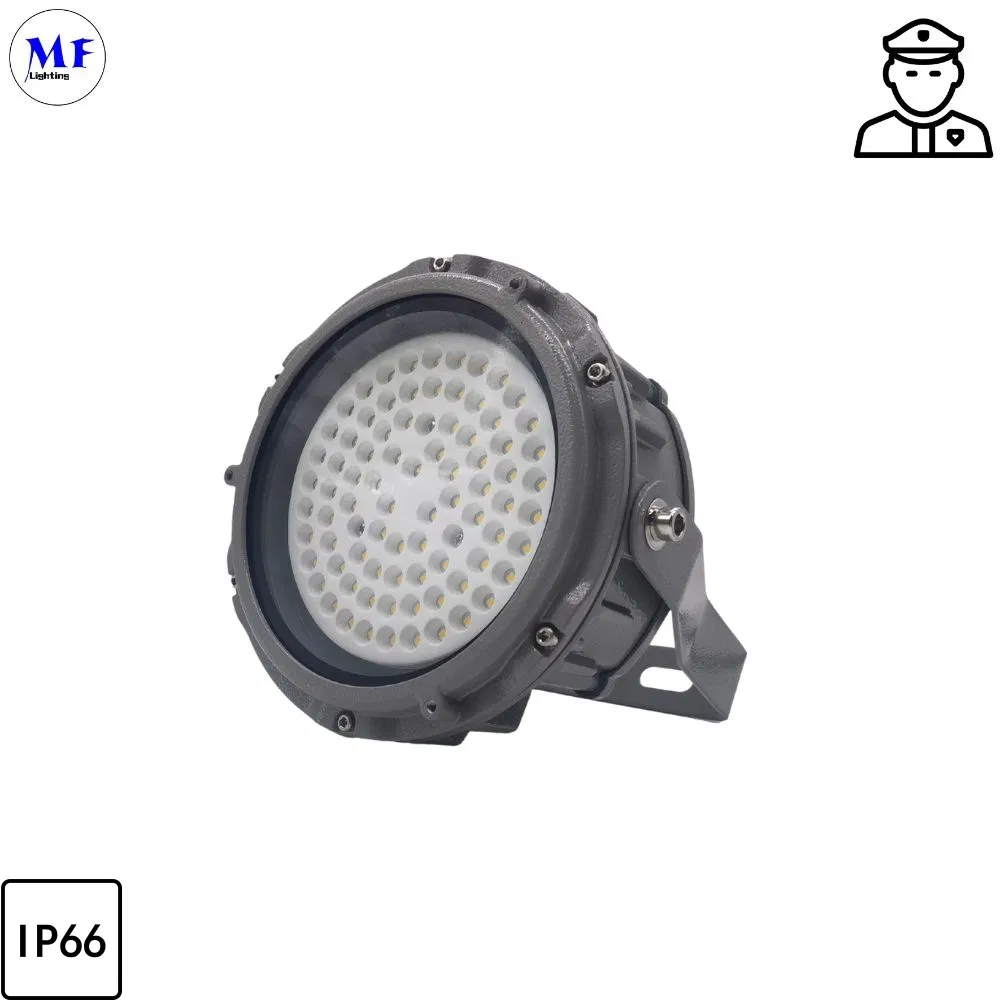

60W IP66 IK10 100V~227V 140LM/W LED Explosion Proof Light for Harsh Environments. Designed for high-risk industrial areas, this fixture offers superior durability and high-performance illumination.
| Mechanical Details | Optical Details | ||
|---|---|---|---|
| Housing Material | Die-cast Aluminum UL844 | Lumen Output | Max 7800lm |
| Glass | Tempered glass | Efficiency | 130lm/W - 140lm/W |
| Surface | Explosion-proof joint | CRI | 70 |
| Protection | IP66 IK10 | Driver | IEC Certified |
| Model | Net Weight | Package Dimensions | Quantity/Carton | Gross Weight |
|---|---|---|---|---|

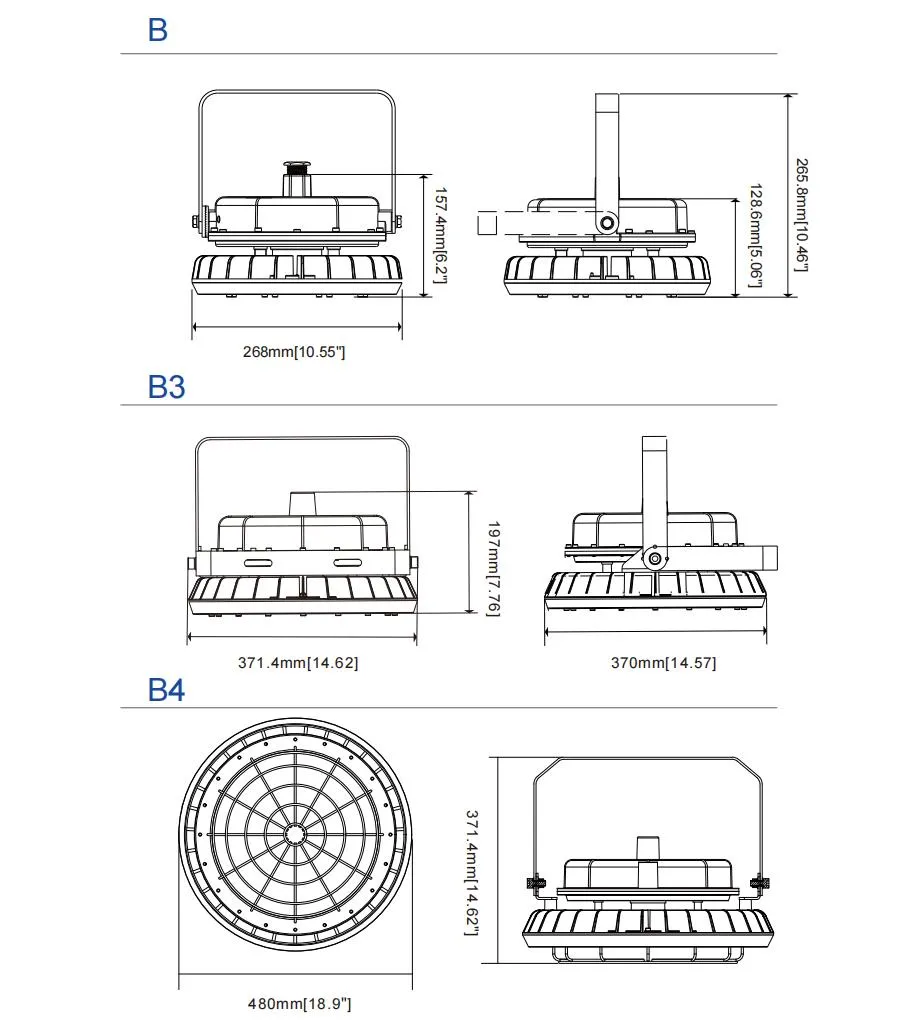

| B3 Series | 2.2KG | 30x30x20.5cm | 1 pc | 2.8KG |

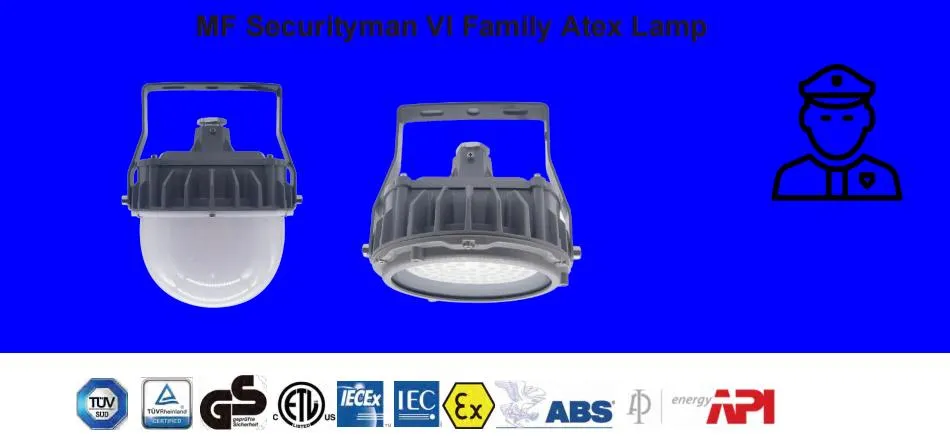

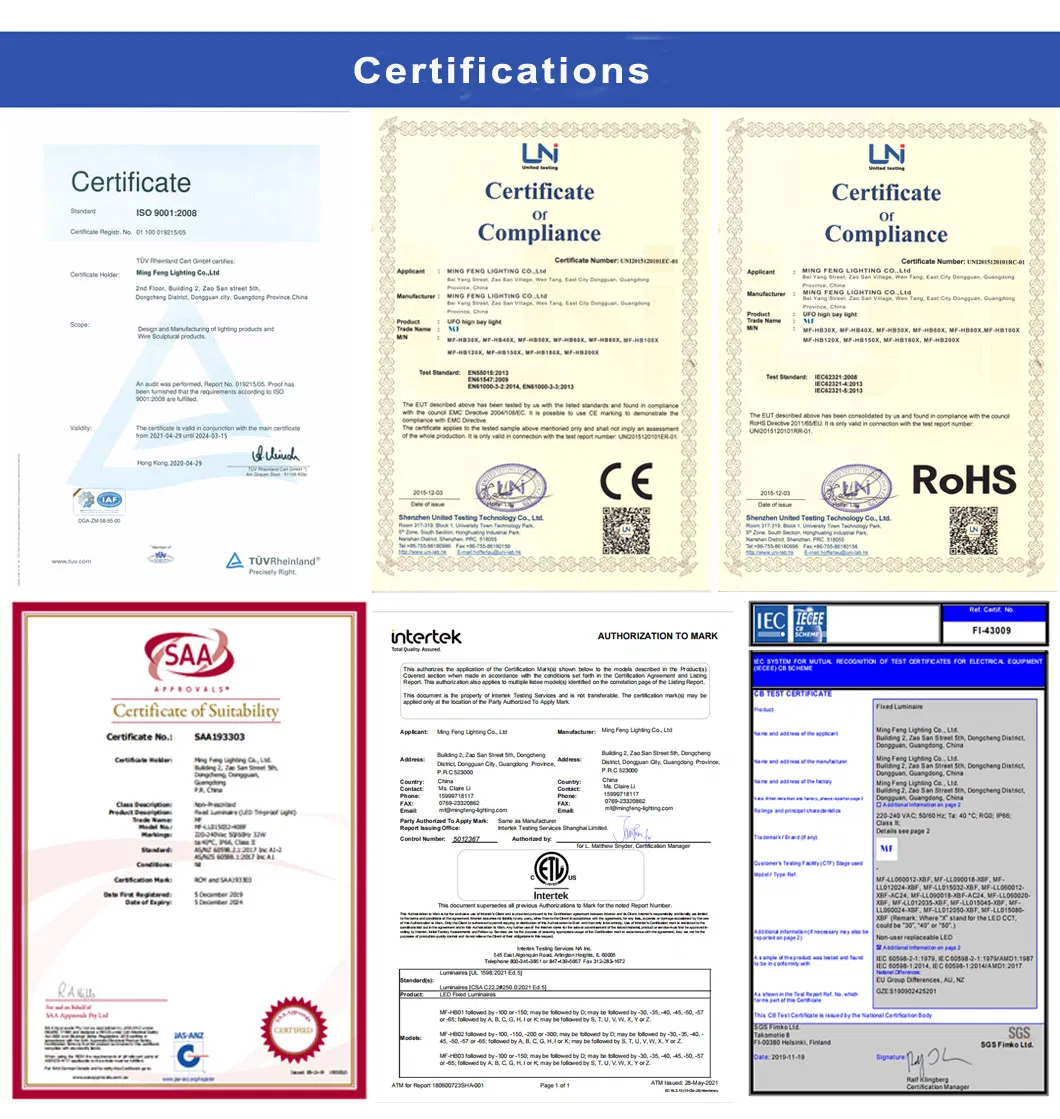

Certified Marking: II 2 G Ex eb mb IIC T6...T4 Gb; Class I, Division 2, Groups A, B, C, D.

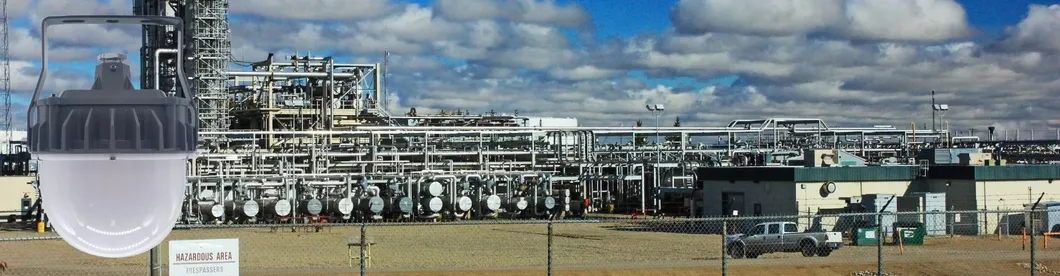

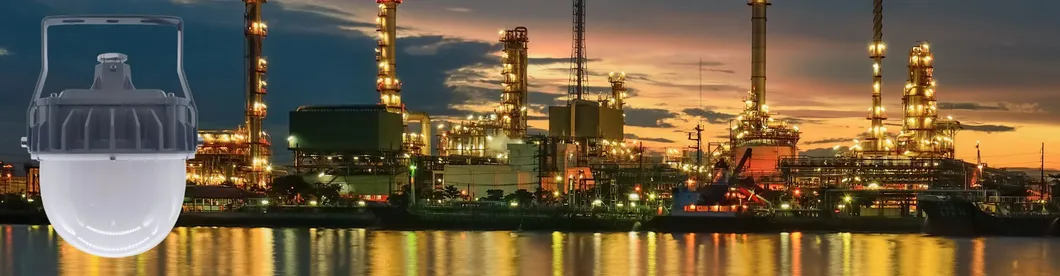

Ideal for: Oil & Gas refining, Chemical plants, Ocean platforms, Aerospace clean rooms, and Food/Alcohol distilling facilities.

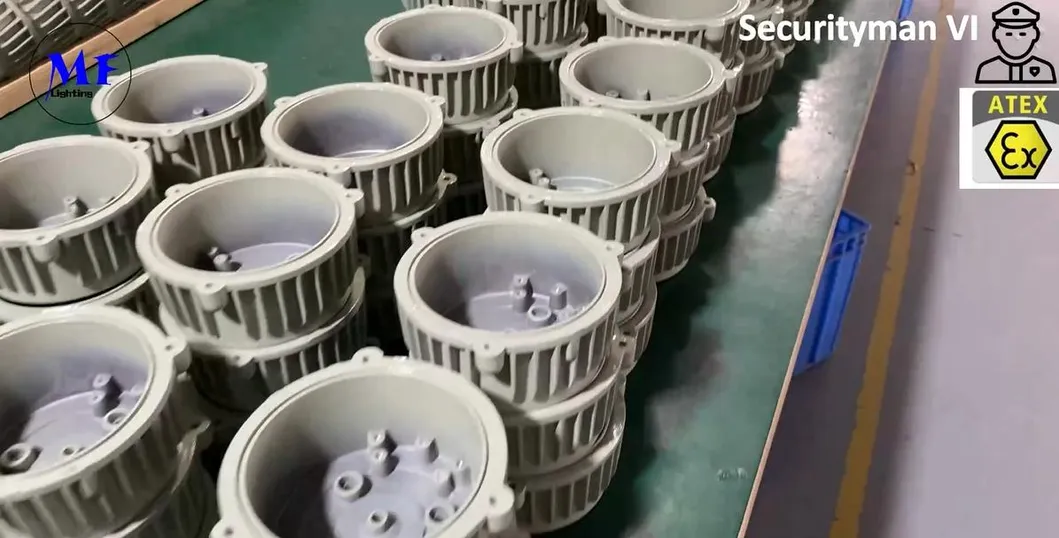

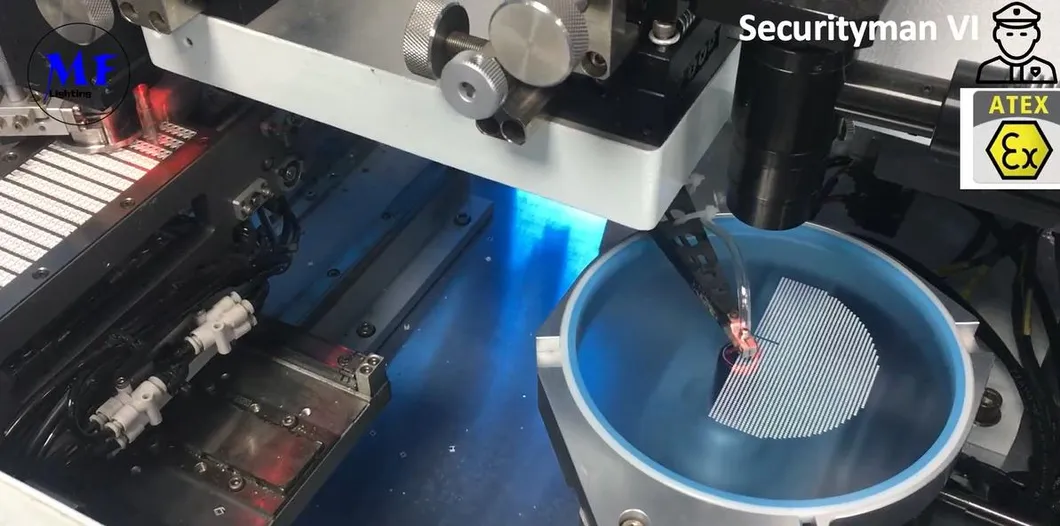

The manufacturing process involves rigorous precision machining of high-quality aluminum alloy and tempered glass. Every unit undergoes waterproofing, impact resistance, and explosion-proof performance testing to verify safety compliance.
