Product Description

Basic Information

Model NO.

BED61-III

Input Voltage

AC 220V/AC 380

Power

10W-150W Optional

Color Temperature

2700-6500K

Certification

CCC, CE, RoHS, Iecex

Warranty

5-Year

Working Temp

-40 - 80℃

Protection

IP66, Waterproof, Dustproof

Product Parameters

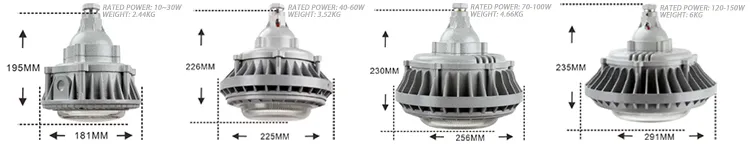

Model	Explosion Mark	Source	Type	Power(W)	Luminous(Lm)	Weight(kg)
BED61-I	Ex db IIC T6 Gb Ex tb IIIC T80ºC Db	LED	I	10-30	1200-3600	2.4
BED61-II		LED	II	40-60	4800-7200	3.5
BED61-III		LED	III	70-100	8400-12000	5.4
BED61-IV		LED	IV	120-150	14000-18000	6.0

Rated Voltage	Inlet Thread	Cable Diameter	Protection	Anti-corrosion
220V/50Hz	G3/4	Φ10-Φ14mm	IP66	WF2

Product Description

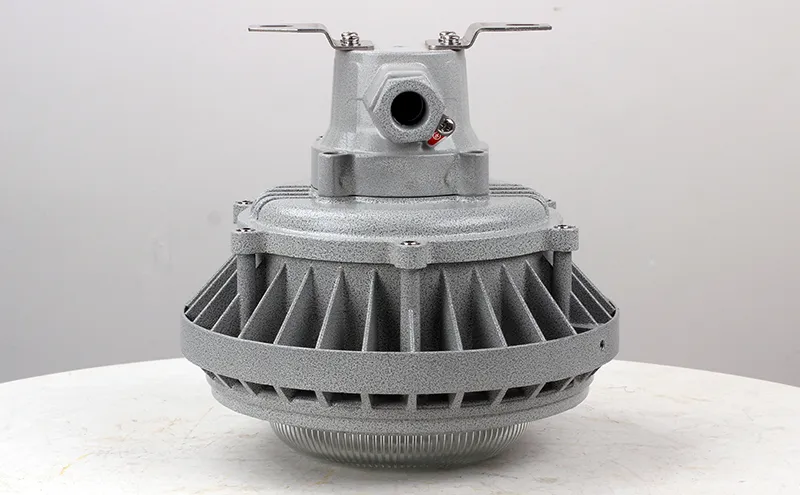

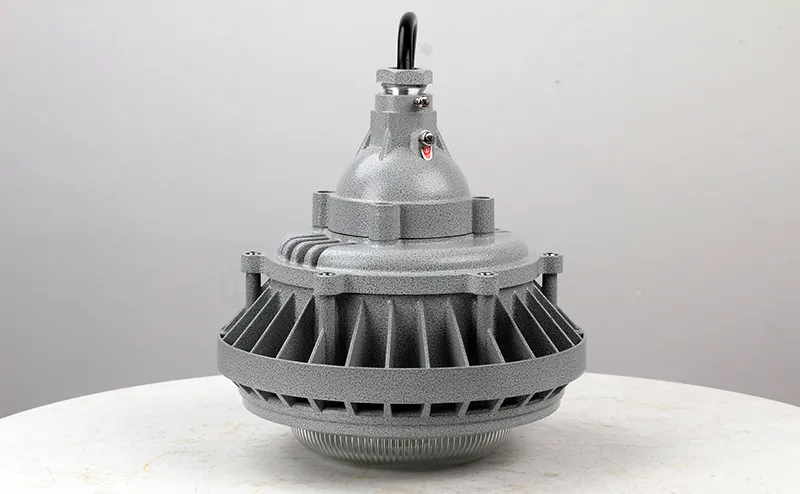

Die-cast special aluminum alloy radiator with high-voltage electrostatic coating.
Exposed stainless steel fasteners for superior corrosion resistance.
Pure flame-proof structure junction surface for reliable safety.
Multi-point lighting system providing high utilization and uniform illumination.
Constant current power supply with wide voltage input and surge protection.
Optional microwave induction dimming for energy conservation.
Power factor cos φ ≥0.95.
Automatic emergency device switching for power cut scenarios.

Applicable Scope: Zone 1, 2, 21, 22; IIA, IIB, IIC Gas Environments.

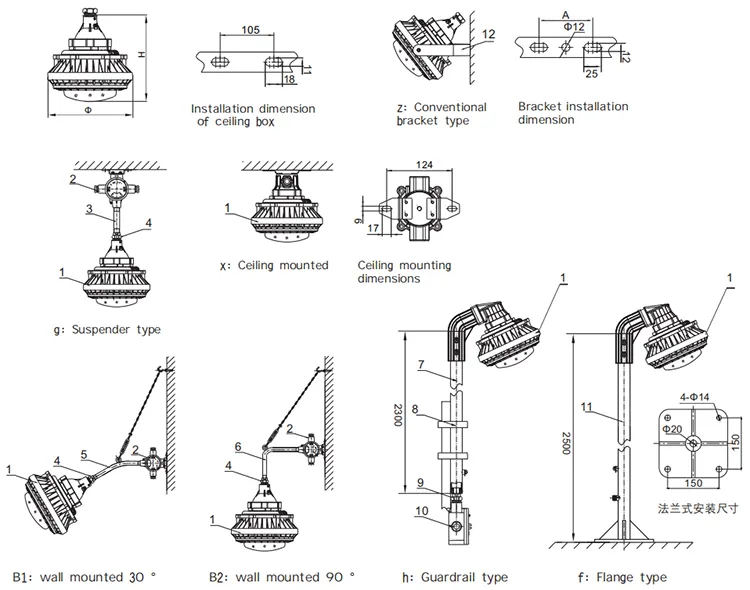

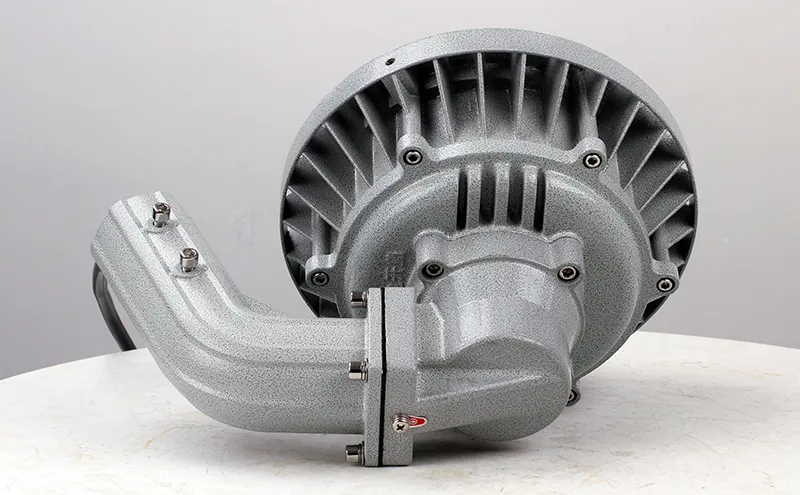

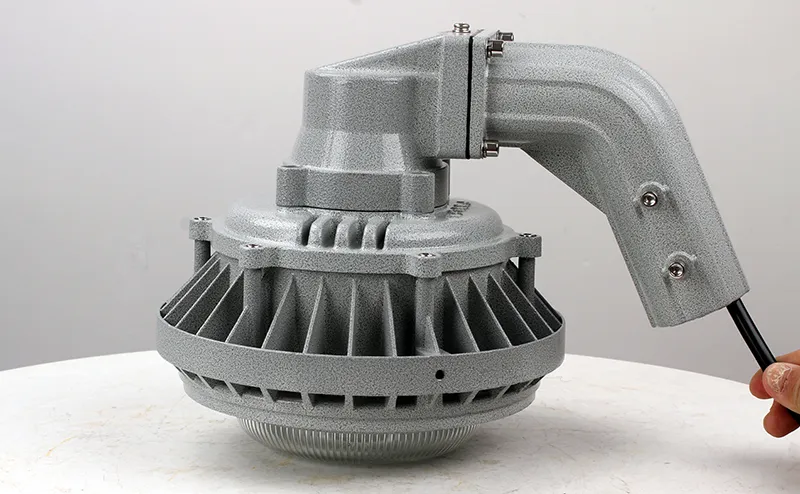

Mounting Style: Bracket, Boom, Wall, Guardrail, or Flange type.

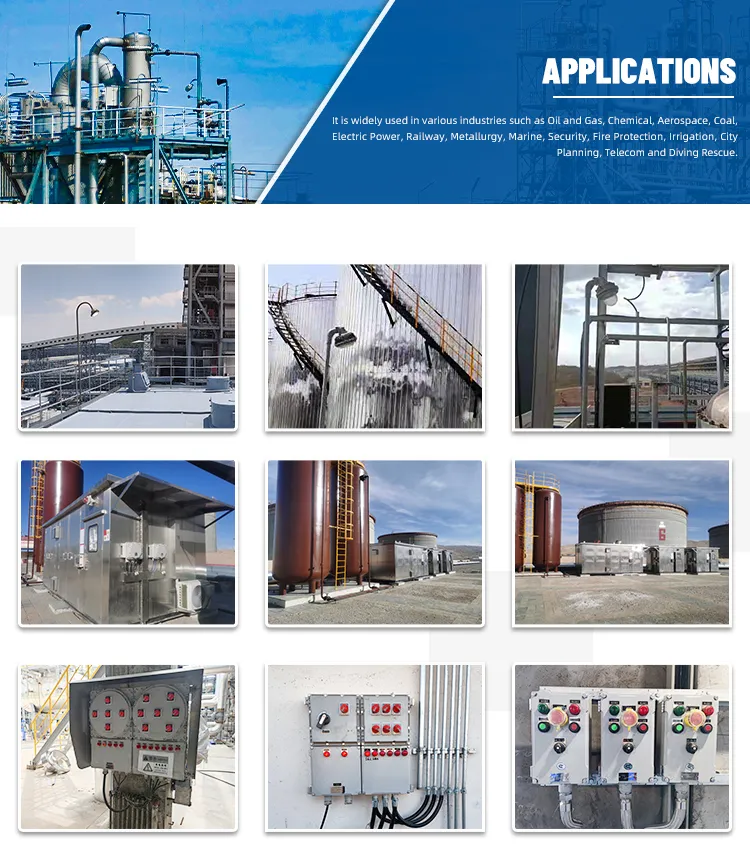

Field of Utilization: Refineries, Gas Stations, Spray Booths, Hazardous Locations.

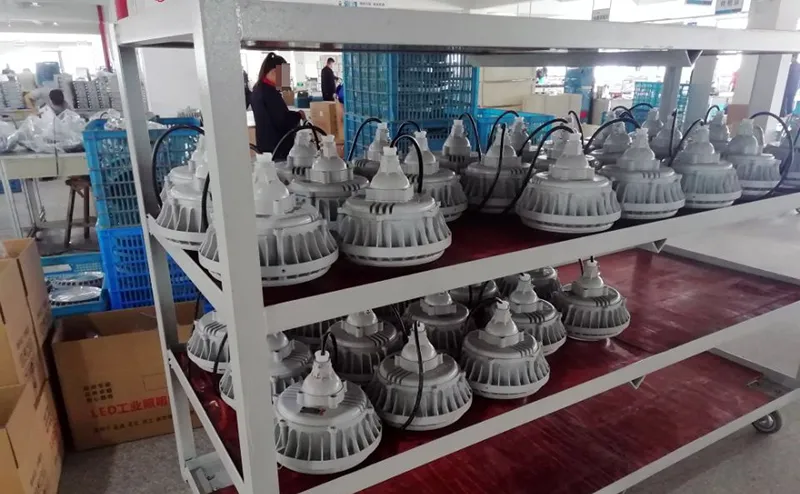

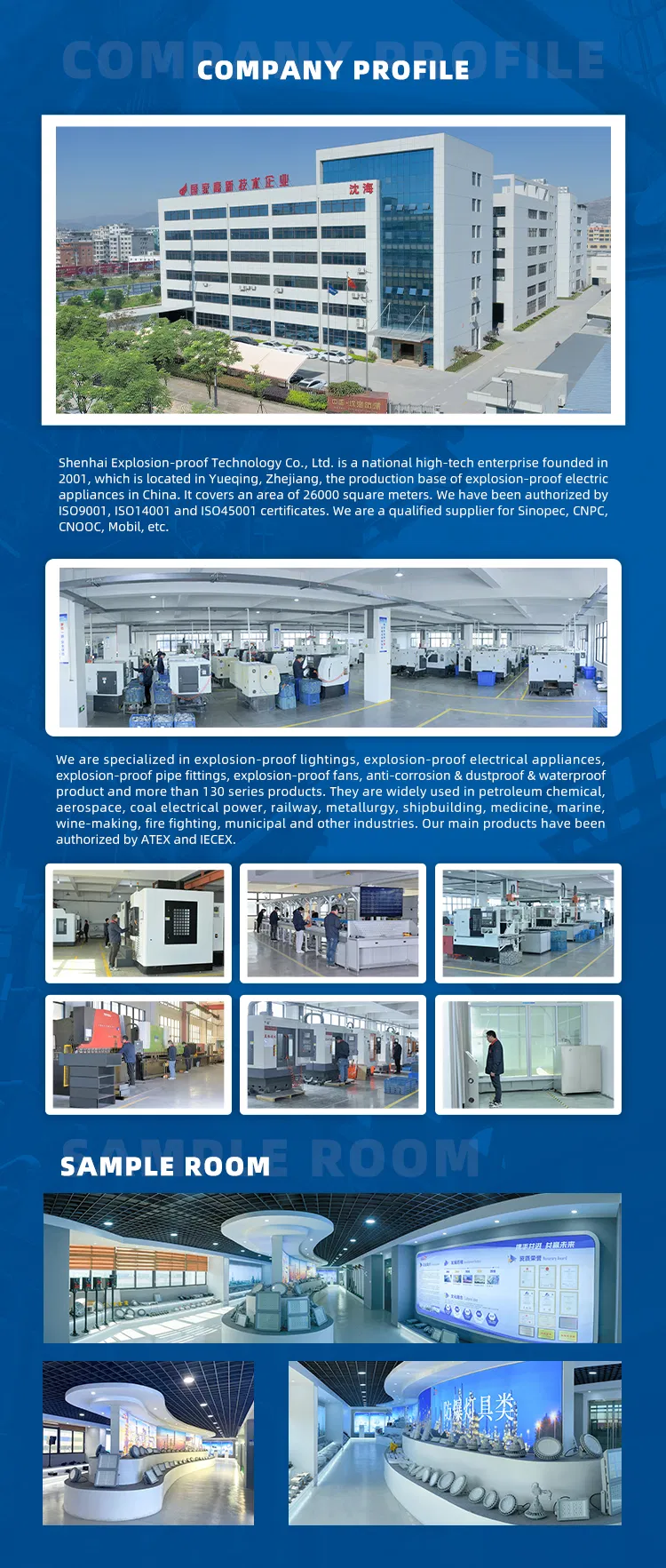

Manufacturing Excellence

Frequently Asked Questions

Q: Are you a manufacturer or a trading company? A: We are a professional manufacturer specializing in explosion-proof lighting, distribution boxes, cable glands, fans, and junction boxes.

Q: What certificates do your products hold? A: Our products have passed ATEX and IECEx certifications and hold numerous national patents for safety and design.

Q: In which industries are your explosion-proof lights used? A: They are widely used in petroleum, chemical, aerospace, coal power, shipbuilding, marine, gas stations, and fire fighting industries.

Q: Can I request a sample order for quality testing? A: Yes, we welcome sample orders to test and check quality. Mixed samples are also acceptable.

Q: Do you offer customized design services? A: Yes, we provide OEM services. We can accept customized designs based on your specific requirements and sample confirmation.

Q: What is the typical emergency lighting duration? A: We offer optional emergency lighting times of ≥60 minutes or ≥90 minutes to suit different safety protocols.
