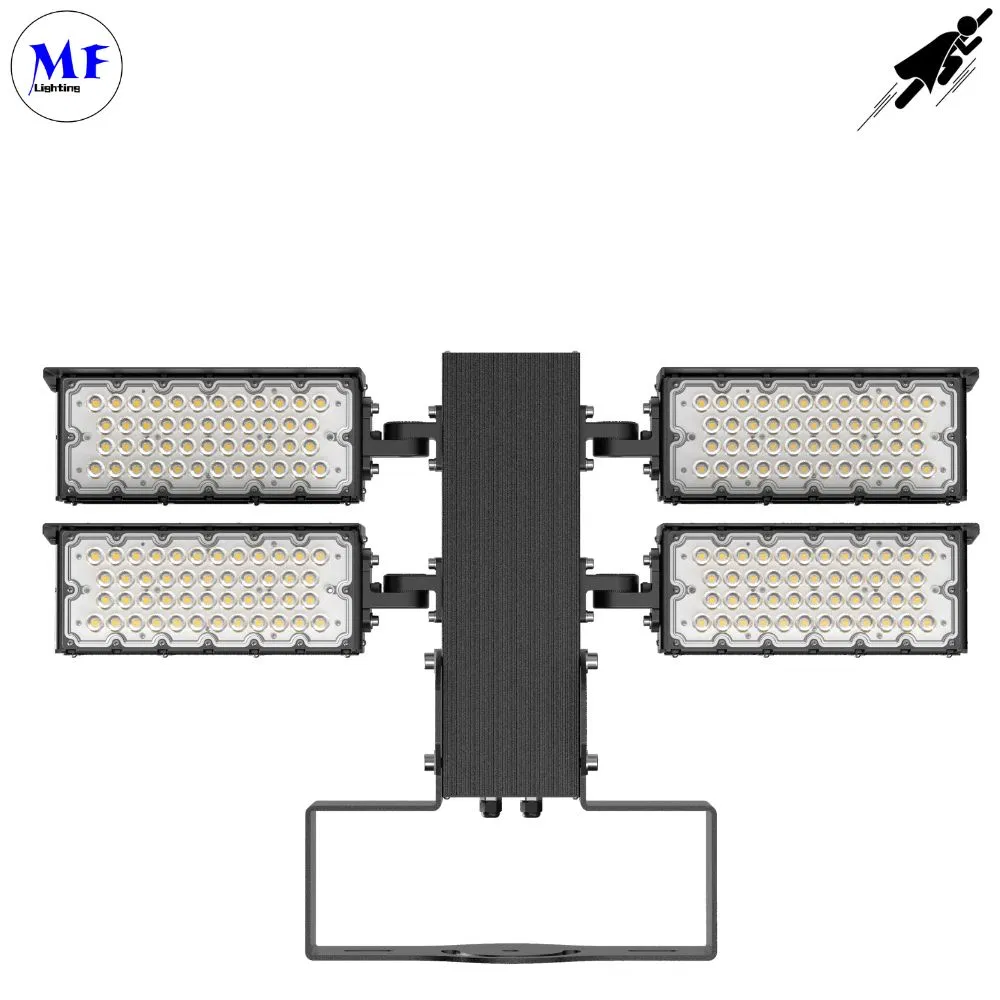

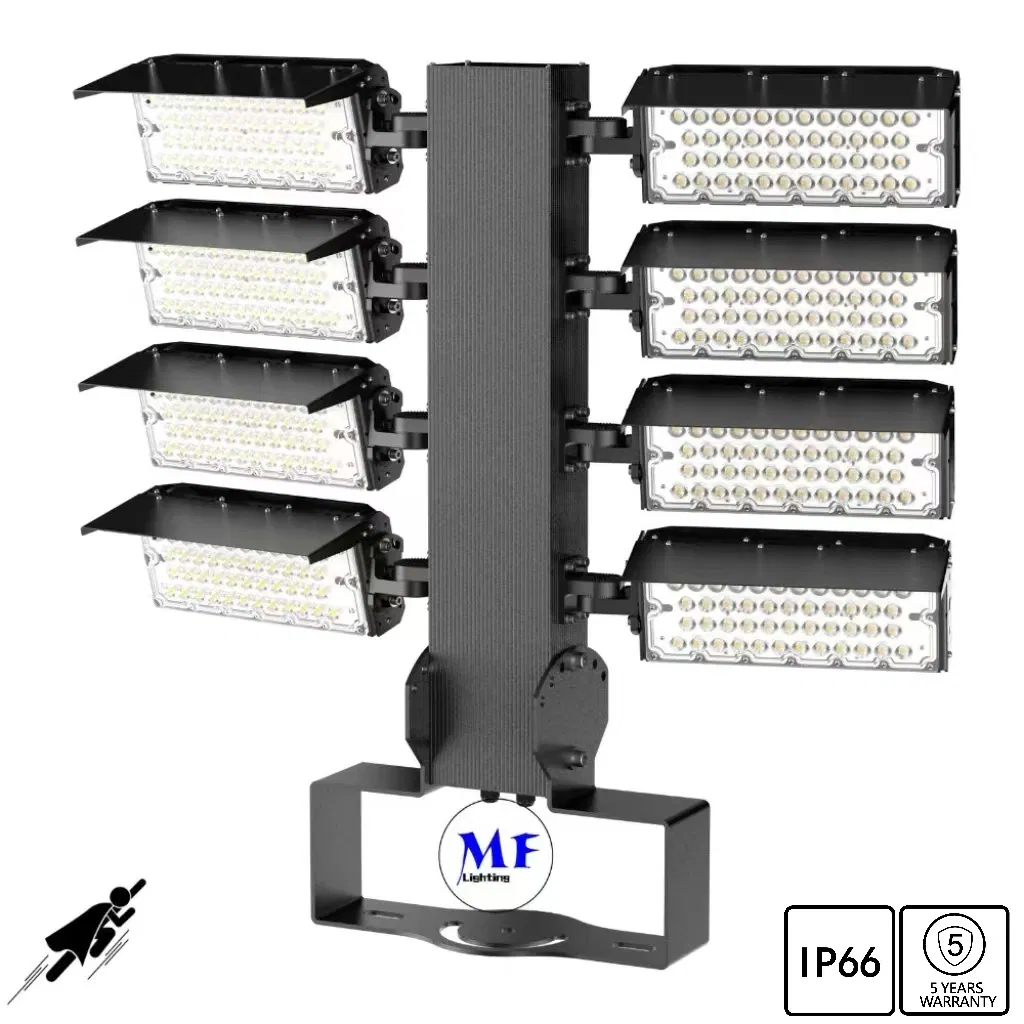

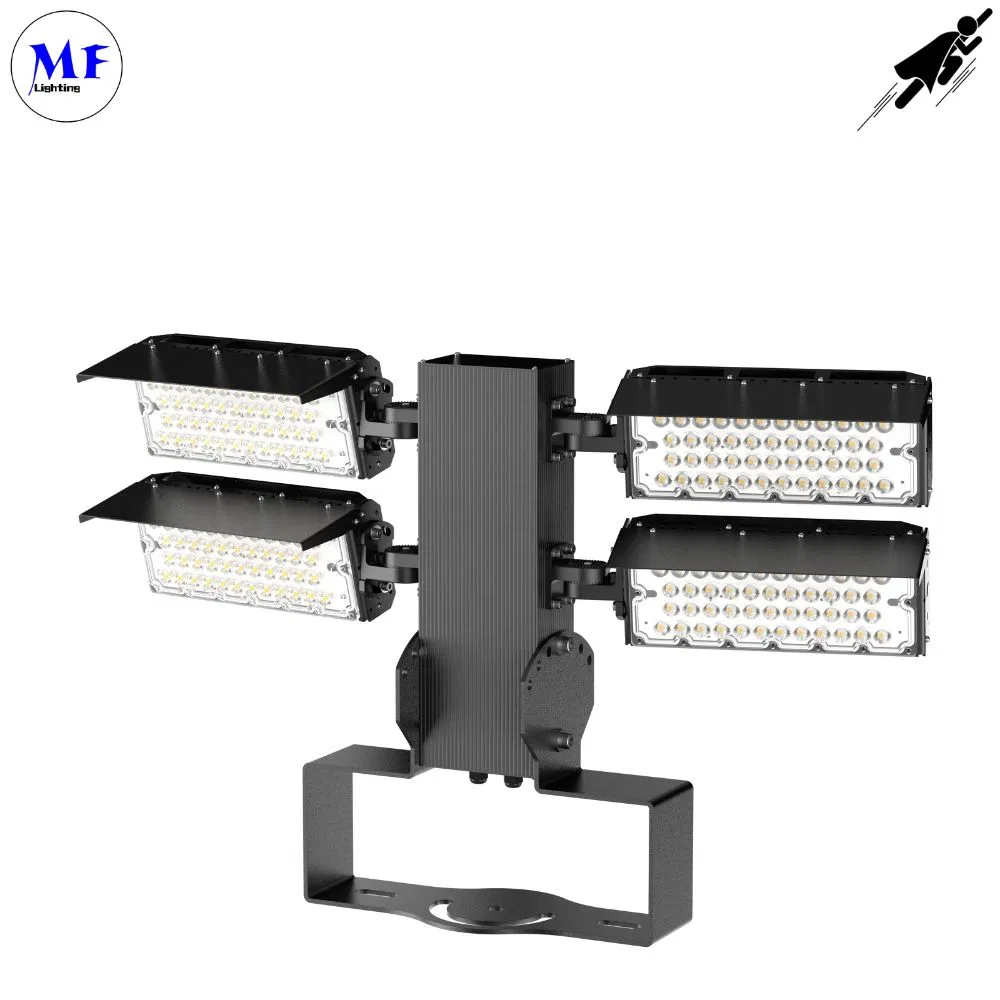

Factory Price 5 Years Warranty 1200W 6000K 155LM/W-165LM/W LED Sport Stadium Lighting For Sports Field
| Parameter | Details |
|---|---|
| Wattage | 300W/600W/900W/1200W |
| Light Source | 5050 LED |
| LED Quantity | 46pcs LEDs each module |
| Driver | Meanwell |
| Lamp Luminous Flux | 165lm/w±5% (60°/90°/120°) | 155lm/w±5% (30°) |
| CRI | Ra > 70 |
| CCT | 2700-6500K |
| Rated Voltage | AC 90-305V, 50/60Hz |
| Beam Angle | 10°/20°/40°/60°/90° |
| IP Grade | IP66 |

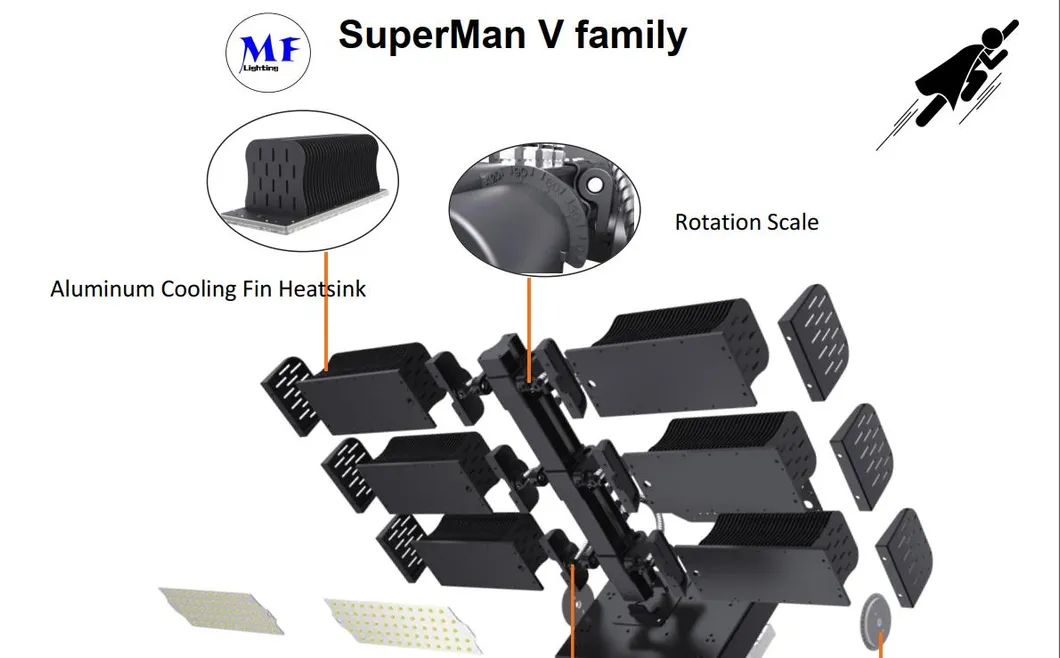

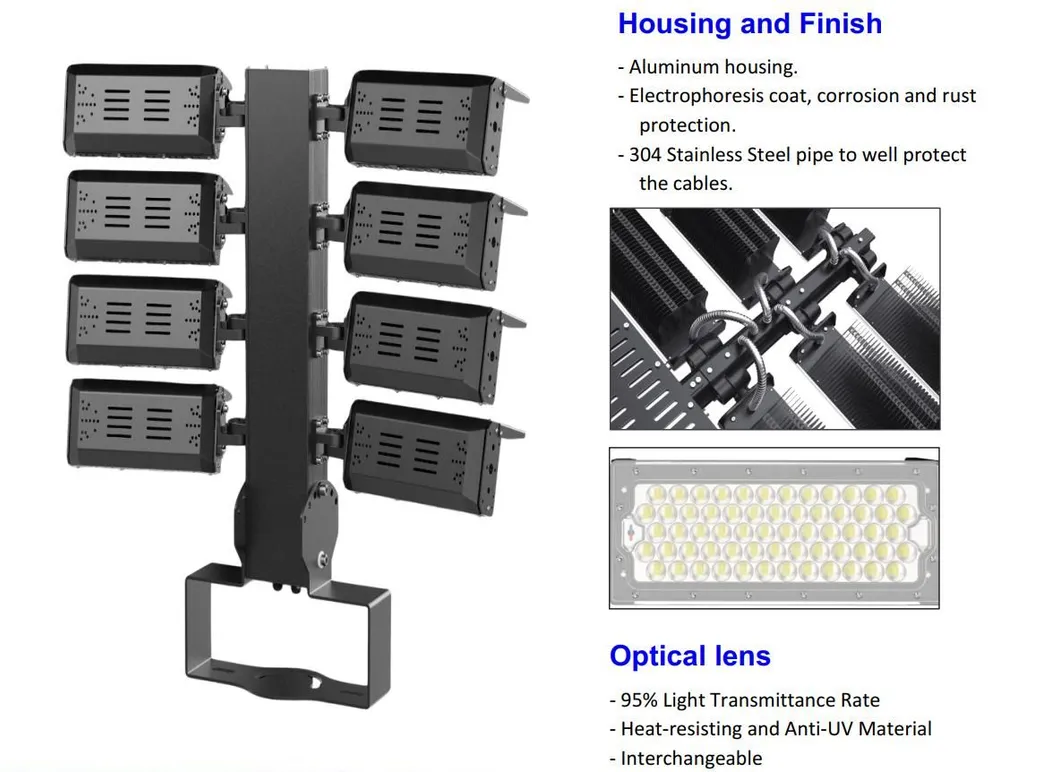

| Heat Sink | Aluminum cooling fan |

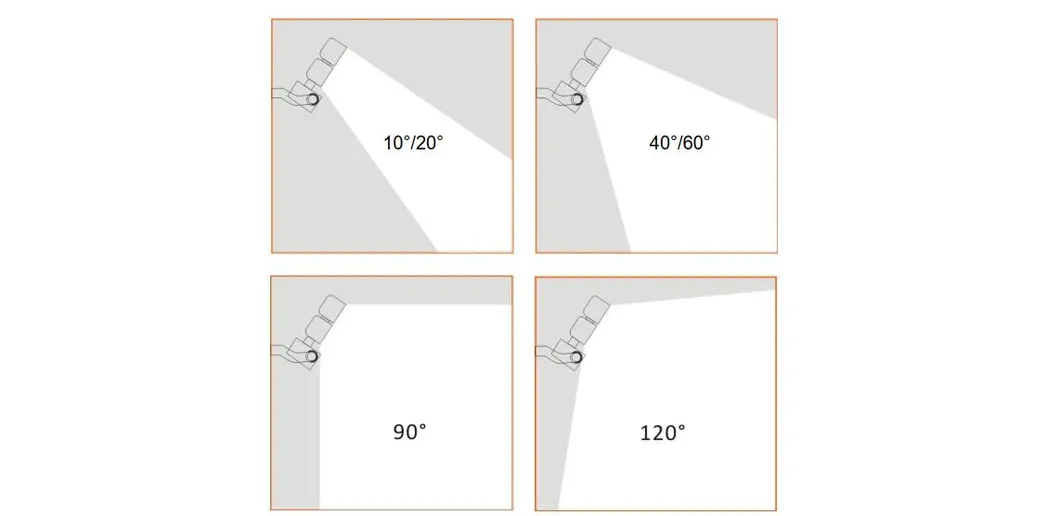

Multiple optical lens choices are available with angles including 10°/20°/40°/60°/90° to meet the requirements for professional light distribution and an extensive scope of applications.
| Test Point | 00:00:00 | 00:30:00 | 01:00:00 | 01:30:00 | 02:00:00 | 02:30:00 |
| CH1 LED | 32.4 | 77.7 | 78.3 | 79 | 79.6 | 80 |
| CH4 PCB Board | 32.5 | 77.5 | 77.9 | 78.5 | 79.1 | 79.5 |
| CH5 Heat sink | 32.5 | 71 | 71.4 | 72.1 | 72.5 | 73.1 |
| CH8 LED Driver | 32.6 | 47.7 | 54.8 | 58.4 | 60.4 | 61.6 |
| Model | Size of Carton | Gross Weight | PCS/CTN |
|---|---|---|---|

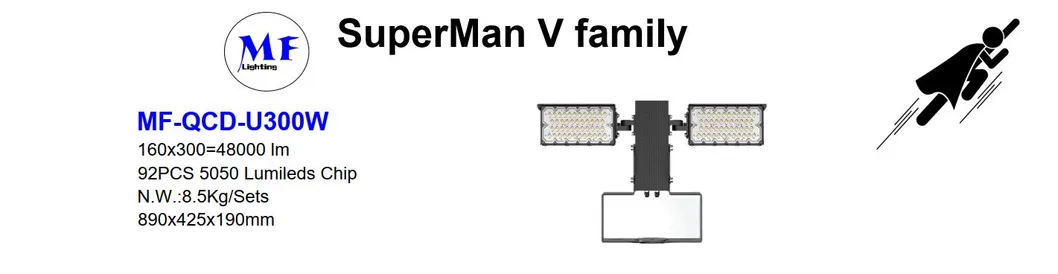

| MF-QCD-U300W | 480x450x390MM | 10.2KG | 1 |

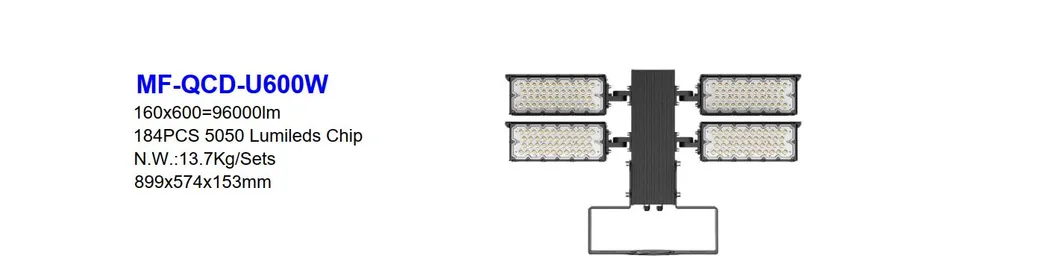

| MF-QCD-U600W | 480x450x490MM | 17.3KG | 1 |

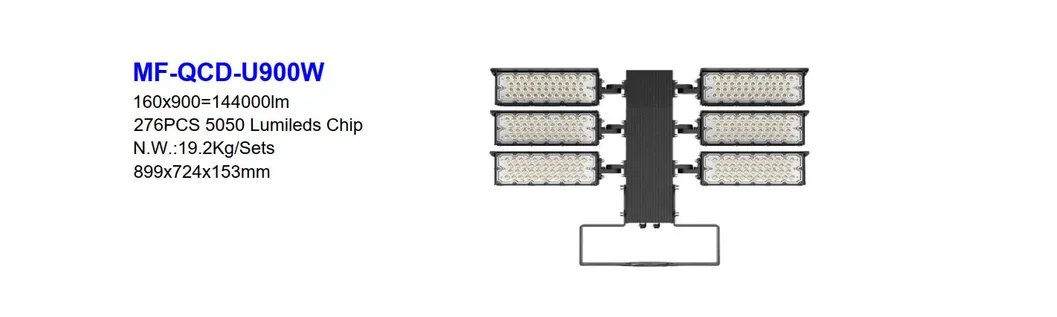

| MF-QCD-U900W | 630x450x490MM | 22.5KG | 1 |
| MF-QCD-U1200W | 780x460x490MM | 27.6KG | 1 |
