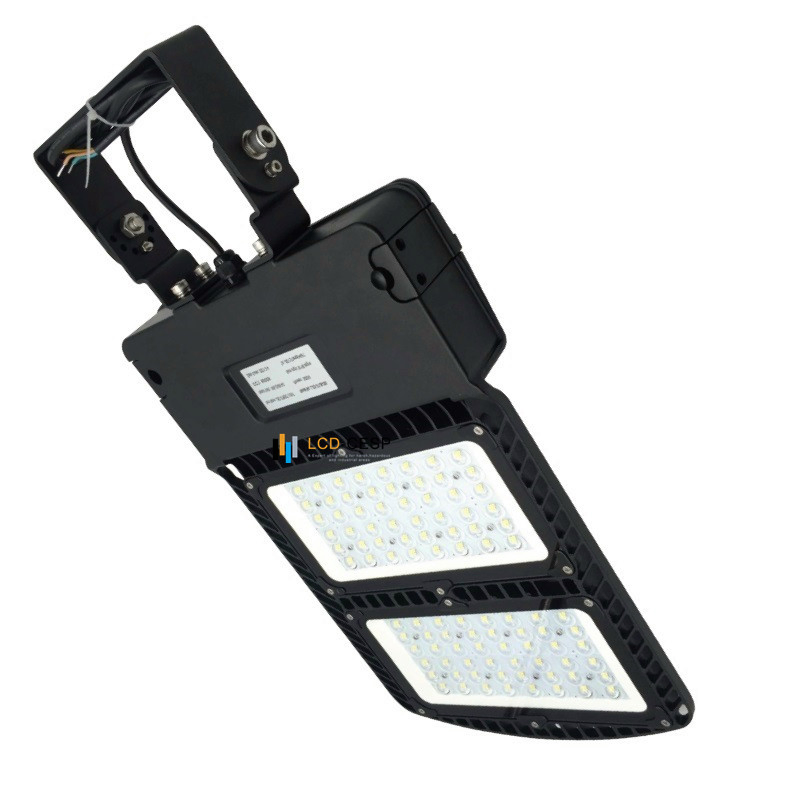

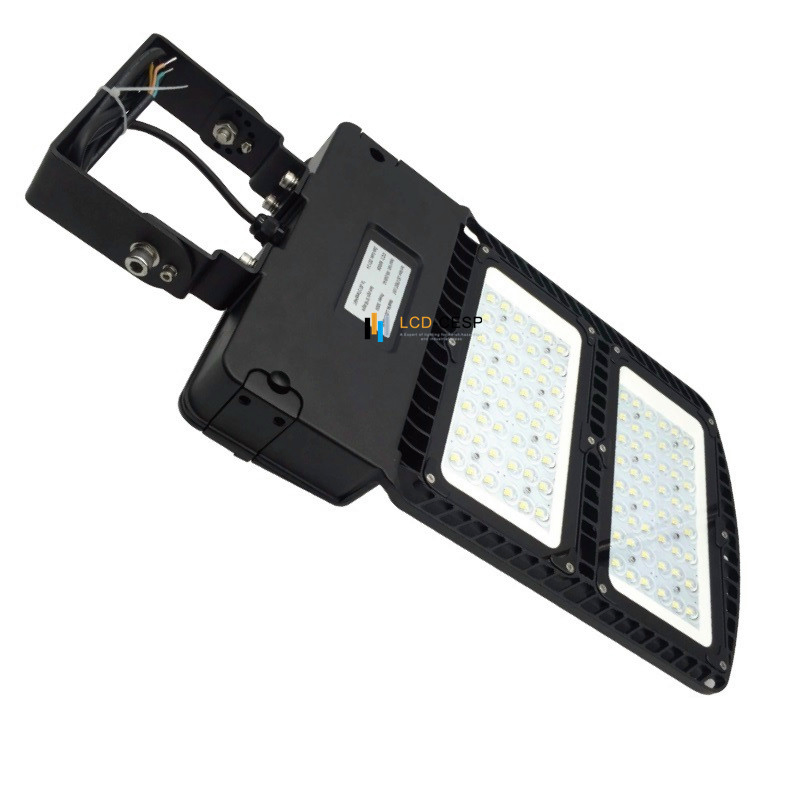

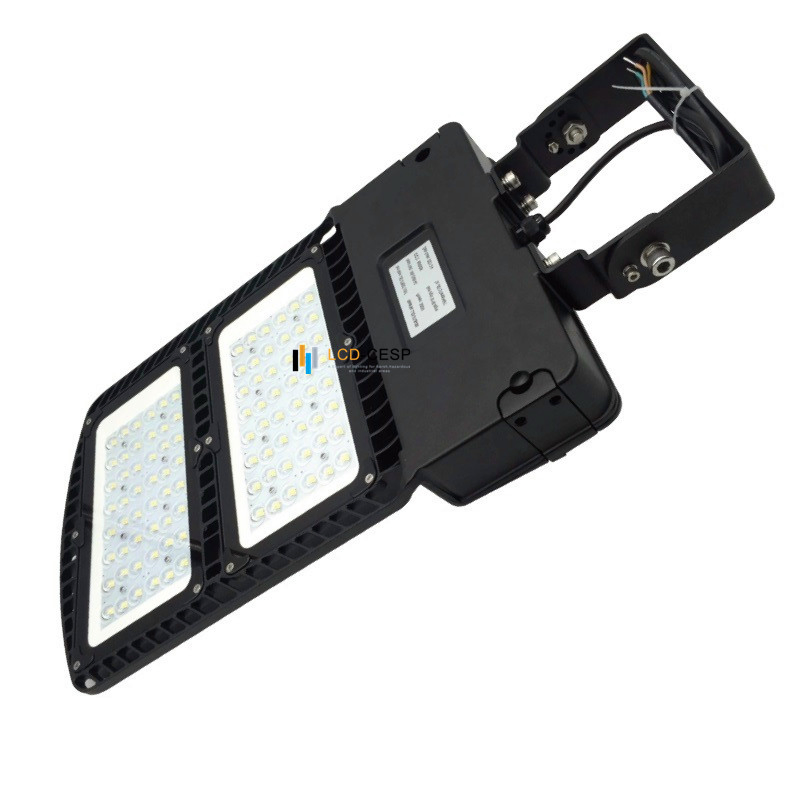

Flame Proof Light - LED -150W- Marine Grade Atex Lighting -100-277VAC- IP66-Floodlight

1 / 5

Flame Proof Light - LED -150W- Marine Grade Atex Lighting -100-277VAC- IP66-Floodlight

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📦 Basic Information

Model NO.

LCD-GYD780-50/80/100W

Base Type

CREE LEDs Engine

Irradiated Area

≥30m²

Input Voltage

220v

Power

60-100w

Color Temperature

3000K 4000K 6500K

Emitting Color

Warm White

LED Chips Brand

CREE

Lumen Output

120-140lm/W

IP Rate

IP66

Ex Mark

Ex D Iic T6 GB / Ex Td A21 IP66 T80

Beam Angle

20°/30°/40°/60°/90°

HS Code

9405421000

Production Capacity

50000PCS / Year

📝 Product Description

🛡️

Ex Mark: Ex d IIB T6 Gb, Ex tD A21 IP66
Application: Zone 1, 2 & 21, 22

Energy Saving 4000K IP66 Explosion Proof Led Light Fixtures

Explosion proof led light fixtures 50W/80W/100W. 100-277VAC & 12-32VDC 50/60Hz wide beam 60°/90°/120° degree. Waterproof and dustproof IP66 with output lumen 6,000-13,500lm.

Explosion Proof Light - Harsh Conditions

🏗️

Lighting under harsh conditions

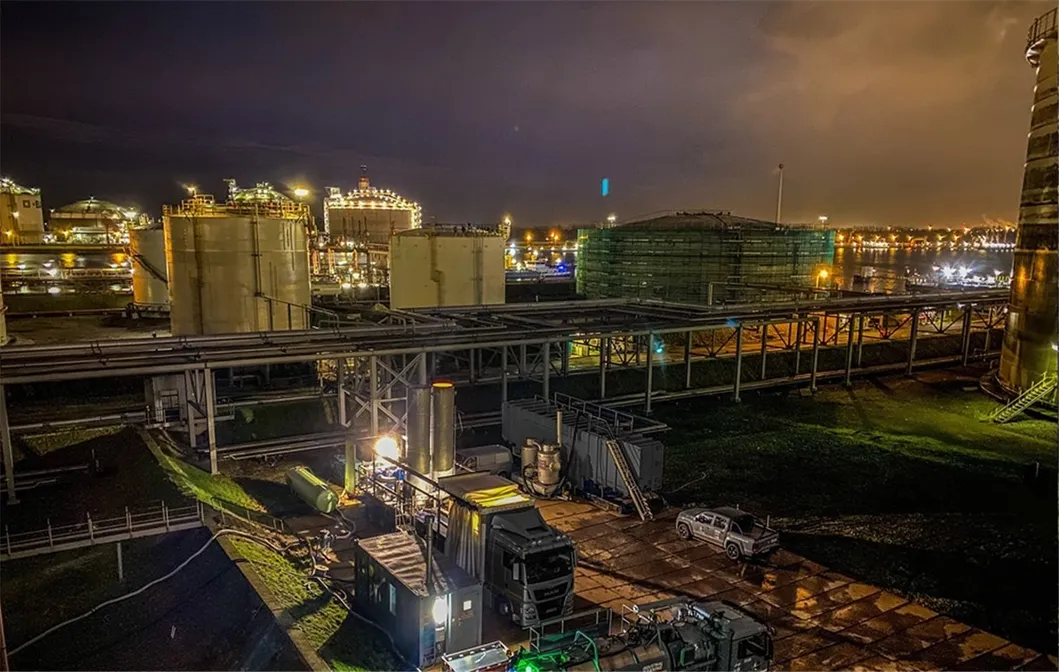

The new Grampus LED floodlight series GYD780 is suited for nearly every kind of lighting task in hazardous areas, including applications in on- and offshore, heavy industrial, chemical, petrochemical, oil and gas, pharmaceuticals, shipyards, dockyards, power generation, paper mills and wastewater treatment indoor and outdoor with potentially explosive areas under harsh conditions like vibrations, dust, moisture or corrosive atmospheres and extreme temperatures. The Grampus comes with a standard U-shaped mounting bracket for ceiling and wall mounting.

💡

Replacement of conventional light fittings up to 800 W
With a luminous flux from 6,000 lm up to 20,250 lm, this floodlight series can be used to replace nearly every floodlight with conventional light sources with an equivalent power consumption from 250 W up to 800 W.

High efficient LED technology
High efficient power LED flood with up to 135 Lumen/Watt enables up to 80% energy-cost savings compared to conventional HID lamp.

Technical Specifications
Model	LCD-GYD780-50/80/100
LED Brand	Cree (Efficiency: 135lm/w, CRI: 75)
CCT	3000k, 4000k, 6000K

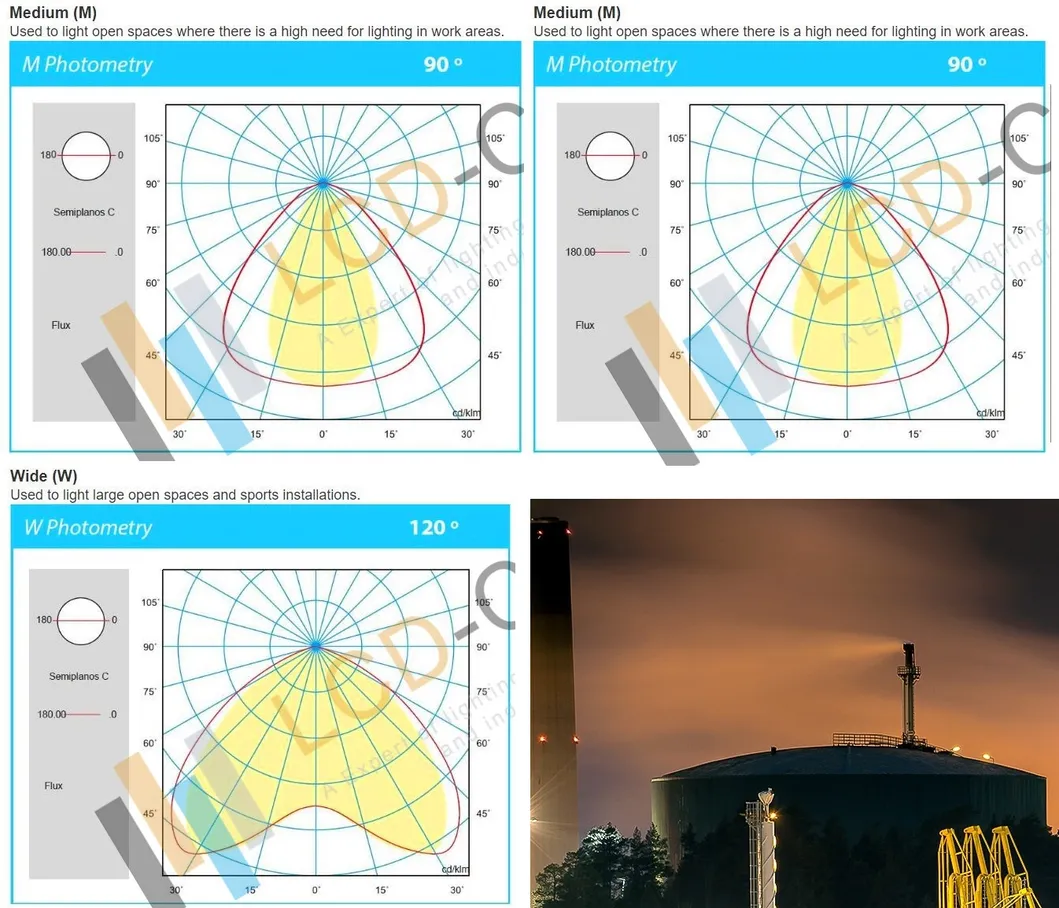

Beam Angle	60° / 90° / 120° degree
Driver	Meanwell (PF: 0.95, Efficiency: 90%)
Voltage	100~277vAC or 12-32VDC

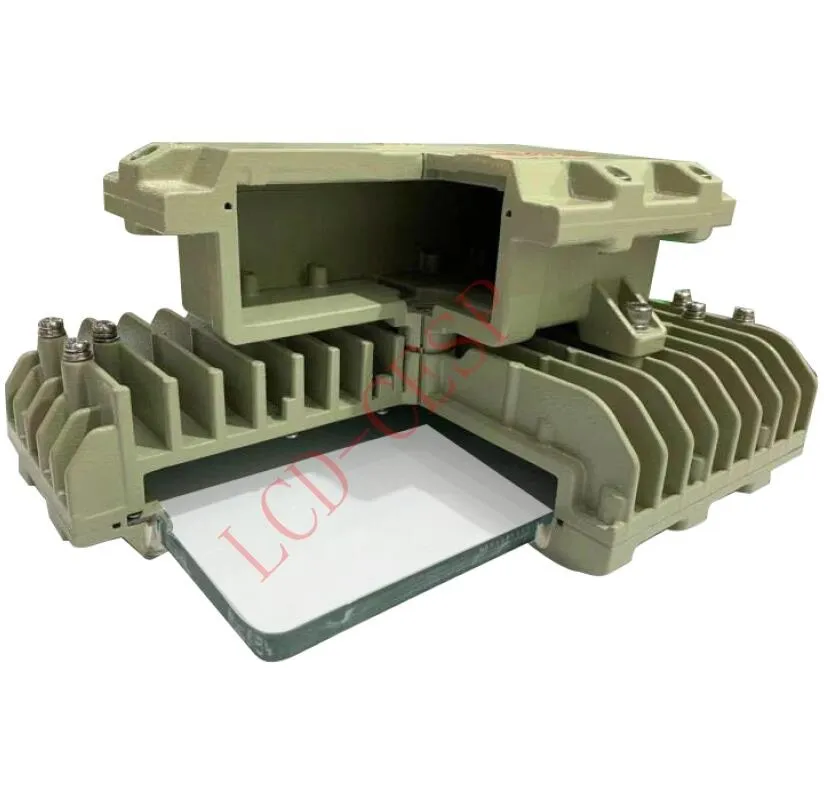

Material	12mm flame proof Aluminum alloy + 15mm Temple glass
Waterproof	IP66
ATEX Mark	D II 2 G Ex db IIB T6 Gb / D II 2 D Ex tb IIIC T80°C Db IP66
Working Temp.	-30 °C up to +55 °C
Warranty	5 years

🖼️ Product Gallery

🔧

Installation Options
• Adjustable U-Bracket for ceiling, wall, etc.
• Pendant mounting
• Recommended additional surge protection at the electrical distribution panel for surge-prone areas.

❓ Frequently Asked Questions

🔸 What is the explosion-proof rating of this light?

The fixture is rated Ex d IIB T6 Gb and Ex tD A21 IP66, making it suitable for hazardous environments.

🔸 In which zones can this LED light be installed?

It is designed for use in Zone 1, 2 (Gas) and Zone 21, 22 (Dust) potentially explosive areas.

🔸 Can it withstand extreme temperatures?

Yes, the working temperature range is -30 °C up to +55 °C, suitable for harsh industrial conditions.

🔸 What is the warranty period for the GYD780 series?

We provide a 5-year warranty on this product, ensuring long-term reliability and performance.

🔸 What conventional lights can this LED floodlight replace?

Depending on the wattage (50W-100W), it can replace conventional HID light sources ranging from 250W up to 800W.

🔸 What mounting methods are supported?

The light comes with a standard U-shaped bracket for wall and ceiling mounting, and also supports pendant installation.
