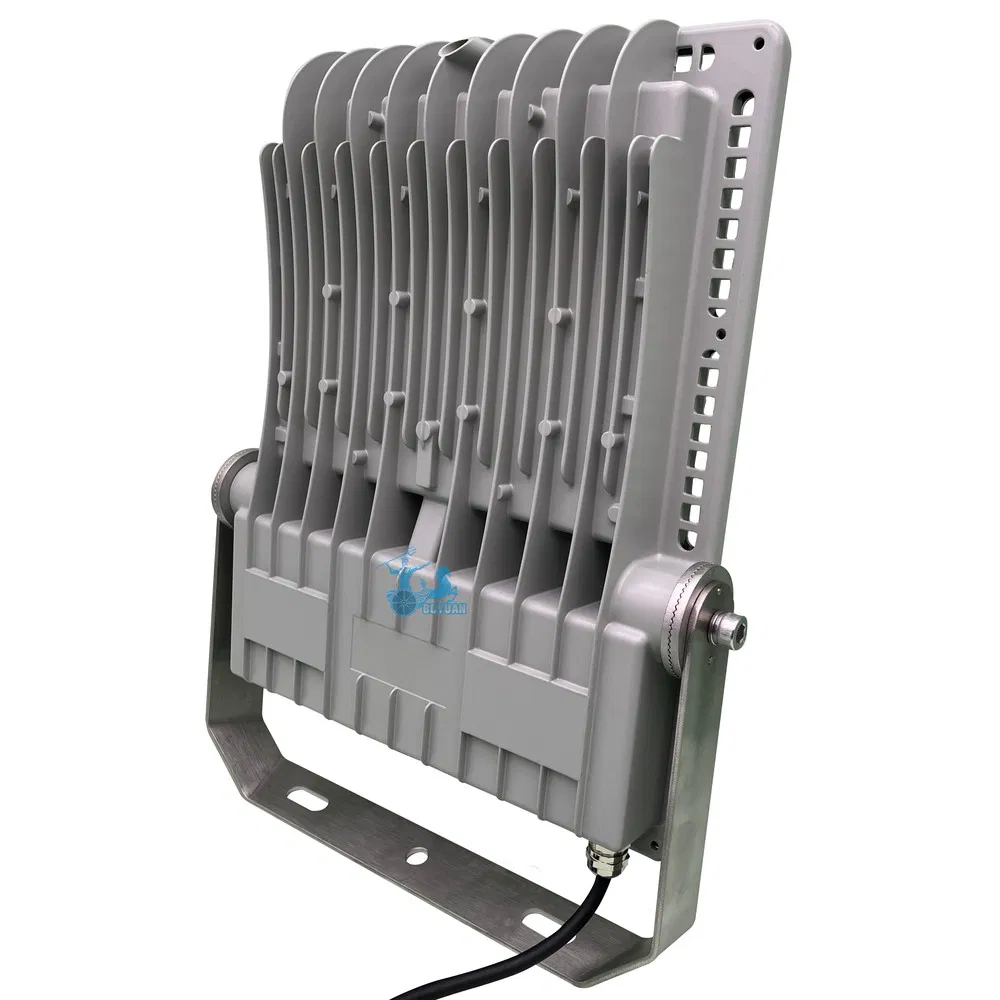

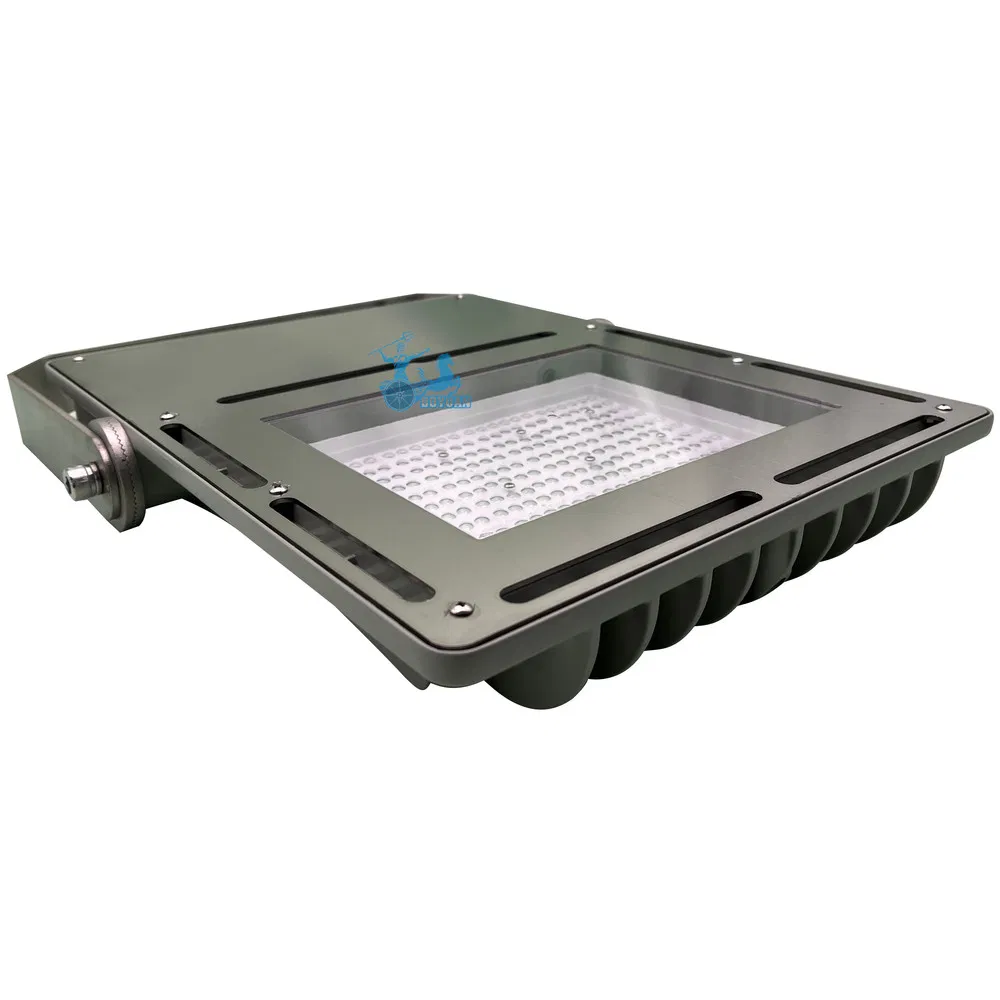

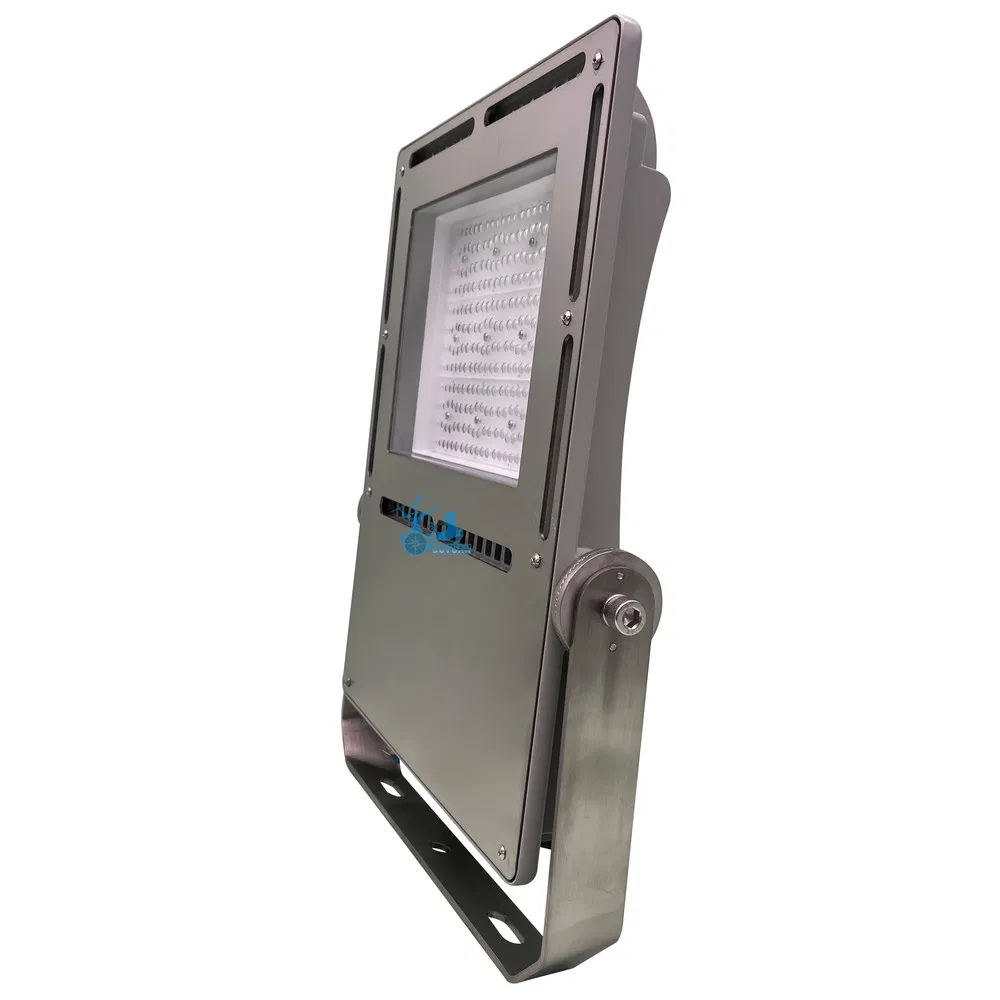

LED Floodlight 100W, 200W & 300W for Ports and Vessel Decks, Marine-Grade Stainless Steel Housing, IP68 Waterproof, Ideal for Coastal and Offshore Lighting

Still deciding? Get samples of $ !
Request Sample

Product Description

📋Basic Specifications
Model NO.
LCD-FA-200-LNXX-OS
Power
≥100W
Projection Distance
>35m
IP Rating
IP68
LED Chips Brand
CREE
CCT
2700K-6500K
Operating Voltage
220-240V
Beam Angle
8° to 120° Optional
Lumen Output
90-160lm/W
IK Rate
IK09
💡Product Description

FA Series LED Floodlights are high-performance industrial and marine lighting solutions, designed to replace traditional metal halide and halogen fixtures. These units combine powerful performance with superior durability for the most demanding environments.

Key Technical Features
  • Wide Power Range: Available from 50W up to 1200W for diverse industrial needs.
  • Versatile Optics: Over 30 beam angle options for precise light distribution.
  • Corrosion Resistance: Die-cast aluminum with marine-grade powder coating.
  • Waterproof Design: IP66/IP67/IP68 protection for harsh coastal environments.
  • Premium Components: Equipped with Cree, Luxeon, or Bridgelux SMD LEDs.
  • Advanced Dimming: Supports 0-10V, DALI, and PLC dimming systems.

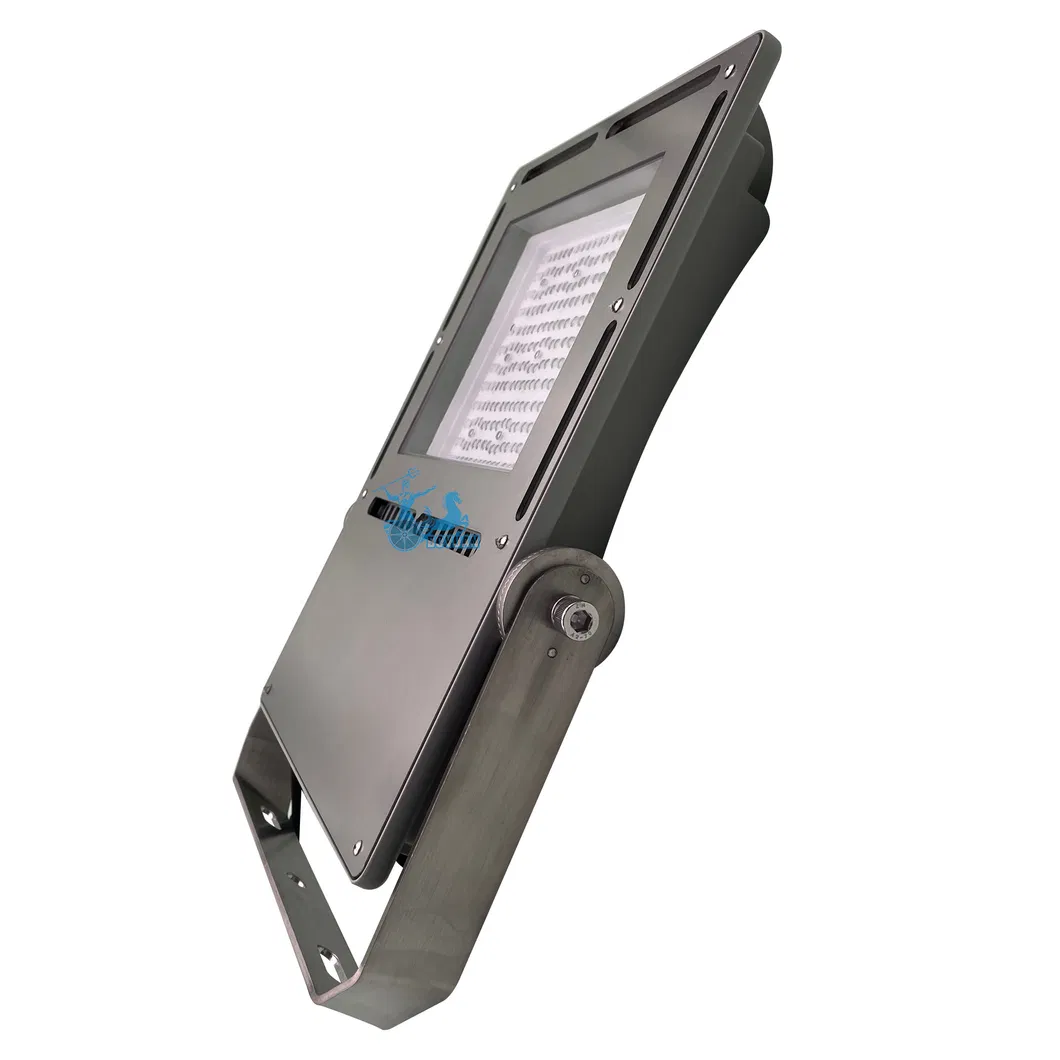

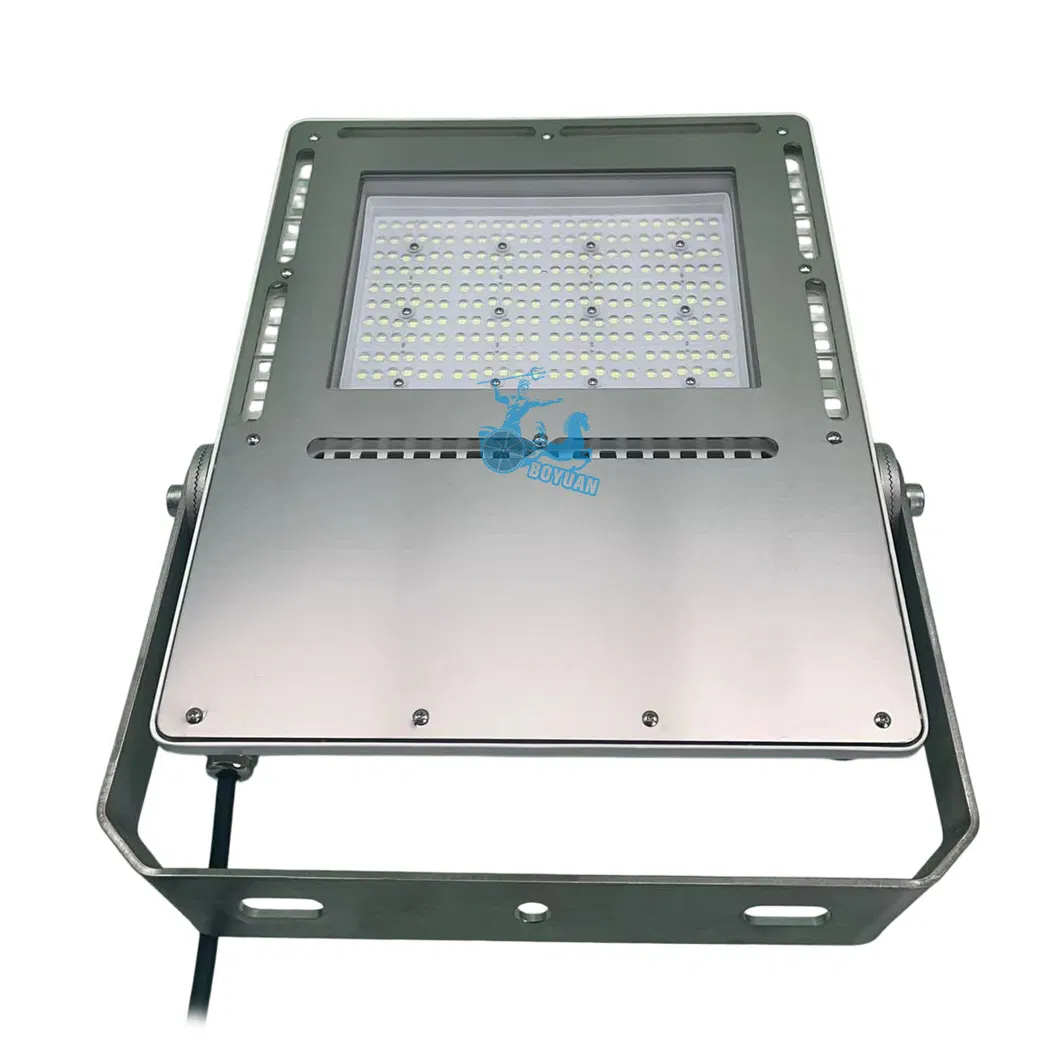

FA Series LED Floodlight Marine Grade Lighting
🏗️Professional Applications
Marine deck and fishing boat lighting
Port terminals and shipyards
Industrial facilities and warehouses
Sports stadiums and parking lots
Oil & gas plants and chemical hubs
High mast and architectural accent lighting

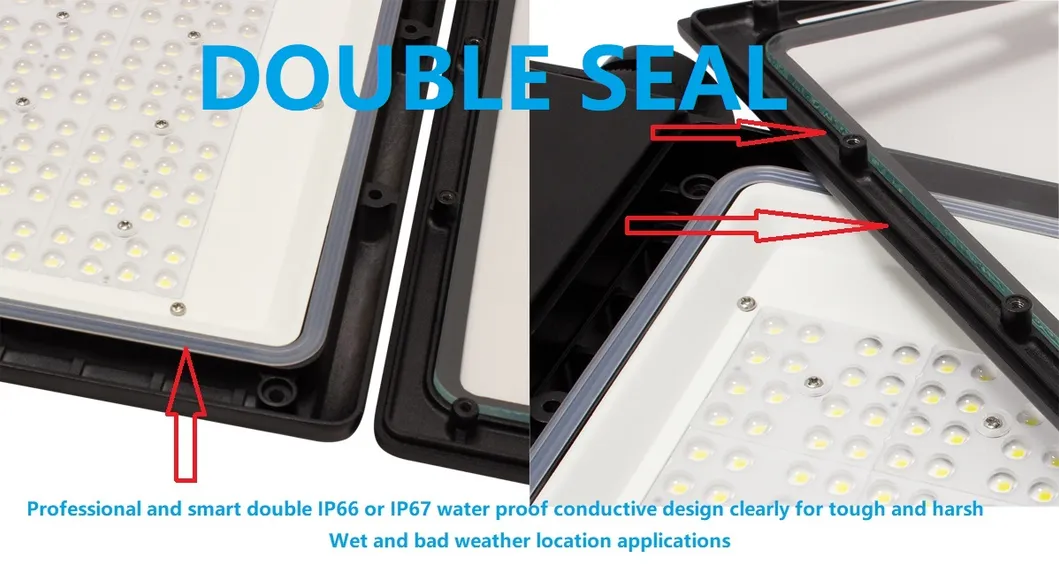

Lighting Dimensions
📊Technical Data Sheet (100W Model)
Brightness (lm)15000lm Power Consumption100W
Color Temperature2700K-6500K Halogen Equivalent600W-800W
CRI> 70 / 80 / 90 Input Voltage100-305V AC
MaterialTempered Glass, Aluminum Alloy Warranty5-7 Years

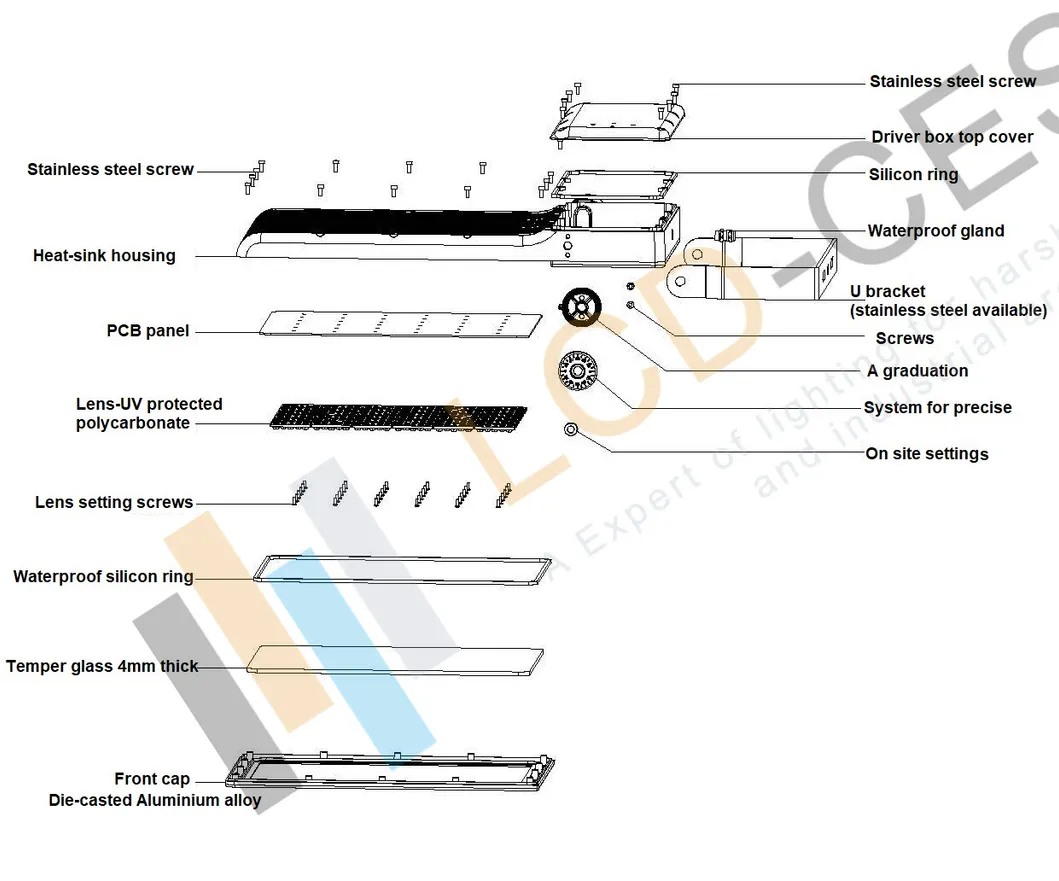

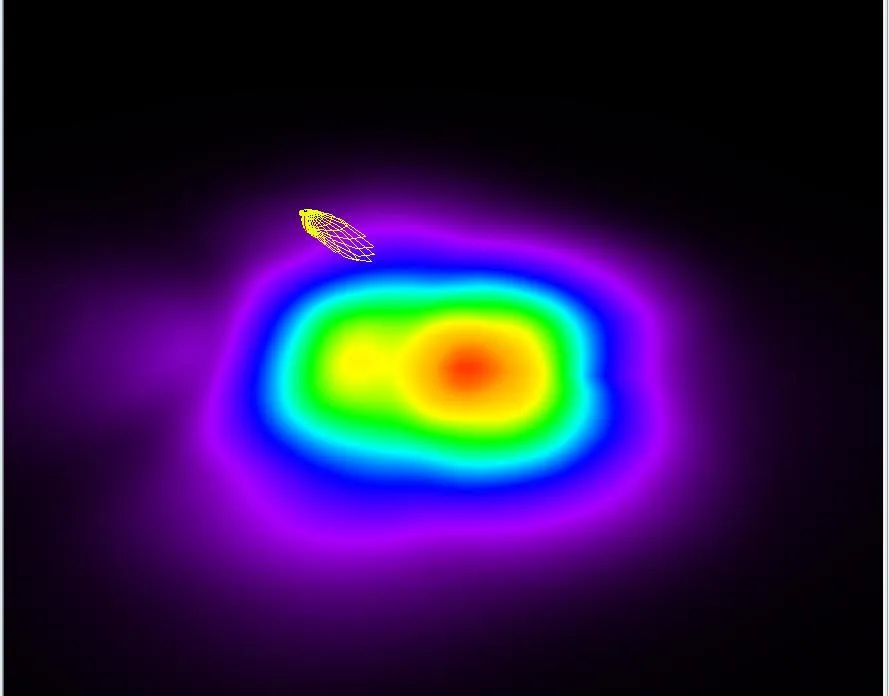

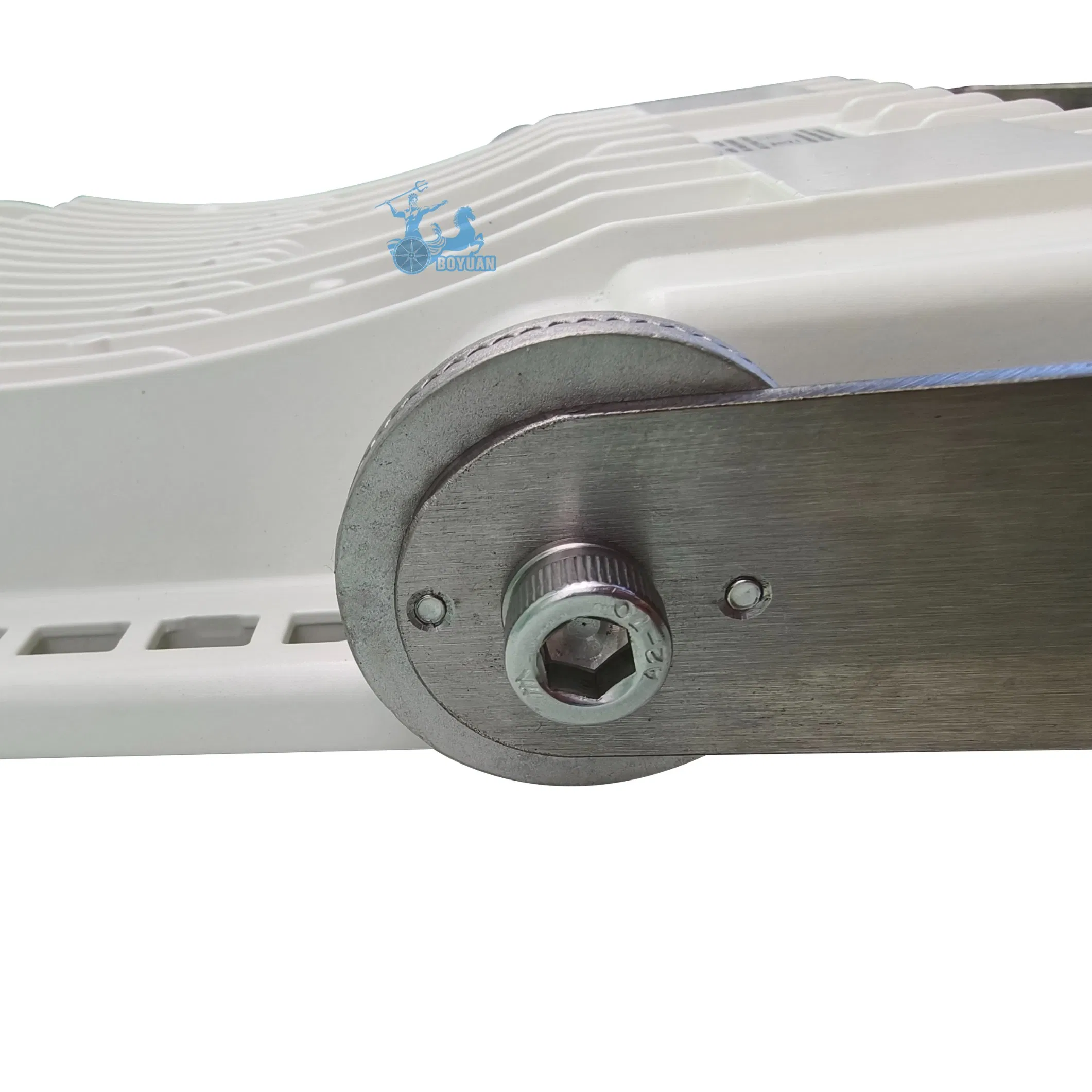

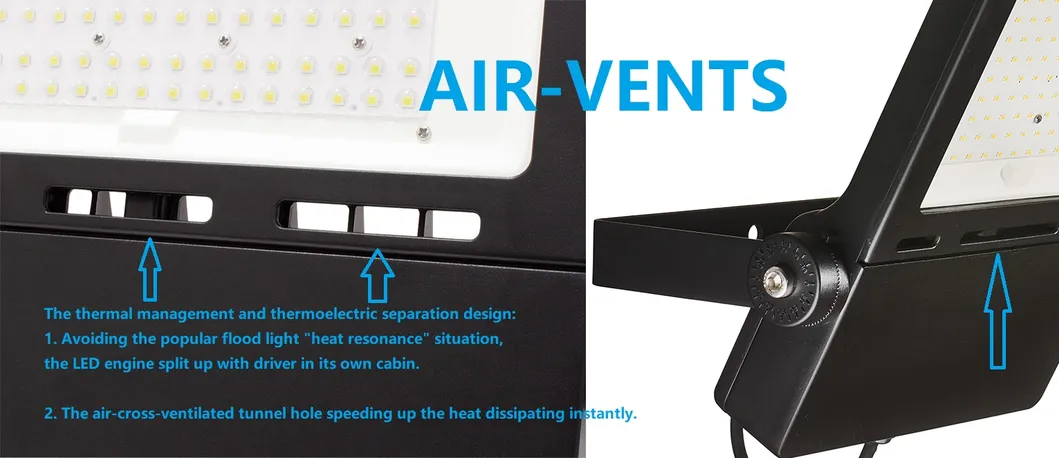

Light Distribution Bracket Design Maritime Application
📐Physical Dimensions & Weight
Item Model Dimensions (AxBxC MM) Weight (KG)
FA-085/105/153389.2 x 296.7 x 573.4
FA-205436.6 x 345.7 x 574.8
FA-255436.6 x 345.7 x 577.2
FA-305/353582 x 385 x 607.5

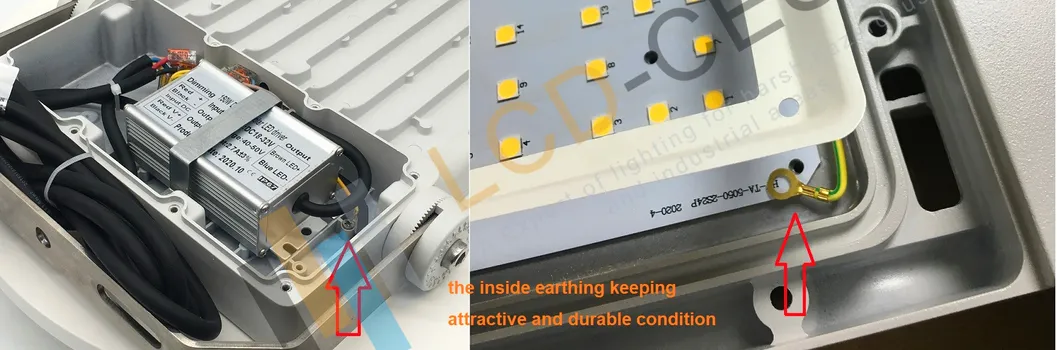

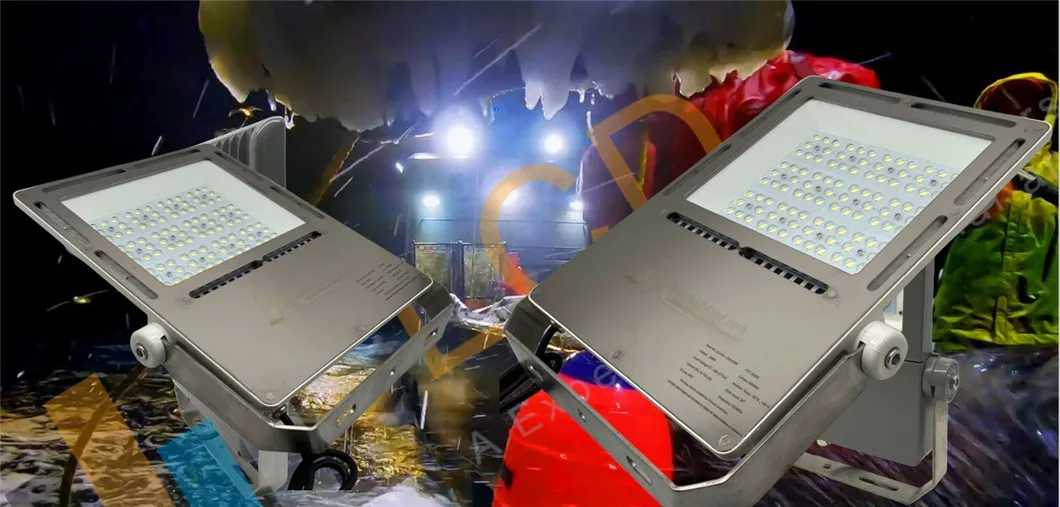

Industrial Project Stadium Lighting Standard Compliance
🛡️Explosion-Proof & Heavy Duty Series

Our heavy-duty range includes 50W-500W modules designed for hazardous locations including chemical plants and mining operations. Featuring instant start, flicker-free operation, and a 60,000-hour lifespan.

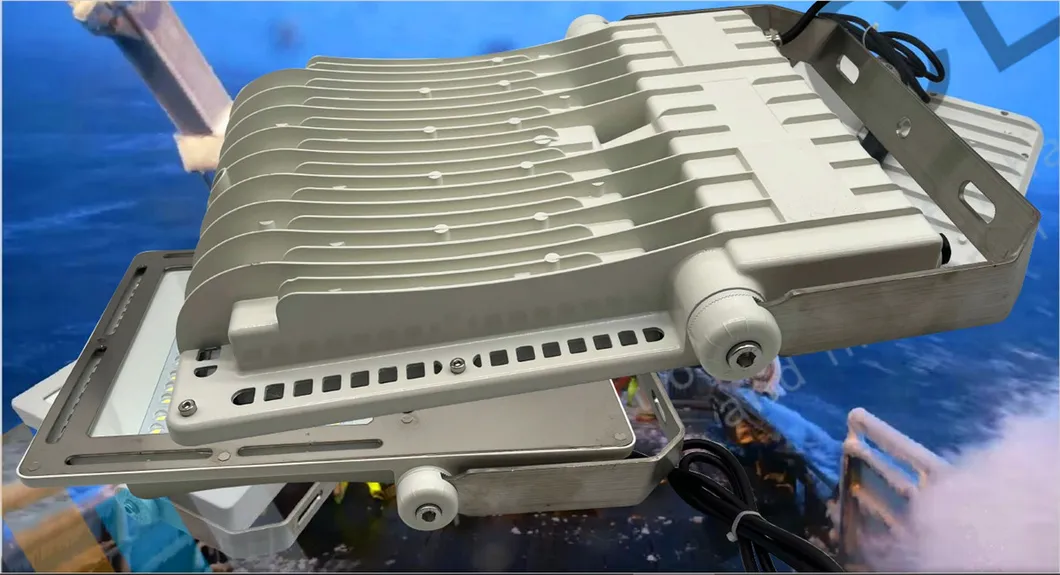

Module Detail Unit Assembly Explosion Proof Module
Frequently Asked Questions
Q1: What environments are FA Series floodlights suitable for?
These lights are specifically engineered for harsh environments, including marine decks, fishing boats, port terminals, chemical plants, and sports stadiums due to their high IP68 rating and corrosion-resistant coating.
Q2: Do these LED floodlights support different dimming protocols?
Yes, they are compatible with multiple dimming systems, including 0-10V, DALI, PLC, and Triac, allowing for flexible light control in industrial and commercial projects.
Q3: What is the standard warranty period for these products?
We offer a reliable 5 to 7-year warranty on our LED modules and drivers, supported by an advanced heat sink design that ensures long-term operational stability.
Q4: Are there different beam angle options available?
Absolutely. We offer over 30 beam angle options, ranging from narrow spot 4°/8° searchlight patterns to wide 120° flood distributions to meet precise application requirements.
Q5: How do you ensure the quality and durability of the marine-grade housing?
The housing is made of high-grade die-cast aluminum with an anodized finish and marine-grade powder coating. Each unit undergoes strict waterproof, impact (IK08/IK09), and burn-in testing before shipping.
Q6: Can these lights operate on DC power for off-road or vessel use?
Yes, in addition to the standard AC100-277V input, we provide options for 12V, 24V, and 32V DC inputs specifically for mobile equipment and specialized marine electrical systems.

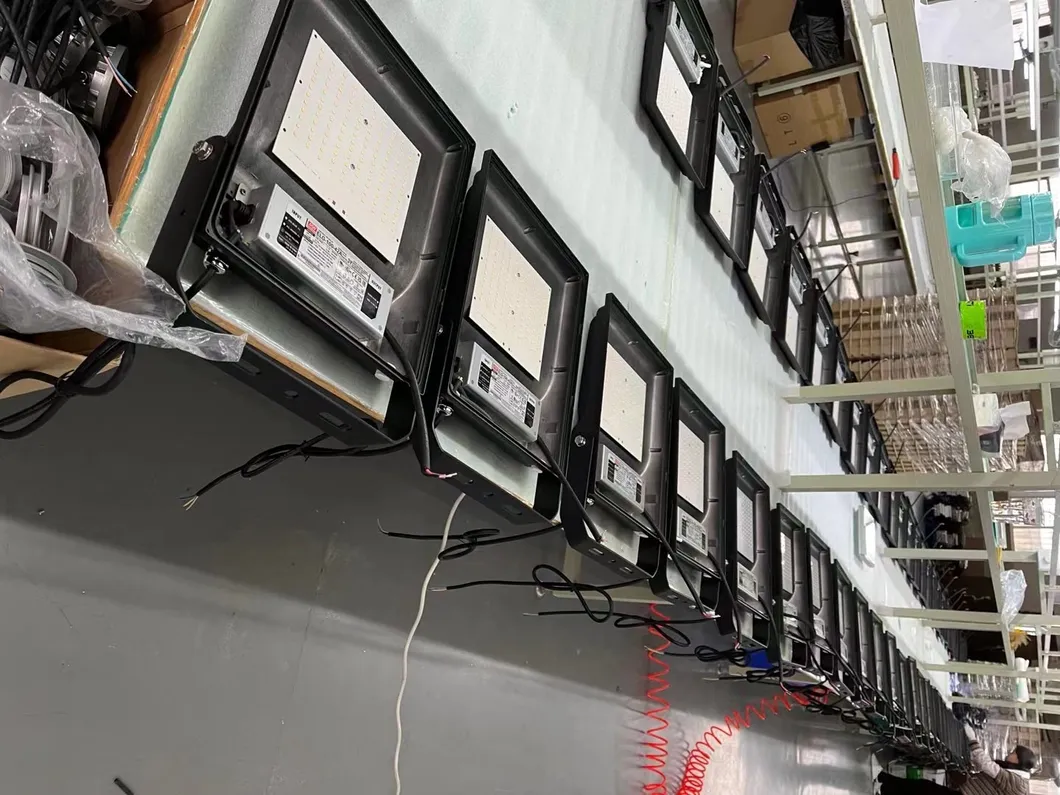

Product Quality Assurance
