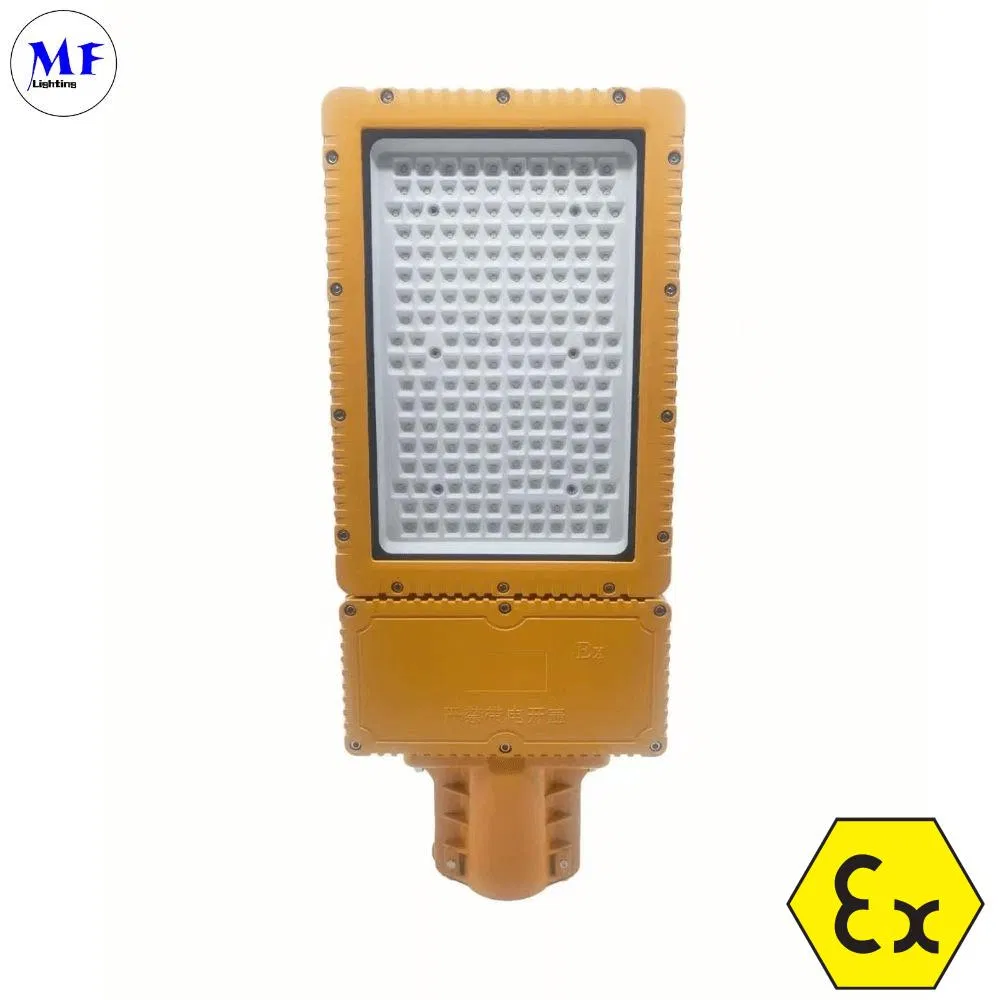

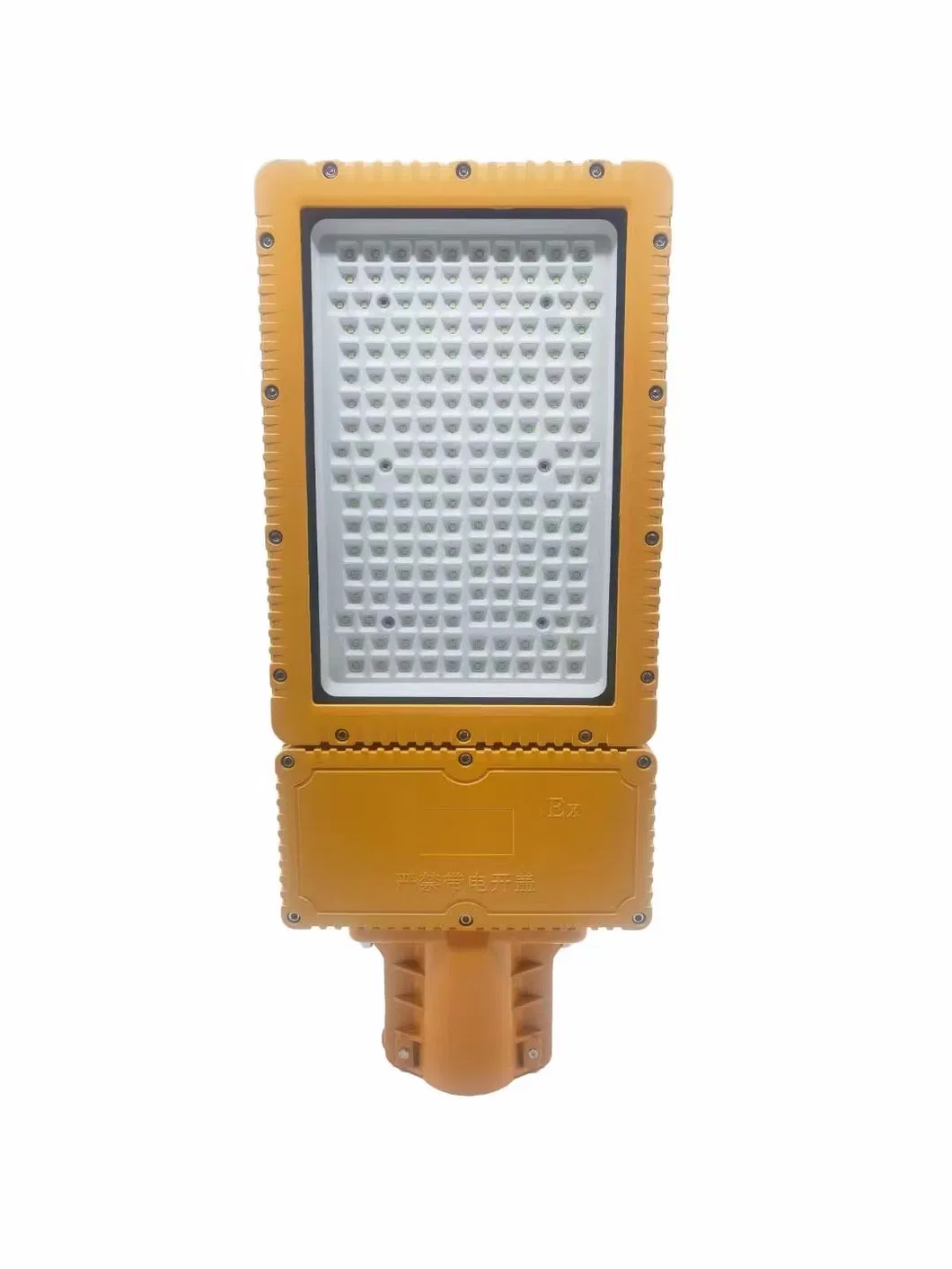

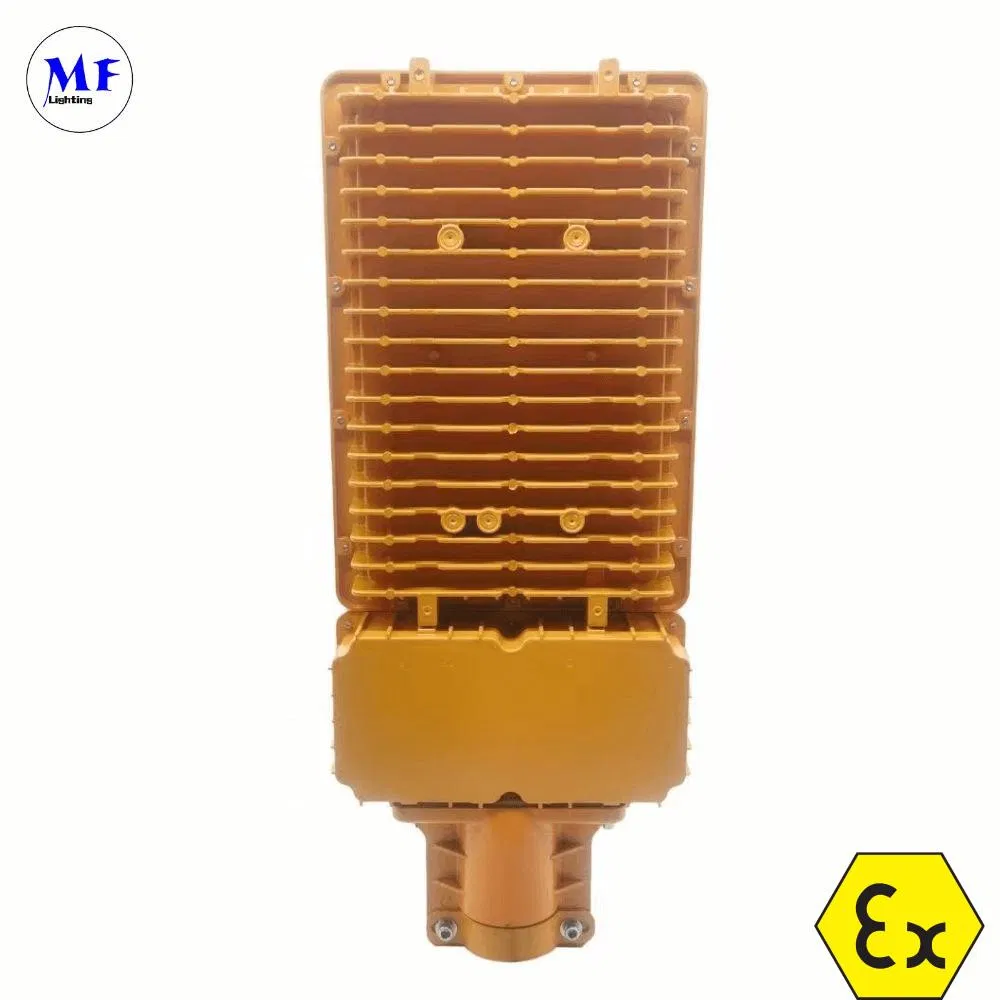

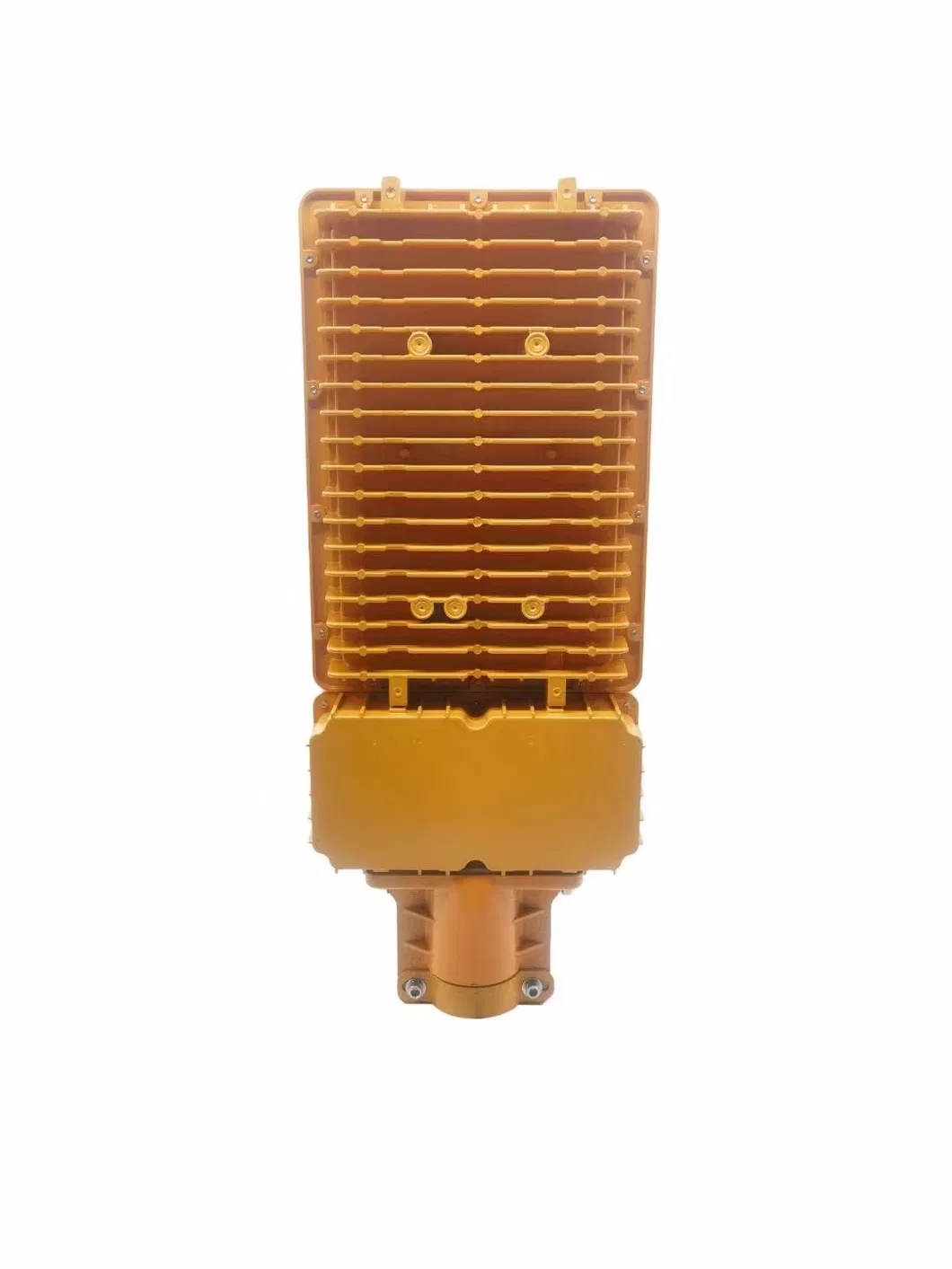

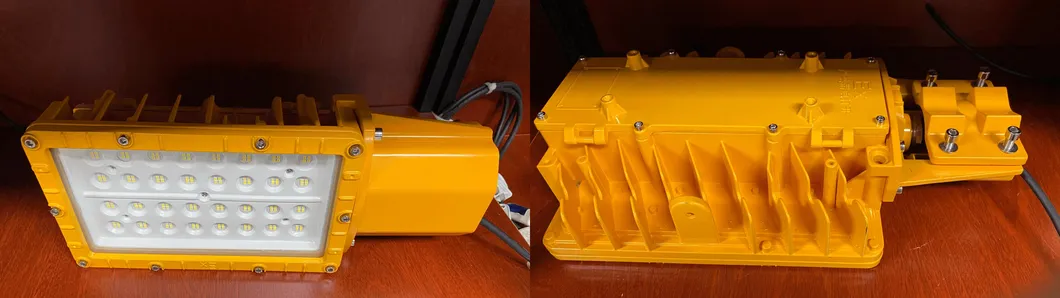

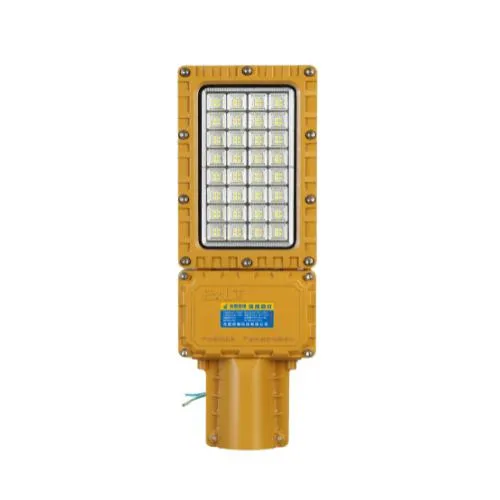

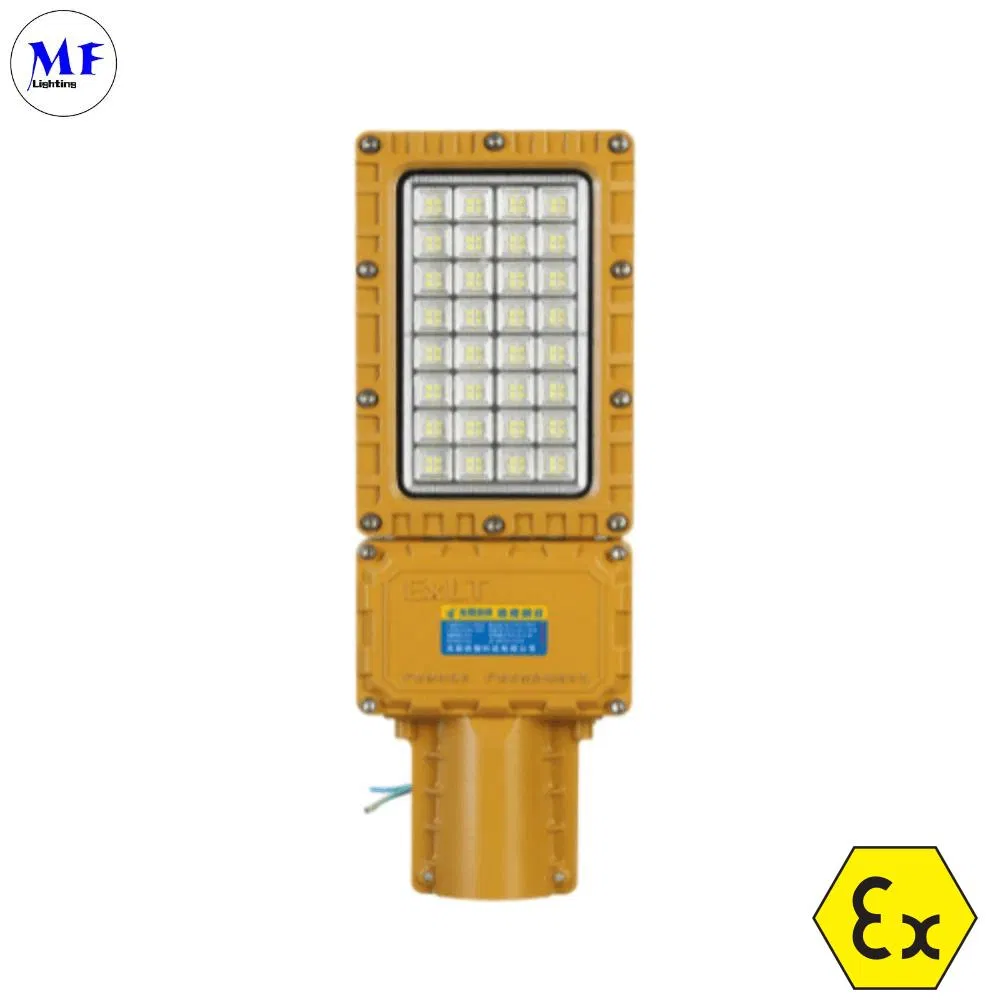

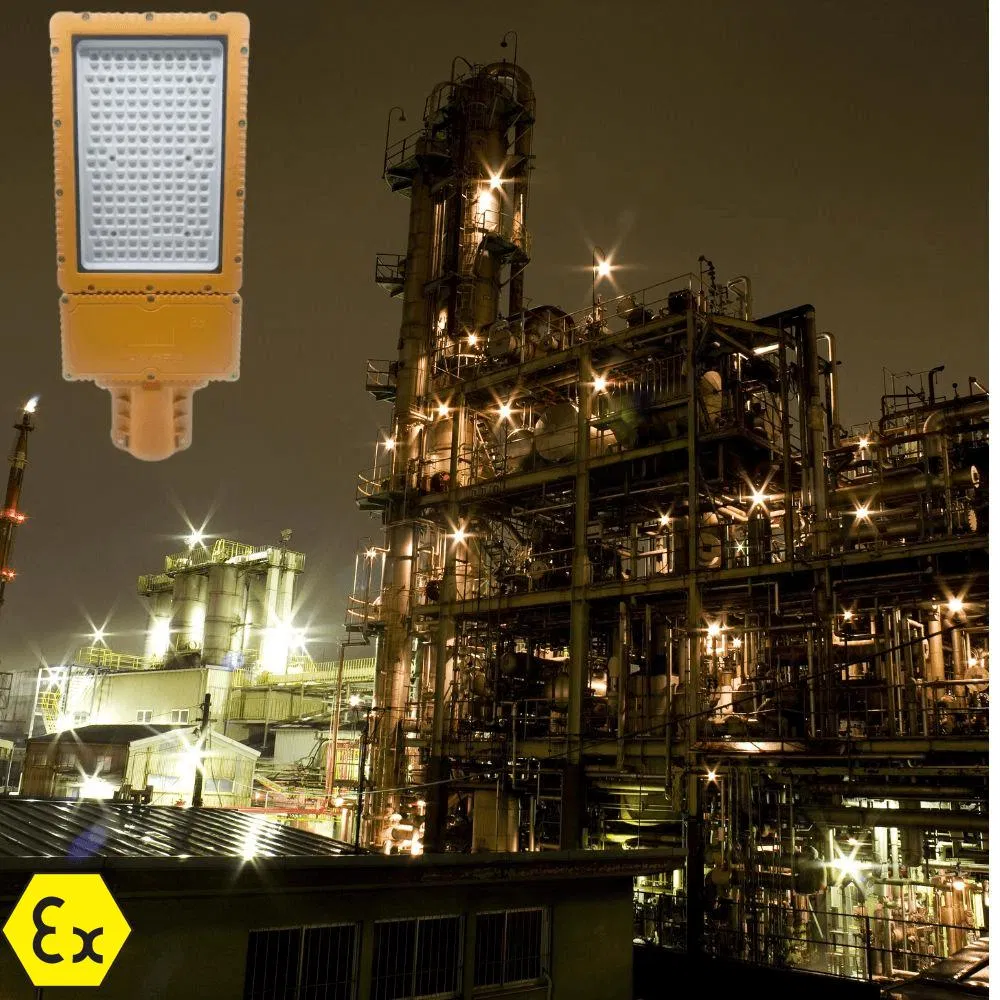

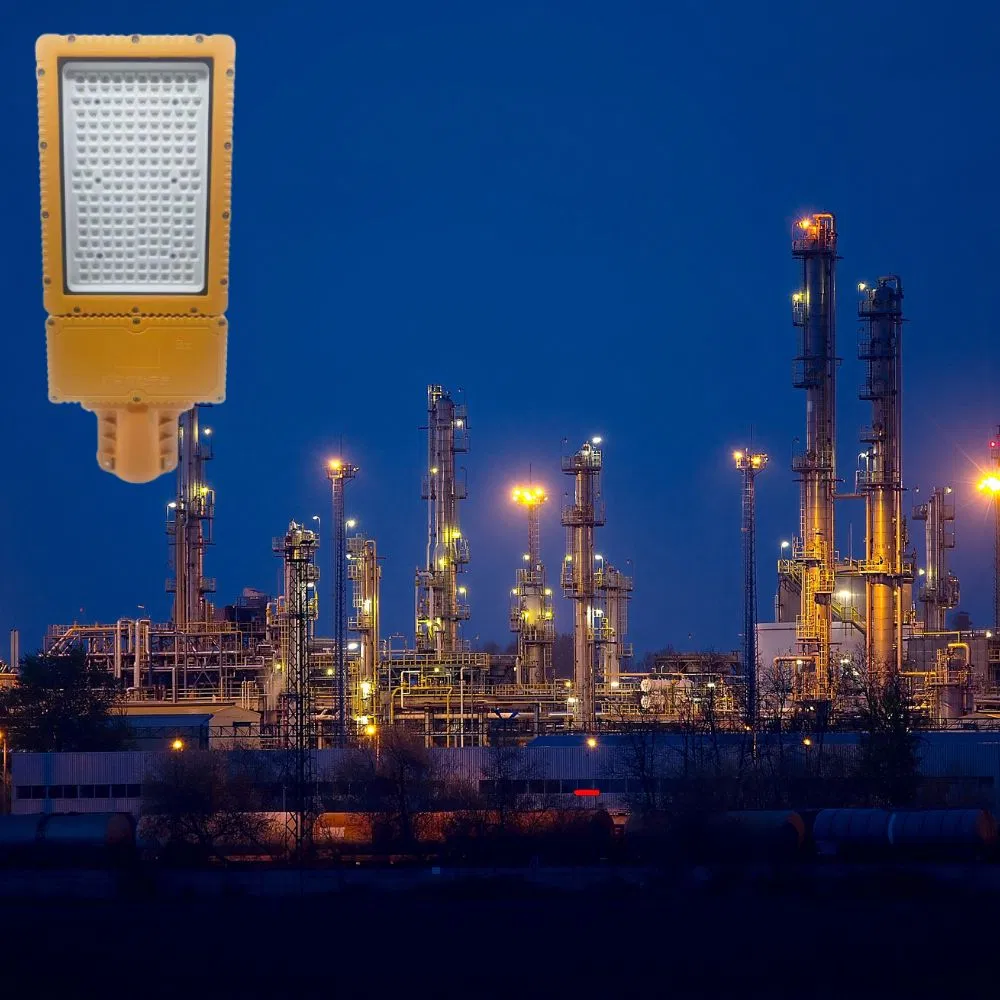

LED Outdoor Lighting Solutions designed specifically for Oil, Gas, and Chemical Industries. The ST1/STA2 Series LED fixtures are the ideal choice for marine and hazardous applications where moisture, dirt, dust, corrosion, and vibration are prevalent.

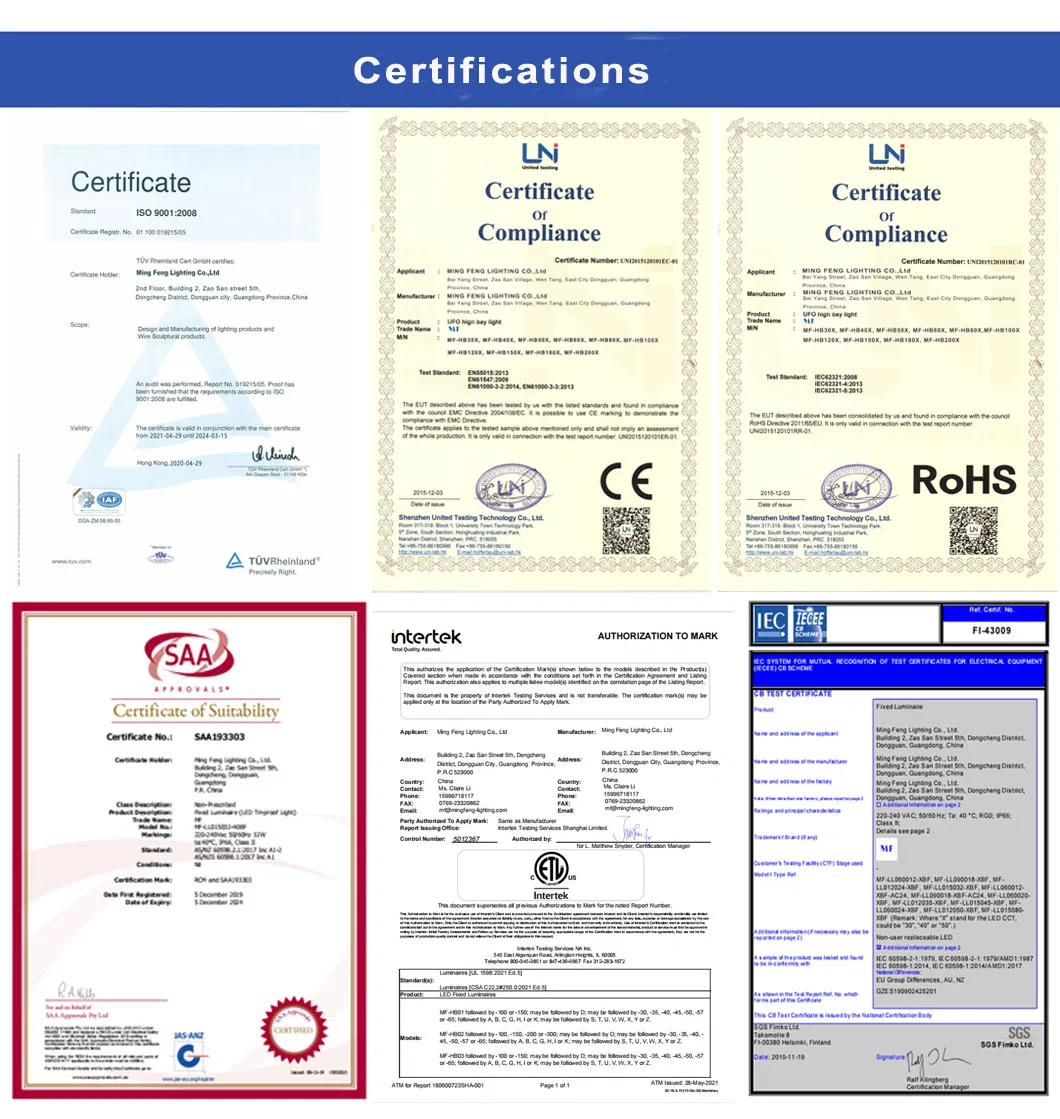

ATEX & IECEx (Zone 1 & 2):
II 2 G Ex eb mb IIC T6...T4 Gb
II 2 D Ex tb IIIC T95°C...T125°C Db IP66
Classifications:
Class I Zone 2 Group IIC / Class II Zone 21 Group IIIC
| Specification | ST 1 Series | STA2 Series |
|---|---|---|
| Rated Power | Max 240W | Max 150W |
| Lumen Output | Max 28000lm | Max 21000lm |
| Input Voltage | AC120-277V / 50/60Hz | |
| Luminous Efficacy | 120-140lm/W | |
| Material | ADC12 Aluminum & Tempered Glass | |
| Operating Temp | -40°C to +55°C | |
| Dimming | 0-10V Dimmable | |

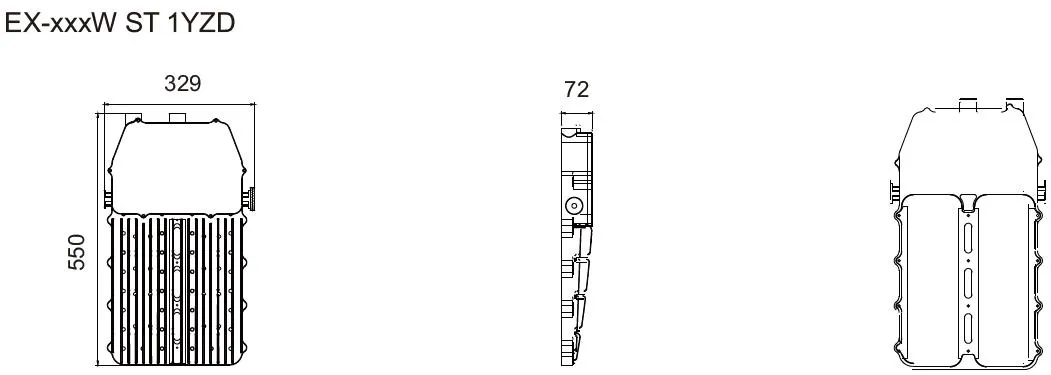

ST 1 Dimensions: 550x329x72mm (21.65x12.95x2.83inch)

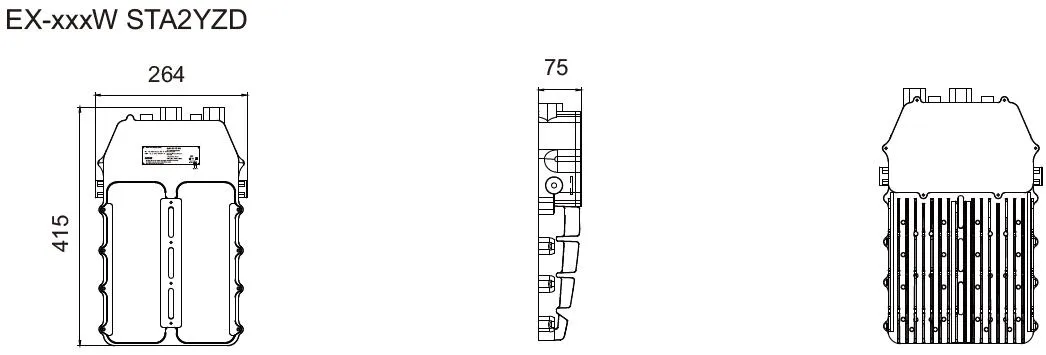

STA2 Dimensions: 415x264x75mm (16.34x10.39x2.95inch)
| Item | Qty/CTN | Packing Size | N.W (KG) | G.W (KG) |
|---|---|---|---|---|
| EX-xxxW ST 1YZD | 1 | 855x375x226mm | 9.5kg | 10.5kg |
| EX-xxxW STA2YZD | 1 | 560x320x127mm | 6.5kg | 7.5kg |

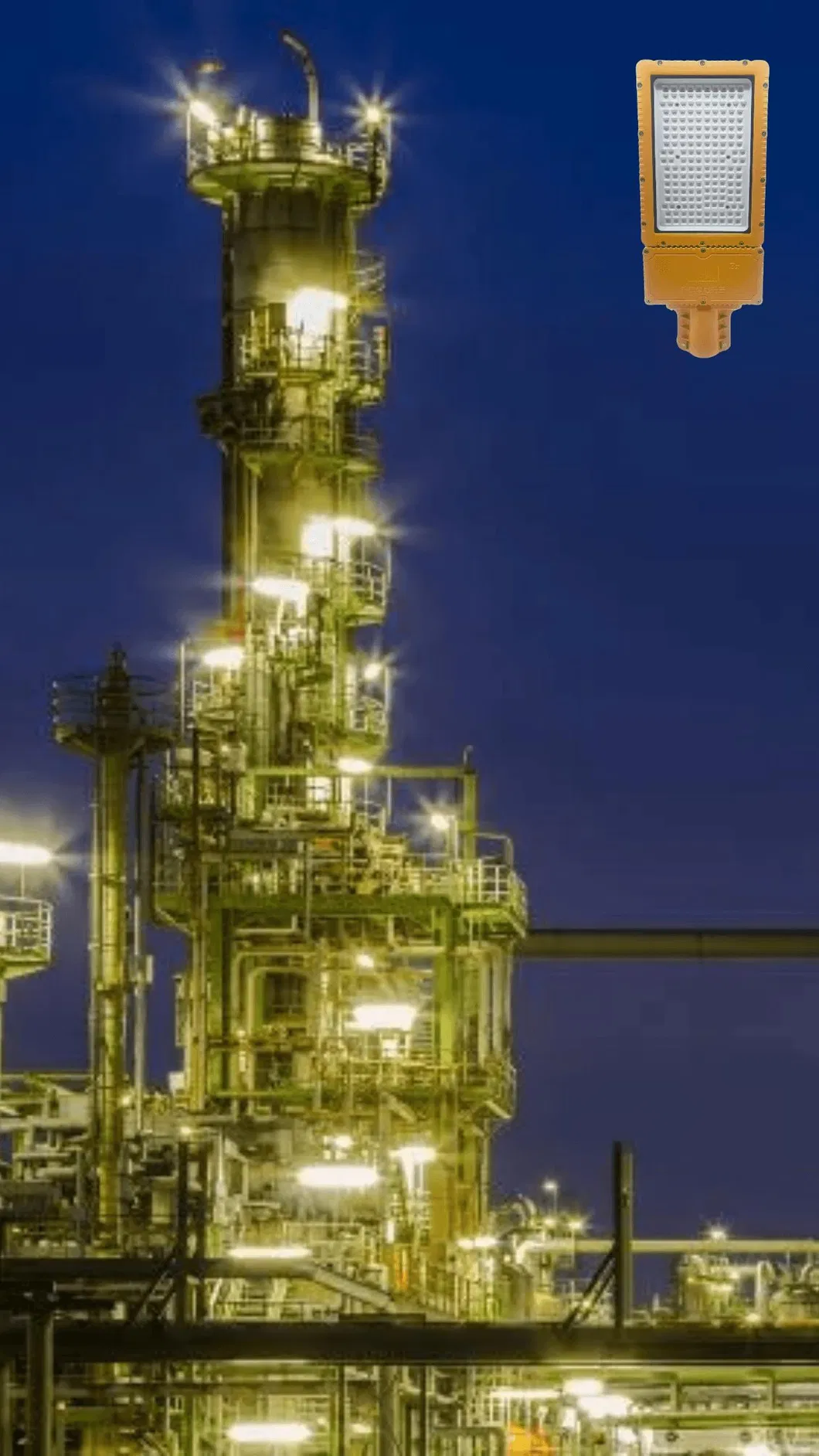

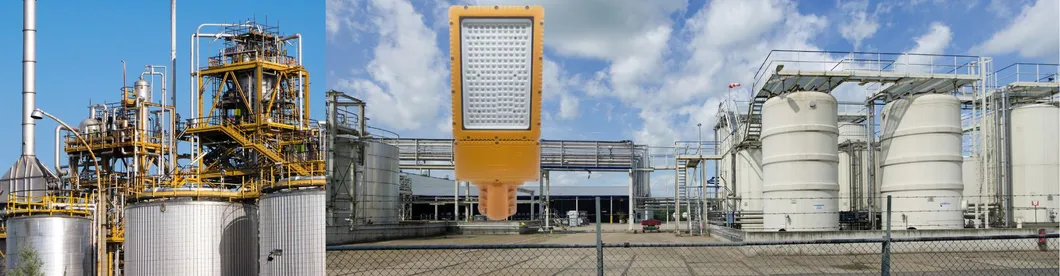

Refineries, loading stations, storage, retail, and LNG facilities.
Paint facilities, chemical storage, and ocean platforms.
Steel factories, metal smelting, foundry, and underground mining.
Flour storage, distilleries, and high-humidity processing areas.
What is the function of explosion-proof lights?
Explosion-proof lamps are specialized fixtures designed to prevent internal electric arcs, sparks, or high temperatures from igniting flammable gases or dust in the surrounding environment. They are essential for safe production in high-risk sectors like petrochemicals, offshore drilling, and pharmaceuticals.
