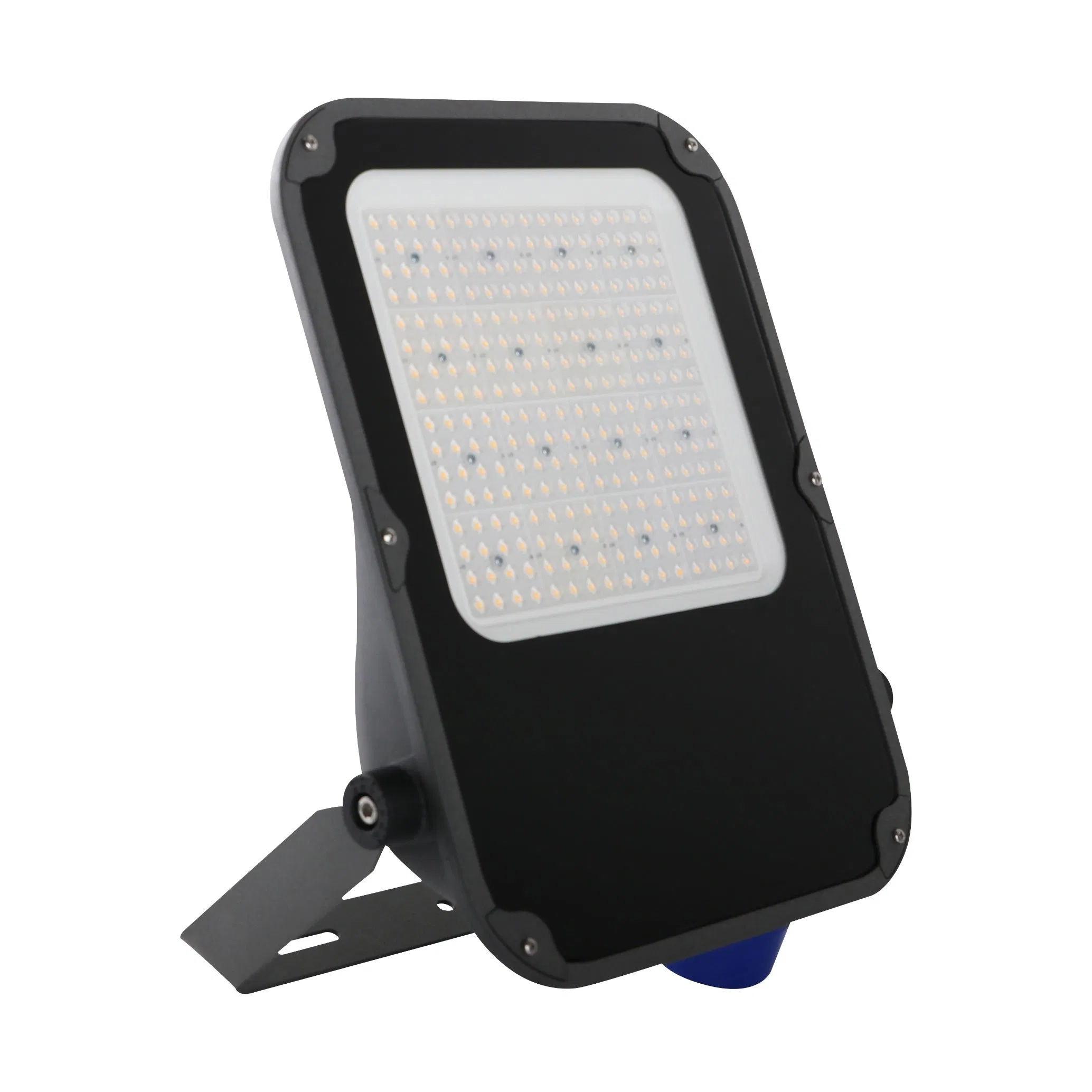

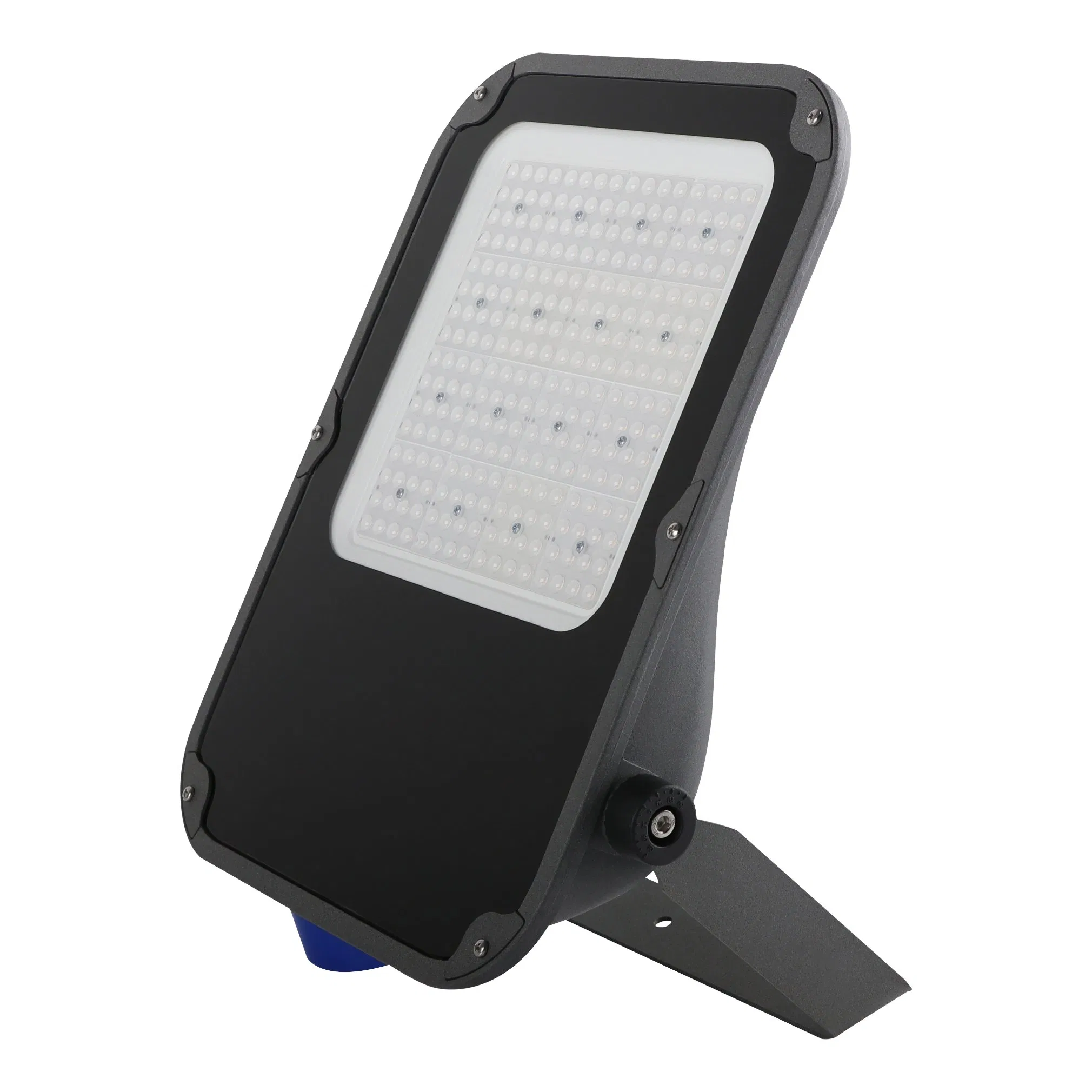

240W 300W LED Sport Field Lighting Projector Flood Light

1 / 5

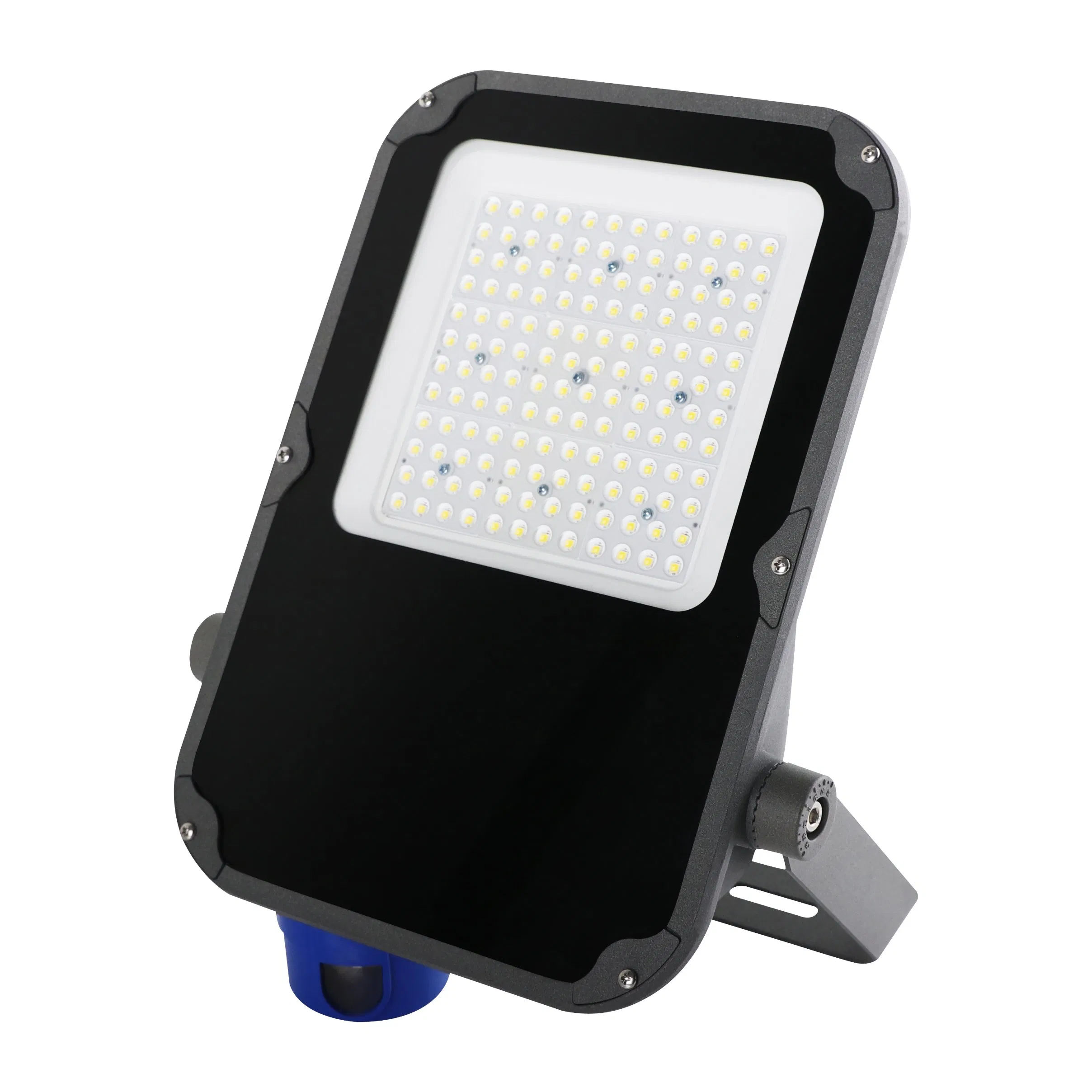

240W 300W LED Sport Field Lighting Projector Flood Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

SLF20-130

Power

240-300W

Projection Distance

18-25m

Application

Park, Square, Factory, Garden

IP Rating

IP66

Certification

CE, RoHS

Operating Voltage

100-277V

Warranty

5 Years

Luminous Efficacy

130lm/W

Energy Class

A++

Lifespan

>50,000hrs

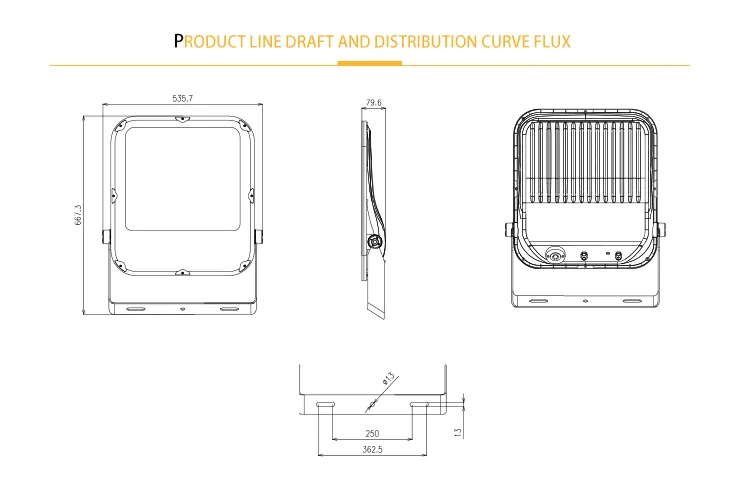

Specification

562.4*472.4*79mm

Product Description

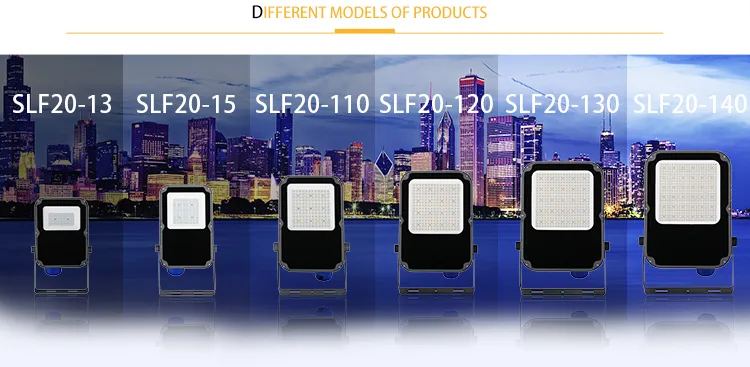

Model NO.	Power(W)	Light Source	LED QTY (PCS)	Lens(PCS)	CCT(K)	Lumen(lm/W)	CRI
SLF20-13	30	3030(5050)	48/16	2	4000k	130/140	>70
SLF20-15	50	3030(5050)	64/32	4	4000k	130/140	>70
SLF20-110	100	3030(5050)	144/54/72	9	4000k	130/140/150	>70
SLF20-120	150	3030(5050)	192/256/96	16	4000k	130/140/150	>70
SLF20-120	200	3030(5050)	256/96	16	4000k	130/150	>70
SLF20-130	300	3030(5050)	400/150	25	4000k	130/145	>70
SLF20-140	400	3030(5050)	576/216	36	4000k	140/145	>70

Applications & Features

Commercial Lighting Tunnel, Supermarkets, Large retailers, School, Billboard, Buildings.

Public Lighting Airports, Stadiums, Train stations, Bus stations.

Industrial Lighting Warehouses, Parking lots, Exhibition centers, Gas stations.

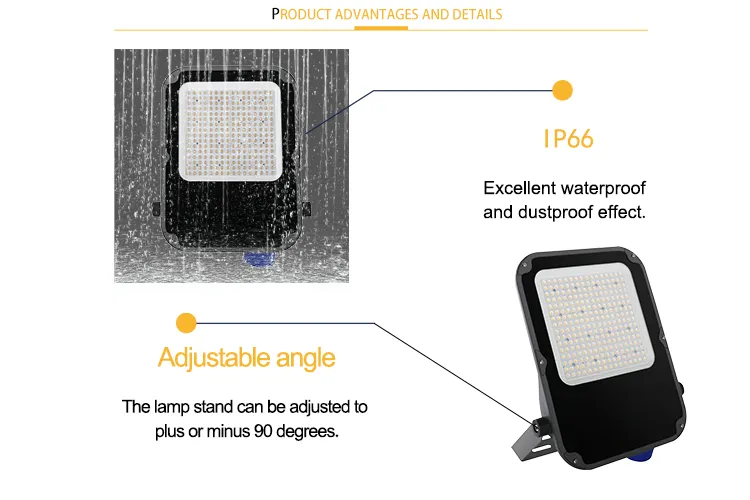

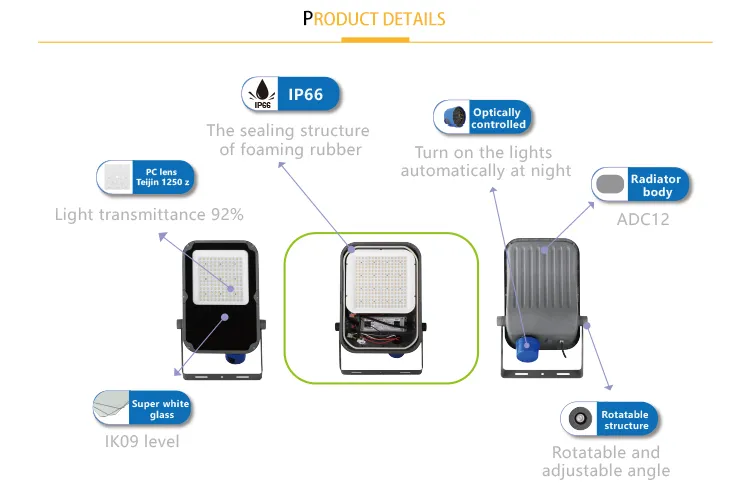

Durability: IP66 waterproof/dust proof/explosion proof/IK09.

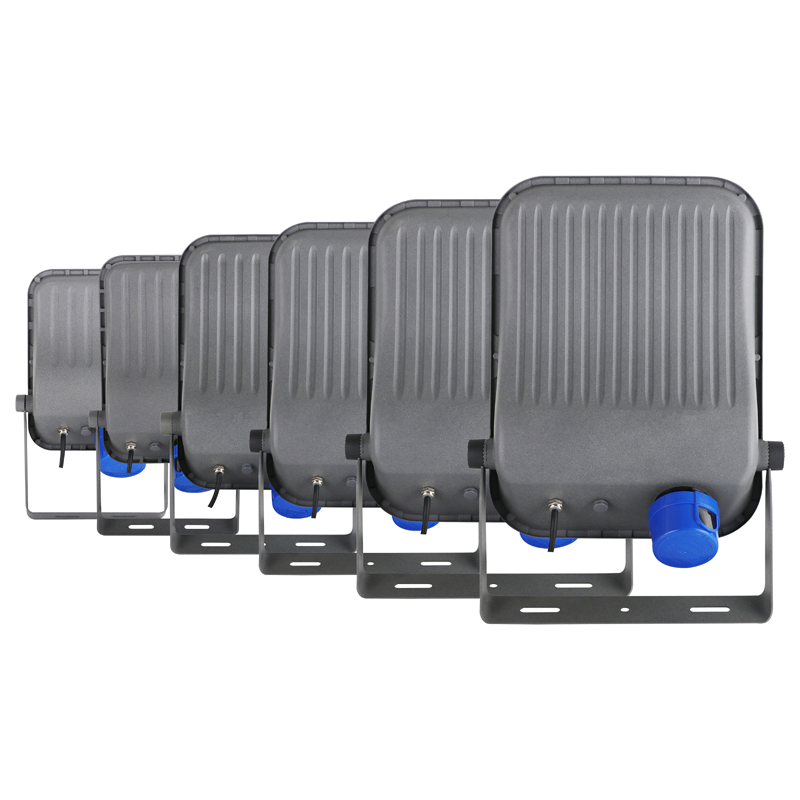

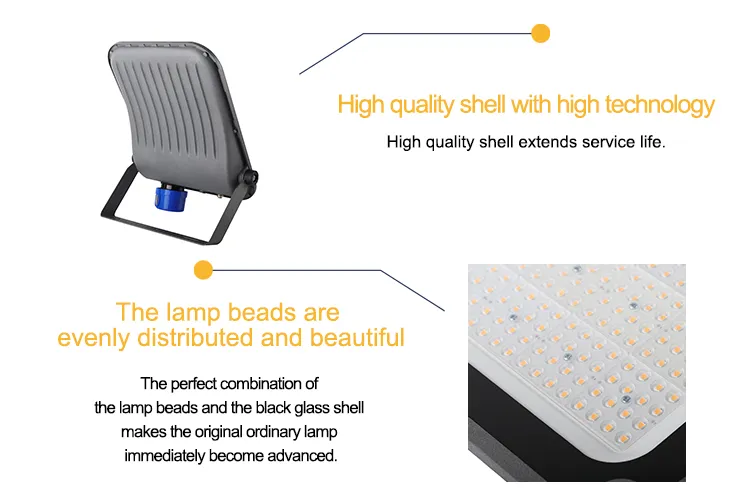

Thermal Control: Pure Aluminum shape for superior heat dissipation.

Ease of Use: Angle Bracket for easy drill installation and replacement.

Performance: SMD 3030 Ra>70, lifespan cycle >100,000 times.

Matters Needing Attention

• Please read the manual carefully before installation.

• Installation and testing must be performed by a certified electrician according to local regulations.

• Check local voltage compatibility (100-277V) before installation.

• Power must be off and the lamp completely cooled before maintenance or revamping.

• Use soft cloth and PH neutral detergent for cleaning; maintain stainless steel regularly.

• Do not cover fixtures with flammable materials.

Frequently Asked Questions

What is the waterproof rating for this sport field light?

This projector flood light carries an IP66 rating, making it completely dust-proof and protected against powerful water jets, ideal for outdoor stadiums and tunnels.

How long is the warranty and expected lifespan?

The product comes with a 5-year warranty and has a rated lifespan of over 50,000 hours with more than 100,000 switching cycles.

Is the installation bracket adjustable?

Yes, the light features a pure aluminum angle bracket which is easy to install via drilling and allows for flexible positioning.

What power options are available for the SLF20 series?

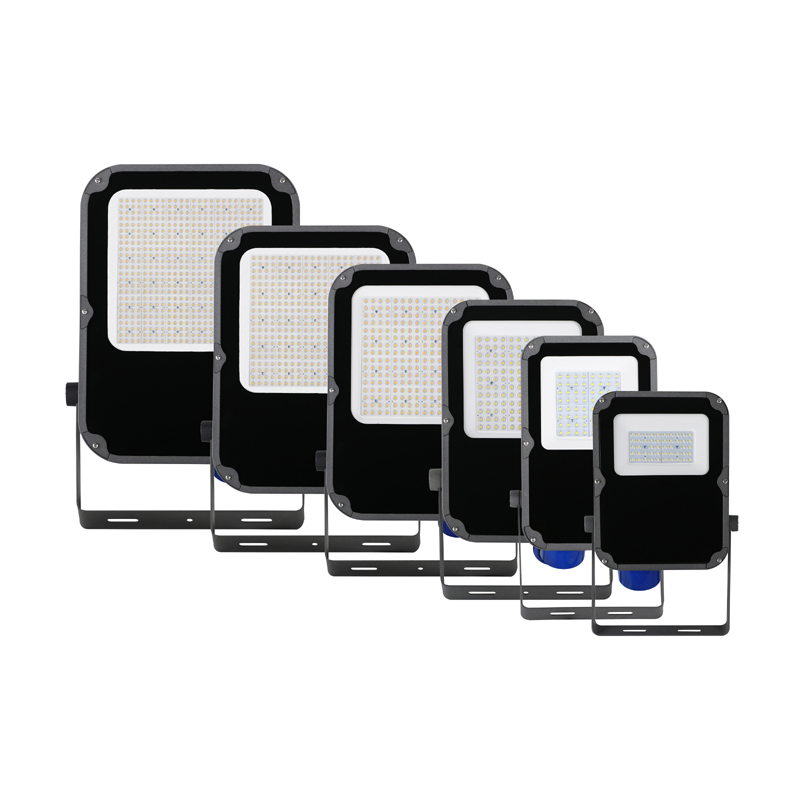

The series ranges from 30W up to 400W, catering to different lighting needs from small gardens to large commercial sports fields.

What voltage range does this flood light support?

It supports a wide input voltage range of AC 100-277V, making it compatible with most global power grids.

How is the heat dissipation handled in high-wattage models?

The fixtures are constructed using high-purity aluminum with a specialized shape designed to maximize heat dissipation and ensure LED stability.
