Basic Specifications
Model NO.LCD-FK-103
Power Range80W-1500W
Projection Dist.12-18m
IP RatingIP66 / IP65
CertificationCCC, CE, FCC, RoHS, TUV
Input Voltage85-265V / 24V
LED ChipsEpistar / CREE / Luxeon
Lumen Output130-170lm/W
Beam Angle8° to 120°
IK RateIK07 / IK08 / IK10
ApplicationPark, Square, Factory, Airport

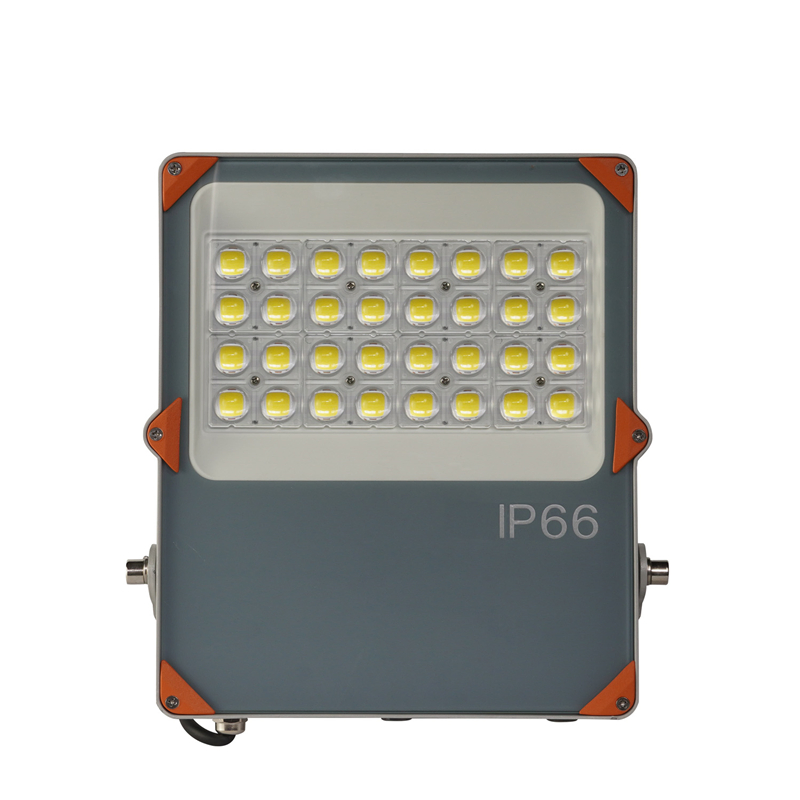

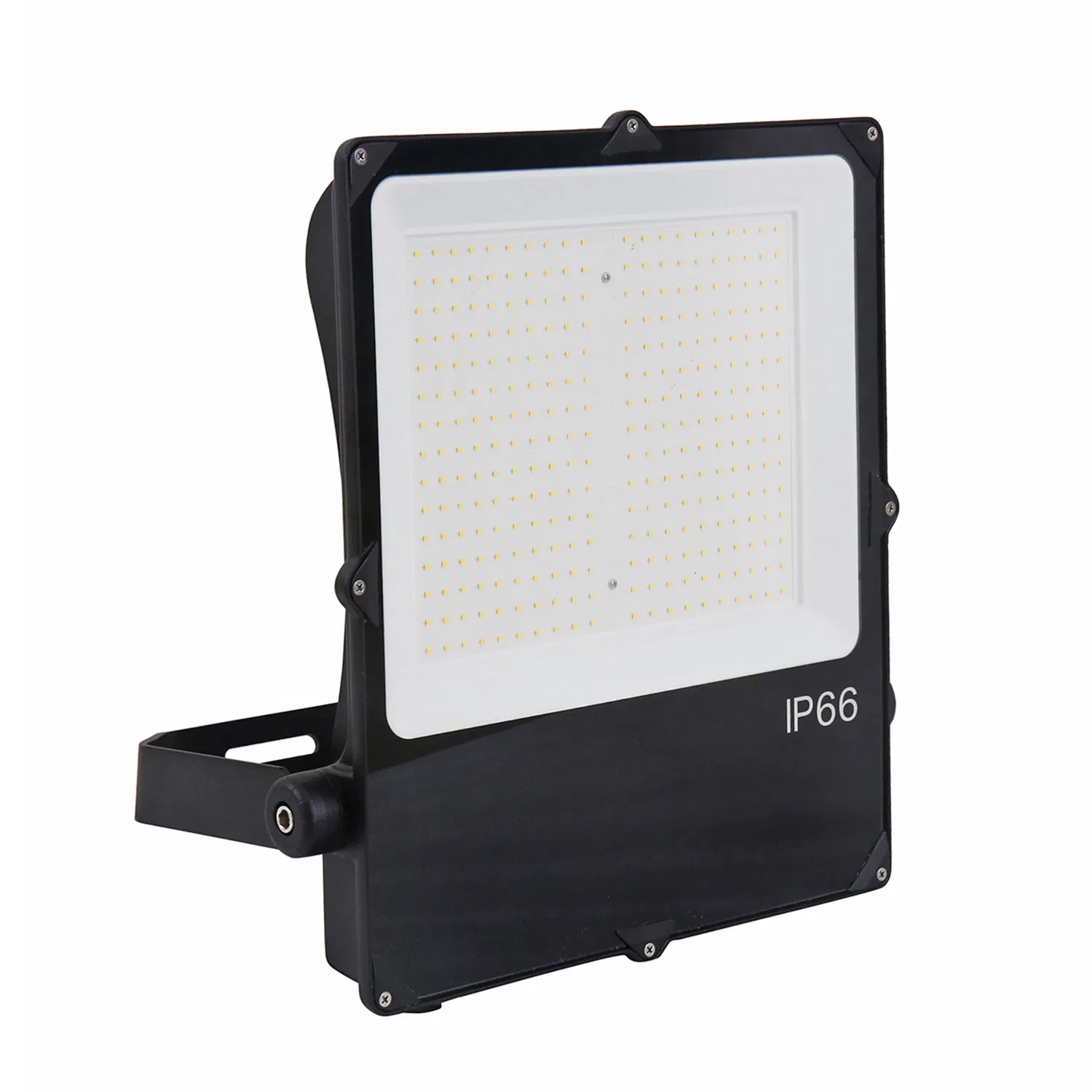

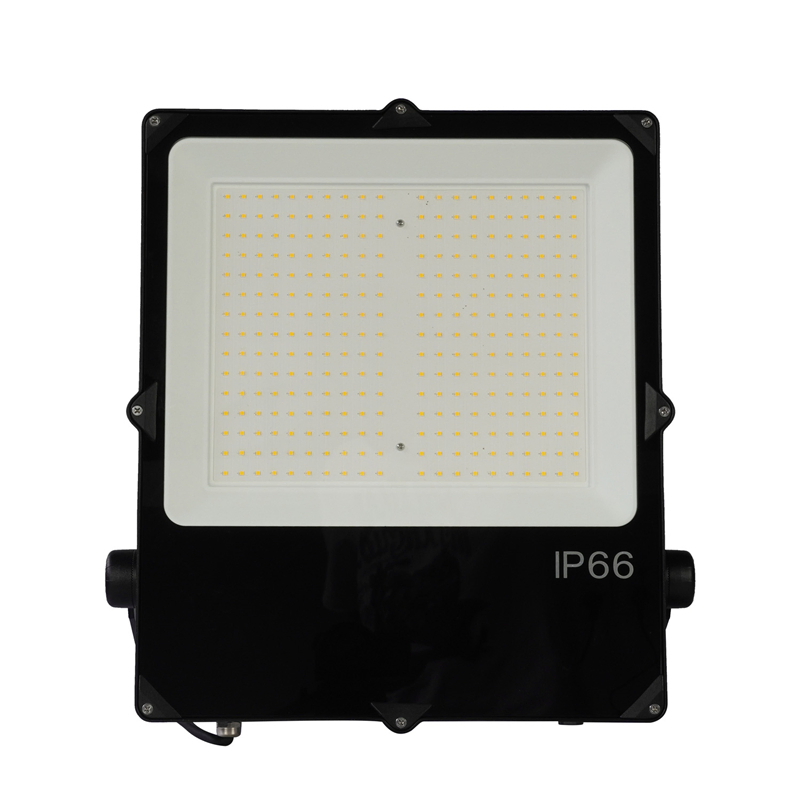

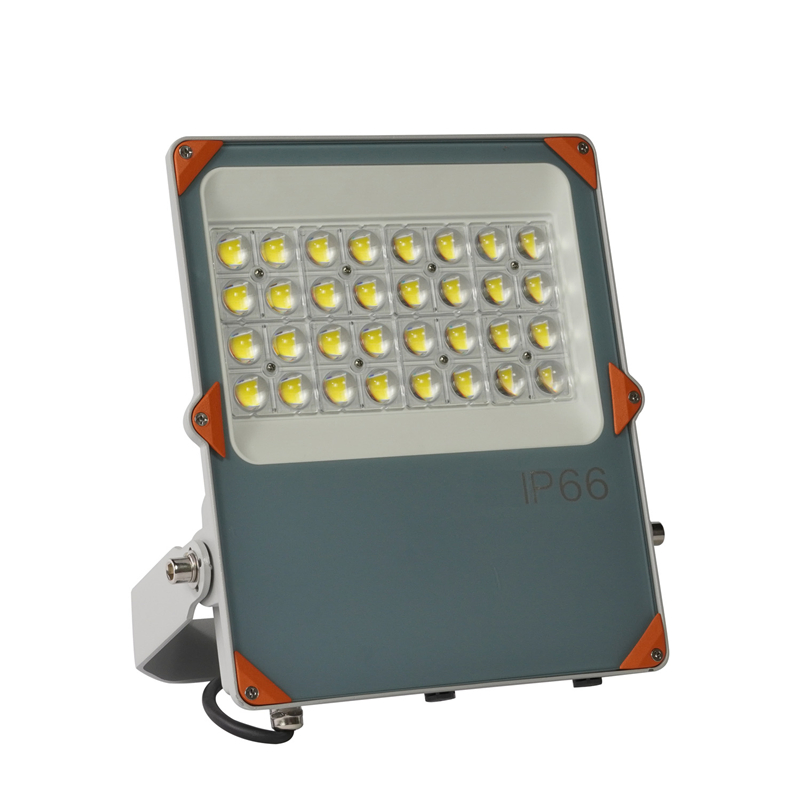

Exterior LED Flood Lights Overview
High-performance Exterior LED Flood Lights featuring 240W power, 6500K color temperature, and robust IP65 protection. These lights are designed for heavy-duty applications including marine environments, industrial facilities, and large sports areas. With a 5-year warranty, they offer a reliable and energy-efficient replacement for traditional high-intensity discharge lamps.
✔ Energy Saving Efficiency
✔ High Lumen Output (160lm/W)
✔ Weather & Water Proof (IP66)

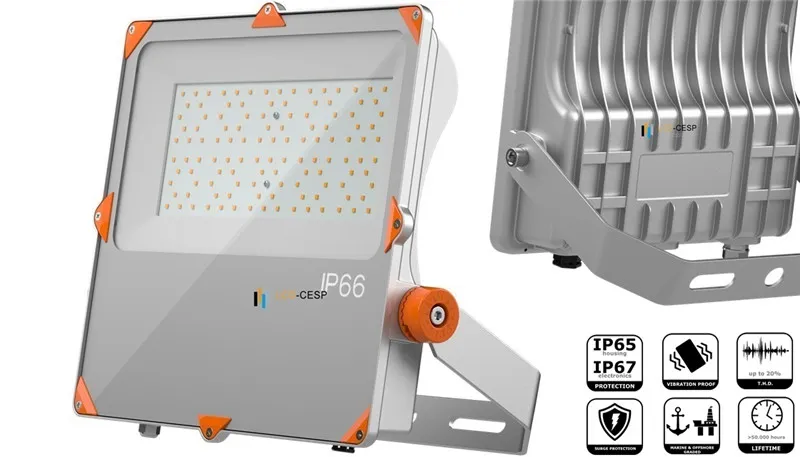

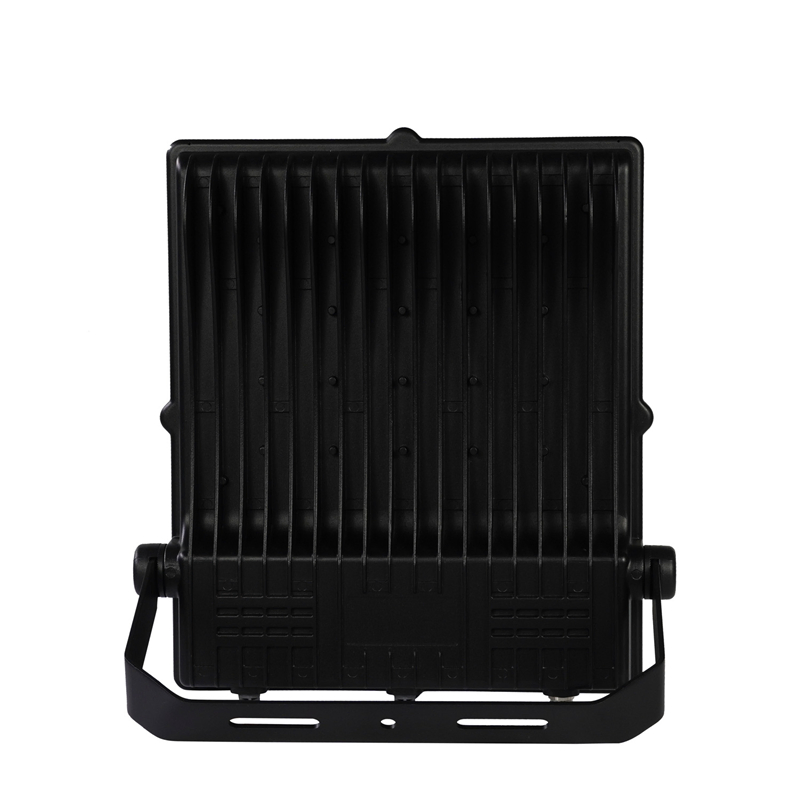

✔ Advanced Heat Sink Design
✔ Dimmable: 1-10V Support
✔ Elegant & Lightweight Design

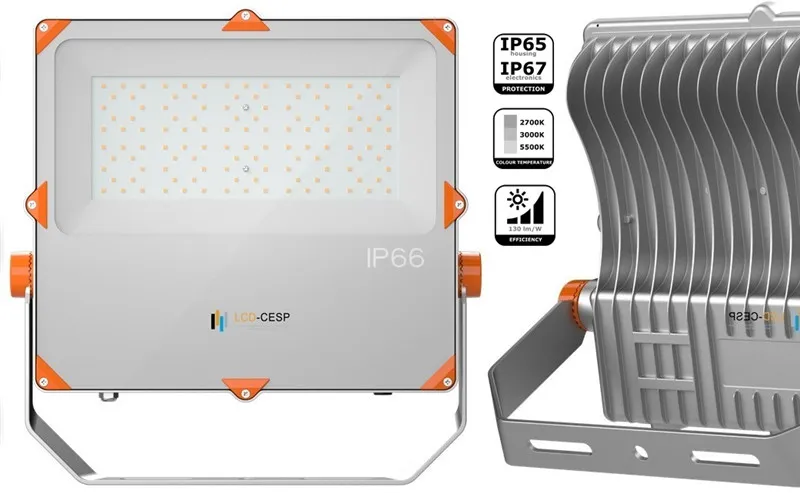

Detailed Specifications
| Wattage |
100W |
150W |
200W |
240W |
| Light Source |
SMD 3030 |
| Luminous Efficiency |
110 - 130 lm/w |
| Luminous Flux (lm) |
13000 |
19500 |
26000 |
31200 |
| Color Temperature |
2800K - 7500K |
| Housing Material |
Die-cast Aluminum / Extruded Aluminum |
| IP / IK Rating |
IP65 / IP66 & IK07 / IK10 |

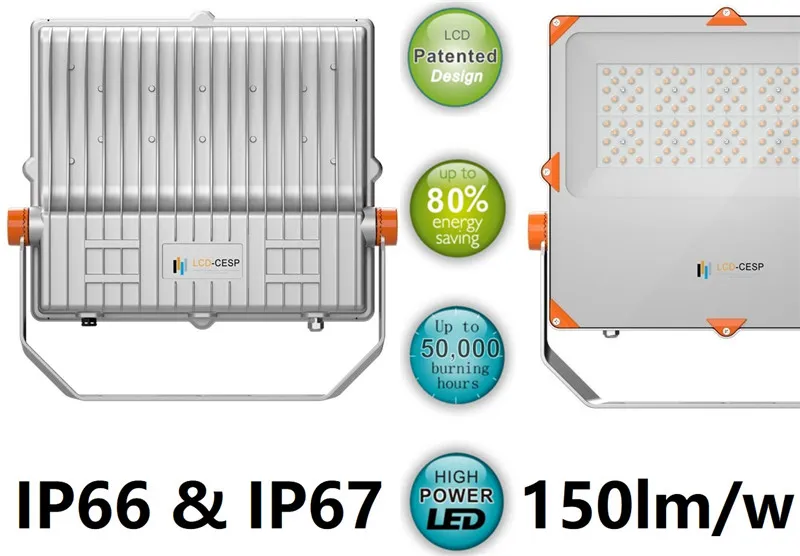

Mechanical & Housing
MaterialAluminum 1060 Extruded / ADC12
Optic MaterialPolycarbonate / Tempered Glass
MountingAdjustable Mounting Bracket
FinishCorrosion-proof Powder Coating
Surge ProtectionUp to 3 kV - 10kV
Working Temp-30 to +50 °C
Available Models & Dimensions
| Model No. |
Power (W) |
Lumens |
Weight |
Dimensions (mm) |
| FKJ-053 | 50W | 6500-7500 | 1.70kg | 346*200*65 |
| FKJ-103 | 100W | 13000-15000 | 3.33kg | 365*310*60 |
| FKJ-153 | 150W | 19500-20000 | 3.80kg | 365*365*60 |
| FKJ-203 | 200W | 26000-32000 | 4.65kg | 365*420*60 |
| FKJ-303 | 300W | 39000-50000 | 8.20kg | 590*387*63 |
International Applications
Industrial Lighting
Projecteur LED Industriel
Illuminazione Industriale
Iluminación Exterior
LED Lyskaster
Bouwlamp LED
Stadium Floodlight
Billboard Lighting
Airport Apron Lighting
Marine Grade Lighting
Frequently Asked Questions
What is the expected lifespan and warranty of these floodlights?
These LED floodlights are built for longevity with advanced hotspot thermal management. They come with a standard 5-year warranty, ensuring long-term reliability for industrial and commercial projects.
Are these lights suitable for marine or high-corrosion environments?
Yes, the housing is made of low copper die-cast aluminum with a marine-grade epoxy powder coating, making them highly resistant to corrosion in docks, piers, and offshore oil & gas applications.
Can the light output be dimmed or controlled automatically?
Our floodlights support 1-10V dimming, Triac control, and can be integrated with motion sensors or infrared induction for enhanced energy savings.

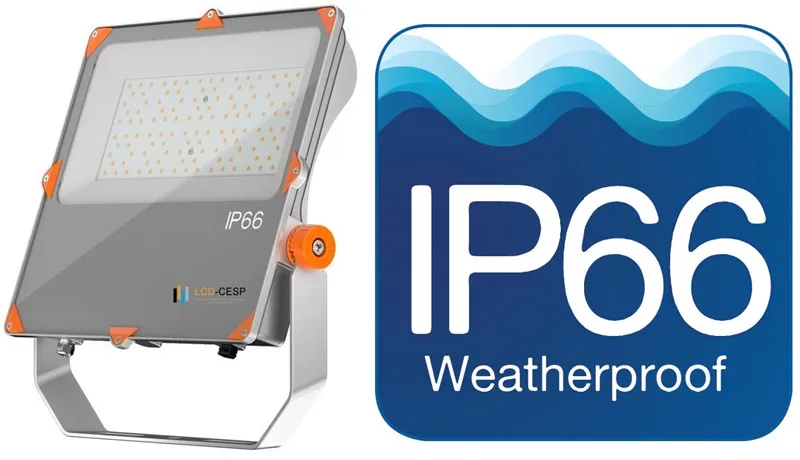

What is the difference between IP65 and IP66 ratings mentioned?
Both ratings offer excellent protection. IP65 is protected against water jets, while IP66 provides protection against powerful water jets and heavy seas, suitable for more extreme weather conditions.

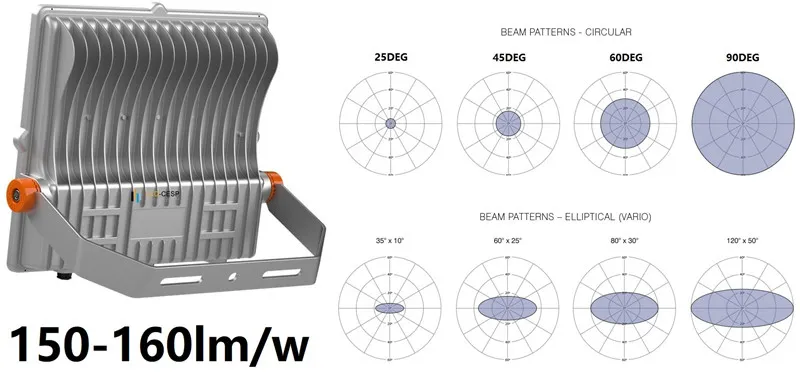

What beam angles are available for different project needs?
We offer a wide variety of optical distributions, including narrow Spot (8°/10°), asymmetric flood (33°), and wide-angle medium flood (120°), ensuring precise light placement.
Is it easy to replace traditional HID or Halogen lamps with these LEDs?
Absolutely. These units are designed for simple retrofitting onto existing poles or brackets, significantly reducing initial installation costs while slashing energy bills by up to 70%.
