Product Description

Basic Specifications

Model NO.

LCD-FA-1005-LN6-LEDiL-57K

Power Range

80W - 1500W

Distance

1000m / 2000m / 3000m / 5000m

IP Rating

IP67 / IP68

LED Chips

Osram / Cree / Luxeon

Lumen Output

130-170lm/W

Beam Angle

2° to 90° Optional

Marine Grade

Anti-Salt Water Coating

Input Voltage

110-240V / 220V / 12-32VDC

Certification

CE, RoHS, FCC, ETL, SAA, etc.

Product Overview

Outdoor Marine Aluminum Alloy housing with dimmable 0-10V or PLC dimmer control. High-performance water-proof IP66/IP67/IP68 LED flood lighting solutions ranging from 80W to 1500W. Specifically designed for fishing boats, deck lighting, and harsh maritime environments.

FA Series High Intensity Searchlight: A professional, energy-saving replacement for HID or Halogen lamps. Featuring Ph® SMD 5050 LED technology, high brightness, and built-in 3-4kV surge suppression for maximum reliability.

Key Features

High Efficiency: Utilizing Cree or Bridgelux SMD3030/5050 LED chips.

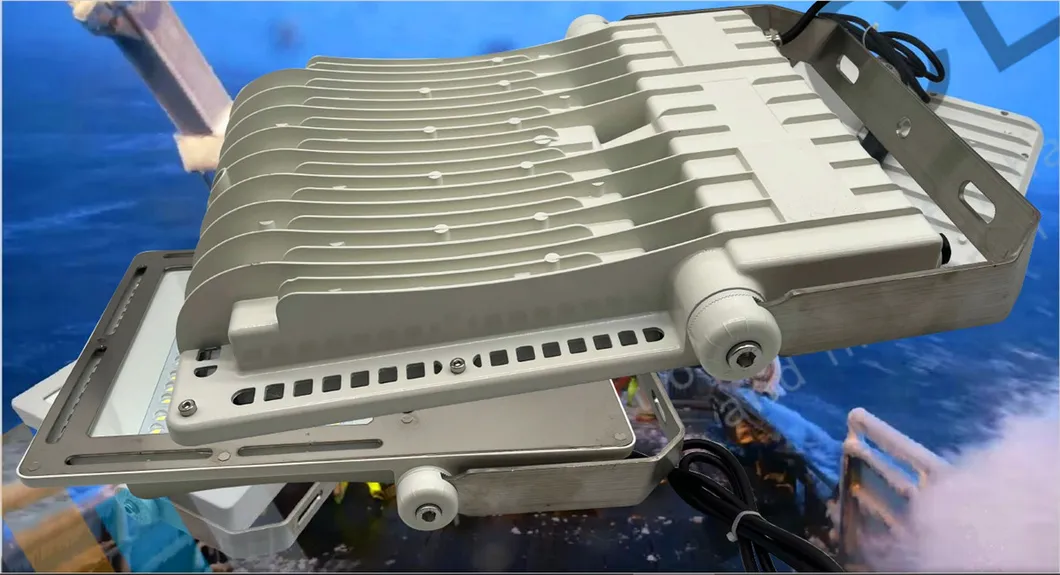

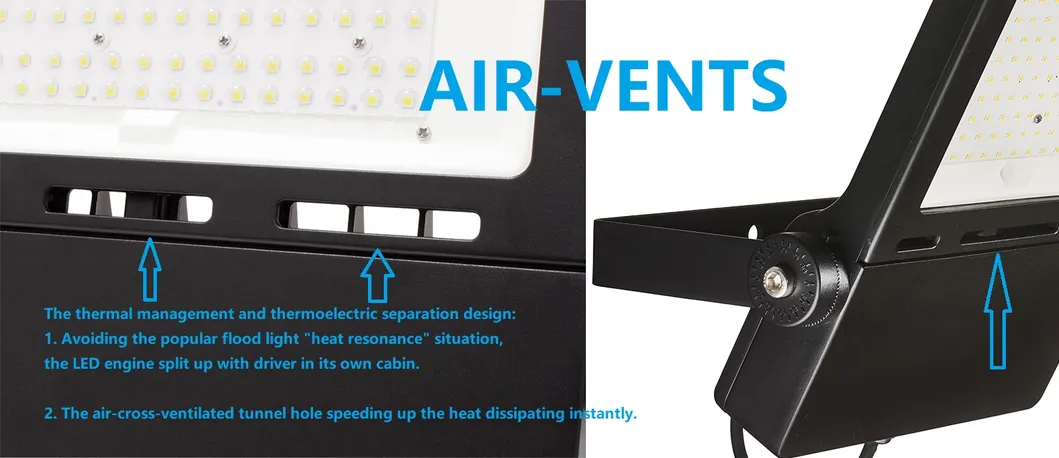

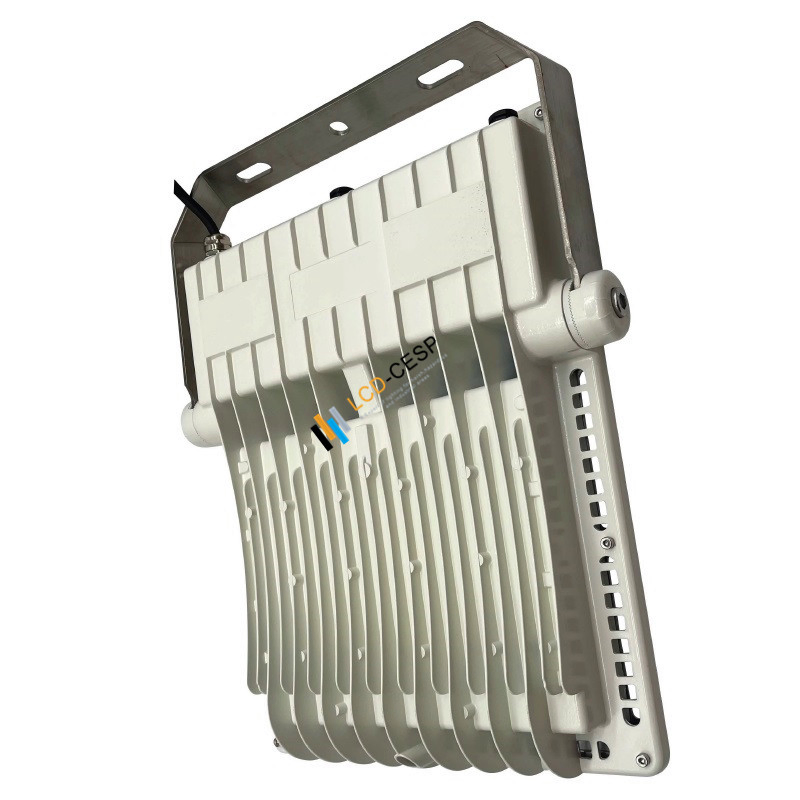

Rugged Design: Super slim die-cast aluminum case (max depth 60mm) for superior heat dissipation.
Extreme Durability: Impact-resistant tempered glass (IK08/IK09) and corrosion-resistant coating.
Precision Mounting: Bracket designed with +/-160° angle adjustments and 5° interval locking.

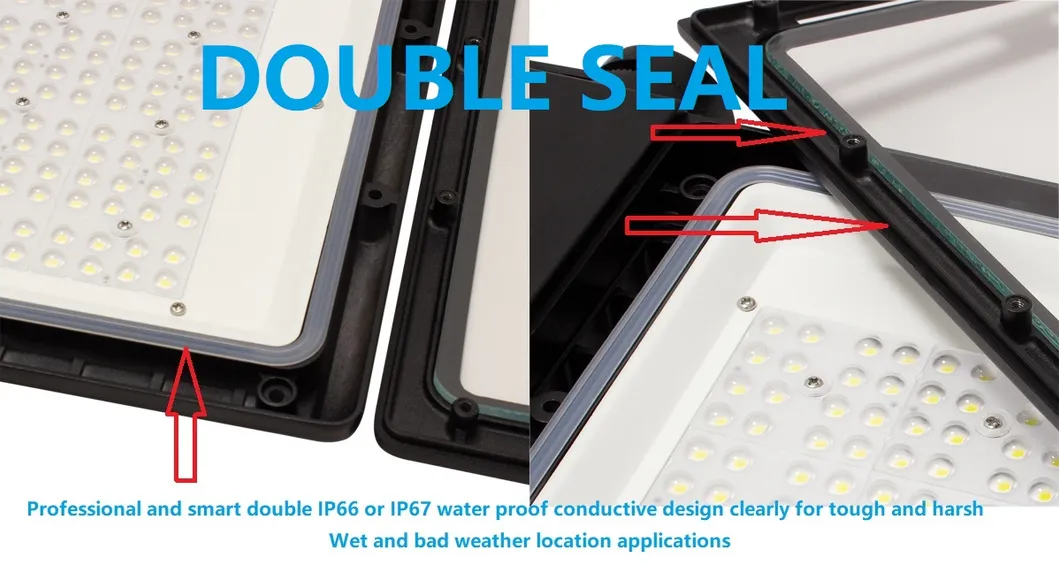

Protection: Advanced IP66/IP67/IP68 rating to eliminate water ingress.
Warranty: Long-term reliability with 5-7 years warranty support.

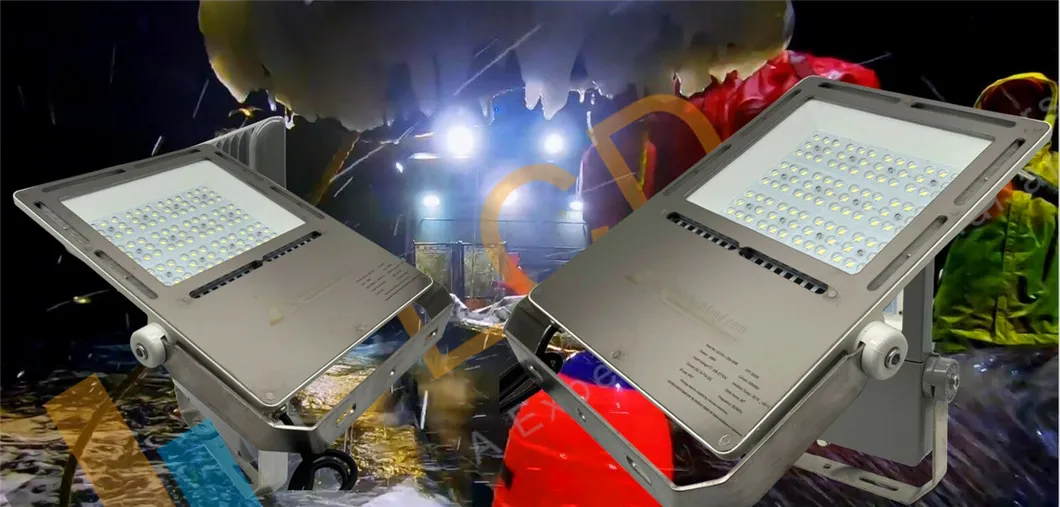

Ideal Applications

Maritime: Fish processing, Crabbing boats, Seiners, Trawlers, and Deck lighting.
Industrial: Oil & Gas plants, Chemical facilities, and Mining operations.
Infrastructure: Ports, Airports, Bridges, and Stadiums.
Security: Commercial and residential wide area lighting.

Technical Data

Parameter	Specifications (100W Example)	Parameter	Details
Luminous Flux	15,000 lm	Halogen Equiv.	600-800W
Color Temp	2700K - 6500K	CRI	> 70 / 80 / 90
Input Voltage	100-305V AC	Power Factor	> 0.95
Beam Angle	15°, 30°, 60°, 90°, 120°	Material	Aluminum Alloy + Glass
Protection	IP67 / IK08	Warranty	5-7 Years

Dimensions & Weights

Item Model	Dimensions (AxBxC MM)	Weight (KG)
FA-085/105/153	389.2 x 296.7 x 57	3.4
FA-205	436.6 x 345.7 x 57	4.8
FA-255	436.6 x 345.7 x 57	7.2
FA-305/353	582 x 385 x 60	7.5

Product Gallery

Customer Questions & Answers

Are you a trading company or factory?

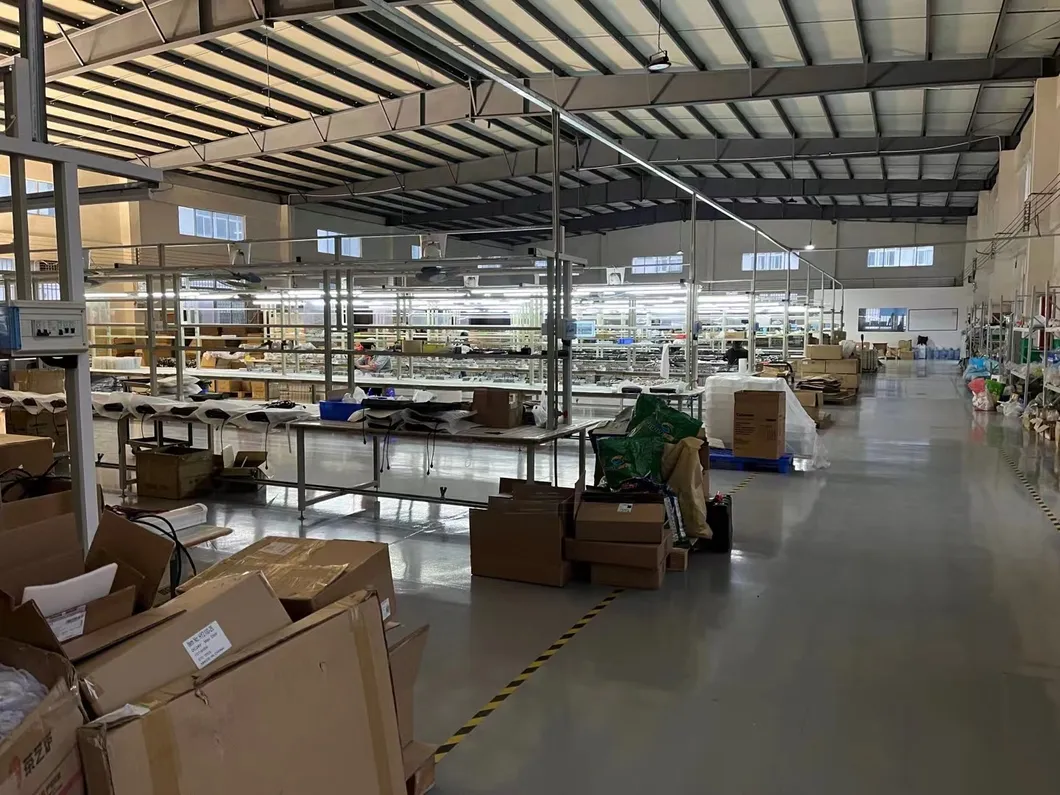

We are a factory established in 2010. We have been operating under ISO9001 quality standards since 2012 and are a TUV audited manufacturer.

How are shipping costs for LED lights calculated?

Shipping charges are calculated based on the specific products ordered to keep costs as low as possible. We provide worldwide shipping.

What are the order and payment terms?

We offer FOB, EXW, CFR, and CIF terms. Payments are accepted via T/T, Western Union, and L/C. Delivery takes 3-5 days for samples and 7-15 days for bulk orders.

How is the quality of the LED lights ensured?

All goods undergo 100% inspection before shipping. We perform at least 5 tests: raw material test, sample test, waterproof test, functional test, and burn-in test.

Do you offer free samples?

Samples are not free; however, the sample price is the same as the bulk order unit price.

What is the response time for inquiries?

We respond to every professional inquiry within 24 hours.
